Sony SRS-D313 User manual

Sony Corporation
Personal Audio Company
Published by Sony Engineering Corporation
9-873-230-05
2002K1600-1
© 2002.11
SRS-D313
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Tourist Model
SERVICE MANUAL
ACTIVE SPEAKER SYSTEM
SPECIFICATIONS
Ver 1.4 2002. 11
Front speakers
Speaker system Full range, magnetically shielded
Speaker units 3.9 cm, cone type
Enclosure type Bass reflex
Rated impedance 8Ω
Power handling capacity 5 watts
Maximum input power 10 watts
Sensitivity level 80 dB (1 W, 1 m)
Dimensions (w/h/d) 72 ×179 ×108 mm
Mass 265 g (Lch), 220 g (Rch)
Cord length 2 m
Input impedance 4.7 kΩ(at 1 kHz)
Input LINE IN 1, 2
Output PHONES
Subwoofer
Speaker system Active subwoofer, magnetically shielded
Speaker unit 10 cm, cone type
Enclosure type Bass reflex
Rated impedance 8Ω
Sensitivity level 83 db (1 W, 1 m)
Dimensions (w/h/d) 214 ×254 ×290 mm
Mass 3,300 g
Amplifier section
Rated output:
Woofer section 20 W
Mid and high range section 5 W + 5 W
Total 30 W 10 % T.H.D., 8
General
Power consumptions 30 W
Cord length 2 m (adaptor cable)
Supplied accessories
Audio connecting cord (1)
Design and specifications are subject to change without notice.

2
SRS-D313
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of aVOM
or battery-operatedAC voltmeter. The “limit” indication is 0.75
V, so analog meters must have an accurate low-voltage scale.
The Simpson 250 and Sanwa SH-63Trd are examples of a
passive VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2 VAC range are suitable. (See Fig. A)
To Exposed Metal
Parts on Set
0.15 µF1.5 kΩ
AC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Ver 1.2 2001.12

3
SRS-D313
SECTION 1
GENERAL
This section is extracted from
instruction manual.
C
BFront (Right)/Avant (droite)
Vorne (rechts)/Parte frontal (derecha)
Subwoofer
Caisson de grave
Tiefsttonlautsprecher
Potenciación de graves
Front (Right)/Avant (droite)
Vorne (rechts)/Parte frontal (derecha)
Front (Left)/Avant (gauche)
Vorne (links)/Parte frontal (izquierda)
A
POWER
(OPERATE for European model)
(OPERATE pour le modèle européen)
(OPERATE beim Modell für Europa)
(OPERATE para el modelo europeo)
BASS
VOLUME
INPUT
Note PC
PC Note
Notebook-PC
Portátil
Attach the reflectors (no distinction between right and left) to the speakers as shown
Fixez les réflecteurs (pas de distinction entre le réflecteur gauche et le droit) sur les enceintes comme indiqué ci-dessous.
Bringen Sie die Reflektoren (kein Unterschied zwischen rechts und links) wie abgebildet an den Lautsprechern an.
Conecte los reflectores (no hay distinción entre derecho e izquierdo) a los altavoces, tal como se muestra .
PHONES
Front (Left)/Avant (gauche)
Vorne (links)/Parte frontal (izquierda)
PC/Ordinateur
PC/PC
CD Walkman
Walkman CD
CD-Walkman
CD Walkman
to 8 pin Din jack
vers la prise Din à 8 broches
an 8 polige DIN-Buchse
a conector DIN de 8 patillas
to Mono Mini Jack
vers la mini prise mono
an Mono-Ministecker
a minienchufe mono to wall outlet
vers la prise murale
an eine Netzsteckdose
a la toma de corriente
POWER
ON OFF
MIN MAX
MIN MAX
12
VOLUME
BASS
INPUT
PHONES
L
*
* This switch is only for
European models.
Cet interrupteur ne concerne
que les modèles européens.
Dieser Schalter ist nur für
Modelle für Europa.
Este interruptor sólo está
destinado a los modelos
europeos.
D
Subwoofer
Caisson de grave
Tiefsttonlautsprecher
Potenciación de graves
Hooking up the system
1 Attach the reflector to the speakers. (See fig. A.)
2 (See fig. Bfor steps 2 through 4.)
Connect the left speaker cord 8 pin plug to the rear
panel jack with their respective arrows aligned.
3 Connect the subwoofer to the wall outlet.
4 Connect the CD walkman, PC, etc., to the INPUT
jack on the left speaker.
5 Position the speakers. (See fig. C.)
Listening to the sound (see fig.D)
First, turn down the volume on the left speaker. The volume
should be set to minimum before you begin playing the
programme source.
1 Press POWER on the left speaker.
The POWER indicator lights up green.
For the European models
Press POWER on the subwoofer to turn it on, and then
press OPERATE on the left speaker.
The OPERATE indicator lights up green.
The main power source of the system is provided by the
subwoofer. When the power of the subwoofer is turned off,
the system does not operate, even if OPERATE is pressed.
2 Rotate INPUT to select 1/2.
You can enjoy the mixed sound from INPUT 1 and 2.
3 Play the programme source.
To adjust the volume
Rotate VOLUME.
To adjust the subwoofer
Rotate BASS to adjust the bass volume.
Set the volume level to best suit your preference according to the
programme source.
Using the headphones/earphones
Connect the headphones/earphones to the PHONES jack.
Notes
•To enjoy high-quality sound, do not turn the BASS
volume too high.
•When using the headphones, you cannot adjust the bass
volume.
Troubleshooting
Should you encounter a problem with your speaker system, check
the following list and take the indicated measures. If the problem
persists, consult your nearest Sony dealer.
There is no sound from the speaker system.
• Make sure all the connections have been correctly made.
• Make sure the volume on the left speaker and the connected
component have been turned up properly.
• Check if headphones are connected. If they are, disconnect them.
There is distortion in the subwoofer sound output.
• Turn down the volume level on the connected component. Or,
if the connected component has the bass boost function, set it to
off.
• Rotate BASS on this unit to reduce the bass volume.
There is hum or noise in the speaker output.
• Make sure all the connections have been correctly made.
• Make sure none of the audio components are positioned too
close to the TV set.
The sound has suddenly stopped.
Make sure all the connections have been correctly made.

4
SRS-D313 SECTION 2
DIAGRAMS
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•C: panel designation.
•A: B+ Line.
•B: B– Line.
•H: adjustment for repair.
•Power voltage is dc 9V and fed with regulated dc power
supply from battery terminal.
•Voltages is dc with respect to ground under no-signal
(detuned) conditions.
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Signal path.
E: AUDIO signal
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•b: Pattern from the side which enables seeing.
Ver 1.2 2001.12
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.

5
SRS-D313
2-1. IC BLOCK DIAGRAMS
1
RIPPLE FILTER/
STARTING TIME
2
IN1
3
PRE GND
4
IN2
5
STANDBY
SIGNAL MUTE 6
VCC1 7
VCC2 8
–OUT2
+OUT2 9
POWER GND1
POWER GND2 10
+OUT1
–OUT1
11
12
13
14
+
–
+
–
INPUT
AMP
INPUT
AMP
OUTPUT
AMP
OUTPUT
AMP
2
+Vs
6
INP-
7
INP+PLAY
5
INP+MUTE
3
MUTE/
ST-BY
+
–
125 A
THERMAL
SHUTDOWN
+
–
2.7v
M/P
+
–
1.8v
S/M
+
–
1v
A
Q2
Q1
LATCH
RESTART
UPPER
SOA
LOWER
SOA
+–
0.65
VCC
+–
0.35
VCC
4
-Vs
1OUT
IC301 LA4663 (AMP BOARD)
IC302 TDA2052V (AMP BOARD)

6
SRS-D313

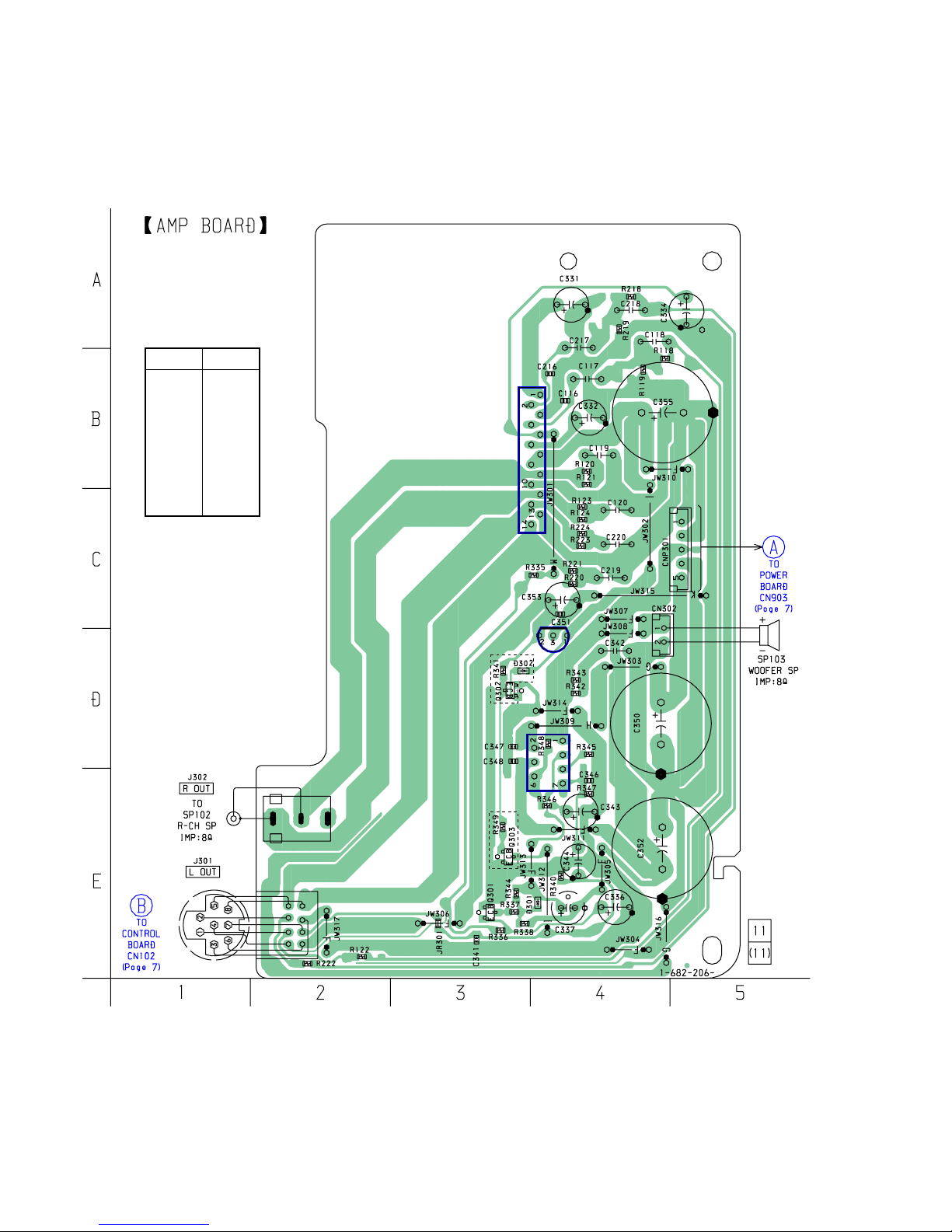

2-2. PRINTED WIRING BOARD – AMP BOARD –
Ref. No. Location
D301 E-4
D302 D-3
IC301 B-4
IC302 D-4
IC303 D-4
Q301 E-3
Q302 D-3
Q303 E-3
• Semiconductor
Location
IC302
IC301
IC303
AEP,UK,AUS
AEP,UK,AUS
Ver 1.4 2002.11

77
SRS-D313
CNP901
CN902
POWER
AEP,UK,AUS
AEP,UK,AUS
EXCEPT
C901
POWER SWITCH BOARD
AEP,UK,AUS

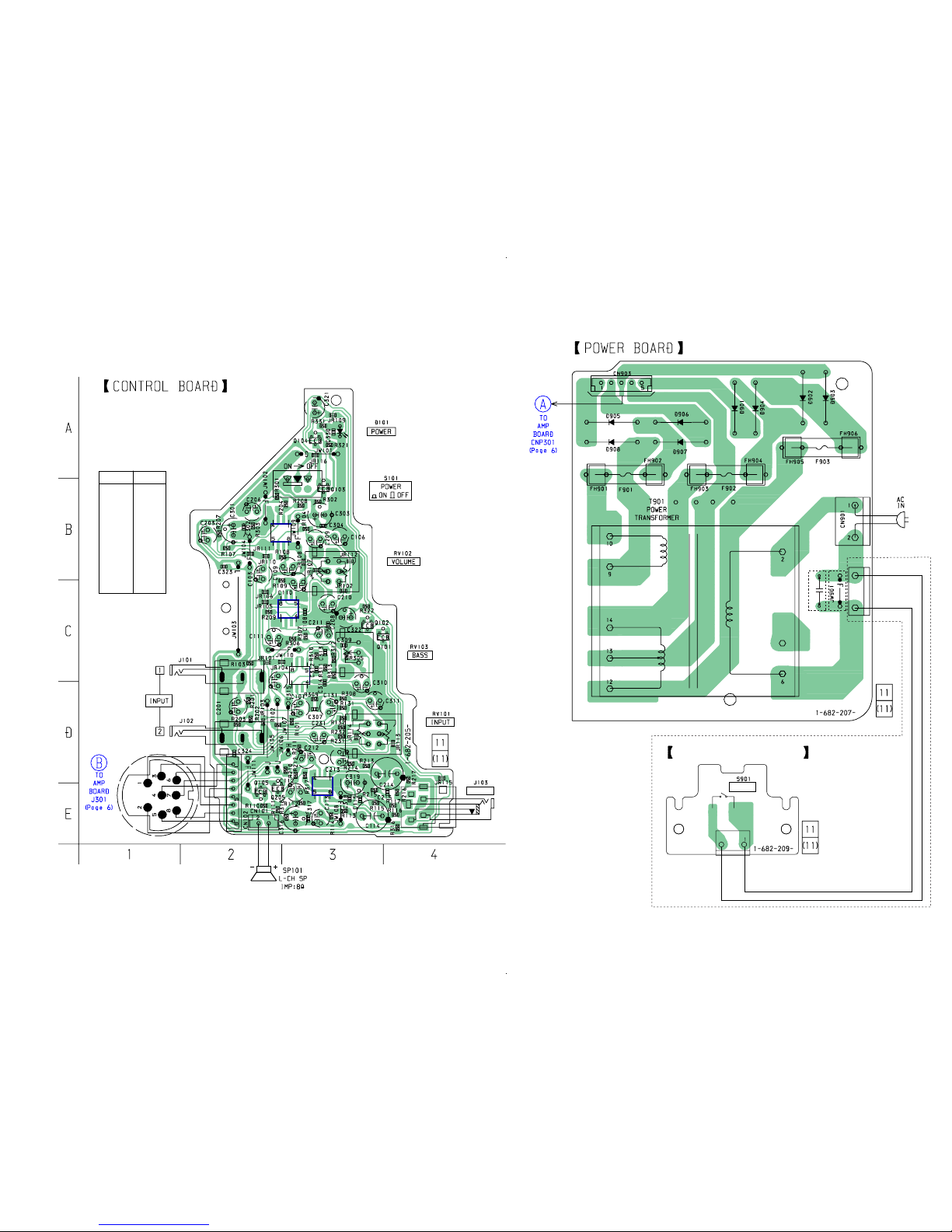

2-3. PRINTED WIRING BOARD – CONTROL BOARD, POWER BOARD –
IC101
IC102
IC103
IC104
PHONES
Ref. No. Location
D101 A-3
IC101 B-2
IC102 C-3
IC103 C-3
IC104 E-3
Q101 C-4
Q102 C-3
Q103 B-3
Q104 A-3
Q105 E-2
Q205 E-2
• Semiconductor
Location
Ver 1.4 2002.11

88
SRS-D313

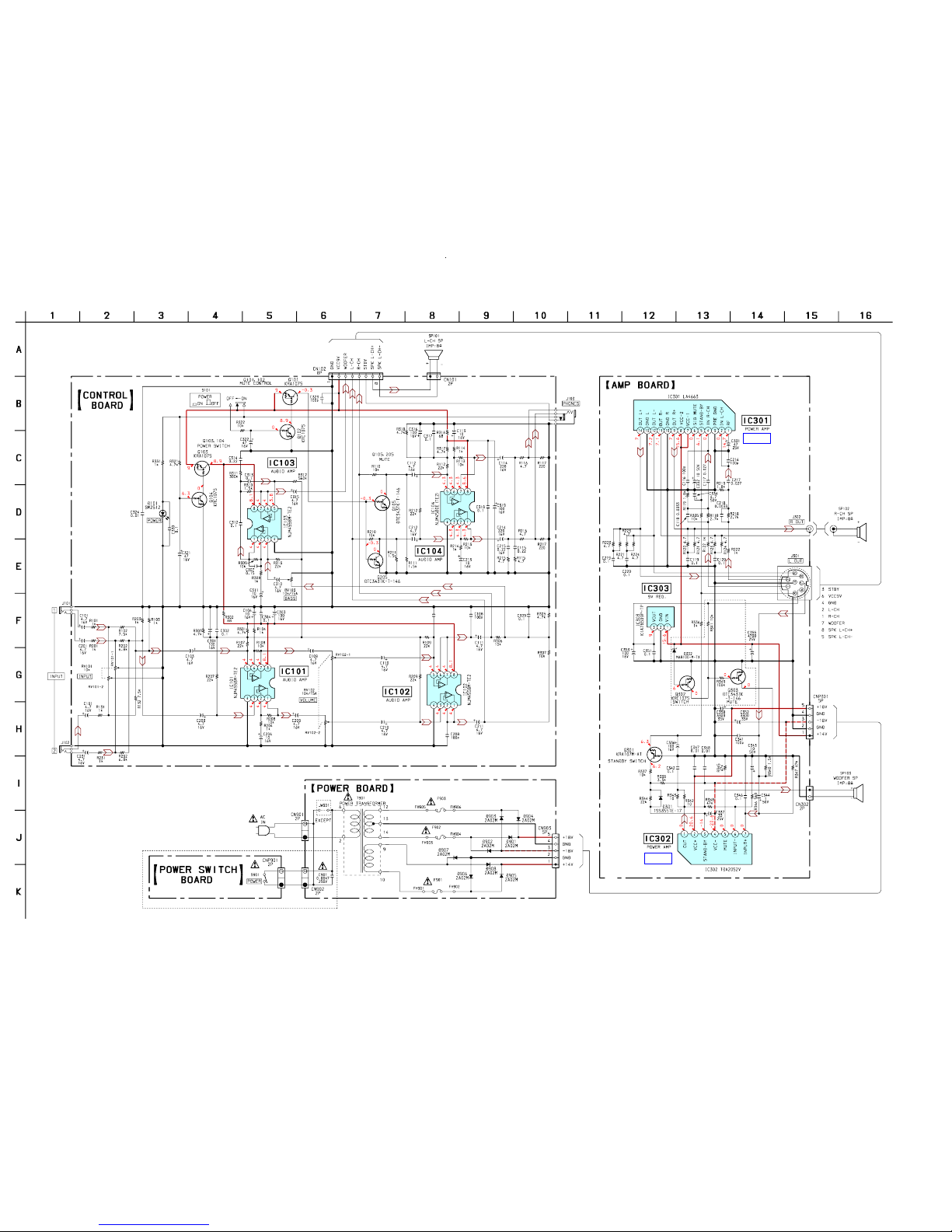

2-4. SCHEMATIC DIAGRA – ALL SECTION – • See page 5 for IC Block Diagrams.
Ver 1.4 2002.11
AEP, UK,
AEP, UK, AUS
AUS
*F901
T3.15AL/250V : AEP, UK, JE1, SP, AUS
3.15A/125V : US, CND, E, JE2
*
*
*
*F902, F903
T1.25AL/250V : AEP, UK, JE1, SP, AUS
1.25A/125V : US, CND, E, JE2
IC B/D
IC B/D
AEP, UK, AUS

9
SRS-D313

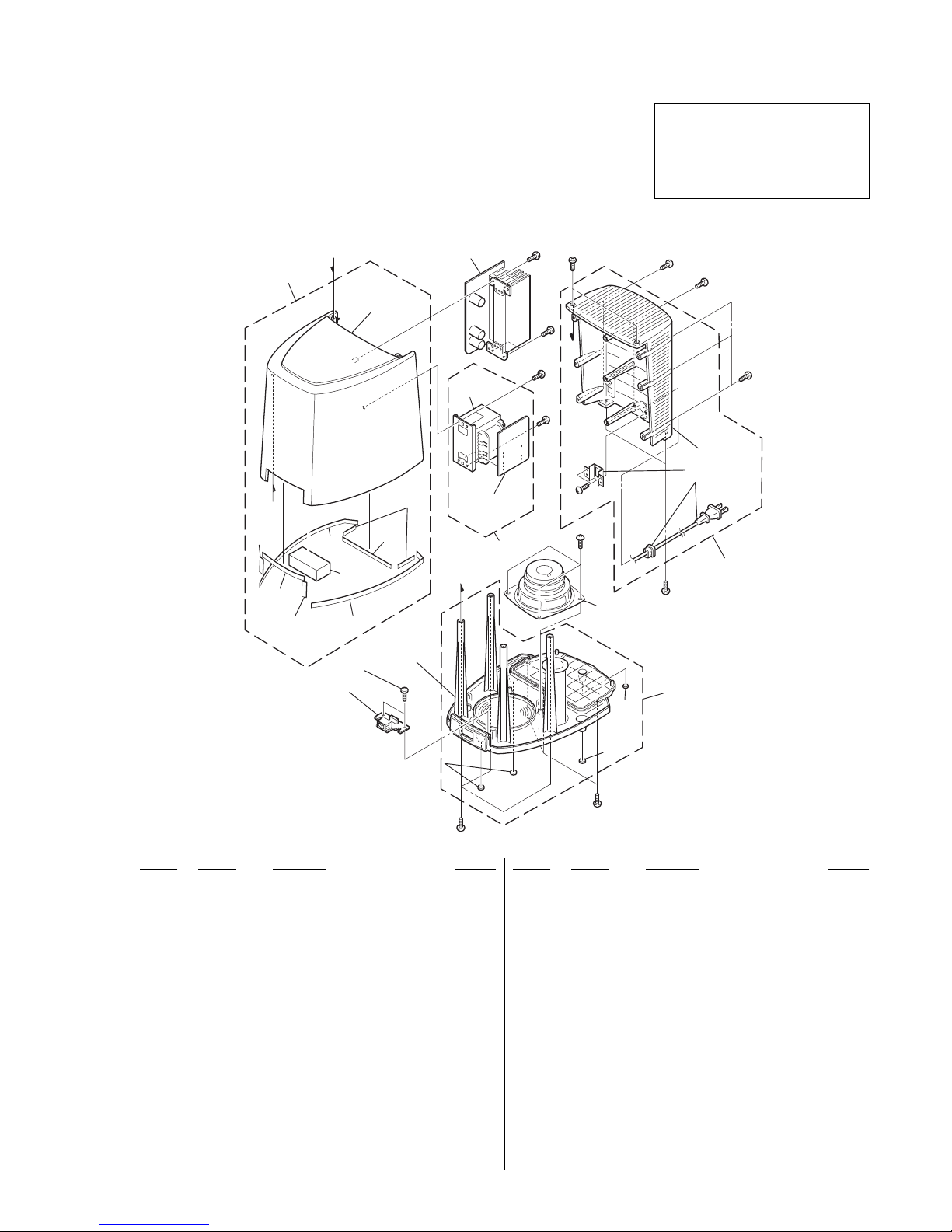

SECTION 3
EXPLODED VIEWS
NOTE:
•Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
•The mechanical parts with no reference number
in the exploded views are not supplied.
•Accessories and packing materials are given in
the last of this parts list.
•Abbreviation
CND : Canadian model.
JE1 : 220V AC Area in Tourist model.
JE2 : 120V AC Area in Tourist model.
SP : Singapole model.
AUS:Australian model.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1X-3381-088-1 CABINET (UPPER) ASSY (US,CND)
1X-3381-278-1 CABINET (UPPER) ASSY (E,JE1,JE2,SP)
1X-3381-974-1 CABINET (UPPER) ASSY (AEP,UK,AUS)
∗2A-3052-742-A AMP BOARD, COMPLETE (US,CND,E,JE2)
∗2A-3170-333-A AMP BOARD, COMPLETE (AEP,UK,AUS)
∗2A-3170-342-A AMP BOARD, COMPLETE (JE1,SP)
∗3A-3052-743-A POWER BOARD, COMPLETE (US,CND)
∗3A-3170-334-A POWER BOARD, COMPLETE
(AEP,UK,JE1,SP,AUS)
∗3A-3170-563-A POWER BOARD, COMPLETE (E,JE2)
05X-3381-090-1 PANEL ASSY, REAR (US,CND)
05X-3381-976-1 PANEL ASSY, REAR (AEP,UK,JE1,SP)
05X-3382-065-1 PANEL ASSY, REAR (E,JE2)
05X-3382-883-1 PANEL ASSY, REAR (AUS)
9X-3381-089-1 BASE ASSY (WOOFER) (US,CND)
9X-3381-279-1 BASE ASSY (WOOFER) (E,JE1,JE2,SP)
9X-3381-975-1 BASE ASSY (WOOFER) (AEP,UK,AUS)
10 4-984-729-01 FOOT, RUBBER
11 3-232-664-01 FOOT, RUBBER
12 3-840-486-12 CUSHION, SPEAKER
13 3-235-070-01 CUSHION (D)
14 3-233-814-01 CUSHION (A), WOOFER
15 3-228-887-01 ABSORBENT, ACOUSTIC
16 3-233-815-01 CUSHION (B), WOOFER
17 3-233-816-01 CUSHION (C), WOOFER
18 1-682-209-11 POWER SWITCH BOARD (AEP, UK,AUS)
0T901 1-437-437-11 TRANSFORMER, POWER (US,CND,E,JE2)
0T901 1-437-438-11 TRANSFORMER, POWER (AEP,UK,JE1,SP,AUS)
SP103 1-544-896-11 SPEAKER (100W101)
#1 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 SLIT
#3 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
#7 7-685-647-79 SCREW +BVTP 3X10 TYPE2 SLIT (AEP,UK,AUS)
3-1. AMP SECTION
Ver 1.4 2002.11
The components identified by mark 0or
dotted line with mark 0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
T901
SP103
not
supplied
not
supplied
not
supplied
not
supplied
#2
#2
#3
#2
#2
#2
#2
#2
#1
#2
#2
#2
#2
5
11
18
#7
15
17
1
16
14
13
12
12 14
11
10
a
a
b
b
9
3
2

10
SRS-D313
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
3-2. SPEAKER SECTION
51 4-984-729-01 FOOT, RUBBER
52 X-3381-091-1 BASE (L) ASSY (SATELLITE)
53 3-232-658-01 KNOB
54 3-232-657-01 BUTTON, POWER
55 1-823-120-11 CORD CONNECTION 1P
56 3-235-434-01 CUSHION (E) (WOOFER)
57 X-3381-093-1 CABINET (L) ASSY, FRONT
(EXCEPT AEP,UK,AUS)
57 X-3381-977-1 CABINET (L) ASSY, FRONT (AEP,UK,AUS)
∗58 A-3062-598-A CONTROL BOARD, COMPLETE
(EXCEPT AEP,UK,AUS)
∗58 A-3323-727-A CONTROL BOARD, COMPLETE (AEP,UK,AUS)
59 1-823-119-11 DIN CABLE 8P
∗60 3-233-819-01 BRACKET (PWB)
61 3-232-655-01 CABINET (L), REAR
62 X-3381-245-1 REFLECTOR SUB ASSY
63 3-840-486-12 CUSHION (SP)
64 3-232-663-01 CABINET (R), REAR
65 3-233-816-01 CUSHION (C), WOOFER
66 X-3381-094-1 CABINET (R) ASSY, FRONT
67 X-3381-092-1 BASE (SATELLITE) (R) ASSY
68 3-384-102-01 CUSHION (LCD)
SP101 1-544-897-11 SPEAKER (039F006)
SP102 1-544-897-11 SPEAKER (039F006)
#4 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT
#5 7-685-133-19 SCREW +P 2.6X6 TYPE2
#6 7-685-791-09 SCREW +PTT 2.6X5 (S)
SP101
51
#4
#5
#6
#4
#4
#4
#4
#5
#5
#5
#5
61
not
supplied
52
53
54
65
56
56
51
57
60
not
supplied
58 59
51
#4
64
55
not
supplied
51
not
supplied
not
supplied
not
supplied
65
56
56
66
67
not
supplied
not
supplied
SP102
63
68
62
62
Ver 1.4 2002.11

11
SRS-D313
SECTION 4
ELECTRICAL PARTS LIST
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•CAPACITORS:
uF: µF
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
•Abbreviation
CND : Canadian model.
JE1 : 220V AC Area in Tourist model.
JE2 : 120V AC Area in Tourist model.
SP : Singapole model.
AUS:Australian model.
When indicating parts by reference number,
please include the board name.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
*A-3052-742-A AMP BOARD, COMPLETE (US,CND,E,JE2)
A-3170-333-A AMP BOARD, COMPLETE (AEP,UK,AUS)
A-3170-342-A AMP BOARD, COMPLETE (JE1,SP)
********************
3-234-208-01 SHEET, INSULATING
7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
7-685-647-79 SCREW +BVTP 3X10 TYPE2 SLIT
< CAPACITOR >
C116 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C117 1-130-488-00 MYLAR 0.027uF 5% 50V
C118 1-130-477-00 MYLAR 0.0033uF 5% 50V
C119 1-130-495-00 MYLAR 0.1uF 5% 50V
C120 1-130-495-00 MYLAR 0.1uF 5% 50V
C216 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C217 1-130-488-00 MYLAR 0.027uF 5% 50V
C218 1-130-477-00 MYLAR 0.0033uF 5% 50V
C219 1-130-495-00 MYLAR 0.1uF 5% 50V
C220 1-130-495-00 MYLAR 0.1uF 5% 50V
C331 1-126-947-11 ELECT 47uF 20.00% 25V
C332 1-126-964-11 ELECT 10uF 20.00% 50V
C334 1-126-963-11 ELECT 4.7uF 20.00% 50V
C336 1-104-665-11 ELECT 100uF 20.00% 16V
C337 1-124-242-00 ELECT 33uF 20% 25V
C341 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C342 1-130-495-00 MYLAR 0.1uF 5% 50V
C343 1-126-964-11 ELECT 10uF 20.00% 50V
C344 1-126-960-11 ELECT 1uF 20.00% 50V
C346 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C347 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C348 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C350 1-128-549-11 ELECT 3300uF 20.00% 35V
C351 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C352 1-128-549-11 ELECT 3300uF 20.00% 35V
C353 1-104-665-11 ELECT 100uF 20.00% 16V
C355 1-128-548-11 ELECT 4700uF 20.00% 25V
< CONNECTOR >
CN302 1-566-690-11 PLUG, CONNECTOR (2.5mm) 2P
< DIODE >
D301 8-719-988-61 DIODE 1SS355TE-17
D302 8-719-423-10 DIODE MA8100-M-TX (AEP,UK,AUS)
< IC >
IC301 8-759-538-94 IC LA4663
IC302 8-759-549-76 IC TDA2052V
IC303 6-700-776-01 IC KIA78S09P-TP
< JACK >
J301 1-417-224-11 DIN SOCKET (8P) (L OUT)
J302 1-566-822-21 JACK (R OUT)
< CONDUCTOR >
JR301 1-216-864-11 CONDUCTOR
< TRANSISTOR >
Q301 8-729-038-58 TRANSISTOR KRA107S
Q302 8-729-038-71 TRANSISTOR KRC107S (AEP,UK,AUS)
Q303 8-729-920-31 TRANSISTOR DTC343TK-T-146
(AEP,UK,AUS)
< RESISTOR >
R118 1-216-826-11 METAL CHIP 2.7K 5% 1/16W
R119 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R120 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R121 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R122 1-216-821-11 METAL CHIP 1K 5% 1/16W
R123 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R124 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R218 1-216-826-11 METAL CHIP 2.7K 5% 1/16W
R219 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R220 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R221 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R222 1-216-821-11 METAL CHIP 1K 5% 1/16W
R223 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R224 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R335 1-216-833-11 METAL CHIP 10K 5% 1/16W
R336 1-216-821-11 METAL CHIP 1K 5% 1/16W
R337 1-216-833-11 METAL CHIP 10K 5% 1/16W
R338 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R340 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R341 1-216-833-11 METAL CHIP 10K 5% 1/16W
(AEP,UK,AUS)
R342 1-216-001-00 METAL CHIP 10 5% 1/10W
R343 1-216-001-00 METAL CHIP 10 5% 1/10W
R344 1-216-837-11 METAL CHIP 22K 5% 1/16W
R345 1-216-841-11 METAL CHIP 47K 5% 1/16W
R346 1-216-818-11 METAL CHIP 560 5% 1/16W
R347 1-216-841-11 METAL CHIP 47K 5% 1/16W
R348 1-216-841-11 METAL CHIP 47K 5% 1/16W
R349 1-216-845-11 METAL CHIP 100K 5% 1/16W
(AEP,UK,AUS)
< SPEAKER >
SP102 1-544-897-11 SPEAKER (039F006) (R-CH SP)
SP103 1-544-896-11 SPEAKER (100W101) (WOOFER SP)
**************************************************************
AMP
The components identified by mark 0or
dotted line with mark 0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Ver 1.4 2002.11
•COILS
uH: µH

12
SRS-D313
*A-3062-598-A CONTROL BOARD, COMPLETE
(EXCEPT AEP,UK)
*A-3323-727-A CONTROL BOARD, COMPLETE (AEP,UK,AUS)
*************************
< CAPACITOR >
C101 1-124-259-11 ELECT 4.7uF 20.00% 16V
C103 1-124-259-11 ELECT 4.7uF 20.00% 16V
C106 1-124-233-11 ELECT 10uF 20.00% 16V
C108 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C109 1-124-259-11 ELECT 4.7uF 20.00% 16V
C110 1-124-259-11 ELECT 4.7uF 20.00% 16V
C111 1-124-259-11 ELECT 4.7uF 20.00% 16V
C112 1-124-259-11 ELECT 4.7uF 20.00% 16V
C113 1-124-233-11 ELECT 10uF 20.00% 16V
C114 1-104-666-11 ELECT 220uF 20.00% 16V
C115 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C131 1-124-259-11 ELECT 4.7uF 20.00% 16V
C201 1-124-259-11 ELECT 4.7uF 20.00% 16V
C203 1-124-259-11 ELECT 4.7uF 20.00% 16V
C206 1-124-233-11 ELECT 10uF 20.00% 16V
C208 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C209 1-124-259-11 ELECT 4.7uF 20.00% 16V
C210 1-124-259-11 ELECT 4.7uF 20.00% 16V
C211 1-124-259-11 ELECT 4.7uF 20.00% 16V
C212 1-124-259-11 ELECT 4.7uF 20.00% 16V
C213 1-124-233-11 ELECT 10uF 20.00% 16V
C214 1-104-666-11 ELECT 220uF 20.00% 16V
C215 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C231 1-124-259-11 ELECT 4.7uF 20.00% 16V
C301 1-126-382-11 ELECT 100uF 20.00% 16V
C302 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C303 1-126-382-11 ELECT 100uF 20.00% 16V
C304 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C307 1-131-664-11 CERAMIC CHIP 0.15uF 10% 10V
C309 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C310 1-124-259-11 ELECT 4.7uF 20.00% 16V
C311 1-124-233-11 ELECT 10uF 20.00% 16V
C312 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C313 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C314 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C315 1-124-259-11 ELECT 4.7uF 20.00% 16V
C316 1-126-382-11 ELECT 100uF 20.00% 16V
C317 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C318 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C319 1-126-382-11 ELECT 100uF 20.00% 16V
C321 1-124-589-11 ELECT 47uF 20% 16V
C322 1-124-589-11 ELECT 47uF 20% 16V
C323 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C324 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C330 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
< CONNECTOR >
CN101 1-566-690-11 PLUG, CONNECTOR (2.5mm) 2P
CN102 1-815-934-11 PIN, CONNECTOR 8P
< DIODE >
D101 8-719-066-58 LED SM2512 (POWER)
< IC >
IC101 8-759-100-96 IC NJM4558M-TE2
IC102 8-759-100-96 IC NJM4558M-TE2
IC103 8-759-100-96 IC NJM4558M-TE2
IC104 8-759-385-17 IC NJM4580E(TE2)
< JACK >
J101 1-566-822-21 JACK (INPUT 1)
J102 1-566-822-21 JACK (INPUT 2)
J103 1-815-629-11 JACK (PHONES)
< JUMPER RESISTOR >
JR101 1-216-864-11 METAL CHIP 0 5% 1/16W
JR102 1-216-864-11 METAL CHIP 0 5% 1/16W
JR103 1-216-864-11 METAL CHIP 0 5% 1/16W
JR104 1-216-864-11 METAL CHIP 0 5% 1/16W
JR105 1-216-864-11 METAL CHIP 0 5% 1/16W
JR106 1-216-864-11 METAL CHIP 0 5% 1/16W
JR107 1-216-864-11 METAL CHIP 0 5% 1/16W
JR108 1-216-864-11 METAL CHIP 0 5% 1/16W
JR109 1-216-864-11 METAL CHIP 0 5% 1/16W
JR110 1-216-864-11 METAL CHIP 0 5% 1/16W
JR111 1-216-864-11 METAL CHIP 0 5% 1/16W
JR112 1-216-864-11 METAL CHIP 0 5% 1/16W
JR113 1-216-864-11 METAL CHIP 0 5% 1/16W
JR114 1-216-864-11 METAL CHIP 0 5% 1/16W
JR115 1-216-864-11 METAL CHIP 0 5% 1/16W
JR116 1-216-864-11 METAL CHIP 0 5% 1/16W
< TRANSISTOR >
Q101 8-729-038-58 TRANSISTOR KRA107S
Q102 8-729-038-71 TRANSISTOR KRC107S
Q103 8-729-038-58 TRANSISTOR KRA107S
Q104 8-729-038-71 TRANSISTOR KRC107S
Q105 8-729-920-31 TRANSISTOR DTC343TK-T-146
Q205 8-729-920-31 TRANSISTOR DTC343TK-T-146
< RESISTOR >
R101 1-216-821-11 METAL CHIP 1K 5% 1/16W
R102 1-218-344-11 METAL CHIP 7.5K 5% 1/16W
R103 1-216-821-11 METAL CHIP 1K 5% 1/16W
R104 1-216-821-11 METAL CHIP 1K 5% 1/16W
R107 1-216-837-11 METAL CHIP 22K 5% 1/16W
R108 1-216-833-11 METAL CHIP 10K 5% 1/16W
R109 1-216-837-11 METAL CHIP 22K 5% 1/16W
R110 1-216-833-11 METAL CHIP 10K 5% 1/16W
R111 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R112 1-216-837-11 METAL CHIP 22K 5% 1/16W
R113 1-216-833-11 METAL CHIP 10K 5% 1/16W
R114 1-216-821-11 METAL CHIP 1K 5% 1/16W
R115 1-216-793-11 RES-CHIP 4.7 5% 1/16W
R116 1-216-793-11 RES-CHIP 4.7 5% 1/16W
R117 1-216-813-11 METAL CHIP 220 5% 1/16W
R131 1-216-821-11 METAL CHIP 1K 5% 1/16W
R132 1-218-334-11 METAL CHIP 7.5K 5% 1/16W
R201 1-216-821-11 METAL CHIP 1K 5% 1/16W
R202 1-216-831-11 METAL CHIP 6.8K 5% 1/16W
R203 1-216-821-11 METAL CHIP 1K 5% 1/16W
R204 1-216-821-11 METAL CHIP 1K 5% 1/16W
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
CONTROL
Ver 1.4 2002.11

13
SRS-D313
R207 1-216-837-11 METAL CHIP 22K 5% 1/16W
R208 1-216-833-11 METAL CHIP 10K 5% 1/16W
R209 1-216-837-11 METAL CHIP 22K 5% 1/16W
R210 1-216-833-11 METAL CHIP 10K 5% 1/16W
R211 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R212 1-216-837-11 METAL CHIP 22K 5% 1/16W
R213 1-216-833-11 METAL CHIP 10K 5% 1/16W
R214 1-216-821-11 METAL CHIP 1K 5% 1/16W
R215 1-216-793-11 RES-CHIP 4.7 5% 1/16W
R216 1-216-793-11 RES-CHIP 4.7 5% 1/16W
R217 1-216-813-11 METAL CHIP 220 5% 1/16W
R231 1-216-821-11 METAL CHIP 1K 5% 1/16W
R232 1-216-831-11 METAL CHIP 6.8K 5% 1/16W
R301 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R302 1-216-807-11 METAL CHIP 68 5% 1/16W
R303 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R305 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R306 1-216-833-11 METAL CHIP 10K 5% 1/16W
R307 1-216-833-11 METAL CHIP 10K 5% 1/16W
R308 1-216-821-11 METAL CHIP 1K 5% 1/16W
R309 1-216-833-11 METAL CHIP 10K 5% 1/16W
R310 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R311 1-202-928-11 METAL CHIP 300K 5% 1/16W
R312 1-216-854-11 METAL CHIP 560K 5% 1/16W
R313 1-216-837-11 METAL CHIP 22K 5% 1/16W
R316 1-216-807-11 METAL CHIP 68 5% 1/16W
R317 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R318 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R321 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R322 1-216-833-11 METAL CHIP 10K 5% 1/16W
R331 1-216-821-11 METAL CHIP 1K 5% 1/16W
< VAR CARBON >
RV101 1-227-430-11 RES, VAR CARBON (INPUT)
RV102 1-227-429-11 RES, VAR CARBON (VOLUME)
RV103 1-227-431-11 RES, VAR CARBON (BASS)
< SWITCH >
S101 1-786-215-11 SWITCH, PUSH (POWER $ON 4OFF)
< SPEAKER >
SP101 1-544-897-11 SPEAKER (039F006) (L-CH SP)
**************************************************************
*A-3052-743-A POWER BOARD, COMPLETE (US,CND)
*A-3170-334-A POWER BOARD, COMPLETE
(AEP,UK,JE1,SP,AUS)
*A-3170-563-A POWER BOARD, COMPLETE (E,JE2)
***********************
< CONNECTOR >
CN901 1-564-321-00 PIN, CONNECTOR 2P
CN902 1-564-321-21 PIN, CONNECTOR 2P (AEP,UK,AUS)
CN903 1-565-731-11 PLUG, CONNECTOR (2.5mm) 5P
< DIODE >
D901 8-719-046-07 DIODE 2A02M
D902 8-719-046-07 DIODE 2A02M
D903 8-719-046-07 DIODE 2A02M
D904 8-719-046-07 DIODE 2A02M
D905 8-719-046-07 DIODE 2A02M
D906 8-719-046-07 DIODE 2A02M
D907 8-719-046-07 DIODE 2A02M
D908 8-719-046-07 DIODE 2A02M
< FUSE >
0F901 1-533-470-11 FUSE, GLASS TUBE T3.15AL/250V
(AEP,UK,JE1,SP,AUS)
0F901 1-576-375-11 FUSE, GLASS TUBE 3.15A/125V
(US,CND,E,JE2)
0F902 1-533-466-11 FUSE, GLASS TUBE T1.25AL/250V
(AEP,UK,JE1,SP,AUS)
0F902 1-576-478-11 FUSE, GLASS TUBE 2A/125V (US,CND,E,JE2)
0F903 1-533-466-11 FUSE, GLASS TUBE T1.25AL/250V
(AEP,UK,JE1,SP,AUS)
0F903 1-576-478-11 FUSE, GLASS TUBE 2A/125V (US,CND,E,JE2)
< HOLDER >
FH901 1-533-233-11 HOLDER, FUSE
FH902 1-533-233-11 HOLDER, FUSE
FH903 1-533-233-11 HOLDER, FUSE
FH904 1-533-233-11 HOLDER, FUSE
FH905 1-533-233-11 HOLDER, FUSE
FH906 1-533-233-11 HOLDER, FUSE
< TRANSFORMER >
0T901 1-437-437-11 TRANSFORMER, POWER (US,CND,E,JE2)
0T901 1-437-438-11 TRANSFORMER, POWER
(AEP,UK,JE1,SP,AUS)
**************************************************************
1-682-209-11 POWER SWITCH BOARD (AEP,UK,AUS)
********************
< SWITCH>
0S901 1-771-762-11 SWITCH,POWER (POWER) (AEP,UK,AUS)
**************************************************************
MISCELLANEOUS
**************
55 1-823-120-11 CORD CONNECTION 1P
59 1-823-119-11 DIN CABLE 8P
SP101 1-544-897-11 SPEAKER (039F006)
SP102 1-544-897-11 SPEAKER (039F006)
SP103 1-544-896-11 SPEAKER (100W101)
0T901 1-437-437-11 TRANSFORMER, POWER (US,CND,E,JE2)
0T901 1-437-438-11 TRANSFORMER, POWER
(AEP,UK,JE1,SP,AUS)
**************************************************************
ACCESSORIES
************
01-770-019-11 ADAPTOR,CONVERSION PLUG 3P (UK)
1-823-340-11 CORD (WITH CONNECTOR)
3-234-283-11 MANUAL, INSTRUCTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
CONTROL POWER
Ver 1.4 2002.11
POWER SWITCH
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.

SRS-D313
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2001.07 New
1.1 2001.10 Correction of exploded views (ENG-01022)
1.2 2001.12 Canadian model addition (SPM-01050)
1.3 2002.02 AEP,UK,E,Singapole and Tourist models addition (ENG-02002)
1.4 2002.11 Australian model addition
