Precautions
•The unit is designed for use in ambient temperature range
of 0°C to 50°C (32°F to 122°F).
•Do not place the unit on or near heat sources, such as
lighting equipment, power amplifiers, or in a place subject
to direct sunlight or excessive moisture. In such places,
the external finish or internal parts of the unit may be
damaged.
•If the unit is used in a very humid or dusty place or in a
place subject to an active gas, clean its surface as well as
the connectors with a dry, soft cloth soon after use.
Lengthy use of the unit in such places or not cleaning it
after its use in such places may shorten its life.
•When cleaning the unit, never use organic solvents such
as thinners or benzine, which will damage the finish of the
unit.
•The unit has been factory adjusted precisely. Do not
tamper with its internal parts or attempt to repair it.

2
GB
Overview
The WRT-822A is a transmitter for an 800 MHz band UHF
synthesized wireless microphone system to be used for
general purpose.
The other system components include the WRT-800A/
810A/830A/867A UHF Synthesized Wireless Microphone,
the WRT-822A/860A UHF Synthesized Transmitter, the
AN-820A UHF Antenna, the WD-820A UHF Antenna
Divider, the WRR-805A/ 810A UHF Synthesized Tuner, the
WRR-800A/ 801A/ 820A/840A/850A/855A/860A UHF
Synthesized Diversity Tuner.
Transmitting Channel Band
The microphone/transmitter and tuners of the wireless
microphone system are classified by frequency band.
A 14-MHz frequency band (or two consecutive-numbered
TV channels, such as 62 and 63 of the WRT-822A/CE62
model) or an 8-MHz frequency band (or TV channel 69 and
UK General Use) is assigned to each microphone/transmitter
and tuner model.
In building a UHF wireless microphone system, be sure to
combine a microphone/transmitter and a tuner having the
same TV channel number.
CE62 model
A 14-MHz frequency band is assigned to the WRT-822A/
CE62 model, permitting it to operate on any of 111 carrier
frequencies in 125-kHz steps of Sony original channel plan
or 561 carrier frequencies in 25-kHz steps of German User
Groups in the range of TV channels 62 and 63.
For the selectable channels, see the following pages:
“Sony Original Channel Groups” (62ch Model) on page L-3.
“German User Group-3” (62ch Model) on page L-6.
“German User Group-4” (62ch Model) on page L-7.
“German User Groups” on page L-8.
CE69 model
An 8-MHz frequency band is assigned to the WRT-822A/
CE69 model, permitting it to operate on any of 64 carrier
frequencies in 125-kHz steps of Sony original channel plan
or 14 carrier frequencies in 25-kHz steps of UK General
Use.
For the selectable channels, see the following pages:
“Sony Original Channel Groups” (69ch Model) on page
L-13.
“UK General Use Groups” on page L-14.

3
GB
Features
Phase Locked Loop (PLL) synthesized system
The WRT-822A has a refined phase locked loop (PLL)
synthesizer circuit.
Preprogrammed wireless channel plans for simultaneous
multi channel operation
The WRT-822A has many preprogrammed channel groups,
meaning combination of wireless channels to permit
simultaneous operation of multiple channels without
intermodulation.
Any available group and channel can be selected with a
simple button operation.
Compact and lightweight
Innovative high-density mounting technology and
magnesium case have enabled the creation of this compact
and lightweight transmitter, which lets you move anywhere
for Electronic News Gathering (ENG) and Electronic Field
Production (EFP).
Remote battery alarm on tuner
This transmitter has capability of transmitting “Battery
status information” to the WRR-800A/801A/805A/850A to
give advance warning of battery depletion.
The information is sent to the WRR-800A/801A/805A/
850A in approx. one hour advance to battery exhaust so that
they can safely replace batteries of the transmitter.
When the WRR-800A/801A/805A/850A receives the
information, the LED and the LCD on the panel start
flashing.
Operation powered by easily available batteries
The built-in high efficiency DC-DC converter allows stable
operation, for about 8 hours continuously, with two LR6
(size AA) alkaline batteries.
LCD for coordinated operation control
The built-in CPU controls operation of the unit, including
the PLL circuit function. The LCD shows the current
channel number/frequency, the residual battery power, input
attenuation setting, AF input level and RF output.
An accumulated operation time indication is also provided for
simple control of the time of battery use (in one-minute
increments).
Saved channel and input attenuation settings
The unit stores the channel and the input attenuation setting
when it is turned off. The saved settings are retained even if
the batteries are removed. Therefore, when using the unit
next time, you need not make the same settings again.
Highly reliable electronic attenuator
The built-in input level attenuator is adjustable in a range of
0 to 21 dB in 3-dB steps. It reduces signal distortion when
an excessively strong audio signal is inputted.

4
GB

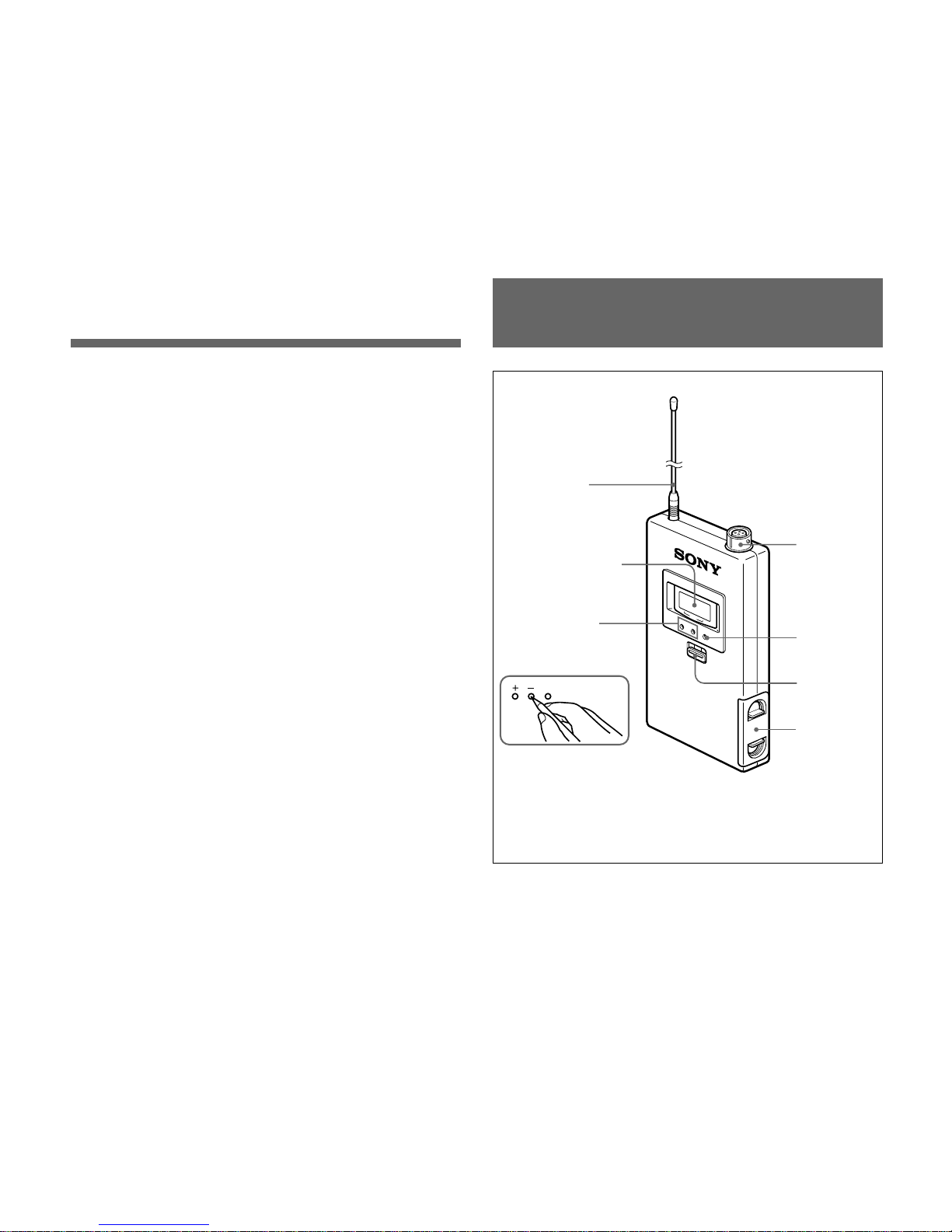

BATT
–
+
SET
OFF
ON
AFRF
CH
4SET
button
5POWER
switch
Battery
holder
Wire antenna
3Audio
input
connector
2+/– buttons
1Display section
SET
Use a ballpoint pen or
similar instruments
to press +/– , SET
buttons.
Overview
Compatibility with Sony lavalier microphone
The transmitter is compatible with Sony lavalier
microphones, including the ECM-77BC.
RF carrier with tone signal
The unit transmits the RF carrier accompanied by a tone
signal, enabling the tuner with a tone squelch circuit to take
out only the target audio signal received.
Wide dynamic range and low noise
The compander (compressor/expander) system enables
transmission over a wide dynamic range with minimum
noise.
Parts Identification

5
GB
1Display section
AAF (audio input) indication
Lights when an audio signal over the reference level is being
supplied.
BRF (antenna output) indication
Lights when a signal is being transmitted from the antenna.
CBATT (battery) indication
Displays the status of the batteries.
See “Battery indication” on page 7.
DCH (channel) indication
Displays the transmission channel.
Each time you press the SET button in normal Transmit
mode, the channel indication changes to the frequency, input
attenuation and accumulated time indications as shown in
the right column.

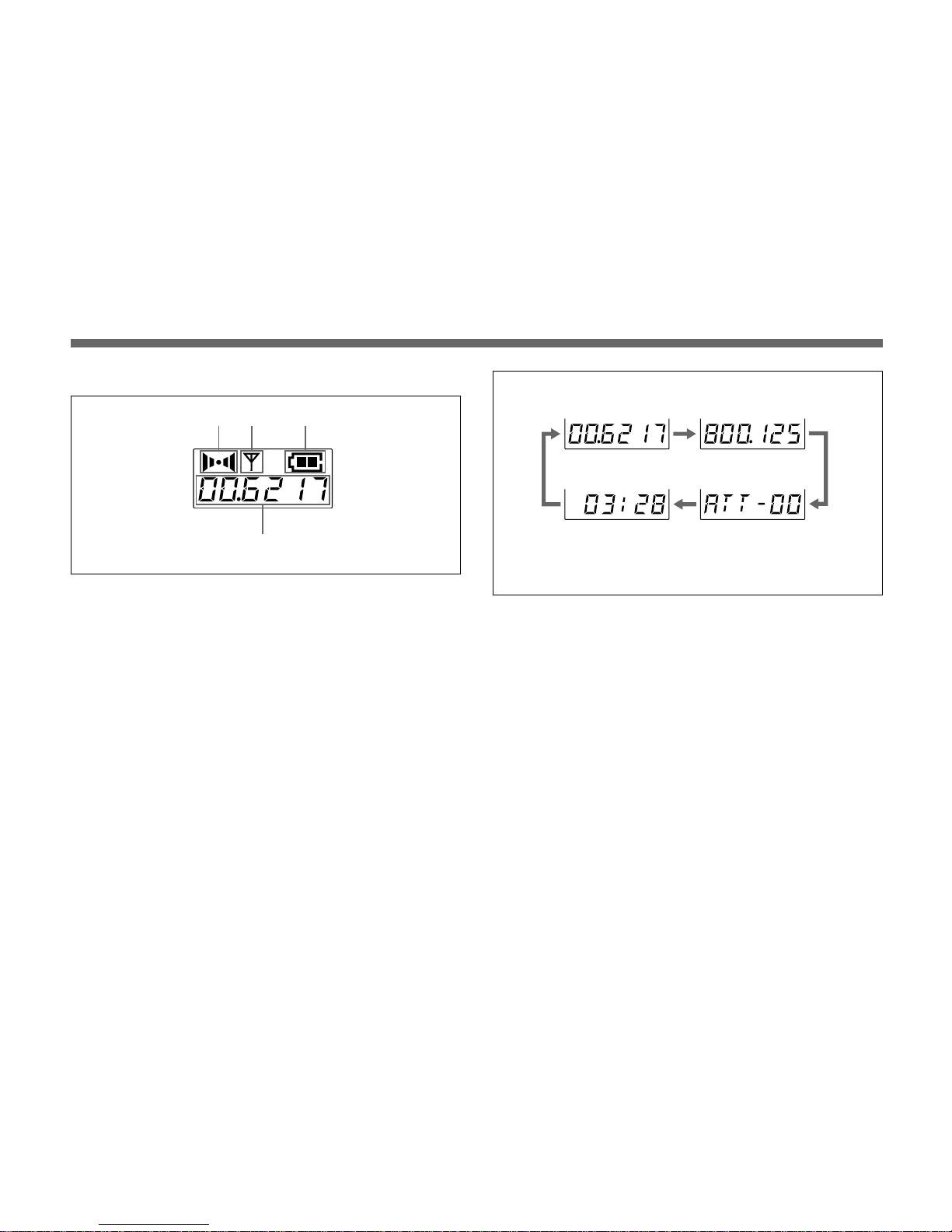

Channel indication
Display example for
CE62 model Attenuation indication
Accumulated time
indication
Display example for CE62 model
Frequency indication
AB C
D
In Attenuation indication mode, it displays the input
attenuation setting in dB, which can be changed in a range
of 0 to 21 dB in 3-dB steps.
In Accumulated time indication mode, it displays the
accumulated time of battery use (in one-minute increments).
For adjustments, see “Changing the Transmitting Channel”
on page 9, “Changing the Input Attenuation Setting” on page 12
or “Resetting the Accumulated Time Indication” on page 12.
2+ (+ selection) / – (– selection/reset) buttons
In setting mode, select the transmission channel, frequency
and attenuator level using either of these buttons, or reset the
time-of-use indication to “00:00” with the – button.
For Setting mode, see “Settings” on page 9.

6
GB
Parts Identification
Two LR6 (size AA)
alkaline batteries
3Audio input connector
Connect the output connector of the following Sony lavalier
microphones: ECM-44BC, ECM-55BC, ECM-66BC,
ECM-77BC/FC, ECM-166BC, ECM-310BC, ECM-350BC.
You can also use your wired microphone by connecting it to
this connector with an optional EC-1.5CF microphone cable.
See “Connections” on page 8.
4SET button
In normal Transmit mode, this button changes the indication
items of the display section as shown on page 5.
In Setting mode, this button selects the item to be set. To
initiate the setting mode, set the POWER switch to ON
while holding this button down.
For setting the transmit channel, input attenuation or
resetting the time-of-use indication in Setting mode, see
“Settings” on page 9.
5POWER switch
Turns the power of the transmitter ON or OFF.
When you set this switch to ON without holding any other
button, the transmitter is set to normal Transmit mode and
transmits the signal of the selected channel.
When you set this switch to ON while holding the SET
button down, Setting mode is initiated. No signal is
transmitted in Setting mode.
Note
Be sure to connect a microphone before turning the power
ON.
Power Supply
The transmitter can operate on two LR6 (size AA) alkaline
batteries continuously for about 8 hours at 25°C (77°F).
Installing the batteries
1Slide the battery-holder catches inward ( in the direction
of the arrows bb
bb
b B) to take out the battery holder.
2Match the polarities and insert the batteries.
3Set the battery holder in the original position.

7
GB
Battery indication
When you turn the power on, the battery status appears in
the BATT indication on the display section.
When the batteries reach stage 3 shown in the table, the
BATT indication on the WRR-800A/801A/850A/855A also
starts flashing.
Note
The indication may be incorrect if the batteries are not new
when installed. If you plan to use the transmitter for a long
period, it is best to replace the batteries with new ones.
Notes on batteries
•Use new alkaline batteries.
•Do not pair different types of battery.
•Always replace the two batteries together.
•The batteries are not rechargeable.
•Be careful to install the batteries with the correct polarity.
•When not using the transmitter for a long period, remove
the batteries to avoid leakage. If the batteries do leak,
clean all leakage from the battery holder case and the unit.
Leakage left in the holder case and the unit may cause
poor battery contact. If there seems to be poor battery
contact, consult your Sony dealer.
1234
TTAB noitacidni
sthgiLsthgiLsehsalFffoseoG
yrettaB noitidnoc dooG nahtsseL egrahc-flah tsomlA detsuahxe yletelpmoC detsuahxe

8
GB
Microphone (not supplied)
Connections
Caution
When connecting a microphone to the unit, be sure to turn
the unit off.
To connect a microphone
The WRT-822A accepts the following Sony lavalier
microphones:
ECM-44BC ECM-55BC ECM-66BC
ECM-77BC/FC ECM-166BC
ECM-310BC ECM-350BC
You can also use your wired microphone by connecting it to
this connector with an optional EC-1.5CF microphone cable.
To secure the microphone cable connection, be sure to turn
and lock the connector cover as illustrated below.
For the input attenuation adjustment, see page 12.
Notes on Microphone
System Operation
•To operate with two or more channels, maintain a distance
of at least 30 cm (one ft.) between each pair of
transmitters.
For details of operation with two or more channels, refer
to the Operating Instructions for the WRR-800A/801A/
805A/ 820A /840A /850A /855A/860A.
•Ensure that the tuners set to channels not being used are
either turned off or set to the minimum output level.
•When powering the transmitter on or off, to keep the noise
to a minimum, set the audio output level from the tuner or
mixer to a minimum.
•Powering the transmitter on without checking the channel
selection first may interfere with the operation of other
microphones/transmitters, if the current setting is already
being used.
•To prevent noise generation, keep the microphones and
transmitters at least 3 m (10 feet) away from the antennas
when the system is operated using a group which allows
selection of up to 11 channels, and at least 6 m (20 feet)
away when using a group which allows selection of 12
channels.

9
GB
Display example for CE62 model
Channel selection
Attenuator
adjustment
Accumulated time
indication reset
Group selection Frequency selection
Display example for CE62 model
In group selection mode
Settings
Initiating Setting Mode
In Setting mode, you can change the transmission channel/
frequency and the attenuation level, or reset the accumulated
time indication.
To enter Setting mode
While holding down the SET button, set the POWER switch
to ON.
The transmitter enters Setting mode and the indication
before the transmitter was previously turned OFF flashes on
the display section.

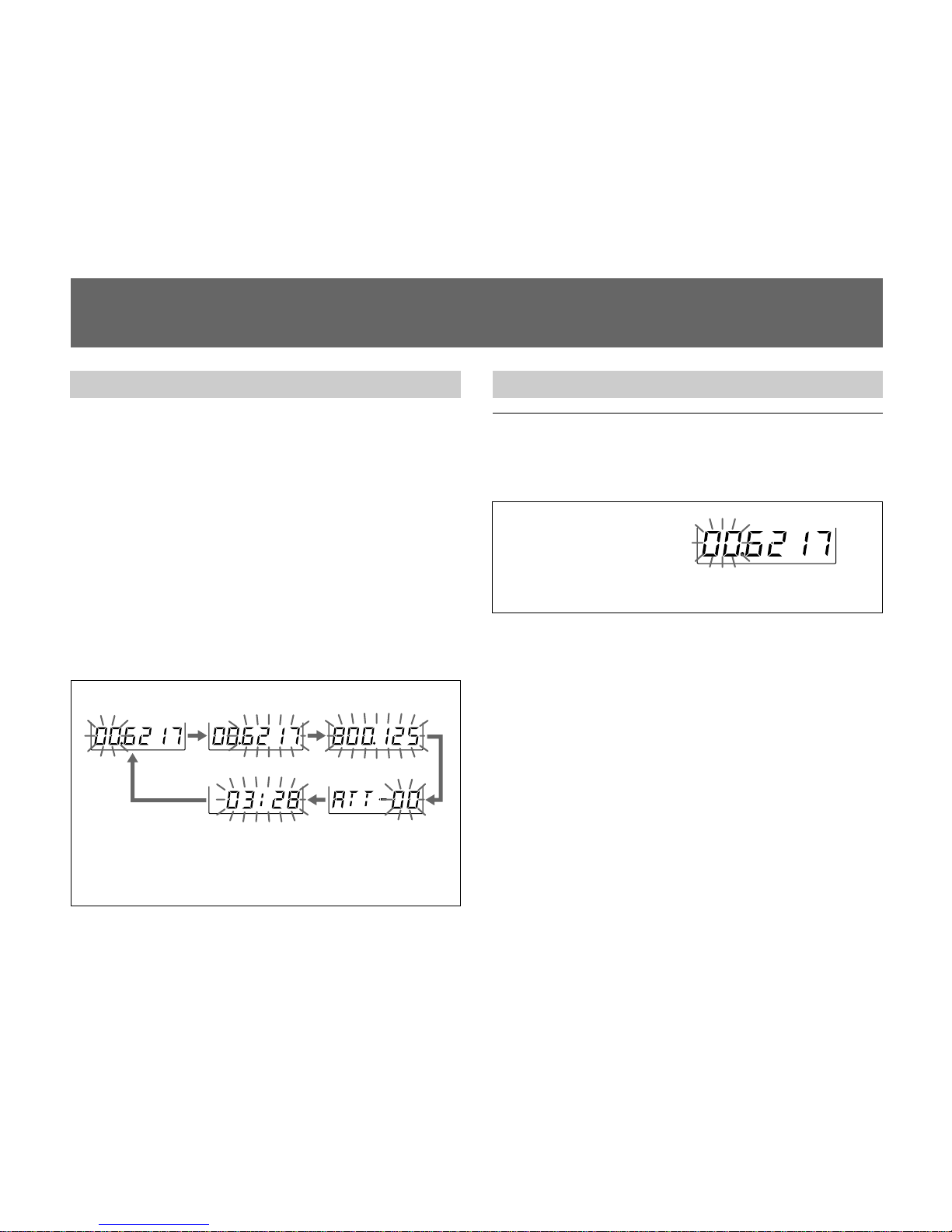

Each time you press the SET button, the setting items are
cyclically switched as shown below.
Changing the Transmitting Channel
To change the group selection
1After setting the unit in Setting mode, press the SET
button so that the group indication flashes.
2Press the + or – button to select the group.
Pressing the + button cyclically changes the group
indication in the order of “Overview of Channel Plan”
tables (page L-1).
Pressing the – button changes it in the reversed order.
If you hold either button pressed, the group setting will
change successively.
For the CE62 model, the indication will cycle from group
00 through 63 as shown on next page.

10
GB
To change the channel selection
1Confirm that the channel number flashes on the display.
If not, set the unit in Setting mode, and press the SET
button so that the channel number flashes.
If you want to change the channel in frequency
indication, press the SET button one more.
2Press the + or – button to select the channel.
Pressing the + button cyclically changes the channel
indication in the order shown in the table of the selected
group in “Wireless Channel Lists” on pages L-1 to L-14.
Pressing the – button changes it in reversed order.
If you keep either button pressed, the channel number
will be incremented or decremented successively.
Display example for CE62 model
Settings
In channel selection mode
In frequency selection
mode
For the CE69 model, the indication will cycle from group
00 through H.
See “Overview of Channel Plan” in the “Wireless
Channel Lists” section on pages L-1 and L-2.
3Once the desired group indication appears, press the SET
button.
The right digits start flashing and the unit enters channel
selection mode.

11
GB
Example: when the group 00 is selected for CE62 model
3Once the desired channel number appears, set the
POWER switch to OFF to release Setting mode.
Or, press the SET button to continue operations in Setting
mode.
The next time you turn on the power only by setting the
POWER switch to ON, the transmitter will be set to
Transmit mode with the selected channel.
Notes
•The unit cannot transmit in Setting mode.
•Make sure that the channel selected is the same as that
selected on the tuner used in the same system.
•Depending on the noise or interference conditions, the
selectable channels may not necessarily all be usable. If
necessary, you can determine the usable channels by
stepping the channel selection through a number of
channels on the tuner with the microphone/transmitter set
to OFF. Those channels on which the RF indicator of the
tuner does not light are usable.
•If there is a TV broadcasting station near by, do not use
the station's channel.
•The unit may not operate correctly if it is turned on again
immediately after turning off the power while in setting
mode. Pause for a few seconds or more before turning on
the power again.
•When operating two or more UHF wireless microphone
systems using channels in different groups, ensure that the
systems are at least 100 m (330 feet) apart from each
other. (The same applies also when using channels in a
group if the different UHF wireless microphone systems
are installed where they are within sight of each other.)

12
GB
Settings

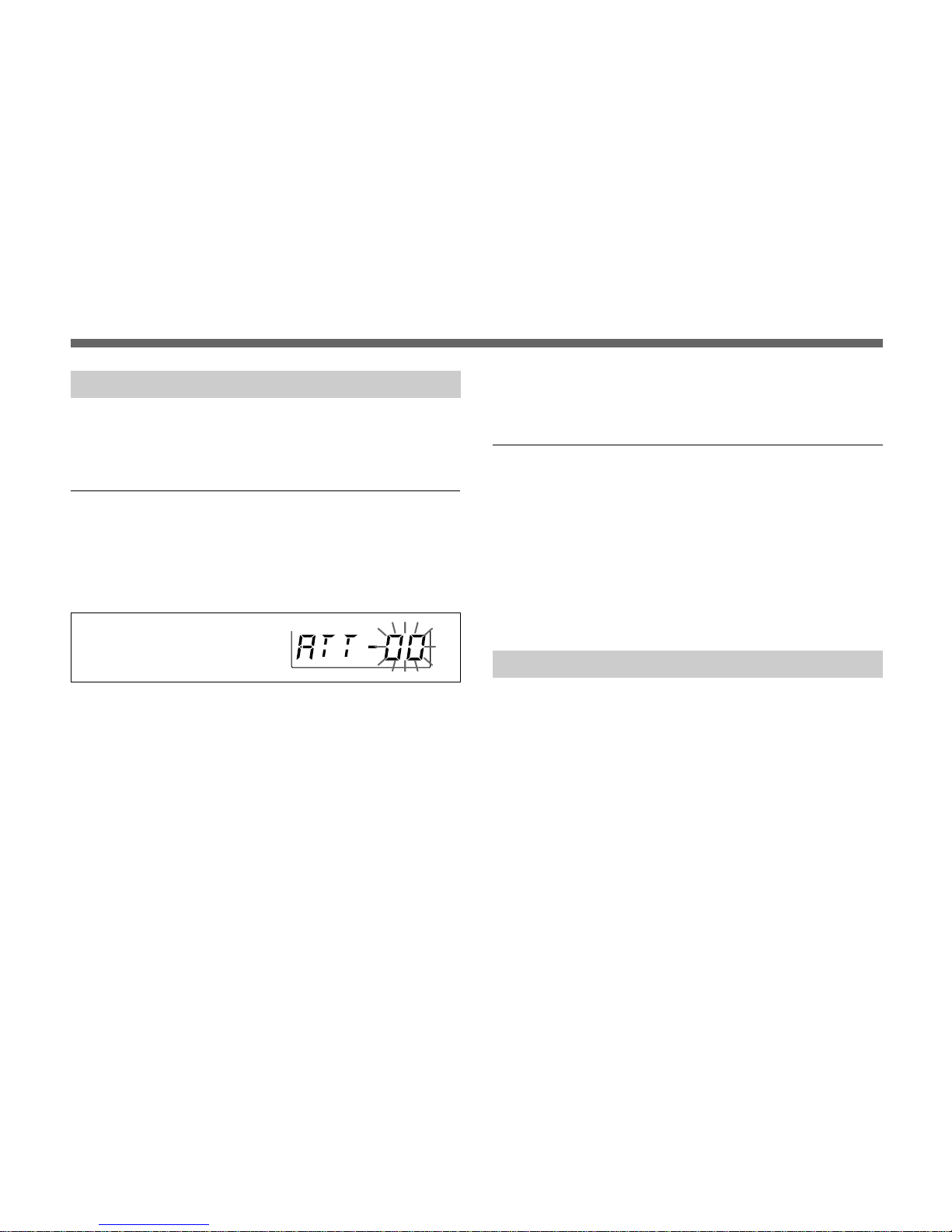

Attenuation level indication
Changing the Input Attenuation Setting
You can change the input attenuation setting in 3-dB steps
in a range of 0 to 21 dB. You can change it either in Setting
mode or in Transmit mode.
Changing in Setting mode
1Set the unit in Setting mode.
2Press the SET button until the attenuation level indication
appears on the display.
3Press the + or – button to select the attenuation level.
If you keep either button pressed, the level will be
incremented or decremented successively.
4Once the desired level appears, set the POWER switch to
OFF to release Setting mode.
Or, press the SET button to continue operations in Setting
mode.
The next time you turn on the power only by setting the
POWER switch to ON, the transmitter will be set to
Transmit mode with the selected attenuation setting.
Changing in Transmit mode
You can also change the input attenuation level during
transmission.
1If the attenuation level is not displayed, press the SET
button until the attenuation level indication appears on
the display.
2Press the + or – button to select the level.
Resetting the Accumulated Time Indication
The time indication accumulates time in hours and minutes
when the WRT-822A is on.
Reset the indication to “00:00” whenever you replace the
batteries so that it can display the running time of the
batteries.
1Set the unit in Setting mode.
2Press the SET button until the accumulated time
indication appears on the display.

13
GB
Accumulated time indication
3Press the – button.
The time indication resets to “00:00.”
While you see “00:00” indication, you can go back to
previous value by pressing the + button.
4Set the POWER switch to OFF to release Setting mode.
Error Messages
When a problem occurs, one of the following error
messages may appear on the display.
segasseMstnetnoCserusaeM
11rorrE.atadyromempukcabniderruccororrenA dnalennahcgnittimsnartehtteS.dezilaitinisawatadehT .niaganoitaunettatupnieht
12rorrE.elbuortnisitiucricdezisehtnysLLPehT .relaedynoSruoytcatnoC
13rorrE.eulavelbawollaehtsdeecxeegatlovyrettabehT .seirettabdeificepsehtesU
14rorrEtiucriclanretninafotcefeD .relaedynoSruoytcatnoC15rorrEretrevnocD/AehtfotcefeD
16rorrEtiucriclanretninafotcefeD

14
GB
Transmitter and modulator section
Oscillator Crystal controlled PLL synthesizer
Type of emission F3E
Carrier frequencies
CE62 model: 800.000 to 814.000 MHz
CE69 model: 854.125 to 862.000 MHz
RF power output 10 mW
Frequency stability Within ±15 kHz
Tone signal 32.768 kHz
Type of antenna 1/4-wavelength wire
Pre-emphasis 50 µsec
Deviation ±5 kHz (–60 dBv1), 1 kHz input)
Frequency response 70 to 13,000 Hz
Signal-to-noise ratio 60 dB or more
(A-weighted, with reference
deviation at WRR-800A/801A/
805A/ 810A/820A/840A/850A/
855A/860A)
Audio attenuator 0 to 21 dB, variable in 3-dB steps
Input level –60 dBv at audio attenuator 0 dB
Power section
Power requirements 3.0 V DC
(two LR6/size AA alkaline
batteries)
Battery life Approx. 8 hours at 25°C (77°F)
with Sony LR6 alkaline batteries
General
Operating temperature 0°C to +50°C (32°F to 122°F)
Storage temperature –30°C to +60°C (–22°F to +140°F)
Dimensions 63 ×103 ×17 mm (w/h/d)
(21/2×41/8×11/16 inches)
Mass Approx. 145 g (5.1 oz) including
batteries
Supplied accessories
Operating Instructions (1)
Soft case (1)
Optional accessories
Lavalier microphones
ECM-44BC, ECM-55BC, ECM-66BC, ECM-77BC/FC,
ECM-166BC, ECM-310BC, ECM-350BC
Microphone cable
EC-1.5CF
Design and specifications are subject to change without
notice.
Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1) 0 dBv = 1 Vrms

1
DE
Inhaltsverzeichnis
Deutsch
Deutsch
DE
Sicherheitsmaßnahmen
• Das Gerät ist geeignet für den Betrieb bei
Umgebungstemperaturen zwischen 0 °C und 50 °C.
• Stellen Sie das Gerät nicht auf oder in die Nähe von
Wärmequellen wie Lichtanlagen oder Endverstärker oder
an Orte, an denen es direktem Sonnenlicht oder
außergewöhnlich viel Feuchtigkeit ausgesetzt ist.
Andernfalls können die Oberfläche oder Bauteile des
Geräts beschädigt werden.
• Wenn Sie das Gerät an einem sehr feuchten oder
staubigen Ort oder an einem Ort, der reaktionsfähigen
Gasen ausgesetzt ist, benutzen, reinigen Sie die
Oberfläche und die Anschlüsse nach dem Gebrauch mit
einem trockenen, weichen Tuch.
Die Lebensdauer des Geräts kann sich verkürzen, wenn
Sie das Gerät längere Zeit an solchen Orten benutzen oder
es anschließend nicht reinigen.
• Verwenden Sie zum Reinigen des Geräts auf keinen Fall
organische Lösungsmittel wie Verdünner oder Benzin.
Diese könnten die Oberfläche des Geräts angreifen.
• Das Gerät wurde werkseitig präzise eingestellt. Nehmen
Sie an den Bauteilen keine Änderungen vor, und
versuchen Sie nicht, das Gerät selbst zu reparieren.
Sicherheitsmaßnahmen..................................................... 1
Übersicht ............................................................................ 2
Frequenzbereich für Übertragungskanal........................ 2
Merkmale ....................................................................... 3
Bezeichnung der Teile ....................................................... 4
Stromversorgung ............................................................... 7
Anschlüsse .......................................................................... 8
Hinweise zum Betrieb des Mikrofonsystems .................. 9
Einstellung.......................................................................... 9
Einstellmodus................................................................. 9
Wechseln des Übertragungskanals .............................. 10
Ändern der Eingangssignalabschwächung .................. 12
Zurücksetzen der Betriebsdaueranzeige ...................... 13
Fehlermeldungen ............................................................. 13
Technische Daten............................................................. 14
Übertragungskanallisten............................................... L-1

2
DE
Übersicht
Modell CE62
Dem Modell WRT-822A/CE62 ist ein 14-MHz-
Frequenzbereich zugewiesen, so daß es in 125-kHz-
Schritten mit jeder der 111 Trägerfrequenzen des
Kanalplans von Sony oder in 25-kHz-Schritten mit 561
Trägerfrequenzen des Kanalplans für deutsche
Benutzergruppen im Bereich der Fernsehkanäle 62 und 63
arbeiten kann.
Welche Kanäle Sie auswählen können, finden Sie auf den
folgenden Seiten:
“Sony-Kanalgruppen” (Modell CE62) auf Seite L-3.
“Deutsche Benutzergruppe-3” (Modell CE62) auf Seite L-6.
“Deutsche Benutzergruppe-4” (Modell CE62) auf Seite L-7.
“Deutsche Benutzergruppen” auf Seite L-8.
Modell CE69
Dem Modell WRT-822A/CE69 ist ein 8-MHz-
Frequenzbereich zugewiesen, so daß es in 125-kHz-
Schritten mit jeder der 64 Trägerfrequenzen des Kanalplans
von Sony oder in 25-kHz-Schritten mit 14 Trägerfrequenzen
des Kanalplans für allgemeine Verwendung in
Großbritannien arbeiten kann.
Welche Kanäle Sie auswählen können, finden Sie auf den
folgenden Seiten:
“Sony-Kanalgruppen” (Modell CE69) auf Seite L-13.
“Gruppen für allgem. Verwendung in Großbritannien” auf
Seite L-14.
Der Sender WRT-822A ist für ein schnurloses
Mikrofonsystem mit Frequenz-Synthesizer im 800-MHz-
UHF-Band für vielfältige Einsatzzwecke konzipiert.
Weitere Systemkomponenten sind das schnurlose UHF-
Synthesizer-Mikrofon WRT-800A/810A/830A/867A, der
UHF-Synthesizer-Sender WRT-822A/860A, die UHF-
Antenne AN-820A, der UHF-Antennenverteiler WD-820A,
der UHF-Synthesizer-Tuner WRR-805A/ 810A und der
UHF-Synthesizer-Umsetzer-Tuner WRR-800A/801A/820A/
840A/850A/855A/860A.
Frequenzbereich für Übertragungskanal
Das Mikrofon bzw. der Sender und die Tuner des
schnurlosen Mikrofonsystems sind nach Frequenzbereich
unterteilt.
Jedem Mikrofon/Sender und Tuner ist ein 14-MHz-
Frequenzbereich (bzw. zwei Fernsehkanäle mit
aufeinanderfolgenden Nummern wie z. B. Kanal 62 und 63
beim Modell WRT-822A/CE62) oder ein 8-MHz-
Frequenzbereich (bzw. Fernsehkanal 69, Kanalplan für
allgemeine Verwendung in Großbritannien) zugewiesen.
Achten Sie beim Zusammenstellen eines schnurlosen UHF-
Mikrofonsystems darauf, nur Mikrofon/Sender und Tuner
mit derselben Fernsehkanalnummer zu kombinieren.

3
DE
Merkmale
PLL-Synthesizer-System (PLL = Phase Locked Loop)
Der WRT-822A verfügt über einen verfeinerten PLL-
Synthesizer (PLL = Phase Locked Loop - Phasenregelkreis).
Vorprogrammierte Kanalpläne für gleichzeitigen,
schnurlosen Mehrkanalbetrieb
Im WRT-822A sind viele Kanalgruppen vorprogrammiert,
die bei einer Kombination von schnurlosen Kanälen den
gleichzeitigen Mehrkanalbetrieb ohne Intermodulation
ermöglichen.
Die verfügbaren Gruppen und Kanäle können einfach per
Tastendruck ausgewählt werden.
Kompakt und leicht
Dank modernster Montagetechnologie auf kleinstem Raum
und dank des Magnesiumgehäuses ist dieser Sender äußerst
kompakt und leicht. Damit eignet er sich ideal für ENG
(Electronic News Gathering) und EFP (Electronic Field
Production).
Übertragung eines Batteriealarmsignals an Tuner
Dieser Sender kann Batterieladeinformationen an den WRR-
800A/801A/805A/850A übertragen und somit rechtzeitig
vor verbrauchten Batterien warnen.
Diese Informationen werden etwa eine Stunde, bevor die
Batterien erschöpft sind, an den WRR-800A/801A/805A/
850A gesendet, so daß ausreichend Zeit bleibt, die Batterien
des Senders auszutauschen.
Wenn die Informationen am WRR-800A/801A/805A/850A
eingehen, beginnen die LED- und die LCD-Anzeige am
Bedienfeld zu blinken.
Betrieb mit überall erhältlichen Batterien
Dank des integrierten DC-DC-Wandlers mit hohem
Wirkungsgrad kann der Sender mit zwei LR6-
Alkalibatterien (Größe AA) durchgehend etwa 8 Stunden
lang stabil betrieben werden.
LCD-Display für koordinierte Betriebskontrolle
Die integrierte CPU steuert den Betrieb des Geräts
einschließlich der PLL-Funktion. Im LCD-Display werden
Informationen wie die aktuelle Kanalnummer/Frequenz, die
Batterierestladung, die eingestellte
Eingangssignalabschwächung, der
Audiofrequenzeingangspegel und der HF-Ausgang
angezeigt.
Darüber hinaus können Sie anhand der Betriebsdaueranzeige
schnell ablesen, wie lange die Batterie schon in Gebrauch ist
(in Schritten von 1 Minute).
Speicher für eingestellten Kanal und
Eingangssignalabschwächung
Wenn das Gerät ausgeschaltet wird, werden der eingestellte
Kanal und die eingestellte Eingangssignalabschwächung
gespeichert. Die gespeicherten Einstellungen bleiben auch
erhalten, wenn die Batterien herausgenommen werden.

4
DE
BATT
–
+
SET
OFF
ON
AFRF
CH
SET
Übersicht
Wenn Sie das Gerät also das nächste Mal benutzen,
brauchen Sie dieselben Einstellungen nicht noch einmal
vorzunehmen.
Äußerst zuverlässiger elektronischer Abschwächer
Der integrierte Eingangssignalabschwächer läßt sich in 3-
dB-Schritten im Bereich zwischen 0 und 21 dB einstellen.
Dadurch kann die Signalverzerrung bei ungewöhnlich
starken Audiosignalen verringert werden.
Kompatibilität mit Ansteckmikrofon von Sony
Der Sender ist kompatibel mit Ansteckmikrofonen von
Sony, z. B. dem ECM-77BC.
HF-Träger mit Pilottonsignal
Das Gerät überträgt das HF-Trägersignal zusammen mit
einem Pilotton, der es dem Tuner mit
Rauschunterdrückungsschaltkreis ermöglicht, nur das
gewünschte Audiosignal zu empfangen.
Großer Dynamikbereich und geringes Rauschen
Dank des Kompander-Systems (Kompressor/Expander) ist
eine Übertragung über einen großen Dynamikbereich mit
geringem Rauschen möglich.
Drücken Sie die Tasten
+/–, SET mit einem
Kugelschreiber o. ä.
Batteriehalter
5Netzschalter
POWER
4Taste SET
3Audioeingang
2Tasten +/–
1Display
Wurfantenne
Bezeichnung der Teile
