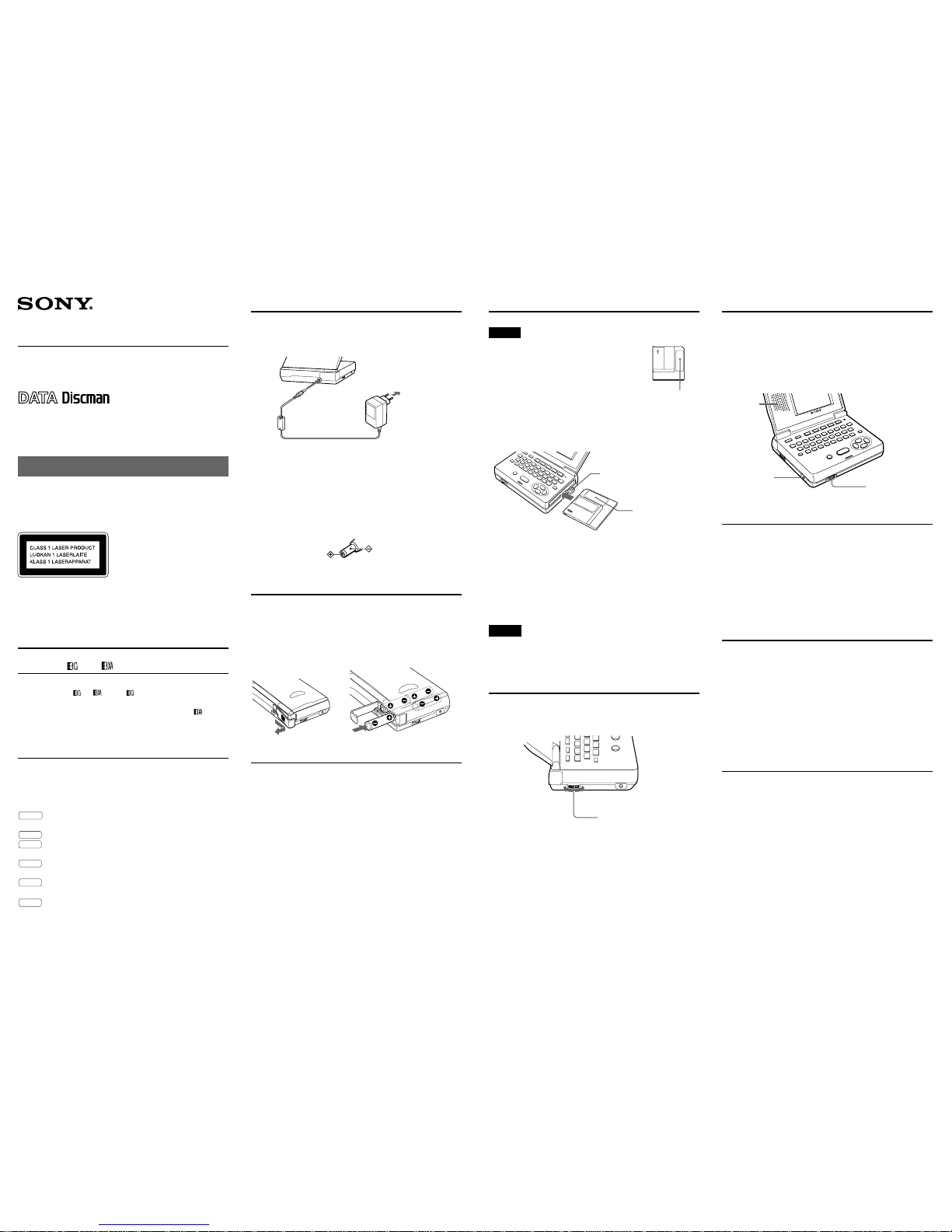

Sony DD-57 User manual

3-800-046-21 (1)
Electronic Book Player
WARNING
To prevent fire or shock hazard, do not expose the unit to
rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
DATA Discman is a trademark of the Sony Corporation.
Sony Corporation ©1999 Printed in Japan
Connecting to the Mains
Use the AC power adapter (supplied) to connect the player to
mains, as follows:
Notes on the Electronic Book Player
About the and Marks
When you purchase an electronic book for the player, make sure
it comes with an or mark. means electronic books that
contain only character data or character and graphics data,
published by the end of the year 1994. From 1995, the mark is
placed on the electronic books as well as on the electronic book
players.
Search Methods
The player offers 6 search methods, plus the possibility of giving
references to related entries. Usable search methods depend on
the electric book you use. Refer to the instructions of the
electronic book you purchased.
The 6 search methods are identified with the symbols below:
WORD
: Word search by specifying the beginning letters of an
entry
END
: Word search by specifying the final letters of an entry
KEY
: Keyword search by specifying the keywords an entry
must contain
MENU
: Menu search by selecting from a menu similar to a table
of contents in a conventional book
MULTI
: Menu search by specifying a number of conditions an
entry must meet
GRAPH
: Graphic search by selecting from a series of graphic
symbols
Inserting/Removing an Electronic Book
Caution
Do not remove the disc from the caddy except
for troubleshooting or maintenance. The caddy
has been designed to protect the disc inside.
Caddy
Insert an electronic book, label side up, into the electronic book
slot as far as it can go. The electronic book clicks into place when
completely inserted. The player turns on.
Listening to Audio Information
A search result may contain audio information in the form of
pronunciation of a word, narration, etc. You can use the built-in
speaker or headphones (not supplied) to listen to the sound.
Press bto fastforward, Bto rewind. To stop, press (NO).
Use the VOLUME control to adjust the speaker volume.
PHONES jack VOLUME control
MAX
MIN
Using the Headphones
Plug the headphones (not supplied) into the PHONES jack. When
the headphones are used, the sound will come out from the
headphones only, but not from the speaker.
Note
Always set the volume at the low level, then adjust it to a more
comfortable level once you are listening.
Starting/Ending a Search
Insert an electronic book into the player and the player turns on
automatically.
To end the search, press [POWER] to turn off the player. It is
possible to turn off the player at any time. If the electronic book
inside will not be used for a long time, remove it from the player.
Note
The player automatically turns off if it remains idle for 20 minutes
when using with the batteries.
Using the Sleep Function
The sleep function allows you to turn off the player without losing
your place in the electronic book.
When viewing a search result, press [SLEEP] (OFF) to turn the
player off. The next time you press [POWER], you will be taken
back to the last page viewed. If, however, you insert a different
electronic book, the sleep function will no longer be effective.
User’s Guide
DD-57 AC power adapter
(supplied)
to DC IN 6V jack
Notes on the AC power adapter
• The player will use the power supply from the mains even when
other power supply sources (such as batteries) are available at
the same time.
• When the AC power adapter is not used, unplug it from the
mains.
• Use only the AC power adapter supplied. Do not use any other
AC power adapter.
Polarity of the plug
Using Alkaline Batteries
Four AA (LR6) alkaline batteries (not supplied) can deliver about
14 hours of power for performing search operations (in normal
conditions of use) and for 6.5 hours for playing an audio CD (8 cm
size) continuously. Insert the batteries with the correct ‘and ’
polarity.
When the Batteries Become Dead
The imark appears briefly, then the player turns off.
Notes on batteries
• Avoid mixing old batteries with new ones or different types of
batteries.
• If you are not going to use the player for a long time, remove any
batteries inside.
• If a battery leaks, clean the battery compartment and replace all
the batteries with new ones.
With the label side up
Push the EJECT button to remove
an electronic book.
When removing an electronic book, make sure that the player is
turned off. Then, press the EJECT button to pop out the electronic
book.
Note
If the caddy gets stuck in the player, please do not try to pull it out.
Gently push the caddy back into the player and press the EJECT
button again.
Caution
Never insert anything other than an electronic book into the slot.
Otherwise, the player will be damaged.
Adjusting the Contrast
If necessary, use the CONTRAST control to adjust the contrast on
the display.
CONTRAST control
L
Speaker
to mains
H
This electronic book player is classified as a
CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT label is
located on the bottom exterior.

Precautions
Electronic Book Player
On Safety
• The display is made of glass and may
break if it is bent.
• Since the display is made of glass, do
not push the player from above with your
elbow, etc. or place heavy objects on it
such as books. The glass used for
the display may break.
• As the laser beam used in this
player is harmful to the eyes, do not
attempt to disassemble the casing.
Refer servicing to qualified personnel
only.
• Do not insert anything in the DC IN 6V
(external power input) jack.
• When the player is used with the AC power adapter, do not wrap
the unit in a cloth, blanket, etc. If you do so, the temperature
inside and outside the player may rise considerably, resulting in
malfunctioning of the player or serious accidents.
• Should any solid object or liquid fall into the player, disconnect
the power source and have the player checked by qualified
personnel before using it any further.
• Do not drop the player as a malfunction may result.
On power sources
• Use alkaline batteries (not supplied) or mains in your home or
office.
• For AC operation: Use the AC power adapter supplied with this
player. Do not use any other AC power adapters as they may
cause malfunction.
• After operating the unit with an AC power adapter, disconnect
the AC power adapter from the mains if the set is not to be used
for an extended period of time. The [POWER] switch on the
player does not turn the AC adapter off.
On installation
Never expose the player to:
- heat sources such as radiators or air ducts.
- direct sunlight.
- excessive dust.
- moisture or rain.
- mechanical vibration or shock.
- inclined position.
- a dashboard or leave it in a car parked in sunlight.
On condensation
If the player is brought directly from a cold location to a warm one,
or is placed in a very damp room, condensation may occur on the
lens inside the player, causing it to malfunction. If this happens,
remove any electronic book inside the player, then leave the
player in a warm place for a few hours until the condensation
evaporates.
About the temperature
The bottom of the player may get warm. This is not a malfunction.
The AC power adapter also gets warm. However, if the AC power
adapter gets excessively hot, disconnect it and have it checked by
your nearest Sony dealer.
Electronic Books
Except for maintenance or troubleshooting, do not remove an
electronic book disc from its caddy; otherwise the disc may get
scratched or dirty.
Do not store electronic books:
• in direct sunlight.
• in a place subject to high temperature.
• on the dashboard or seat of a car in summer or in direct sunlight.
When you are not going to use an electronic book for a long time,
remove it from the player.
Maintenance
Electronic Book Player
Cleaning the casing
Clean the casing with a soft cloth slightly moistened with water or
a mild detergent solution. Do not use any type of abrasive pad,
scouring powder or solvent such as alcohol or benzine as they
may damage the finish.
Electronic Books
If the electronic book contents cannot be read, clean the disc as
follows:
1Use a ballpoint pen (or similar
object) to gently slide the
switch in the OPEN slot to
the left. Then fully open
the cover and remove the
disc by its edge from the
caddy.
2Clean the disc from the centre out,
using a clean soft cloth.
Do not use solvents such as benzine, thinner,
commercially available cleaners or anti-static
spray intended for use with records.
3Insert the disc back, with its label side facing
the same direction as that of the caddy.
1
3
2
Troubleshooting
Pressing [POWER] does not turn on the player.
• The disc in the caddy is inserted upside down.
bInsert the disc with the label side up. (See “Maintenance.”)
• The disc is dirty.
bClean the disc. (See “Maintenance.”)
• Condensation has occurred inside the player.
bRemove any electronic book inside and leave the player in a
warm place for a few hours until the moisture evaporates.
• The AC power adapter is not connected properly.
bConnect the AC power adapter correctly. (See “
Connecting to
the Mains.”)
No picture appears on the display.
• The contrast is too low.
bUse the CONTRAST control (see “Adjusting the Contrast”)
located on the left-hand side of the player, to increase the
contrast.
No sound comes from the speaker or headphones.
• The speaker volume is too low.
bUse the VOLUME control (see “Listening to Audio
Information”) located on the front part of the player, to
increase the volume.
• The headphones are not connected correctly.
bPlug the headphones into the PHONES jack located on the
left-hand side of the player.
If an Error Message Appears
Cannot read the disc
• Re-insert the disc
• Clean the disc
• The electronic book disc is dirty.
bClean the disc. (See “Maintenance.”)
• The electronic book is not inserted correctly.
bRemove and then insert it again. (See “Inserting/Removing an
Electronic Book
.”)
Please insert the disc
• No electronic book is inserted.
bInsert an electronic book. (See “Inserting/Removing an
Electronic Book.
”)
• The electronic book disc is upside down.
bRemove the disc from the caddy and re-insert it with the label
side up. (See “Maintenance.”)
The disc inserted is not an EB
• The format of the disc is inappropriate.
bUse only electronic books that have the or mark.
If the Player Does Not Operate
Use a ballpoint pen (or similar object) to press the RESET button.
This turns off the player so that you can start again.
RESET button
Specifications
Laser diode properties
Material GaAIAs
Wave length 780 nm
Emission duration Continuous
Laser output Less than 44.6 µW (measured at a distance of
200 mm from the objective lens surface on the
Optical Pick-up Block)
Power
Power requirements 240 V AC, 50 Hz
using the supplied Sony AC power adapter
connected to the DC IN 6V jack
6V DC
using 4 size AA (LR6) batteries (not supplied)
Power consumption 1.6 W DC
General
Dimensions Approximately 160.0 ×34.0 ×110.0 mm (6 3/8×
1 3/8×4 3/8inches) (w/h/d)
Mass Approximately 350 g (12 oz) (not including
batteries or an electronic book)
Approximately 480 g (17 oz) (including batteries
and an electronic book)
Supplied accessories AC power adapter (1)
POCKET INTERPRETER (1)
Design and specifications are subject to change without notice.
IN NO EVENT SHALL SONY CORPORATION BE LIABLE
FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR
OTHERWISE, ARISING OUT OF OR IN CONNECTION
WITH THIS MANUAL, THE SOFTWARE OR OTHER
INFORMATION CONTAINED HEREIN OR THE USE
THEREOF.
