Sound Sation MHL-4h-bar User manual

MHL-4h-bar
4 Mini Moving Head
(10W CREE RGBW 4in1 LED)
Please read this manual carefully and proper take care of this manual
USER MANUAL

2
ENGLISH
Dear customer,
First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy all possible
needs of musical instrument and professional audio and lighting users offering a wide range of
products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are looking for a
feedback from you about the operation of the product and possible improvements to introduce in
the next future. Go to our website www.soundsationmusic.com and send an e-mail with your
opinion, this will help us to build instruments ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation can cause
damages to you and to the unit. Take care!
The SOUNDSATION Team
IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals
are involved within this apparatus, even under the normal operating
conditions, which may be sufcient to constitute the risk of electric
shock or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off

3
ENGLISH
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions
Water and Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat.
Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer's instructions.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
Power Cord and Plug
Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus. Do not defeat the
safety purpose of the polarized or grounding-type plug. A polarized plug has two poles;
a grounding-type plug has two poles and a third grounding terminal. The third prong
is provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement.
Power Supply
The apparatus should be connected to the power supply only of the type as marked on
the apparatus or described in the manual. Failure to do could result in damage to the
product and possibly the user. Unplug this apparatus during lightning storms or when
unused for long periods of time.

4
ENGLISH
MBL-5-18W-6IN1 User manual
TABLE OF CONTENTS
1. PRODUCT SPECIFICATION....................................................................................5
2. LED DISPLAY ..........................................................................................................5
2.1. LED display function..............................................................................................................6
3. MENU INSTRUCTION..............................................................................................8
4. How to operate........................................................................................................9
4.1. Master/slave mode................................................................................................................9
4.2. Two Light mode...................................................................................................................10
4.3. DMX Controller....................................................................................................................10
5. CHANNEL MODES ................................................................................................11
5.1. 6CH Mode ........................................................................................................................... 11
5.2. 12CH Mode .........................................................................................................................12
5.3. 14CH ...................................................................................................................................12
5.4. 27CH ...................................................................................................................................13
6. WARRANTY AND SERVICE..................................................................................14
7. WARNING ..............................................................................................................14
Fuse
To prevent the risk of re and damaging the unit, please use only of the recommended
fuse type as described in the manual. Before replacing the fuse, make sure the unit
turned off and disconnected from the AC outlet.
Electrical Connection
Improper electrical wiring may invalidate the product warranty.
Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.
WARNING: Please remember the high sound pressure do not only temporar-
ily damage your sense of hearing, but can also cause permanent damage.
Be careful to select a suitable volume.

5
ENGLISH
MBL-5-18W-6IN1 User manual
1. PRODUCT SPECIFICATION
fLight source: 4pcs x 10W RGBW 4in1, CREE LEDs
fBuilt-in master-slave, sound control, and show mode.
fLED display, easy to control
fSuitable for indoor venues like disco, club, bar, party and DJ moving show
fDMX Channel Modes: 6CH, 12CH, 14CH and 27CH
f4 Operation Mode: Sound test, Show mode, DMX and Master/slave mode
fPAN/TILT: 540°/270°
fAuto repositioning after unexpected movements
fVoltage: AC100-240V , 50/60Hz
fPower Consumption: 100W
fFuse: F7A, L250V
fLight size: 80*9*23cm
fWeight: 8.5 kg
2. LED DISPLAY
Item N. Display Function
Button:
(1) MENU Enter the menu
(2) DOWN Next the menu
(3) UP Previous menu
(4) ENTER Enter the select function

6
ENGLISH
MBL-5-18W-6IN1 User manual
Led:
(5) DMX DMX mode,If received the DMX
signal, the indicator light ashing
(6) SLAVE Slave mode,if received slave signal,
the indicator light ashing
(7) MASTER
Master mode, one machine or many
in test, There is a setting for master,
the indicator light
(8) SOUND In the sound active, if have sound
signal, the indicator light ashing

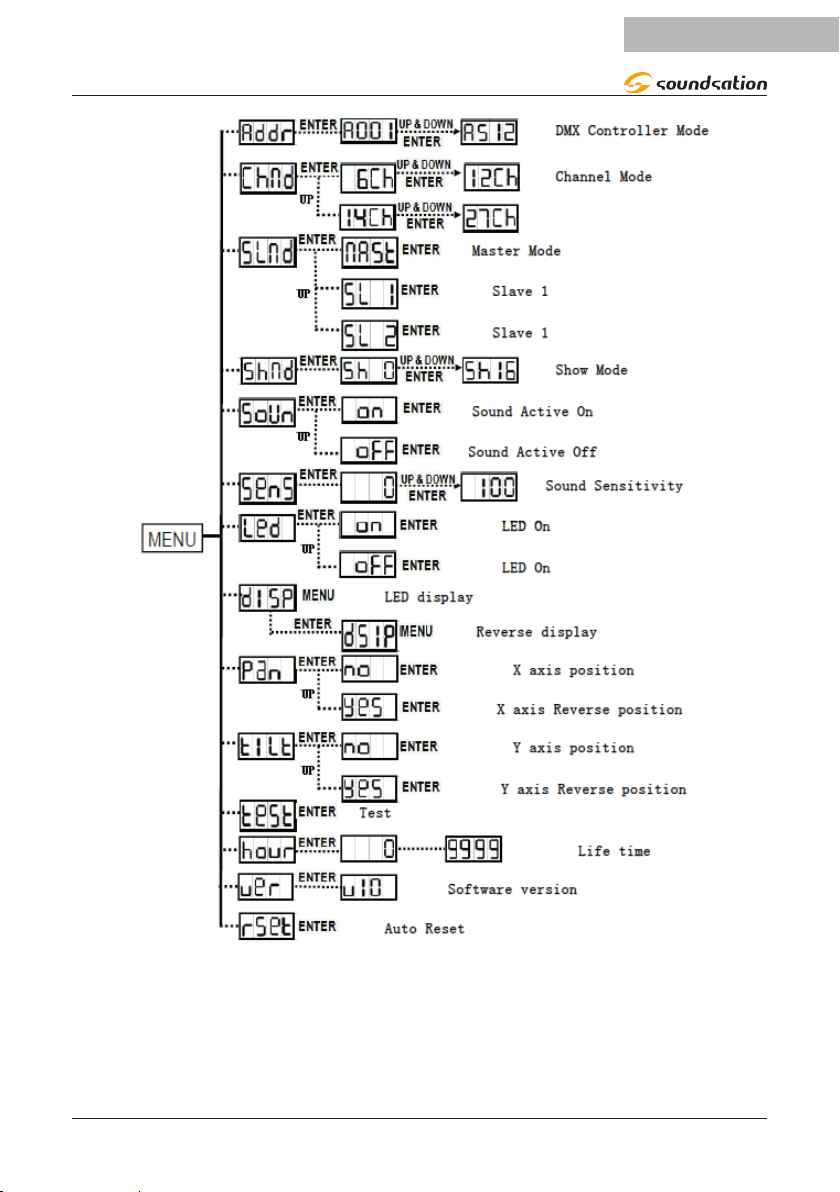

2.1. LED display function
To choose a function, press MENU button, then press UP/DOWN button and press
ENTER button to conrm and edit specic parameters. To exit and go back to main
mode, wait for 10 seconds or press the MENU long time. A complete list of all menus
and sud-menus is as follows:

7
ENGLISH
MBL-5-18W-6IN1 User manual

8
ENGLISH
MBL-5-18W-6IN1 User manual
3. MENU INSTRUCTION
Choose default address code.
1. - DMX512 Address Setting
Chose , press ENTER button to conrm. Press UP/DOWN button to initial ad-
dress, and press ENTER button to save. Wait 10 seconds or press MENU long time to
return to main menu.
2. -Channel Mode
Choose , press ENTER button to conrm. Press UP/DOWN to choose the chan-
nel, like (6 channel) or (12 channel) or (14 channel) or (27
channel) mode. Press ENTER button to save it. Wait 10seconds or press MENU long
time to return to main menu.
3. - Slave mode
Choose , press ENTER button to enter, (Master) or (slave 1) or
(slave 2) mode. Press ENTER button to save. Wait 10seconds or press MENU
long time to return to main menu.
4. - Show mode
Choose , press ENTER button to conrm. Press UP/DOWN button to chose
(random show) or (Show 1) or (Show 2) or … (Show
16), and press ENTER button to save. Wait 10seconds or press MENU long time to
return to main menu.
5. - Sound Control
Choose , press ENTER button to conrm. Press UP/DOWN button to choose
or .Press Enter button to save.
6. - Sound control sensitivity
Choose , press ENTER button to conrm. Press UP/DOWN to adjust sensitivity
value from to . After chosen, press ENTER button to save. Wait 10sec-
onds or press MENU long time to return.
7. - LED display
Choose , press ENTER button to conrm. Press UP/DOWN button to choose

9
ENGLISH
MBL-5-18W-6IN1 User manual
(light up) or (light off) mode. After chosen, press ENTER button to save.
Wait 10seconds or press MENU long time to return to main menu.
8. - LED display inversion
Choose , press ENTER button to conrm, then enter the (inversion). After
chosen, press MENU to enter the mode. Wait 10seconds or press MENU long time to
return to main menu.
9. - Pan direction
Choose , press ENTER button to conrm. Press UP/DOWN button to chose
(Pan direction) Or (Pan reverse position) mode. After chosen, press EN-
TER button to save. Wait 10seconds or press MENU long time to return to main menu.
10. - Tilt direction
Choose , press ENTER button to conrm. Press UP/DOWN button to chose
(Tilt direction) Or ( Tilt reverse position) mode. After chosen, press EN-
TER button to save. Wait 10seconds or press MENU long time to return to main menu.
11. - Test
Press MENU button to , press ENTER button, the led display will strobe and
the xture will run built in program. Press MENU to back to main menu.
12. - Working time
Press MENU button to , press ENTER button; the led display could show the
working time. Press MENU back to main menu.
13. - Program version
Press MENU button to , press ENTER button; the led display will show the pro-
gram version. Press MENU back to main menu.
4. How to operate
1. Master/slave mode to control.
2. DMX controller
4.1. Master/slave mode

10
ENGLISH
MBL-5-18W-6IN1 User manual
Connect the lights in series, the rst light control the other light auto show and sound
control show and so on. It’s very good for the instant show mode. Must set the rst light
to be master light same time choose (Random show), (show 1)
or …or (show 16). If there are no DMX signal, the master mode LED will light
up, the sound control LED will strobe according to the music, the other lights will not
work in slave mode.
choose (Normal) or (two light show) mode. When connect the
DMX cable, the slave LED will light up.
4.2. Two Light mode
For the slave light, slave 1( ) running same as the master light; slave 2( )
running against the master light. If there are just two light, could set the second light as
slave light ( ) for better show.
4.3. DMX Controller
If control by DMX controller, then you need to set the address code to control the light,
the address code value is 1-512, the light could receive the signal accordingly.
Press MENU button, select menu, press ENTER button, address will strobe.
Use UP /DOWN to select DMX512 address. After address ensure, press ENTER but-
ton until address stop strobe. After 10 seconds will return the menu.

11
ENGLISH
MBL-5-18W-6IN1 User manual
5. CHANNEL MODES
5.1. 6CH Mode
Channel Value Function
CH1 000-255 Full dimmer, with red dimmer 1-100%
CH2 000-255 Strobe, slow to fast
CH3
000-007 No function
008-022 Show mode 1
023-037 Show mode 2
038-052 Show mode 3
053-067 Show mode 4
068-082 Show mode 5
083-097 Show mode 6
098-112 Show mode 7
113-127 Show mode 8
128-142 Show mode 9
143-157 Show mode 10
158-172 Show mode 11
173-187 Show mode 12
188-202 Show mode 13
203-217 Show mode 14
218-232 Show mode 15
233-247 Show mode 16
248-255 Sound control
CH4 000-255 Show mode speed, slow to fast
CH5 000-014 LED color change
015-255 Color fade
CH6 000-255 Color fade speed, slow to fast

12
ENGLISH
MBL-5-18W-6IN1 User manual
5.2. 12CH Mode
Channel Value Function
CH1 000-255 The st head, Pan position
CH2 000-255 The st head, Tilt position
CH3
000-007 Blackout 008-024 R
025-041 G 042-057 B
058-074 W 075-090 R + G
091-107 R + B 108-123 R + W
124-140 G + B 141-156 G + W
157-173 B + W 174-189 R + G + B
190-206 R + G + W 207-222 R + B + W
223-239 G + B + W 240-255 R + G + B + W
CH4 000-255 The second head, Pan position
CH5 000-255 The second head, Tilt position
CH6 000-255 The second head, color change
CH7 000-255 The third head, Pan position
CH8 000-255 The third head, Tilt position
CH9 000-255 The third head, color change
CH10 000-255 The fourth head, Pan position
CH11 000-255 The fourth head, Tilt position
CH12 000-255 The fourth head, color change
5.3. 14CH
Channel Value Function
CH1 000-255 Full dimmer, 0-100%
CH2 000-255 Strobe, slow to fast
CH3 000-255 The st head, Pan position
CH4 000-255 The st head, Tilt position
CH5 000-255 The st head, color change
CH6 000-255 The second head, Pan position
CH7 000-255 The second head, Tilt position
CH8 000-255 The second head, color change
CH9 000-255 The third head, Pan position
CH10 000-255 The third head, Tilt position
CH11 000-255 The third head, color change
CH12 000-255 The fourth head, Pan position
CH13 000-255 The fourth head, Tilt position
CH14 000-255 The fourth head, color change

13
ENGLISH
MBL-5-18W-6IN1 User manual
5.4. 27CH
Channel Value Function
CH1 000-255 Full dimmer, 0-100%
CH2 000-255 Strobe, slow to fast
CH3 000-255 The st head, Pan position
CH4 000-255 The st head, Pan ne
CH5 000-255 The st head, Tilt position
CH6 000-255 The st head, Tilt ne
CH7 000-255 The st head driver speed, slow to fast
CH8 000-255 The st head, color change
CH9 000-255 The second head, Pan position
CH10 000-255 The second head, Pan ne
CH11 000-255 The second head, Tilt position
CH12 000-255 The second head, Tilt ne
CH13 000-255 The second head driver speed, slow to fast
CH14 000-255 The second head, color change
CH15 000-255 The third head, Pan position
CH16 000-255 The third head, Pan ne
CH17 000-255 The third head, Tilt position
CH18 000-255 The third head, Tilt ne
CH19 000-255 The third head driver speed, slow to fast
CH20 000-255 The third head, color change
CH21 000-255 The fourth head, Pan position
CH22 000-255 The fourth head, Pan ne
CH23 000-255 The fourth head, Tilt position
CH24 000-255 The fourth head, Tilt ne
CH25 000-255 The fourth head driver speed, slow to fast
CH26 000-255 The fourth head, color change
CH27
000-199 No function
200-209 Reset
210-240 No function
241-255 Sound Control Mode

14
ENGLISH
MBL-5-18W-6IN1 User manual
6. WARRANTY AND SERVICE
All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specif-
ic to the date of purchase as shown on your purchase receipt.
The following cases/components are not covered from the above warranty:
• Any accessories supplied with the product
• Improper use
• Fault due to wear and tear
• Any modication of the product effected by the user or a third party
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing
faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual
parts or the entire appliance. Any defective parts removed from a product during the course of a
warranty claim shall become the property of SOUNDSATION.
While under warranty period, defective products may be returned to your local SOUNDSATION
dealer together with original proof of purchase. To avoid any damages in transit, please use the
original packaging if available. Alternatively you can send the product to SOUNDSATION SER-
VICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product
to service center you need an RMA number. Shipping charges have to be covered by the owner of
the product.
For further information please visit www.soundsationmusic.com
7. WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household waste, accord-
ing to the WEEE Directive (2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an authorized one-
for-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on the environment
and human health due to potentially hazardous substances that are generally associated with
EEE. At the same time, your cooperation in the correct disposal of this product will contribute to
the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling, please
contact your local city ofce, waste authority, approved WEEE scheme or your household waste
disposal service.

15
ENGLISH
This product is imported in EU by
Questo prodotto viene importato nella UE da
FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy
www.soundsationmusic.com
Soundsation® is a registered trademark of FRENEXPORT SPA - Italy
Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy

www.soundsationmusic.com
Ver 1.0 - Sept. 2016
