Sound Sation LIGHTBLASTER 1200 CMZ User manual

LIGHTBLASTER 1200 CMZ
1200W Waterproof RGBW LED Strobe & Wash Light
Please read this manual carefully and properly take care of it
USER MANUAL
Leggete questo manuale e conservatelo per future consultazioni
MANUALE UTENTE

Dear customer,
First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument and professional audio users oering a wide
range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are
looking for a feedback from you about the operation of the product and possible
improvements to introduce in the next future. Go to our website www.soundsation-
music.com and send an e-mail with your opinion, this will help us to build instruments
ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team
Gentile Cliente,
Grazie per aver scelto un prodotto SOUNDSATION®. La nostra missione è quella di
orire ai nostri utenti una vasta gamma di strumenti musicali ed apparecchiature audio
e lighting con tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, sarem-
mo lieti di ricevere un vostro feedback sulla qualità del prodotto al ne di migliorare
costantemente la nostra produzione. Visitate il nostro sito www.soundsationmusic.
com ed inviateci una mail con la vostra opinione, questo ci aiuterà a sviluppare nuovi
prodotti quanto più vicini alle vostre esigenze.
Un’ultima cosa, leggete il presente manuale al ne di evitare danni alla persona ed al
prodotto, derivanti da un utilizzo non corretto.
Il Team SOUNDSATION

3
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
TABLE OF CONTENTS
1. INTRODUCTION.........................................................................................................6
1.1. Unpacking.................................................................................................................................................................6
1.2. Accessories...............................................................................................................................................................6
2. OVERVIEW..................................................................................................................7
3. MAIN FEATURES........................................................................................................7
4. INSTALLATION...........................................................................................................8
5. MAINS CONNECTIONS .............................................................................................9
6. DMX CONNECTION...................................................................................................9
6.1. DMX Terminator.....................................................................................................................................................9
7. REAR PANEL.............................................................................................................10
7.1. Control Panel.........................................................................................................................................................11
8. FUNCTIONS MAP ....................................................................................................12
8.1. FUNCTIONS DESCRIPTION ..............................................................................................................................13
9. DMX CHANNEL MODES..........................................................................................17
9.1. 7Ch Mode Table....................................................................................................................................................17
9.2. 18Ch Mode Table.................................................................................................................................................18
10. SPECIFICATIONS ......................................................................................................20
11. TROUBLESHOOTING ...............................................................................................21
12. WARRANTY AND SERVICE .....................................................................................22
13. WARNING.................................................................................................................22

4
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating con-
ditions, which may be sucient to constitute the risk of electric shock
or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned o
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
To protect the environment, please try to recycle the packing material
as much as possible
The projector is for indoor use only, IP20. Use only in dry locations.
Keep this device away from rain and moisture, excessive heat, humid-
ity and dust. Do not allow contact with water or any other uids, or
metallic objects.
Don’t throw this product away just as general trash, please deal with
the product follow the abandon electronic product regulation in your
country.
TAKING CARE OF YOUR PRODUCT
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions

5
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
1) Water / Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
2) Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat. Don not use it when maximum ambient tempera-
ture is higher than 40°C.
3) Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer’s instructions.
4) Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
5) Power Cord and Plug
Protect power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus. Do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug has two poles; a
grounding-type plug has two poles and a third grounding terminal. The third prong is
provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement.
6) Power Supply
The apparatus should be connected to the power supply only of the type as marked on
the apparatus or described in the manual. Failure to do could result in damage to the
product and possibly the user. Unplug this apparatus during lightning storms or when
unused for long periods of time.
7) DMX connection
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source).
8) Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
9) Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.

6
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
1. INTRODUCTION
Thank you for purchasing our LIGHTBLASTER 1200 CMZ. Enjoy your new equipment
and make sure to read this manual carefully before operation.
This user manual is made to provide both an overview of controls, as well as informa-
tion on how to use them.
1.1. Unpacking
Your LIGHTBLASTER 1200 CMZ was carefully packed to ensure safe transport. Despite
this, we recommend you to carefully examine the package and its contents for any
signs of physical damage, which can occur during transport. Each unit has the following
parts:
f1 x Strobe LIGHT LIGHTBLASTER 1200 CMZ
f1 x IP65 DMX Cable
f1 x IP65 Power cord
f1 x Brackets for xing the device (oor, wall, ceiling, truss) with 3 M10 holes.
f2 x Screw knobs
f1 x User manual
ATTENTION: Packaging cartons are not a toys! Keep out of reach of chil-
dren!!! Keep in a safe place the original packaging material for future use.
If anything damaged during transport, notify the shipper immediately and keep the
packing material for inspection. Again, please save the carton and all packing materials.
If the xture must be returned to the manufacturer, it is important that it is returned in
the original manufacturer box and packing. Please do not take any action without rst
contacting us.
1.2. Accessories
SOUNDSATION can supply a wide range of quality accessories that you can use with
your LIGHTBLASTER 1200 CMZ, like Cables, DMX controllers, Truss adapters, Safety
wires and a wide range of other dedicated items.
All products in our catalogue has been long tested with this device, so we recommend
you to use Genuine SOUNDSATION Accessories and Parts.
Ask your SOUNDSATION dealer or check out our website www.soundsationmusic.com
for any accessories you could need to ensure best performance of the product.

7
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
2. OVERVIEW
LGIHTBLASTER 1200 CMZ is a LED strobe light designed for outdoor applications
where, in addition to power and safety, also versatility is important. The light source
is based on 1200 RGBW 4in1 high brightness LEDs. The emission surface is split into 5
independent zones. It is possible to control the individual colors of each zone via DMX,
or to simplify the number of channels in cases of use as a simple strobe or wash xture.
The die-cast aluminum housing is waterproof, and assures IP65 degree of protection
for outdoor use. The LIGHTBLASTER 1200 CMZ is noiseless, thanks to the convection
cooling system. It is specically designed for both indoor and outdoor silent envi-
ronments, like theatres or live stages with classical/jazz music. The adjustable bracket
allows the use with truss. Waterproof Input and Output connections ensure maximum
safety in any environment.
3. MAIN FEATURES
f1200 x 1W High-Brightness RGBW 4in1 LED
f110° Beam Angle
f5 Independent Zones
fStrobe: 0-30Hz
fDimmer: 4 Dimmers Curves
f5 built-in strobe eects, Static Color Mixing, Auto Control with Fixed Back-
ground
fDMX512/Manual/Master-Slave/Sound Control Modes
fSelectable 18 and 7 DMX Channel Modes
fBuilt-in Auto Programs and Preset Colors for easy use, even without DMX controller
fConvection Cooling System, without Fan (completely Noiseless)
fOutdoor Use with Waterproof Power In/Out and DMX In/Out Connections
fEasy-to-use Front Panel with 4-digit Led Display (4 x 7 Segments)

8
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
4. INSTALLATION
SOUNDSATION LIGHTBLASTER 1200 CMZ can be installed on the oor, on the wall,
ceiling or on a truss.
WARNINGS:
A. It’s required the use of a safety wire (LW3-76A or LW4-76A sold separately) and
truss adapters ( SLH/SQC Series sold separately) if the product is hanging on a
wall, ceiling or on a truss.
B. Never leave the product swinging freely.
C. If the product is hanging on a wall, a ceiling or a truss, make sure that the
installation gear and / or the truss can hold a minimum load of 10 times the
weight of the device.

9
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
5. MAINS CONNECTIONS
Connect the device to the mains with the supplied power cord. When connecting the
power supply, please check that the supply voltage and frequency are the same as
indicated for the device. The correspondence of the wires is as follows:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking
into operation for the rst time, the installation has to be approved by an
expert.
6. DMX CONNECTION
DMX xtures are designed to receive data through a serial Daisy Chain. A Daisy Chain
connection is where the DATA OUT of one xture connects to the DATA IN of the next
xture. The order in which the xtures are connected is not important and has no eect
on how a controller communicates to each xture. Use an order that provides for the
easiest and most direct cabling.
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect xtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to
female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and
pin 3 is Data positive (S+).
CAUTION: Wires must not come into contact with each other; otherwise the
xtures will not work at all, or will not work properly.
6.1. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control

10
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
signals, a good habit is to connect DMX output of last xture in the chain to a DMX
terminator, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω (ohm), 1/4 Watt resistor
connected across Signal (-) and Signal (+), respectively, pins 2 and 3, which is then
plugged into the output socket on last projector in the chain. The connections are
illustrated below.
120ohm, 1/4 W
resistor
DMX Terminator
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
7. REAR PANEL
1
2
3
5
4
1) DMX INPUT (MALE PLUG)
2) POWER SUPPLY INPUT PLUG
After the bundled cable connection, plug the power-cord into an AC socket properly
congured for your particular model.
3) CONTROL PANEL
This panel section has a 4x7 Segments display and 4 buttons to control all the device
functions.
4) POWER SUPPLY OUTPUT PLUG
Power output socket for power supply to additional SOUNDSATION lights. Ensure that
the total current consumption of all connected devices does not exceed the value spec-
ied on the device in amperes (A).
5) DMX OUTPUT (FEMALE PLUG)

11
ENGLISH
LIGHTBLASTER 1200 CMZ User manual

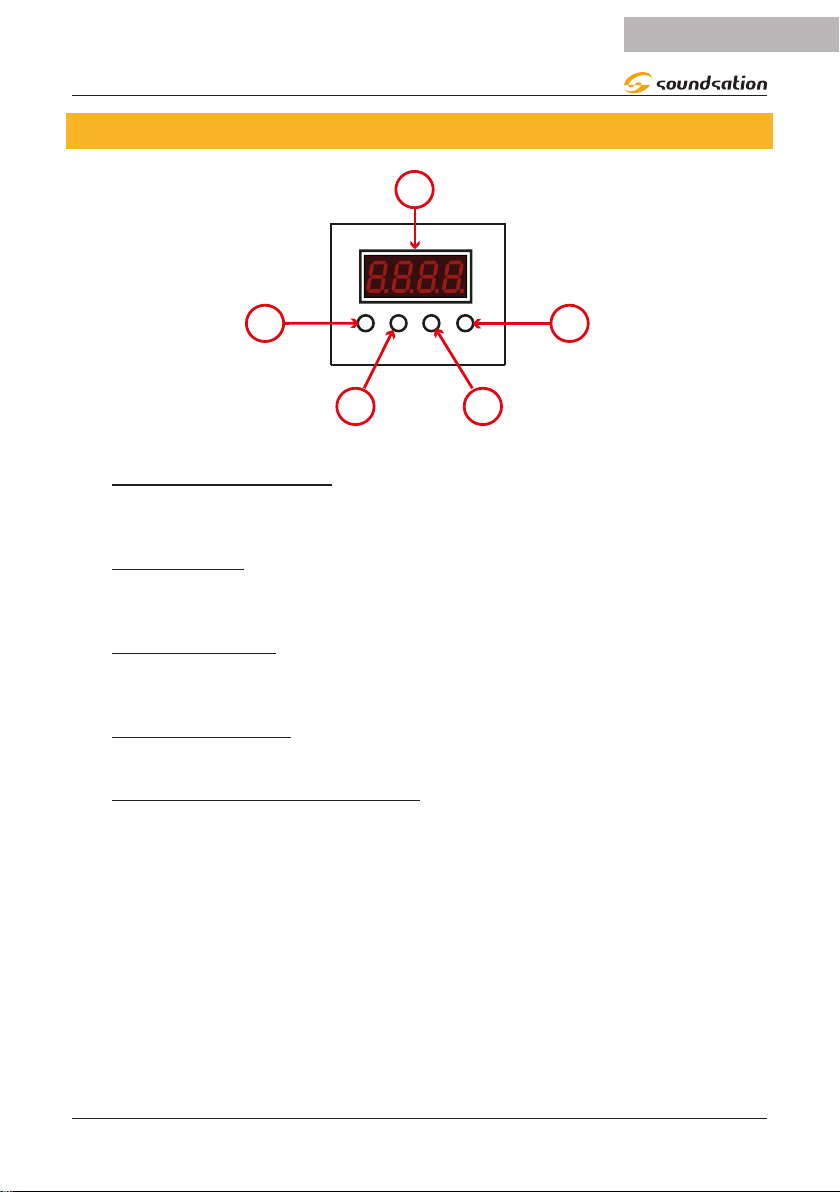

7.1. Control Panel
5
14
2 3
1) Menu/ESC Button
This button allows to put in stand-by the control panel and to escape from a selected
function without any saving.
2) UP Button
Using this button, it is possible to scroll-up the device’s functions and increase the
function’s value.
3) DOWN Button
Using this button, it is possible to scroll-down the device’s functions and decrease the
function’s value.
4) ENTER Button
This button allows to save a new function’s value.
5) 4 x 7 SEGMENTS display
It shows the current function’s name or function’s value.

12
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
8. FUNCTIONS MAP
1
2
3
4
5
6
7

13
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
8.1. FUNCTIONS DESCRIPTION
All the LIGHTBLASTER 1200 CMZ functions are selectable by using the UP BUTTON and
DOWN BUTTON on the Control Panel as described in “7.1. Control Panel” on page 11.
Below is an explanation of the device’s functions.
1) DMX CHANNEL SELECTION
After the selection of function, by pressing ENTER button, it is possible to
select the desired DMX Channel in order to manage the device using a DMX controller.
Once the channel is selected, press the ENTER button to conrm the value.
The range of this parameter is A001 -> A512
2) RUN MODE SELECTION
After the selection of function, by pressing ENTER button, it is possible to
select the device Run Mode by using the [UP] and/or [DOWN] buttons:
- AUTO Mode: The device automatically run according to built-in program.
The display shows .
- SOUND Mode: If the Sound Mode is selected and the integrated micro-
phone detects sounds, the device will run automatically
according to the built-in program. The display shows
.
- SLAVE Mode: Using this mode, it is possible to connect several units togeth
er and operate them in synchronized mode.
Use DMX cables to connect two or more units together from
the DMX OUT connector to the DMX IN connector.
The rst unit is MASTER and all the connected units must be
set as SLAVE. The display shows .
Set the Master unit in AUTO Mode or SOUND Mode to
operate the entire system. The entire chain of Slave units will
act as the Master unit.
3) DMX CHANNELS NUMBER CONFIGURATION
LIGHTBLASTER 1200 CMZ can be congured with two channel modes in order to be
managed by a DMX controller. The function that allows the selection of the mode is
. The two possible modes are 7Ch and 18Ch. Press the ENTER button to
conrm the selected mode.
Note: If the device is not connected to a DMX control unit, the main screen
will ash. By pressing the [ENTER] button, the device will access the
main menu.

14
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
4) TOOL Menu
This menu contains some utility functions for using the device. The display shows
. Pressing the [ENTER] button accesses the list of Functions that can be select-
ed using the [UP]/ [DOWN] buttons and then, by pressing the [ENTER] button again.
White balance adjustment
This submenu contains the parameters related to the colors balance
- White balance switch:
This parameter can be On or O. The white balance function menu is only
available when you set On. When you set O, it is not available.
The default setting is O. The parameter name on the display is .
Use the [UP]/[DOWN] buttons to set On or O and then press the [ENTER]
button to conrm the setting.
- Red, Green, Blue, White:
These parameters are used to adjust the RGBW colors brightness from dark
to bright. The range of these parameters is 50 ÷255 and the default value
is 255. Using the [UP]/[DOWN] buttons again increases/decreases the value.
Press the [ENTER] button to conrm the change. Press the [MENU/ESC]
button to exit the change without modication.
The name of these parameters on the display is respectively:
,
,
,
Non-Signal Reset
This parameter can be On or O. The parameter name on the display is .
The default setting is O.
- On:
When this parameter is set to On, it means the lights stay working and
signal remains even when the signal cables between controller and xture
is disconnected.
- O:
When this parameter is set to O, it means all the signal will be cleared and
light will be o when the signal between controller and xture is disconnect
ed.
Default Setting
This parameter can be On or O. The parameter name on the display is .
When this parameter is set to On, the device restore default settings only in this sub-
menu.
5) Manual Mode
This function allows the setting of all device parameters. The display shows .
Pressing the [ENTER] button accesses the list of parameters that can be selected using

15
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
the [UP]/ DOWN] buttons and then, by pressing the [ENTER] button again, the selected
parameter can be modied. Using the [UP]/[DOWN] buttons again increases/decreases
the value. Press the [ENTER] button to conrm the change. Press the [MENU/ESC] but-
ton to exit the change without modication. Below is the list of parameters.
Parameter N° Function Value Effect
CH01 Main Dimmer 0 ÷ 4 Shutdown
5 ÷ 255 Linear dimming from dark to light
CH02 Strobe
0 ÷ 4 Shutdown
5 ÷ 54 Random strobe
55 ÷ 104 Fade in strobe
105 ÷ 154 Fade out strobe
155 ÷ 204 Pulse strobe
205 ÷ 255 Normal strobe
CH03 Strobe Speed 0 ÷ 255 Slow to fast
CH04 Red dimming 0 ÷ 255 Red dimming goes from dark to bright
CH05 Green dimming 0 ÷ 255 Green dimming goes from dark to bright
CH06 Blue dimming 0 ÷ 255 Blue dimming goes from dark to bright
CH07 White dimming 0 ÷ 255 White dimming goes from dark to bright
CH08 Color wheel mode
0 ÷ 4 No function
5 ÷ 14 Red
15 ÷ 24 Green
25 ÷ 34 Blue
35 ÷ 44 Yellow
45 ÷ 54 Cyan
55 ÷ 64 Magenta
65 ÷ 74 White
75 ÷ 199 Color skip from slow to fast
200 ÷ 255 Random colors from slow to fast
CH09 Color Fade
0 ÷ 7 No function
8 ÷ 39 Red to Yellow
40 ÷ 71 Yellow to Green
72 ÷103 Green to Cyan
104 ÷135 Cyan to Blue
136 ÷167 Blue to Magenta
168 ÷199 Magenta to Red
200 ÷ 255 Color fade from slow to fast

16
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
CH10 Built-In Eect
0 ÷ 4 No function
5 ÷ 34 Eect 1
35 ÷ 69 Eect 2
70 ÷104 Eect 3
105 ÷139 Eect 4
140 ÷ 174 Eect 5
175 ÷ 209 Eect 6
210 ÷ 255 Eect 7
CH11 Eect speed 0 ÷ 255 Slow to fast
CH12 Eect Shade 0 ÷ 255 Eect Shade
CH13 Eect of red 0 ÷ 255 Red eect dimming from dark to bright
CH14 Eect of green 0 ÷ 255 Green eect dimming from dark to bright
CH15 Eect of blue 0 ÷ 255 Blue eect dimming from dark to bright
CH16 Eect of white 0 ÷ 255 White eect dimming from dark to bright
CH17 Dimming Eect 0 ÷ 255 Total eect dimming from dark to bright
CH18 Background total
dimmer 0 ÷ 255 Backlight total dimming from dark to bright
6) DEVICE INFORMATION
By selecting the function , you will get general information about the device
status as follows:
- Device Usage Time : The usage time in hours is displayed.
- Device Sostware Version : The software version of the device is
shown on the display.
- Device Temperature :By selecting this option, the internal
temperature in degrees of the device is
shown.
7) RESET
This parameter can be On or O. The parameter name on the display is .
When this parameter is set to On, the device is reset.
Note: During parameter settings, if no operations are performed within 30
seconds, the device will return to display the rst function of the main
menu (DMX Address ).

17
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
9. DMX CHANNEL MODES
This device has two DMX channel modes (7CH and 18CH). For the DMX channel mode
selection, please refer to “3) DMX CHANNELS NUMBER CONFIGURATION” on page
13.
9.1. 7Ch Mode Table
Channel Function Value Effect
CH1 Dimmer 0 ÷ 4 Shutdown
5 ÷ 255 Linear dimming from dark to light
CH2 Strobe
0 ÷ 4 Shutdown
5 ÷ 54 Random strobe
55 ÷ 104 Fade in strobe
105 ÷ 154 Fade out strobe
155 ÷ 204 Pulse strobe
205 ÷ 255 Normal strobe
CH3 Strobe Speed 0 ÷ 255 Slow to fast
CH4 Red dimming 0 ÷ 255 Red dimming goes from dark to bright
CH5 Green dimming 0 ÷ 255 Green dimming goes from dark to bright
CH6 Blue dimming 0 ÷ 255 Blue dimming goes from dark to bright
CH7 White dimming 0 ÷ 255 White dimming goes from dark to bright

18
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
9.2. 18Ch Mode Table
Channel Function Value Effect
CH1 Main Dimmer 0 ÷ 4 Shutdown
5 ÷ 255 Linear dimming from dark to light
CH2 Strobe
0 ÷ 4 Shutdown
5 ÷ 54 Random strobe
55 ÷ 104 Fade in strobe
105 ÷ 154 Fade out strobe
155 ÷ 204 Pulse strobe
205 ÷ 255 Normal strobe
CH3 Strobe Speed 0 ÷ 255 Slow to fast
CH4 Red dimming 0 ÷ 255 Red dimming goes from dark to bright
CH5 Green dimming 0 ÷ 255 Green dimming goes from dark to bright
CH6 Blue dimming 0 ÷ 255 Blue dimming goes from dark to bright
CH7 White dimming 0 ÷ 255 White dimming goes from dark to bright
CH8 Color wheel mode
0 ÷ 4 No function
5 ÷ 14 Red
15 ÷ 24 Green
25 ÷ 34 Blue
35 ÷ 44 Yellow
45 ÷ 54 Cyan
55 ÷ 64 Magenta
65 ÷ 74 White
75 ÷ 199 Color skip from slow to fast
200 ÷ 255 Random colors from slow to fast
CH9 Color Fade
0 ÷ 7 No function
8 ÷ 39 Red to Yellow
40 ÷ 71 Yellow to Green
72 ÷103 Green to Cyan
104 ÷135 Cyan to Blue
136 ÷167 Blue to Magenta
168 ÷199 Magenta to Red
200 ÷ 255 Color fade from slow to fast

19
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
CH10 Built-In Eect
0 ÷ 4 No function
5 ÷ 34 Eect 1
35 ÷ 69 Eect 2
70 ÷104 Eect 3
105 ÷139 Eect 4
140 ÷ 174 Eect 5
175 ÷ 209 Eect 6
210 ÷ 255 Eect 7
CH11 Eect speed 0 ÷ 255 Slow to fast
CH12 Eect Shade 0 ÷ 255 Eect Shade
CH13 Eect of red 0 ÷ 255 Red eect dimming from dark to bright
CH14 Eect of green 0 ÷ 255 Green eect dimming from dark to bright
CH15 Eect of blue 0 ÷ 255 Blue eect dimming from dark to bright
CH16 Eect of white 0 ÷ 255 White eect dimming from dark to bright
CH17 Dimming Eect 0 ÷ 255 Total eect dimming from dark to bright
CH18 Background total
dimmer 0 ÷ 255 Backlight total dimming from dark to bright

20
ENGLISH
LIGHTBLASTER 1200 CMZ User manual
10. SPECIFICATIONS
Electrical
Voltage 110V ~ 240V
Frequency 50-60Hz
Power consumption 500V
Light Source
LED 1200 x 1W (RGBW 4in1)
Beam Angle 110°
Strobe 0 ÷ 30Hz
Control Modes
DMX512 7CH/18CH
Slave
Sound
Auto
Manual
Cooling way No Fan - Convection Cooling
Noise Noiseless (No Fan)
Display Led - 4 x 7 segments
Connectors
DMX Connections: IP65 3-pin In - D17mm
DMX Connections: IP65 3-pin Out - D17mm
Power Connections: IP65 3-pin In - D35mm
Power Connections: IP65 3-pin Out - D35mm
IP Grade IP65
Bundled Accessories
1 x DMX cable IP65/XLR 3-pin Female/Male - D17mm
1 x Power Cable Shuko Type
1 x Bracket
2 x Screw Knobs
1 x Owner’s Manual
Dimensions Device (WxDxH) 600 x 230 x 100 mm
Packing (WxDxH) 680 x 325 x 200 mm
Weights Net Weight 11 Kg
Packing Weight 12 Kg
Note: Our products are subject to a process of continual further development. Therefore modications to the
technical features remain subject to change without further notice.
