Sound Sation 4 led KIT Party User manual

Please read this manual carefully and proper take care of this manual.
USER MANUAL
Complete 4-PAR LED Lighting Kit
4 led KIT Party
Leggete questo manuale e conservatelo per future consultazioni!
MANUALE utente

Dear customer,
First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument, professional audio and lighting users offering
a wide range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are
looking for a feedback from you about the operation of the product and possible im-
provements to introduce in the next future. Go to our website www.soundsationmusic.
com and send an e-mail with your opinion, this will help us to build instruments ever
closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team
Gentile Cliente,
Grazie per aver scelto un prodotto SOUNDSATION®. La nostra missione è quella di
offrire ai nostri utenti una vasta gamma di strumenti musicali ed apparecchiature audio
e lighting con tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, saremmo
lieti di ricevere un vostro feedback sulla qualità del prodotto al ne di migliorare co-
stantemente la nostra produzione. Visitate il nostro sito www.soundsationmusic.com ed
inviateci una mail con la vostra opinione, questo ci aiuterà a sviluppare nuovi prodotti
quanto più vicini alle vostre esigenze.
Un’ultima cosa, leggete il presente manuale al ne di evitare danni alla persona ed al
prodotto, derivanti da un utilizzo non corretto.
Il Team SOUNDSATION

TABLE OF CONTENTS
1. 1. INTRODUCTION ....................................................................................................6
1.1. UNPACKING .............................................................................................................................................................6
1.2. ACCESSORIES ..........................................................................................................................................................6
2. OVERVIEW..................................................................................................................6
3. MAIN FEATURES........................................................................................................7
4. OVERHEAD RIGGING ................................................................................................7
5. OVERVIEW..................................................................................................................8
6. FUNCTION..................................................................................................................9

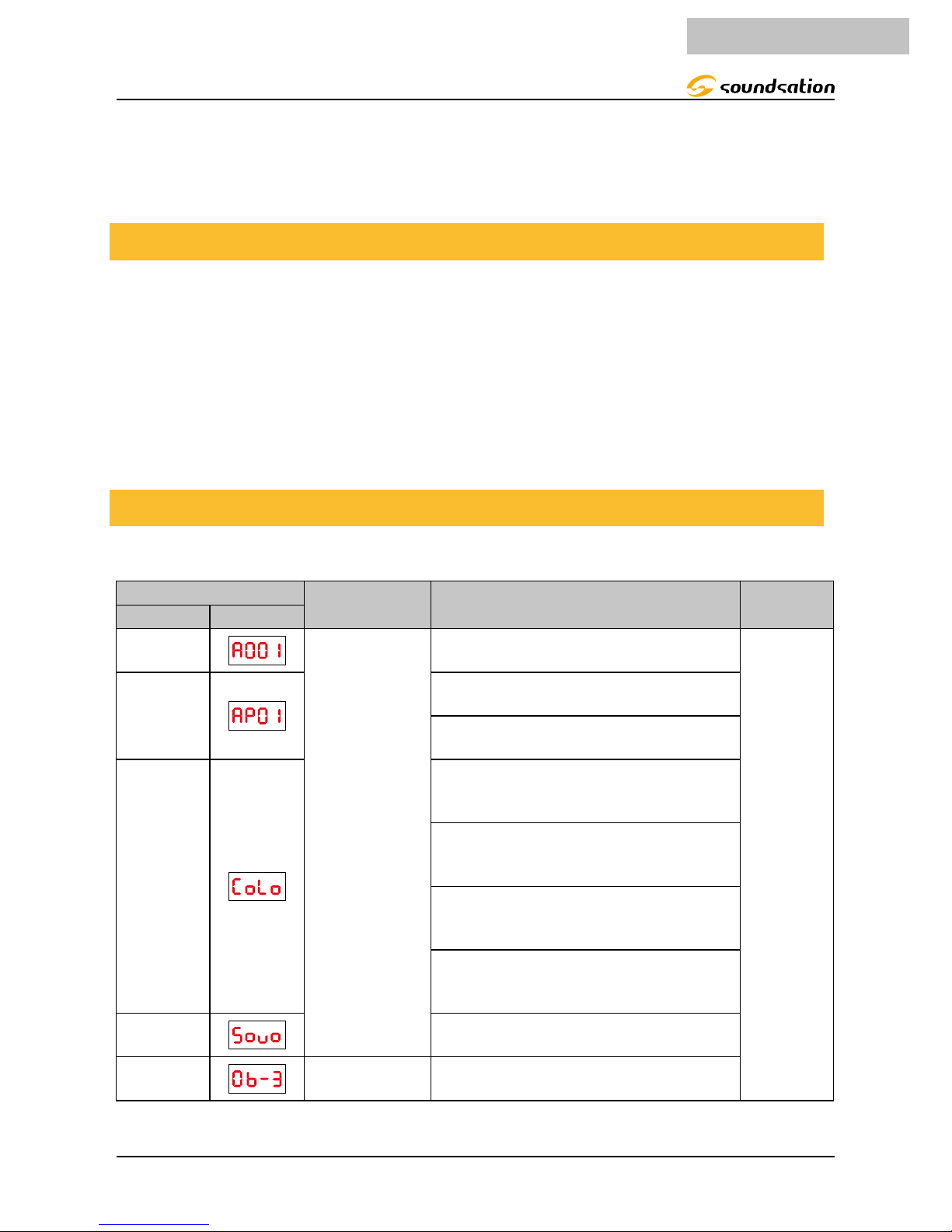

6.1. MAIN Menu..............................................................................................................................................................9
6.2. Footswitch...............................................................................................................................................................10
7. MODE INTRODUCTION...........................................................................................10
8. DMX Channel Chart ................................................................................................11
9. MAINS CONNECTIONS ...........................................................................................12
10. WORKING MODE OPTIONS ...................................................................................12
10.1. Stand-alone Mode...............................................................................................................................................12
10.2. Stand-alone master slave..................................................................................................................................12
11. TROUBLE SHOOTING ..............................................................................................13
12. APPENDIX ................................................................................................................14

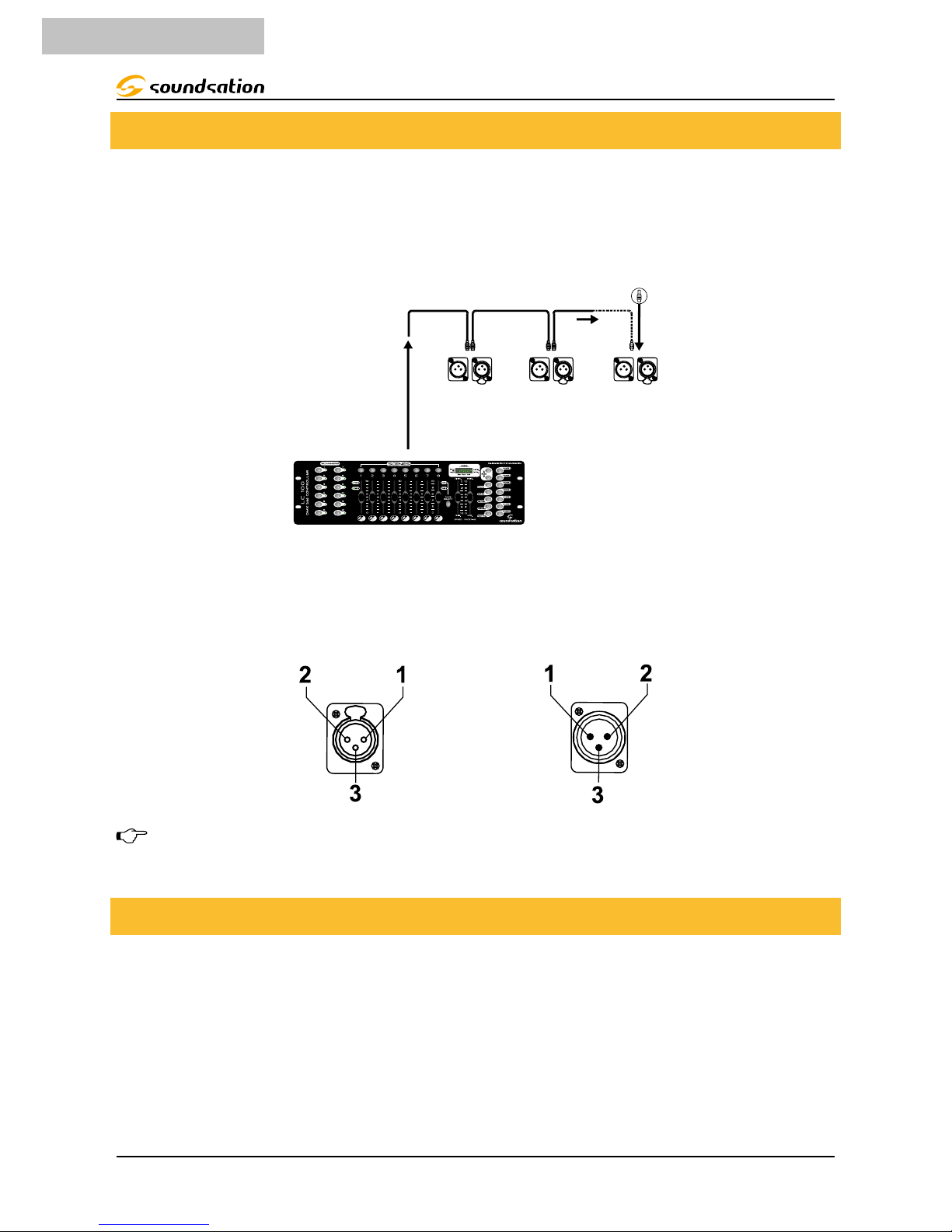

12.1. DMX Terminator ...................................................................................................................................................14

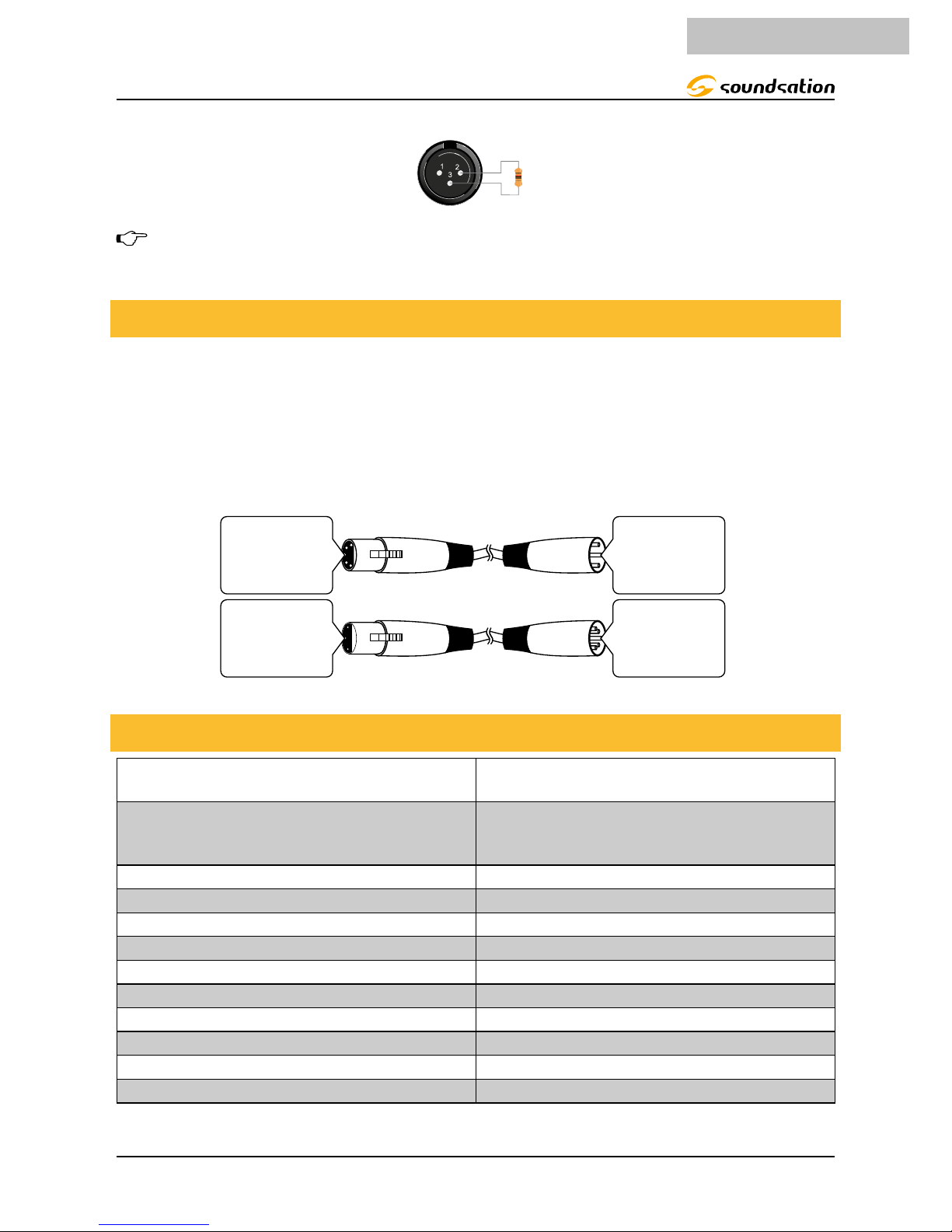

12.2. 3-Pin vs 5-Pin DMX cables ...............................................................................................................................15
13. SPECIFICATIONS ......................................................................................................15
14. WARRANTY AND SERVICE .....................................................................................16
15. WARNING.................................................................................................................16
3
ENGLISH

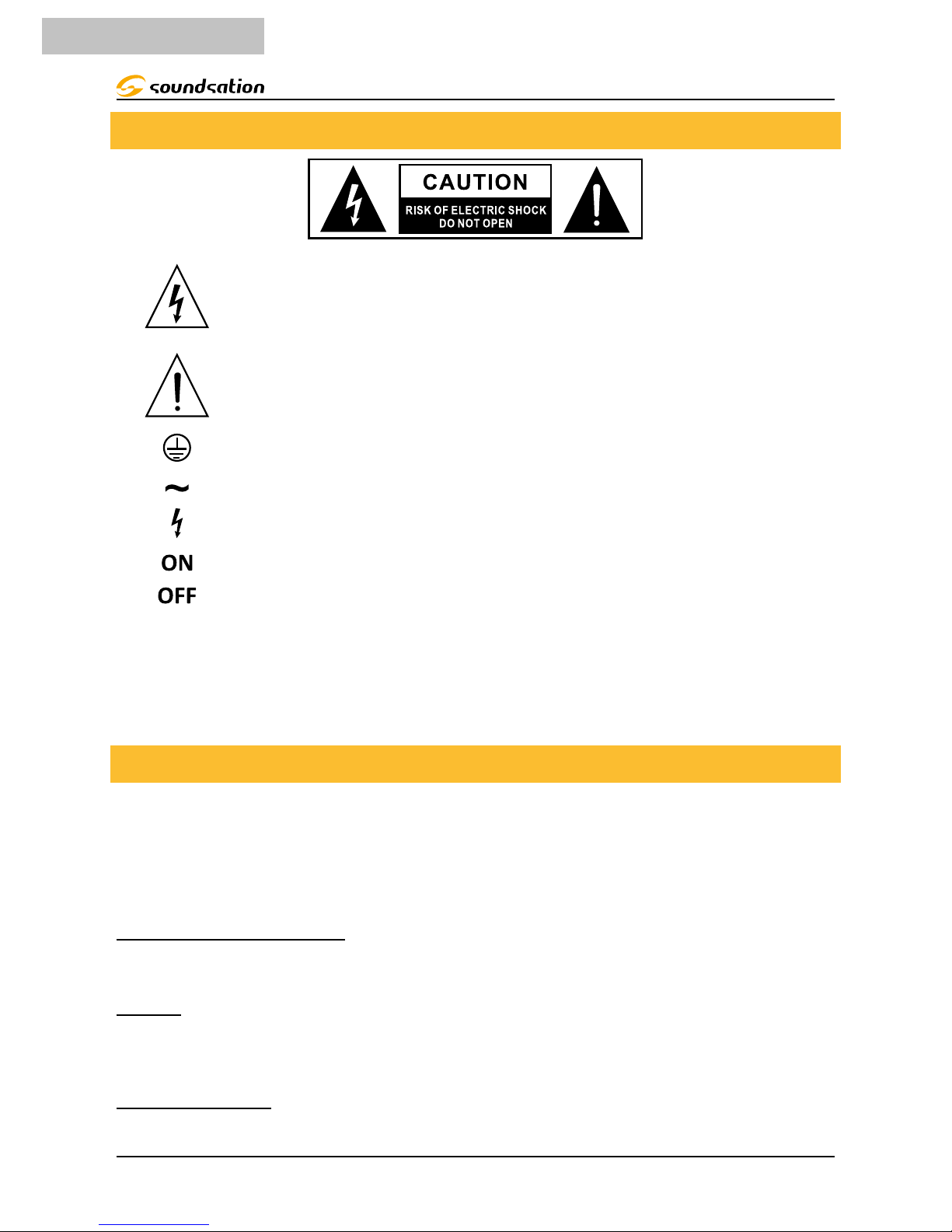

IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating con-
ditions, which may be sufcient to constitute the risk of electric shock
or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
TAKING CARE OF YOUR PRODUCT
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions
Water / Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat.
Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
4
ENGLISH
4LEDKIT-PARTY User manual

install according to the manufacturer’s instructions.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
Power Cord and Plug
Protect power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus. Do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug has two poles; a
grounding-type plug has two poles and a third grounding terminal. The third prong is
provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement.
Power Supply
In case of external power supply, the apparatus should be connected to the power sup-
ply only of the type as marked on the apparatus or described in the manual. Failure to
do could result in damage to the product and possibly the user. Unplug this apparatus
during lightning storms or when unused for long periods of time.
Fuse
To prevent the risk of re and damaging the unit, please use only of the recommend-
ed fuse type as described in the manual. Before replacing the fuse, make sure the unit
turned off and disconnected from the AC outlet.
Electrical Connection
Always disconnect from the power source before servicing or replacing fuse and be
sure to replace with same fuse size and type. Cut off power before moving, repairing
and cleaning the unit. Improper electrical wiring may invalidate the product warranty.
To avoid electric shock, all xtures must be connected to circuits with a suitable ground.
Do not power on and power off the xture in a short time.
DMX connection
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source).
Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.
5
ENGLISH
4LEDKIT-PARTY User manual

1. 1. INTRODUCTION
Thank you for purchasing our 4LEDKIT-PARTY lighting bundle. Enjoy your new equip-
ment and make sure to read this manual carefully before operation!
This user manual is made to provide both an overview of controls, as well as informa-
tion on how to use them. In order to help you to understand the connections between
the various controls, we have gathered in groups according to their functions.
1.1. UNPACKING
Your 4LEDKIT-PARTY was carefully packed to ensure safe transport. Despite this, we
recommend you to carefully examine the package and its contents for any signs of
physical damage, which can occur during transport. It is composed by following parts:
fT-bar and Carrying bag
fPedal-board
fStand and Carrying bag
fIEC power cable
fUser manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
1.2. ACCESSORIES
SOUNDSATION can supply a wide range of quality accessories that you can use with
your LED Kit, like Cables, Splitters, DMX controllers, and a wide range of xtures.
All products in our catalogue has been long tested with this device, so we recommend
you to use Genuine SOUNDSATION Accessories and Parts.
Ask your SOUNDSATION dealer or check out our website www.soundsationmusic.com
for any accessories you could need to ensure best performance of the product.
2. OVERVIEW
SOUNDSATION 4LEDKIT-PARTY brings you a complete light system including all acces-
sories in only one package. It is the smartest solution for all musicians, DJs, and small
rental companies.
It comes complete with 4 compact LED spots. Each spot contains 81 LEDs (27 Red, 27
Green, 27 Blue) in order to create a complete color palette. The spots are mounted on
a T-bar which has a built-in controller unit. The T-bar can be controlled by the included
pedal-board or by DMX.
6
ENGLISH
4LEDKIT-PARTY User manual

In addition to RGB color adjustment of all four PARs independently, the unit features
12 auto running programs and 4 Audio Mode Options, to let your lighting kit create
wonderful effects even without a DMX controller.
3. MAIN FEATURES
f4 PARs with 81 high-brightness LED each (27R, 27G, 27B)
fT-Bar with internal controller and power unit (carrying bag included)
fTripod Stand with carrying bag included
fOperation Modes: Auto, Sound, DMX, Footswitch modes
f12 Internal Programs
fDMX: 15CH mode or 3CH basic mode (only RGB control on all PARs)
f4 kinds of Audio Mode with internal Microphone and sensitivity adjustment
fBeam Angle: 16° (per PAR)
fField Angle: 26° (per PAR)
fLED Display for easy navigation and programming
fPedalboard with 2 footswitch
4. OVERHEAD RIGGING
WARNING: The installation must be carried out by qualied service personal
only. Improper installation can result in serious injuries and /or damage to
property. Overhead rigging required extensive experience! Working load
limits should be respected, Certied installation materials should be used,
the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
• Locate the xture in a well ventilated spot, far away from any ammable materials
and/or liquids. The xture must be xed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where
persons may walk by or be seated.
• Before rigging, make sure that the installation area can hold minimum point load
of 10 times the device”s weight. The device should be well xed; a free swinging
mounting is dangerous and may not be considered!
• Do not cover any ventilation opening as this may result in overheating
• Before the rst time use, it must be inspected by professional staff to make sure
safety, inspection regularly every year.
7
ENGLISH
4LEDKIT-PARTY User manual

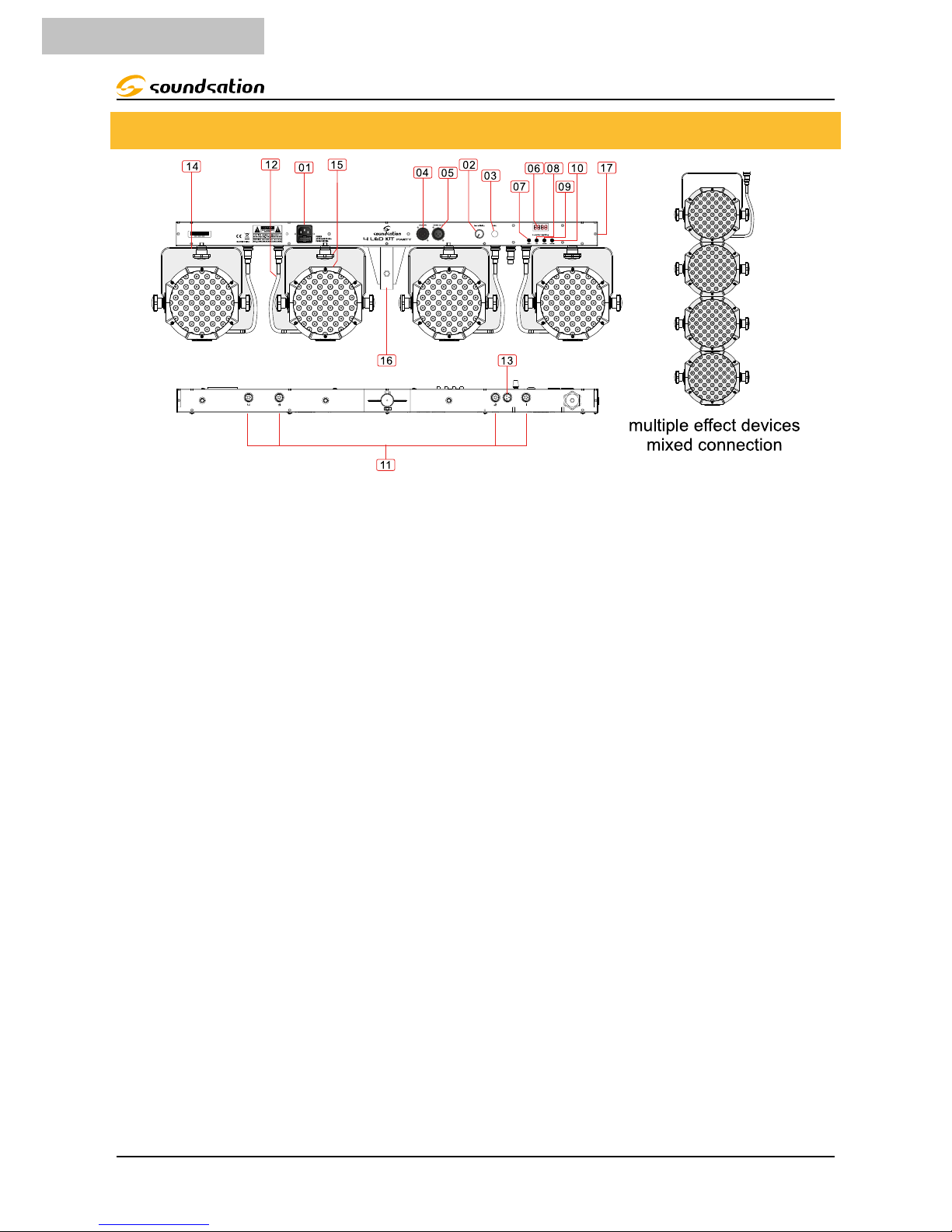

5. OVERVIEW
1. POWER: Main input and output with IEC socket and integrated fuse holder. Con-
nect here the supplied mains cable and any next light.
2. SENSITIVITY: This knob is used to adjust music input sensitivity.
3. MICROPHONE: Turn the knob to adjust sound activated sensitivity.
4. DMX INPUT: 3PIN male XLR connector for DMX communication.
5. DMX OUTPUT: 3PIN female XLR connection for DMX communication.
6. LED DISPLAY: It shows all menus and functions.
7. MENU: Used to select Pod different menu items.
8. UP: To go up in the menu and to increase values shown on the display.
9. DOWN: To go back in the menu and to lower values shown on the display.
10. ENTER: Used to conrm your choice.
11. PAR LED CONNECTORS: Connect LED PARs here.
12. CABLE: Special cables with LED power signal for passive LED panels.
13. FOOTSWITCH CONNECTOR: Connect here the supplied pedalboard.
14. PANELS: Passive LED PARs.
15. ADJUSTMENT: PARs’ Pan Tilt adjustment brackets with fastening knobs.
16. STAND CONNECTOR: It is a Ø36mm connecting bracket to put the T-bar on the
8
ENGLISH
4LEDKIT-PARTY User manual

supplied tripod stand. Use the knob to fasten the bar to the stand.
17. GROUND PLACEMENT CONNECTOR: Put here the supplied bracket to use the
T-bar stacked on ground or other plain surfaces.
6. FUNCTION
The unit has ve working modes:
fAuto mode - Built-in programs not controlled by foot pedal controller.
fManual mode - RGB color mix
fAudio mode - automatic built in programs Sound activated
fDMX512 mode - DMX512 control via controller
fFootswitch mode - Hold, black out, and control programs via the foot pedal.
fOb3 - mode this allows control of unit using just 3 dmx channels RGB

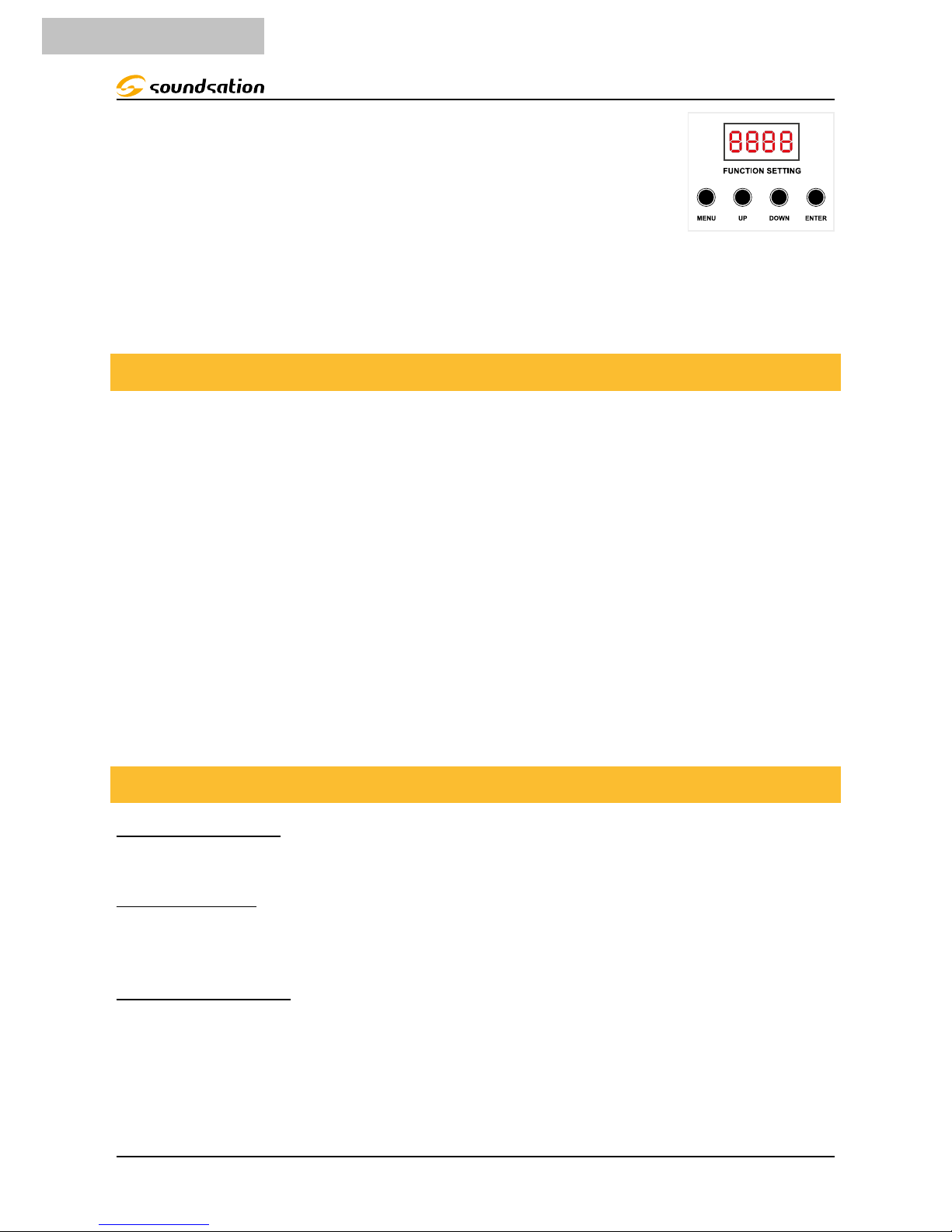

6.1. MAIN Menu
To select any of the menu options:
MENU ENTER UP / DOWN ENTER
Mode Display
DMX512
mode
Specication
modication
A.001-A.512
DMX address selection
Save and
run
Auto mode
AP01-AP12
Built in programs
F.00-F.0B
(8 speed options) note 00 is static
Manual
mode
r.00-r.0B
Intensity of red color 00=off 0B=bright-
est
g00-g.08
Intensity of green color 00=off
0B=brightest
b.00-b.08
Intensity of blue color 00=off 0B=bright-
est
F.00-F.0B
(Increase Strobe speed 00=static OB fast
strobe)
Audio SP00-SP03
(Increase 4 possible audio sensitivity)
Obey3 3 channel DMX
only RGB No function
1. Press the MENU button to select the mode required.
9
ENGLISH
4LEDKIT-PARTY User manual

2. Once you have made a selection then press ENTER to con-
rm.
3. Use DOWN and UP button to choose the desired menu op-
tion.
4. Just wait 20 seconds, the menu structure is shown in previous
page.
This product has a memory function. It will go directly into DMX mode after switching
on, it will show “A001”. Once a menu has been selected the next time it is powered on
the unit will show the mode you previously nished on.
6.2.Footswitch
The footswitch has 2 pedals
fLeft pedal is blackout / on. Pressing the left pedal once will blackout the unit and all
par cans will go off
fPressing the left pedal once again the unit will light and return to be the position the
unit was in before black out was pressed. In blackout mode the display will show OFF.
Using the right hand foot pedal (programs) APon.
fBy pressing the program pedal the kit will step through the built in options.
fAuto programs 1-12 and Auto programs ALL. The digital display will read “APon ->
Ap01 -> AP02 -> AP03 -> Ap04-> AP05 -> AP06 ->AP07-> AP08 -> AP09 -> AP10
-> AP11 -> AP12 -> ALL”) as you step through the selection.
fYou also can step on the “PROGRAMS” footplate again to select into R ->G ->B ->RG
->GB ->RB -> RGB -> modes.
7. MODE INTRODUCTION
DMX512 mode
To receive DMX512 controller and the slave data.
Auto mode
There are 12 modes under this the auto mode: from AP01 to AP12. On every mode you
can set running speed.
Manual mode
Direct RGB control of color and strobe speed can be manually set under this mode.
fWhen display shows r-00 - r08, you can increase RED brightness value.
fWhen the display shows g-00 - g08, you can increase GREEN brightness value.
fWhen the display shows b-00 - b08, you can increase BLUE brightness value
10
ENGLISH
4LEDKIT-PARTY User manual

fWhen the display shows F-00 - F-08, you can adjust Strobe Speed.
Audio mode
Under this mode, please adjust the Audio Sensitivity control knob on rear panel to a
suitable position. There are 4 modes, from SP00 to SP03, as you increase the value the
sound mode will increase and change.
Foot Switch mode
There are 20 modes that can be selected. AP01-AP12 are single internal auto programs;
ALL means that these 12 internal programs run constantly.
8. DMX Channel Chart
Several operating modes were preprogrammed into this LED Kit at DMX Channel 1.
Before controlling other DMX channels, please be sure that channel 1 is set in proper
mode (value).
Channels Function Value Description
CH1
Mode 1 000 - 009 RGB color adjustment
Mode 2 010 - 029 Internal Program 1
Mode 3 030 - 049 Internal Program 2
Mode 4 050 - 069 Internal Program 3
Mode 5 070 - 089 Internal Program 4
Mode 6 090 - 109 Internal Program 5
Mode 7 110 - 129 Internal Program 6
Mode 8 130 - 149 Internal Program 7
Mode 9 150 - 169 Internal Program 8
Mode 10 170 - 189 Internal Program 9
Mode 11 190 - 209 Internal Program 10
Mode 12 210 - 229 Internal Program 11
Mode 13 230 - 249 Internal Program 12
Mode 14 250 - 255 4 kinds of Audio Mode Options
NOTE: to operate CH1, CH3 must have a speed value set
Other Channels:
Channels Function Value Description
CH2 Dimmer 0 - 100% 000 - 255 RGB Brightness 0-100%
CH3 Strobe Speed /
Chase Speed
000 - 015 No Strobe
016 - 255 Strobe Speed adjustment
CH4 Red Dimmer 000 - 255 1st PAR Red Adjustment 0 - 100%
CH5 Green Dimmer 000 - 255 1st PAR Green Adjustment 0 - 100%
CH6 Blue Dimmer 000 - 255 1st PAR Blue Adjustment 0 - 100%
CH7 Red Dimmer 000 - 255 2nd PAR Red Adjustment 0 - 100%
CH8 Green Dimmer 000 - 255 2nd PAR Green Adjustment 0 - 100%
11
ENGLISH
4LEDKIT-PARTY User manual

CH9 Blue Dimmer 000 - 255 2nd PAR Blue Adjustment 0 - 100%
CH10 Red Dimmer 000 - 255 3rd PAR Red Adjustment 0 - 100%
CH11 Green Dimmer 000 - 255 3rd PAR Green Adjustment 0 - 100%
CH12 Blue Dimmer 000 - 255 3rd PAR Blue Adjustment 0 - 100%
CH13 Red Dimmer 000 - 255 4th PAR Red Adjustment 0 - 100%
CH14 Green Dimmer 000 - 255 4th PAR Green Adjustment 0 - 100%
CH15 Blue Dimmer 000 - 255 4th PAR Blue Adjustment 0 - 100%
9. MAINS CONNECTIONS
Connect the device to the mains with the power-plug. The wire correspondence is as
follow:
Cable Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking
into operation for the rst time, the installation has to be approved by an
expert.
10. WORKING MODE OPTIONS
10.1. Stand-alone Mode
You can choose between AUTO, MANUAL mode, AUDIO mode.
fUse the MENU, UP, DOWN and ENTER buttons to select the desired mode.
10.2. Stand-alone master slave
Connecting several units together without a DMX controller
Setting the master unit
fPress the menu button to select the desired mode: Auto, Sound, Manual RGB
fPress enter to conrm.
Setting the slave units
fPress the menu button until A*** is displayed.
fUse the UP/DOWN buttons lo select A001
fPress the ENTER button to conrm
fAll slave units must be set to A001
12
ENGLISH
4LEDKIT-PARTY User manual

NOTE: Please note only one unit must be set as a master. The slave units Will
Follow the controls from the master unit. The foot pedal can be connected to
the master unit To control all connected units.
Using a DMX controller
Each unit uses 15 DMX channels. To control all units the same, DMX value must be set
the same on all units (e.g.: all to A001).
To control units individually each unit must have its own DMX start address and each
address must be at least 15 channels apart. No DMX address values must cross (Ex-
ample unit 1 set to A001, unit 2 set to A016 etc., each 15 channels apart).
Using ob-3 mode
This is designed to use a basic 3-channel DMX controller and will only give control of
the RGB of all par cans. Individual control of each can is not available nor are any of the
built in programs.
To select ob-3 mode:
fPress the MENU button until ob-3 is displayed.
fPress ENTER to conrm
11. TROUBLE SHOOTING
Problems Check LIst Troubleshooting
No Output. The Prod-
uct does not work
• Check if the power cord is
connect in input mains socket
of the party Bar.
• Check if the ambient tempera-
ture in a safe range
• Make sure there is mains
present to cable. Check the
fuse or replace the cable
• After temperature is suit-
able, protect function will
cancel automatically
LED Dimmed
• Check if power cord is connect
in the input mains socket of
the 4LEDKIT-PARTY
• Make sure mains input volt-
age is the correct voltage
No DMX input
• Check if cable is damaged or
connections pin polarity is
correct
• Check if DMX mode is set
properly
• Check if there are 2 units set as
master in the whole circuit
• Correct DMX polarity or
change the cable.
• Set up function mode as
DMX
• Set 1 unit in Slave Mode
13
ENGLISH
4LEDKIT-PARTY User manual

12.APPENDIX
DMX xtures are designed to receive data through a serial Daisy Chain. A Daisy Chain
connection is where the DATA OUT of one xture connects to the DATA IN of the next
xture. The order in which the xtures are connected is not important and has no effect
on how a controller communicates to each xture. Use an order that provides for the
easiest and most direct cabling.
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect xtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to
female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and
pin 3 is Data positive (S+).
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
CAUTION: Wires must not come into contact with each other; otherwise the
xtures will not work at all, or will not work properly.
12.1. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control
signals, a good habit is to connect DMX output of last xture in the chain to a DMX
terminator, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω (ohm), 1/4 Watt resistor
connected across Signal (-) and Signal (+), respectively, pins 2 and 3, which is then
plugged into the output socket on last projector in the chain. The connections are
illustrated below.
14
ENGLISH
4LEDKIT-PARTY User manual

120ohm, 1/4W
resistor
DMX Terminator
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
12.2. 3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and xtures manufacturers are not stan-
dardized around the world. However, two are the most common standards: 5-Pin XLR
and 3-Pin XLR system. If you wish to connect SCENESPLIT 8 RACK to a 5-Pin XLR input
xture, you need to use an adapter-cable or make it by yourself.
Following the wiring correspondence between 3-Pin and 5-Pin plug and socket stan-
dards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
13.SPECIFICATIONS
General: Portable system of four lights, comprising of
81 LEDs
LED per single PAR:
27 red 625nm/100mW
27 green 525nm/120mW
27 blue 465nm/120mW
Beam angle: 16° (per PAR)
Field angle: 26° (per PAR)
DMX Channels: 3, 15CH
AC power: 100V-240V 50/60Hz Switching Power Supply
Power Consumption: 30W
Fuse: 1.6A
Power Linking: 30pcs@240V, 15pcs@110V
Size: 910 x 242 x 48 mm
Packing (LxHxW): 1180 x 125 x 350 mm
G.W: 10 kg
15
ENGLISH
4LEDKIT-PARTY User manual

14.WARRANTY AND SERVICE
All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specic
to the date of purchase as shown on your purchase receipt.
The following cases/components are not covered from the above warranty:
• Any accessories supplied with the product
• Improper use
• Fault due to wear and tear
• Any modication of the product effected by the user or a third party
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing
faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual
parts or the entire appliance. Any defective parts removed from a product during the course of a
warranty claim shall become the property of SOUNDSATION.
While under warranty period, defective products may be returned to your local SOUNDSATION
dealer together with original proof of purchase. To avoid any damages in transit, please use the
original packaging if available. Alternatively you can send the product to SOUNDSATION SERVICE
CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product to service
center you need an RMA number. Shipping charges have to be covered by the owner of the prod-
uct.
For further information please visit www.soundsationmusic.com
15.WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household waste, ac-
cording to the WEEE Directive (2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an authorized one-
for-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on the environment
and human health due to potentially hazardous substances that are generally associated with EEE.
At the same time, your cooperation in the correct disposal of this product will contribute to the
effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling, please
contact your local city ofce, waste authority, approved WEEE scheme or your household waste
disposal service.
16
ENGLISH
4LEDKIT-PARTY User manual

SOMMARIO
16. 1. INTRODUZIONE...................................................................................................20
16.1. DISIMBALLAGGIO ................................................................................................................................................20
16.2. ACCESSORI .............................................................................................................................................................20
17. PANORAMICA..........................................................................................................20
18. CARATTERISTICHE PRINCIPALI..............................................................................21
19. MODALITÀ DI INSTALLAZIONE .............................................................................21
20. INTRODUZIONE.......................................................................................................22
21. FUNZIONI.................................................................................................................23
21.1. MENU PRINCIPALE ..............................................................................................................................................23
21.2. Pedaliera..................................................................................................................................................................24
22. MODALITÀ DI FUNZIONAMENTO .........................................................................24
23. TABELLA DMX..........................................................................................................25
24. COLLEGAMENTI PRINCIPALI ..................................................................................26
25. MODALITÀ OPERATIVE ...........................................................................................26
25.1. Modalità Stand-alone.........................................................................................................................................26
25.2. Modo Stand-alone master slave....................................................................................................................26
26. APPENDICE...............................................................................................................27
26.1. Terminatore DMX.................................................................................................................................................28
26.2. Cavi DMX a 3 e 5 piedini...................................................................................................................................28
27. RISOLUZIONE DEI PROBLEMI ................................................................................29
28. SPECIFICHE...............................................................................................................29
29. GARANZIA E ASSISTENZA......................................................................................30
30. AVVISO .....................................................................................................................30
17
ITALIANO

IMPORTANTI SIMBOLI DI SICUREZZA
Il simbolo è usato per indicare che in questa apparecchiatura sono
presenti alcuni terminali sotto tensione pericolosi, anche in condizioni
di normale funzionamento, che possono costituire rischio di scosse
elettriche o di morte.
Il simbolo viene utilizzato nella documentazione di servizio per indi-
care che uno specico componente può essere sostituito esclusiva-
mente dal componente specicato nella documentazione per motivi di
sicurezza.
Terminale di terra
Corrente/Tensione alternata
Terminale in tensione pericoloso
Indica che l’apparato è acceso
Indica che l’apparato è spento
WARNING: Precauzioni da osservare per evitare il pericolo di ferimento o di morte
per l’utilizzatore.
CAUTION: Precauzioni da osservare per evitare danni all’apparecchio.
IMPORTANTI ISTRUZIONI DI SICUREZZA
fLeggete queste istruzioni
fConservate queste istruzioni
fRispettate tutte le avvertenze
fSeguite tutte le istruzioni
ACQUA / UMIDITA’
L’apparecchio deve essere protetto dall’umidità e dalla pioggia, non può essere usato
in prossimità di acqua; ad esempio nei pressi di una vasca da bagno, di un lavandino,
di una piscina, etc.
CALORE
L’apparecchio deve essere posto lontano da fonti di calore come radiatori, stufe o altri
apparecchi che producono calore.
18
ITALIANO
4LEDKIT-PARTY MANUALE UTENTE

Ventilazione
Non ostruite le prese d’aria per la ventilazione: ciò potrebbe provocare incendi. Installa-
re sempre l’unità secondo le istruzioni del produttore
INTRODUZIONE DI OGGETTI E LIQUIDI
Non introdurre oggetti o versare liquidi all’interno dell’apparato per ragioni di sicurezza.
PRESA DI ALIMENTAZIONE
Proteggere il cavo di alimentazione nel caso in cui venga calpestato o schiacciato, in
particolare in corrispondenza delle spine, delle prese e il punto di uscita dall’apparec-
chio. Non annullare l’obiettivo di sicurezza della spina polarizzata o con messa a terra.
Una spina polarizzata ha due poli; una spina a terra ha due poli e un terzo morsetto
di messa a terra. Il terzo polo è previsto per la vostra sicurezza. Se la spina fornita non
entra nella presa, consultare un elettricista per la sostituzione.
ALIMENTAZIONE
L’apparecchio deve essere collegato alla sorgente di alimentazione elettrica del tipo
indicato sull’apparecchio o descritto nel manuale. In caso contrario si potrebbero
provocare danni al prodotto ed eventualmente all’utente. Staccate la spina in caso di
temporali o quando non viene utilizzato per lunghi periodi di tempo.
Fusibile
Per prevenire il rischio di incendio e danneggiamento dell’unità, per favore usare solo
il tipo di fusibile consigliato come descritto nel manuale. Prima di sostituire il fusibile,
assicurarsi che l’unità sia spenta e scollegata dalla presa.
COLLEGAMENTO ALLA RETE ELETTRICA
Disconnettere sempre d alla fonte di alimentazione prima di riparare o sostituire il
fusibile e assicurarsi di sostituire con la stessa dimensione e tipo di fusibile. Scollegare
l’alimentazione prima di spostare, riparare e pulire l’unità. Il cablaggio elettrico impro-
prio potrebbe invalidare la garanzia del prodotto. Per evitare scosse elettriche, tutti gli
apparecchi devono essere collegati a circuiti con un terreno adatto. Non accendere e
spegnere l’apparecchio in poco tempo.
COLLEGAMENTO DMX
Quando si usa un controller DMX, accertarsi che non ci siano fonti di interferenza (per
es., citofoni, onde radio ad alta frequenza e sorgenti di radiazione).
PULIZIA
Pulire solo con un panno asciutto. Non utilizzate solventi come benzolo o alcol.
MANUTENZIONE
Non effettuate qualsiasi altro intervento al di fuori di quelli descritti nel manuale. Per
eventuale assistenza rivolgetevi solo a personale qualicato. Utilizzate solo accessori /
componenti suggeriti dal produttore.
19
ITALIANO
4LEDKIT-PARTY MANUALE UTENTE

16.1. INTRODUZIONE
Grazie per aver acquistato il nostro Kit di luci 4LEDKIT-PARTY. Godetevi la vostra nuova
attrezzatura e assicurati di leggere attentamente questo manuale prima dell’operazione!
Questo manuale utente è realizzato per fornire una panoramica dei controlli, nonché
informazioni su come utilizzarle. Per aiutarti a comprendere i collegamenti tra i diversi
controlli, abbiamo raccolto in gruppi secondo le loro funzioni.
16.1. DISIMBALLAGGIO
Il 4LEDKIT-PARTY è stato accuratamente imballato per garantire un trasporto sicuro.
Nonostante ciò, ti consigliamo di esaminare attentamente il pacchetto e il suo contenuto
per eventuali segni di danni sici che possono vericarsi durante il trasporto. È composto
dalle seguenti parti:
fBarra a “T” e borsa per il trasporto
fPedaliera
fStand e borsa per il trasporto
fCavo di alimentazione IEC
fManuale utente
ATTENZIONE: Il sacchetto di imballaggio non è un giocattolo! Tenere fuori
dalla portata dei bambini!!! Conservare in un luogo sicuro il materiale di
confezionamento originale per un utilizzo futuro.
16.2. ACCESSORI
SOUNDSATION è in grado di fornire un ampia gamma di accessori utili per l’utilizzo
del tuo LED Kit, come cavi, splitter, centraline DMX e una vasta scelta di accessori per il
ssaggio.
Tutti i prodotti del nostro catalogo sono stati testati a lungo su questo dispositivo, quindi
ti consigliamo di utilizzare accessori e parti originali SOUNDSATION.
Chiedi al tuo negoziante autorizzato SOUNDSATION o controlla sul nostro sito web www.
soundsationmusic.com la lista degli accessori originali compatibili, in questo modo ti
assicurerai una performance ottimale.
17. PANORAMICA
SOUNDSATION 4LEDKIT-PARTY offre un sistema completo di luci che include tutti gli
accessori in un unico pacchetto. E’ la soluzione più intelligente per tutti i musicisti, DJ e
piccole ditte di noleggio.
20
ITALIANO
4LEDKIT-PARTY MANUALE UTENTE
