Sound Sation LIGHTBLASTER 616 RGB User manual

LIGHTBLASTER 616 RGB
High Brightness RGB LED Strobe & Wash Light
with barndoor
Please read this manual carefully and properly take care of it
USER MANUAL
Leggete questo manuale e conservatelo per future consultazioni
MANUALE UTENTE

Dear customer,
First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument and professional audio users oering a wide
range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are
looking for a feedback from you about the operation of the product and possible
improvements to introduce in the next future. Go to our website www.soundsation-
music.com and send an e-mail with your opinion, this will help us to build instruments
ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team
Gentile Cliente,
Grazie per aver scelto un prodotto SOUNDSATION®. La nostra missione è quella di
orire ai nostri utenti una vasta gamma di strumenti musicali ed apparecchiature audio
e lighting con tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, sarem-
mo lieti di ricevere un vostro feedback sulla qualità del prodotto al ne di migliorare
costantemente la nostra produzione. Visitate il nostro sito www.soundsationmusic.
com ed inviateci una mail con la vostra opinione, questo ci aiuterà a sviluppare nuovi
prodotti quanto più vicini alle vostre esigenze.
Un’ultima cosa, leggete il presente manuale al ne di evitare danni alla persona ed al
prodotto, derivanti da un utilizzo non corretto.
Il Team SOUNDSATION

3
ENGLISH
LIGHTBLASTER 616 RGB User manual
TABLE OF CONTENTS
1. INTRODUCTION.........................................................................................................6
1.1. Unpacking.................................................................................................................................................................6
1.2. Accessories...............................................................................................................................................................6
2. OVERVIEW..................................................................................................................7
3. MAIN FEATURES........................................................................................................7
4. INSTALLATION...........................................................................................................8
5. MAINS CONNECTIONS .............................................................................................9
6. DMX CONNECTION...................................................................................................9
6.1. DMX Terminator .....................................................................................................................................................9
7. CONNECTIONS PANEL ............................................................................................10

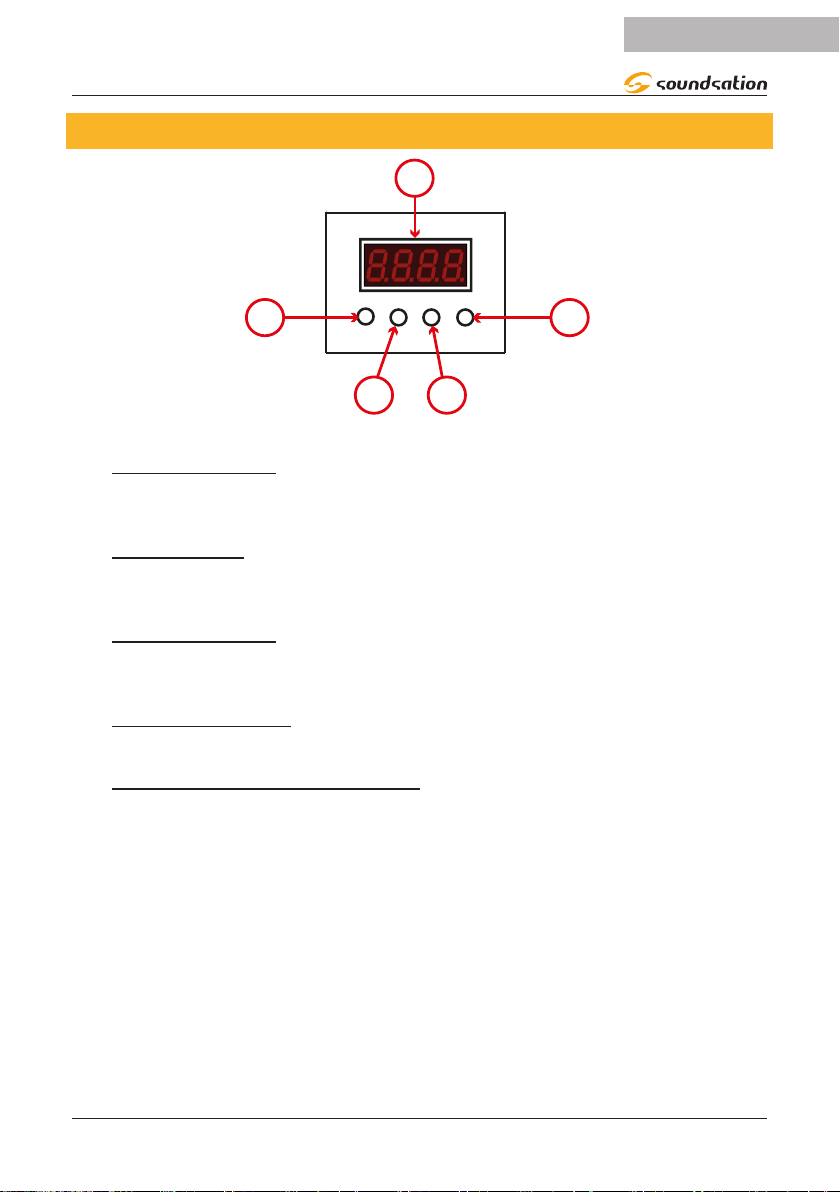

8. CONTROL PANEL .....................................................................................................11

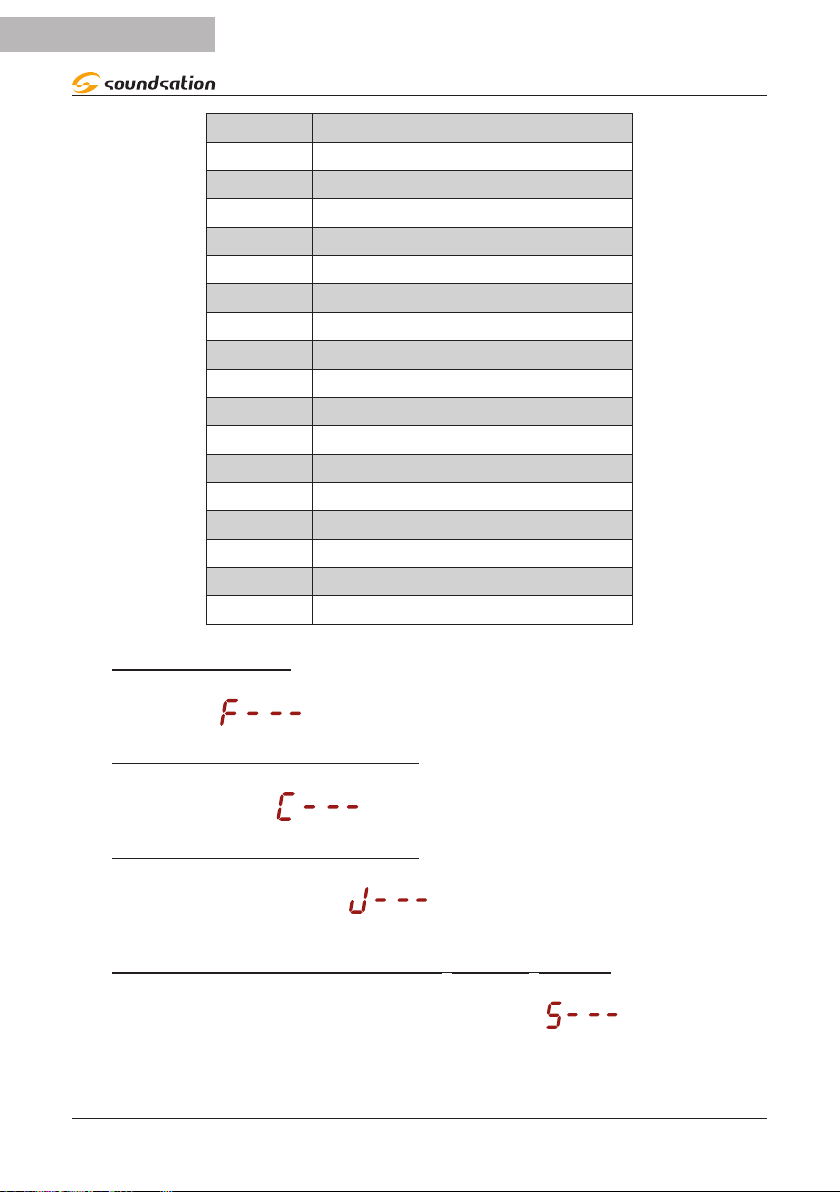

9. FUNCTIONS MAP ....................................................................................................12
9.1. Functions description.........................................................................................................................................13
9.2. MASTER/SLAVE Control Mode .......................................................................................................................16
10. DMX CHANNEL MODES..........................................................................................16
10.1. 5Ch Mode Table....................................................................................................................................................16
10.2. 18Ch Mode Table.................................................................................................................................................17
11. SPECIFICATIONS ......................................................................................................19
12. TROUBLESHOOTING ...............................................................................................20
13. WARRANTY AND SERVICE .....................................................................................21
14. WARNING.................................................................................................................22

4
ENGLISH
LIGHTBLASTER 616 RGB User manual
IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating con-
ditions, which may be sucient to constitute the risk of electric shock
or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned o
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
To protect the environment, please try to recycle the packing material
as much as possible
The projector is for indoor use only, IP20. Use only in dry locations.
Keep this device away from rain and moisture, excessive heat, humid-
ity and dust. Do not allow contact with water or any other uids, or
metallic objects.
Don’t throw this product away just as general trash, please deal with
the product follow the abandon electronic product regulation in your
country.
TAKING CARE OF YOUR PRODUCT
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions

5
ENGLISH
LIGHTBLASTER 616 RGB User manual
1) Water / Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
2) Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat. Don not use it when maximum ambient tempera-
ture is higher than 40°C.
3) Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer’s instructions.
4) Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
5) Power Cord and Plug
Protect power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus. Do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug has two poles; a
grounding-type plug has two poles and a third grounding terminal. The third prong is
provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement.
6) Power Supply
The apparatus should be connected to the power supply only of the type as marked on
the apparatus or described in the manual. Failure to do could result in damage to the
product and possibly the user. Unplug this apparatus during lightning storms or when
unused for long periods of time.
7) Fuse
To avoid the risk of re and damage to the unit, use only the type of fuse described
in the manual. Before replacing the fuse, make sure the device is switched o and
unplugged.
8) DMX connection
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source).
9) Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
10) Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.

6
ENGLISH
LIGHTBLASTER 616 RGB User manual
1. INTRODUCTION
Thank you for purchasing our LIGHTBLASTER 616 RGB. Enjoy your new equipment and
make sure to read this manual carefully before operation.
This user manual is made to provide both an overview of controls, as well as informa-
tion on how to use them.
1.1. Unpacking
Your LIGHTBLASTER 616 RGB was carefully packed to ensure safe transport. Despite
this, we recommend you to carefully examine the package and its contents for any
signs of physical damage, which can occur during transport. Each unit has the following
parts:
f1 x Strobe LIGHT LIGHTBLASTER 1200 CMZ
f1 x DMX Cable (3-Pin XLR Male to Female)
f1 x Power cord (EU Plug - PowerCon)
f1 x Brackets for xing the device (oor, wall, ceiling, truss).
f2 x Screw knobs
f1 x Removable Barndoor System.
f1 x User manual
ATTENTION: Packaging cartons are not a toys! Keep out of reach of chil-
dren!!! Keep in a safe place the original packaging material for future use.
If anything damaged during transport, notify the shipper immediately and keep the
packing material for inspection. Again, please save the carton and all packing materials.
If the xture must be returned to the manufacturer, it is important that it is returned in
the original manufacturer box and packing. Please do not take any action without rst
contacting us.
1.2. Accessories
SOUNDSATION can supply a wide range of quality accessories that you can use with
your LIGHTBLASTER 616 RGB, like Cables, DMX controllers, Truss adapters, Safety wires
and a wide range of other dedicated items.
All products in our catalogue has been long tested with this device, so we recommend
you to use Genuine SOUNDSATION Accessories and Parts.
Ask your SOUNDSATION dealer or check out our website www.soundsationmusic.com
for any accessories you could need to ensure best performance of the product.

7
ENGLISH
LIGHTBLASTER 616 RGB User manual
2. OVERVIEW
LIGHTBLASTER 616 RGB is a high brightness strobo & wash light that combines reli-
ability, lifespan, and brilliance of the RGB 3in1 LEDs with the low power consumption of
LED technology. Beam angle is 110° but, thanks to the supplied barndoor (removable),
it is possible to reduce it to 0°. Its light source consists of 616 high-brightness long
lifetime RGB 3in1 0.5W LEDs. Electronic dimming control and Strobo function oer,
respectively, 5 dierent curves and 5 dierent strobo eects, to adapt this xture to any
type of use. The internal temperature is controlled by sensors that, in case of overheat-
ing, lower power to 50% and adjust cooling fan speed. The result is a powerful yet ex-
tremely silent strobo-light. Not only, but the robust ABS housing makes it lightweight,
durable and with an excellent value in its market range.
3. MAIN FEATURES
f616 x 0.5W High-Brightness RGB 3in1 LED
f110° Beam Angle

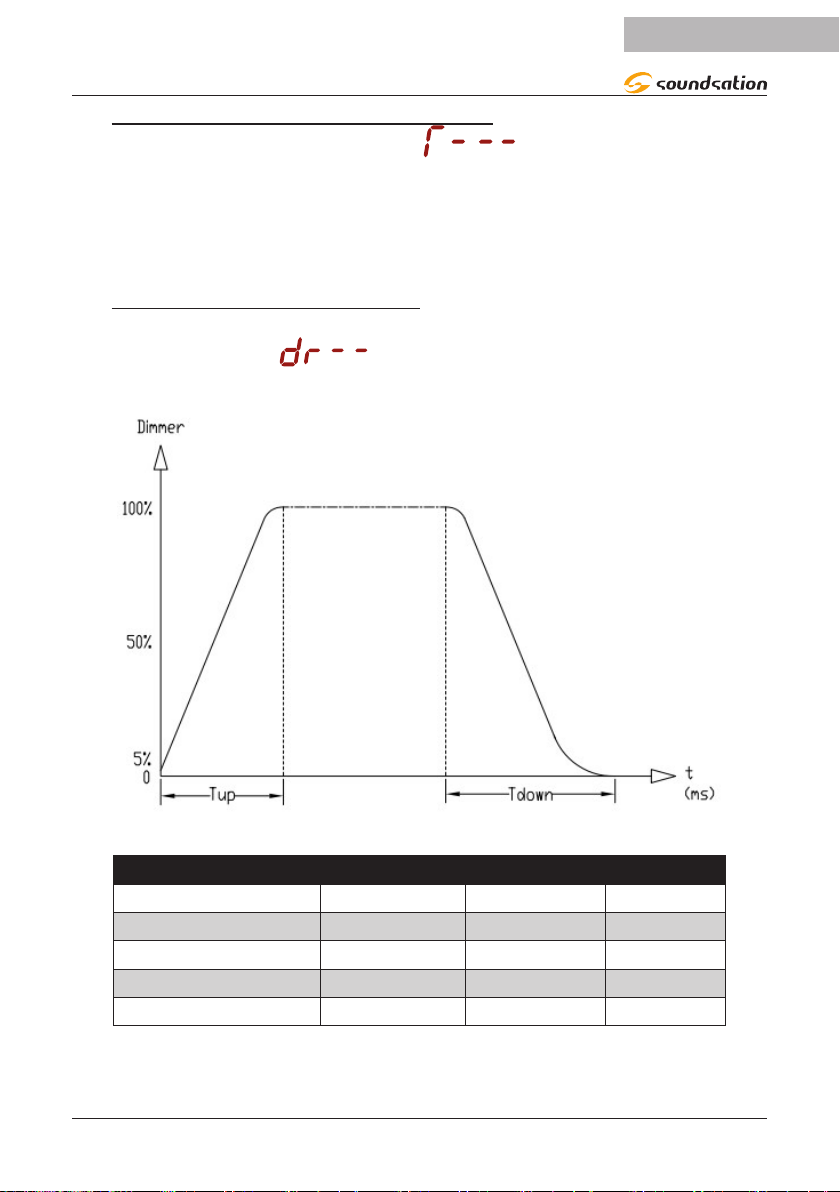

f5 Dimmer Curves and 5 Strobo Eects
fDMX512/Manual/Master-Slave/Sound Control Modes
fSelectable 10 and 5 DMX Channel Modes
fBuilt-in Auto Programs and Preset Colors for easy use, even without DMX controller
fIntelligent Cooling System with Variable Speed Fan
fControlled Fan Noise with maximum 43dB noise
fEasy-to-use Front Panel with 4-digit Led Display (4 x 7 Segments)
fRemovable Barndoor System

8
ENGLISH
LIGHTBLASTER 616 RGB User manual

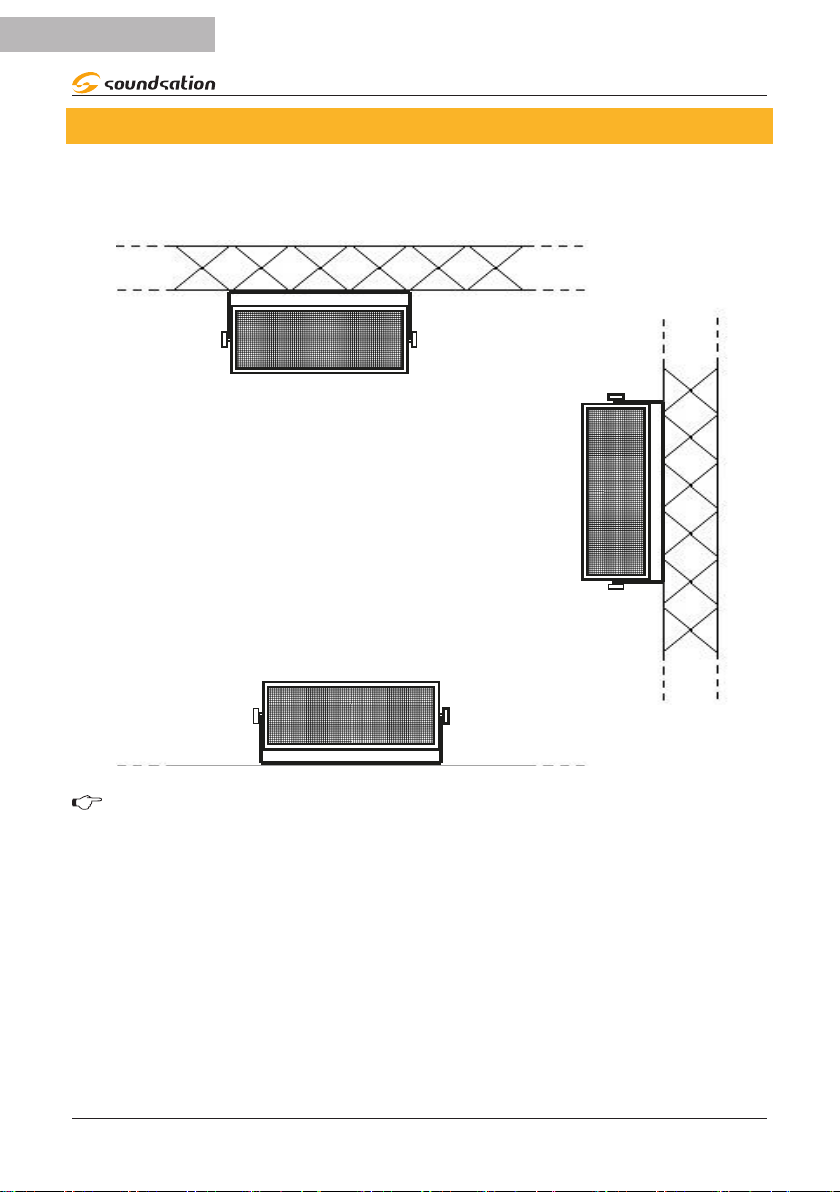

4. INSTALLATION
SOUNDSATION LIGHTBLASTER 616 RGB can be installed on the oor, on the wall, ceil-
ing or on a truss.
WARNINGS:
A. It’s required the use of a safety wire (LW3-76A or LW4-76A sold separately) and
truss adapters ( SLH/SQC Series sold separately) if the product is hanging on a
wall, ceiling or on a truss.
B. Never leave the product swinging freely.
C. If the product is hanging on a wall, a ceiling or a truss, make sure that the
installation gear and / or the truss can hold a minimum load of 10 times the
weight of the device.

9
ENGLISH
LIGHTBLASTER 616 RGB User manual
5. MAINS CONNECTIONS
Connect the device to the mains with the supplied power cord. When connecting the
power supply, please check that the supply voltage and frequency are the same as
indicated for the device. The correspondence of the wires is as follows:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking
into operation for the rst time, the installation has to be approved by an
expert.
6. DMX CONNECTION
DMX xtures are designed to receive data through a serial Daisy Chain. A Daisy Chain
connection is where the DATA OUT of one xture connects to the DATA IN of the next
xture. The order in which the xtures are connected is not important and has no eect
on how a controller communicates to each xture. Use an order that provides for the
easiest and most direct cabling.
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors

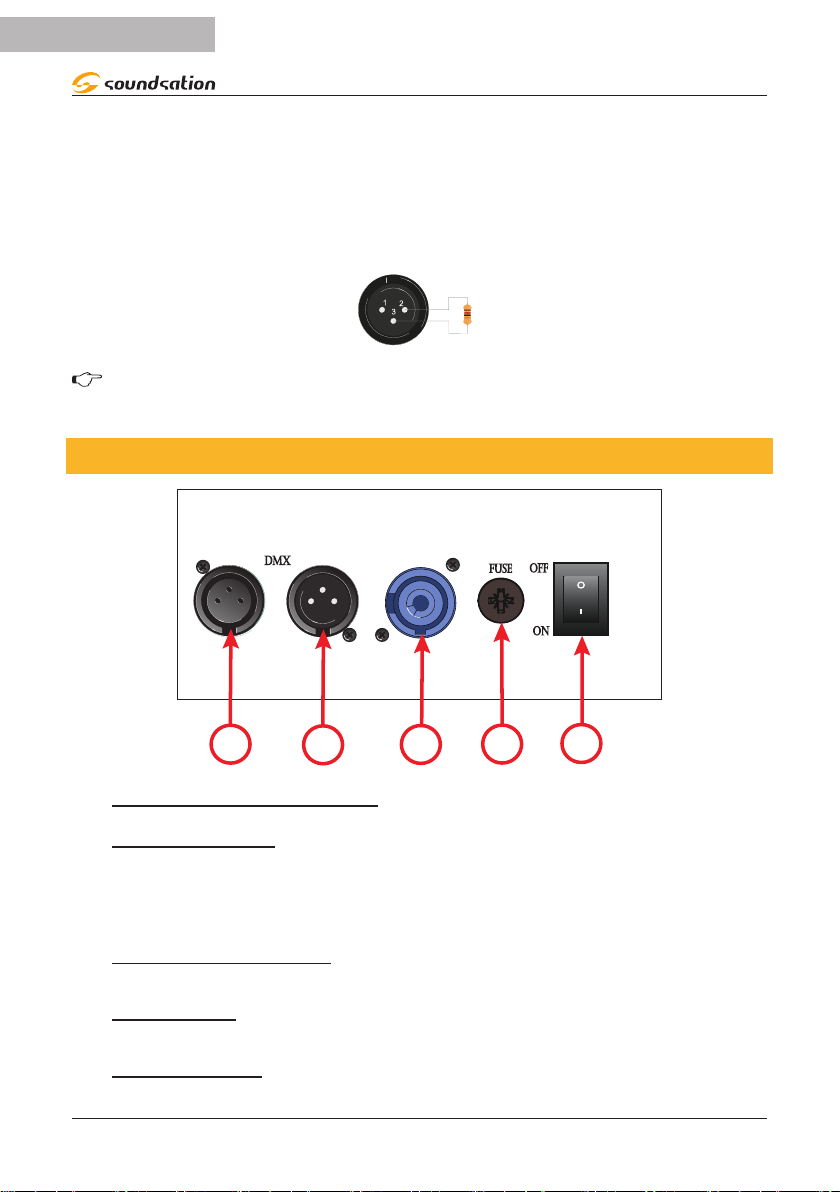

DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect xtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to
female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and
pin 3 is Data positive (S+).
CAUTION: Wires must not come into contact with each other; otherwise the
xtures will not work at all, or will not work properly.
6.1. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control

10
ENGLISH
LIGHTBLASTER 616 RGB User manual
signals, a good habit is to connect DMX output of last xture in the chain to a DMX
terminator, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω (ohm), 1/4 Watt resistor
connected across Signal (-) and Signal (+), respectively, pins 2 and 3, which is then
plugged into the output socket on last projector in the chain. The connections are
illustrated below.
120ohm, 1/4 W
resistor
DMX Terminator
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
7. CONNECTIONS PANEL
dmx fuse
on
4
3
21
off
5
1) POWER ON/OFF SWITCH
2) FUSE HOLDER
Fuse holder with F5A / 250V fuse (5 x 20 mm). In case of fuse burn, to prevent the risk
of re and damaging the unit, please use only a spare of the recommended fuse type
as described. Before replacing the fuse, make sure the unit turned o and disconnected
from the AC outlet
3) POWER IN SOCKET
Plug the power-cord into an AC socket properly congured for your particular model.
4) DMX INPUT
Male 3-pin XLR sockets for connection to a DMX control device
5) DMX OUTPUT
Female 3-pin XLR socket for sending the DMX control signal.

11
ENGLISH
LIGHTBLASTER 616 RGB User manual
8. CONTROL PANEL
MENU UP DOWN ENTER
5
14
2 3
1) Menu Button
This button allows to put in stand-by the control panel and to escape from a selected
function without any saving.
2) UP Button
Using this button, it is possible to scroll-up the device’s functions and increase the
function’s value.
3) DOWN Button
Using this button, it is possible to scroll-down the device’s functions and decrease the
function’s value.
4) ENTER Button
This button allows access to a function menu and/or to save a new parameter value.
5) 4 x 7 SEGMENTS display
It shows the current function’s name or function’s value.

12
ENGLISH
LIGHTBLASTER 616 RGB User manual
9. FUNCTIONS MAP
1
2
3
4
5
6
7
8
9
10
11
12

13
ENGLISH
LIGHTBLASTER 616 RGB User manual

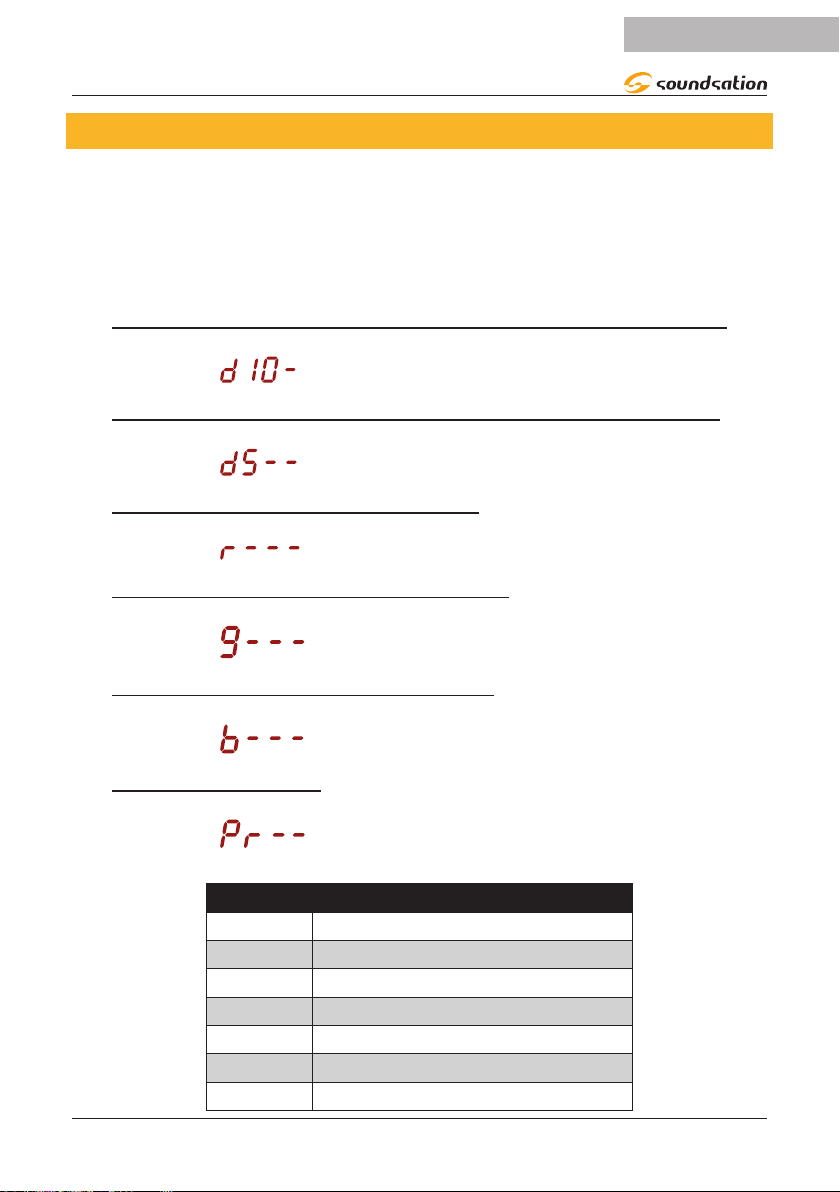

9.1. Functions description
All the LIGHTBLASTER 616 RGB functions are selectable by using the [UP]/[DOWN]
buttons on the control panel. For each function, by pressing the [ENTER] button access-
es the modication of the value which will be made again using the [UP] / [DOWN] but-
tons. The [MENU] button will allow you to return to the main function menu. Once back
in the main menu, the [MENU] button will function as the [UP] button.
Below is an explanation of the device’s functions.
1) DMX CHANNEL mode 10CH and ADDRESS SELECTION
This function allows you to select the DMX address in 10CH mode.
The display shows . The range of this parameter is d001 ÷d512.
2) DMX CHANNEL mode 5CH and ADDRESS SELECTION
This function allows you to select the DMX address in 10CH mode.
The display shows . The range of this parameter is d001 ÷d512.
3) Red color intensity (DIMMER)
By selecting this function you can adjust the intensity of the Red color.
The display shows . The range of this parameter is r000 ÷r255.
4) GreeN color intensity (DIMMER)
By selecting this function you can adjust the intensity of the Green color.
The display shows . The range of this parameter is g000 ÷g255.
5) BLUE color intensity (DIMMER)
By selecting this function you can adjust the intensity of the Blue color.
The display shows . The range of this parameter is b000 ÷b255.
6) Ptreset Colors
This function allows you to select one of the 25 preset colors.
The display shows . The range of this parameter is Pr01 ÷Pr25
Below is a table containing the 25 preset colors
Value Color Preset
Pr01 Red
Pr02 Green
Pr03 Blue
Pr04 Lemon Green
Pr05 Yellow Green
Pr06 Yellow
Pr07 Tea Red

14
ENGLISH
LIGHTBLASTER 616 RGB User manual
Pr08 Light orange
Pr09 Rose Red
Pr10 Pink
Pr11 Pink Purple
Pr12 Light Purple
Pr13 Powder Blue
Pr14 Light Blue
Pr15 Sky Blue
Pr16 Light Cyan
Pr17 Turquoise
Pr18 Aqua
Pr19 Light Green
Pr20 Cool White
Pr21 Light Cool white
Pr22 Pure White
Pr23 Purple White
Pr24 Rice White
Pr25 Warm White
7) Strobe Speed
By selecting this function you can adjust the speed of the strobe pulses.
The display shows . The range of this parameter is F000 ÷F255.
8) Full color fade SPEED
By selecting this function you can adjust the speed of the fades between the dierent
colors. The display shows . The range of this parameter is C000 ÷C255.
9) Full color JUMP SPEED
By selecting this function it is possible to adjust the rotation (jump) speed between the
dierent colors. The display shows . The range of this parameter is J000 ÷
J255.
10) Microphone sensitivity in “Sound“mode
By selecting this function activates the “Sound” mode and, it is possible to adjust the
sensitivity of the integrated microphone. The display shows . The range of this
parameter is S000 ÷S255.

15
ENGLISH
LIGHTBLASTER 616 RGB User manual
11) TEMPERATURE and PROTECTION
By selecting this function, the display shows . This function can be
activated or deactivated (On / O). When this function is activated (On), it means that
when internal temperature of the device excedees 80° ,the power consumption will be
reduced of 50%. When the temperature drops below 58 ° the power consumption will
be 100%. If the function is deactivated (O), the device will always have 100% of power
consumption. This function is a protection at high temperatures when necessary.
12) dimmer curve selection
This function gives the possibility to select one of the 5 dimmer curves available in the
device. The display shows . The range of this parameter is dr-0 ÷dr-4.
Ramp Effect Display Tup (ms) Tdown (ms)
Standard Dimmer Curve dr-0 0 0
Dimmer Curve 1 dr-1 980 1010
Dimmer Curve 2 dr-2 1210 1320
Dimmer Curve 3 dr-3 1600 1710
Dimmer Curve 4 dr-4 1850 1980

16
ENGLISH
LIGHTBLASTER 616 RGB User manual
9.2. MASTER/SLAVE Control Mode
When using this control mode, it is possible to connect several units together and
operate them in synchronized mode. Use DMX cables to connect two or more units
together from the DMX OUT connector to the DMX IN connector. The rst unit is the
MASTER one and all the other units connected will be SLAVE
To set the rst unit as MASTER, select a function other than or
in the functions menu.
All other units connected to the MASTER must be set with functions or
to be congured as SLAVE.
10. DMX CHANNEL MODES
This device has two DMX channel modes (5CH and 10CH). For the DMX channel mode
selection, please refer to “1) DMX CHANNEL mode 10CH and ADDRESS SELECTION” on
page 13 and to “2) DMX CHANNEL mode 5CH and ADDRESS SELECTION” on page
13.
10.1. 5Ch Mode Table
Channel Function Value Effect
CH1 Main Dimmer 0 ÷ 255 RGB Dimmer from dark to light
CH2 Red Dimmer 0 ÷ 255 Red dimming goes from dark to bright
CH3 Green Dimmer 0 ÷ 255 Green dimming goes from dark to bright
CH4 Blue Dimmer 0 ÷ 255 Blue dimming goes from dark to bright
CH5 Strobe
0 ÷ 5 No function
6 ÷ 55 Random Strobe
56 ÷105 Pulse Strobe
106 ÷155 Regular Strobe
156 ÷ 205 Thunder Strobe
206 ÷ 255 Standard Strobe

17
ENGLISH
LIGHTBLASTER 616 RGB User manual
10.2. 18Ch Mode Table
Canale Funzione Valore Effetto
CH1 Main Dimmer 0 ÷ 255 RGB Dimmer from dark to light
CH2 Red Dimmer 0 ÷ 255 Red dimming goes from dark to bright
CH3 Green Dimmer 0 ÷ 255 Green dimming goes from dark to bright
CH4 Blue Dimmer 0 ÷ 255 Blue dimming goes from dark to bright
CH5 Strobe
0 ÷ 5 No function
6 ÷ 55 Random Strobe
56 ÷105 Pulse Strobe
106 ÷155 Regular Strobe
156 ÷ 205 Thunder Strobe
206 ÷ 255 Standard Strobe
CH6 Color Mixing
0 ÷ 1 No Function
2 ÷ 43 Red from dark to brigh
44 ÷ 85 Red from bright to dark, green from dark
to bright
86 ÷ 127 Green from bright to dark, blue from dark
to bright
128 ÷ 169 Red from dark to bright, blue full bright
170 ÷ 211 Red full bright, green from dark to bright,
blue full bright
212 ÷ 255 : Red, green, blue full bright
CH7 Color Preset
0 ÷ 5 No Color
6 ÷ 15 Red
16 ÷ 25 Green
26 ÷35 Blue
36 ÷ 45 Lemon Green
46 ÷55 Yellow Green
56 ÷65 Yellow
66 ÷ 75 Tea Red
76 ÷ 85 Light orange
86 ÷95 Rose Red
96 ÷105 Pink
106 ÷ 115 Pink Purple

18
ENGLISH
LIGHTBLASTER 616 RGB User manual
CH7 Color Preset
116 ÷ 125 Light Purple
126 ÷ 135 Powder Blue
136 ÷ 145 Light Blue
146 ÷ 155 Sky Blue
156 ÷ 165 Light Cyan
166 ÷ 175 Turquoise
176 ÷ 185 Aqua
186 ÷ 195 Light Green
196 ÷ 205 Cool White
206 ÷ 215 Light Cool white
216 ÷ 225 Pure White
226 ÷ 235 Purple White
236 ÷ 245 Rice White
246 ÷ 255 Warm White
CH8 Auto & Sound
0 ÷ 10 No Function
11÷ 40 Full colors fade
41 ÷ 70 Red, Green, Blue fade
71 ÷100 Red, Green, Blue fade+ full bright white
101 ÷130 7 colors jumping
131 ÷ 160 Red, Green, Blue Color jumping
161 ÷ 190 Yellow, Cyan, Purple color jumping
191 ÷ 220 Sound active Strobe
221 ÷ 255 Sound active color chasing
CH9 Auto & Sound
Speed 0 ÷ 255 From slow to fast
CH10 Macro Function
0 ÷ 20 Standard Dimmer Curve
21÷ 40 Dimmer Curve 1
41 ÷ 60 Dimmer Curve 2
61 ÷ 80 Dimmer Curve 3
81 ÷100 Dimmer Curve 4
101 ÷ 149 No Function
150 ÷ 155 After 3 second, high temperature with half
power function O
156 ÷ 199 No Function
200 ÷ 205 After 3 second, high temperature with half
power function On
206 ÷255 No Function

19
ENGLISH
LIGHTBLASTER 616 RGB User manual
11. SPECIFICATIONS
Electrical
Voltage 110V ~ 240V
Frequency 50-60Hz
Power consumption 300V
Light Source & Optical
System
LED 616 x 0,5W (RGB 3in1)
Beam Angle 110°
Strobe 0 ÷ 30Hz
Dimmer 5 Curves
Control Modes
DMX512 5CH/10CH
Slave
Sound
Auto
Manual
Cooling System Forced cooling with variable-speed fan
Fan Noise Fan speed automatically adjust according to machine internal tem-
perature; maximum noise is 43.3dB (@ 1m)
Over heat protection When temperature is between 65 and 80°C, power consumption is
50%; when temperature is below 65°C, power consumption is 100%
Display Led - 4 x 7 segments
Connections
Input DMX Connection: 3-pin Male
Output DMX Connection: 3-pin Female
Input Power Connection
IP Grade IP20
Bundled Accessories
1 x DMX cable 3-pin Female/Male
1 x Power Cable
1 x Bracket
2 x Screw Knobs
1 x Barndoor System
1 x Owner’s Manual
Dimensions Device (WxDxH) 430 x 84 x 220 mm
Packing (WxDxH) 515 x 190 x 345 mm
Weights Net Weight 5 Kg
Packing Weight 6,5 Kg
Note: Our products are subject to a process of continual further development. Therefore modications to the
technical features remain subject to change without further notice.

20
ENGLISH
LIGHTBLASTER 616 RGB User manual
12. TROUBLESHOOTING
Problem Probable Cause(s) Solution
No response from xture
when power is applies
No power to xture Check power cable
Primary fuse blown Replace fuse
Secondary fuse blown Replace fuse
Fixture resets but does
not respond correctly to
controller
(DMX mode operation)
Controller not connected Connect controller
Incorrect addressing of the
xtures
Check address setting on xture and
controller
Bad data link connection Inspect cables and correct poor con-
nections and/or broken cables.
Conict between tracking and
vector control
Eliminate scene cross-fade on con-
troller
Data link not terminated Insert termination plug in output of
last xture
Defective xture or 2 devices
transmitting on link
Bypass xtures one at a time until
normal operation is regained:unplug
both connectors and connect them
directly together
Colors cannot be mixed Random color mixing is on Turn o random color mixing
Fixture does not reset
correctly
Electronic or mechanical
failure Contact service technician
No light, lamp cuts out
intermittently,or burns
out too quickly
Lamp missing or blown Disconnect xture and replace lamp
Fixture or lamp is too hot Allow xture to cool. If problem per-
sists,contact service technician
