Soundstream VRN-74HB User manual

UNDSTREAM
Mobile Multimedia Entertainment System
VRN-74HB
Operation Instructions
Single DIN 7" widescreen color LCD monitor/receiver
With BT, Navigation system
Note:
Please read
this operation instruction before using!
Familiarity with installation and operation procedures will help you
obtain the best performance from your new DVD-receiver!

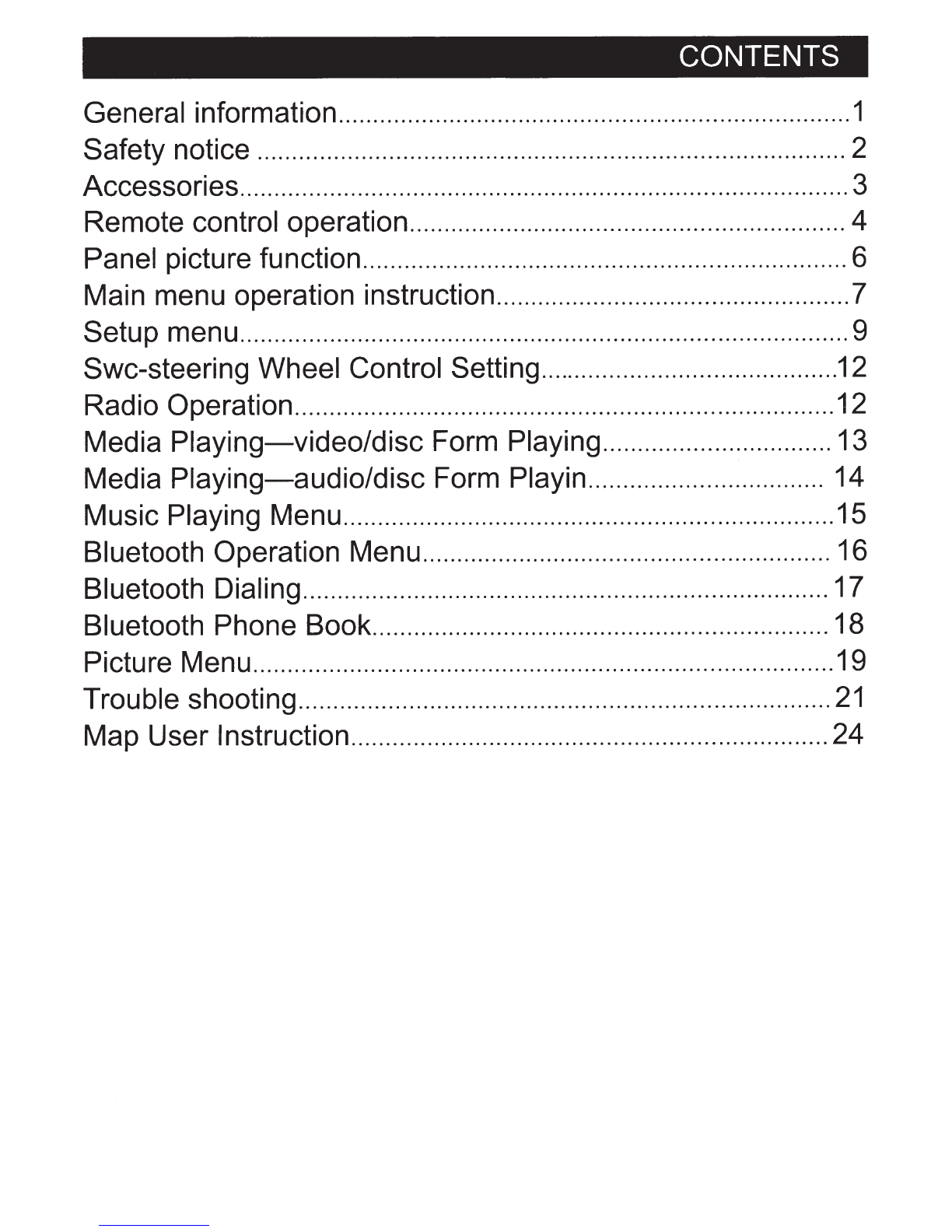

CONTENTS
General information..........................................................................1
Safety notice ..................................................................................... 2
Accessories........................................................................................3
Remote control operation............................................................... 4
Panel picture function......................................................................6
Main menu operation instruction...................................................7
Setup menu........................................................................................9

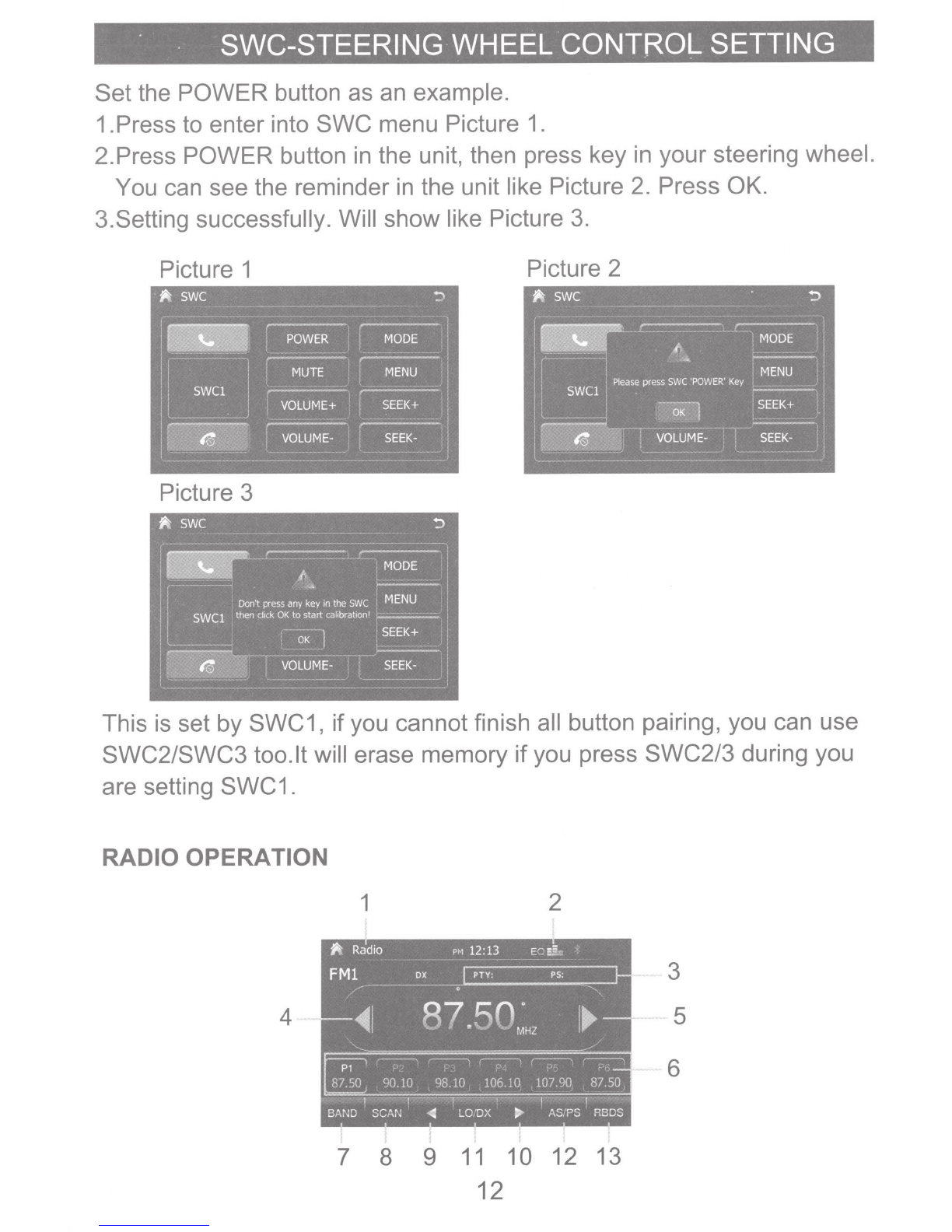

Swc-steering Wheel Control Setting...........................................
12
Radio Operation..............................................................................12
Media
Playing-video/disc
Form Playing................................. 13
Media
Playing-audio/disc
Form Playin.................................. 14
Music Playing Menu.......................................................................15
Bluetooth Operation Menu........................................................... 16
Bluetooth Dialing............................................................................17
Bluetooth Phone Book..................................................................18
Picture Menu....................................................................................19
Trouble shooting.............................................................................
21
Map User Instruction.....................................................................24

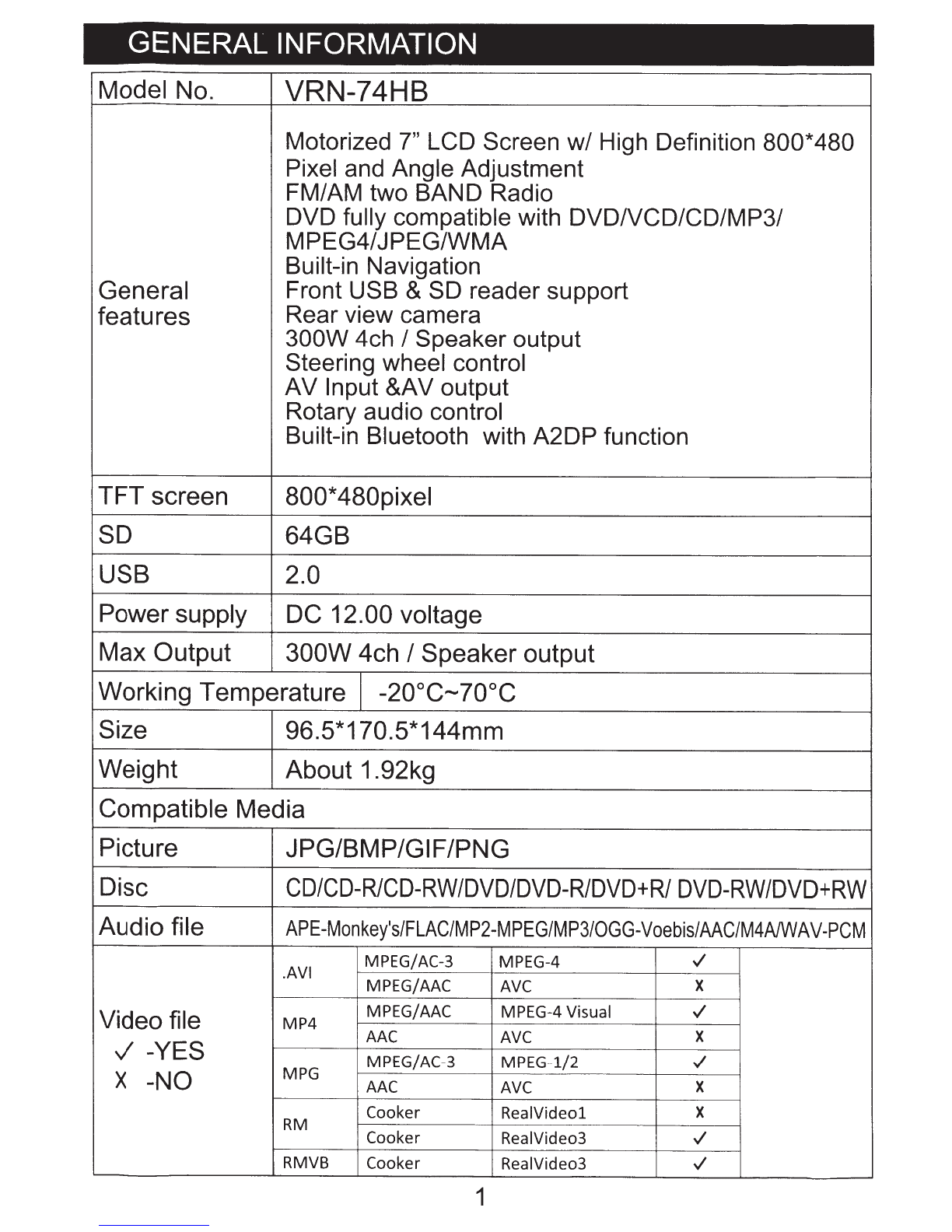

GENERAL INFORMATION
Model No. VRN-74HB
Motorized
7"
LCD Screen w/ High Definition 800*480
Pixel and Angle Adjustment
FM/AM two BAND Radio
DVD
fully compatible with DVDNCD/CD/MP3/
MPEG4/JPEG/WMA
Built-in Navigation
General Front USB &
SD
reader support
features Rear view camera
300W 4ch
I
Speaker output
Steering wheel control
AV Input &AV output
Rotary audio control
Built-in Bluetooth with A2DP function
TFT screen 800*480pixel
SD 64GB
USB 2.0
Power supply DC 12.00 voltage
Max Output 300W 4ch I Speaker output
Working Temperature
-20°C-70°C
Size 96.5*170.5*144mm
Weight About 1.92kg
Compatible Media
Picture JPG/BMP/GIF/PNG
Disc
CD/CD-R/CD-RW/DVD/DVD-R/DVD+R/
DVD-RW/DVD+RW
Audio file
APE-Monkey's/FLAC/MP2-MPEG/MP3/0GG-Voebis/AAC/M4AIWAV-PCM
MPEG/AC-3 MPEG-4
..;
.A
VI
MPEG/AAC
X
AVC
Video file MPEG/AAC MPEG-4 Visual
..;
MP4
X
AAC AVC
v
-YES
MPEG/AC-3
MPEG-1/2
..;
X -NO
MPG
X
AAC AVC
Cooker
ReaiVideol
X
RM
Cooker
Rea1Video3
..;
RMVB
Cooker
Rea1Video3
..;
1

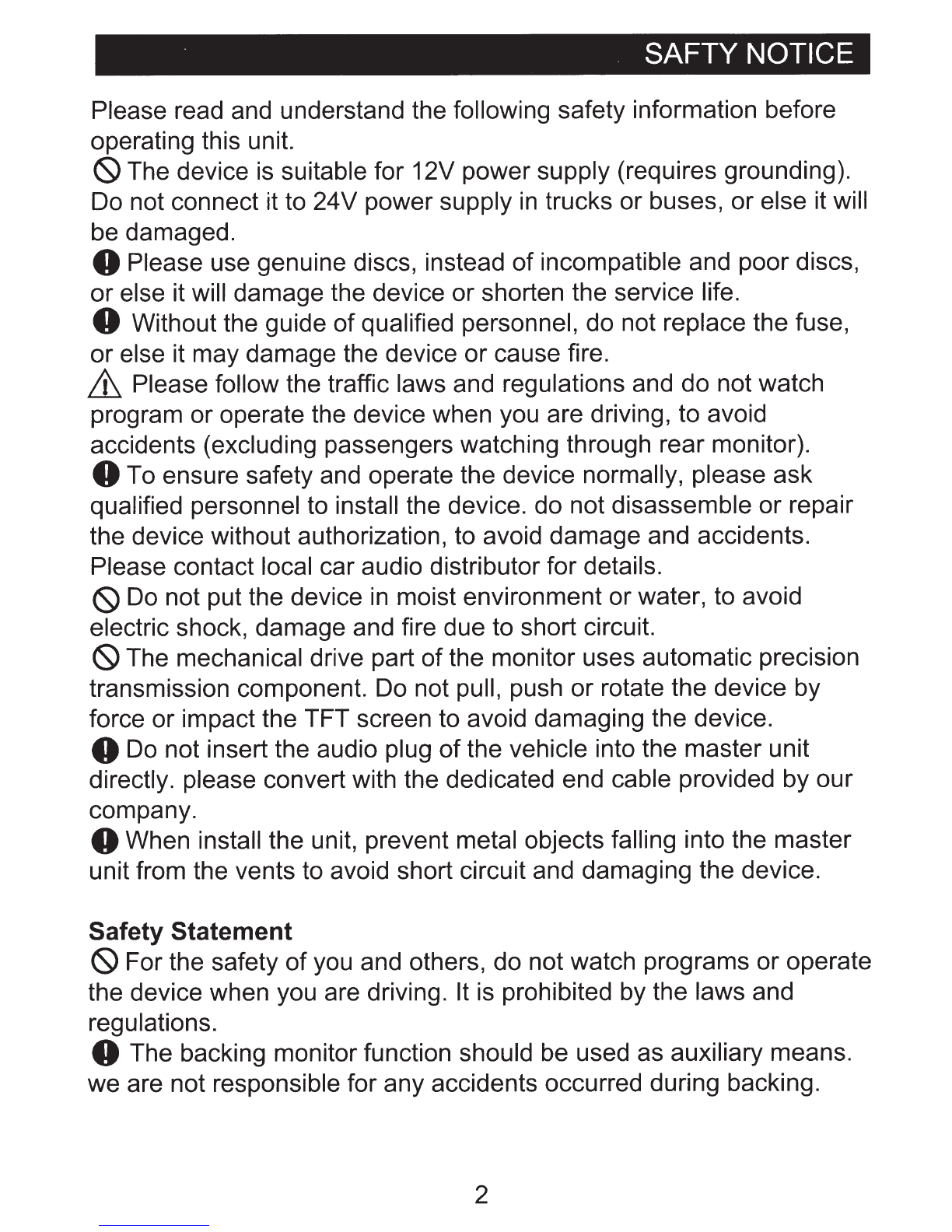

SAFTY NOTICE
Please read and understand the following safety information before
operating this unit.
{9
The device
is
suitable for 12V power supply (requires grounding).
Do not connect it to 24V power supply
in
trucks or buses, or else it will
be damaged.
0 Please use genuine discs, instead of incompatible and poor discs,
or
else it will damage the device or shorten the service life.
0 Without the guide
of
qualified personnel, do not replace the fuse,
or else it may damage the device or cause fire.
& Please follow the traffic laws and regulations and do not watch
program or operate the device when you are driving, to avoid
accidents (excluding passengers watching through rear monitor).
0 To ensure safety and operate the device normally, please ask
qualified personnel to install the device. do not disassemble or repair
the device without authorization, to avoid damage and accidents.
Please contact local car audio distributor for details.
{9
Do
not put the device
in
moist environment or water, to avoid
electric shock, damage and fire due to short circuit.
{9
The mechanical drive part of the monitor uses automatic precision
transmission component. Do not pull, push or rotate the device by
force or impact the TFT screen to avoid damaging the device.
0
Do
not insert the audio plug
of
the vehicle into the master unit
directly. please convert with the dedicated end cable provided by our
company.
0 When install the unit, prevent metal objects falling into the master
unit from the vents to avoid short circuit and damaging the device.
Safety Statement
{9
For the safety of you and others, do not watch programs or operate
the device when you are driving. It
is
prohibited by the laws and
regulations.
0 The backing monitor function should be used as auxiliary means.
we are not responsible for any accidents occurred during backing.
2

ACCESSORIES · .
Please note that when you buy this unit, you can find all the following
parts
in
the gift box. And
if
not, please don't hesitate to contact
us
to
get any
of
it.
Unit
User's Manual/Warranty Card
VRN-74HB
I
-·-------·
t
___
..,.
__
,
__
....
__
------·-....--~..,..-
Trim Ring/Touch
Pen
Mounting Strap/Release Key/
Mounting Sleeve
3
Remote Control
EX-MIC/GPS Antenna/
GPS Antenna sticker
Cable
BoiUScrews/Rubble Pillar

1 2 3
5
6
7
8
9
10

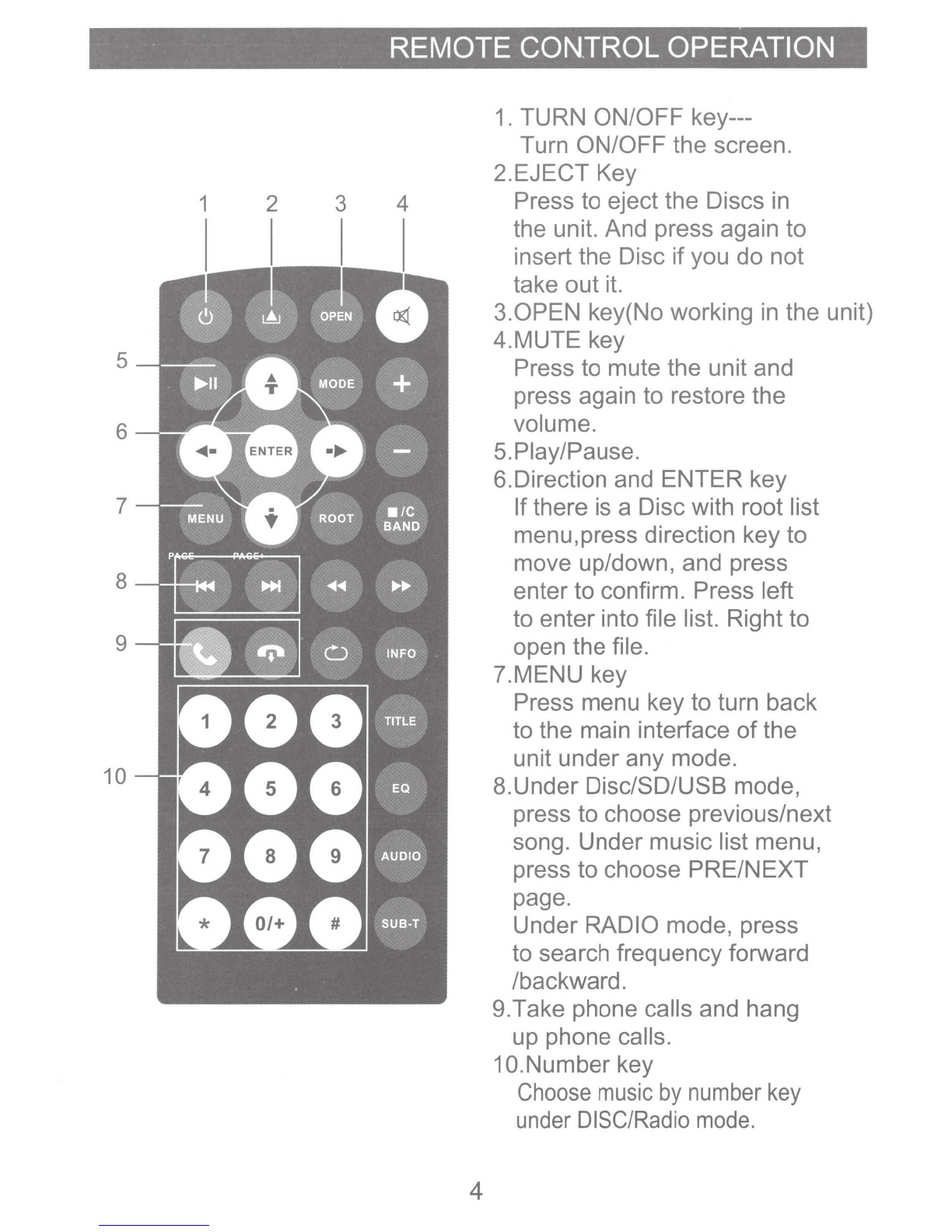

REMOTE CONTROL OPERATION
4
4
1. TURN ON/OFF key---
Turn ON/OFF the screen.
2.EJECT Key
Press to eject the Discs in
the unit. And press again to
insert the Disc
if you do not
take out it.
3.0PEN key(No working in the unit)
4.MUTE key
Press to mute the unit and
press again to restore the
volume.
5.Piay/Pause.
6.Direction and ENTER key
If there is a Disc with root list
menu,press direction key to
move up/down, and press
enter to confirm. Press left
to enter into file list. Right to
open the file.
?.MENU key
Press menu key to turn back
to the main interface
of the
unit under any mode.
8.Under Disc/SD/USB mode,
press to choose previous/next
song. Under music list menu,
press to choose PRE/NEXT
page.
Under RADIO mode, press
to search frequency forward
/backward.
9.Take phone calls and hang
up phone calls.
1O.Number key
Choose music by number key
under DISC/Radio mode.

REMOTE CONTROL OPERATION
12
13
11.MODE changing key
Press to change mode
of the
unit between BT/AUX IN/AV
IN/Radio/Mobilelink/DVD/SD/USB.
12.VOLUME UP/DOWN key
Press to volume up and volume
down under any mode.
13.DVD playing mode, press to
go
into root list menu; VCD playing
mode, press to turn on/off
PBC
function.
14.BAND:
Radio mode, touch
to change between FM1/FM2/FM3
/AM1/AM2; press STOP and the
screen will show LOGO interface;
Delete function
in BT calling mode.
14 15.FAST REVERSE/FAST FORWARD key
15
Under Disc playing mode, press
to fast play reverse/forward at the
speed
of *2*4*8*16; under Radio
mode, press to search step
by
step reverse/forward.
16.REPEAT key
Under DISC/SO/USB mode,press
to set the repeat mode: single,chapter,
all.
17.Undervideo playing mode, press
to check the video playing information
such as: playing time, name ofthe
song, total song etc
..
18.Under DVD playing mode, press
to enter into title list menu.
19.EQ mode
21
Touch to set EQ mode. Touch
again to adjust EQ effectffect
20.Channel changing key:
under DVD/VCD multiple sound
effect video playing mode, press
to change channei(STEREO/LEFT
CHANNEL/RIGHT CHANNEL).
21.SUBTITLE changing key
Change the subtitle during playing
if the Disc have multiple subtitle.
5

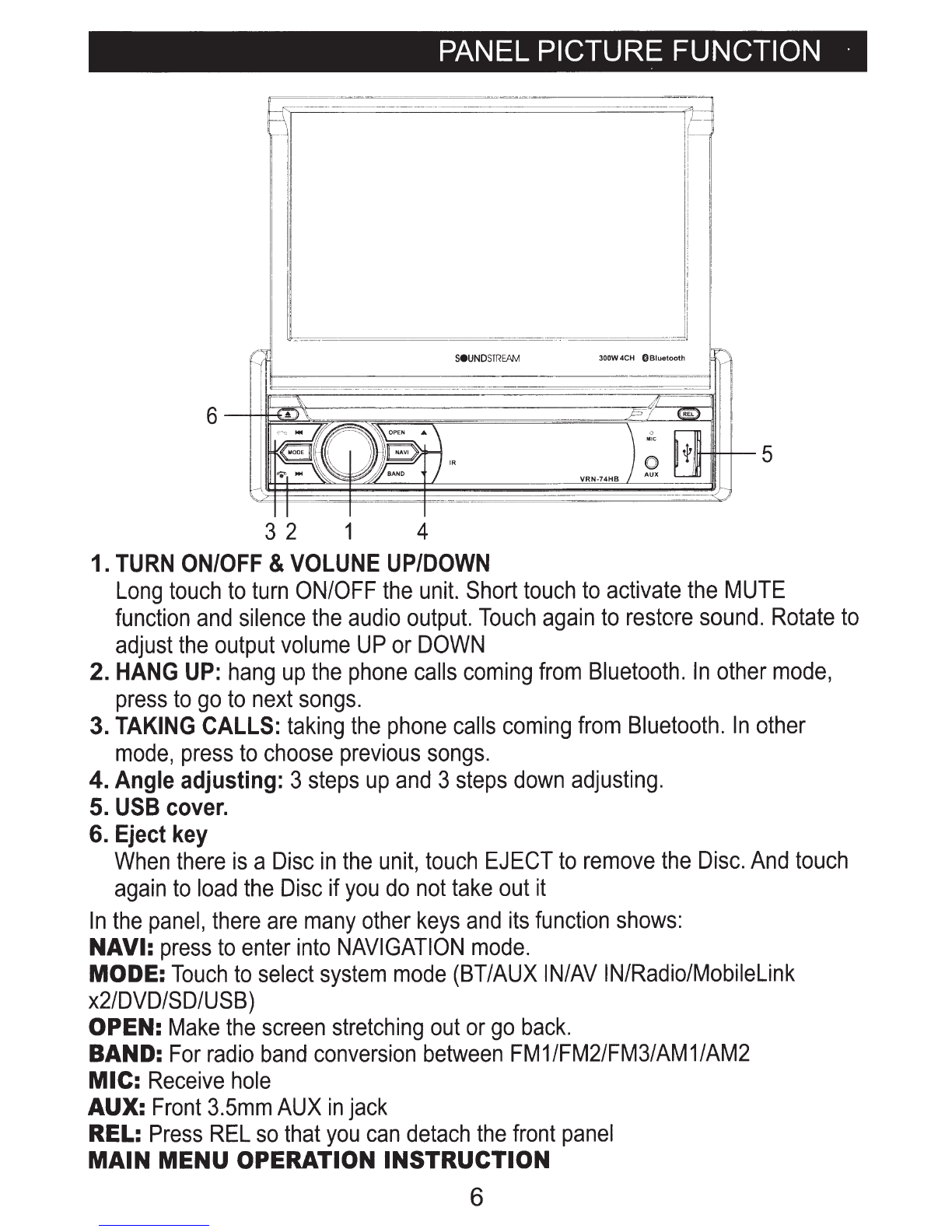

PANEL PICTURE FUNCTION ·
I!
_J
SeUNDSTRE.AM
300W4CH 0Biuetooth
VRN-74HB
3 2 1 4
1. TURN ON/OFF & VOLUNE UP/DOWN
Long touch to turn ON/OFF the unit. Short touch to activate the MUTE
function and silence the audio output. Touch again to restore sound. Rotate to
adjust the output volume UP or DOWN
2. HANG UP: hang up the phone calls coming from Bluetooth. In other mode,
press to go to next songs.
3. TAKING CALLS: taking the phone calls coming from Bluetooth. In other
mode, press to choose previous songs.
4. Angle adjusting: 3 steps up and 3 steps down adjusting.
5. USB cover.
6. Eject key
When there is a Disc in the unit, touch EJECT to remove the Disc. And touch
again to load the Disc if you do not take out it
In the panel, there are many other keys and its function shows:
NAVI: press to enter into NAVIGATION mode.
MODE: Touch to select system mode (BT/AUX IN/AV IN/Radio/Mobilelink
x2/DVD/SD/USB)
OPEN: Make the screen stretching out or go back.
BAND: For radio band conversion between FM1/FM2/FM3/AM1/AM2
MIC: Receive hole
AUX: Front 3.5mm AUX in jack
REL: Press REL so that you can detach the front panel
MAIN MENU OPERATION INSTRUCTION
6

MAIN MENU OPERATION INSTRUCTION
Main
menu
1
2 1
4 5
63
7 8 9
1.
2.Shows the present time ofthe unit.
3.Siide to choose between main menu 1 and main menu
2.
4. Radio Interface
5.
Disc Interface
I
I
SPELl>
UMJT
l
35
1
Back
8.
Music Interface
"""""'•
~
0.6mi
;;
~~t
~
0:02
;;
7.
Mobile Link
x2
Interface
9.
Video interface
7

MAIN MENU OPERATION INSTRUCTION

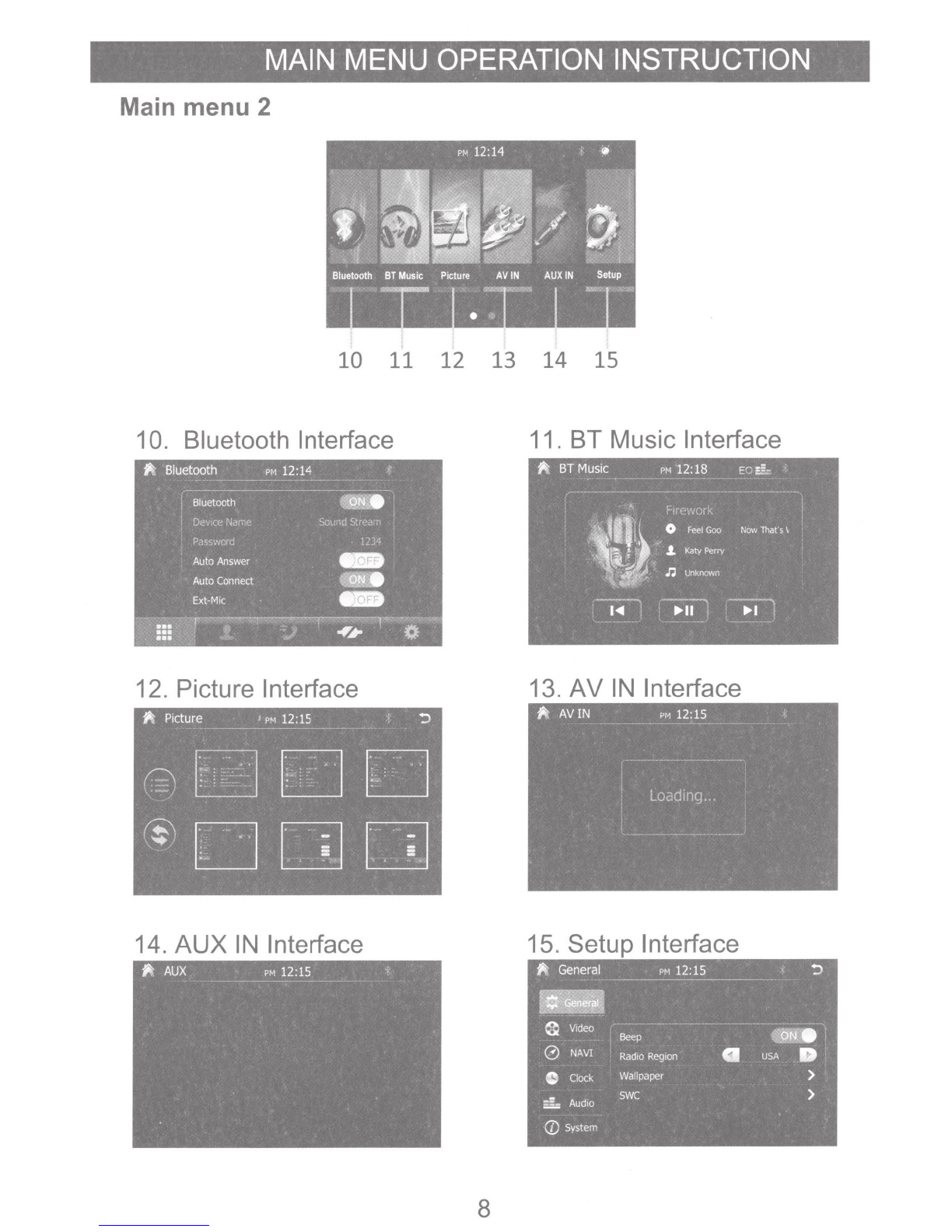

Main menu 2
10 11 12 13 14 15

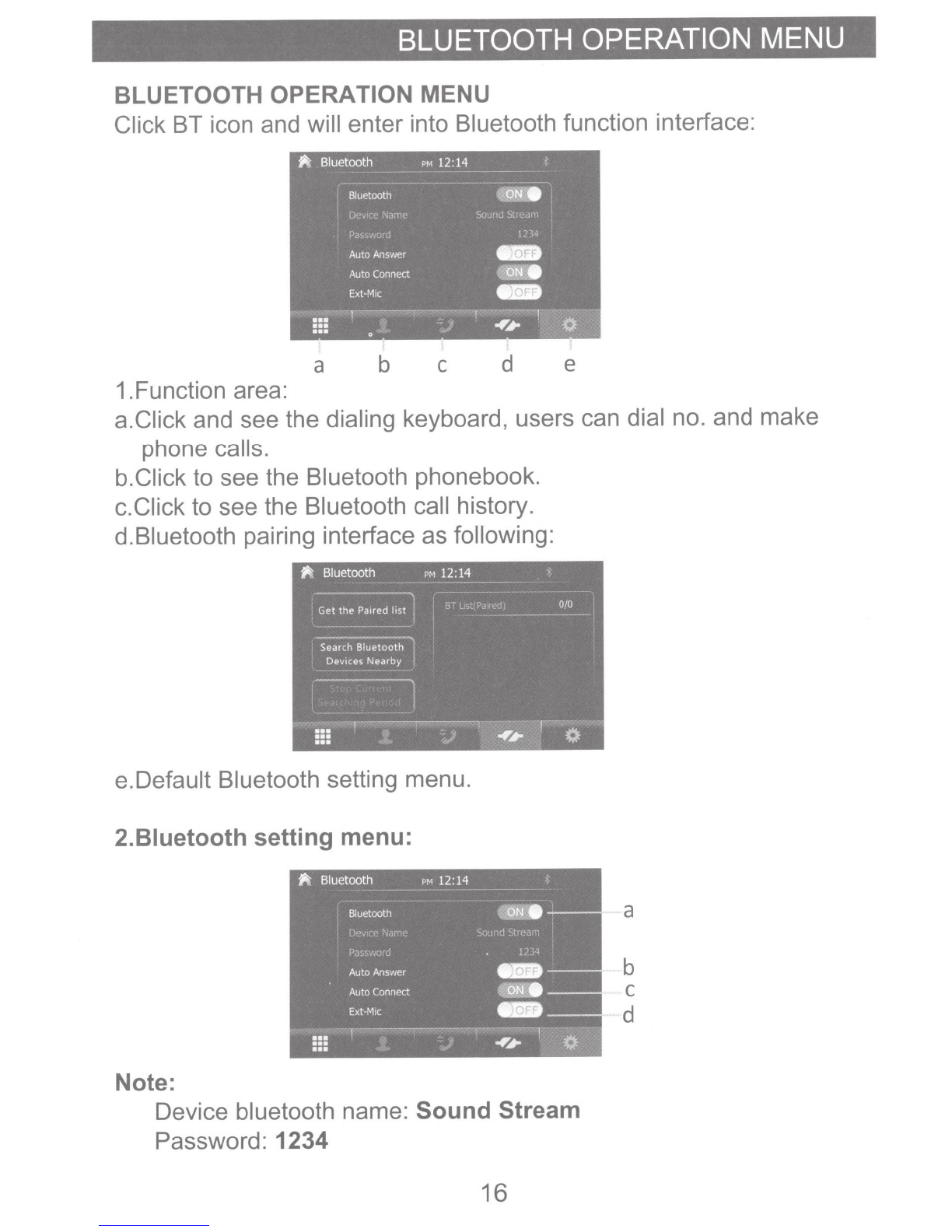

10. Bluetooth Interface
12. Picture Interface
itt Picture 1
PM 12:15
~~ ~o :-·-··
( _ ··_\ L_j LJ .
~ oDJDJ
14. AUX IN Interface
8
11. BT Music Interface
itt
BT Music
PM 12:18
EC:.§.,
'"I'
_l\ ~lli:
0
Feel Goo Now That's\
~'
.1.
Katy Perry
n Unknown
1<1111 II> II II> I
13. AV IN Interface

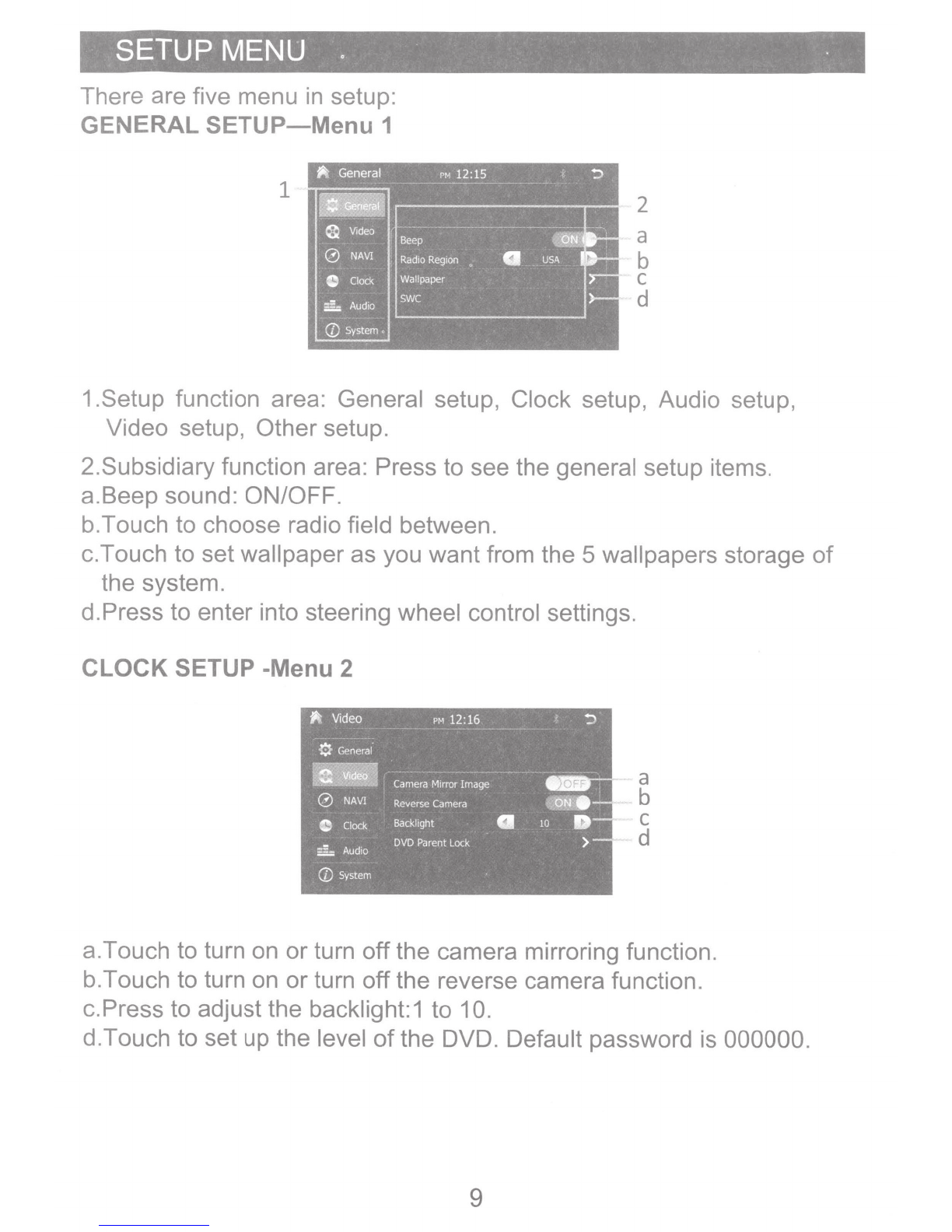

SETUP MENU . ·
There
are five menu in setup:
GENERAL
SETUP-Menu
1
1
2
a
b
c
d
1.Setup function area: General setup, Clock setup, Audio setup,
Video setup,
Other
setup.
2.Subsidiary function area: Press to see the general setup items.
a.Beep
sound: ON/OFF.
b.Touch to choose radio field between.
c.
Touch
to
set
wallpaper
as
you
want
from the 5 wallpapers storage
of
the system.
d.Press to
enter
into steering wheel control settings.
CLOCK SETUP -Menu 2
a
b
c
d
a.Touch to turn on
or
turn
off
the camera mirroring function.
b.Touch to turn on
or
turn
off
the reverse camera function.
c.
Press to adjust the backlight:1
to
10.
d.Touch to set up the level
of
the DVD. Default password is 000000.
9

NAVIGATION SETUP
NAVIGATION SETUP--Menu 3
a
b
a.Turn on or turn off the navigation voice plug function. Turn on, once
report navigation information and also have audio source !')laying.
Turn off, there is only navigation voice.
b.Press to go into navigation path setup menu:
It will show the usable navigation program and choose to set as the r
unn1ng program.
CLOCK SETUP--Menu 4
a
b
c
a.Choose time zone according to your local place;
b.Choose AM
or PM according to your current time;
c.Choose daylight savings ON/OFF according your local place time.
AUDIO SETUP--Menu 5
10
- a
b

'
SYSTEM SETUP -
a.Press to enter into EQ set up menu.
Move up and down to choose the audio playing mode:
USER/JAZZ/CLASSIC/ROCK/POP/LIVE/DANCE. And USER
is
the
default mode.
b.
Press to enter into Audio Control set up menu.
1
2
3
1.Reverb: Close/ Living room/Hall/Concert/Cave/Bathroom/Arena
2.Loudness: ON/OFF.
3.Subwoofer: ON/OFF.
SYSTEM SETUP--Menu 6
\/e'SJ,)fl
APP
HC
Bay•
_201
SOt!
Ocl
i1
-
•1CLI
,::{1150N13
~
PC~6.'11
?
03
"8PA:,AV
11
1p.-g
lull)
~COl
S9~)11•Jt;6
1
_'
1
2
3
1.Touch to start calibration function to make the touch feeling in the
screen more accurate.
2.Touch to set the system to the factory shipping system mode.
3.The software version
of
this unit.
11

. · SWC-STEERING WHEEL CONTROL SETTING
Set the POWER button as an example.
1.Press to enter into SWC menu Picture
1.
2.Press POWER button in the unit, then press key in your steering wheel.
You can see the reminder
in
the unit like Picture 2. Press OK.
3.Setting successfully. Will show like Picture
3.
Picture 1 Picture 2
Picture 3
This is set by SWC1,
if
you cannot finish all button pairing, you can use
SWC2/SWC3 too.lt will erase memory
if
you press SWC2/3 during you
are setting SWC1.
RADIO OPERATION
4
1 2
7 8 9
11
10 12 13
12
3
5
6

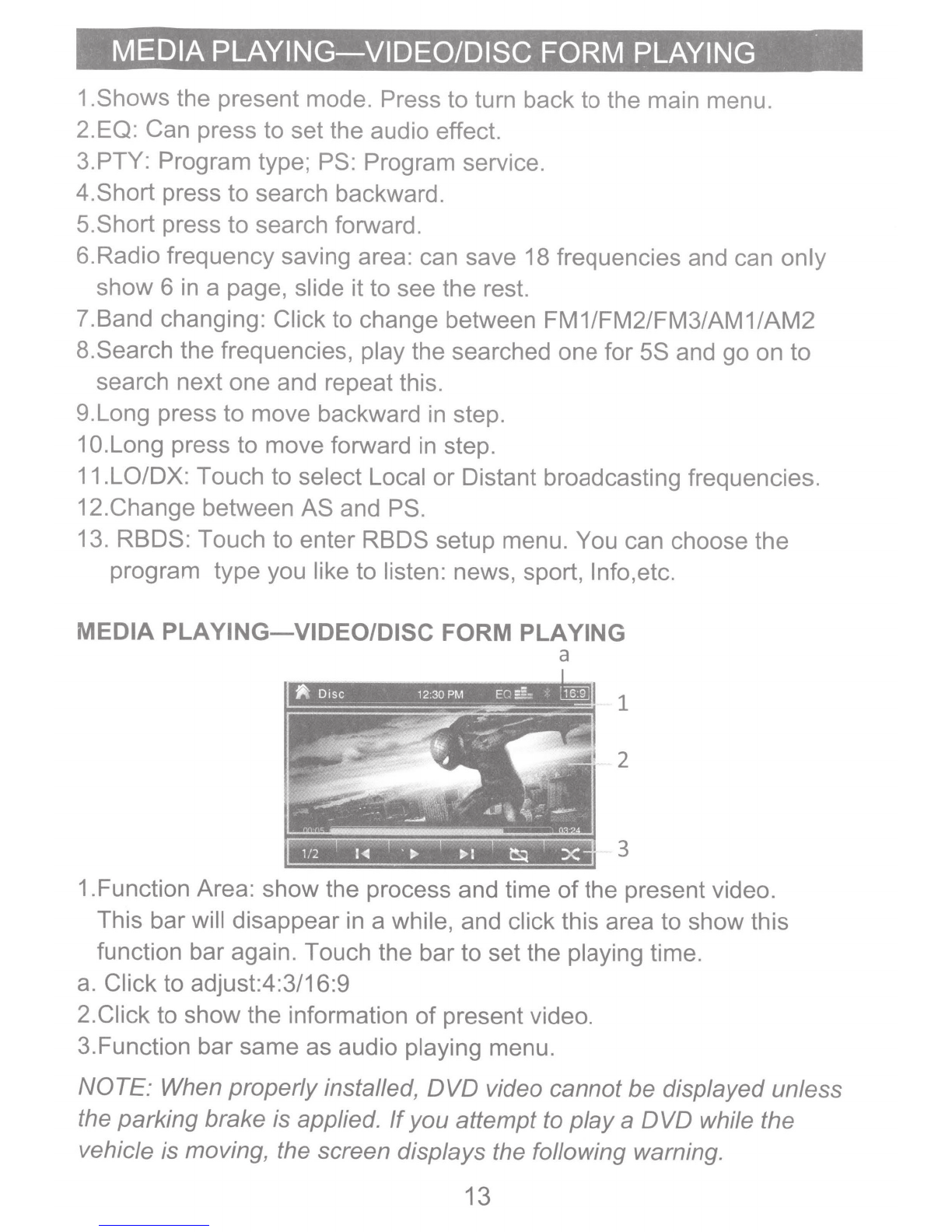

MEDIA PLAYING-VIDEO/DISC FORM PLAYING
1.Shows the present mode. Press to turn back to the main menu.
2.EQ: Can press to set the audio effect.
3.PTY: Program type; PS: Program service.
4.Short press to search backward.
5.Short press to search forward.
6.Radio frequency saving area: can save 18 frequencies and can only
show 6
in
a page, slide it to see the rest.
?.Band changing: Click to change between FM1/FM2/FM3/AM1/AM2
8.Search the frequencies, play the searched one for 5S and go on to
search next one and repeat this.
9.Long press to move backward
in
step.
1
O.Long press to move forward
in
step.
11.LO/DX: Touch to select Local
or
Distant broadcasting frequencies.
12.Change between AS and PS.
13. RBDS: Touch to enter RBDS setup menu. You can choose the
program type you like to listen: news, sport, lnfo,etc.
MEDIA PLAYING-VIDEO/DISC FORM PLAYING
a
1
2
3
1.Function Area: show the process and time
of
the present video.
This bar will disappear in a while, and click this area to show this
function bar again. Touch the bar to set the playing time.
a.
Click to adjust:4:3/16:9
2.Ciick to show the information of present video.
3.Function bar same as audio playing menu.
NOTE: When properlyinstalled, DVD video cannot be displayed unless
the parking brake is applied.
If
you attempt to
play
a
D
VD
while the
vehicle is moving, the screen displays the following warning.
13

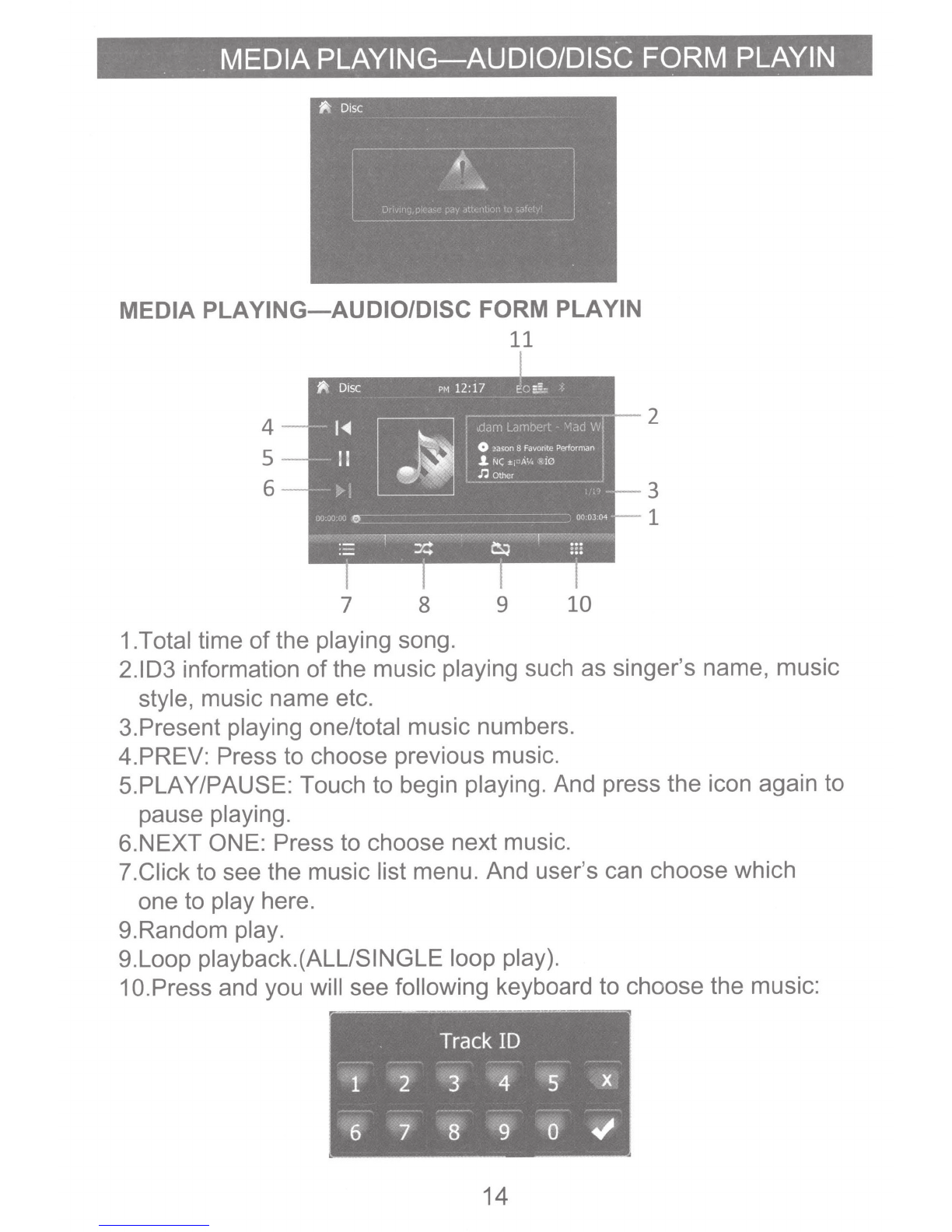

MEDIA PLAYING-AUDIO/DISC FORM PLAYIN
MEDIA
PLAYING-AUDIO/DISC
FORM PLAYIN
11
4
5
6
7 8
1.Total time
of
the playing song. 9 10
2
3
1
2.103 information
of
the music playing such as singer's name, music
style, music name etc.
3.Present playing one/total music numbers.
4.PREV: Press to choose previous music.
5.PLAY/PAUSE: Touch to begin playing. And press the icon again to
pause playing.
6.NEXT ONE: Press to choose next music.
?.Click to see the music list menu. And user's can choose which
one to play here.
9.Random play.
9.Loop playback.(ALL/SINGLE loop play).
1O.Press and you will see following keyboard to choose the music:
14

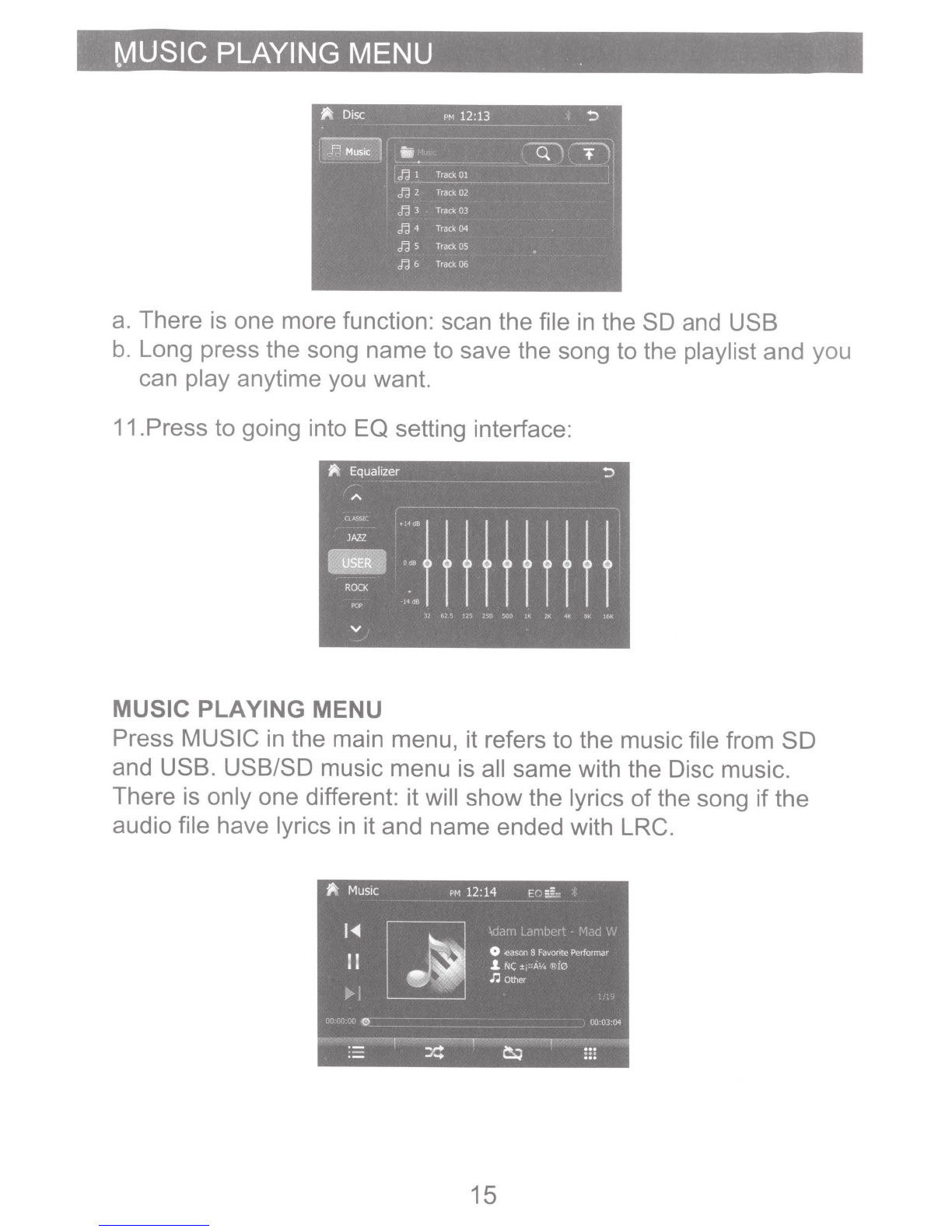

MUSIC PLAYING MENU .
0
a.
There is one more function: scan the file
in
the
SO
and USB
b.
Long press the song name to save the song to the playlist and you
can play anytime you want.
11.Press to going into EQ setting interface:
~
Equalizer
:>
------~-------~------·--·-
,
..
-·-···
"'
~;.
JHHtHH
32 61.5 125 250 500
lK
2K
4K
8K
l6K
v
MUSIC PLAYING MENU
Press MUSIC in the main menu, it refers to the music file from SO
and USB. USB/SO music menu is all same with the Disc music.
There is only one different: it will show the lyrics
of
the song if the
audio file have lyrics
in
it and name ended with LRC.
15

BLUETOOTH OPERATION MENU
BLUETOOTH
OPERATION
MENU
Click
BT
icon and will enter into Bluetooth function interface:
a b c
d
e
1.Function area:
a.Click and see the dialing keyboard, users can dial no. and make
phone calls.
b.Click to see the Bluetooth phonebook.
c.Click to see the Bluetooth call history.
d.Biuetooth pairing interface as following:
e.Default Bluetooth setting menu.
2.Biuetooth
setting
menu:
Note:
Device bluetooth name:
Sound
Stream
Password:
1234
16
a
b
c
d

BLUETOOTH DIALING
a.ON/OFF: Turn on and turn off
of
Bluetooth when not using.
b.Auto Answer: Can turn on or turn off the function
of
listen to calls
automatically.
c.Auto Connect: Can connect the nearest searched devices
automatically which have already been connected before turn on.
d.Ext-Mic: Set
ON
to use external microphone, and set OFF to use
unit microphone.
BLUETOOTH DIALING
3
1.Shows the number you press in, and press
wrong.
2.Key area.
3.Touch to call out.
BLUETOOTH CALL
1
2
1.Press to come out the number key.
2.Press to hang up phone calls:
1
2
to delete if it is
3
4
3.Touch to talk through Bluetooth
or
smartphones.
4.Touch to mute the unit.
17
