SpeeCo 1022655 User manual

MECHANICAL LOG SPLITTER
LS180-876-0611
REV AA
ASSEMBLY & OPERATING INSTRUCTIONS
MODEL NO. 1022655 (S40170100)
Owner’s Manual
WARNING: All operators must read this manual before operating this log
splitter. Follow the safety instructions in the manual and in decals attached
to the product. Failure to do so could result in serious injury or death.
MECHANICAL LOG SPLITTER

Table of Contents
Page(s)
ImportantSafetyInformation................................................................................................................. 1-6
IntendedUse ......................................................................................................................... 1
PersonalProtective Equipment ............................................................................................... 1
SafetyDecals ....................................................................................................................... 1-2
GeneralSafety ...................................................................................................................... 3
Preparationofthe Log ........................................................................................................... 3
WorkArea........................................................................................................................... 3
Operationof the LogSplitter ................................................................................................. .4
RepairandMaintenanceSafety ............................................................................................. 5
FirePrevention ..................................................................................................................... 5
TowingSafety...................................................................................................................... 6
AssemblyInstructions ...................................................................................................................... 7-12
OperatingInstructions ....................................................................................................................... 13-14
Operation.............................................................................................................................. 13
Towing...................................................................................................................................... 14
Maintenance.......................................................................................................................................... 14
Warranty ................................................................................................................................................. 14
ReplacementParts................................................................................................................................ 15-16
Specifications ......................................................................................................................................... BackCover

WARNING: Read and thoroughly understand all instructions and safety information before assem-
bling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow
anyone to operate this log splitter who has not read this manual. As with all power equipment, a log
splitter can be dangerous if assembled or used improperly. Do not operate this log splitter if you have
doubts or questions concerning safe operation. Call our customer service department at 1-800-
525-8322 to address these concerns.
Si no entiende ingles, se prefiere que busque alguien que interprete las instrucciones para usted.
NEVER use this log splitter for any other purposes than splitting wood. It is designed for this use only. Any other use can
cause serious injury or death.
PEPER
PERPERSONALSONAL PROTECTIVE EQUIPMENT
BEFORE operating this log splitter make sure that you wear safety gear such as goggles or safey glasses, steel toed
shoes and tight fitting gloves (without loose cuffs or draw strings).Always wear a protective hearing device when operating
this log splitter.
NEVER wear loose clothing or jewelry that can be caught by moving parts of the log splitter. Keep clothing and hair away
from all moving parts when operating this log splitter.
PERSONAL PROTECTIVE EQUIPMENT
SAFETY DECALS
Make sure that all safety warning decals are in good condition and readable.Always replace missing or defaced decals.
Contact SpeeCo at 1-800-525-8322 for replacement decals.
PART NUMBER: S52068000
LOCATION: TOP OF SHROUD, OPERATOR’S SIDE
INTENDED USE
Page 1

Page 2
PART NUMBER: S52068100
LOCATION: FRONT OF TONGUE
PART NUMBER: S52068200
LOCATION: SHROUD FRONTABOVE
PUSH RAM
PART NUMBER: S52067900
LOCATION: NEXT TO SAFETY BUTTON
ON OPERATOR’S SIDE OF SHROUD
PART NUMBER: S53018500
LOCATION:BACK OF SHROUD
ENGINE SIDE AND ENGINE PLATE
PART NUMBER:S53018600
LOCATION: TOP OF SHROUD, ENGINE
SIDE
PART NUMBER: S53018700
LOCATION: RIGHT OF SAFETY BUTTON
ON OPERATOR’S SIDE OF SHROUD

GENERAL SAFETY
EVER
ALWAYS establish a safety zone restricting bystanders to a 10 foot radius around the log splitter when log splitter is
in operation.
ALWAYS ensure that all operators are properly trained or have read and understood the operator’s manual.
ALWAYS operate the log splitter with a clear mind, free of the influence of alcohol drugs or medication.
ALWAYS wear close fitted clothing , free from lanyards, strings or jewelry which could be an entrapment hazard.
ALWAYS keep clothing and hair away from moving parts.
ALWAYS keep safety shields and the shrouds in place during operation
Both ends of the log should be cut as square as possible to help prevent the log from riding out of the splitter during
operation. Do not split logs greater than 24 in. in length.
WORKAREA
ALWAYS wear proper footwear with adequate traction.
ALWAYS operate your log splitter in an open area. (Exhaust fumes contain carbon monoxide which can be deadly
wheninhaled.)
ALWAYS operate your log splitter on level ground. (Operating on a slope could cause the log splitter to roll over or
logs to fall off.
ALWAYS operate your log splitter in daylight or under good artificial light.
ALWAYS keep the work area clean. Remove split wood around your log splitter immediately so that you don’t stumble
over it.
Failure to follow these instructions may result in serious injury or death.
Page 3
ALWAYSEkeep the operator’s manual nearby for reference. Reread the manual periodically.
PREPARATION OF THE LOG
ALWAYS operate this log splitter on firm ground/earth.

KNOW how to stop the log splitter and disengage the controls before operating it.
NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke as this could result in
serious injury or death.
NEVER straddle or step over the log splitter during operation.
NEVER reach or bend over the log splitter to pick up a log.
NEVER try to split two logs on top of each other.
NEVER try to cross split a log.
NEVER attempt to load your log splitter when the ram or wedge is in motion.
NEVER use your foot, a rope or any extension device to operate the controls. Only use both hands.
NEVER move the log splitter while the engine is running. Shut off the engine even if you are leaving the log splitter for a
short period of time.
NEVER touch the muffler and other hot areas of the engine during operation. Wait until the engine cools down.
Page 4
ALWAYS block the wheels to prevent movement of the log splitter while in operation.
NEVER place hands, body parts or clothing under the shrouds during operation.Moving parts could cause entanglement.
ALWAYS load the log onto the beam cradle up against the wedge.
ALWAYS be careful when moving or lifting the log splitter. Get assistance if it feels to heavy to move by yourself.
OPERATION OF THE LOG SPLITTER
The log splitter is designed for a single operator, who stands in the “operator zone”, using the right hand to operate the
control handle, and the left hand to press the Start button. Failure to operate the log splitter in this position can result in
serious injury or death.

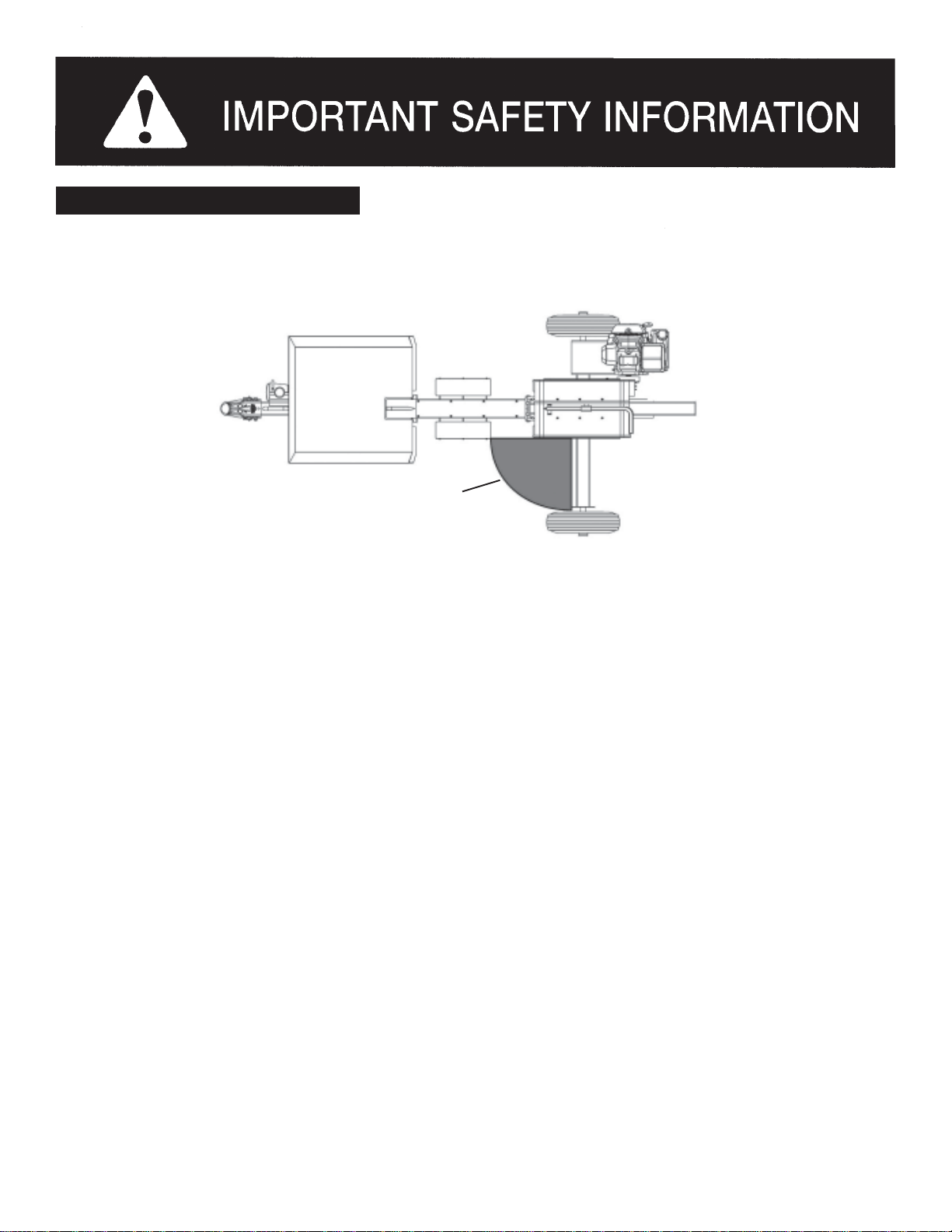

TOP VIEW
OPERATOR
ZONE

FIRE PREVENTION
NEVER operate your log splitter near a flame or spark.
NEVER fill the gas tank while the engine is hot or running.Allow the engine to cool before refueling.
NEVER smoke while operating or refueling your log splitter. Gas fumes can easily explode.
ONLY refuel your log splitter in a clear area with no gas fumes or spilled gas.
ALWAYS replace the gas cap securely.
If gasoline has spilled, move the log splitter away from the area of the spill and avoid creating any source of ignition until
the spilled gas has evaporated.
ALWAYS take a Class B fire extinguisher with you when operating this log splitter in dry areas as a precautionary
measure against possible flying sparks.
ALWAYS drain the fuel tank prior to storage to avoid the potential fire hazard.
ALWAYS store gasoline in an approved, tightly sealed container. Store the container in a cool, dry place.
Page 5
NEVER store gasoline in the house or near a heating appliance.
GENERALREPAIR
NEVER operate your log splitter when it is in poor mechanical condition or in need of repair.
Periodically check that all nuts, bolts, and screws are tight before operation. Check the condition of the drive belts
periodically checking for wear.
NEVER modify your log splitter in any manner. Such alterations may cause your log splitter to be unsafe and will void the
warranty.
NEVER tamper with the engine to run it at excessive speeds. The maximum engine speed is preset by the manufacturer
and is within safety limits. See engine owner’s manual.
ALWAYS perform all recommended maintenance procedures before using your log splitter.
ALWAYS replace all damaged or worn parts immediately.
ALWAYS remove the spark plug wire before performing any service or repair on your log splitter.
ALWAYS check the level of the engine oil before operation.
ALL replacement parts must meet manufacturer’s specifications.

IMPORTANT NOTE: (spark arrester)
As a precautionary measure against possible flying sparks, always take a Class B fire extinguisher with you when operat-
ing this log splitter in dry areas. This log splitter is equipped with an internal combustion engine and should not be used
on or near any unimproved forest-covered, brush-covered or gras-covered land unless the engine’s exhaust system is
equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used , it should be
maintained in effective working order by the operator. In the state of California, a spark arrester is required by law. Other
states have similar laws. Federal laws aply on federal lands.Aspark arrester muffler is optional and available as an
accessory at your nearest engine dealer.Always check the legal requirements in your area.
TOWING SAFETY
ALWAYS check all local and state regulations regarding towing, licensing, and lights before towing your log splitter.
ALWAYS check before towing to make sure that the log splitter is correctly and securely attached to the towing vehicle
and that the safety chains are secured to the hitch or bumper of the vehicle with enough slack to allow turning.Always
use a Class I, 2” ball with this log splitter.
ALWAYS confirm coupler tightness each time before towing and after towing 50 miles.
ALWAYS disconnect your log splitter from the towing vehicle before operating it.
ALWAYS be careful when backing up with your log splitter in tow. It could jackknife.
ALWAYS allow for added length of your log splitter when turning, parking, crossing interesections and in all driving
situations.
Page 6
ALWAYS turn the fuel shut off valve on the engine to the “OFF” position before towing the log splitter. Failure to do so
may result in flooding the engine.
ALWAYS use safety chains when towing your log splitter.
ALWAYS check ball coupler to see if it is damaged
NEVER exceed 45 mph when towing your log splitter. Towing the log splitter at speeds higher than 45 mph could result
in loss of control, damage to the equipment , serious injury or death. Adjust towing speed for terrain and conditions.
Be extra cautious when towing over rough terrain especially railroad crossings.
NEVER carry any cargo or wood on your log splitter.
NEVER allow anyone to sit or ride on your log splitter.
NEVER exceed weight capacity of ball or load limits of coupler.

ASSEMBLY
NOTE: This product was partially assembled at the factory.
Step 1: Remove the partially assembled unit from the shipping crate. It may be necessary to break down the crate for
easier removal.A forklift or additional help is recommended to safely remove the product from the crate.

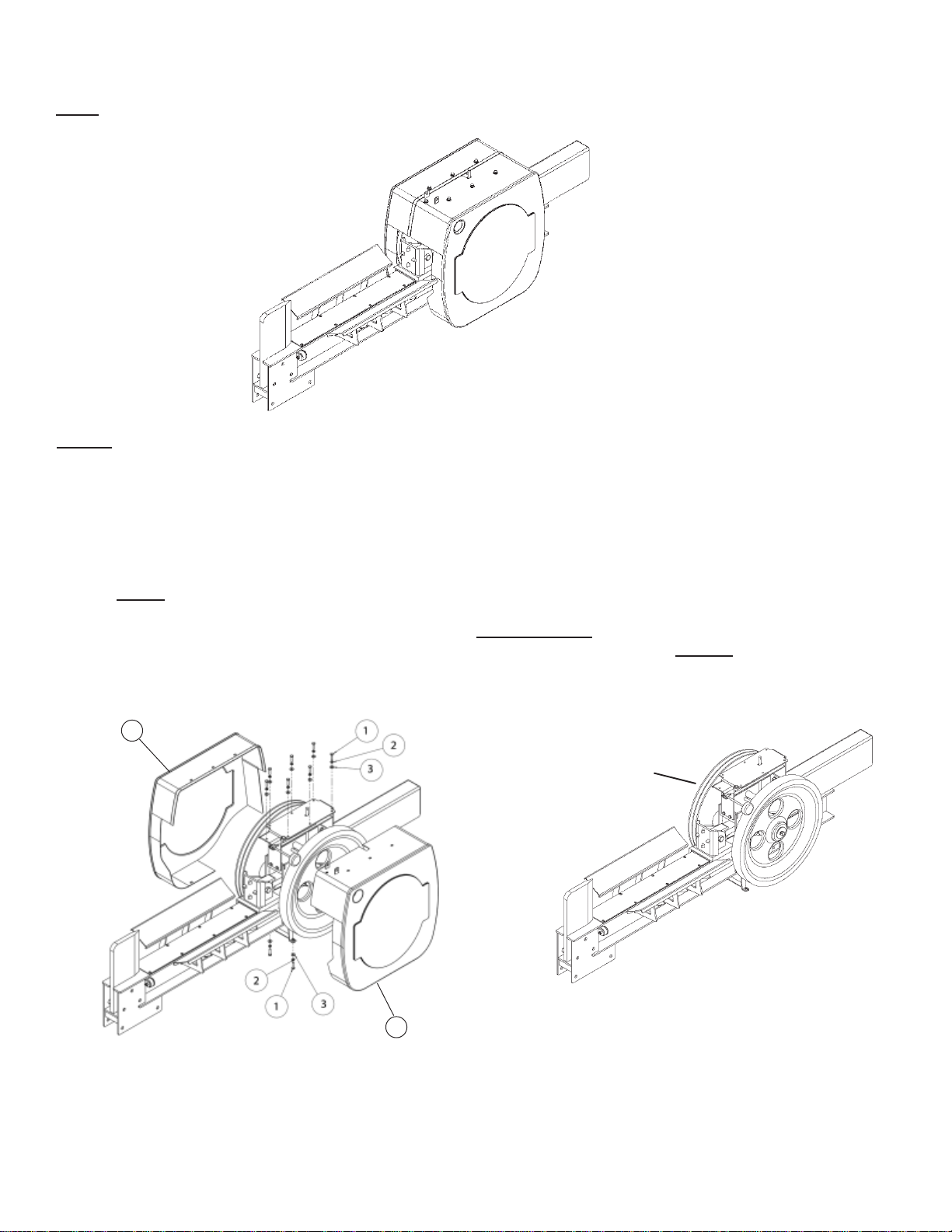

Remove the left shroud (4) and the right shroud (5) by loosening the 1/4” x 3/4” bolts (1), the 1/4” lock
washers (2) and the 1/4” flat washers (3) as shown in the drawing below.
Partially assembled unit from crate
ITEM NO. DESCRIPTION QTY.
1 1/4” x 3/4” Bolt 9
2 1/4” Lock Washer 9
3 1/4” Flat Washer 9
4 Left Shroud 1
5 Right Shroud 1
For easier assembly place the rear end of the unit on blocks or something similar to keep it stable and level.
Once the tongue assembly, axle assembly and wheels are attached the, block can be removed.
Set the two shroud pieces and the hardware aside for the moment.They will be installed in a later step.
Page 7
NOTE: There is another method of assembly if the beam assembly is too heavy to move around. Both flywheels
can be removed and put aside until later in the assembly process. The flywheels are held on a by a bolt on the
end of the gear. The flywheel with the grooves has a left hand thread and the other has a standard bolt that is
used as a set screw. Be extremely careful when removing flywheels.They are very HEAVY. Reattach the flywheels
after step 4 once the tongue and wheels are attached.
4
5
Flywheel with
grooves

STEP 2: Attach the tongue (2) to the beam assembly as shown in the diagram. Use the two 1/2” x 4-1/4” bolts (3) and
the two 1/2”-13 UNC Nylock nuts (4). Tighten.
ITEM NO. DESCRIPTION QTY.
1 Tongue Assembly 1
2 1/2” x 4-1/4” Bolt 2
3 Complete Beam Assembly 1
4 1/2-13 UNC Nylock Nut 2

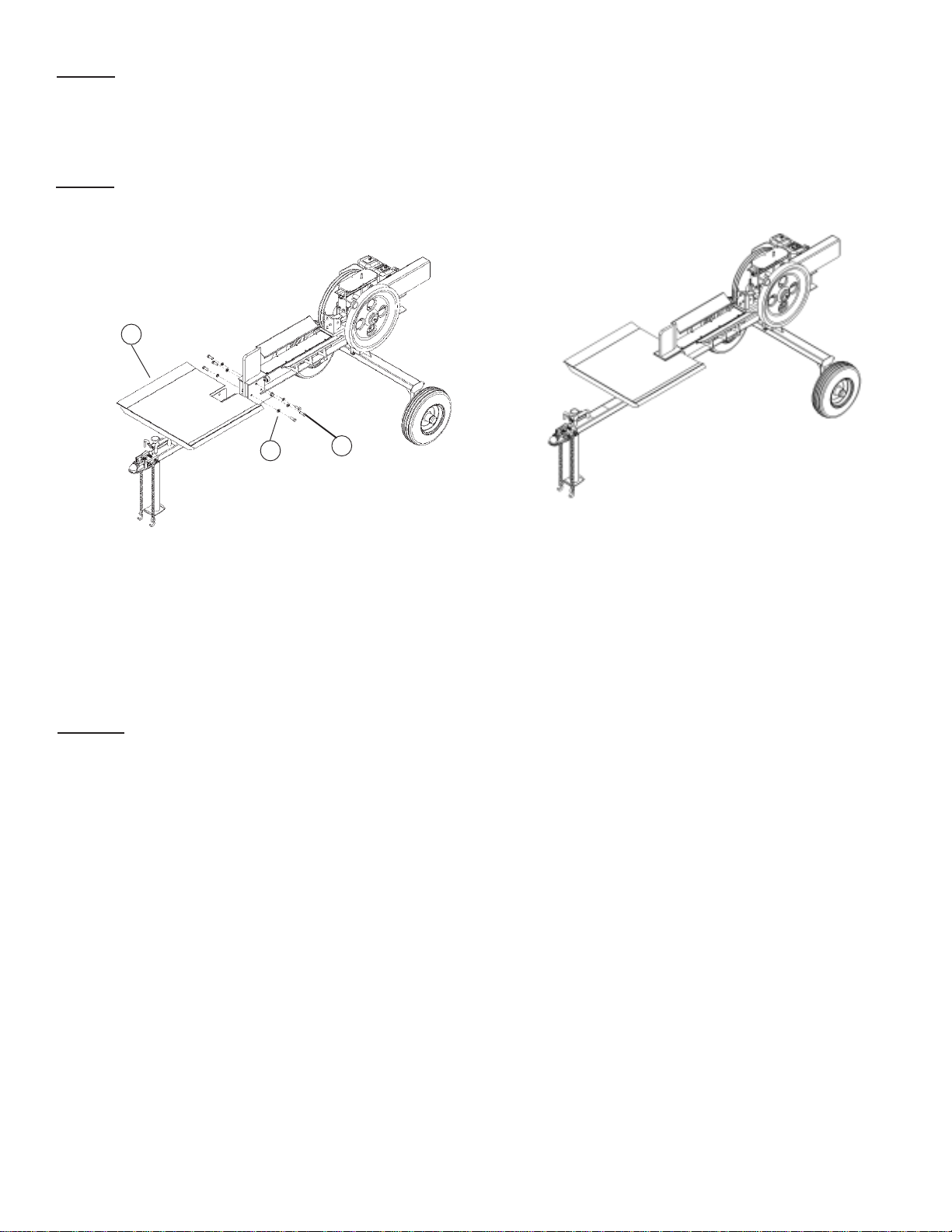

STEP 3: Attach the back frame (1) to the beam assembly using the four 1/2” x 1-1/4” bolts (3) and the four 1/2” Nylock
nuts (2). Tighten.
ITEM NO. DESCRIPTION QTY.
1 Back Frame Assembly 1
2 1/2”-13 UNC Nylock Nut 4
3 1/2” x 1-1/4” Bolt 4
Page 8

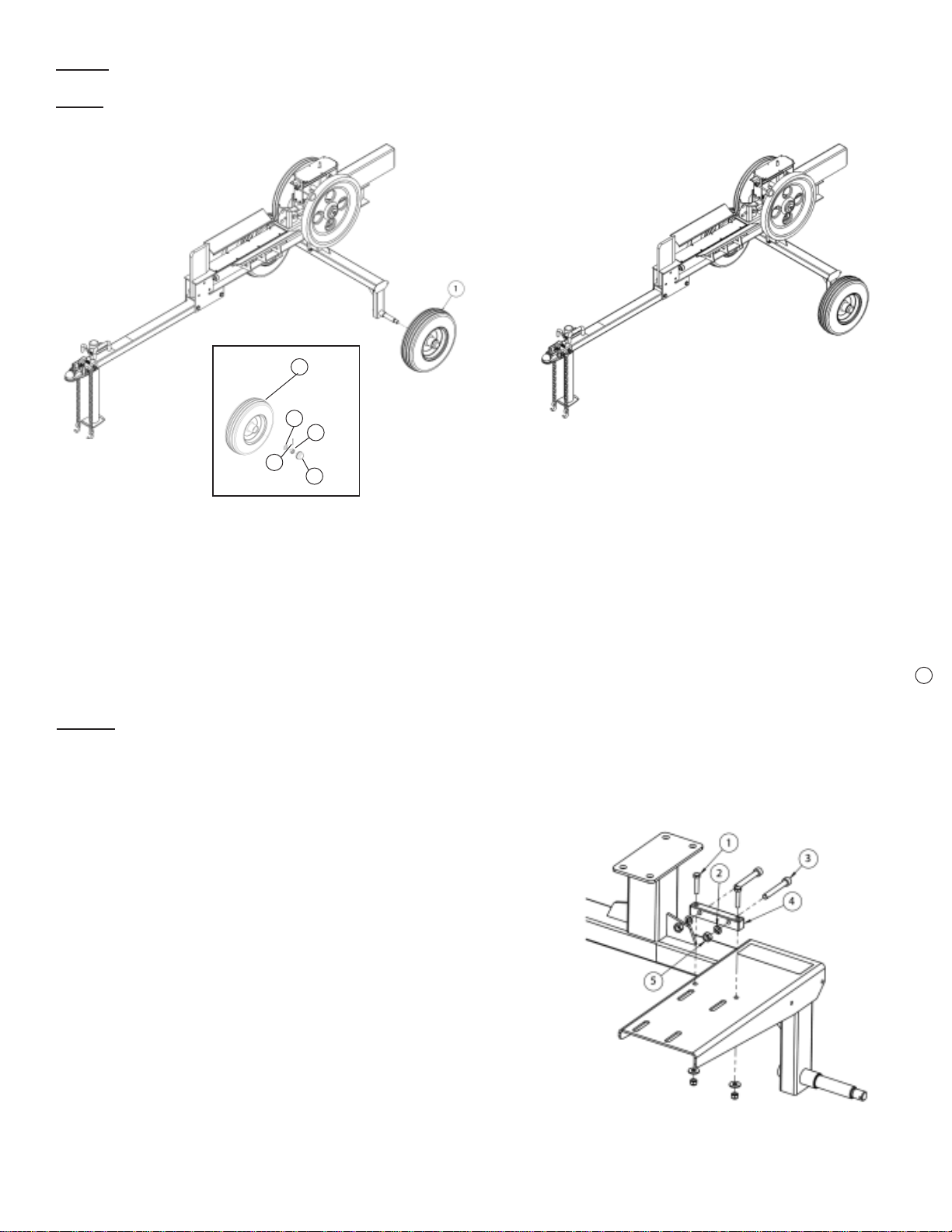

STEP 4:Attach the two wheels (1) to the spindles on the back frame assembly as shown in the diagram below.
NOTE: If you removed the flywheels in Step 1, carefully reattach them after completing this step. Make sure that they
are reattached exactly as shown in Step 1.
ITEM NO. DESCRIPTION QTY.
1 Wheel 2
2 3/4” Light Flat Washer 2
3 3/4” Slotted Nut 2
4 1/8” x 1-1/2” Cotter Pin 2
5 Hub Cap 2
Page 9
STEP 5: Back the tensioner bolts (3) all the way out.
ITEM NO. DESCRIPTION QTY.
1 5/16” x 1-1/2” . Bolt 2
2 3/8 in. Regular Lock Washer 2
3 M10 x 1.5 x 75mm Metric Socket Head Screw 2
4 Tensioner Plate 1
5 M10 x 1.5 Nut 2
1
23
5
4

STEP 6: Make sure that the clutch is aligned with the flywheel. Then align the holes in the engine mounting plate on the
back frame assembly with the holes on the bottom of the engine. Then mount the engine/clutch assembly (2) with
the four 5/16” x 1-1/2” bolts (3), the eight 5/16” flat washers (4) and the four 5/16” nylock nuts (5). Leave bolts
somewhat loose at this point.
ITEM NO. DESCRIPTION QTY.
2 Engine/Clutch Assembly 1
3 5/16” x 1-1/2” Bolt 4
4 5/16” Flat Washer 8
5 5/16”-18 UNC Nylock Nut 4
STEP 7: Attach the two belts to the flywheel with the grooves. First put the belts on the clutch (shown below) and then on
the flywheel turning it by hand until they are completely mounted.
Attach V-belts to
grooves on flywheel
on engine side
Page 10
V- belts here on
clutch
This side faces the flywheel

STEP 9: Attach the log catcher table (1) to the front of the beam/tongue as shown below using the three 1/2” x 1-3/8”
bolts (2) and 1/2” regular lock washers (3). Tighten.
ITEM NO. DESCRIPTION QTY
1 Log Catcher 1
2 1/2” x 1-3/8” Bolt 6
3 1/2” Lock Washer 6
Page 11
STEP 8: After placing the belts on, align the clutch and belts to the flywheel and pull the engine so that the belts are taut.
Then tighten the engine mounting bolts but not 100%. Use the tensioner bolts shown in Step 5 to tension the
v-belts further. Make sure that you are tightening the correct bolts. Tightening the wrong bolts may twist the
engine too far. Tighten the four engine mounting bolts to the frame assembly.
STEP 10: Reattach the two shroud halves removed in step 1and the hardware. Use the nine 1/4” x 3/4” bolts (2) the nine
1/4” lock washers (2) and the nine 1/4” flat washers (3) to attach the shrouds. Tighten.
2
1
3

STEP 11: Attach the handle (1) to the top of the shroud using the hardware called out in the drawing below. Slide the
3/16”x 1-3/4” clevis pin (5) through the hole in the middle of the handle and the tab on the top center of the
shroud. Secure with the 3/32” x 1” straight cotter pin (5).Attach the front of the handle (1) through the two tabs `
on top of the shroud using the 3/8” x 2-3/4” bolt (2) and 3/8” nylock nut (3). Tighten.
ITEM NO. DESCRIPTION QTY.
1 Handle Assembly 1
2 3/8” x 2-3/4” Bolt 1
3 3/8” Nylock Nut 1
4 3/16” x 1-1/4” Clevis Pin 1
5 1/4”-1/2” Hairpin Cotter Pin 1
Page 12
B
Detail B

OPERATION
STEP 1: Set up the log splitter in a clear, level area and block the wheels. Disconnect the log splitter if it is attached to a
towing vehicle.
STEP 2: Start the engine after making sure that it has an adequate oil and fuel supply. The throttle should be set at the
maximum speed to develop the required power. Refer to Kohler engine manual for more detail.
STEP 3: Place a log on the beam cradle against the wedge.
STEP 4: With the engine running, push in the green safety button on the side of the shroud and push down on the
control handle. Remove the split log and split the pieces in half if desired. The log splitter will not operate unless
both hands are used to activate the ram.
STEP 5: Repeat steps 3 and 4 to continue with the next log.
Page 13
NOTE: Make sure that the engine has oil and gas before starting. See your Kohler engine manual for recommendations
on oil, starting and maintenance.
STARTING INSTRUCTIONS (Kohler SH265))
1) Move the fuel lever to the “ON” position.
2) For a cold engine put the throttle control midway between “SLOW” and ‘FAST.”Place the choke control into the “ON”
position.
3) For retractable start engine turn engine ON/OFF switch to “ON.” Slowly pull the starter handle to just past compression.
STOP! Return starter handle. Pull firmly with a smooth steady motion until it starts.
4) Gradually return the choke control to the “OFF” position after the engine starts and warms up.
5) For a warm engine put the throttle control between “SLOW” and “FAST.”Awarm engine usually does not require the
choke on.
STOPPING THE ENGINE
1) If possible, remove the load.
2) Move the throttle control to the “SLOW” or “LOW” idle position.
3) Turn key switch or on/off switch to “OFF.” Move throttle to “STOP” position if equipped.
4) Close the fuel shut-off valve.
ENGINE OIL RECOMMENDATIONS (Kohler SH265)
For temperatures above 32 degrees F use an 10W-30 oil. Using mutigrade oil may increase oil consumption. Using SAE
30W oil below 40 degrees F will resuilt in hard starting and possible engine bore damage.For temperatures below 32
degrees F use an SAE 5W-20 or SAE 5W-30 oil. Oil capacity is about 0.63 qt. ( 0.60 L)

TOWING:
This log splitter is equipped with pneumatic, road speed tires, a Class I coupler (2 in. diameter ball required) and safety
chains. Before towing, the safety chains should be secured to the hitch or bumper of the vehicle. Local regulations should
be checked regarding licensing, lights, towing, etc. Turn the fuel shut off valve ( if so equipped) on the engine to the “OFF”
position before towing this log splitter. Failure to do so may result in flooding the engine. Do not exceed 45 mph when
towing this log splitter. Refer also to the Towing Safety section on page 6 of this manual.
MAINTENANCE
WARNING: Never perform maintenance operations while the machine is running. Turn off the machine and
disconnect the spark plug or starter before doing any maintenance or adjustments.
1) Consult the operating and maintenance instructions from the engine manufacturer for proper engine care and maintenance.
2) Periodically check all nuts and bolts for tightness.
3) Periodically check v-belts for signs of wear and adjust tension if necessary.
4) The wedge can be sharpened if it becomes dull or nicked.
5) Keep the work table, beam, cradle and push plate free of wood pieces and debris.
6) The stainless steel slide plate should be cleaned periodically to reduce friction.
Page 14
WARRANTY
This machine is guaranteed to be free from defects in material and workmanship for the normal service life of the product
not to exceed twelve consecutive months from the date of purchase. The Kohler engine is covered by a two year
manufacturer’s warranty. SpeeCo will repair or replace free of charge any part or parts of this product that are judged to be
defective in material and workmanship during the limited warranty period stated above.The limited warranty does not cover
parts that in the judgement of the manufacturer have been subjected to negligent use, misuse, alteration, accident, disas-
sembled in any way or if repairs have been made by anyone except an authorized SpeeCo service center.
DISCLAIMER OF OTHER WARRANTIES: THIS LIMITED WARRANTY IS THE ONLY WARRANTY FOR THIS PRODUCT.
SPEECO MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THIS PRODUCT. ALL
SUCH WARRANTIESARE EXPRESSLY DENIED.
LIMITATIONS OF LIABILITY: THERE IS NO LIABILITY FOR INCIDENTAL, CONSEQUENTIAL OR PUNITIVE DAM-
AGES IN CONNECTION WITH THE USE OF THIS PRODUCT, INCLUDING BUT NOT LIMITED TO LIABILITY FOR
INJURY, LOSS OF LIFE, PROPERTY DAMAGE, LOSS OF USE, LOSS OF TIME, INCONVENIENCE OR COMMER-
CIAL LOSS.ANYANDALL SUCH LIABILITY IS EXPRESSLY EXCLUDED. THESE LIMITATIONS OF LIABILITY APPLY
TO ALL SUCH CLAIMS. IN NOEVENT SHALL SPEECO BE RESPONSIBLE FOR ANYAMOUNT EXCEEDING THE
PURCHASE PRICE OF THIS PRODUCT.
You can register this product online at www.speeco.com. Click on Warranty/Manuals on the home page and follow the
instructions to complete the warranty registration process.

REPLACEMENT PARTS
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 5/16” X 1” GR5 Bolt 2
2 O/L 1/4” x 3/4” GR5 Bolt 9
3 O/L 1/2” x 1-3/8” GR5 Bolt 3
4 O/L 1/2” x 1-1/4” GR2 Bolt 6
5 O/L 5/16” Lock Washer 2
6 O/L 1/4” Lock Washer 9
7 O/L 1/2” Lock Washer 9
8 O/L 5/16” Hex Nut 2
9 O/L 1/2” Hex Nut 3
10 S40172200 Beam Only 1
11 S401727A0 Shroud, Right Half 1
12 S401728A0 Shroud, Left Half 1
13 S40170900 Shroud Attachment 1
14 S40170700 Log Cradle 2
15 S40170600 Log Catcher Table 1
16 S401708B0 Handle with Hardware 1
Page 15
O/L- Obtain locally. Common fasteners available through hardware and farm stores.

ADDITIONAL REPLACEMENT PARTS (not shown)
S401724A0 RackAssembly
S401712A0 Rack Press Assembly
S40173600 RollerAssembly
S40171800 Handle Lock
S40173000 Gear
S40173900 Wear Plate
S40173400 Slide Plate
S40172300 Push Plate
S401702A0 Tongue Weldment
S40171400 Push Knob
S40170300 Back Frame Weldment
S40173800 Spring Plate
S3508-1 Heavy Duty Compression Spring
S4605-1 Bearing Enclosure
S40173100 Flange Mount Bearing
S40171100 19mm OD Needle Bearing
S40172500 30mm OD Bearing
S40173500 Return Extension Spring
S40171900 Belt Tensioner
S4586-1 Tensioner Plate
S40173200 Bumper
S3507-1 Bumper Cap
S17230000 1/4” Hook Bolt
S40173300 Rack Locator
S40172900 Fly Wheel
S401729A0 Fly Wheel with Groove
S40174700 V-Belt
S40170500 Clutch
S400312B0 Wheel
S40170500 HandleAssembly
S40033200 Safety Chain
S40170700 Log Cradle
S401712A0 3/4” Slotted Nut for Wheel
S39055000 Kohler SH265 engine
S40034600 Hitch Ball Coupler
S40032300 Safety Chain
S40174400 Clutch Space Collar
For additional information please contact SpeeCo Customer Service at 1-800-525-8322
Page 16
Clutch Replacement Parts
ITEM NO. PART NO. DECSRIPTION QTY.
1 S39055000 Kohler SH265 Engine 1
2 S40170500 Clutch 1
3 S4375-1 Clutch Hold Washer 1
4 O/L 5/16” x 1-1/2” UNF Bolt 1
5 O/L 5/16” Regular Lock Washer 1
6 S40174400 Clutch Spacer Collar 1
O/L- Obtain locally. Common fasteners available through hardware and farm stores.

NOTES
IMPORTANT NOTICE
We, the manufacturer, reserve the right to change the product and/or specifications in this manual without notification.
The manual is for information usage only and the pictures and drawings depicted herein are for reference only.
Model No. ____________________
Date of Purchase _______________ Place of Purchase _______________________
_______________________
_______________________
_______________________
Warranty Repair and Service
Do not return this product to the store for warranty issues or repair. Call 1-800-525-8322 for the location of the
nearest service center.
Record the information below for future reference.
Page 17

Part No. S53018200
SPECIFICATIONS
Engine ................................................................... Kohler SH265 196cc
Maximum Impact Force ................. ........................Up to 28 Tons*
Maximum Log Length ............................................ 24”
Cycle Time ............................................................ 2.5 Seconds*
Wheels ................................................................ 8 “Road Speed
Wedge .................................................................. 8” High
Stand .................................................................... Flip-Up
Beam .............................................. ...................... 4” x 6”
Length ............................................ .......................110”
Width ........................................................................49”
Height ..................................................................... 44”
Weight ..................................................................... 590 lbs.
*Tonnage and cycle time may vary dependent upon mechanical
and environmental conditions.
