SPT WA-1030E User manual

`
It is important that you read
these instructions before
using your new purchase
and we strongly recommend
that you keep them in a safe
place for future reference.
Portable Air Conditioner / Heater
Your Guarantee
If this product is found to be faulty as a result of faulty materials or workmanship
within one year from date of purchase, it will be repaired or replaced free of charge.
This guarantee is subject to the following terms:
SPTUSA, must be notified of the fault.
Proof of purchase must be presented to SPTUSA’s nominated representative.
The warranty will be void if the product is modified, misused or repaired by an
unauthorized person.
The guarantee after repair or replacement will not be extended beyond the
original one year period.
All replacement parts or units will be new or reconditioned.
Parts or units, which are replaced, become the property of SPTUSA.
The warranty applies to the use of this product in the United States.
Warranty does not include freight charges.
This GUARANTEE is in addition to your Statutory Rights.
Dear Customer: Please keep this warranty for your record. DO NOT return it.
14
Instruction Manual
For Models WA-1030E, WA-1030H, WA-1030M
WA-1230E, WA-1230H
POR T A BLE
Air Conditioner

`
13
1
Maintenance
Thank You!
Always unplug the unit from the mains before beginning the cleaning.
Cleaning the Housing
Use a soft, damp cloth to wipe the body clean.
Never use strong chemicals, oil-based products, detergents, chemically treated
cloths or other cleaning solutions. These could possibly damage the cabinet.
Important! Clean the exhaust air intake area (located on the right side, near
bottom) with a vacuum to remove dust accumulation. Excessive dust may
cause a decrease in performance and/or damage to the compressor. Damage
caused by improper maintenance will void the warranty.
Cleaning the Filter
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the
filters and then rinse them thoroughly under running water (no hotter than 104°F)
do not wet the activated carbon filter, remove from frame before washing.
Dry thoroughly before replacing.
Notice! Never operate the unit without the filters.
End of Season Storage
Unplug the unit.

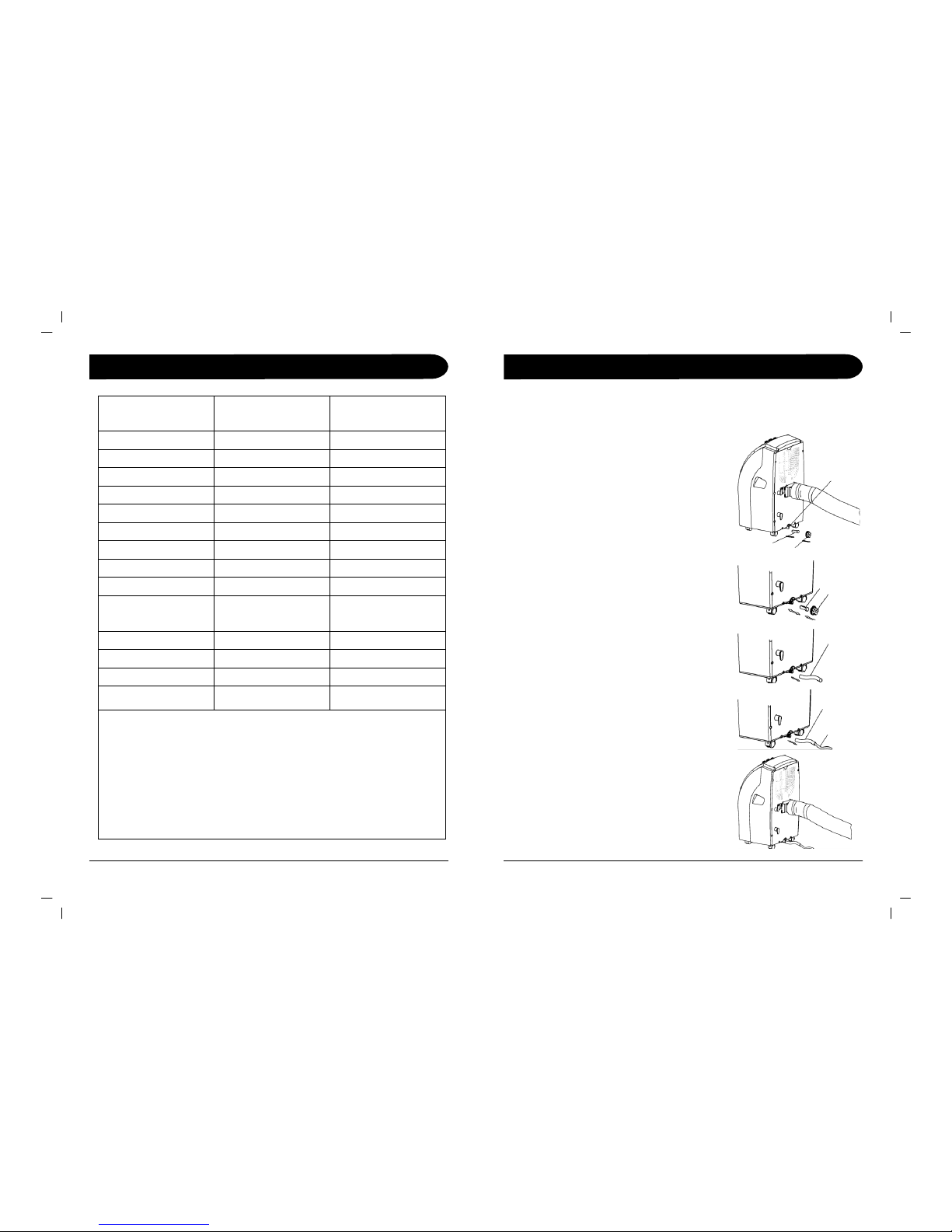

Drain the condensed water COMPLETELY (please refer to
page 10). Clean or change the filter.
On a warm day, turn the unit to fan mode for a couple of hours so that the inside can dry out
completely. It is recommended that the unit be put back into its original carton for storage.
Do not stack heavy objects on top of the unit.
Storing The Power Cord
When the unit is not in use, please store the power cord away
as shown in Figure 3.
Thank you for choosing the portable air conditioner from SPTUSA, a leading
brand in indoor air treatment. We would like you to enjoy the many benefits
this unit offers, so please take the time to read this manual carefully and take
full advantage of the many advanced features that your SPTUSA Air Conditioner
offers you. SPTUSA has specialized in complete indoor environment control,
manufacturing world-class air conditioners, dehumidifiers and air purifiers
with innovative technology. In designing these advanced products, we have
listened carefully to our customers and have passed their views on to our
research and development laboratories.
We wish you many years of enjoyable use.
After reading this manual, please keep it in a safe place for future reference.
Energy Saving Tips
•Please use the unit in the recommended room size. (Refer SPECIFICATIONS).
•Do not locate the air conditioner where furniture or other objects can obstruct
the airflow.
•Keep blinds/curtains closed during the sunniest part of the day.
•Close the fireplace damper and floor or wall grills so that cool air does not
escape through the chimney or ductwork.
•Keep the filters clean.
Set the unit to maximum cooling and high speed fan initially, then adjust the
unit to a comfortable setting.
NOTE: It is recommended to turn on the air conditioner when the room
temperature is around 75˚F. Do not wait until the room is excessively hot.
Fig. 3

`
11
4
Operation –Mechanical Models
Before Use
Setting the Temperature
Turn the THERMOSTAT to regulate the temperature you desire: range 64˚F to 90˚F.
Setting the Timer
Set the TIMER to the desired operating time (1 to 8 hours).
When the set time has elapsed, the machine will shut off automatically.
Regulating the Airflow Direction
Turn the roller on the air vent to control the
airflow direction from the vertical louvers.
NOTICE!
• The compressor will start approximately 3 minutes after the unit is turned
on (this will help prolong the life of the compressor). After switching the
unit off, please wait at least 3 minutes before turning the unit back on.
• The cooling system will switch off if the room temperature is lower than set.
The fan, however, keeps working at the set level. If the ambient temperature
rises above the chosen level, the cooling will resume.
Important!
•Transport the unit in an upright position only, or leave it in an upright
position for at least 2 hours before first use.
•Always place the unit on an even surface (Figure 1).
•Make sure the unit is connected to a correctly grounded power supply
(refer to the rating label located at the back of the unit).
•An opening in a window or wall is required to accommodate the
exhaust hose (kit supplied) to expel the warm air.
•Do not cover or obstruct the appliance inlet or outlet grilles (Figure 2).
•To avoid the risk of shock, the product should never be used in
bathrooms, shower rooms or in any other steamy or wet areas.
•The unit will cool when the room temperature is between 64˚F and
110˚F depending on the thermostat setting.
•Do not sit or place objects on the unit.
•Do not touch the unit with wet/damp hands or when standing barefoot.
•Avoid all contact with chemical based materials.
•The filter must be used with the product at all times. When removing
for cleaning, always disconnect the unit from the mains first.
•Turn off the appliance when not in use.
•At the end of each season all water must be drained and the unit and
filters cleaned before storage.
•Drainage of the water container is required before moving the unit or
putting it into storage.
•If the electric socket is different from the plug provided, have a
professionally qualified electrician replace the plug with a suitable one.
Avoid the use of adaptor plugs, multiple sockets and/or extension
leads; if their use is necessary, ensure that they conform to the current
safety regulations.
•• Do not pull the supply cable or place it near a source of heat; always
unroll it completely to avoid the possibility of dangerous overheating.
•If the supply cord is damaged, it must be replaced by the service agent
or a similarly qualified person.
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE
ABOVE INSTRUCTIONS ARE NOT FOLLOWED.
Fig. 1
Fig. 2

`
9
6
6
Operation - Electronic Control Models
Mounting the unit
This unit is a portable air conditioner. It can be moved from room to room so that the cooling
can follow you anywhere. Fitting the exhaust hose is easy, through a window or wall.
Please refer to either of the following ways:
1. Using the foam strips
Installation
Setting The Fan Speed
Press the SPEED button to choose the fan speed you require, high or low.
The indicator of high or low fan will light up at the same time.
If the unit is in AUTO mode, it will select the fan speed automatically according to the
ambient temperature (the related indicators, cool, fan or heat will light up), at this time the
fan speed switch is invalid.
Setting the Timer
Press the TIMER button to set the operating hours you desire (1 to 12 hours, the timer
indicator will light up). When the set time has elapsed, the machine will turn off
automatically. The display window will show the hour(s) you set as you press the TIMER
button. If the timer button is not pressed, the unit will work continuously.
By pressing the timer button but without turning on the unit, you
can PRE-SET the time for the machine to work. For example, if you
press the timer to ‘2’, the unit will come on automatically after 2 hours.
All the above functions can also be performed with the supplied remote
control. This remote control requires 2 AAA batteries to operate.
Regulating the airflow direction
Turn the roller on the air vent to control the
airflow direction from the vertical louvers.
• Connect the supplied foam strips with the exhaust pipe, let the hot air flow to the outside.
• Should the foam strip(s) be too large, cut off the extra part to fit the window.
2. Using the Through the Wall
Connection
Notice!
• To prolong the unit’s life, it will start 3 minutes after the unit was switched on. After switching
off, please wait at least 3 minutes before switching it on again.
• The cooling system will switch off if the room temperature is lower than set. The fan,
however, keeps working at the set level. If the ambient temperature rises above the chosen
temperature +5˚F, the cooling will resume.
• In heating mode, the compressor will switch off if the room temperature is HIGHER than the
set one (The fan would also be turned off with compressor in the heat mode). As the room
temperature drops below the selected level –5˚F, the heating will resume.
• This machine is equipped with an ANTI-FROST function. While using the heating function
during low temperatures, sometimes the heating will stop for a while in order to melt the
internal frost. When this occurs just wait for heating to resume.
• As you switch on the heating, the fan will stop for 15-20 seconds first for warm up purposes.
• Make a hole (5" in diameter) in the wall to fit the supplied round connector.
• Fit the hose directly to the round connector.
• When the hole is not in use, use the cap for the round connector to cover the hole.

`
Installation
Operation - Electronic Control Models

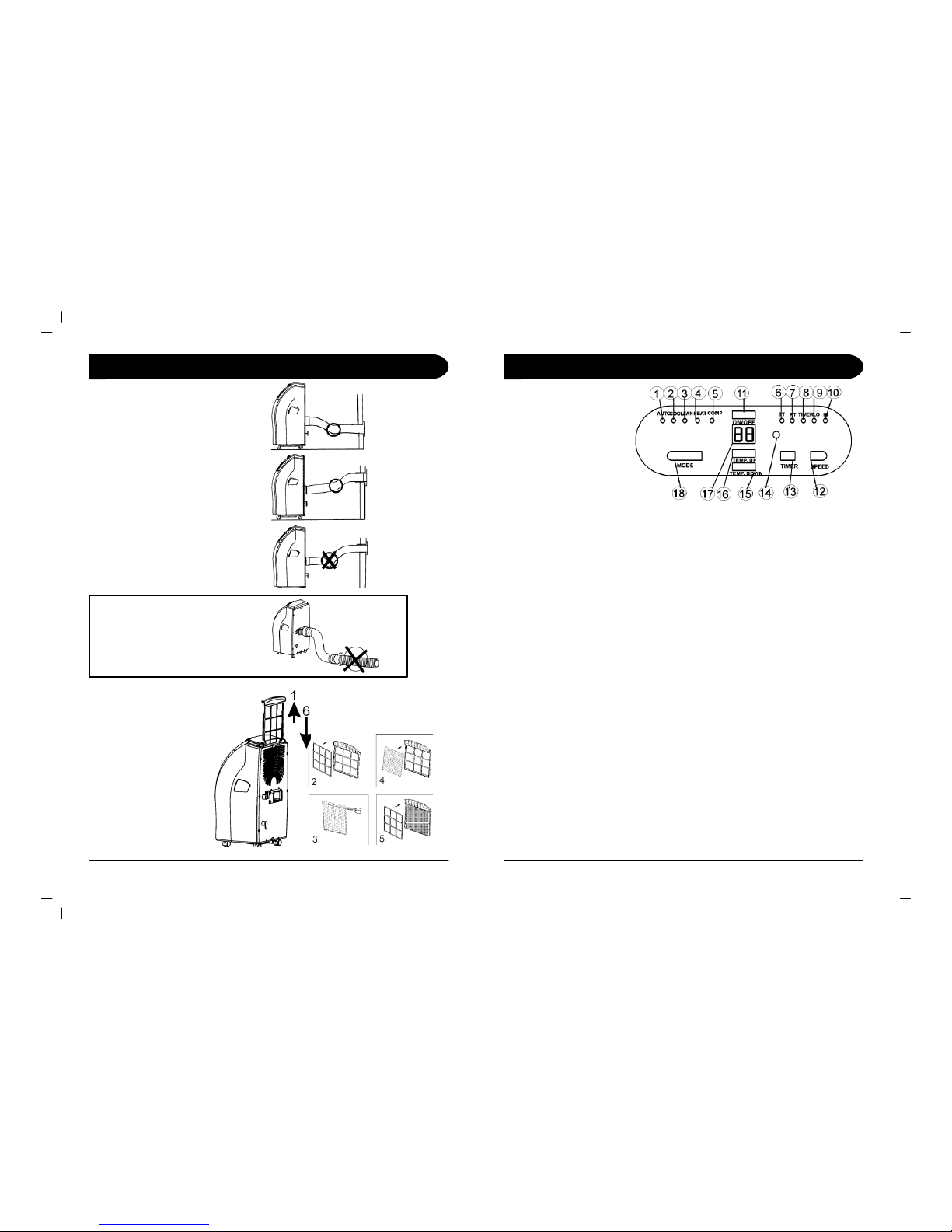

Control Panel
1. Automatic mode indicator
2. Cooling mode indicator
3. Fan mode indicator
4. Heating mode indicator
(For WA-1230H & WA-1030H)
5. Compressor operation indicator
6. ‘Set temperature’ indicator
7. ‘Room temperature’ indicator
8. Timer operation indicator
9. Low ventilation indicator
10. High ventilation indicator
11. ON/OFF (power) button
12.Speed (ventilation) button
13. Timer button
14. Receiver for Remote Control
15. ‘Temperature Down’ button
16. ‘Temperature Up’ button
17. Display window
18. Mode (function) option button
WARNING!
The length of the exhaust pipe is specially
designed according to the specification of this
product.
Do not replace or extend it with your own hose
as this could cause the unit to malfunction.
Turning ON/OFF
Press the ON/OFF selector;the unit will start to work at its last setting.
Setting Mode/Function
Press the MODE button to select the required working mode: Automatic, Cooling,Fan or Heating (Heating is only available forWA-1230H
& WA-1030H). The green indicator illustrating your selected mode lights up. It is recommended to select Cooling or Heating mode and set
your desired temperature,as theAuto mode has a preset temperature (please see below) that cannot be changed.
The indicators of the functions in progress come on at the same time,e.g.Cool and Lo = Cooling mode with Low fan speed.
Auto Mode
When this mode is selected,the unit is preset to the following temperature settings and unit will only start to:
• Cool when room temperature is higher than 75°F
• Heat when room temperature is lower than 68°F (WA-1230H & WA-1030H only)
If room temperature is between 68°F and 75°F,unit will stay in Fan mode. Again,when in Auto Mode,the temperature settings cannot be
changed.
Setting theTemperature in Cooling or Heating Mode
The display window’s default is to display the ambient room temperature. The green indicator light under RT is on.
(RT = Room Temperature)
To set your desired temperature,press the Temperature Up or Down buttons (ranging from 64°F to 90°F). Each press will increase or
decrease your set temperature by 1°F. When pressing the temperature up or down buttons, the window will change to display your set
temperature.At this time,the green indicator will light under ST (Set Temperature).Once the temperature up or down buttons is released,
the window will return to displaying the ambient temperature after a second.
Note: When unit is in the following modes: Auto,Cool,or Heat - the compressor will cool/heat the room to reach the set temperature. Once the
ambient temperature has reached the set temperature,the compressor will stop and unit will run in Fan mode. To conserve energy, the
compressor will not start immediately after a couple degrees increase or decrease,but will wait for a 5°F allowance. For example:
In Cooling Mode with a set temperature of 70°F
When compressor first stops after reaching 70°F, unit will auto-switch to Fan.
Compressor will start cooling again when ambient temperature increases to 75°F or above.
In Heating Mode with a set temperature of 72°F
When compressor first stops after reaching 72°F, unit will auto-switch to Fan. Compressor will start heating again when ambient
temperature drops to 67°F or below.
In Auto Mode (with preset temperature of 68°F for heat and 75°F for cool)
Compressor will start cooling again when ambient temperature reaches above 80°F or will start heating when ambient temperature drops
below 63°F.
7
8
Mounting the exhaust pipe
The supplied exhaust hose can be
extended from I from I foot to 5 feet
for mounting. It is recommended
that you use the shortest possible
length of hose.
Take care to prevent any kink or
bend in the middle of the exhaust
hose, as this will trap hot exhaust
air, which will radiate back into the
room.
Installation of the Carbon Filter
1. Remove the filter frame from the unit.
2. Separate the filter from the filter frame.
3. Remove the active carbon filter from its
plastic bag.
4. Insert the active carbon filter into
the filter frame.
5. Fix the filter by reassembling
the fixer onto the filter frame.
6. Re-fit the filter frame inside
the unit.
7. It is recommended to replace
the carbon filter every 3 to 6
months..

`
Parts
Operation - Mechanical Models
1. Power indicator
2. Fan operating indicator
3. Cooling operating indicator
4. Full water indicator
5. Thermostat
6. Speed switch with options for:
LOW FAN, HIGH FAN, LOW
COOL, HIGH COOL
7. Timer (1-8 hours) as well as
ON/OFF switch
W A-1030M
1. Control Panel
2. Cooling Air Outlet
3. Handle
4. Castors
10
5. Air Filter
6. Air Inlet
7. Exhaust Air Outlet
8. Cord Hanger
9. Water Stopper (Rubber Plug Inside)
Turning ON/OFF
Set TIMER to ON for continuous operation (the unit will operate as long as it is not
turned off). Power indicator comes on.
To turn off the unit, turn the TIMER to the OFF position.
SPEED
Accessories
10. Adaptor - for insertion over the hose and
into the back of the air conditioner.
11. Exhaust Hose
Length: 14”-60”
Diameter: 4.75”
12. Foam Strip - for filling the open window
space and with a hole for connection to the
exhaust hose.
13. Foam Strip - for filling the open window
space.
Dimension: 7” x 24” x .75”
14. Round Connector - to be used between
hose and window kit or between hose and
wall.
15. Cap for Round Connector
16. Remote Control
(Electronic control models only)
11
14
16
15
Setting Function / Ventilation Speed
WA-1030M
Turn the speed switch to select the required setting:
LOW FAN, HIGH FAN, LOW COOL, HIGH
COOL, SPEED OFF
High Cool
Lo w Cool
Lo w Fan
High Fan
5
10
12
13

`
Model Number
WA-1030E
WA-1030M
WA-1030H
Cooling Capacity
10,000BTU/hr
10,000BTU/hr
Heating Capacity (1)(2)
N/A
10,000BTU/hr
Power Consumption
660W / 9A
660W / 9A
Humidity Removal Capacity
50 pts./day
50 pts./day
Recommended Room Size*
300 sq. ft.
300 sq. ft.
Power Supply
120V / 60HZ / 1 Phase
120V / 60HZ / 1 Phase
Compressor
Rotary
Rotary
Refrigerant
R-22
R-22
Fan Speed
2
2
Timer
WA-1010E: 1-12hours
1-12 hours
WA-1010M: 1-8hours
Thermostat
64°F - 90°F
64° 0F - 90°F
Net Weight
66 lbs.
67 lbs.
Dimensions
15.25"W x 16.5"D x 30.5"H
15.25"W x 16.5"D x 30.5"H
Working Temperature
Cooling: 64°F to 110°F
Cooling: 64°F to 110°F
Heating: 41°F to 81°F
REMARKS:
1. The data may vary, please refer to the rating label on the back on the back of the unit.
2. The above conditions are measured at:
Cooling - Indoor: RT 81°F, RH 60%
Heating - Indoor: RT 68°F, RH 60%
* Uninsulated rooms such as sunrooms, garages, or attics should be less than 300 sq. ft.
Specifications
Drainage
During the process of cooling or heating, some water will be extracted from the air into the unit. Most
of this water is used to cool the unit and make it run more efficiently. This is a feature not found in
most Portable Air Conditioners. If the unit is operated in VERY HUMID air, water will collect in the
container inside the unit. If the water container is full, the compressor and fan will stop. The POWER
indicator will blink to inform you to empty the
internal container. To make the cooling function work again, please
empty the water by one of the following methods:
Rubber Plug
Drain Knob
W ater Hole
Rubber Plug
Drain Knob
Drain Pipe
OriginalWaterT ube
ExtendedW aterT ube
(OD: 3/4")
2
12
By the Draining into a Container
Use a Shallow Container or Dish
1. Turn off the unit.
2. Position a flat container or dish under the drain hole.
Do not allow the water to drip continuously into the container, as
it might easily overflow.
3. Remove the drain knob & rubber plug from the drain hole. The
condensed water will drain out automatically.
4. When the container is almost full, replace the rubber plug into
the drain hole to stop the water. Empty the container.
5. Repeat steps 2, 3 & 4 until all the condensed water is emptied.
6. Once all the condensed water has been removed, replace the
rubber plug into the drain hole firmly. The Full Water indicator
should be off now.
7. Replace the drain knob.
* Do not allow the water to drip continuously into the supply tray,
as it may easily overflow.
By Water Tube (Continuous Drainage)
1. Remove the drain knob and rubber plug and keep them for
future use.
2. Use Teflon tape to cover threading on spout, making a flat
surface for the hose. This will prevent leakage.
3. Connect a suitable water tube (of 3/4" internal diameter -
supplied) to the water hole. The condensed water will drain out
automatically.
4. If you want to extend the water tube you can connect it with
another tube (outside diameter ¾”).
Special Caution for Heating Function!
1. Install the exhaust pipe securely in order to exhaust
the cool air to the outside (please see page 6).
2. You can use the continuous drainage option as described above.
3. The warmer the outside air the more heat will be pumped into
the room. Working range for heat pump function is 41°F to 81°F.
When used in room temperatures outside this range the unit may
not function properly.
4. While using the heating function during low temperatures,
sometimes the heating will stop for a while in order to melt the
internal frost. When this occurs, just wait for heating to resume.
This is normal for compressor operated devices.

`
Model Number
WA-1230E
WA-1230H
Cooling Capacity
12,000BTU/hr
12,000BTU/hr
Heating Capacity (1)(2)
N/A
12,000BTU/hr
Power Consumption
950W / 9A
950W / 9A
Humidity Removal Capacity
65 pts./day
65 pts./day
Recommended Room Size*
400 sq. ft.
400 sq. ft.
Power Supply
120V / 60HZ / 1 Phase
120V / 60HZ / 1 Phase
Compressor
Rotary
Rotary
Refrigerant
R-22
R-22
Fan Speed
2
2
Timer
1-12hours
1-12 hours
Thermostat
64°F - 90°F
64°F - 90°F
Net Weight
65 lbs.
68 lbs.
Dimensions
15.25"W x 16.5"D x 30.5"H
15.25"W x 16.5"D x 30.5"H
Working Temperature
Cooling: 64°F to 110°F
Cooling: 64°F to 110°F
Heating: 41°F to 81°F
REMARKS:
1. The data may vary, please refer to the rating label on the back on the back of the unit.
2. The above conditions are measured at:
Cooling - Indoor: RT 81°F, RH 60%
Heating - Indoor: RT 68°F, RH 60%
* Uninsulated rooms such as sunrooms, garages, or attics should be less than 300 sq. ft.
Specifications
3

`
Table of Contents
Troubleshooting
THANK YOU..................................................................<<<<<..................................<<<<..1
Energy Saving Tips....................................<<<<<<<<................................<<<.......1
SPECIFICATIONS ......................<<<<<<<<<<.................................................<<<<..2
WA-1030E, WA-1030M and WA-1030H <<<<<<<<<<<<<<<<<<<<..2
WA-1230E and WA-1230H .<<<<<<<<<<<<<<<<<<<<<<<<<...3
BEFORE USE.........................................<<<<<<<<<<......................................<<<<<4
PARTS ...................................................<<<<<<<<<<........................................<<<..<.5
Accessories..........................................................<<<................................................................5
INSTALLATION .....................................................<<<<<<<<............................<<<<<6
Mounting the Unit ..............................................<<<<...........................................................6
Mounting the Exhaust Pipe................................<<..................................................................7
Installation of the Carbon Filter ............................<<<<<...........................................<.....7
OPERATION - ELECTRONIC CONTROL MODELS .......................................<<<..............<..8
Control Panel..................................................................................................<<<<................8
Turning On/Off................................................................................................<<<<...............8
Setting Mode / Function..........................................................................<<<<......................8
Auto Mode................................................................................................<<<<<<<..........8
Setting the Temperature.....................................................................................<<<<...........9
Setting Fan Speed...................................................................................<<<<<....................9
Setting the Timer.....................................................................................<<<<<...................9
Regulating Airflow Direction .............................................................<<<<<<..................9
OPERATION - MECHANICAL CONTROL MODELS .....<<<<<<<..........<....................10
Turning On/Off................................................................................<<<..................................10
Setting Function / Ventilation Speed .......................................<<<<<<<.......................10
Setting the Temperature.............................................................<<<<<<<.......................11
Setting the Timer..............................................................................<<<<<<<..................11
Regulating the Airflow Direction.........................................<<<<<<<<.......................11
DRAINAGE..........<<...................................................................<<<<<<<<........................12
By the Draining into a Container..............................<<<<<<<<...................................12
ByWaterTube (continuous drainage).........................................<<<<<<<...<<..........12
MAINTENANCE ....................................<<.............................<<<<<<<<<.......................13
Cleaning the Housing ........................................................<<<<<<<<...........................13
Cleaning the Filter ..............................................................<<<<<<<<...........................13
End of Season Storage.......................................................<<<<<<..<<<<<..............13
Storing the Power Cord..............................................................<<<<..........<......................13
TROUBLESHOOTING..................................................................<<..<<<<................................14
YOUR GUARANTEE................................................................<<...<<<<..<<<<<<.........15
The unit doesn’t run or •Is the machine plugged in?
only runs in fan mode •Is the mains power supply on?
•Is the room temperature in the working range?
•Is the unit in cooling mode or heating mode rather
than auto mode when it will work according to its
own settings?
•Is the unit in auto mode? (Electronic Mode)
set to cool or heat and set to proper temperature.
The unit seems to do little •Is there direct sunshine?
(Please close the curtains or blinds)
•Are too many windows or doors open?
•Are there too many people in the room?
•Is there something in the room producing lots of
heat?
The unit seems to do nothing •Is the dust filter dirty?
•Is the air intake or outlet blocked up?
•Is the room temperature within the selected
temperature +/- 5˚F?
The room is not cold enough •The room being cooled should have proper
insulation. If the unit is used in UN-INSULATED
rooms such as Sunrooms, Garages, or Attics, ideal
cooling might not be attained.
Too noisy •Is the machine positioned unevenly so as to create
vibration?
•Is the floor underneath the machine uneven?
The compressor doesn’t run •The overheat protection feature on the compressor
might be on. If this occurs, wait for the
temperature of the unit to drop.
•Is the water container full? Does it need draining?
14
NEVER TRY TO REPAIR OR DISMANTLE THE UNIT YOURSELF
REPLACEMENT FILTERS:
To purchase Replacement Filters for this unit, contact SPT USA at
1-800-330-0388 and request model number WA-1230F & WA-1030F.
If this product is defective or not working properly,
please DO NOT return to your retail store.
Please contact us directly for any Service or Technical Assistance at 1-800-330-0388.
