SPX OTC PRO-CRUSH 1896 User manual

Sheet No.
Issue Date: Rev. C, 1-15-03
Parts List &
Operating Instructions
for: 1896
Form No. 102725
1 of 8

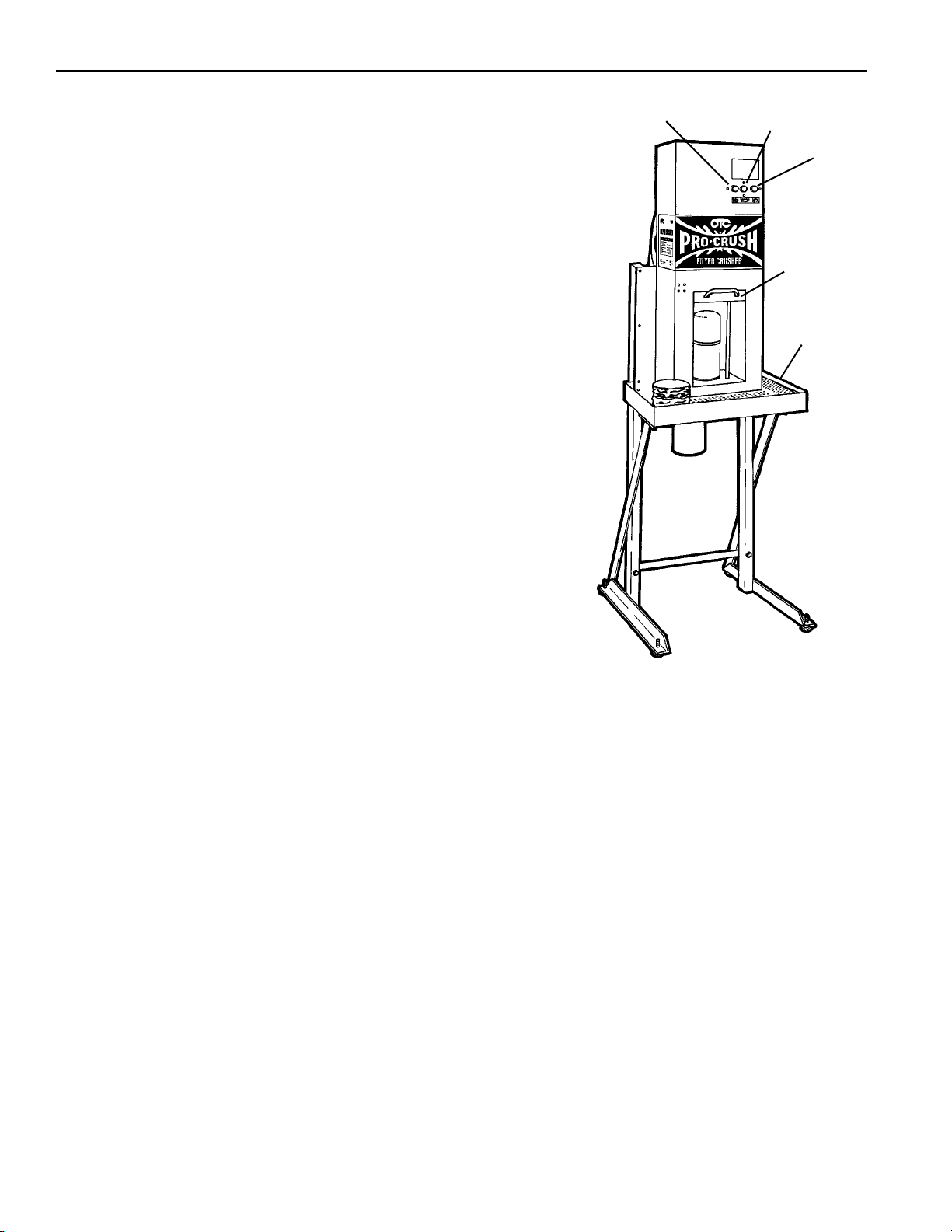

Oil Filter Crusher
Max. Capacity: 25 Tons

Parts List & Operating Instructions Form No. 102725, Sheet 1 of 8, Back
Item
No. Part
No. No. Req'd Description
153815 1Right Stand Assembly
2214480 8Hex Hd. Cap Screw (5/16-18 x 3-3/4" Lg.)
313116 8 Locknut (5/16-18)
453814-BK2 1Plate
553817-BL2 1Cover
6219390 1Decal
7219389 1Decal
862494 1Decal
9219005 1Handle
10 48976-BL2 1Door
11 48977-BK2 1Grate
12 53818-BL2 1Drain Pan
13 53816 1Left Stand Assembly
14 219004 4Leveling Screw
15 311709 1Angle

© SPX Corporation
Sheet No.
Issue Date: Rev. C, 1-15-03
Parts List & Operating Instructions Form No. 102725
2 of 8
Oil Filter Crusher
Side View

Parts List & Operating Instructions
Item
No. Part
No. No. Req'd Description
110215 8Hex Nut (3/4-16)
253804 1Bottom Plate
310177 12 Rd. Hd. Machine Screw (1/4-20 x 5/8" Lg.)
410245 12 Lockwasher (for 1/4" bolt)
5311676 4Rod
611856 2Rd. Hd. Machine Screw (10-24 x 1" Lg.)
710197 2Hex Nut (10-24)
810241 2 Lockwasher (#10)
914812 8 Pan Hd. Tapping Screw (8-18 x 3/8" Lg.)
10 219282 2Roller Latch
11 211646 1Tee Fitting
12 10673 1 Straight Fitting (3/8 to 3/8)
13 53882 1Cylinder Assembly
14 15467 4 Rd. Hd. Screw (10-24 x 5/16" Lg.)
15 10676 2 Straight Fitting (3/8 to 1/4)
16 218761 1Tee Fitting
17 311730 1Hydraulic Hose (3/8 I.D. x 50" Lg.)
18 311731 1Hydraulic Hose (3/8 I.D. x 70" Lg.)
19 62489 1Electrical Control Box Assembly
20 48975-BK2 1Cover
21 200188 1Warning Decal
22 219215 4Special Washer
23 10032 4Hex Hd. Cap Screw (5/16-18 x 1" Lg.)
24 10230 8Plain Washer (for 5/16" bolt)
25 13116 8 Locknut (5/16-18)
26 11203 2Straight Conduit Connector
27 48954 1Electric Motor/Hydraulic Pump Assembly
28 10080 4Hex Hd. Cap Screw (1/2-13 x 1-1/4" Lg.)
29 10249 4 Lockwasher (for 1/2" bolt)
30 12004 2Plain Washer (for 1/2" bolt)
31 11108 4Ext. Tooth Lockwasher (#10)
32 215749 4Hex Head Cap Screw
33 219005 1Handle

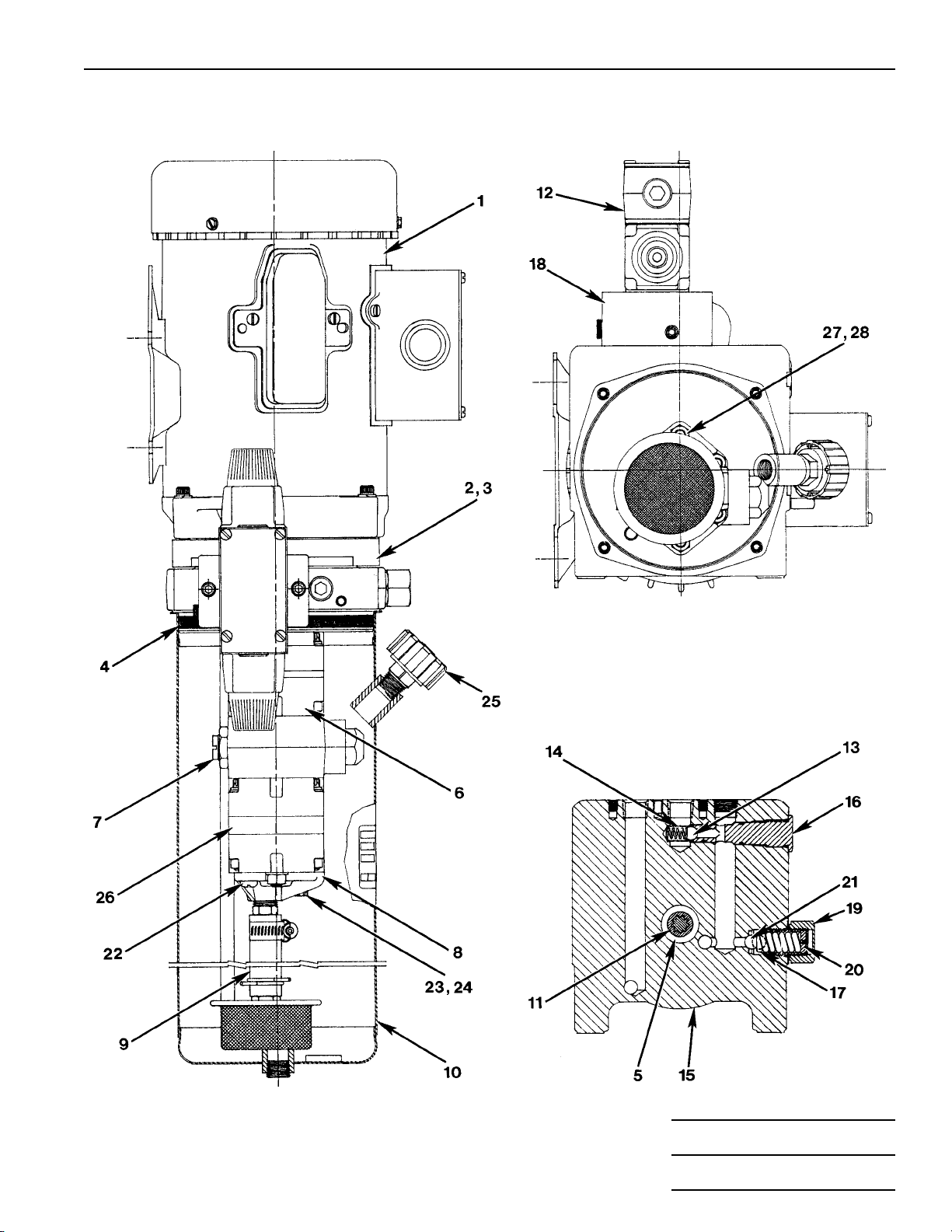

Form No. 102725, Sheet 2 of 8, Back

© SPX Corporation
Sheet No.
Issue Date: Rev. C, 1-15-03
Parts List & Operating Instructions Form No. 102725
3 of 8

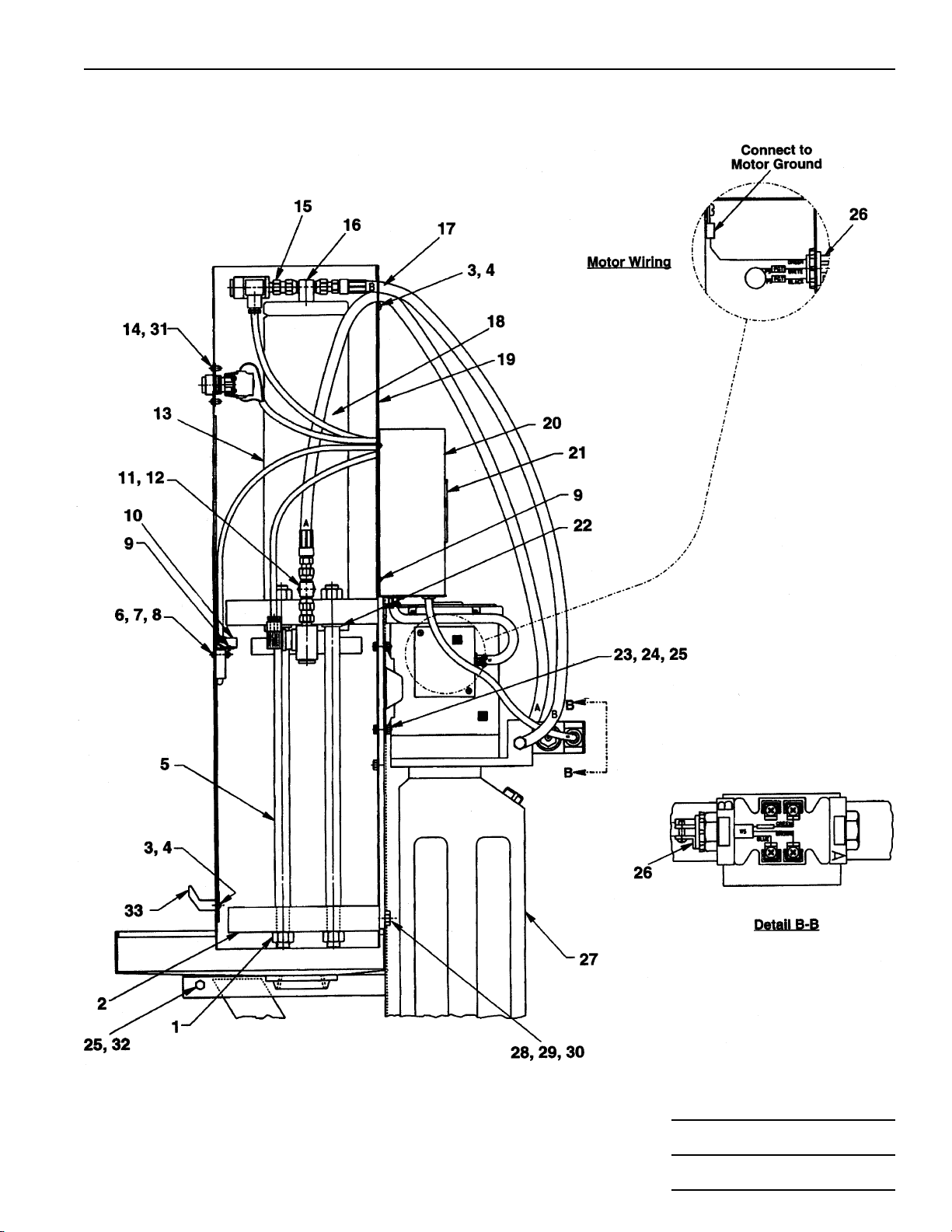

Ground Connections

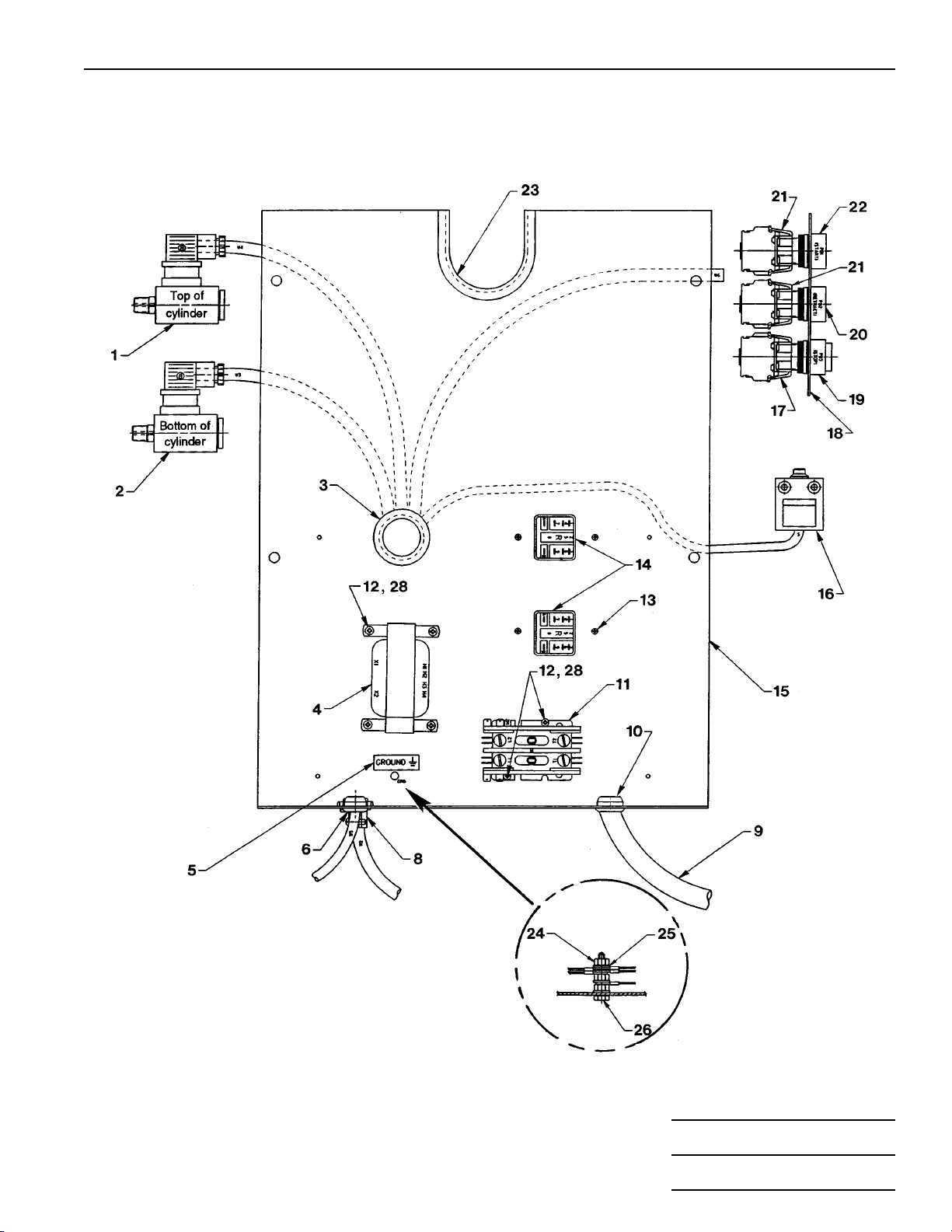

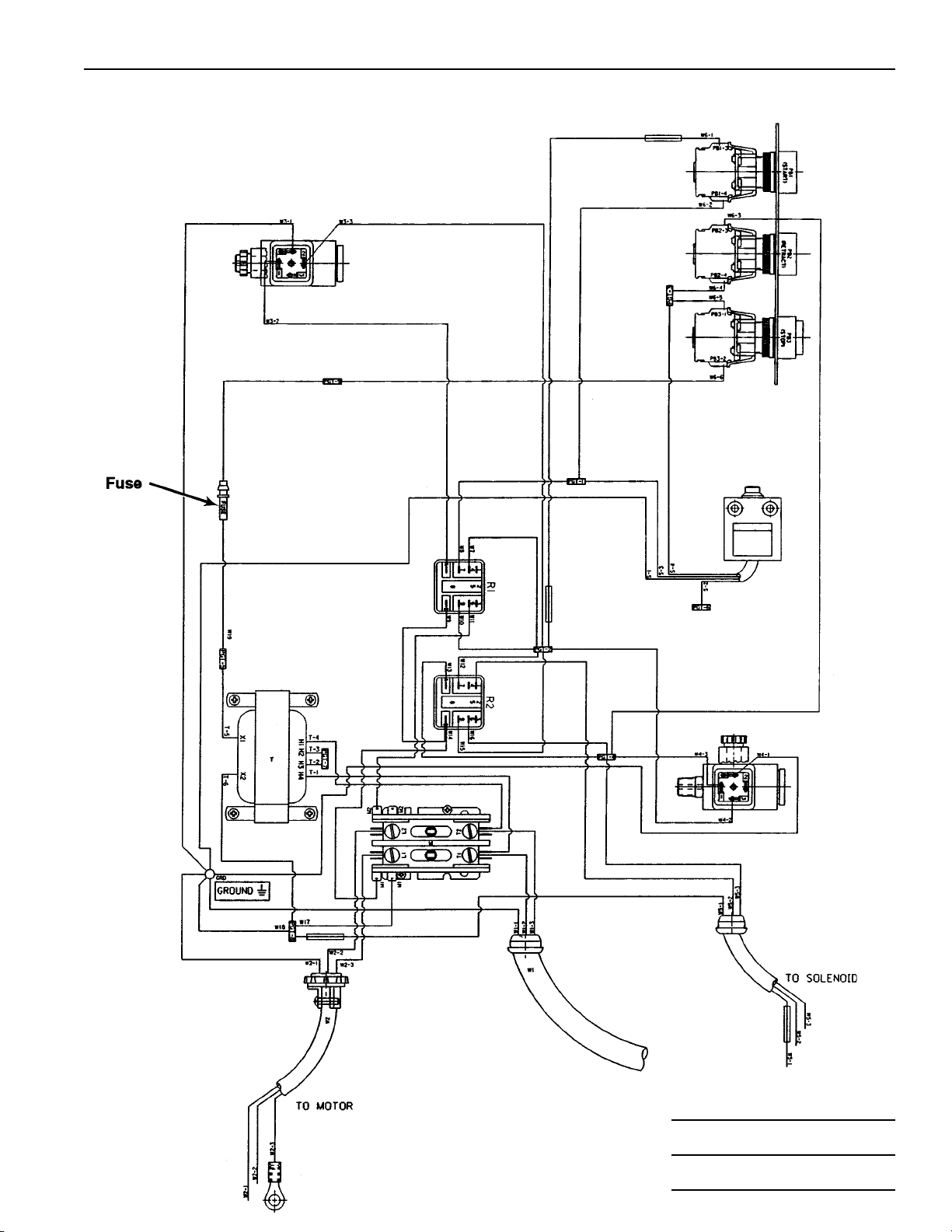

Control Box Assembly
