ACME LED-635S User manual

Intelligent Scanner
Professional Lighting Technology
User Guide
Please read the instructions carefully before use
1-
INDEX
1. Safety Introduction
2. Technical Specification
3. How To Control The Unit
4. DMX512 Configuration
5. DMX512 Connection
6. Troubleshooting
7. Fixture Cleaning
Широкий ассортимент оборудования ACME
на www.maxlight.ru

Intelligent Scanner
Professional Lighting Technology
User Guide
Please read the instructions carefully before use
1-
INDEX
1. Safety Introduction
2. Technical Specification
3. How To Control The Unit
4. DMX512 Configuration
5. DMX512 Connection
6. Troubleshooting
7. Fixture Cleaning
Широкий ассортимент оборудования ACME
на www.maxlight.ru

2-
1. Safety Introduction
WARNING
y Please keep this booklet with the unit for future consultation. If you sell the unit
to another user, be sure that the new user also receives this instruction booklet
thus giving them the necessary information about the use and general warnings
regarding the unit.
y Before the initial start-up, please unpack and carefully check all components in
case any damage may have occurred during shipping.
y Locate a suitable spot for your device where there is good ventilation. Also,
make sure that no ventilating fans or slots are blocked.
y Protect our environment! Please dispose of the packing boxes properly.
y The electrical work that is necessary for installation must done by qualified
personnel.
y Always remember to unplug the unit from the main power before any service is
done. Do not open the unit. There are no serviceable parts inside.
y It is very important to ground the yellow/green conductor to earth in order to
meet regulations for safety.
y Check the surrounding area and make sure there are no flammable liquids,
water or metal objects that could enter the fixture. If a foreign object enters the
unit, immediately disconnect the main power. Also, place the fixture in a well-
ventilated room at about 15 cm from the walls.
y Do not touch any wires during operation, as high voltage is hazardous.
y In the event of serious operating problems, stop using the unit immediately.
Never try to repair the unit yourself. Repairs carried out by unqualified
personnel can lead to damage or malfunction. Please contact the nearest
authorized Technical Assistance Center. Always use genuine spare parts.
Please read the instructions carefully which include important
information about the installation, operation and maintenance.
3-
2. Technical Specification
y Voltage
AC 100V-240V 50-60Hz
y LED
Red: 16pcs, Green: 12pcs, Blue: 12pcs, white: 12pcs
y Dimension
385×170×122mm(LED-635S)
405×170×122mm(LED-635B)
y Weight
2.6KG(LED-635S)
3KG(LED-635B)
y The unit is a DMX512 scanner. It features full DMX512 control, 10
gobos/colors plus open and white, focus adjustable accurate optics system
and stepper motor with blackout feature. Fan cooled.
y It can be operated by DMX512 control or can be used as an individual unit
without controller.
y It can be linked together as many as required in master/slave mode, and
perform the great built-in programmed lighting shows triggered by music.
y Please use a 3 pin XLR cable/plug when connecting them together.
y It features different pre-programmed chase patterns.

2-
1. Safety Introduction
WARNING
y Please keep this booklet with the unit for future consultation. If you sell the unit
to another user, be sure that the new user also receives this instruction booklet
thus giving them the necessary information about the use and general warnings
regarding the unit.
y Before the initial start-up, please unpack and carefully check all components in
case any damage may have occurred during shipping.
y Locate a suitable spot for your device where there is good ventilation. Also,
make sure that no ventilating fans or slots are blocked.
y Protect our environment! Please dispose of the packing boxes properly.
y The electrical work that is necessary for installation must done by qualified
personnel.
y Always remember to unplug the unit from the main power before any service is
done. Do not open the unit. There are no serviceable parts inside.
y It is very important to ground the yellow/green conductor to earth in order to
meet regulations for safety.
y Check the surrounding area and make sure there are no flammable liquids,
water or metal objects that could enter the fixture. If a foreign object enters the
unit, immediately disconnect the main power. Also, place the fixture in a well-
ventilated room at about 15 cm from the walls.
y Do not touch any wires during operation, as high voltage is hazardous.
y In the event of serious operating problems, stop using the unit immediately.
Never try to repair the unit yourself. Repairs carried out by unqualified
personnel can lead to damage or malfunction. Please contact the nearest
authorized Technical Assistance Center. Always use genuine spare parts.
Please read the instructions carefully which include important
information about the installation, operation and maintenance.
3-
2. Technical Specification
y Voltage
AC 100V-240V 50-60Hz
y LED
Red: 16pcs, Green: 12pcs, Blue: 12pcs, white: 12pcs
y Dimension
385×170×122mm(LED-635S)
405×170×122mm(LED-635B)
y Weight
2.6KG(LED-635S)
3KG(LED-635B)
y The unit is a DMX512 scanner. It features full DMX512 control, 10
gobos/colors plus open and white, focus adjustable accurate optics system
and stepper motor with blackout feature. Fan cooled.
y It can be operated by DMX512 control or can be used as an individual unit
without controller.
y It can be linked together as many as required in master/slave mode, and
perform the great built-in programmed lighting shows triggered by music.
y Please use a 3 pin XLR cable/plug when connecting them together.
y It features different pre-programmed chase patterns.

4-
3. How To Control The Unit
(1) Master/Slave operation
The unit can be linked together in daisy chain as many as you need in
master/slave mode to perform the great built-in pre-programmed lighting shows
triggered by music.
In Master/Slave mode refer to the DMX settings below:
Master unit: DMX start address MUST be set to 001. (first DIP switch = ON,
all other are OFF)
Slave units: DMX start address may have any value but NOT 001 (example:
set the first 3 DIP switches to ON)
＊ 2-light show
Dipswitch 10 “off” means the unit works normally and “on” means inversion. In
order to create a great light show, you can set dip switch 10 “on” on any unit that is
linking to the master unit to get contrast movement to the master unit, even if you
have two units only. Dipswitch 10 on the first ( Master ) unit is no use for the 2-light
show as it is the master unit that operates the light show.
(2) By easy controller
The easy remote control is used only in master/slave mode. By
connecting to the 1/4” microphone jack of the first unit (its DMX input
plug is not used), you will find that the remote control on the first unit
will control all the other units for Stand by, Function and Mode.
Built-in lighting shows triggered by Easy Controller:
Stand by Blackout the unit
Function 1. Sync. Strobe
2. Sound Strobe Select pattern Select Chase
Mode Sound
(LED OFF)
Pattern
(LED ON)
Chase
(LED Slow Strobe)
5-
(3) Universal DMX controller
When using a universal DMX controller to control the chain of units, you have to
set DMX address by Dip switches from 1 to 9 to make sure all the units will
receive its DMX signal. Please refer to the following diagram to know how to
address your DMX 512 system in the binary code.

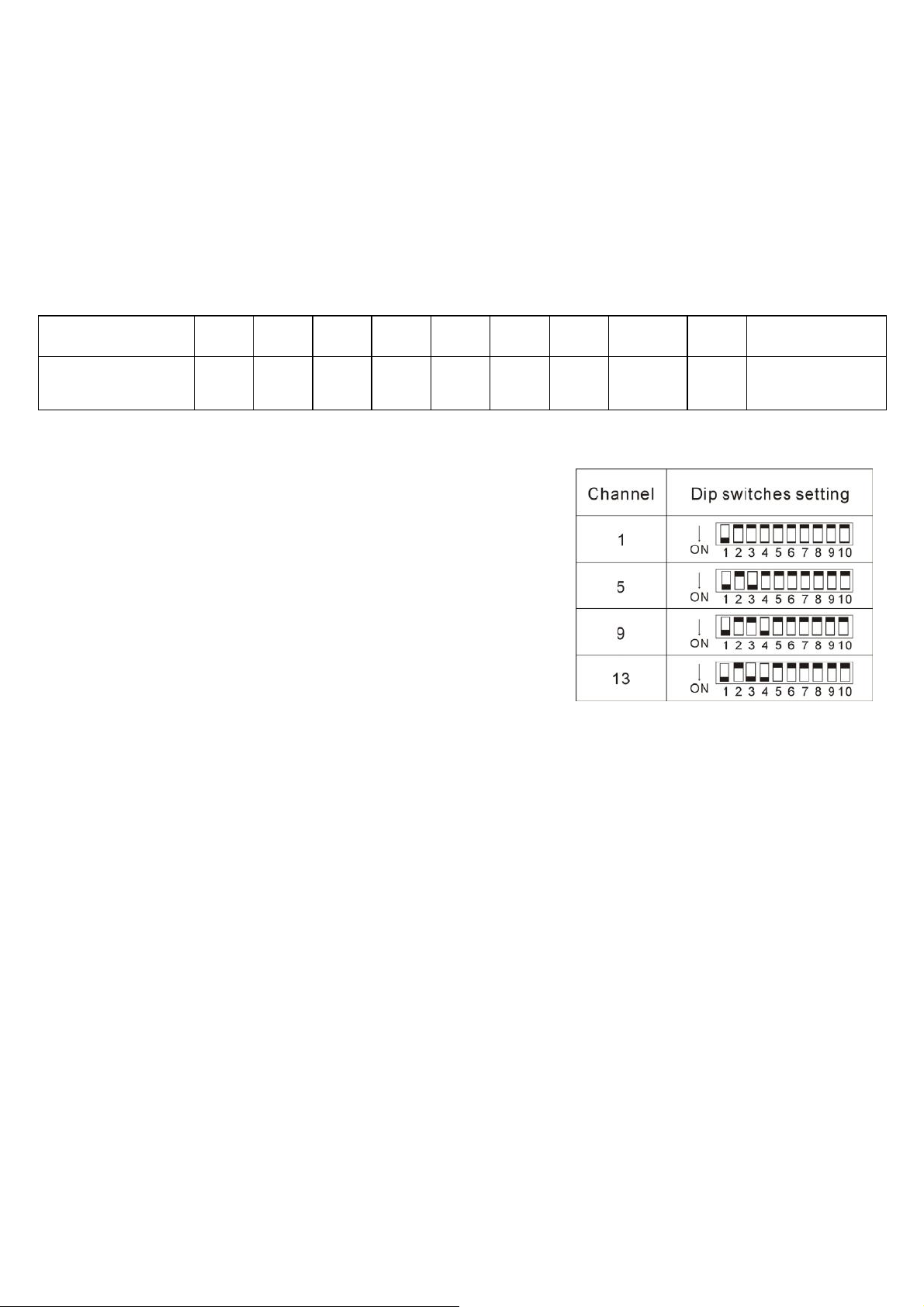

DMX 512 Address Chart:
Dip-switches # 1 # 2 # 3 # 4 # 5 # 6 # 7 # 8 # 9 #10
Value 1 2 4 8 16 32 64 128 256 2-light show
• Examples:
Channel 01：dip / on : #1（=1）
Channel 05：dip / on : #1, #3（1+4=5）
Channel 09：dip / on : #1,#4（1+8=9）
Channel 13：dip / on : #1,#3,#4（1+4+8=13）

4-
3. How To Control The Unit
(1) Master/Slave operation
The unit can be linked together in daisy chain as many as you need in
master/slave mode to perform the great built-in pre-programmed lighting shows
triggered by music.
In Master/Slave mode refer to the DMX settings below:
Master unit: DMX start address MUST be set to 001. (first DIP switch = ON,
all other are OFF)
Slave units: DMX start address may have any value but NOT 001 (example:
set the first 3 DIP switches to ON)
＊ 2-light show
Dipswitch 10 “off” means the unit works normally and “on” means inversion. In
order to create a great light show, you can set dip switch 10 “on” on any unit that is
linking to the master unit to get contrast movement to the master unit, even if you
have two units only. Dipswitch 10 on the first ( Master ) unit is no use for the 2-light
show as it is the master unit that operates the light show.
(2) By easy controller
The easy remote control is used only in master/slave mode. By
connecting to the 1/4” microphone jack of the first unit (its DMX input
plug is not used), you will find that the remote control on the first unit
will control all the other units for Stand by, Function and Mode.
Built-in lighting shows triggered by Easy Controller:
Stand by Blackout the unit
Function 1. Sync. Strobe
2. Sound Strobe Select pattern Select Chase
Mode Sound
(LED OFF)
Pattern
(LED ON)
Chase
(LED Slow Strobe)
5-
(3) Universal DMX controller
When using a universal DMX controller to control the chain of units, you have to
set DMX address by Dip switches from 1 to 9 to make sure all the units will
receive its DMX signal. Please refer to the following diagram to know how to
address your DMX 512 system in the binary code.
DMX 512 Address Chart:
Dip-switches # 1 # 2 # 3 # 4 # 5 # 6 # 7 # 8 # 9 #10
Value 1 2 4 8 16 32 64 128 256 2-light show
• Examples:
Channel 01：dip / on : #1（=1）
Channel 05：dip / on : #1, #3（1+4=5）
Channel 09：dip / on : #1,#4（1+8=9）
Channel 13：dip / on : #1,#3,#4（1+4+8=13）

6-
4. DMX512 Configuration
7-
5. DMX512 Connection
The DMX512 is widely used in intelligent lighting control, with a maximum of 512
channels.
y A DMX512 system requires a controller, lighting equipment and cable. These
are connected together in a “daisy chain” with the terminator at the end. The
cable cannot be branched or split to a “Y” cable.
y The terminator requires a 90-120 Ohm 1/4 Watt resistor soldered between
two signal cables.
y The DMX512 uses a very high-speed signal. Inadequate or damaged cables,
bad solder joints or corroded connectors can easily distort the signal and shut
down the system. A reliable DMX512 system starts with good quality cables.
y Each lighting unit needs to have an address set to receive the data sent by
the controller. The address number is between 0-511. The end of the
DMX512 system should be terminated reducing signal errors.
y 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

6-
4. DMX512 Configuration
7-
5. DMX512 Connection
The DMX512 is widely used in intelligent lighting control, with a maximum of 512
channels.
y A DMX512 system requires a controller, lighting equipment and cable. These
are connected together in a “daisy chain” with the terminator at the end. The
cable cannot be branched or split to a “Y” cable.
y The terminator requires a 90-120 Ohm 1/4 Watt resistor soldered between
two signal cables.
y The DMX512 uses a very high-speed signal. Inadequate or damaged cables,
bad solder joints or corroded connectors can easily distort the signal and shut
down the system. A reliable DMX512 system starts with good quality cables.
y Each lighting unit needs to have an address set to receive the data sent by
the controller. The address number is between 0-511. The end of the
DMX512 system should be terminated reducing signal errors.
y 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

8-
6. Troubleshooting
Following are a few common problems that may occur during operation.
Here are some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link
properly.
2. If the DMX LED is on and no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or
on PCB of the unit or the previous one.
4. Try to use another DMX controller.
5. Check to see if the DMX cables run near or run alongside to high voltage
cables that may cause damage or interference to DMX interface circuit.
C. Some units don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response
of the master/ slave mode signal.
2. Wrong DMX address in the unit. Set the proper address.
D. No response to the sound
1. Make sure the unit is not receiving DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is
broken.
2. The motor’s drive IC on the PCB might be out of condition.
9-
7. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried
out periodically to optimize light output. Cleaning frequency depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics.
x Clean with a soft cloth using normal glass cleaning products.
x Always dry the parts carefully.
x Clean the external optics at least once every 20 days. Clean the internal
optics at least every 30/60 days.
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN60598-1: 2000+ALL: 2000+A12: 2002
Safety of household and similar electrical appliances
Part 1: General requirements
Innovation, Quality, Performance

8-
6. Troubleshooting
Following are a few common problems that may occur during operation.
Here are some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link
properly.
2. If the DMX LED is on and no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or
on PCB of the unit or the previous one.
4. Try to use another DMX controller.
5. Check to see if the DMX cables run near or run alongside to high voltage
cables that may cause damage or interference to DMX interface circuit.
C. Some units don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response
of the master/ slave mode signal.
2. Wrong DMX address in the unit. Set the proper address.
D. No response to the sound
1. Make sure the unit is not receiving DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is
broken.
2. The motor’s drive IC on the PCB might be out of condition.
9-
7. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried
out periodically to optimize light output. Cleaning frequency depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics.
x Clean with a soft cloth using normal glass cleaning products.
x Always dry the parts carefully.
x Clean the external optics at least once every 20 days. Clean the internal
optics at least every 30/60 days.
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN60598-1: 2000+ALL: 2000+A12: 2002
Safety of household and similar electrical appliances
Part 1: General requirements
Innovation, Quality, Performance
