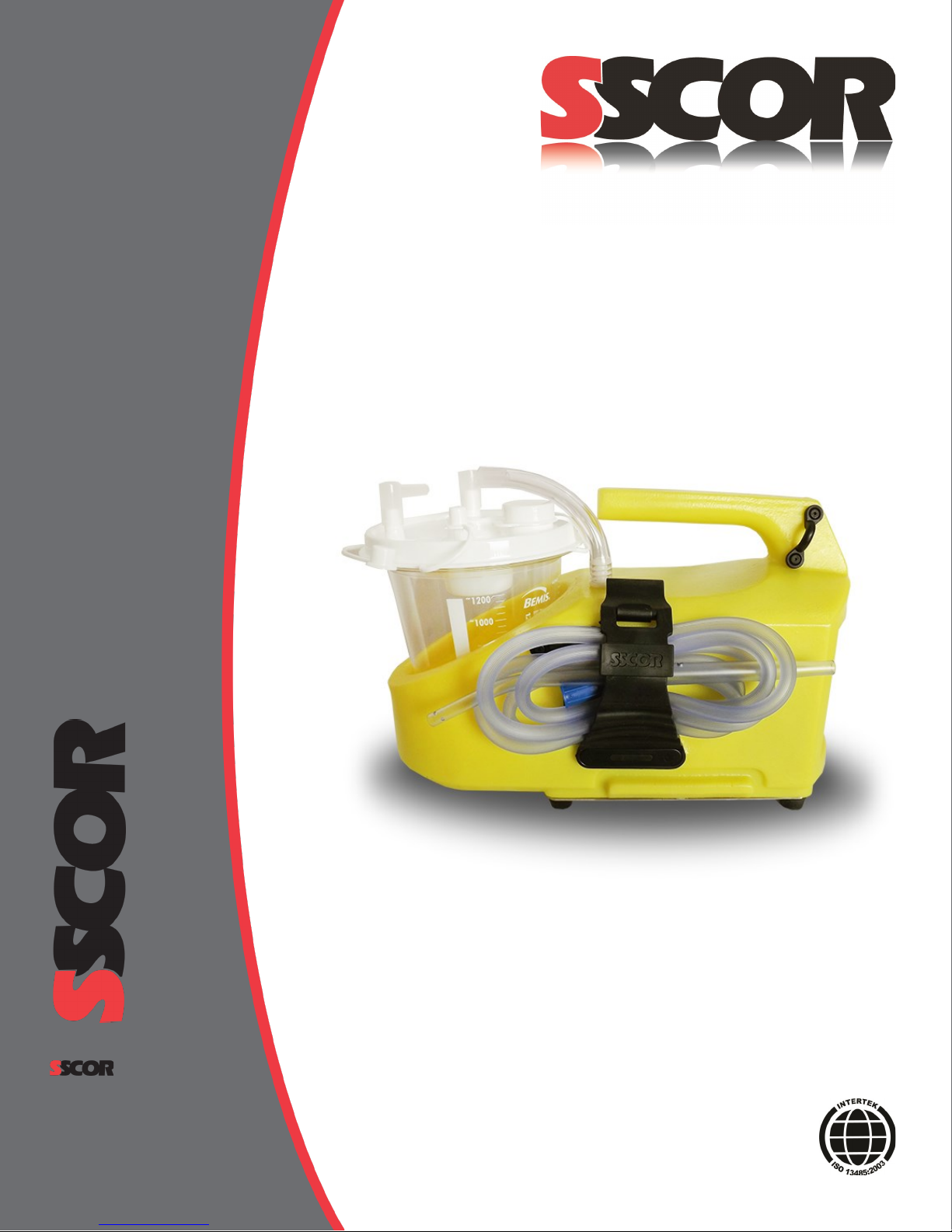

SSCOR 2109 Instructions for use

S-SCORT 9
Model 2109
Clearing The Airway Is Our #1 Priority
Operating Instructions
& Maintenance Manual
Tel 1+818-504-4054
Tel 1+800-434-5211
, INC.
11064 Randall Street
Sun Valley, CA 91352 USA
www.sscor.com
Email: mark[email protected]

1. SSCOR sucon units are not designed or intended for use in extended procedures that require prolonged
high vacuum/low airow applicaons, as is the case in wound drainage or endoscopic use or in any other
procedure that produces high vacuum levels within an occluded system for an extended period of me.
Turn the sucon unit o when it is not in use.
2. Federal law restricts this device to sale, distribuon, and use by, or on the order of a physician, emergency
medical technician, or other medical praconer. For use by medical personnel trained in suconing
techniques and in the use of medical sucon equipment.
3. This manual is restricted to the discussion of the use and maintenance of this device. It does not aempt
to discuss professional techniques in suconing procedures.
4. Operator should be thoroughly familiar with these operang instrucons before this device is used.
5. Do not use in the presence of ammable agents or anesthecs.
6. The S-SCORT 9 produces a powerful vacuum. Do not use the S-SCORT 9 to sucon neonates.
7. Before tesng for vacuum over -300mmHg look for an expiraon date on the canister (where applicable)
and change the canister if the canister has passed the expiraon date to minimize the possibility of
implosion, which can occur when a canister is aged or damaged.
8. The sucon pump must be reconnected to the charging source aer each use and remain on charge unl
needed. Disconnect only for portable use. Check the condion of the baery frequently , see the baery
test on page 6. SSCOR’s AC-DC charger only charges the baery, it will not power the sucon device. The
sucon device will run on vehicle power when the unit is connected directly to the vehicle baery via the
DC power cord.
NOTE: DO NOT ATTEMPT TO CHANGE THE ELECTRICAL SYSTEM.
THIS UNIT OPERATES ON 12-14V DC ONLY
Revision L (10/15)
S-SCORT 9 - Model 2109
Rev L (10/15)
2
Clearing The Airway Is Our #1 Priority
Caution-Notice

The S-SCORT® 9 is a portable, 12V DC baery operated sucon pump to be used by professional
personnel trained in Emergency Care techniques for opening the airway by removing bodily uids
and parculate maer.
The Model 2109 is powered by sealed lead acid baeries, capable of driving the unit for 30 - 45 minutes.
The baeries are recharged by direct connecon to the vehicle, or by a 115V AC to 13.8V DC xed voltage
charger (included with the unit). A sealed lead acid baery is a very stable and reliable baery. Many
factors can aect the life of a baery:
• Leaving a unit switched on aer there is no longer enough power to run the pump can cause a baery to
deep discharge. This can reduce the life of, or destroy the baery.
Failing to charge a baery for an extended period of me will also cause the baery to go into deep
discharge.
• Low temperatures may reduce the available capacity.
High temperatures may cause deformaon of the baery case and damage the baery.
Sealed lead acid baeries can easily be maintained to permit proper operaon of the equipment. To
protect the baery, aer each procedure turn the unit o, put the unit on charge and always store the
pump at room temperature. The only way to assure the baery has funconal capacity, even if it is
indicated the baery is fully charged, is to perform the baery check suggested on page 6 of this
operaons manual.
The S-SCORT 9 is designed to provide instant, eecve suconing, independent of external
sources of power and can be pre-set to be acvated immediately upon reaching the distressed
paent, with no set up me required during the rst few crical minutes of the code. Sucon power
is controllable for those instances when full power would be considered harmful to the paent. All
controls are clearly labeled and easily accessible.
The S-SCORT 9 is equipped with a disposable collecon canister which features a bacterial lter to
screen airborne parculates and a mechanical shut-o valve to prevent uid overow.
3
Clearing The Airway Is Our #1 Priority
Table of Contents
General Description
Cauon-Noce Page 2
General Descripon Page 3
Important Features Pages 4-5
Operang Instrucons Pages 6-7
Troubleshoong Page 8
Warranty Page 9
Maintenance Pages 9-10
General Specicaons Page 11
S-SCORT 9 - Model 2109
Rev L (10/15)

4
Clearing The Airway Is Our #1 Priority
Important Features
S-SCORT 9 - Model 2109
Rev L (10/15)

Key # Component Funcon
1Vacuum Port Connects canister to vacuum line
2Paent Port Connects canister to vacuum line
3Disposable Canister 1200cc/ml, SSCOR part #48041
4Bulkhead Fing Vacuum Tube Connecon
5N/A N/A
6Control Panel Service Screws To Remove Panel from Chassis
7Charging Receptacle 12V DC, Connects Charging Source to Baery
8On/O Switch Turns unit on or o
9Charging Indicator LED Conrms Connecon to the Charging Source
10 Regulator Control Adjusts negave pressure
11 Roto-molded Chassis
12 Deck Straps Holds Shoulder Strap
13 Tubing Strap Holds Paent Tubing in place
14 Paent Connecng Tubing 9/32” ID, SSCOR part #43200
15 Vented Sucon Tip HI-D® “Big Sck”® Large Bore
Sucon Tip SSCOR part #44241
16 Baery Connecon Quick Disconnect
17 Pump Provides Vacuum Source
18 Baery Supplies Electrical Power to Pump
19 Baery Holder Holds Baery in Place
20 Batery Ties / Velcro Straps Secures Baery
21 Baery Charger Charges Baery aer each use
22 12V DC Electrical Plug Connects Charging Source to Sucon device
23 DC Power Cord Connects Sucon Unit to Vehicle
5
Clearing The Airway Is Our #1 Priority
Important Features
S-SCORT 9 - Model 2109
Rev L (10/15)

For opmal performance the sucon device is to remain plugged in whenever the device is not in use. If for
any reason poor baery quality is suspected, a baery test should be conducted.
Baery Test
Run the following test whenever poor baery quality is suspected to ensure proper performance of the
device.
1. Conrm the power cord is supplying power to the device. Check the power indicator light on the control
panel.
2. Remove the power cord and run the unit from its internal DC baery.
3. Check for vacuum by occluding the paent tube and set the vacuum regulator to the maximum vacuum
seng. Un-occlude the paent tubing.
4. Allow the unit to run for 15 minutes on DC power. If the unit stops or slows during the 15
minutes, it is possible the baery capacity has been depleted. It is me to replace the baery.
5. If the unit is sll running at full power aer 15 minutes, adjust the regulator to the desired seng, turn
the device o and put it back on charge.
6. Reconnect the unit to the charging source as soon as possible aer each use
SSCOR recommends replacing the baery aer 3 years.
BATTERY CHARGING SUGGESTIONS
It is important to keep the baery connected to the charging source at all mes when the unit is not in use.
In order for the S-SCORT® 9 baery to operate at its maximum eciency, it must be charged from a power
source that will bring the voltage level of the baery up to the 13V DC operang range. This S-SCORT 9
model is equipped to charge the baery two ways, with a 115V AC xed voltage baery charger (21) or a DC
power cord for direct connecon to the vehicle (23).
An acve vehicle, running calls around the clock, will do well to charge the S-SCORT 9 from the vehicle’s DC
charging system. The preferred method of charging the S-SCORT 9 is to wire the DC power cord to the
vehicle DC power system on a properly fused line in front of the master switch. This charging method is
designed to keep the baery charging at all mes. If the sucon unit is operated while it is hooked up to the
vehicle it will ulize the vehicle power and save its own baery for emergency use. All SSCOR, Inc. sucon
units have a diode to prevent drawdown from the pump to the vehicle electrical system and a fuse to protect
the pump from vehicle electrical surges. If your sucon unit is wired to the vehicle baery via an automac
load switch power supply, be sure to use a lter in order to eliminate any voltage spikes.
A vehicle running infrequent calls does not charge itself oen enough to keep baeries in the 13V DC
operang range and should rely on the S-SCORT 9 115V AC baery charger when the vehicle is connected to
the shore line. In this instance the DC power cord should be used as a backup source of power to run the
S-SCORT 9 from the vehicle during paent transport. To ulize the 115V AC baery charger, the sucon
pump must be removed from the vehicle and charged from a 115V AC outlet or the charger must be plugged
into a “shore-line” outlet in the vehicle. Whichever charging method is chosen, remember to keep the unit
connected to the charging source whenever the unit is not in use.
6
Clearing The Airway Is Our #1 Priority
Operating Instructions
S-SCORT 9 - Model 2109
Rev L (10/15)

NOTICE: Component key numbers are indicated within ( )s. Reference pages 4 and 5.
Electrical operaon: Constant charging is required.
CHARGING THE S-SCORT 9 FROM A VEHICLE
Connect the DC power cord to the cigaree lighter receptacle in the vehicle or hard wire the DC power cord
(23) to the hot DC electrical system of the vehicle on a properly fused line in front of the master switch.
Connect the electrical line cord to the S-SCORT® 9 by securely aaching the charging plug (22) into the
receptacle (7). The S-SCORT 9 baery is charged by the vehicle electrical system and the pump is powered by
the vehicle current and the S-SCORT 9 baery running in parallel.
DC CHARGING FROM 115V AC TO 13.8V DC BATTERYCHARGER
If 115V AC charging is required, connect the S-SCORT 9 to a SSCOR AC baery charger (21) SSCOR Part
#80533 (included with unit). AC charging should bring the baery to a dependable working charge in 4 to 6
hours. The charging indicator light (9) on the front panel indicates the S-SCORT 9 is receiving electrical input
from the AC charger or vehicle. It does not reect the condion of the baery. Check the charging Indicator
light to be sure you have a good electrical connecon.
Operaon of Unit
Negave pressure on the Model 2109 is controlled by a two posion regulator (10). When fully depressed
(pushed toward the pump), the negave pressure exceeds -525mmHg. To reduce negave pressure, pull the
regulator straight out to the stop. In this posion, the negave pressure will be -120mmHg (±15%). Aach
the paent connecng tube (14) to the paent port (2) on the canister (3). Use 9/32" I.D. tubing. Turn the
On/O switch (8) to the On posion and occlude the end of the paent connecng tube. Keep it occluded for
10 seconds. Release the occlusion and observe evidence of negave pressure. If the pump is running and no
negave pressure is observed, check to be sure the lid on the disposable canister is ght and vacuum
connecons are secure. Dispose of the canister aer use according to local / regional / naonal requirements
for the disposal of hazardous waste materials.
Reconnect the S-SCORT 9 to the vehicle or to the baery charger (21) as soon as possible following the code
by securely aaching charging plug (22) into the receptacle on the unit (7).
CAUTION - Always turn the pump switch “O” as soon as possible aer the procedure.
Rechargeable baeries will short out if they connue to discharge aer they have reached the point where
they do not have sucient power to drive the pump. Be sure the switch is in the “O” posion unl needed.
7
Clearing The Airway Is Our #1 Priority
Operating Instructions
S-SCORT 9 - Model 2109
Rev L (10/15)

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Unit does not funcon
when switch is in the
“ON” posion
Molex connecons disconnected
Baery discharged
Baery damaged
Charger damaged
Reconnect Molex connecons
Recharge baery
Replace baery
Check output of charger
Unite does not sucon
when pump is running
Vacuum line loose
Canister damaged
Canister lid is not ght
Thumb vent on sucon p is not
occluded
Check connecons
Replace canister
Re-secure canister lid
Occlude thumb vent with thumb
Pump is sluggish Residual materials have collected
in the pump head
Baery is unable to retain a
charge
Loose connecons
Replace pump
Replace baery
Check connecons
System shuts down while
suconing heavy
parculate maer
Vacuum line clogged at canister
lid
Float valve has closed
Remove connector or canister lid and
loosen obstrucon
Loosen oat valve, empty contents,
or replace canister
Regulator stem is dicult
to pull
Stem requires lubricaon Lubricate stem with pneumacs
lubricant
8
Clearing The Airway Is Our #1 Priority
Troubleshooting
S-SCORT 9 - Model 2109
Rev L (10/15)

SSCOR warrants that each new product is free from defects in material and workmanship under normal use
and service for a period of one year from date of purchase. If returned to SSCOR, we will arrange for repairs
or replacement within the terms of the warranty. The product should be decontaminated and returned
properly packaged and postage prepaid. Loss or damage in transit to the factory shall be at the purchaser’s
risk. Please call 800-434-5211 or internaonal +1 818-504-4054 for return authorizaon or for the locaon of
an authorized repair center. Loss or damage in return shipment from SSCOR shall be at the purchaser’s risk.
The warranty shall not apply to any SSCOR product which has been repaired by anyone other than an
authorized SSCOR representave, or altered in any way so as, in SSCOR’s judgment, to aect its safety or
ecacy, nor which has been subject to misuse, negligence, or accident, nor which has had the serial number
altered, eaced or removed. Neither shall this warranty apply to any SSCOR product which has been connect-
ed otherwise than in accordance with the instrucons furnished by SSCOR.
This warranty is in lieu of all other warranes expressed or implied and of all other obligaons or liabilies on
SSCOR’s part, and SSCOR neither assumes, nor authorizes any representave or other persons to assume for
it, any other liability in connecon with the sale of SSCOR products.
This warranty gives you specic legal rights and you may also have other rights that vary from jurisdicon to
jurisdicon. For countries where minimum warranty terms are determined by statute, the warranty term is
the longer of the statutory period or the term listed above.
Baeries, disposable items including collecon canisters, paent tubing and catheters are excluded from this
warranty.
Prevenve Care: Observe the following maintenance roune to ensure readiness at any me:
1. When the SSCOR aspirator is not in use, keep baeries on connuous charge.
2. Test the SSCOR aspirator at regular intervals; See page 6.
3. Make sure the SSCOR aspirator is always clean and ready for use.
4. If the procedure produced an excessive quanty of uids, check the vacuum line (1) for
evidence of moisture. If the vacuum line between the pump and canister is moist, it is
possible that uids have reached the vacuum pump. See Disinfecon Instrucons (page 10).
5. If the vacuum pump appears defecve, return the unit to the factory for repair. Do not
aempt to repair the vacuum pump.
6. For technical assistance, call (800) 434-5211 or internaonal +1 (818) 504-4054.
9
Clearing The Airway Is Our #1 Priority
Warranty
Maintenance
S-SCORT 9 - Model 2109
Rev L (10/15)

Use personal protecve equipment such as gloves, a smock, and face and eye protecon when handling
units that are suspected to be contaminated.
Part Cleaning and Disinfecng
Collecon Canister Disposable item, re-use not permied. Use new canister for each paent.
Paent Tubing
Disposable item, re-use not permied. Use new paent tubing for each
paent.
HI-D® Sck
Disposable item, re-use not permied. Use new HI-D Sck for each pa-
ent.
Vacuum Pump
Wipe with damp cloth or disinfectant wipe. Sterilizaon not permied.
Vacuum pump should be replaced if contaminated
Chassis Wipe with damp cloth or disinfectant wipe. Sterilizaon not permied.
Cauon: Disconnect the unit from any power source prior to cleaning the unit.
Disinfect the unit using a mild surface disinfectant, such as a 10:1 mixture of water and bleach. The unit is
designed to sucon contaminated uids, which should be removed from the system immediately aer use.
In the unlikely event that uids may have reached the vacuum pump, your engineering department will
have to open the unit to check the condion of the pump. When cleaning the interior of the chassis,
disconnect the baery from the wiring harness. The only foreseeable way uids may reach the vacuum
pump is the lter in the canister has been compromised or bypassed.
For technical assistance, call (800) 434-5211 or +1 (818) 504-4054
10
Clearing The Airway Is Our #1 Priority
Maintenance
Disinfection
As soon as possible aer use, the single use disposable canister, paent tubing and catheter should be
discarded according to local / regional / naonal requirements for the disposal of hazardous waste
materials. Clean the exterior of the SSCOR sucon unit using a mild detergent and clear water by
dampening a clean lint free cloth. Rinse using clear water and another damp clean lint free cloth to remove
any detergent residue.
NOTE: The hydrophobic lter in the canister helps to ensure that no moisture or
parculate maer reaches the inside of the device. When uids ll the canister,
the posive (mechanical oat) shuto valve closes immediately, shung the
vacuum port o so as to prevent uid from contacng the pump. The lter has
been tested by the manufacturer (Bemis) to screen out aerosolized
microorganisms and parculate maer at a bacterial eciency rang of 99.99%
DOP. The canister also has sidewall gradaon marks starng at 100 ml/cc and
at every 50 ml/cc up to 1200 ml/cc indicang the ll level of the canister.
In the unlikely event that uids may have reached the vacuum pump, read the disinfecon secon. Your
engineering department will have to open the unit to check the condion of the pump.
Do not reuse any single use disposable parts; do not submerge the device into any liquid, this will void the
warranty and cause the device to malfuncon.
S-SCORT 9 - Model 2109
Rev L (10/15)

CHARACTERISTICS SPECIFICATIONS
Size 14"L x 9.5"H x 7"W
Weight 8 pounds
Vacuum Pump 12V DC., 3.0 A
Clinical Airow ≥ 30LPM
Exceeds 525mmHg
Regulator Controls negave pressure
Power Source:
Baery (DC Power)
DC Charging from Vehicle
Rechargeable Sealed Lead Acid. SSCOR part # 80638. Please read
pages 6 and 7 for baery care suggesons. At full capacity a fully
charged baery will power the sucon device for 30-45 minutes.
Vehicle electrical system powers the pump and charges the baery
unl disconnected and then the unit switches automacally to its self
contained baery.
AC Charger U.L. Listed AC/DC Dual Mode Baery Charger
Switch On/O Rocker
Collecon Canister 1200cc/ml SSCOR part #48041
Paent tubing Vinyl tubing 9/32”ID x 72”L SSCOR part #43200
Sucon Tip HI-D® “Big Sck®” Large Bore Sucon Tip with thumb control.
SSCOR part #44241C
11
Clearing The Airway Is Our #1 Priority
General Specifications
S-SCORT 9 - Model 2109
Rev L (10/15)

1. Remove the three screws noted below from the boom plate. Do not remove any other screws.
2. Pull the baery plate away from the device and disconnect the baery Molex. Release the baery from
the baery holder by removing the Velcro strap. Install the new baery in the baery holder,
reconnect the Molex connecon, and secure the baery using the Velcro strap. Turn the device on and
verify negave pressure from the vacuum tubing. Re-aach the baery plate to the base plate.
Dispose of the old baery according to local / regional / naonal requirements for the disposal of sealed lead
acid baeries.
12
Clearing The Airway Is Our #1 Priority
Replacing The Battery
S-SCORT 9 - Model 2109
Rev L (10/15)
This manual suits for next models
1
Table of contents
Other SSCOR Medical Equipment manuals

SSCOR
SSCOR EVX 2309 Instructions for use

SSCOR
SSCOR VX-2 2310 Series Instructions for use

SSCOR
SSCOR Quickdraw 2400 Series Instructions for use

SSCOR
SSCOR DCell Suction Instructions for use

SSCOR
SSCOR 2315 Instructions for use

SSCOR
SSCOR S-SCORT VX2 2310 Instructions for use

SSCOR
SSCOR S-SCORT new-Sentinel 2315 Instructions for use

SSCOR
SSCOR S-SCORT newDuet 2314 Instructions for use

SSCOR
SSCOR S-SCORT III 74000 Instructions for use
