ST STLINK-V3SEGT User manual

June 2020 UM2448 Rev 5 1/42
1
UM2448
User manual
STLINK-V3SET debugger/programmer for STM8 and STM32
Introduction
The STLINK-V3SET is a stand-alone modular debugging and programming probe for the
STM8 and STM32 microcontrollers. This product is composed of the main module and the
complementary adapter board. It supports the SWIM and JTAG/SWD interfaces for the
communication with any STM8 or STM32 microcontroller located on an application board.
The STLINK-V3SET provides a Virtual COM port interface allowing the host PC to
communicate with the target microcontroller through one UART. It also provides bridge
interfaces to several communication protocols allowing, for instance, the programming of
the target through the bootloader.
The STLINK-V3SET can provide a second Virtual COM port interface allowing the host PC
to communicate with the target microcontroller through another UART (called bridge UART).
Bridge UART signals, including optional RTS and CTS, are available on the adapter board
only (MB1440). The second Virtual COM port activation is done through a reversible
firmware update, which also disables the mass storage interface (used for drag-and-drop
Flash programming).
The modular architecture of STLINK-V3SET enables to extend its main features through
additional modules such as the adapter board and B-STLINK-VOLT for voltage adaptation.
Figure 1. STLINK-V3SET product top view
Picture is not contractual.
www.st.com

Contents UM2448
2/42 UM2448 Rev 5
Contents
1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Development environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Development toolchains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 STLINK-V3SET functional description . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.1 STLINK-V3SET overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
7.1.1 Main module for high performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.1.2 Adapter configuration for added functions . . . . . . . . . . . . . . . . . . . . . . . 12
7.1.3 How to build the adapter configuration for added functions . . . . . . . . . . 13
7.2 Hardware layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7.3 STLINK-V3SET functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.3.1 SWD with SWV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.3.2 JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.3.3 SWIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.3.4 Virtual COM port (VCP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.3.5 Bridge functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.3.6 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.4 Jumper configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8 Board connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1 Connectors on MB1441 board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.1 USB Micro-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.2 STDC14 (STM32 JTAG/SWD and VCP) . . . . . . . . . . . . . . . . . . . . . . . . 23
8.2 Connectors on MB1440 board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

UM2448 Rev 5 3/42
UM2448 Contents
4
8.2.1 STDC14 (STM32 JTAG/SWD and VCP) . . . . . . . . . . . . . . . . . . . . . . . . 23
8.2.2 Legacy Arm 20-pin JTAG/SWD IDC connector . . . . . . . . . . . . . . . . . . . 23
8.2.3 Virtual COM port connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8.2.4 SWIM connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8.2.5 CAN connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.2.6 SWD connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.2.7 UART/I2C/CAN bridge connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.2.8 SPI/GPIO bridge connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8.2.9 Bridge 20-pins connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9 Flat ribbons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Mechanical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Software configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11.1 Supporting toolchains (not exhaustive) . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11.2 Drivers and firmware upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11.3 STLINK-V3SET frequency selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11.4 Mass storage interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11.5 Bridge interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
12 B-STLINK-VOLT board extension description . . . . . . . . . . . . . . . . . . . 32
12.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
12.2 Connection instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
12.2.1 Closed casing for STM32 debug (STDC14 connector only) . . . . . . . . . 32
12.2.2 Opened casing for access to all connectors
(through MB1440 adapter board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
12.3 Selection of bridge GPIO direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
12.4 Jumper configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
12.5 Target voltage connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
12.6 Board connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
12.6.1 STDC14 (STM32 JTAG/SWD and VCP) . . . . . . . . . . . . . . . . . . . . . . . . 37
12.6.2 UART/I2C/CAN bridge connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
12.6.3 SPI/GPIO bridge connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
13 STLINK-V3SET and B-STLINK-VOLT information . . . . . . . . . . . . . . . . 38

Contents UM2448
4/42 UM2448 Rev 5
13.1 Product marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13.2 Board revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13.2.1 MB1440 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13.2.2 MB1441 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13.2.3 MB1598 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13.3 Known limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
13.3.1 MB1440 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
13.3.2 MB1441 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
13.3.3 MB1598 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Appendix A Federal Communications Commission (FCC). . . . . . . . . . . . . . . . . 40
15.3 FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
15.3.1 Part 15.19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

UM2448 Rev 5 5/5
UM2448 List of tables
5
List of tables
Table 1. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 2. ON/OFF convention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 3. MB1441 jumper configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 4. MB1440 jumper configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 5. USB Micro-B connector pinout CN5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 6. STDC14 connector pinout CN1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 7. Legacy Arm 20-pin JTAG/SWD IDC connector CN2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 8. Virtual COM port connector CN3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 9. SWIM connector CN4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 10. CAN connector CN5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 11. SWD (wires) connector CN6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 12. UART bridge connector CN7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 13. SPI bridge connector CN8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 14. Bridge connector CN9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 15. ARM10-compatible connector pinout (target side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 16. ARM20-compatible connector pinout (target side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 17. Toolchain versions supporting STLINK-V3SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 18. MB1598 jumper configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table 19. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

List of figures UM2448
6/6 UM2448 Rev 5
List of figures
Figure 1. STLINK-V3SET product top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2. Probe top side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 3. Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 4. Probe with adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 5. Operating mode to change the configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 6. Hardware board MB1441 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 7. Hardware board MB1440 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

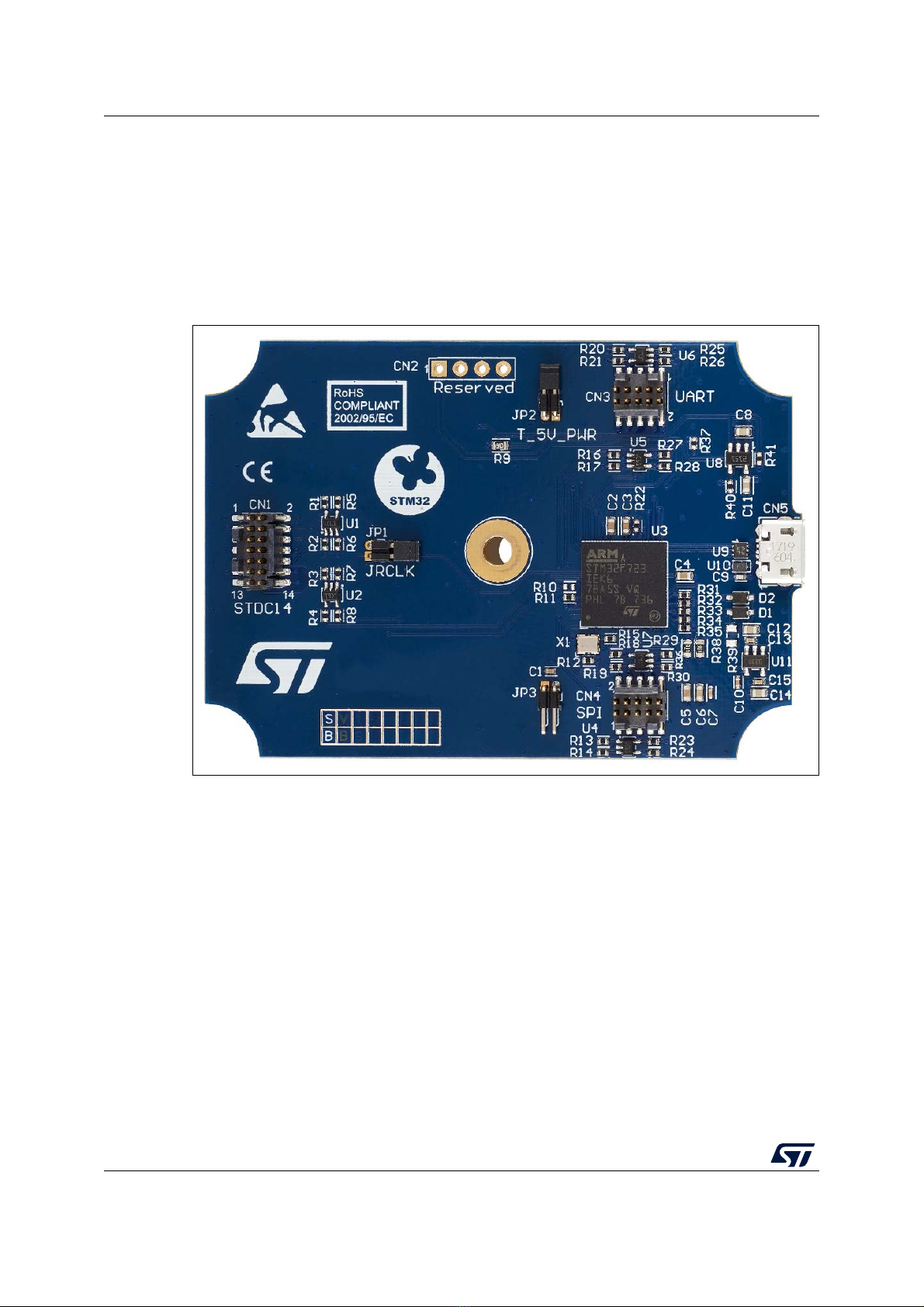

Figure 8. MB1441 top layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 9. MB1441 bottom layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

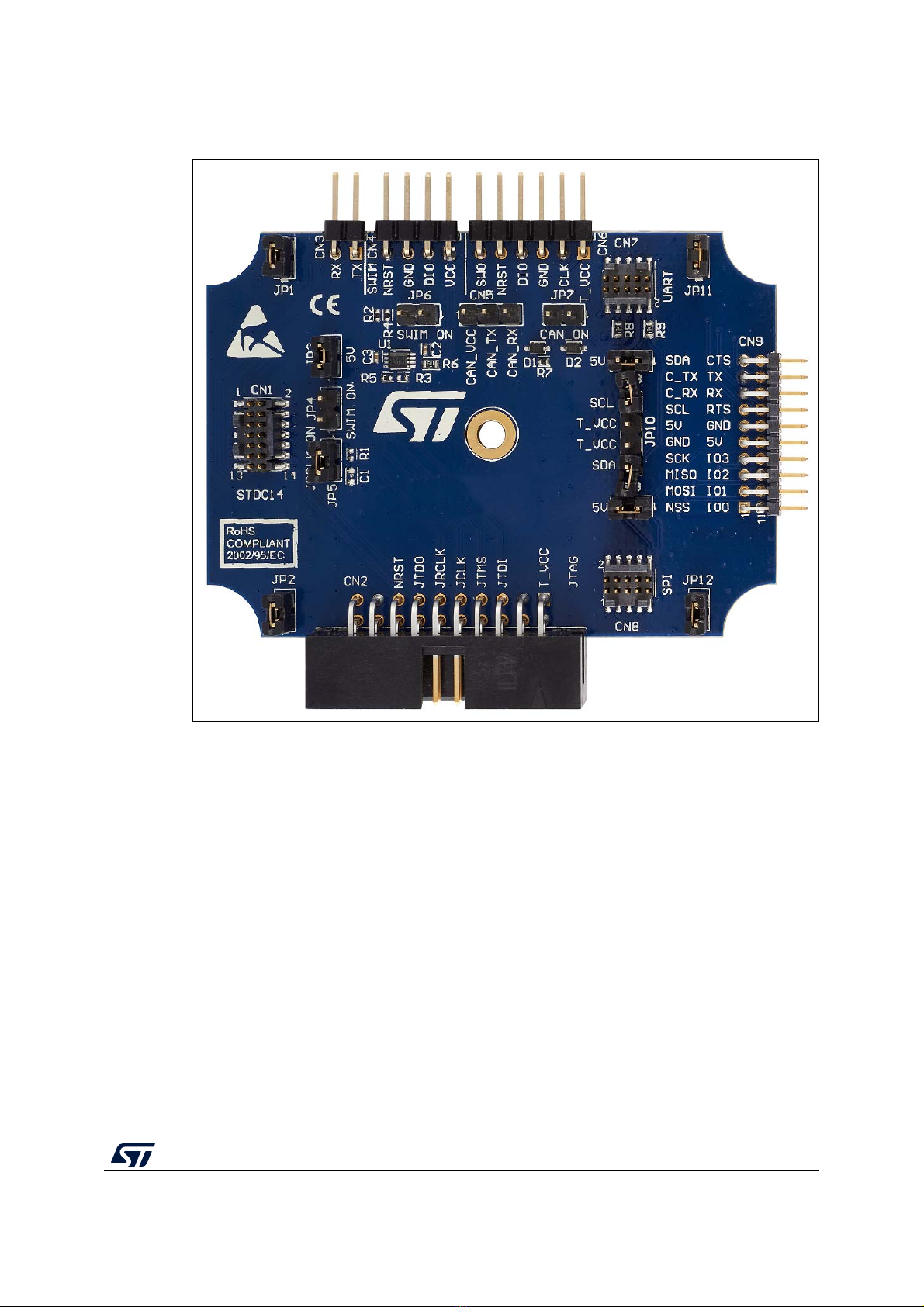

Figure 10. MB1440 top layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 11. MB1441 mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

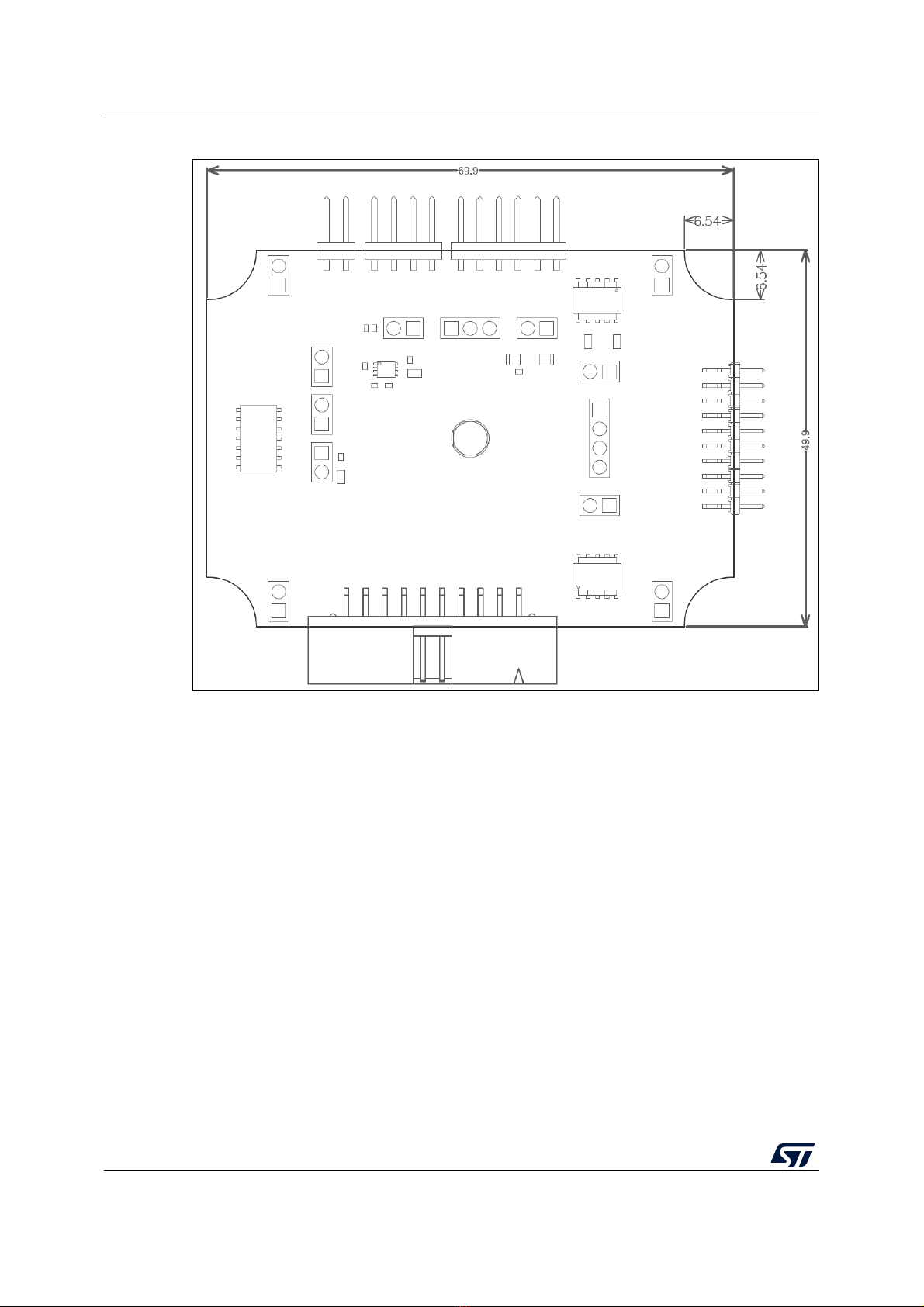

Figure 12. MB1440 mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 13. Firmware selection for a second Virtual COM port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 14. USB Micro-B connector CN5 (front view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 15. MB1441 mechanical dimensions (in millimeters) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 16. Closed casing for STM32 debug (STDC14 connector only). . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 17. Opened casing for access to all connectors (through MB1440 adapter board) . . . . . . . . . 35
Figure 18. B-STLINK-VOLT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

UM2448 Rev 5 7/42
UM2448 Features
41
1 Features
•Stand-alone probe with modular extensions
•Self-powered through a USB connector (Micro-B)
•USB 2.0 high-speed compatible interface
•Direct firmware update support (DFU)
•JTAG / serial wire debugging (SWD) specific features:
– 3 V to 3.6 V application voltage support and 5 V tolerant inputs (extended down to
1.65 V with the B-STLINK-VOLT board)
– Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm
pitch)
– JTAG communication support
– SWD and serial wire viewer (SWV) communication support
•SWIM specific features (only available with adapter board MB1440):
– 1.65 V to 5.5 V application voltage support
– SWIM header (2.54 mm pitch)
– SWIM low-speed and high-speed modes support
•Virtual COM port (VCP) specific features:
– 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant
inputs (extended down to 1.65 V with the B-STLINK-VOLT board)
– VCP frequency up to 15 MHz
– Available on STDC14 debug connector (not available on MIPI10)
•Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features:
– 3 V to 3.6 V application voltage support and 5 V tolerant inputs (extended down to
1.65 V with the B-STLINK-VOLT board)
– Signals available on adapter board only (MB1440)
•Drag-and-drop Flash programming of binary files
•Two-color LEDs: communication, power
Note: The STLINK-V3SET product does not provide the power supply to the target application.
B-STLINK-VOLT is not required for STM8 targets, for which voltage adaptation is performed
on the baseline adapter board (MB1440) provided with the STLINK-V3SET.

General information UM2448
8/42 UM2448 Rev 5
2 General information
The STLINK-V3SET embeds an STM32 32-bit microcontroller based on the Arm®(a)
Cortex®-M processor.
3 Ordering information
To order the STLINK-V3SET or any additional board (provided separately), refer to Ta ble 1.
a. Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.
Table 1. Ordering information
Order code Board reference Description
STLINK-V3SET MB1441(1)
MB1440(2)
1. Main module.
2. Adapter board.
STLINK-V3 modular in-circuit debugger and programmer
for STM8 and STM32
B-STLINK-VOLT MB1598 Voltage adapter board for STLINK-V3SET

UM2448 Rev 5 9/42
UM2448 Development environment
41
4 Development environment
4.1 System requirements
•Windows®OS (7, 8 and 10), Linux®64-bit, or macOS®(a)(b)
•USB Type-A to Micro-B cable
4.2 Development toolchains
•IAR Systems - IAR Embedded Workbench®(c)
•Keil®- MDK-ARM(c)
•STMicroelectronics - STM32CubeIDE
5 Conventions
Table 2 provides the conventions used for the ON and OFF settings in the present
document.
a. macOS®is a trademark of Apple Inc. registered in the U.S. and other countries.
b. All other trademarks are the property of their respective owners.
c. On Windows®only.
Table 2. ON/OFF convention
Convention Definition
Jumper JPx ON Jumper fitted
Jumper JPx OFF Jumper not fitted
Jumper JPx [1-2] Jumper should be fitted between Pin 1 and Pin 2
Solder bridge SBx ON SBx connections closed by 0-ohm resistor
Solder bridge SBx OFF SBx connections left open

Quick start UM2448
10/42 UM2448 Rev 5
6 Quick start
This section describes how to start development quickly using the STLINK-V3SET.
Before installing and using the product, accept the Evaluation Product License Agreement
from the www.st.com/epla web page.
The STLINK-V3SET is a stand-alone modular debugging and programming probe for STM8
and STM32 microcontrollers.
•It support protocols SWIM, JTAG and SWD to communicate with any STM8 or STM32
microcontroller.
•It provides a Virtual COM port interface allowing the host PC to communicate with the
target microcontroller through one UART
•It provides bridge interfaces to several communication protocols allowing, for instance,
the programming of the target through the bootloader.
To start using this board, follow the steps below:
1. Check that all items are available inside the box
(V3S + 3 flat cables + adapter board and its guide).
2. Install/update the IDE/STM32CubeProgrammer to support the STLINK-V3SET
(drivers).
3. Choose a flat cable and connect it between the STLINK-V3SETand the application.
4. Connect a USB Type-A to Micro-B cable between the STLINK-V3SETand the PC.
5. Check that the PWR LED is green and the COM LED is red.
6. Open the development toolchain or STM32CubeProgrammer (STM32CubeProg)
software utility.
For more details, refer to the www.st.com/stlink-v3set website.
