ST X-NUCLEO-IDB04A1 User manual

July 2015 DocID026346 Rev 6 1/14
UM1765
User manual
Getting started with Bluetooth® low energy expansion board based
on BlueNRG for STM32 Nucleo
Introduction
This document provides detailed hardware requirements and board connections for the X-
NUCLEO-IDB04A1 Bluetooth
®
low energy (BLE) evaluation board based on BlueNRG for
STM32 Nucleo. This board is part of STMicroelectronics’ offering of evaluation boards
designed around the BlueNRG Bluetooth low energy wireless network processor.
The excellent performance of BlueNRG and the best matching between BlueNRG and
BALF-NRG-01D3, X-NUCLEO-IDB04A1 passed the RF TEST for Japan Radio Law
certification with higher margin above the specification values as well as it is FCC certified
(FCC ID: S9NIDB04A1).

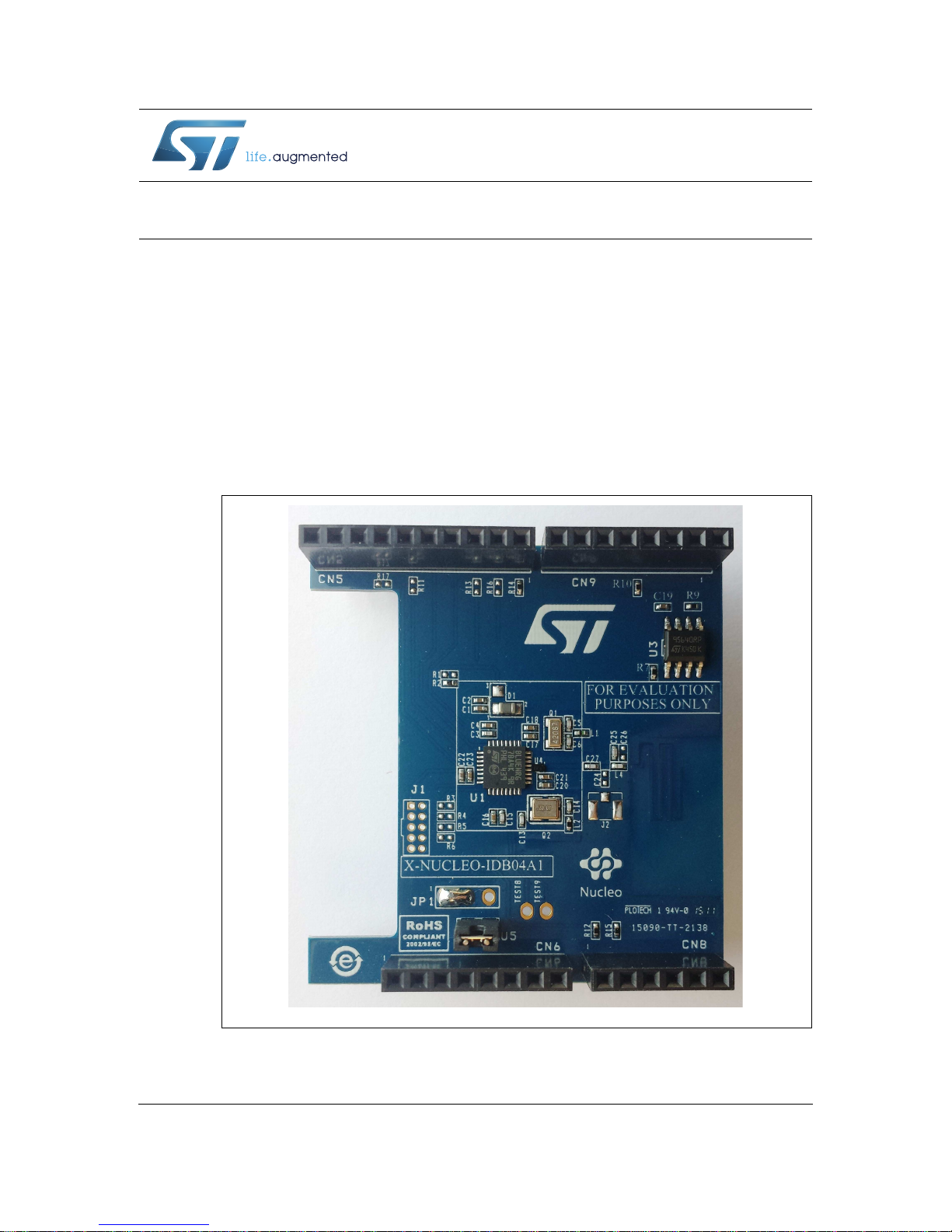

Figure 1. X-NUCLEO-IDB04A1 evaluation board
*63*6*
www.st.com

Contents UM1765
2/14 DocID026346 Rev 6
Contents
1 Board description and getting started . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Hardware requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Hardware description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 X-NUCLEO-IDB04A1 board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1.1 Current measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Formal Notices Required by the U.S. Federal
Communications Commission (“FCC”) . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 List of acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Board schematic and bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

DocID026346 Rev 6 3/14
UM1765 Board description and getting started
14
1 Board description and getting started
The X-NUCLEO-IDB04A1 is a Bluetooth low energy evaluation board to allow expansion of
the STM32 Nucleo boards. It is compatible with the Arduino UNO R3 connector layout, and
is designed around BlueNRG, a Bluetooth low energy, low power network coprocessor
compliant with BTLE 4.0 and the BALF-NRG-01D3, an ultra-miniature balun optimized for
ST BlueNRG RF IC, which integrates matching network and harmonics filter. The X-
NUCLEO-IDB04A1 interfaces with the STM32 MCU via SPI pin, and the user can change
the default SPI clock, the SPI chip select and SPI IRQ by changing one resistor on the
evaluation board. The excellent performance of BlueNRG and the best matching between
BlueNRG and BALF-NRG-01D3, X-NUCLEO-IDB04A1 passed the RF TEST for Japan
Radio Law certification with higher margin above the specification values as well as it is
FCC certified (FCC ID: S9NIDB04A1).
Key features:
•BlueNRG low power, low energy Bluetooth network coprocessor
•BALF-NRG-01D3 balun & harmonic filter
•Freecomprehensive developmentfirmwarelibraryandexampleforBlueNRG,compatible
with STM32Cube firmware
•Bluetooth low energy 4.0 master and slave compliant
•Compatible with STM32 Nucleo boards
•Equipped with Arduino UNO R3 connector
•Very low power consumption: 7.3 mA RX and 8.2 mA TX at +0 dBm
•Maximum transmission power: +8 dBm
•Excellent receiver sensitivity (-88 dBm)
•X-NUCLEO-IDB04A1 is FCC certified (FCC ID: S9NIDB04A1)
•X-NUCLEO-IDB04A1 is officially certificated as a BTLE 5 mW module for Japan Radio
Law "TYPE" Certification by Japan government
•RoHS compliant
Figure 2. Functional block diagram
This section describes the hardware requirements for the X-NUCLEO-IDB04A1 evaluation
board.
*63*6*
3&%$QWHQQD$QWHQQDWXQLQJFLUFXLW%$/)15*'670/0LFURFRQWUROOHU-7$*&RQQHFWRU%OXH15*63,%XV0ESV0+]0+]

Board description and getting started UM1765
4/14 DocID026346 Rev 6
1.1 Hardware requirements
The X-NUCLEO-IDB04A1 is an expansion board for use with STM32 Nucleo boards (please
refer to UM1724 on www.st.com for further information). To function correctly, the STM32
Nucleo board must be connected to the X-NUCLEO-IDB04A1 board as shown in Figure 3
below.
Figure 3. X-NUCLEO-IDB04A1 plugged to STM32 Nucleo board
The interconnection between the STM32 Nucleo and the X-NUCLEO-IDB04A1 has been
designed to permit the use of any STM32 Nucleo board, although the optimal combination is
obtained using the NUCLEO-L152RE or NUCLEO-L053R8 hosting the ultra-low power
STM32.
*63*6*

DocID026346 Rev 6 5/14
UM1765 Board description and getting started
14
1.2 System requirements
Using the Nucleo boards with the X-NUCLEO-IDB04A1 expansion board requires the
following software and hardware:
•a Windows PC (XP, Vista, 7, 8) to install the software package
•a USB type A to Mini-B USB cable to connect the Nucleo to the PC
Installation of the board firmware package (order code: X-CUBE-BLE1) and the BlueNRG
graphical user interface utility on the user’s PC requires the following:
•At least 128 MB of RAM
•40 MB of hard disk space available
The X-CUBE-BLE1 firmware and related documentation is available on www.st.com.

Hardware description UM1765
6/14 DocID026346 Rev 6
2 Hardware description
This section describes the X-NUCLEO-IDB04A1 features and provides information which
could be useful for understanding the board schematics.
2.1 X-NUCLEO-IDB04A1 board
The board allows the user to test the functionality of the BlueNRG processor. It hosts the
innovative BALF-NRG-01D3 balun & harmonic filter and its functionality can be exploited
using the firmware package contained in the X-CUBE-BLE1. It is fundamental to program
the microcontroller on the STM32 Nucleo board. Please refer to user manuals UM1724 and
UM1725, available on www.st.com.
The BlueNRG processor and the STM32 Nucleo board are connected through connectors
CN5, CN6, CN8 and CN9 (see Table 1 for details). The pins indicated with an asterisk (*)
represent an alternative pin for that specific function, i.e. SPI_IRQ could be moved from
CN8.1 to CN5.2.
To change the default pin SPI_CLK, SPI_IRQ and SPI_CSN the user must disassemble,
respectively,R10, R12 and R15, and assemble R11, R16 and R13.
Table 1. Interconnection between STM32 Nucleo board and X-NUCLEO-IDB04A1
NC IOREF RESET 3V3 5V GND GND VIN A0 A1 A2 A3 A4 A5
Left connectors
12345678 123456
3V3 GND GND SPI_IRQ SPI_CSN*
D15 D14 AREF GND D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Right connectors
CN5 digital CN9 digital
1098765432187654321
GND SPI_CLK* SPI_MISO SPI_MOSI SPI_IRQ* SPI_MCSN BNRG_RST SPI_CLK

DocID026346 Rev 6 7/14
UM1765 Hardware description
14
The board also includes:
– a high frequency 16 MHz crystal
– a low frequency 32 kHz crystal for lowest power consumption
– a BALF-NRG-01D3 balun & harmonic filter
– an EEPROM M95640-RMN6TP to store the board parameters
Not mounted:
– a JTAG connector to program the BlueNRG processor
– an SMA connector for the external antenna
2.1.1 Current measurements
To monitor the power consumption of entire BlueNRG X-NUCLEO-IDB04A1 board, jumper
U5 can be used, inserting an ammeter probe between pins 1 and 2 of the connector. Since
the power consumption of BlueNRG during most of its operating time is very low, an
accurate instrument in the range of few µA may be required.

Formal Notices Required by the U.S. Federal Communications Commission (“FCC”) UM1765
8/14 DocID026346 Rev 6
3 Formal Notices Required by the U.S. Federal
Communications Commission (“FCC”)
Any changes or modifications to this equipment not expressly approved by
STMicroelectronics may cause harmful interference and void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including any interference that may cause undesired
operation.
This device uses, generates and radiated radio frequency energy. The radio frequency
energy produced by this device is well below the maximum exposure allows by Federal
Communications Commission (FCC).
The X-NUCLEO-IDB04A1 is FCC certified (FCC ID: S9NIDB04A1).

DocID026346 Rev 6 9/14
UM1765 List of acronyms
14
4 List of acronyms
Table 2. List of acronyms used in the document
Term Meaning
BLE Bluetooth low energy
USB Universal serial bus

Board schematic and bill of material UM1765
10/14 DocID026346 Rev 6
5 Board schematic and bill of material
Table 3. Bill of materials (part 1)
Item Quantity Reference Part Note
1 4 C1, C17, C20, C22 1u_0402_X5R VBAT & SMPS OUT filter cap
2 6 C2, C16, C18, C19, C21, C23 100n_0402_X7R VBAT filtering
3 2 C3, C15 100p_0402_C0G VBAT filtering
4 1 C4 150n_0402_X5R VREG filtering
5 2 C5, C6 22p_0402_C0G 32 kHz XTAL load cap
6 1 C27 56p_0402_C0G TX/RX balun cap
7 1 C24 56p_0402_C0G TX/RX bypass cap
8 1 C25 TBD_0402_COG Tuning cap
9 1 C26 TBD_0402_COG Tuning cap
10 1 L4 TBD_0402 Tuning cap
11 2 C13, C14 15p_0402_C0G 16 MHz XTAL load cap
12
(1)
1 L1 LF-XTAL filtering ind
13 1 L2 HF-XTAL filtering ind
14 1 J1 THR 1.27 mm 2x5 pins Test connector
15 1 J2 RF_IN/OUT UFL jack assembly, End Launch
16 1 U4 BALF-NRG-01D3 Integrated balun for BlueNRG
QFN32
17 1 CN5 Extra-long 10 pins female-
male strip Female side mounted to the top
18 2 CN6, CN9 Extra-long 8 pins female-
male strip Female side mounted to the top
19 CN8 Extra-long 6 pins female-
male strip Female side mounted to the top
20 1 Q1 XTAL XTAL
21 1 Q2 XTAL XTAL
22 5 R1, R3, R4, R5, R6 Connect to V
DD
, pull-down
23 1 R2 10k_0402 Connect to ground
24 2 R7, R9 100k_0402 Pull-up and pull-down
25 4 R10, R12, R14, R15 0_0402 jumper-resistor
26 3 R11, R13, R16 0_0402 jumper-resistor
27 1 U1 BlueNRG RF IC
28 1 U5 HEADER 1X2 Male strip 1X2, 100 mils
29 1 U3 EEPROM Memory
30 3 TEST8, TEST11,TEST12 Test point Test point
1. Not present on board market 14xx near U3.

DocID026346 Rev 6 11/14
UM1765 Board schematic and bill of material
14
Table 4. Bill of materials (part 2)
Item Package Manufacturer Manufacturer’s ordering code /
orderable part number +8 dBm
1 SM/C_0402 Murata GRM155R61A105KE15 1 µF
2 SM/C_0402 Murata GRM155R71C104KA88 100 nF
3 SM/C_0402 Murata GRM1555C1H101JZ01 100 pF
4 SM/C_0402 Murata GRM155R61A154KE19 150 nF
5 SM/C_0402 Murata GRM1555C1H220JZ01 22 pF
6 SM/C_0402 Murata GRM1555C1H560JA01 56 pF
7 SM/C_0402 Murata NE
8 SM/C_0402 Murata GRM1555C1H120JZ01 1.2 pF
9 SM/C_0402 NE
10 SM/C_0402 Murata GRM1555C1H180JZ01 1.8 pF
11 SM/C_0402 Murata GRM1555C1H150JZ01 15 pF
12 SM/L_0402 Murata LQG15HN2N0S02 2 nH
13 SM/L_0402 Tyco Electronics 0 Ohm
14 SAMTEC FTSH-105-01-F-D-K NE
15 SMT Hirose U.FL-R-SMT-1(10) Digikey
H11891CT-ND NE
16 STMicroelectronics BALF-NRG-01D3
17 2.54 mm pitch 4UCON 18688
18 2.54 mm pitch 4UCON 18688
19 2.54 mm pitch 4UCON 18688
20 NX3215SA NDK NX3215SA-32.768kHz-EXS00A-
MU00003 32.768 kHz
21
(1)
XTAL_32_25_REV2 NDK NX3225SA -16.000MHz-EXS00A-
CS05997 16 MHz
22 SM/R_0402 Tyco Electronics NE
23 SM/R_0402 Tyco Electronics 10 k
24 SM/R_0402 Tyco Electronics 100 k
25 SM/R_0402 Tyco Electronics 0 Ohm
26 SM/R_0402 Tyco Electronics NE
27 QFN32 STMicroelectronics
28 WALCON.100/VH/TM2
OE/W.325/10/MOD
29 SO8N STMicroelectronics M95640-RMN6TP
30 TP NE
1. First release of the board mount 16 MHz X'tal, however ST suggests to use 32 MHz to exploit at best all the functionalities
of BlueNRG.

Board schematic and bill of material UM1765
12/14 DocID026346 Rev 6
Figure 4. X-NUCLEO-IDB04A1 expansion board schematic diagram
6ROGHUDXBEHWZHHQRUD5BEHWZHHQ
0DOH&RQQHFWRU[
3&%0HDQGHU$QWHQQD
1RWPRXQWHG
1RWPRXQWHG1RWPRXQWHG
1RWPRXQWHG
9%$7
9%$7
12B603612B6036
Q6&/.026,0,62
567
026,&/.,54
0,62&61
9%$79%$7
7(67
9%$7
7(677(677(67
7(677(677(677(677(677(679%$7
7(67
7(677(67026,0,62
Q6
567&/.
&/.
,54&61
&61,547(67
7(677(679''9''9''9''9''99''9''99''8-XPSHU&SBB&2*&QBB;55QF&SBB&2*5QF58%$/)15*'%%$$&S55QF/7%'B4/);7$/5QF5NB&SBB&2*7(67-37(67

&XBB;5-8)/FRQQHFWRU*1'
6,*
*1''

/7%'B&1&21&QBB;5&QBB;5&XBB;55
%OXH15*
863,B026,63,B&/.63,B,547(679%$77(677(677(67
7(677(677(679''9
);7$/);7$/
7(677(677(677(67
9%$76;7$/6;7$/5)5)9%$7
*1'5(6(716036),/712B60366036),/79''97(6763,B&663,B0,62
/7%'B&S5&SBB&2*&QBB;5&XBB;5&1&21&QBB;5&QBB;55&1&21-7HVWFRQQHFWRU&
7%'BB&2*
&SBB&2*5NB5&XBB;55QF&7%'BB&2*&1&21&QBB;5&SBB&2*4+);7$/5NB80Q64Q:9VV9FFQ+2/'&'7(6755
*63*6*

DocID026346 Rev 6 13/14
UM1765 Revision history
14
6 Revision history
Table 5. Document revision history
Date Revision Changes
16-May-2014 1 Initial release.
21-Jan-2015 2 Modified:
- Table 3 and Table 4.
19-Feb-2015 3 Modified:
- order code from STSW-IDB04V1 to X-CUBE-BLE1 Section 1.2 and
Section 2.1.
13-Apr-2015 4 Updated:
- Part number item 27 Table 4.
20-May-2015 5
Updated:
- Section 1: Board description and getting started.
- Figure 4: X-NUCLEO-IDB04A1 expansion board schematic diagram.
Added:
- Figure 2: Functional block diagram.
- Section 3: Formal Notices Required by the U.S. Federal
Communications Commission (“FCC”).
02-Jul-2015 6 Updated:
- Title on the cover page.

UM1765
14/14 DocID026346 Rev 6
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2015 STMicroelectronics – All rights reserved
