SolConeX Flange Socket, 20 A
Series 8570/25
1 General Information
1.1 Manufacturer
1.2 Information regarding the Operating Instructions
ID-No.: 287842 / 8570676300
Publication Code: 2022‐03‐28·IO00·III·en·00
The original instructions are the US-American edition.
They are legally binding in all legal affairs.
1.3 Further Documents
• SolConeX plug and socket devices data sheet
• Mounting instructions for auxiliary contacts
For documents in additional languages, see r-stahl.com.
1.4 Conformity with Standards and Regulations
Certificates for the USA and Canada can be downloaded via the following link:
https://r-stahl.com/en/global/support/downloads..
R. STAHL Schaltgeräte GmbH
Am Bahnhof 30
74638 Waldenburg
Germany
R. STAHL, INC.
13259 N. Promenade Blvd.
Stafford, TX 77477
USA
Phone:
Fax:
Internet:
E-mail:
[phone]
[phone]
r-stahl.com
[email protected]
Phone:
Fax:
Internet:
E-mail:
[phone]
[phone]
r-stahl.com
[email protected]
R. STAHL Ltd.
#303, 8925-51 Avenue
Edmonton, AB T6E 5J3
Canada
Phone:
Fax:
Internet:
E-mail:
[phone]
[phone]
r-stahl.com
[email protected]

Explanation of the Symbols
4287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
2 Explanation of the Symbols
2.1 Symbols in these Operating Instructions
2.2 Warning Notes
Warnings must be observed under all circumstances, in order to minimize the risk due to
construction and operation. The warning notes have the following structure:
• Signalling word: DANGER, WARNING, CAUTION, NOTICE
• Type and source of danger/damage
• Consequences of danger
• Taking countermeasures to avoid the danger or damage
Symbol Meaning
Tips and recommendations on the use of the device
General danger
Danger due to explosive atmosphere
DANGER
Danger to persons
Non-compliance with the instruction results in severe or fatal injuries to
persons.
WARNING
Danger to persons
Non-compliance with the instruction can result in severe or fatal injuries
to persons.
CAUTION
Danger to persons
Non-compliance with the instruction can result in light injuries to
persons.
NOTICE
Avoiding material damage
Non-compliance with the instruction can result in material damage to the device
and / or its environment.

287842 / 8570676300
2022‐03‐28·IO00·III·en·00
Safety Notes
5
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
2.3 Symbols on the Device
3 Safety Notes
3.1 Operating Instructions Storage
• Read the operating instructions carefully.
• Store the operating instructions at the mounting location of the device.
• Observe applicable documents and operating instructions of the devices to be
connected.
3.2 Personnel Qualification
All activities on the device may only be performed by a qualified specialist.
This primarily applies to work in the following areas:
• Project engineering
• Mounting/dismounting the device
• (Electrical) Installation
• Commissioning
• Maintenance, repair, cleaning
The specialist who performs these activities must be familiar with the relevant national
standards and regulations for electrical engineering.
Additional knowledge is required for activities in hazardous areas!
R. STAHL recommends having a level of knowledge equal to that described in the
following standards:
• UL 60079-17 (Inspection and maintenance of electrical installations)
• National Electrical Code (NEC NFPA 70 Article 504 or ISA-RP 12.6)
• Canadian Electrical Code, Part I, Safety Standard for Electrical Installations
(CSA C22.1)
• Local regulations and laws
Symbol Meaning
FM test mark, proven conformity of the product with the safety regulations of
the USA and Canada
16338E00
Notified body for quality control.
02198E00
Device certified for hazardous areas in accordance with the marking.

Safety Notes
6287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
3.3 Safe Use
Before mounting
• Read and observe the safety notes in these operating instructions!
• Ensure that the contents of these operating instructions are fully understood by the
personnel in charge.
• Use the device in accordance with its intended and approved purpose only.
• Always consult with R. STAHL Schaltgeräte GmbH if using the device under operating
conditions which are not covered by the technical data.
• Make sure that the device is not damaged.
• We cannot be held liable for damage at the device caused by incorrect or unauthorised
use or non-compliance with these operating instructions.
For mounting and installation
• Have mounting and installation performed only by qualified and authorised persons
(see chapter "Qualification of the personnel").
• The device is only to be installed in areas for which it is suited based on its marking.
• During installation and operation, observe the information (characteristic values and
rated operating conditions) on the rating, data and information plates located on the
device, as well as the technical data in these operating instructions.
• Before installation, make sure that the device is not damaged.
• The device must be installed into an enclosure compliant with the requirements of a
known type of protection according to UL 60079-0.
• Do not open the device when it is energized.
• Prevent electrostatic discharge at the device.
• During assembly, use the prescribed air and creepage paths
(as per UL 60079-7, UL 60947-4, UL 60947-1).
Commissioning, maintenance, repair
• Only have commissioning and repairs performed by qualified and authorised persons
(see chapter "Personnel qualification").
• Before commissioning, make sure that the device is not damaged.
• Perform only maintenance work described in these operating instructions.
The nature of these instructions is only informative and does not cover all of
the details, variations or combinations in which this equipment may be used,
its storage, delivery, installation, safe operation and maintenance.
Since conditions of use of the product are outside of the care, custody and
control of the manufacturer, the purchaser should determine the suitability of
the product for his intended use, and assumes all risk and liability whatsoever
in connection therewith.

287842 / 8570676300
2022‐03‐28·IO00·III·en·00
Safety Notes
7
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
3.4 Specific Conditions of Use
• For Class I, Zone 1 applications, the component switched flange socket shall be
installed in an Increased Safety "eb" enclosure.
• For Class I, Zone 1 applications, the component switched flange socket shall be
installed in an enclosure such that the creepage and clearance complies with the
Increased Safety "eb" spacing requirements of UL 60079-7.
• For Zone 21 applications, the component switched flange socket shall be installed in
a dust protected "tb" enclosure.
• For Class I, Division 2 applications, the component switched flange socket shall be
installed in an enclosure that complies with the ingress requirements for the specific
application.
• For Class I, Division 2 applications, the component switched flange socket shall be
installed in the enclosure such that the creepage and clearance comply with the
requirements of specific application.
• For Class II, Division 1 applications, the component switched flange socket shall be
installed in a dust-ignitionproof enclosure.
• For Class II, Division 1 applications, the component switched flange socket shall be
installed in the enclosure such that the creepage and clearance comply with the
requirements of specific application.
• Lock the hinged cover using the bayonet ring if the plug is not inserted.
• The component switched flange socket is suitable for connection to a 8570/22 plug of
the same configuration and electrical ratings.
3.5 Modifications and Alterations
DANGER
Explosion hazard due to modifications and alterations to the device!
Non-compliance results in severe or fatal injuries.
• Do not modify or alter the device.
No liability or warranty for damage resulting from modifications and
alterations.

Function and Device Design
8287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
4 Function and Device Design
4.1 Function
Application range
The flange socket 8570/25 is an incomplete piece of electrical equipment and is intended
for installation in an enclosure having type of protection "e".
5 Technical Data
Please refer to the technical data on the device.
DANGER
Explosion hazard due to improper use!
Non-compliance results in severe or fatal injuries.
• Use the device only in accordance with the operating conditions
described in these operating instructions.
• Use the device only for the intended purpose specified in these
operating instructions.
Explosion Protection
Global (IECEx)
Gas and dust IECEx PTB 19.0018U
Ex db eb IIC Gb
Ex tb IIIC Db
Europa (ATEX)
Gas and dust PTB 19 ATEX 1005 U
E II 2 G Ex db eb IIC Gb
E II 2 D Ex tb IIIC Db
USA (NEC)
Gas and dust
FM20US0118U
Cl. I, Zone 1, AEx db eb IIC Gb
Cl. I, Div. 2, Groups A, B, C, D
Zone 21, AEx tb IIIC Db
Cl. II, III, Div. 1, Groups E, F, G
Canada (CE Code)
Gas and dust FM20CA0058U
Ex db eb IIC Gb
Cl. I, Div. 2, Groups A, B, C, D
Ex tb IIIC Db
Cl. II, III, Div. 1, Groups E, F, G

287842 / 8570676300
2022‐03‐28·IO00·III·en·00
Technical Data
9
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
Technical Data
Electrical data
Rated operational
voltage
Main contacts 8570/25-3..: max. 480 V AC / max. 110 V DC
8570/25-4..: max. 600 V AC / max. 110 V DC
8570/25-5..: max. 600 V AC / max. 110 V DC
Auxiliary contacts max. 500 V AC / max. 110 V DC
Frequency 50/60 Hz (for frequencies ) 100 Hz reduction to 12 A required)
Voltage tolerance -10 to +10 %
Rated operational
current
Main contacts 20 A
Auxiliary contacts max. 6 A
Utilization category AC-3: 500 V/20 A
DC-1: 110 V/16 A
UL508: 600 V/20 A
Rated insulation
voltage
Main contacts 8570/25-3..: 550 V
8570/25-4..: 750 V
8570/25-5..: 750 V
Auxiliary contacts 550 V
Back-up fuse
without thermal
protection
20 A gG
with thermal
protection
35 A gG
Alternatively, a Class J fuse of suitable size can be used.

Technical Data
10 287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
Ambient conditions
Operating
temperature range
-50 to +65 °C
-40 to +65 °C, optional (silicone-free)
(The storage temperature corresponds to the ambient temperature)
At frequencies < 100 Hz
Technical Data
2 pole / 3 wire (1P + N + PE / 2P + PE) - without auxiliary contacts
Temperature
class
T6 T5
Ambient
temperature
Ta (
+45
°C /
+113
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+65
°C /
+149
°F
Ta (
+60
°C /
+140
°F
Ta (
+65
°C /
+149
°F
Connection
cross section
Rated operational current
Socket Plug
1.5
mm2 /
AWG 16
1.5
mm 2 /
AWG 16
16 A 13 A 13 A 10 A 10 A 16 A 10 A
1.5
mm
2 /
AWG 16
2.5
mm 2 /
AWG 14
16 A 13 A 13 A 10 A 10 A 16 A 10 A
2.5
mm
2 /
AWG 14
2.5
mm 2 /
AWG 14
16 A 16 A 16 A 13 A 10 A 16 A 10 A
2.5
mm
2 /
AWG 14
4
mm 2 /
AWG 12
16 A 16 A 16 A 13 A 10 A 16 A 10 A
4
mm
2 /
AWG 12
2.5
mm 2 /
AWG 14
16 A 16 A 16 A 16 A 10 A 16 A 10 A
4
mm
2 /
AWG 12
4
mm 2 /
AWG 12
20 A 20 A 16 A 16 A 10 A 20 A 10 A

287842 / 8570676300
2022‐03‐28·IO00·III·en·00
Technical Data
11
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
Technical Data
3 pole / 4 wire (3P + PE) - with auxiliary contacts
Temperature
class
T6 T5
Ambient
temperature
Ta (
+35
°C /
+95
°F
Ta (
+40
°C /
+104
°F
Ta (
+45
°C /
+113
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+65
°C /
+149
°F
Connection
cross section
Rated operational current
Socket Plug
1.5
mm2 /
AWG 16
1.5
mm 2 /
AWG 16
16 A 13 A 13 A 6 A – – 16 A 13 A 10 A 6 A
1.5
mm
2 /
AWG 16
2.5
mm 2 /
AWG 14
16 A 13 A 13 A 10 A – – 16 A 13 A 10 A 6 A
2.5
mm
2 /
AWG 14
2.5
mm 2 /
AWG 14
16 A 16 A 16 A 16 A 10 A – 16 A 16 A 13 A 6 A
2.5
mm
2 /
AWG 14
4
mm 2 /
AWG 12
16 A 16 A 16 A 16 A 13 A 13 A 16 A 16 A 13 A 6 A
4
mm
2 /
AWG 12
2.5
mm 2 /
AWG 14
16 A 16 A 16 A 16 A 13 A 6 A 16 A 16 A 10 A 6 A
4
mm
2 /
AWG 12
4
mm 2 /
AWG 12
20 A 20 A 16 A – – – 20 A 16 A 13 A –

Technical Data
12 287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
Technical Data
3 pole / 4 wire (3P + PE) - without auxiliary contacts
Temperature
class
T6 T5
Ambient
temperature
Ta (
+35
°C /
+95
°F
Ta (
+40
°C /
+104
°F
Ta (
+45
°C /
+113
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+65
°C /
+149
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+65
°C /
+149
°F
Connection
cross section
Rated operational current
Socket Plug
1.5
mm2 /
AWG 16
1.5
mm 2 /
AWG 16
16 A 13 A 13 A 13 A 10 A 10 A 6 A 16 A 13 A 10 A 6 A
1.5
mm
2 /
AWG 16
2.5
mm 2 /
AWG 14
16 A 13 A 13 A 13 A 10 A 10 A 6 A 16 A 13 A 10 A 6 A
2.5
mm
2 /
AWG 14
2.5
mm 2 /
AWG 14
16 A 16 A 16 A 16 A 13 A 13 A 6 A 16 A 16 A 13 A 6 A
2.5
mm
2 /
AWG 14
4
mm 2 /
AWG 12
16 A 16 A 16 A 16 A 13 A 13 A 6 A 16 A 16 A 13 A 6 A
4
mm
2 /
AWG 12
2.5
mm 2 /
AWG 14
16 A 16 A 16 A 16 A 16 A 10 A 6 A 16 A 16 A 10 A 6 A
4
mm
2 /
AWG 12
4
mm 2 /
AWG 12
20 A 20 A 16 A 16 A 16 A 13 A – 20 A 16 A 13 A –

287842 / 8570676300
2022‐03‐28·IO00·III·en·00
Technical Data
13
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
Technical Data
4 pole / 5 wire (3P + N + PE) - with auxiliary contacts
Temperature
class
T6 T5
Ambient
temperature
Ta (
+35
°C /
+95
°F
Ta (
+40
°C /
+104
°F
Ta (
+45
°C /
+113
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+65
°C /
+149
°F
Connection
cross section
Rated operational current
Socket Plug
1.5
mm2 /
AWG 16
1.5
mm 2 /
AWG 16
16 A 16 A 13 A 13 A 10 A 6 A 16 A 13 A 10 A –
1.5
mm
2 /
AWG 16
2.5
mm 2 /
AWG 14
16 A 16 A 13 A 13 A 10 A 10 A 16 A 13 A 10 A 6 A
2.5
mm
2 /
AWG 14
2.5
mm 2 /
AWG 14
16 A 16 A 16 A 16 A 13 A 13 A 16 A 16 A 13 A 6 A
2.5
mm
2 /
AWG 14
4
mm 2 /
AWG 12
16 A 16 A 16 A 16 A 13 A 13 A 16 A 16 A 13 A 6 A
4
mm
2 /
AWG 12
2.5
mm 2 /
AWG 14
16 A 16 A 13 A 13 A 10 A 10 A 16 A 10 A 10 A 6 A
4
mm
2 /
AWG 12
4
mm 2 /
AWG 12
20 A 16 A 16 A 16 A 13 A 10 A 20 A 16 A 13 A –

Technical Data
14 287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
The maximum rated operational current depends on the conductor
cross section and the ambient temperature.
At frequencies ) 100 Hz reduction to 12 A required.
Technical Data
4 pole / 5 wire (3P + N + PE) - without auxiliary contacts
Temperature
class
T6 T5
Ambient
temperature
Ta (
+35
°C /
+95
°F
Ta (
+40
°C /
+104
°F
Ta (
+45
°C /
+113
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+65
°C /
+149
°F
Ta (
+50
°C /
+122
°F
Ta (
+55
°C /
+131
°F
Ta (
+60
°C /
+140
°F
Ta (
+65
°C /
+149
°F
Connection
cross section
Rated operational current
Socket Plug
1.5
mm2 /
AWG 16
1.5
mm 2 /
AWG 16
16 A 16 A 13 A 13 A 10 A 10 A 6 A 16 A 13 A 10 A 6 A
1.5
mm
2 /
AWG 16
2.5
mm 2 /
AWG 14
16 A 16 A 13 A 13 A 10 A 10 A 6 A 16 A 13 A 10 A 6 A
2.5
mm
2 /
AWG 14
2.5
mm 2 /
AWG 14
16 A 16 A 16 A 16 A 13 A 13 A 6 A 16 A 16 A 13 A 6 A
2.5
mm
2 /
AWG 14
4
mm 2 /
AWG 12
16 A 16 A 16 A 16 A 13 A 13 A 6 A 16 A 16 A 13 A 6 A
4
mm
2 /
AWG 12
2.5
mm 2 /
AWG 14
16 A 16 A 13 A 13 A 10 A 10 A 6 A 16 A 10 A 10 A 6 A
4
mm
2 /
AWG 12
4
mm 2 /
AWG 12
20 A 16 A 16 A 16 A 13 A 13 A – 20 A 16 A 13 A –

287842 / 8570676300
2022‐03‐28·IO00·III·en·00
Technical Data
15
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
Mechanical data
Number of poles 2 pole / 3 wire (1P + N + PE) (N-conductor switched)
2 pole / 3 wire (2P + PE)
3 pole / 4 wire (3P + PE)
4 pole / 5 wire (3P + N + PE) (N-conductor switched)
Auxiliary contacts Optional max. 2 auxiliary contacts (ON - delayed, OFF - leading)
Auxiliary contacts in Ex i version are fitted with gold contacts.
Optionally in NAMUR resistor circuitry.
Switching handle lockable in 0 or I position
max. bracket
diameter
5 mm / 0.19 inch
Enclosure material Polyamide, glass fibre reinforced
Degree of protection IP66 acc. to IEC 60529,
IP64 acc. to UL 60079,
Plug side: NEMA 3, 4, 4X acc. to ANSI/NEMA 250
Impact strength IK10 as per IEC/EN 62262-0 and IEC 60309-1,
7 Joule as per UL 60079
Connection type Screw-type terminals
Connection
Terminals
Main contacts
Auxiliary contacts
Weight
Service life > 5,000 switching cycles (electrical and mechanical) acc. to UL 60309-1
Tightening torque Terminals: 1.2 Nm / 10.62 lbf inch
Mounting screw for the flange socket: 2.3 Nm / 20.35 lbf inch
Technical Data
solid 1 x 1.5 mm2 to 2 x 6 mm2
(1 x AWG 16 to 2 x AWG 10)
finely stranded 1 x 1.5 mm2 to 2 x 4 mm2
(1 x AWG 16 to 2 x AWG 12)
finely stranded with core end
sleeve
1 x 1.5 mm2 to 2 x 4 mm2
(1 x AWG 16 to 2 x AWG 12)
solid/finely stranded 1 x 0.5 mm2 to 2 x 2.5 mm2
(1 x AWG 20 to 2 x AWG 14)
8570/25-3.. 0.7 kg / 1.54 lbs
8570/25-4.. 0.9 kg / 1.98 lbs
8570/25-5.. 1.0 kg / 2.21 lbs

Technical Data
16 287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
Arrangement of the earth contact sleeve
Position: clock hour position, view: front side of the socket
Arrangement of socket contacts and terminal markings
Arrangement of the socket contacts and terminal markings in the 6h position
(view from the front side of the socket to the socket contacts)
02395E00
Example: Clock hour position
18609E00
200 to 250 V = 6 h
2 pole / 3 wire
(1P + N + PE)
19590E00
2 pole / 3 wire
(2P + PE)
18609E00
3 pole / 4 wire
(3P + PE)
06556E00
4 pole / 5 wire
(3P + N + PE)
06555E00
8570/25-3.. 8570/25-3.. 8570/25-4.. 8570/25-5..

287842 / 8570676300
2022‐03‐28·IO00·III·en·00
Transport and Storage
17
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
Colour code and arrangement of socket contacts and terminal markings;
HP rating assignment
Colour code according to UL 60309-1 and arrangement relative to the polarizing slot for
different voltages and frequencies in accordance with UL 60309-2
1) Mainly for ship installations
2) Only for refrigerated containers (standardized by ISO)
For further technical data, see r-stahl.com.
6 Transport and Storage
• Transport and store the device only in the original packaging.
• Store the device in a dry place (no condensation) and vibration-free.
• Do not drop the device.
No. of poles Frequency
[Hz]
Voltage
[V]
Colour
code
Position of
earth contact
sleeve
Current
[A]
Power
[HP]
2 pole /
3 wire
(1P + N + PE)
(2P + PE)
50 and 60 > 50 to 110 V DC grey 3 h 10 to 16 1.5
50 and 60 100 to 130 yellow 4 h 10 to 20 1.5
50 and 60 200 to 250 blue 6 h 10 to 20 3
50 and 60 380 to 415 red 9 h 10 to 20 5
50 and 60 480 red 7 h 10 to 20 5
50 and 60 500 black 7 h 10 to 20 5
60 277 grey 5 h 10 to 20 3
100 to 300 > 50 green 10 h 10 to 12 0.5 to 5
> 300 to 500 > 50 green 2 h 10 to 12 0.5 to 5
3 pole /
4 wire
(3P + PE)
50 and 60 100 to 130 yellow 4 h 6 to 20 3
50 and 60 200 to 250 blue 9 h 6 to 20 5
50 and 60 380 to 415 red 6 h 6 to 20 10
50 and 60 480 red 7 h 6 to 20 10
50 and 60 500 black 7 h 6 to 20 10
50 and 60 600 to 690 black 5 h 6 to 20 15
50 380 2) red 3 h 6 to 20 10
60 440 2) red 3 h 6 to 20 10
60 440 to 460 1) red 11 h 6 to 20 10
100 to 300 > 50 green 10 h 6 to 12 1.5 to 10
> 300 to 500 > 50 green 2 h 6 to 12 1.5 to 10
4 pole /
5 wire
(3P + N + PE)
50 and 60 57/100 to 75/130 yellow 4 h 6 to 20 3
50 and 60 120/208 to 144/250 blue 9 h 6 to 20 5
50 and 60 200/346 to 240/415 red 6 h 6 to 20 10
50 and 60 277/480 red 7 h 6 to 20 10
50 and 60 288/500 black 7 h 6 to 20 10
50 and 60 347/600 to 400/690 black 5 h 6 to 20 15
50 220/380 2) red 3 h 6 to 20 3
60 250/440 2) red 3 h 6 to 20 3
60 250/440 to 265/460 1) red 11 h 6 to 20 10
100 to 300 > 50 green 10 h 6 to 12 1.5 to 10
> 300 ... 500 > 50 green 2 h 6 to 12 1.5 to 10

Mounting and Installation
18 287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
7 Mounting and Installation
7.1 Dimensions / Fastening Dimensions

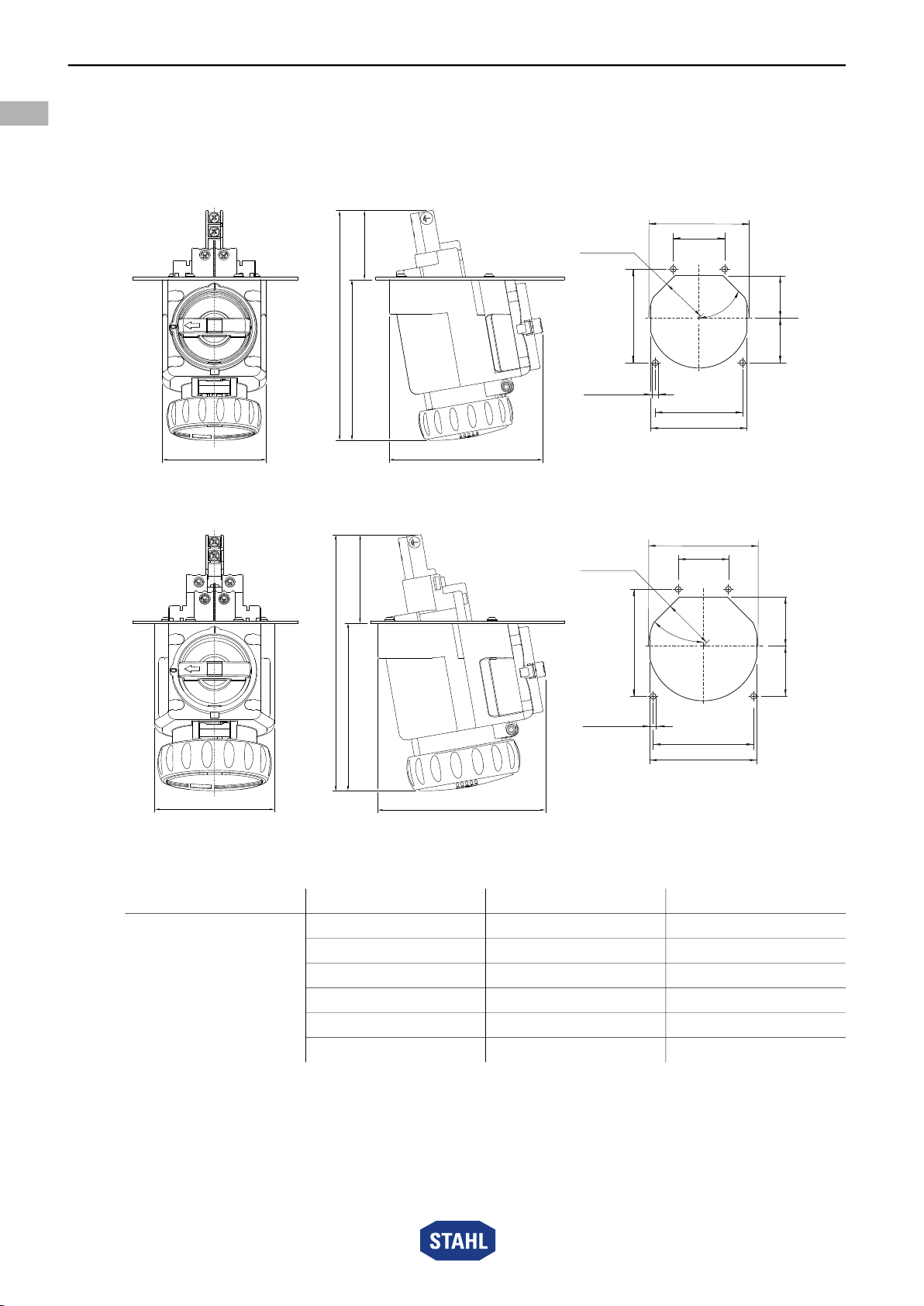

Dimensional drawings (all dimensions in mm [inches]) – Subject to modification
21790E00
11473E00
8570/25-3..
SolConeX flange socket
Opening figure
21782E00
11476E00
8570/25-4.. and 8570/25-5..
SolConeX flange socket
Opening figure
Type Versions A B
8570/25-... 402, 403, 404 approx. 191 [7.52] approx. 55 [2.17]
405, 406, 407 approx. 208 [8.19] approx. 72 [2.83]
409, 410, 411 approx. 191 [7.52] approx. 55 [2.17]
502, 503, 504 approx. 196 [7.72] approx. 60 [2.36]
505, 506, 507 approx. 208 [8.19] approx. 72 [2.83]
509, 510, 511 approx. 195 [7.68] approx. 59 [2.32]
~ 1 [~ ]24 4,88
~ 1 [~ ]30 5,12
~ [~ ]56,50 2,22
~[~ ]
186 7,31
84 3,31[]
39 ±0,20
[1,54 ] ±0,01
35,60 ±0,10
[1,40 ] ±0,004
45°
71
±0,20
[2,80 ]
±0,01
0
[1,34 ]
-0,01
34
-0,20
0
0
[1, ]26
-0,01
32
-0,20
0
ø 4,50 ±0,10
[ø 0,18 ] ±0,004
66 ±0,20
[2,60 ] ±0,01
73 ±0,20
[2,87 ] ±0,01
ø 76 ±0,20 [ 2,99 ]ø 01±0,
97 [3,82]
B
~ 136 [~ 5,35]
A
~ 136 [~ 5,35]
45°
ø 85 ±0, 02 [ø 3,35 ] ±0,01
[1,54 ]
±0,01
39 ±0,20
[1,54 ]
±0,01
39
±0,20
[1,5 ]0
±0,01
38
±0,20
40 ±0,10
[1, ]57 ±0,004
ø 4,50 ±0,10
[ø 0,18 ] ±0,004
78 ±0,20
[]3,07 ±0,01
83 ±0,20
[,7 ]3 2 ±0,01
83
±0,20
[,7 ]3 2
±0,01

287842 / 8570676300
2022‐03‐28·IO00·III·en·00
Mounting and Installation
19
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
7.2 Mounting / Dismounting, Operating Position
7.2.1 Mounting
The switched flange socket 8570/25 is intended to be mounted on an Ex e enclosure
(metal or plastic). Therefore, the following installation requirements have to be met:
Wall thickness of the enclosure
See chapter 7.1.
Thickness range of the enclosure
Metall enclosure: 1.5 to 3.0 mm / 0.059 to 0.118 inch
Plastic enclosure: 2.2 to 3.5 mm / 0.087 to 0.138 inch
Maximum surface roughness of the enclosure face for sealing
Metall enclosure: Rq = ca. 0.43 µm / Ra = ca. 0.38 µm
Plastic enclosure: Rz = ca. 7.2 µm
Mounting auxiliary contacts
This device is suitable for outdoor and indoor use.
The sealing of the device ensure the IP protection.
For mounting instructions for installing the auxiliary contacts,
see installation note 8570/8571 (8570607300).
11203E00
• Open the enclosure.
• Snap the auxiliary
contacts into place
optionally in the left-hand
or right-hand seat.
Double equipping is
possible.
• Close the enclosure.

Mounting and Installation
20 287842 / 8570676300
2022‐03‐28·IO00·III·en·00
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
US
SolConeX Flange Socket, 20 A
Series 8570/25
7.3 Installation
DANGER
Explosion hazard due to insufficient protective measures!
Non-compliance results in severe or fatal injuries.
• Select suitable cables to ensure that the maximum
permissible conductor temperatures are not exceeded.
• Lay cables in intrinsically safe circuit separately to cables in
non-intrinsically-safe circuits. The distance measurements for
this can be found in the "Separating intrinsically safe circuits
from non-intrinsically-safe circuits" section.
• When using core end sleeves, attach them using a suitable tool.
• Use only separately tested cable entries and stopping plugs
with an US Type Examination Certificate.
• The conductor insulation must be touching the terminal.
• Do not damage the conductor (for example nicking)
when stripping it.
• Always connect the protective conductor.
DANGER
Explosion hazard in the case of installation in special areas with
potentially explosive dust!
Non-compliance results in severe or fatal injuries.
• Do not use the device in areas where there are processes
generating strong charges, machine friction processes,
separation processes and electrospray processes
(for example around electrostatic coating systems)
and pneumatically generated dust.
DANGER
Explosion hazard when seal is insufficient and/or service temperature
is too high!
Non-compliance results in severe or fatal injuries.
• Completely seal the bayonet ring of the plug and of the hinged
cover to obtain the degree of protection.
• Securely seal and lock the enclosure.
• Make sure the service temperature range is maintained
(see the "Technical data" chapter).
