Stahl TEF 2880 User manual

Installation and operating manual
TEF2880 Navigation Light
Navigation Light
TEF 2880
Document properties (TUM6500)
Revision
Comment
Revision
date
Approved
I
Added more info on appendix #1
15.09.2021
CKR
J
Added DoC on last page
22.02.2022
CKR
K
Added additional information –sealed for life, do not open
15.03.2022
CS

Installation and operating manual
TEF2880 Navigation Light
Installation and operating manual
Contents
Document properties (TUM6500) ............................................................................................................................ 1
Warnings and risk levels.......................................................................................................................................... 3
General information................................................................................................................................................. 3
Marking and intended use ....................................................................................................................................... 4
Technical data ......................................................................................................................................................... 5
Product description.................................................................................................................................................. 5
Transport and storage ............................................................................................................................................. 5
Mounting and installation......................................................................................................................................... 6
Mounting ............................................................................................................................................................. 6
Positioning of lights ............................................................................................................................................. 8
Electrical connections ......................................................................................................................................... 9
Control and monitoring .......................................................................................................................................... 10
Maintenance and cleaning..................................................................................................................................... 11
Part No Matrix........................................................................................................................................................ 12
Options and spare parts ........................................................................................................................................ 13
Disposal................................................................................................................................................................. 14
Compliance/Conformity ......................................................................................................................................... 14
Appendix #1........................................................................................................................................................... 15
Appendix #2, DoC ................................................................................................................................................. 16

Installation and operating manual
TEF2880 Navigation Light
Warnings and risk levels
DANGER
Non-compliance with the instruction results in risk of severe or fatal injuries to persons
WARNING
Non-compliance with the instruction may result in risk of severe or fatal injuries to persons
CAUTION
Non-compliance with the instruction may result in risk of injuries or damage to equipment
NOTICE
Non-compliance with the instruction may result in reduced lifetime of equipment, malfunctions etc.
General information
Before installation, make sure to read and understand this installation and operating manual.
Observe national assembly and installation regulations.
Always contact the manufacturer if anything is unclear, or if you notice any faults on the product or in this
document.
This installation and operating manual shall be available to anyone operating, installing, inspecting, modifying or
repairing the equipment.
Content in box
The TEF2880 navigation light.
Cable termination nut. One pc for simplex models and two pcs for duplex models
(except duplex models with single cable entry)
4 pcs M8 washers, stainless steel A4.
Installation instructions.
Product certificate.
Note:
Pre-hoistable models, part # 28804****, delivered with plug connector instead of cable termination nut, two cable
strain relief ties and no M8 washers.

Installation and operating manual
TEF2880 Navigation Light
Marking and intended use
CAUTION
Not intended for use in “these” conditions (Where mud may be present, on helidecks, underground, direct
sunlight, heavy vibrations, high risk of impact, harsh cleaning agents, high pressure washer etc.)

Installation and operating manual
TEF2880 Navigation Light
Technical data
Property
Material
Seawater resistant aluminium, borosilicate glass and stainless steel base.
Voltage
24V DC (18-32V DC)
Power
Max. 22W (Dependent on model)
Digital input
Logic ‘0’: -3V DC to +5V DC
Logic ‘1’: 11V DC to 30V DC
Nominal current: 2.4mA
Digital output
Voltage: = Power supply -0.25V
Current: Max. 25mA
Electrical connection
Wire cross section: 1.0 to 2.5mm2
Cable diameter: Ø9-16mm
Working hours
100,000 h (Each light source)
Operating temperature
-30°C to +55°C
Ingress protection
IP 66/67
Dimensions
Simplex models: 140 x 140 x 139 mm
(Excluding cable entry)
Duplex models: 140 x 140 x 185 mm
(Excluding cable entry)
Net weight
Simplex model: 2.0 kg
Duplex model: 2.5 kg
Approval
DNV GL MEDB000048S
(EU) 2019/1397,item No. MED/6.1.
COLREG 72 as amended, Annex I/14,
IMO Res. A.694(17), IMO Res.
MSC.253(83)
Product description
LED navigation light with leading optical and LED driver solutions. No maintenance is obtained through a simplified
plug and play, modular design for ease of installation, and unmatched availability self-monitoring capabilities.
Application
Observe national and class society assembly and installation regulations.
Observe national safety and accident prevention regulations.
Navigation light as stated in product type approval.
Signal light required by various national and canal authorities as stated in product type approval.
General signal light.
Transport and storage
Transport and store the equipment only in the original packaging
Store the equipment in a dry and vibration free place
Do not drop!

Installation and operating manual
TEF2880 Navigation Light
Mounting and installation
DANGER
Incorrect mounting and installation may lead to risk for falling objects, risk for electric shock or fire and risk for
equipment malfunction. In turn, this can lead to severe damage and/or injuries.
Mounting
See figure 1 & 2.
Fixing
The navigation light shall be fixed to a plane horizontal surface, by 4x M8 bolts. Maximum torque: 8 Nm. Ref.
figure 2 & figure 3.
Cable entries
Direction of cable entries; see figure 1. Ensure enough space to route cable and terminate cable properly.
Minimum space requirement: Cables bending radius + 50 mm.
Figure 1 (view from top)

Installation and operating manual
TEF2880 Navigation Light
Figure 1 (view from top)

Installation and operating manual
TEF2880 Navigation Light
Figure 3
Positioning of lights
Inboard screen is not required as the light itself fulfill the requirements. If an inboard screen is installed please follow
the following procedure:
Ref. COLREG 72, Annex I.
Positioning of side lights (port and starboard)
COLREG 72, Annex I, 5: The sidelights shall be fitted with inboard screens painted matt black, and meeting the
requirements of Section 9 of this Annex.
Positioning of all-round lights
COLREG 72, Annex I, 9(b): All-round lights shall be so located as not to be obscured by masts, topmasts or
structures within angular sectors of more than 6 degrees, except anchor lights, which need not be placed at an
impracticable height above the hull.
Zero signal direction
Zero signal direction is denoted on all sector lights (e.g. “masthead” and “port”) with an arrow. For correct
installation, this arrow shall point parallel to the ships centre line. It should be pointing in the same direction as the
light distribution. It can be both backwards and forwards depending on the sector of the navigation light. Ref.
figure 1.

Installation and operating manual
TEF2880 Navigation Light
Electrical connections
Only qualified electrical personnel may install and start up the QPD components. For correct electrical

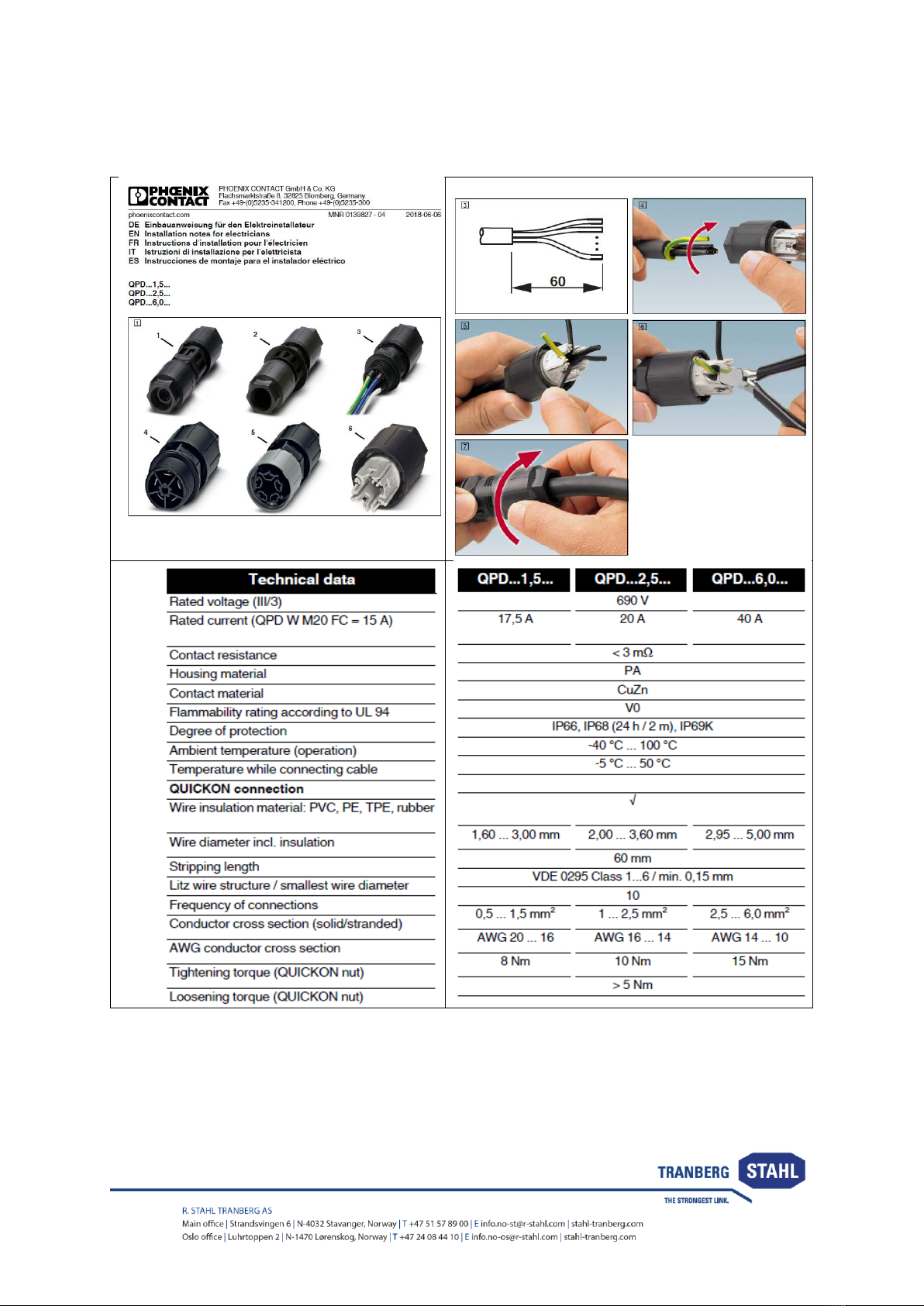

termination please follow the Phoenix user manual, Appendix 1 in the end of this user manual. Check if you
have the right cable type to ensure a correct connection. Below is an excerpt of the Phoenix user manual describing
the main points of the procedure. Please note that the dust caps mounted on lights connector sockets are not IP
rated and will not protect against water intrusion.
CAUTION
Do not open the product. The R. Stahl TRANBERG TEF2880 series is sealed for life.
Non-compliance with the instruction may result in risk of injuries or damage to equipment
Cable termination
Cable diameter: Ø9-16 mm.
Part # 2880***0* delivered as standard with terminal nut for Ø9-16 mm cable.
Wire cross section: 1.0 mm2 to 2.5 mm2.
Wire diameter incl. insulation: 2,0 mm to 3,80mm.
Connections
1. Strip approx. 60 mm off the cable.
2. Loop the PE conductor around the live conductors (1). As a result, the PE conductor will be pulled out of the
terminal block last if strong tension is exerted on the cable.
3. Insert the cable into the terminal nut.
4. Fix the wires in the conductor support of the splice body (2).
5. Cut off the wires with a diagonal cutter flush on the splice body (3).
6. When connecting the terminal nut to the light connector socket, make sure that their markings are aligned.
7. Screw the terminal nut together with the light connector socket (4). For this, we recommend using either the
socket wrench, a wrench, or a plier. Screw the terminal nut as far as it will go, or with the specified torque. It
must not be possible to unscrew the terminal nut again by hand.
8. Seal off any non-allocated connections using a protective cap.

Installation and operating manual
TEF2880 Navigation Light
Ground bonding screw
The navigation lights are equipped with an external M5 ground bonding screw. Connect to ground where national
or company regulations require it.
Versions without DI/DO, part #2880***0* and 2880**9*
Terminal #
Standard versions, part #
2880***0*
Duplex versions with single cable
entry, part# 2880***9*
1
+24V
+24V Upper deck
2
-
+24V Lower deck
3
-
0V Lower deck
N
0V
0V Upper deck
PE
Protective earth
Protective earth
Note: In order to obtain proper EMI, PE wire should always be terminated.
Versions with DI/DO and self-contained blinking lights, part # 2880***X*
(where X= 1 or 3 or 5 or 6 or 7 or 8):
Terminal #
Versions with DI/DO,
part # 2880***X* (X=1/3)
Self-contained blinking lights,
part # 2880***X* (X=5/6/7/8)
1
+24V
+24V
2
Digital input (On/off, dimming or
blinking control)
-
3
Digital output (Alarm output)
Digital output (Alarm output)
N
0V (Common)
0V (Common)
PE
Protective earth
Protective earth
Note: In order to obtain proper EMI, PE wire should always be terminated.
Control and monitoring
Navigation lights and signal light required by national and canal authorities shall be connected to a dedicated control
and monitoring system. Control and monitoring of the TEF2880 series can be obtained in two different ways (ref.
part # matrix page 4):
Part # 2880***X* where X = 0 or 9. (Versions without digital input/output):
On/off control by switching power on and off.
Monitoring by measuring current. When a failure occurs, current draw falls below 10 mA.
The monitoring system must be compatible with table below.
Power
Current draw*
6 NM lights
Max 20W
5 NM lights
Max 15W
Min 240 mA
3 NM lights
Max 8W
+24V
2 NM lights
Max 5W
-
Additional
fishing lights
Max 3W
Digital output (Alarm
output)
