Star StarJet SJ-48 User manual

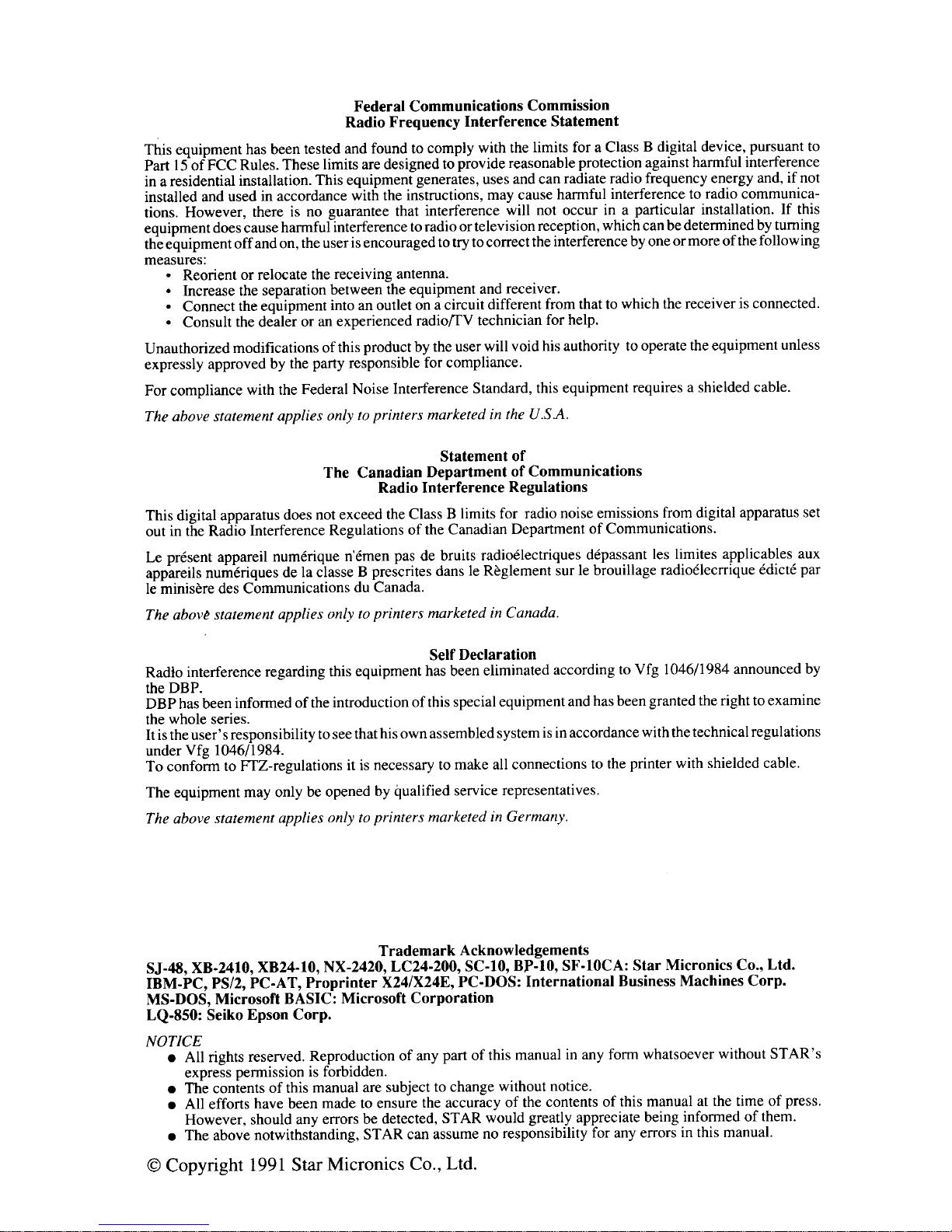

Federal Communications Commission
Radio Frequency Interference Statement
This equipmenthas been tested and found to comply with the limits for aClass Bdigital device, pursuant to
Part 15of FCC Rules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterference
inaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot
installedandused in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in aparticular installation. If this
equipment doescause harmful interference toradioortelevision reception, whichcanredetermined byturning
theequipment offandon, the userisencouraged totrytocorrect the interference byoneormore ofthefollowing
measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
.Connect the equipment into an outlet on acircuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radionV technician for help.
Unauthorized modifications of this product by the user will voidhis authority to operate the equipment unless
expressly approved by the party responsible for compliance.
For compliance with the Federal Noise Interference Standard, this equipment requires ashielded cable.
The above statement applies only to printers marketed in the U.S.A.
Statement of
The Canadian Department of Communications
Radio Interference Regulations
This digital apparatus does not exceed the Class Blimits for radio noise emissions from digital apparatus set
out in the Radio Interference Regulations of the Canadian Department of Communications.
Le pr6sent appareil num6rique n’6menpas de bruits radioelectriques d6passant Ies limites applicable aux
Wpy+: nufn6@uesde la classe Bprescribesclansle R&glementsur le brouillage radio61ecrrique6dict6par
le muusere des Commumcatlons du Canada.
The abovt statement applies only toprinters marketed in Canada.
Self Declaration
Radio interference regarding this equipment has been eliminated according to Vfg 1046/1984announced by
the DBP.
DBPhas been informed of the introduction ofthis special equipment andhas been granted the right to examine
the whole series.
It istheuser’sresponsibility toseethathisown assembled system is inaccordance withthetechnicalregulations
under Vfg 1046/1984.
To conform to ITZ-regulations it is necessary to make all connections to the printer with shielded cable.
The equipment may only be opened by qualified service representatives.
The above statement applies only toprinters marketed in Germany.
Trademark Acknowledgements
SJ-48, XB-241O,XB24-10, NX-2420, LC24-200, SC-10, BP-10, SF-1OCA:Star Micronics Co., Ltd.
IBM-PC, PS/2, PC-AT, Proprinter X24/X24E, PC-DOS: International Business Machines Corp.
MS-DOS, Microsoft BASIC: Microsoft Corporation
LQ-850: Seiko Epson Corp.
NOTICE
●All rights reserved. Reproduction of any part of this manual in any form whatsoever without STAR’s
express permission is forbidden.
●The contents of this manual are subject to change without notice.
●All efforts have been made to ensure the accuracy of the contents of this manual at the time of press.
However, should any errors be detected, STAR would greatly appreciate being informed of them.
●The above notwithstanding, STAR can assume no responsibility for any errors in this manual.
0Copyright 1991 Star Micronics Co., Ltd.

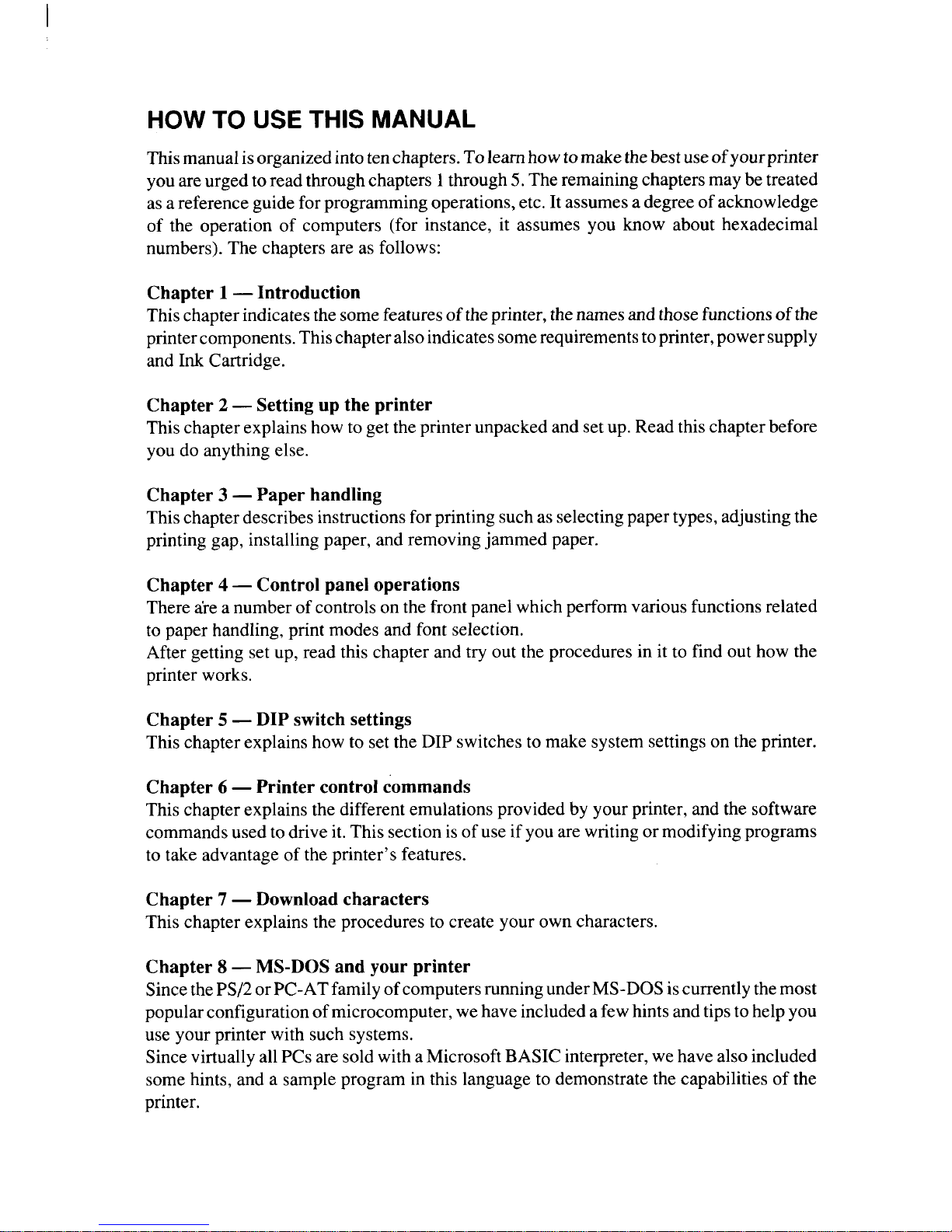

HOW TO USE THIS MANUAL
Thismanualisorganized intotenchapters. To learnhowtomake thebestuseofyourprinter
you areurged to read through chapters 1through 5.The remaining chapters maybe treated
as areference guide for programming operations, etc. Itassumes adegree of acknowledge
of the operation of computers (for instance, it assumes you know about hexadecimal
numbers). The chapters are as follows:
Chapter 1—Introduction
Thischapter indicates thesomefeaturesof theprinter, thenames and thosefunctionsof the
printercomponents.Thischapteralsoindicatessomerequirementstoprinter,power supply
and Ink Cartridge.
Chapter 2—Setting up the printer
This chapter explains how to get theprinter unpacked and setup. Read thischapter before
you do anything else.
Chapter 3—Paper handling
This chapter describes instructionsforprinting such as selectingpaper types, adjusting the
printing gap, installing paper, and removing jammed paper.
Chapter 4—Control panel operations
There are anumber of controls on the front panel which perform various functions related
to paper handling, print modes and font selection.
After getting set up, read this chapter and try out the procedures in it to find out how the
printer works.
Chapter 5—DIP switch settings
This chapter explains how to set the DIP switches to make system settingson the printer.
Chapter 6—Printer control commands
This chapter explains the different emulations provided by your printer, and the software
commands used to drive it.This section isof use if you are writing or modifying programs
to take advantage of the printer’s features.
Chapter 7—Download characters
This chapter explains the procedures to create your own characters.
Chapter 8—MS-DOS and your printer
SincethePS/2 orPC-AT family ofcomputersrunning underMS-DOS iscurrently themost
popular configuration ofmicrocomputer, we have includedafewhints andtipsto help you
use your printer with such systems.
Since virtually allPCs are soldwith aMicrosoft BASIC interpreter, we have also included
some hints, and asample program in this language to demonstrate the capabilities of the
printer.

Chapter 9—Troubleshooting and maintenance
Thissectiongivesachecklistofpointstocheck ifyourprinterisnotworkingintheexpected
way. It also includes details of some routine maintenance operations you can carry out
yourself. It is not, however, acomplete service manual. Call aqualified service engineer
if you are unsure of your ability to carry out any maintenance or servicing operations.
Chapter 10— Reference
This section gives some references of your printer, such as specifications of your printer,
the pinout of interface comecter, the character tables.
The character table charts give the different character sets available.

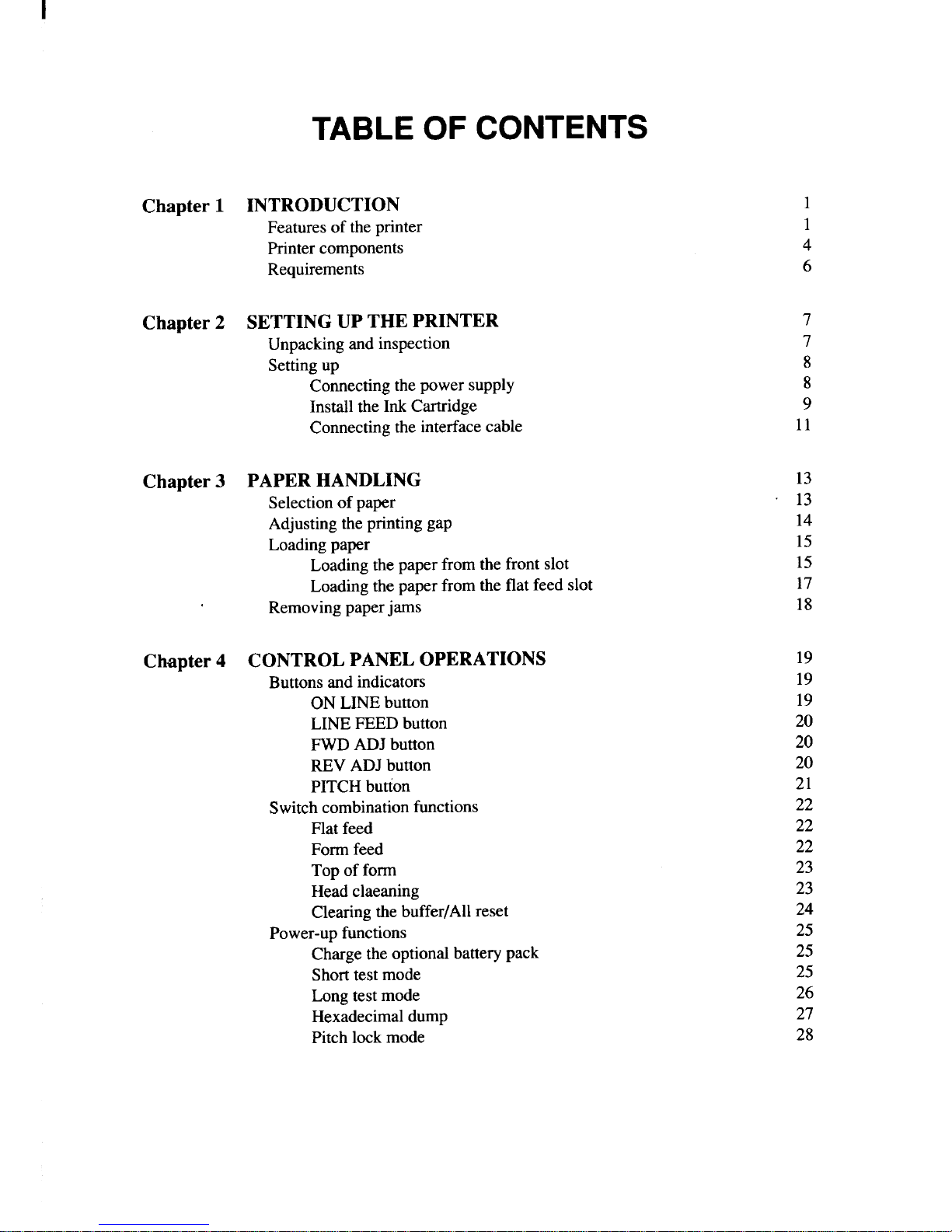

Chapter 1INTRODUCTION
Featuresoftheprinter
Printercomponents
Requirements
Chapter 2SETTING UP THE PRINTER
Unpackingandinspection

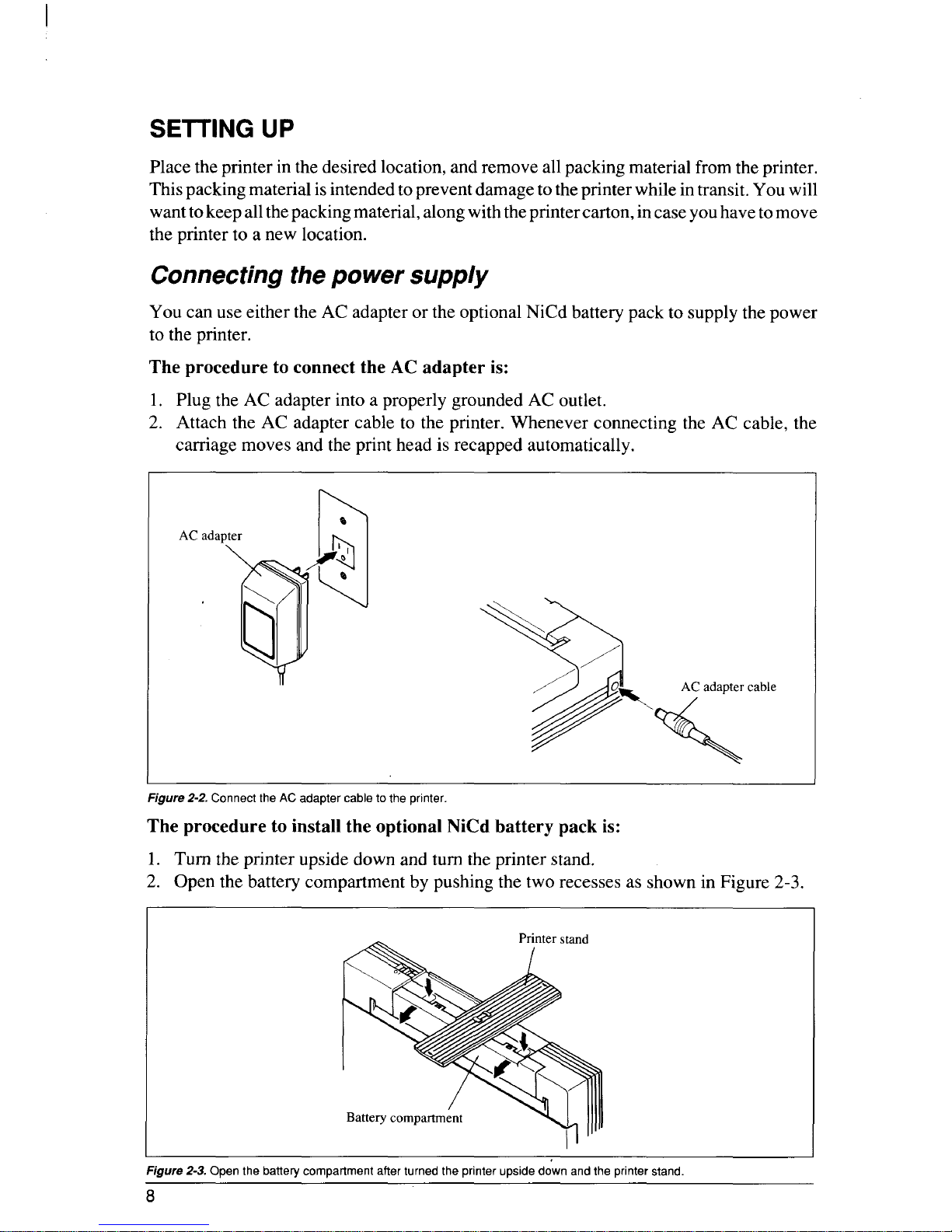

Settingup
Connectingthepowersupply

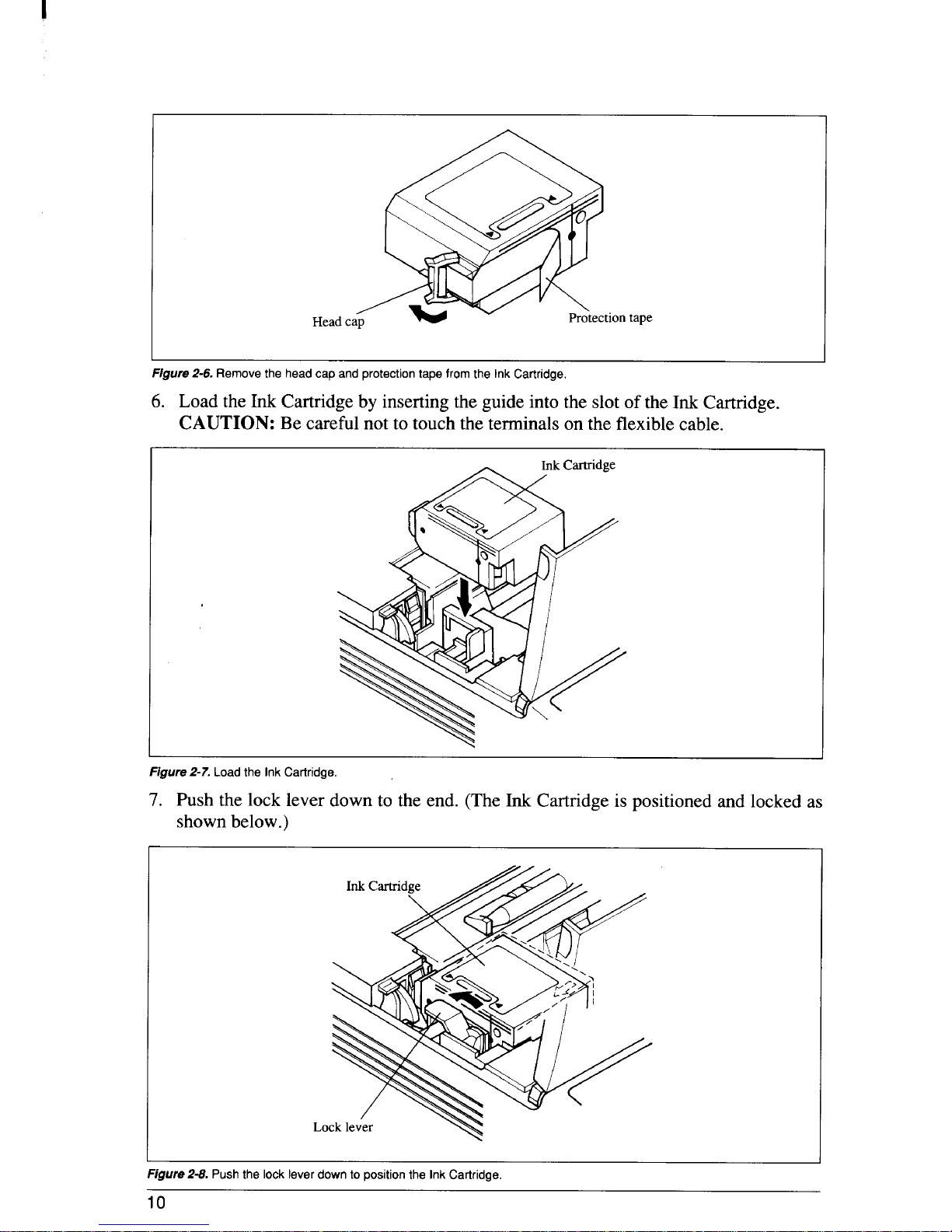

InstalltheInkCartridge

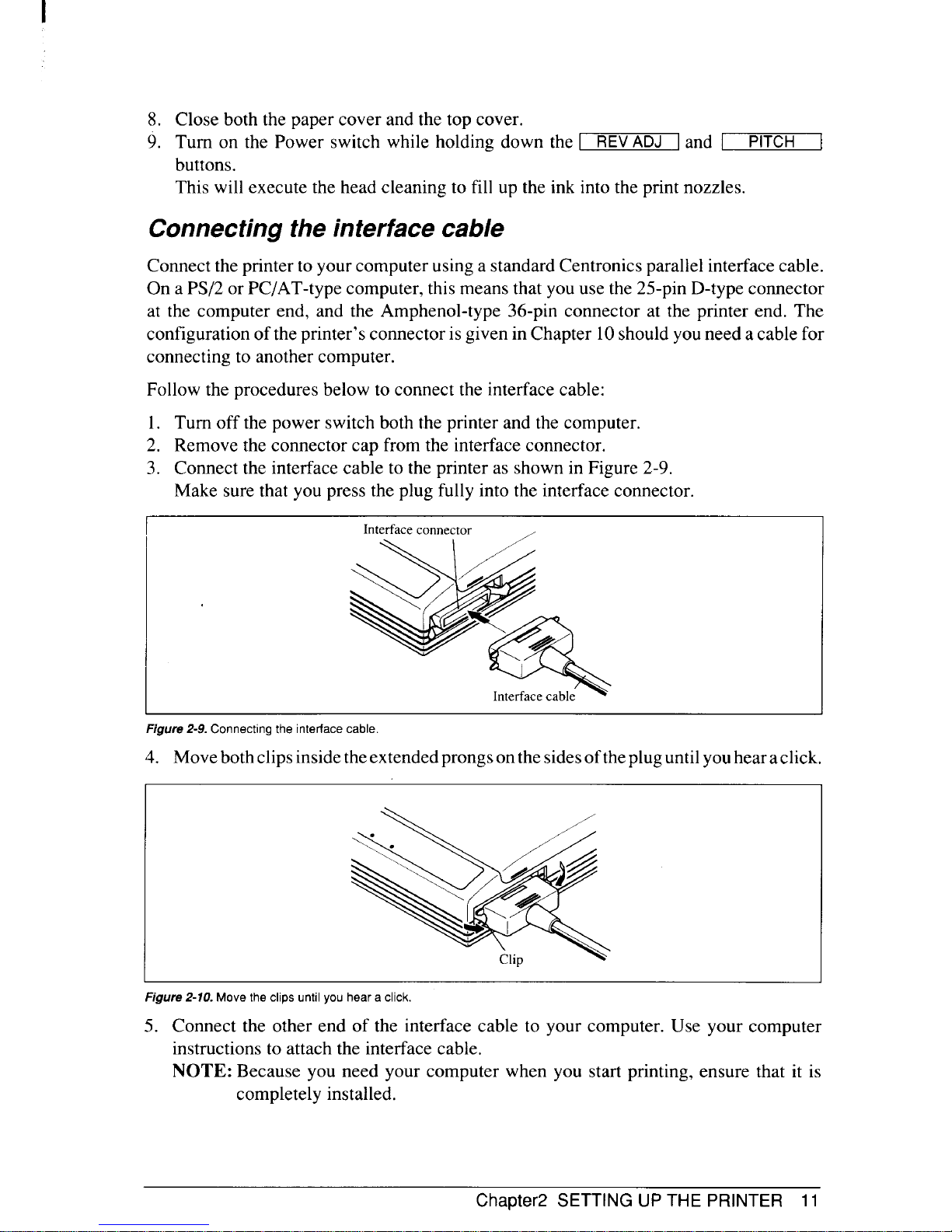

Connectingtheinterfacecable

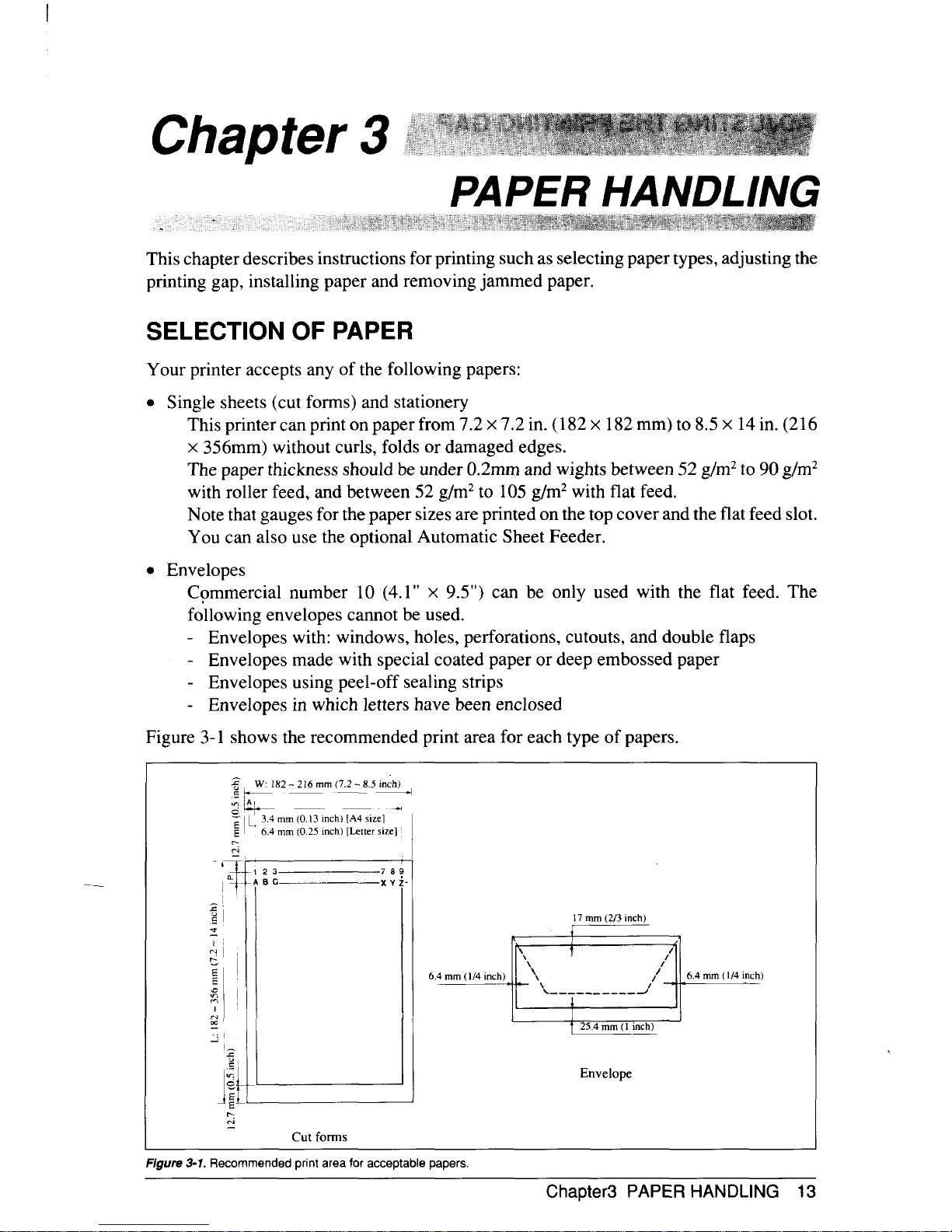

Chapter 3PAPER HANDLING
Selectionofpaper
Adjustingtheprintinggap
Loadingpaper
Loadingthepaperfromthefrontslot
Loadingthepaperfromtheflatfeedslot
Removingpaperjams
Chapter 4CONTROL PANEL OPERATIONS
Buttonsandindicators
ONLINEbutton
LINEFEEDbutton
FWDADJbutton
REVADJbutton
PITCHbution
Switchcombinationfunctions
Flatfeed
Formfeed
Topofform
Headclaeaning
Clearingthebuffer/Allreset
Power-upfunctions
Chargetheoptionalbatterypack
Shorttestmode
Longtestmode
Hexadecimaldump
Pitchlockmode
1
1
4
6
7
7
8
8
9
11
13
13
14
15
15
17
18
19
19
19
20
20
20
21
22
22
22
23
23
24
25
25
25
26
27
28

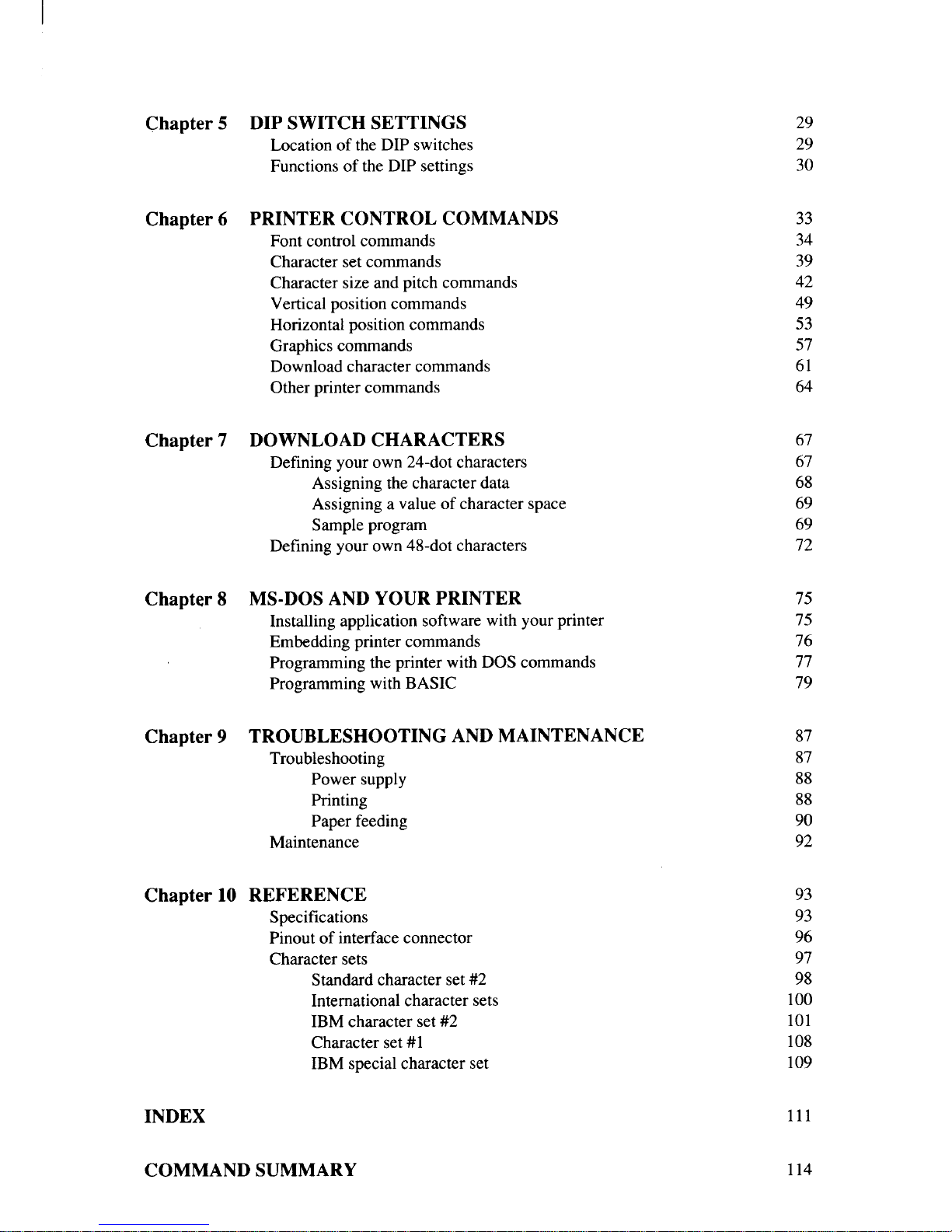

Chapter 5DIP SWITCH SETTINGS
LocationoftheDIPswitches
FunctionsoftheDIPsettings
Chapter 6PRINTER CONTROL COMMANDS
Fontcontrolcommands
Charactersetcommands
Charactersizeandpitchcommands
Verticalpositioncommands
Horizontalpositioncommands
Graphicscommands
Downloadcharactercommands
Otherprintercommands
Chapter 7DOWNLOAD CHARACTERS
Definingyourown24-dotcharacters
Assigningthecharacterdata
Assigningavalueofcharacterspace
Sampleprogram
Definingyourown48-dotcharacters
Chapter 8MS-DOS AND YOUR PRINTER
Installingapplicationsoftwarewithyourprinter
Embeddingprintercommands
ProgrammingtheprinterwithDOScommands
ProgrammingwithBASIC
Chapter 9TROUBLESHOOTING AND MAINTENANCE
Troubleshooting
Powersupply
Printing
Paperfeeding
Maintenance
Chapter 10 REFERENCE
Specifications
Pinoutofinterfaceconnector
Charactersets
Standardcharacterset#2
Internationalcharactersets
IBMcharacterset#2
Characterset#l
IBMspecialcharacterset
29
29
30
33
34
39
42
49
53
57
61
64
67
67
68
69
69
72
75
75
76
77
79
87
87
88
88
90
92
93
93
96
97
98
100
101
108
109
INDEX 111
COMMAND SUMMARY 114

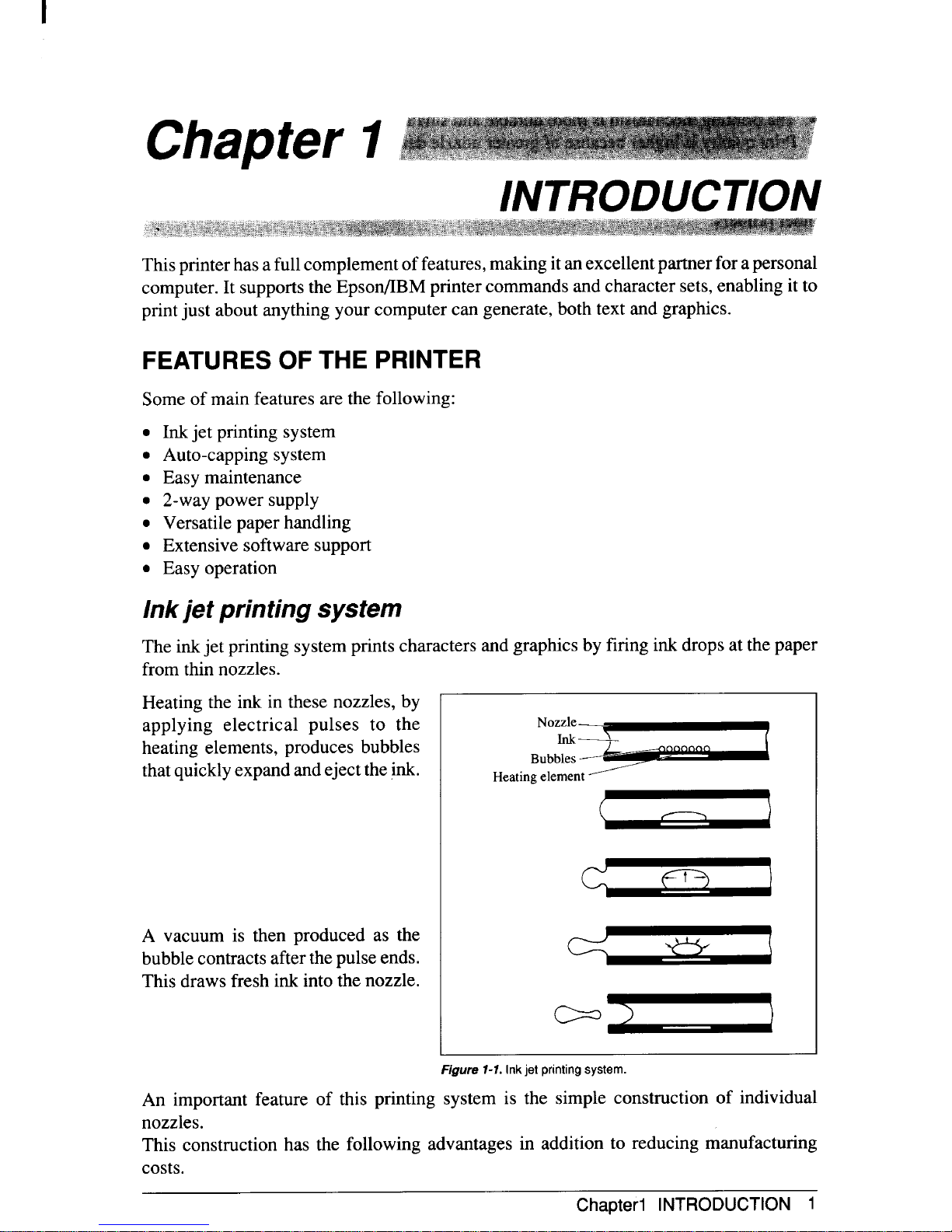

Thisprinterhas afull complement of features, making itan excellent partner for apersonal
computer. It supports the Epson/IBM printer commands and character sets, enabling it to
printjust about anything your computer can generate, both text and graphics.
FEATURES OF THE PRINTER
Some of main features are the following:
●
●
b
●
●
●
●
Ink jet printing system
Auto-capping system
Easy maintenance
2-way power supply
Versatile paper handling
Extensive software support
Easy operation
Inkjet printing system
The inkjet printing system prints characters and graphics by firing ink drops at the paper
from thin nozzles.
Heating the ink in these nozzles, by
applying electrical pulses to the
heating elements, produces bubbles
thatquicklyexpand and eject the jnk.
Avacuum is then produced as the
bubble contracts after thepulseends.
This draws fresh ink into the nozzle.
B
He
~
[F1ps
An important feature of this printing system is the simple construction of individual
nozzles.
This construction has the following advantages in addition to reducing manufacturing
costs.
Chapterl INTRODUCTION 1

.The printing mechanism is more durable and smaller.
.Print quality is higher because of greater nozzle density.
●Quiet, non-impact operation.
This means thatthe inkjet printer can be used for amuch wider range of applications than
other printers.
Auto-capping system
This printer moves the carriage to thehome positionand automatically caps the print head
whenever theprinter isturned on and off, ormore than 5secondshave passed sincethe last
data was received.
This auto-capping system prevents the head from drying out or becoming clogged with
dust, and ink dropping or evaporation.
Italsohelpstoreduce ink spillageintheeventtheprinterisheld foranyreason inotherthan
the horizontal position or is shipped.
Easy maintenance
This printeruses areplaceable Ink Cartridge (SC-10) thatcontains both the print head and
ink,the onlymaintenance required isasimplecartridge replacement. You can always rely
on high-quality printouts without complicated maintenance.
f1Tp u a rCS
Z-way power supply
You can use this printer with the AC power source using the AC adapter, or without AC
power source using the optional NiCd battery pack, BP-10.
With the optional battery pack, your printer can even be used outdoors. Great for laptop
computer users.
2

F1Tp u e a o Nb p
Versatilepaper handling
Single sheets and envelopes (COM 10size) are all accepted, and you can use either roller
feed or flat feed.
You can also feed paper with optional Automatic Sheet Feeder.
F7Tpfwtw R fFf f
Extensive software support
Since it is compatible with the Epson and IBM printers, it works with any software that
supports those printers. That includes most word-processing and graphics programs,
spread-sheets, and integrated software packages.
Easy operation
Indicator displays and beep tones provide immediate, easy to understand feedback when
you press thebuttonson the controlpanel. The five buttonscan operate in combinations to
perform asurprising variety of functions, including micro-alignment.
Chapterl INTRODUCTION 3

PRINTER COMPONENTS
To get acquainted with the printer’s components and capabilities, refer to the information
below.
Bs
rc c
d d
Es
4

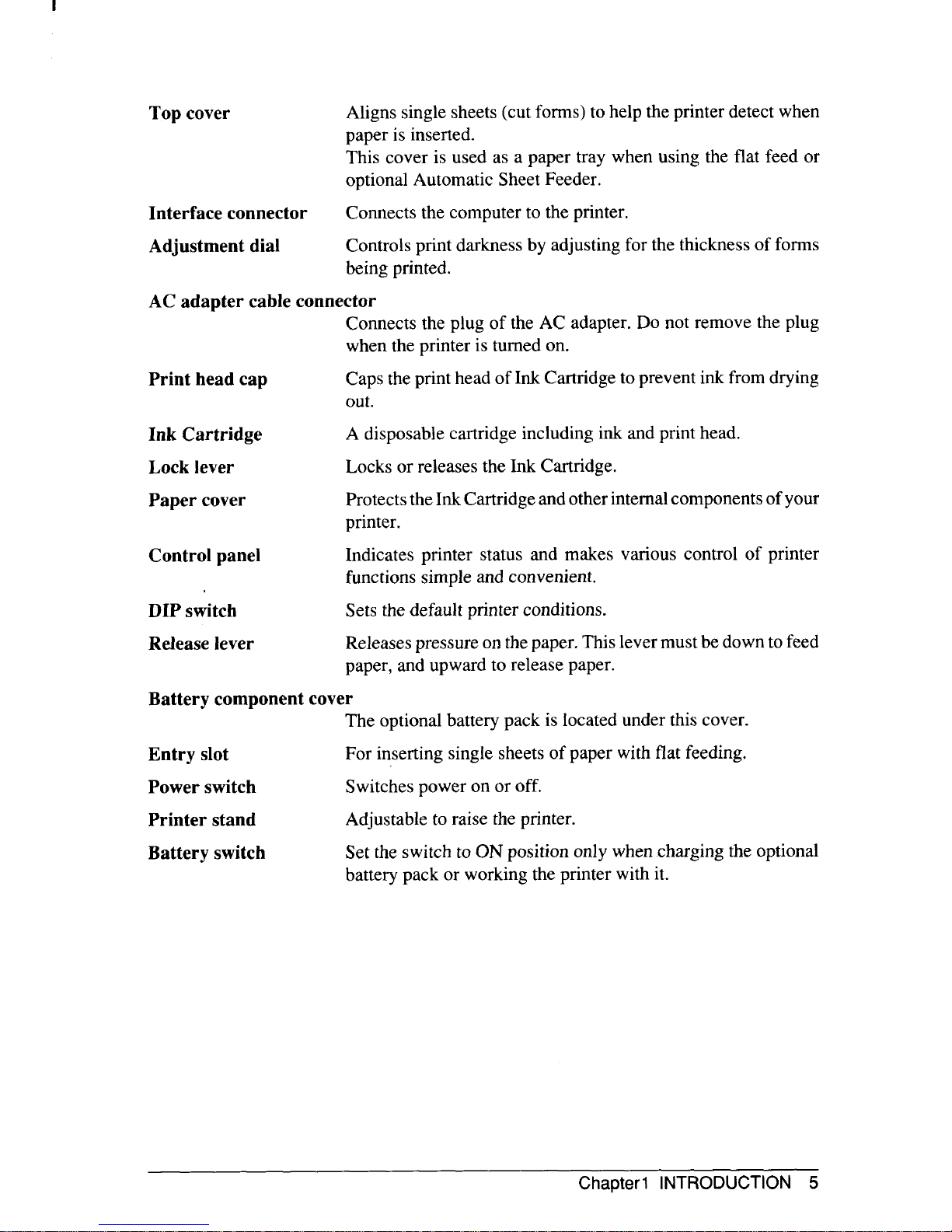

Top cover Aligns single sheets (cut forms) to help the printer detect when
paper is inserted.
This cover is used as apaper tray when using the flat feed or
optional Automatic Sheet Feeder.
Interface connector Connects the computer to the printer.
Adjustment dial Controls print darkness by adjusting for the thickness of forms
being printed.
AC adapter cable connector
Connects the plug of the AC adapter. Do not remove the plug
when the printer is turned on.
Print head cap Caps the print head of Ink Cartridge to prevent ink from drying
out.
Ink Cartridge Adisposable cartridge including ink and print head.
Lock lever Locks or releases the Ink Cartridge.
Paper cover ProtectstheInkCartridgeandotherinternalcomponents ofyour
printer.
Control panel Indicates printer status and makes various control of printer
functions simple and convenient.
DIP switch Sets the default printer conditions.
Release lever Releases pressure on thepaper. Thislever must bedown to feed
paper, and upward to release paper.
Battery component cover
The optional battery pack is located under this cover.
Entry slot For inserting single sheets of paper with flat feeding.
Power switch Switches power on or off.
Printer stand Adjustable to raise the printer.
Battery switch Set the switch to ON position only when charging the optional
battery pack or working the printer with it.
Chapterl INTRODUCTION 5

REQUIREMENTS
Before you start unpacking and setting up your printer, make sure that the following
requirements are satisfied.
Location of the printer
Make sure that you have asuitable place on which to locate the printer. By “a suitable
place”, we mean:
.Afirm, level surface which is fairly vibration-free
.Away from excessive heat (such as direct sunlight,heaters, etc)
.Away from excessive humidity or dust
.Use the printer where there is sufficientroom for the paper and any paper being fed in
or printed out.
.Make sure that the interface cable is within 2m (6ft) of the printer.
●Do not place objects on top of the printer.
Requirements of the power supply
.Supply itwith “clean” electricity. Do notconnect itto the same circuit as alarge, noise-
prod’ucingappliance such as arefrigerator.
●Make sure the line voltage is the voltage specified on the AC adapter’s identification
plate.
.Do not unplug the AC adapter cable to turn printer off. The print head will be damaged
because itcannot becapped correctly. If theAC adapter cable isunplugged by mistake,
plug it in again and switch the printer on and off to cap correctly.
Requirements of the Ink Cartridge
.Do not remove the Ink Cartridge from the printer unless it has to be replaced.
.Do not touch the print head of the Ink Cartridge. The print head is aspecial precision
component.
●Do not subject the Ink Cartridge to physical shock or vibration. Ink may be spilled on
your hands or clothes.
●Do not attempt to refill the Ink Cartridges. Aclear printout camot be obtained.
.Do not disassemble the Ink Cartridge. Ink may be spilled on your hands or clothes.
.Do not place the head of the Ink Cartridge face down.
6

STP
This chapter describes the following procedures to setup your new printer.
Before you start unpacking and setting up your printer, make sure that the requirements
described in Chapter 1are satisfied.
.Unpacking the carton box
●Connecting the power supply
.Installing the Ink Cartridge
.Comecting the printer to your computer
UNPACKINGAND INSPECTION
Now unpack the contents of the shipping carton, and check each item in the box against
Figure 2-1 to make sure that you have everything (there should be four items).
If any of these items are missing, contact your supplier.
>/
F2CmshfiPaC U m
The optional accessories which you may have ordered with your printer are:
●Automatic Sheet Feeder (SF-1OCA)
●NiCd battery pack (BP-1O)
Chapter2 SETTING UP THE PRINTER 7

SEITING UP
Place theprinter in the desired location, and remove allpacking material from the printer.
Thispacking material isintendedto preventdamage totheprinter while intransit.You will
wanttokeep allthepackingmaterial, alongwiththeprintercarton,incaseyouhavetomove
the printer to anew location.
Connecting the power supply
You can use either the AC adapter or the optional NiCd battery pack to supply the power
to the printer.
The procedure to connect the AC adapter is:
1. Plug the AC adapter into aproperly grounded AC outlet.
2. Attach the AC adapter cable to the printer. Whenever connecting the AC cable, the
carriage moves and the print head is-recapped automatically. -
a3
\,A
\
F2Cacp
The procedure to install the optional NiCd battery pack is:
1. Turn the printer upside down and turn the printer stand.
2. Open the battery compartment by pushing the two recesses as shown in Figure 2-3.
F2Obcatp u d p s
8

3. Insert the battery pack into the battery compartment with the terminal end first.
f
B
IFIb p ipwt f
4. Replace the battery compartment cover, and return the stand to its original position.
5. Tu&on thebatte~-switch Iocatedbehindtheprinter. Wheneveryou turnon thebattery
switch, the carriage moves and the print head is recapped automatically.
Install the Ink Cartridge
Your printer uses areplaceable Ink Cartridge contains both the print head and ink.
The procedure to install the Ink Cartridge is:
1. Open the top cover and the paper cover.
2. Lift the lock lever on the carriage.
covel
F Z OcpctIIrt Ilc
3. Open the package of the Ink Cartridge.
4. Push the right side of the head cap carefully as shown in Figure 2-6. It will pop off.
5. Remove the protection tape.
Chapter2 SETTING UP THE PRINTER 9

Hct t
F2Rh p t f C
6. Load the Ink Cartridge by inserting the guide into the slot of the Ink Cartridge.
CAUTION: Be careful not to touch the terminals on the flexible cable.
F2LC
7. Push the lock lever down to the end. (The Ink Cartridge is positioned and locked as
shown below.)
-,.. - - .-
FzrIOCKla p u

8.
9. Close both the paper cover and the top cover. Turn on the Power switch while holding down the [REVADJ ]and ~
buttons.
This will execute the head cleaning to fill up the ink into the print nozzles.
Connecting the interface cable
Connect the printer to your computer using astandard Centronics parallel interface cable.
On aPS/2 or PC/AT-type computer, this means that you use the 25-pin D-type connector
at the computer end, and the Amphenol-type 36-pin connector at the printer end. The
configuration ofthe printer’s connector isgiven in Chapter 10should you need acable for
connecting to another computer.
Follow the procedures below to connect the interface cable:
1. Turn off the power switch both the printer and the computer.
2. Remove the connector cap from the interface connector.
3. Connect the interface cable to the printer as shown in Figure 2-9.
Make sure that you press the plug fully into the interface connector.
Ic/
/
w“/
vR
Ic
F2Cic
4. Movebothclipsinsidetheextendedprongs onthesides ofthepluguntil youhearaclick.
F2Mcu h a c
5. Connect the other end of the interface cable to your computer. Use your computer
instructions to attach the interface cable.
NOTE: Because you need your computer when you start printing, ensure that it is
completely installed.
Chapter2 SETTING UP THE PRINTER 11

12

.,.,,.,,,,.,,,.%,,.,,,!=,:,:,,,,.,,., ,= :,,, ,,,
. ,. ,.....:.,,,=,:,,m&f
,.=,:&<!:,,9.,&:*g&:g&:- --- ~~•
,:.~,, f : ~,,j:,,i.’.+,, r,.,#3,,:$,,::,. @,*.,q/,::l)g:J~l:%l~;#WJ*j,m
,. ,,.,.:.,-
This chapter describes instructionsfor printing such as selectingpaper types, adjusting the
printing gap, installing paper and removing jammed paper.
SELECTION OF PAPER
Your printer accepts any of the following papers:
.Single sheets (cut forms) and stationery
This printer can print on paper from 7.2x 7.2 in. (182x 182mm) to 8.5 x14in. (216
x356mm) without curls, folds or damaged edges.
The paper thickness should be under 0.2mm and wights between 52 g/m2to 90 g/m2
with roller feed, and between 52 g/m2to 105g/m2with flat feed.
Note that gaugesfor thepaper sizesare printed on the top cover and the flat feed slot.
You can also use the optional Automatic Sheet Feeder.
.Envelopes
Commercial number 10 (4.1” x9.5”) can be only used with the flat feed. The
following envelopes camot be used.
Envelopes with: windows, holes, perforations, cutouts, and double flaps
Envelopes made with special coated paper or deep embossed paper
-Envelopes using peel-off sealing strips
-Envelopes in which letters have been enclosed
Figure 3-1 shows the recommended print area for each type of papers.
W: 182-216 mm(7.2 -8.5 inch)
:>- .— —
~I(013Inch)
6.4 mm(0.25 inch)[letter size]
.
5— —
17mm(2/3 inch)
1
4
I
cutf
I
‘4mm(4in
I1I
125,4mm(l inch)
IE
F3Rp a a p
Chapter3 PAPER HANDLING 13

ADJUSTING THE PRINTING GAP
Thedistancebetween theprintheadandthepapercanbe adjustedtoaccommodatedifferent
paper thicknesses.The adjustment dial is located behind the interface connector at the left
side of the printer.
There are three positions, and you can feel the dial clicking intoeach position.The center
positionisforhigh densitygraphicsprintingon normal paper. Turning the adjustmentdial
clockwiseisforthenormalpaper, andthecounterclockwise isforthickpaperor envelopes.
F3L a d
14
