Stewart Golf R1-S PUSH Guide

WARNINGS
• Keep hands and fingers away from moving parts when folding or unfolding.
• Only clean with a damp, soft cloth or air line. Never clean with a hose pipe or pressure
washer.
WARRANTY
Stewart Golf warrants the R1-S Push to be free from manufacturing or material defects
for a period of two (2) years (when registered) from the date of purchase. The warranty
does not cover normal wear & tear, damage that occurs through abuse, accident, neglect
or failure to follow the instructions or warnings contained in the user guide. Stewart Golf is
the sole judge of any and all warranty claims. Proof of purchase is required.
DOUBLE YOUR R1 PUSH WARRANTY
TO TWO YEARS - FREE OF CHARGE
Simply register your purchase at stewartgolf.com/warranty
FOR FULL INSTRUCTIONS & TROUBLESHOOTING PLEASE REFER
TO THE VIDEO GUIDE AT STEWARTGOLF.COM/R1SPUSH
R1-S PUSH
OWNER’S MANUAL & USER GUIDE
DESIGN PROTECTION:
This product is protected by the following registrations:
GB Patent: GB2513930
European Design Registration: 2475913 & 2478545
US Patent Application: 14/465,980
For more information & other regions visit www.stewartgolf.com/IP.
H
A
N
D
B
U
I
L
T
100255

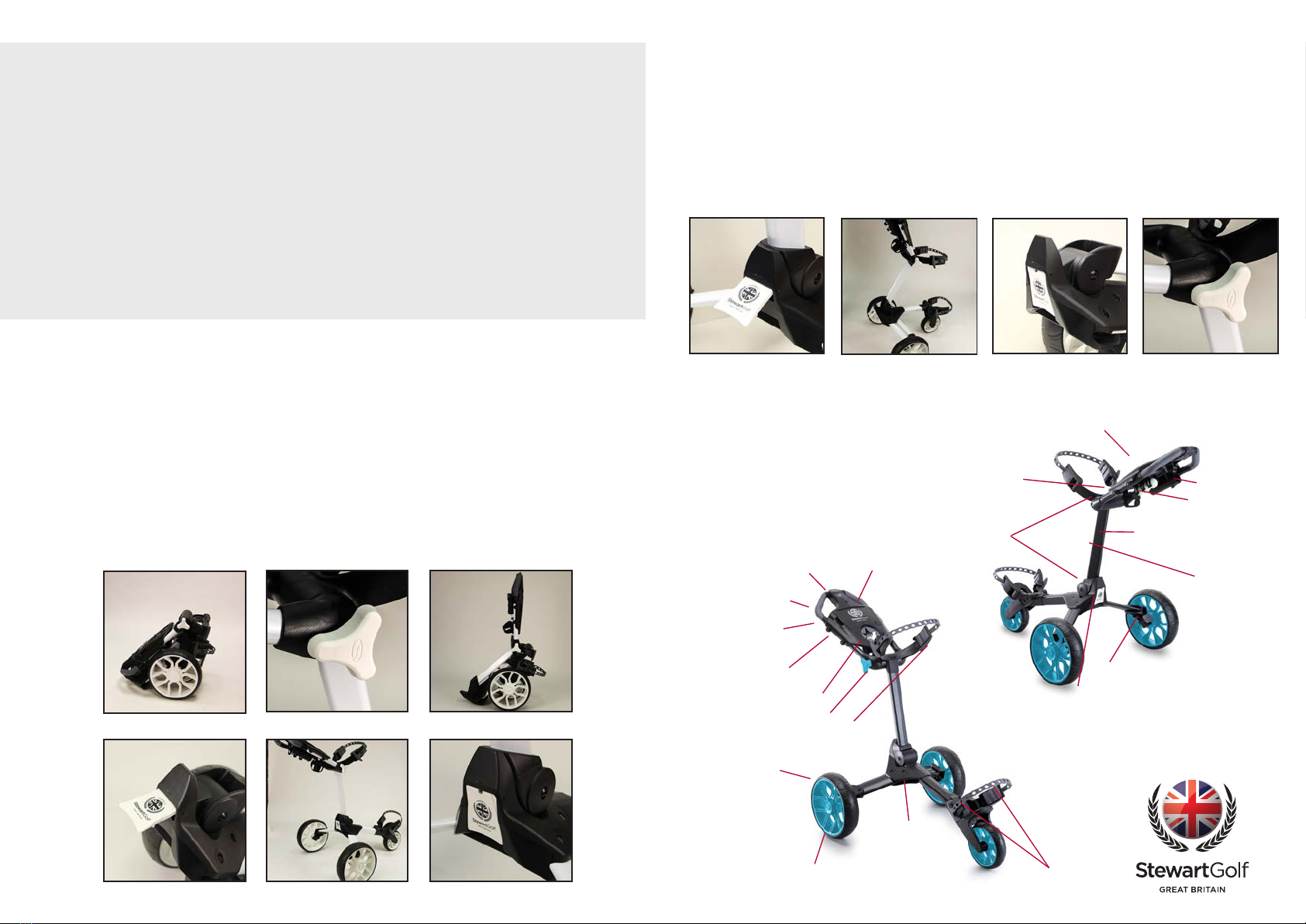

Please follow this guide, or visit stewartgolf.com/R1SPush for a video guide.
• Remove the R1-S Push from the box and sit the trolley on the floor.
• Rock the R1-S Push backwards so the bag jaws are up in the air. (Fig 1)
• Loosen the handle knob (Fig 2) and rotate the handle so it is vertical. (Fig 3)
• Tighten the handle knob. (Fig 2)
• Hold the handle in one hand and rotate the trolley forward so the white frame lock is
accessible, then open the frame lock. (Fig 4)
• Lift the handle, pulling upwards until the frame is fully open. (Fig 5). DO NOT STEP on the
frame when unfolding. Doing so may damage the trolley and will invalidate your warranty.
• Now close the frame lock. (Fig 6)
Fig 1 Fig 2 Fig 3
UNPACKING AND UNFOLDING
Fig 4 Fig 5 Fig 6
Accommodates any
kind of golf bag
Powder coated
aluminium frame
4 accessory points
Large storage compartment
Umbrella holder
tube
3 golf ball holders
Simple two step
folding mechanism
Press on/o
foot brake
Frame lock
Silicone bag straps
Magnetic ball marker Pencil holder
Soft touch handles
Fully adjustable
handle height
Internal & external
scorecard holder
Bottle holder
Quick release
wheels
(front and rear)
Weight: 8.1kg
Folded dimensions 37 x 63 x 34cm Bag Jaws
Warning and important safety instructions contained in this guide are not meant to cover all
possible conditions and situations that may occur. Common sense, caution and care must
be exercised when operating or cleaning this product.
• Please read this short guide in full before you attempt to unpack, assemble or use the
product.
• This trolley is designed solely for the transportation of golf equipment on a golf course.
• Always follow the folding instructions carefully.
• Ensure that you keep clear of moving parts while unfolding, folding or adjusting the
product.
• Always use the brake when parking the trolley to ensure it does not roll away.
Congratulations on becoming the owner of a Stewart Golf R1-S Push. This
product has been hand built in Great Britain to our usual exacting standards,
thank you for choosing a Stewart Golf product.
• Undo the frame lock (Fig 7) and push the handle up and over until the unit is folded.
(Fig 8)
• Close the frame lock to secure the frame. (Fig 9)
• Loosen the handle knob & lower the handle until it comes to rest. Now tighten the
handle knob. (Fig 10)
FOLDING
Fig 7 Fig 8 Fig 9 Fig 10
Handle knob
H
A
N
D
B
U
I
L
T
