STIEBEL ELTRON DHC-E 8/10 User manual

OPERATION AND INSTALLATION
OPERACIÓN E INSTALACIÓN
UTILISATION ET INSTALLATION
ЭКСПЛУАТАЦИЯ И МОНТАЖ
Electronically controlled instantaneous water heater | Calentador instantáneo con
controlado electrónica | Chauffe-eau instantané à gestion électronique | Проточные
водонагреватели с электронным управлением
» DHC-E 8/10
» DHC-E 12
84335
The DHC series is tested and
certified by WQA against
NSF/ANSI 372 for lead free
compliance.

2| DHC-E WWW.STIEBEL-ELTRON.COM
CONTENTS | OPERATION
OPERATION
1. General information �����������������������������������������2
1.1 Safety information����������������������������������������������� 2
1.2 Other symbols in this document������������������������������ 3
2. Safety����������������������������������������������������������3
2.1 Intended use������������������������������������������������������ 3
2.2 General Information��������������������������������������������� 3
2.3 Safety Precautions����������������������������������������������� 3
2.4 Test symbols ������������������������������������������������������ 3
3. General��������������������������������������������������������4
4. Troubleshooting ����������������������������������������������4
INSTALLATION
5. Mounting the appliance �������������������������������������5
5.1 Application�������������������������������������������������������� 5
5.2 Mounting ���������������������������������������������������������� 5
5.3 Water connections����������������������������������������������� 6
6. Electrical connection�����������������������������������������6
6.1 DHC-E 8/10 - Appliance with output power options ������ 6
6.2 Temperature setting/anti-scalding protection ������������ 7
7. Commissioning �����������������������������������������������7
7.1 Appliance handover ��������������������������������������������� 7
8. Troubleshooting ����������������������������������������������7
8.1 Display options LED diagnostic „traffic lights“������������� 7
8.2 Fault table��������������������������������������������������������� 7
9. Normal maintenance�����������������������������������������8
10. Technical Data ������������������������������������������������8
10.1 Dimensioned drawing ������������������������������������������ 8
10.2 Wiring diagram �������������������������������������������������� 8
10.3 Maximum temperature increase above ambient water
temperature ������������������������������������������������������ 9
10.4 Data table �������������������������������������������������������� 10
11. Spare parts ������������������������������������������������� 11
WARRANTY | ENVIRONMENT AND RECYCLING
OPERATION
1. General information
Note Read these instructions carefully before using the ap-
pliance and familiarize yourself with its functions. Keep
these instructions safe. Pass on the instructions to a new
user if required.
1.1 Safety information
1.1.1 Structure of safety information
KEYWORD Type of risk Here, possible consequences are listed that may re-
sult from not observing the safety information.
fSteps to prevent the risk are listed.
1.1.2 Symbols. type of risk
Symbol Type of risk
!Injury
Electrocution
Burns or scalding
1.1.3 Keywords
KEYWORD Description
DANGER If this information is not observed, it will result in serious
injury or death.
WARNING If this information is not observed, it can result in serious
injury or death.
CAUTION If this information is not observed, it can lead to medium
or minor injury.

OPERATION
SAFETY
ENGLISH
WWW.STIEBEL-ELTRON.COM DHC-E | 3
1.2 Other symbols in this document
Note Notes are bordered by horizontal lines above and below
the text. General information is identified by the symbol
shown on the left.
fRead these notes carefully.
Symbol
!Damage to the appliance and environment
Appliance disposal
fThis symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
2. Safety
Observe the following safety information and regulations.
Operate the appliance only when fully installed and with all safety
equipment fitted.
2.1 Intended use
The appliance is intended for heating domestic hot water and can
supply several draw-off points.
Any other use beyond that described shall be deemed inappro-
priate.
Observation of these instructions is also part of the correct use
of this appliance.
2.2 General Information
This appliance is designed for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-
domestic environment, e.g. in a small business, as long as it is
used in the same way.
Read this entire manual. Failure to follow all the guides, instruc-
tions and rules could cause personal injury or property damage.
Improper installation, adjustment, alteration, service and use of
this appliance can result in serious injury.
This appliance must be installed by a licensed electrician and
plumber. The installation must comply with all national, state and
local plumbing and electric codes. Proper installation is the re-
sponsibility of the installer. Failure to comply with the installation
and operating instructions or improper use voids the warranty.
Save these instructions for future reference. Installer should leave
these instructions with the consumer.
If you have any questions regarding the installation, use or opera-
tion of this water heater, or if you need any additional installation
manuals, please call our technical service line, see last side.
2.3 Safety Precautions
!DANGER Injury
Please read and follow these instructions.
Failure to follow these instructions could result in seri-
oius personal injury or death.
!Damage to the appliance and the environment
The appliance must be installed by a licensed electrician
and plumber. The installation must comply with all nati-
onal, state and local plumbing and electric codes.
Service of the appliance must be performed by qualified
service TECHNICIANS.
DANGER Electrocution Before proceeding with any installation, adjustment. al-
teration, or service of this appliance all circuit breakers
and disconnect switches servicing the appliance must
be turned off. Failure to do so could result in serious
personal injury or death.
DANGER Electrocution Never remove the appliance‘s cover unless the electricity
servicing the appliance is turned off. Failure to do so
could result in personal injury or death.
DANGER Electrocution The appliance must be properly grounded. Failure to
electrically ground the product could result in serious
personal injury or death.
DANGER Burns Water temperatures over 125°F (52 °C)can cause severe
burns instantly or death from scalding. A hot water scal-
ding potential exists if the thermostat on the appliance
is set too high. Households with small children, disabled
or elderly persons may require that the thermostat be
set at 113°F (45 °C) or lower to prevent possible injury
from hot water.
!WARNING Injury
The appliance may be used by children aged 8 and up
and persons with reduced physical, sensory or mental
capabilities or a lack of experience provided that they
are supervised or they have been instructed on how to
use the appliance safely and have understood the result-
ing risks. Children must never play with the appliance.
Children must never clean the appliance or perform user
maintenance unless they are supervised.
2.4 Test symbols
See type plate on the appliance.

OPERATION
GENERAL
4| DHC-E WWW.STIEBEL-ELTRON.COM
3. General
The tankless water heater differs from conventional storage type
water heaters in several ways. It does not store hot water. Instead,
water is heated instantaneously as it flows through the appliance.
Due to the absence of stand-by losses, the appliance offers greater
energy efficiency than storage type water heaters.

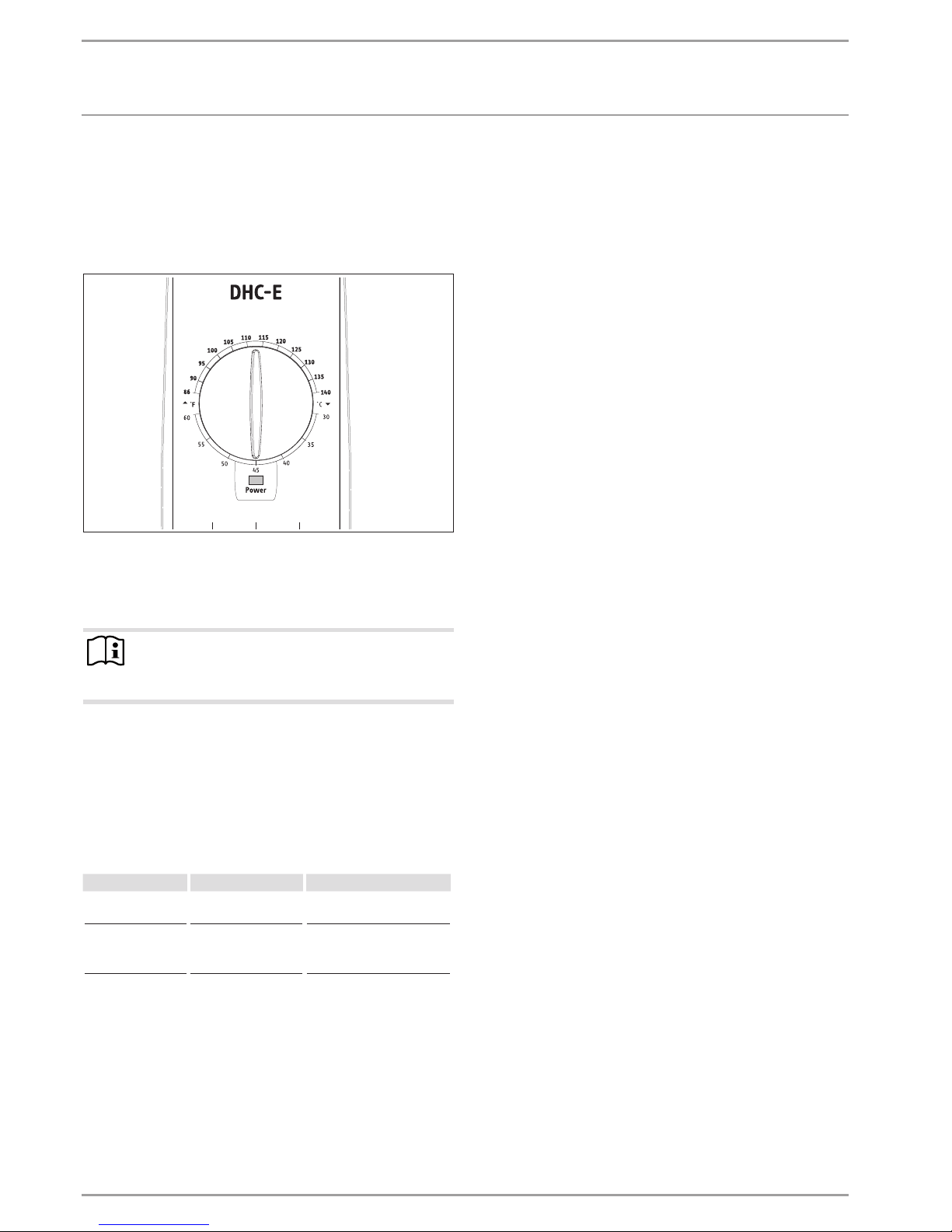

26�02�02�1086
The input of heat into the water is electronically controlled. The
appliance will deliver any water temperature between 86°F
(30°C) and 140 °F (60°C). Please set the desired temperature
using the knob on the front cover.
Note For reasons of appliance efficiency and durability (sca-
ling), the optimum temperature setting lies between
86°F (30°C) and 120°F (50°C).
In case the “Power” light is flashing while the appliance operates,
the water flow rate exceeds the heating capacity of the appli-
ance. Reduce the hot water flow rate in order to let the appliance
achieve the set point temperature. The maximum temperature is
electronically limited to 140 °F (60 °C). In case you have questions
regarding the way you plan to use the appliance, please call our
technical service line, see last side.
4. Troubleshooting
Symptom Possible Cause Solution
No hot water not enough flow rate to
activate appliance
clean faucet aerator or shower
head
Water not hot enough water flow too high reduce water flow rate until
light on front cover stops
blinking
If you cannot remedy the fault, notify the contractor who installed
the appliance. To facilitate and speed up your enquiry, please pro-
vide the serial number from the type plate (000000-0000-000000).

ENGLISH
WWW.STIEBEL-ELTRON.COM DHC-E | 5
INSTALLATION
MOUNTING THE APPLIANCE
INSTALLATION
5. Mounting the appliance
5.1 Application
One appliance can be used for the following applications:
one or multiple hand washing sinks
one kitchen sink
cabins with flow restriction at shower head.
A combination of two appliance can be used for whole apartment
and house applications. Please contact STIEBEL ELTRON for special
installation instructions.
All areas with a ground water temperature likely to exceed 65°F
(18°C) year round:
Whole apartment or house
CAUTION Electrocution Unit must be installed in a vertical position with the
water fittings pointing downward. In this position the
unit is splashproof, so that no water can soak in.
1 2
3
4
5
6
7
26�02�02�1082
12
3
4
5
6
7
26�02�02�1081
1 Hot valve (left)
2 Cold valve (right)
3 Sink
4 1/2“ main pipe
5 Water supply line for faucet installation
6 Shut-off valve
7 Electrical junction box
5.2 Mounting
fInstall appliance as close as possible to the main hot water
draw-off points.
fInstall appliance in a frost free area. If frost may occur, re-
move appliance before freezing temperatures set in.
fLeave a minimum of 5“ of clearance on all sides for servicing.
26�02�02�1083
fRemove plastic cover.
D0000040487
26�02�02�1090
fScrew the screws into the wall and hang the appliance.
Screws and plastic wall anchors for mounting on masonry or
wood are provided.
fSecure the screws.

6| DHC-E WWW.STIEBEL-ELTRON.COM
INSTALLATION
ELECTRICAL CONNECTION
5.3 Water connections
!Damage to the appliance and the environment
Excessive heat from soldering on copper pipes near the
DHC may cause damage.
fAll plumbing work must comply with national and applicable
state and local plumbing codes.
fNotice for Australia / New Zealand:
The installation shall comply with AS/NZS 3500.4.
fA pressure reducing valve must be installed if the cold water
supply pressure exceeds 150 PSI (10 bar).
fMake certain that the cold water supply line has been flushed
to remove any scale and dirt.
fInstall isolating valve in cold water line as shown in illustra-
tion “Mounting the appliance”. This allows the appliance to
be isolated for maintenance purposes.
fCold water connection (inlet) is on the right side of the ap-
pliance, hot water connection (outlet) is on the left side of
appliance.
fTankless water heaters such as the DHC-E are not required to
be equipped with a Pressure and Temperature Relief Valve
(P&T). If the local inspector will not pass the installation
without a P&T, it should be installed on the hot water outlet
side of appliance.
fThe appliance is designed for connection to copper tubing,
PEX tubing or a braided stainless steel hose with a ½“ NPT
female tapered thread. If soldering near the appliance is nec-
essary, please direct the flame away from the plastic housing
of the appliance in order to avoid damage.
fWhen all plumbing work is completed, check for leaks and
take corrective action before proceeding.

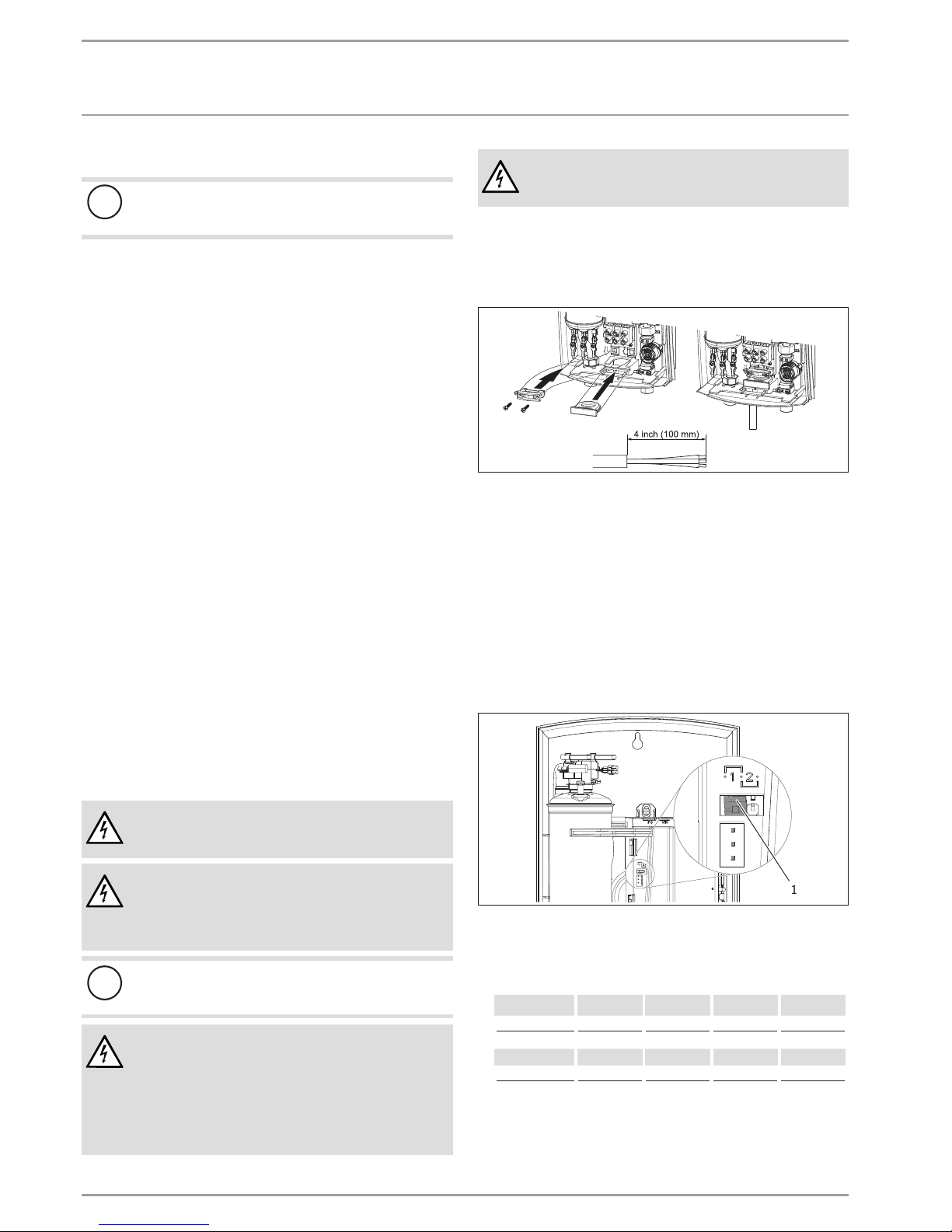

6. Electrical connection
DANGER Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
DANGER Electrocution Only use a permanent connection to the power supply.
The appliance must be able to be separated from the
power supply by an isolator that disconnects all poles
with at least 3mm contact separation.
!Damage to the appliance and the environment
Observe the type plate. The specified voltage must match
the mains voltage.
DANGER Electrocution Before beginning any work on the electric installati-
on, be sure that main breaker panel switch is „off“ to
avoid any danger of electric shock. All mounting and
plumbing must be completed before proceeding with
electrical hook-up. Where required by local, state or
national electrical codes the circuit should be equipped
with a „ground fault interrupter“.
DANGER Electrocution As with any electric appliance. failure to electrically
ground appliance may result in serious injury or death.
fThe appliance should be connected to a properly grounded
dedicated branch circuit of proper voltage rating. In installa-
tions with several appliances, each appliance requires an
independent circuit. Please refer to the technical data table
for the correct wire and circuit breaker size.
26�02�02�1084
fThe wire must be fed through the rubber seal located be-
tween the hot and cold water connections. Then feed wires
through strain relief clamp and tighten clamp down on wire.
The „live“ wires must be connected to the slots on the ter-
minal block marked L and L (L and N). The ground wire must
be connected to slot marked with the ground symbol. Strain
relief clamp with screws and rubber seal are provided.
6.1 DHC-E 8/10 - Appliance with output power op-
tions
For the DHC-E 8/10 instantaneous water heater, the output power
is adjustable in 2 stages. In its delivered condition the appliance
is set to 7.2 kW@240 V.
1
26�02�02�1088
1 coding plug
If the appliance should be installed with a different output power,
take the following steps:
fInsert the coding plug to the desired performance.
Stage 1 208 V 220 V 230 V 240 V
5,4 kW 6,0 kW 6,6 kW 7,2 kW
Stage 2 208 V 220 V 230 V 240 V
7,2 kW 8,1 kW 8,8 kW 9,6 kW
fMark the selected output power and voltage on the type plate
with a permanent marker.

ENGLISH
WWW.STIEBEL-ELTRON.COM DHC-E | 7
INSTALLATION
COMMISSIONING

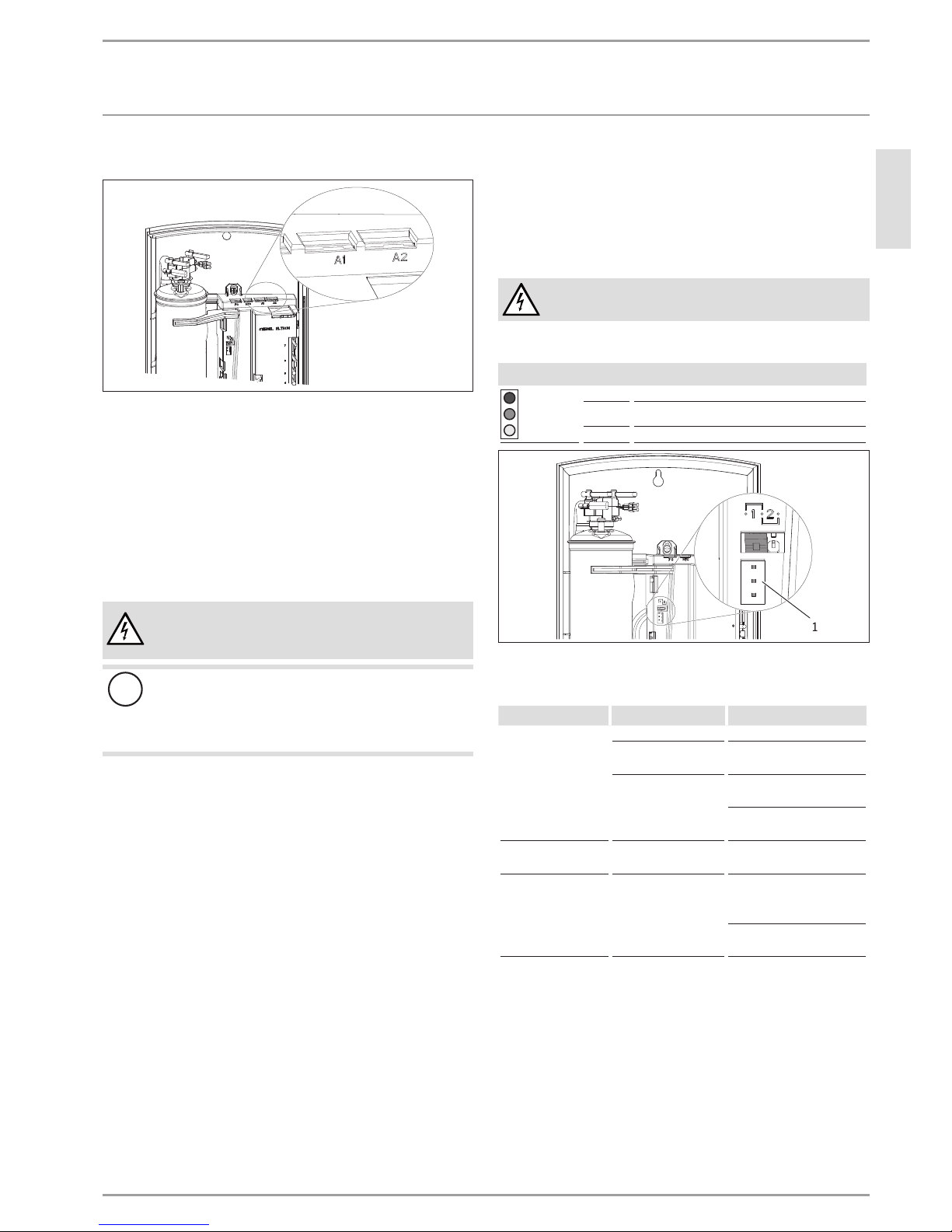

6.2 Temperature setting/anti-scalding protection
26�02�02�1089
fConnect the lead of the electronic temperature control to po-
sition „A1“ in order to get the maximum outlet temperature
of 140°F (60°C).
The maximum temperature can be limited to 109°F (43°C):
fConnect the lead of the electronic temperature control to po-
sition „A2“.
fReinstall the plastic cover.
7. Commissioning
DANGER Electrocution Commissioning must only be carried out by an authorised
contractor in accordance with safety regulations.
!Damage to the appliance and the environment
Open hot water faucet for a few minutes until water flow
is continuous and all air is purged from water pipes. The
appliance’s plastic cover must be installed before the cir-
cuit breaker is turned on.
fTurn on circuit breaker to bring electrical power to the
appliance.
fTurn the temperature selector clockwise and anti-clockwise,
to calibrate the temperatur selector.
fAdjust the water temperature to the desired level using the
knob on the front cover of the appliance.
fTurn on hot water and wait twenty seconds until temperature
has stabilized.
fCheck the water temperature with your hand and make sure
that it does not feel too hot. Reduce temperature if this is
necessary. A setting of 108°F - 116°F (42 - 47°C) is recom-
mended for most applications.
fExplain to the user how the appliance works and familiarise
him or her with its use.
fAdvise the user about possible hazards (hot water tempera-
ture up to 140°F (60°C). Hand over these instructions, to be
kept for future reference.
fA setting of 108°F - 116°F (42 - 47 °C) is recommended for
most applications.
7.1 Appliance handover
Explain the functions of the appliance to the user. Draw special
attention to the safety information. Hand the operating and instal-
lation instructions to the user.
8. Troubleshooting
Danger of electrocution To test the appliance, it must be supplied with power.
8.1 Display options LED diagnostic „traffic lights“
Display options
red illuminates in case of faults
yellow illuminates when the appliance is heating water
green flashing: The appliance is supplied with power
1
26�02�02�1088
1 LED diagnostic „traffic lights“
8.2 Fault table
Symptom Possible Cause Solution
No hot water circuit breaker off
safety thermal cut-out
tripped
turn circuit breaker on
reset thermal cut-out
not enough flow rate to
activate appliance
clean filter screen at appli-
ance
clean faucet aerator or sho-
wer head
Not enough hot water filter screen clogged clean filter screen at appli-
ance
Water not hot enough water flow too high reduce water flow rate until
light on front cover stops
blinking
supply correct voltage to
appliance
fIf you are not able to resolve a problem please contact us,
see last side, before removing the appliance from the wall.
STIEBEL ELTRON is happy to provide technical assistance. In
most instances, we can resolve the problem over the phone.

8| DHC-E WWW.STIEBEL-ELTRON.COM
INSTALLATION
NORMAL MAINTENANCE
9. Normal maintenance
STIEBEL ELTRON tankless water heaters are designed for a very
long service life. Actual life expectancy will vary with water qual-
ity and use. The appliance itself does not require any regular
maintenance.
However, to ensure consistent water flow, it is recommended to
periodically remove scale and dirt that may build up at the aera-
tor of the faucet(s), the filter screen in the appliance, or in the
shower head.
10. Technical Data
10.1 Dimensioned drawing
b01
c06 c01
c01
c06
38 (1.5")
360 (14.17")
200 (7.88")
100 (3.94") 110 (4.33")
273 (10.75")75 (2.953")
8 (0.315")
D0000017762
b01 Electrical cable entry
c01 cold water inlet "NPT 1/2
c06 hot water outlet "NPT 1/2
10.2 Wiring diagram
DHC-E 8/10
2/GRD ~ 208 / 240 V
1/N/PE ~ 220 / 230 / 240V
85�02�03�0001
DHC-E 12
2/GRD ~ 208 / 240 V
1/N/PE ~ 220 / 230 / 240V
85�02�03�0002

ENGLISH
WWW.STIEBEL-ELTRON.COM DHC-E | 9
INSTALLATION
TECHNICAL DATA
10.3 Maximum temperature increase above ambient water temperature
Warm water flow rate [ GPM ]
Warm water outlet temperature 104 °F
Cold water inlet temperature °F 39 50 59 68 77 86 95 104 113 122 131
DHC-E 8/10 5.4 kW @ 208 V 0.57 0.68 0.82 1.02 1.36 2.04 4.09 - - - -
7.2 kW @ 240 V 0.76 0.91 1.09 1.36 1.82 2.72 5.45 - - - -
7.2 kW @ 208 V 0.76 0.91 1.09 1.36 1.82 2.72 5.45 - - - -
9.6 kW @ 240 V 1.01 1.21 1.45 1.82 2.42 3.63 6.61 - - - -
DHC-E 12 9 kW @ 208 V 0.95 1.14 1.36 1.70 2.27 3.23 6.47 ----
12 kW @ 240 V 1.26 1.51 1.82 2.27 3.03 4.31 6.61 - - - -
Warm water outlet temperature 113 °F
Cold water inlet temperature °F 39 50 59 68 77 86 95 104 113 122 131
DHC-E 8/10 5.4 kW @ 208 V 0.50 0.58 0.68 0.82 1.02 1.36 2.04 4.09 ---
7.2 kW @ 240 V 0.66 0.78 0.91 1.09 1.36 1.82 2.72 5.45 - - -
7.2 kW @ 208 V 0.66 0.78 0.91 1.09 1.36 1.82 2.72 5.45 - - -
9.6 kW @ 240 V 0.89 1.04 1.21 1.45 1.82 2.42 3.63 6.61 ---
DHC-E 12 9 kW @ 208 V 0.83 0.97 1.14 1.36 1.70 2.16 3.23 6.47 - - -
12 kW @ 240 V 1.11 1.30 1.51 1.82 2.27 2.88 4.31 6.61 ---
Warm water outlet temperature 140 °F
Cold water inlet temperature °F 39 50 59 68 77 86 95 104 113 122 131
DHC-E 8/10 5.4 kW @ 208 V 0.36 0.41 0.45 0.51 0.58 0.68 0.82 1.02 1.36 2.04 4.09
7.2 kW @ 240 V 0.49 0.54 0.61 0.68 0.78 0.91 1.09 1.36 1.82 2.72 5.45
7.2 kW @ 208 V 0.49 0.54 0.61 0.68 0.78 0.91 1.09 1.36 1.82 2.72 5.45
9.6 kW @ 240 V 0.65 0.73 0.81 0.91 1.04 1.21 1.45 1.82 2.42 3.63 6.61
DHC-E 12 9 kW @ 208 V 0.61 0.68 0.76 0.85 0.97 1.08 1.29 1.62 2.16 3.23 6.47
12 kW @ 240 V 0.81 0.91 1.01 1.14 1.30 1.44 1.73 2.16 2.88 4.31 6.61
Warm water flow rate [ l/min ]
Warm water outlet temperature 40 °C
Cold water inlet temperature °C 4 10 15 20 25 30 35 40 45 50 55
DHC-E 8/10 5.4 kW @ 208 V 2.15 2.58 3.09 3.87 5.16 7.73 15.47 ----
7.2 kW @ 240 V 2.86 3.44 4.12 5.16 6.87 10.31 20.62 - - - -
7.2 kW @ 208 V 2.86 3.44 4.12 5.16 6.87 10.31 20.62 ----
9.6 kW @ 240 V 3.82 4.58 5.50 6.87 9.16 13.75 25.00 - - - -
DHC-E 12 9 kW @ 208 V 3.58 4.30 5.16 6.44 8.59 12.24 24.49 - - - -
12 kW @ 240 V 4.77 5.73 6.87 8.59 11.46 16.32 25.00 ----
Warm water outlet temperature 45 °C
Cold water inlet temperature °C 4 10 1 20 25 30 35 40 45 50 55
DHC-E 8/10 5.4 kW @ 208 V 1.89 2.21 2.58 3.09 3.87 5.16 7.73 15.47 - - -
7.2 kW @ 240 V 2.51 2.95 3.44 4.12 5.16 6.87 10.31 20.62 ---
7.2 kW @ 208 V 2.51 2.95 3.44 4.12 5.16 6.87 10.31 20.62 - - -
9.6 kW @ 240 V 3.35 3.93 4.58 5.50 6.87 9.16 13.75 25.00 - - -
DHC-E 12 9 kW @ 208 V 3.14 3.68 4.30 5.16 6.44 8.16 12.24 24.49 ---
12 kW @ 240 V 4.19 4.91 5.73 6.87 8.59 10.88 16.32 25.00 - - -
Warm water outlet temperature 60 °C
Cold water inlet temperature °C 4 10 15 20 25 30 35 40 45 50 55
DHC-E 8/10 5.4 kW @ 208 V 1.38 1.55 1.72 1.93 2.21 2.58 3.09 3.87 5.16 7.73 15.47
7.2 kW @ 240 V 1.84 2.06 2.29 2.58 2.95 3.44 4.12 5.16 6.87 10.31 20.62
7.2 kW @ 208 V 1.84 2.06 2.29 2.58 2.95 3.44 4.12 5.16 6.87 10.31 20.62
9.6 kW @ 240 V 2.45 2.75 3.05 3.44 3.93 4.58 5.50 6.87 9.16 13.75 25.00
DHC-E 12 9 kW @ 208 V 2.30 2.58 2.86 3.22 3.68 4.08 4.90 6.12 8.16 12.24 24.49
12 kW @ 240 V 3.07 3.44 3.82 4.30 4.91 5.44 6.53 8.16 10.88 16.32 25.00

10 | DHC-E WWW.STIEBEL-ELTRON.COM
INSTALLATION
TECHNICAL DATA
10.4 Data table
DHC-E 8/10 DHC-E 12
224201
234450
230628
234451
Electrical details
Rated voltage V208 220 230 240 208 220 230 240
Rated output kW 5.4/7.2 6.0/8.1 6.6/8.8 7.2/9.6 9 10 11 12
Rated current A 28/35 30/50 31/39 32/40 44 46 48 50
Fuse A30/50 40/50 40/50 40/50 60 60 60 60
Frequency Hz 50/60 50/60
Power connection 2/GRD 2/GRD
Phases 1/N/PE ~220-240V 1/N/PE ~220-240V
Cable cross-section mm² Copper -/- 6/10 6/10 6/10 - 10 10 10
Cable cross-section AWG Copper 8 - - 8 6 - - 6
Values
ON l/min > 1.0 > 1.0
ON GPM > 0.26 > 0.26
Max. permissible inlet temperature °C 55 55
Max. permissible inlet temperature °F 131 131
DHW delivery l/min 3.0-5.2 4.9-6.5
DHW delivery GPM 0.8-1.4 1.3-1.7
Δϑif presented K25 25
Flow rate for pressure drop l/min 1.4 1.4
Flow rate for pressure drop GPM 0.37 0.37
Connections
Water connection 1/2“ NPT 1/2“ NPT
Application limits
Max. permissible pressure MPa 1 1
Max. permissible pressure PSI 150 150
Hydraulic data
Rated capacity l0.5 0.5
Rated capacity gal 0.13 0.13
Versions
Temperature display analogue analogue
Temperature adjustment °C 30-60 30-60
Temperature adjustment °F 86-140 86-140
Heating system Tubular heater Tubular heater
Cap and back panel Plastic Plastic
Colour white white
IP-Rating IP24 IP24
Dimensions
Height mm 360 360
Height in 14.17 14.17
Width mm 200 200
Width in 7.88 7.88
Depth mm 110 110
Depth in 4.33 4.33
Weights
Weight kg 2.7 2.7
Weight lb 5.9 5.9
fSuitable for supply with up to 131 °F / 55 °C
fTankless water heaters are considered a non-continuous load
fConductors should be sized to maintain a voltage drop of less than
3 % under load

ENGLISH
WWW.STIEBEL-ELTRON.COM DHC-E | 11
INSTALLATION | WARRANTY | ENVIRONMENT AND RECYCLING
SPARE PARTS
WARRANTY | ENVIRONMENT AND
RECYCLING
11. Spare parts
2
1
13
6
3 5
10
11
15
14
9 8 7
12
26�02�02�1091
4
No. No. Spare part DHC-E 8/10 DHC-E 12
1Heating system 292575 292576
2 Safety thermal cut out 286369 286369
3Electronic control appliance 291851 291852
4Coding plug 283455 ---
5 Back panel 292578 292578
6 Flow sensor DFE 286461 286461
7 Cold water connection 291699 291699
8Filter screen 252430 252430
9 Hot water connection 278634 278634
10 Plastic cover 292577 292577
11 Wiring block 279998 279998
12 Axis connection plug 254312 254312
13 Electronic temperature control 286359 286359
14 Temperature adjustment knob 254307 254307
15 Outlet temperature sensor 280677 280677
Warranty
Make any warranty claim in the country where you purchased
the appliance. In such cases, please contact our representation
or the importer.
Our warranty applies only if:
—
These installation instructions have been observed
—
Exclusively accessories designated for this appliance have been
used
—
All required steps up to and including commissioning have be
carried out by a qualified contractor
—
Maintenance as specified has been carried out
—
Exclusively our spare parts have been used for repairs
Environment and recycling
Please help us protect the environment. Dispose of the appliance
and its packaging in accordance with national regulations.



Deutschland
STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.de
Verkauf Tel. [phone] | Fax [phone] | info-c[email protected]
Kundendienst Tel. [phone] | Fax [phone] | kund[email protected]
Ersatzteilverkauf Tel. [phone] | Fax [phone] | [e-mail]
Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve
d‘erreurs et de modifications techniques! | Onder voorbehoud van ver
g
issin
g
en en technische wi
j
zi
g
in
g
en! |
Salvo error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmian
y
techniczne i
ewentualne błęd
y
| Om
y
l
y
a technické změn
y
j
sou v
y
hrazen
y
! | A muszaki változtatások és tévedések
j
o
g
át
fenntartjuk! | Отсутствие ошибок не гарантируется. Возможны технические изменения. | Chyby a
technické zmeny sú vyhradené! Stand 8969
Australia
STIEBEL ELTRON Australia Pty. Ltd.
4/8 Rocklea Drive | Port Melbourne VIC 3207
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel.com.au
Austria
STIEBEL ELTRON Ges.m.b.H.
Eferdinger Str. 73 | 4600 Wels
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.at
Belgium
STIEBEL ELTRON bvba/sprl
't Hofveld 6 - D1 | 1702 Groot-Bijgaarden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.be
China
STIEBEL ELTRON (Guangzhou) Technology
Development Co., Ltd.
Rm 102, F1, Yingbin-Yihao Mansion, No. 1
Yingbin Road
Panyu District | 511431 Guangzhou
Tel. [phone] | Fax [phone]
[email protected]
www.stiebeleltron.cn
Czech Republic
STIEBEL ELTRON spol. s r.o.
K Hájům 946 | 155 00 Praha 5 - Stodůlky
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.cz
Denmark
Pettinaroli A/S
Mandal Allé 21 | 5500 Middelfart
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.dk
Finland
STIEBEL ELTRON OY
Kapinakuja 1 | 04600 Mäntsälä
Tel. [phone]
[email protected]
www.stiebel-eltron.fi
France
STIEBEL ELTRON SAS
7-9, rue des Selliers
B.P 85107 | 57073 Metz-Cédex 3
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.fr
Hungary
STIEBEL ELTRON Kft.
Gyár u. 2 | 2040 Budaörs
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.hu
Japan
NIHON STIEBEL Co. Ltd.
Kowa Kawasaki Nishiguchi Building 8F
66-2 Horikawa-Cho
Saiwai-Ku | 212-0013 Kawasaki
Tel. [phone] | Fax [phone]
[email protected]
www.nihonstiebel.co.jp
Netherlands
STIEBEL ELTRON Nederland B.V.
Daviottenweg 36 | 5222 BH 's-Hertogenbosch
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.nl
Poland
STIEBEL ELTRON Polska Sp. z O.O.
ul. Działkowa 2 | 02-234 Warszawa
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.pl
Russia
STIEBEL ELTRON LLC RUSSIA
Urzhumskaya street 4,
building 2 | 129343 Moscow
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ru
Slovakia
TATRAMAT - ohrievače vody s.r.o.
Hlavná 1 | 058 01 Poprad
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.sk
Switzerland
STIEBEL ELTRON AG
Industrie West
Gass 8 | 5242 Lupfig
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ch
Thailand
STIEBEL ELTRON Asia Ltd.
469 Moo 2 Tambol Klong-Jik
Amphur Bangpa-In | 13160 Ayutthaya
Tel. [phone] | Fax [phone]
[email protected]
www.stiebeleltronasia.com
United Kingdom and Ireland
STIEBEL ELTRON UK Ltd.
Unit 12 Stadium Court
Stadium Road | CH62 3RP Bromborough
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.co.uk
United States of America
STIEBEL ELTRON, Inc.
17 West Street | 01088 West Hatfield MA
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron-usa.com
A 316815-38376-8972 B 316816-38376-8972 M
4<AMHCMO=bgibfh>
