stilum statuo 512011401 User manual

© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved.
Mounting instructions for swing „statuo“
Item No. 512011401
State: 10/10/2014 · S. 1 · MS/TSA
Diagram 1: Overall view of the play equipment
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved.
Mounting instructions for swing „statuo“
Item No. 512011401
State: 10/10/2014 · S. 2 · MS/TSA
Mounting instructions for swing „statuo“
Diagram 2: Side view with dimension details „statuo“

















  












1:30
















Play level
Concrete foundations
Pole 1. Select the play equipment location in consideration of the required safety
area (see Diagram 3: 8300 x 1750mm).
2. The impact area of a playground equipment with an enforced movement is
not allowed to overlap the impact area of other equipment.
Regarding to DIN 1176 - 4.2.8.2.5, impact absorbing surfaces have to be put
under the whole impact area of every equipment with an enforced movement.
3. Carry out excavation work for 2 foundations as shown in Diagram 2. After
excavation, compress the foundation oor.
Note: The swing is built in on the play level. Pay attention to items marked
„game level“ of play equipment!
4. Set up the concrete foundations acc. to the dimensions indicated (LxWxH
1200 x 1000 x 500) with central, horizontal reinforcement (BST 500 S) in the
quality class C 20/25. Place the two swing poles into the foundations acc.
to the dimensions indicated in Diagram 2. Please make sure that the space
between the three tubes is also  lled with concrete. Compress concrete!
No warranty for damage to backwater or condensation in the tube. Adequate
drainage in the foundation is necessary.
Reinforcement plan: Concrete foundation with rein-
forcement
Main foundation: BSt 500S
Ever 4 stirrups Ø 8 mm lengthwise and cross
Concrete cover h´= 3 cm
Concrete quality class C 20/25
marking installation
depth
by rocking motion free fall height: 1500
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved.
Mounting instructions for swing „statuo“
Item No. 512011401
State: 10/10/2014 · S. 3 · MS/TSA
Mounting instructions for swing „statuo“
5. Align poles in vertical and horizontal direction and keep it supported until the
foundations have bound off. Note: Make sure that the supported swing is not
used for playing.
6. After a setting period of 10-14 days, depending on weather conditions and
foundation size, seal the foundation with the safety cover required for the
height of fall indicated. Set up impact-absorbing playground surfacing accor-
ding to EN 1177 HIC 1000.
Recommended surface material: grass, sand, bark mulch, gravel, synth. fall
protection. (Critical drop height ≤ 1000 mm)
7. Screw the chains with the swing seats onto the swing suspension.
8. Do not allow children to use the equipment before the installation has been
nished.
Attention: If the play equipment has been incompletely installed or partly dis-
mantled when carrying out maintenance and repair work, this may lead to par-
ticular risks of injury for the user. For this reason, make clearly visible that the
equipment shall not be used in such cases.
NOTE: Play equipment, which contain components made of stainless steel
should not come with „normal“ steel parts in contact. Those steel parts may rub
off and leave small steel particles in combination with moisture brown rust stains.
If such corrosion occur on stainless steel parts, they are ne with an abrasive
(240 grit) to remove.
Please take care when transporting and setting up the fact that the components
are made of stainless steel with no „normal“ steel parts in contact.









1:30
























Size of the minimum space = safety area (8300 x 1750mm) when using
natural soils with shock-absorbing effect.
When using synthetic safety tiles
will reduce the impact surface in the direction of swing
by 500 mm. The minimum space remains
preserved in its entirety.
Diagram 3: Top view „statuo“
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved.
Mounting instructions for swing „statuo“
Item No. 512011401
State: 10/10/2014 · S. 4 · MS/TSA
In order to preserve a good visual appearance of your stilum playground equip-
ment over a long period one should take care of maintenance of the stainless
surface even despite of their corrosion resistance.
Especially areas, which can not be reached by rainfall should be frequently clea-
ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.
Light soiling can easily be romoved by using a high pressure cleaner.
For persistent deposits use a clean cloth moistened with a special liquid cleaner
(e.g. on phosphoric acid) and rinse off with clear water after a short application
time. During cleaning with mild abrasive components, only wipe over stainless
steel surface in polishing direction.
For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on
cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl
alcohol, isopropyl alcohol or acetone).
However, it should be noted that the dissolved soiling is not spread over the sur-
face again.
Do not use any chlorid or hydrochloric containing cleaning products nor scouring
powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type
and degree of soiling as well as on demands made on optical characteristics.
Therefore cleaning is advisable at intervals of six to twelve months – whereby in
the case of strong soiling it is appropriate to clean the playground equipment at
intervals of 3 to six months.

Other stilum Baby Swing manuals

stilum volucris 1 Technical specifications

stilum

stilum volucris 1 Technical specifications

stilum volucris 2 User guide

stilum

stilum volucris 2 User guide

stilum orbis Technical specifications

stilum

stilum orbis Technical specifications

stilum patis 2 User manual

stilum

stilum patis 2 User manual

stilum Libra 4 User manual

stilum

stilum Libra 4 User manual

stilum volucris 2 User guide

stilum

stilum volucris 2 User guide

stilum patis 2 Technical specifications

stilum

stilum patis 2 Technical specifications

stilum volucris Robinia User guide

stilum

stilum volucris Robinia User guide

stilum Simius 3 User manual

stilum

stilum Simius 3 User manual

stilum vanno Technical specifications

stilum

stilum vanno Technical specifications

stilum patis 3 Technical specifications

stilum

stilum patis 3 Technical specifications

stilum simius1 Technical specifications

stilum

stilum simius1 Technical specifications

stilum simius 2 User manual

stilum

stilum simius 2 User manual

stilum patis1 User manual

stilum

stilum patis1 User manual

stilum patis3 User manual

stilum

stilum patis3 User manual

stilum simius2 Technical specifications

stilum

stilum simius2 Technical specifications

stilum patis2 User manual

stilum

stilum patis2 User manual

stilum Fips User manual

stilum

stilum Fips User manual

stilum simius 3 Technical specifications

stilum

stilum simius 3 Technical specifications

stilum Robinie volucris 1 User guide

stilum

stilum Robinie volucris 1 User guide

stilum play volucris Robinia User guide

stilum

stilum play volucris Robinia User guide

stilum simius 6 User manual

stilum

stilum simius 6 User manual

stilum patis 2 User manual

stilum

stilum patis 2 User manual

stilum patis 1 User manual

stilum

stilum patis 1 User manual

Popular Baby Swing manuals by other brands

Stokke Steps user guide

Stokke

Stokke Steps user guide

Fisher-Price C5858 manual

Fisher-Price

Fisher-Price C5858 manual

Fisher-Price J7740 manual

Fisher-Price

Fisher-Price J7740 manual

leco Jumbo instructions

leco

leco Jumbo instructions

Kids II Disney Baby Minnie Mouse 10782-WW manual

Kids II

Kids II Disney Baby Minnie Mouse 10782-WW manual

Fisher-Price CHM84 manual

Fisher-Price

Fisher-Price CHM84 manual

Fisher-Price Y5708 manual

Fisher-Price

Fisher-Price Y5708 manual

Sunjoy D-DNC373PST-E Assembly instructions

Sunjoy

Sunjoy D-DNC373PST-E Assembly instructions

Zest Miami Assembly instructions

Zest

Zest Miami Assembly instructions

Klarfit Olav manual

Klarfit

Klarfit Olav manual

Plebani Sdraietta Assembly and use instructions

Plebani

Plebani Sdraietta Assembly and use instructions

ingenuity InLighten Soothing Swing & Rocker-Pemberton manual

ingenuity

ingenuity InLighten Soothing Swing & Rocker-Pemberton manual

faucet strommen 30001 installation guide

faucet strommen

faucet strommen 30001 installation guide

HAMPTON BAY KIKO GCS09189A Use and care guide

HAMPTON BAY

HAMPTON BAY KIKO GCS09189A Use and care guide

M&M MM00136 instruction manual

M&M

M&M MM00136 instruction manual

ingenuity Cradle & Sway Swing instruction manual

ingenuity

ingenuity Cradle & Sway Swing instruction manual

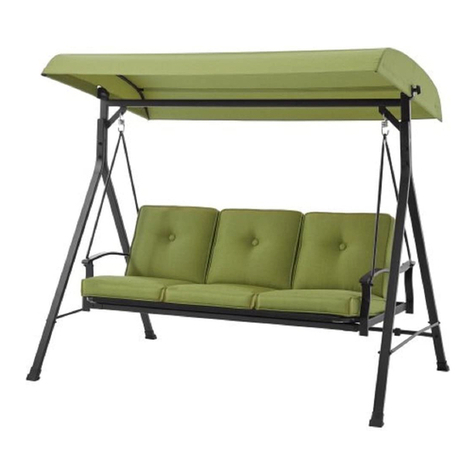

Mainstays MSS129900298041 Assembly and Care Guide
