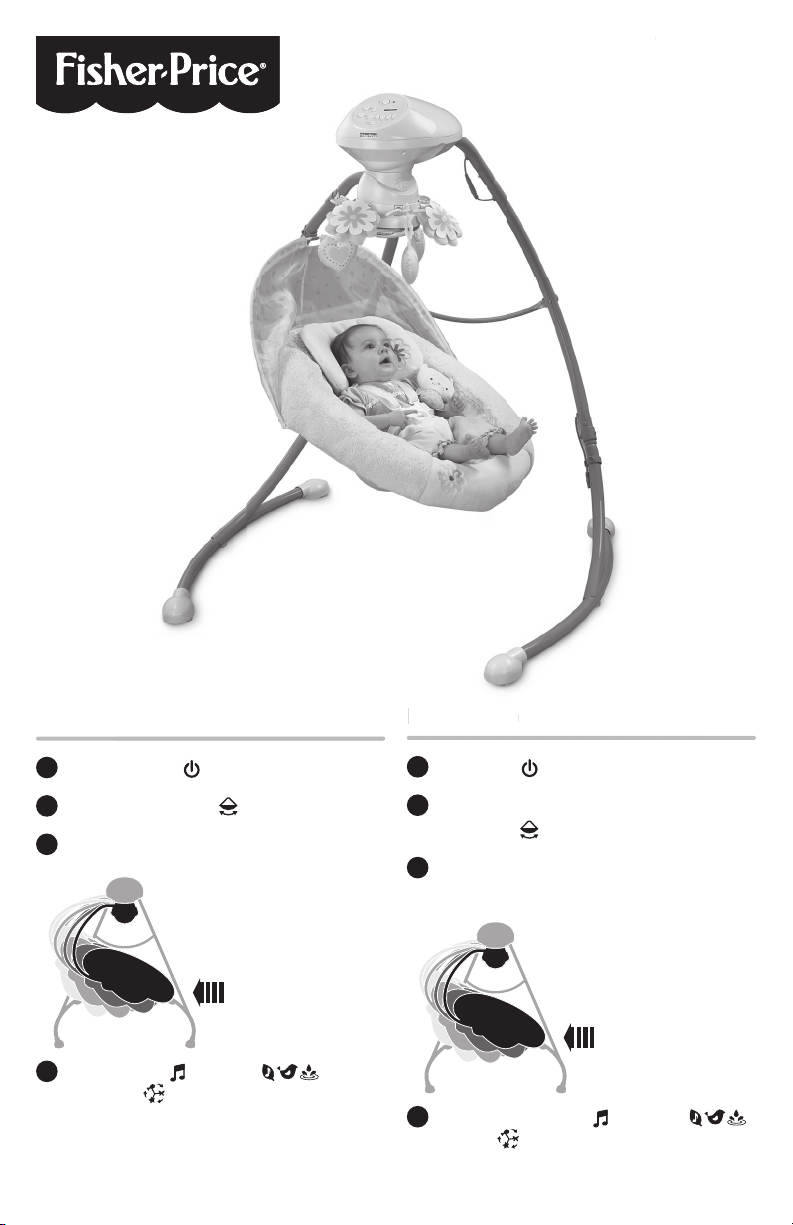

1
W9510
fisher-price.com
Quick Start
PUSH
EMPUJAR
1Turn power on
2Select swing speed
3Push seat to start swinging
4Select music , sounds
or mobile
Inicio rápido
1Encender
2Seleccionar la velocidad del
columpio
3Empujar la silla para empezar
el movimiento
4Seleccionar música , sonidos
o móvil
W
9
a
rt
ower on
I
nicio r
áp
id
o
1
Encender
2
WARNING
ADVERTENCIA
Prevent death: Keep seat fully reclined until child is at least 4 months old
AND can hold head up without help. Young infants have limited head and neck
control. If seat is too upright, infant’s head can drop forward and compress
the airway, resulting in DEATH.
Prevent serious injury or death from falls or strangling in the
restraint system:
• Always use the restraint system.
• Discontinue use when an active child attempts to climb out.
• This product is not intended to replace a crib or bassinet for prolonged
periods of sleep.
• Never leave child unattended.
Evitar la muerte: Mantener la silla totalmente reclinada hasta que el bebé
cumpla 4 meses de edad Ypueda mantener la cabeza derecha sin ayuda. Los
bebés pequeños tienen un control limitado de cabeza y cuello. Si la silla está
en posición vertical, la cabeza del bebé podría caer hacia el frente y comprimir
el flujo de aire, causando la MUERTE.
Para evitar lesiones graves o la muerte como resultado de caídas o quedar
estrangulado en el sistema de sujeción:
• Siempre usar el sistema de sujeción.
• Descontinuar el uso cuando un niño activo intente salirse del producto.
• Este producto no está diseñado para reemplazar una cuna o moisés por
periodos prolongados de sueño.
• Nunca dejar al niño sin supervisión.
Consumer Information
Información para el consumidor
Note: This product comes with replacement warning labels which you can apply over the
factory applied warning label if English is not your primary language. Select the warning
label with the appropriate language for you.
Atención: incluye una hoja de adhesivos con advertencias en varios idiomas. El adhesivo
que lleva el producto de fábrica está en inglés. Si lo desea, puede pegar encima el adhesivo
en su lengua.
3
Consumer Information
Información para el consumidor
• Please read these instructions before use of this swing. Keep this instruction sheet for
future reference, as it contains important information.
• Adult assembly is required.
• Tools needed for assembly: Allen Wrench (included) and Phillips screwdriver (not included).
• Requires four D (LR20) alkaline batteries for operation(not included).
• Requires an AC adaptor (input 120 - 240 VAC, 50 - 60Hz, with an output of 6 VDC)
for operation (included).
IMPORTANT! Maximum Weight Limit: 25 lbs (11,3 kg). If your child weighs less than
25 lbs (11,3 kg), but is really active and appears to be able to climb out of the swing,
immediately discontinue its use.
• Always use the swing where there is adequate ventilation. To prevent overheating, keep
the swing away from heat sources such as radiators, heat registers, direct sunlight,
stoves, amplifiers, or other appliances which produce heat.
• Never use extension cords with the AC adaptor.
• Never use the swing near water (ie.: bathtub, sink, laundry tub or wet basement, etc.).
• Do not connect to more than the recommended number of power supplies.
• The product must only be used with the recommended AC adaptor.
• The AC adaptor is not a toy.
• Disconnect the AC adaptor from the swing before cleaning.
• Product features and decorations may vary from photographs.
• Leer estas instrucciones antes de usar este columpio. Guardar las instrucciones para
futura referencia, ya que contienen información de importancia acerca de este producto.
• Requiere montaje por un adulto.
• Herramientas necesarias: llave hexagonal (incluida) y desatornillador de cruz (no incluido).
• Funciona con cuatro pilas alcalinas tipo 4 x D (LR20) x 1,5V (no incluidas).
• Funciona con un adaptador de corriente alterna (entrada de 120 - 240 V~, 50 - 60 Hz con
una salida de 6 Vcc) (incluido).
• LEA LAS INSTRUCCIONES ANTES DE USAR ESTE PRODUCTO.
¡IMPORTANTE! Capacidad máxima: 11,3 kg (25 lb). Si su hijo pesa menos de 11,3 kg
(25 lb) pero es muy activo y parece poder salirse del columpio, dejar de usar el producto
inmediatamente.
• Siempre usar el columpio donde haya ventilación adecuada. Para evitar sobrecalentamiento,
mantener el columpio alejado de fuentes de calor tales como radiadores, registradoras de calor,
contacto solar directo, estufas, amplificadores u otro equipo que genere calor.
• Nunca usar extensiones de cables eléctricos con el adaptador de corriente alterna.
• No usar el columpio cerca de agua (p. ej., bañera, lavabo, fregadero, sótano mojado, etc.).
• No conectar a más suministros eléctricos de los recomendados.
• Solo usar el producto con el adaptador de corriente alterna recomendado.
• El adaptador de corriente alterna no es un juguete.
• Desconectar el adaptador de corriente alterna del columpio antes de limpiarlo.
• Las características y decoración del producto pueden variar de las mostradas.
4
Allen Wrench
Llave hexagonal
Parts Piezas
All Shown Actual Size
Se muestran a tamaño real
#8 x ½" (1,27 cm) Screw - 4
Tornillo №8 x 1,27 cm - 4
M5 x 40 mm Bolt - 4
Perno M5 x 40 mm - 4
Motorized Frame
Armazón motorizado
Pad with Headrest
Almohadilla con cabezal 2 Side Rails
2 barandillas laterales
Seat with Restraint System
Asiento con sistema de sujeción
2 Lower Legs
2 patas inferiores
4 Feet
4 extremidades
Toy
Juguete
2 Upper Legs
2 patas superiores
Mobile Dome
Cúpula del móvil
Lower Seat Tube
Tubo de asiento inferior
#8 x 1" (2,54 cm) Screw - 4
Tornillo №8 x 2,54 cm - 4
AC Adaptor
Adaptador de
corriente alterna
Note: Tighten or loosen all screws and bolts with a Phillips screwdriver or Allen
wrench. Do not over-tighten the screws.
Atención: Apretar y aflojar todos los tornillos y pernos con un desatornillador de cruz
o una llave. No apretar en exceso.
5
Foot
Extremidad
Foot
Extremidad
2
Assembly Montaje
1
IMPORTANT! Before each use or assembly, inspect this product for damaged hardware, loose
joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact
Fisher-Price®for replacement parts and instructions if needed. Never substitute parts.
¡IMPORTANTE! Antes de cada uso o montaje, inspeccionar este producto para verificar que
no tenga piezas dañadas, conexiones sueltas, piezas faltantes o bordes filosos. NO usar el
producto si falta o está rota alguna pieza. Ponerse en contacto con la oficina Mattel más
próxima a su localidad para obtener piezas de repuesto e instrucciones, de ser necesario.
No usar piezas de otras marcas.
Motorized Frame
Armazón motorizado
Mobile Dome
Cúpula del móvil
• Fit the tabs on the mobile dome into the slots in the motorized frame.
• Push near each tab to “snap” the mobile dome into place.
• Ajustar las lengüetas de la cúpula del móvil en las ranuras del armazón motorizado.
• Empujar cerca de cada lengüeta para ajustar la cúpula del móvil en su lugar.
• Fit a foot onto the end of each lower leg.
• Insert two #8 x ½" (1,27 cm) screws through the bottom of each foot and into the lower
leg. Fully tighten each screw with a Phillips screwdriver.
• Ajustar una extremidad en el extremo de la pata inferior.
• Insertar dos tornillos №8 x 1,27 cm en la parte de abajo de cada extremidad y en la pata
inferior. Apretar totalmente los tornillos con un desatornillador de cruz.
6
4
M5 x 40 mm Bolt
Perno M5 x 40 mm Power Cord
Cable eléctrico
Retainer
Sujetador
• Insert an M5 x 40 mm bolt through the opening in the upper leg tube. Fully tighten the
bolt with the Allen wrench.
• Repeat this procedure to assemble the other upper leg to the other lower leg.
• Fit the power cord into the retainer on a lower leg.
• Insertar un perno M5 x 40 mm en el orificio del tubo de la pata superior. Usar la llave para
apretar el perno.
• Repetir este procedimiento para ensamblar la otra pata superior en la otra pata inferior.
• Ajustar el cable eléctrico en el sujetador de la pata inferior.
Assembly Montaje
3
Lower Leg
Pata inferior
Upper Leg
Pata superior
• Fit an upper leg onto a lower leg.
Hint: The upper legs are designed to fit the lower legs one way. If it does not seem to fit, try
the other upper leg.
• Ajustar una pata superior en una pata inferior.
Atención: Las patas superiores están diseñadas para montarse en las patas inferiores de
una sola manera. Si no se ajustan correctamente, intentar con la otra pata superior.
7
5
Assembly Montaje
6
Motorized Frame Tube
Tubo del armazón
motorizado
PRESS
PRESIONAR
• While pressing the button on a leg assembly, fit it into a tube on the motorized frame.
Make sure the button on the leg “snaps” into the hole in the tube.
• Repeat this procedure to assemble the other leg assembly to the motorized frame.
• Mientras presiona el botón de una unidad de pata, insertarla en un tubo en el armazón
motorizado. Asegurarse de que el botón de la pata se ajuste en el orificio del tubo.
• Repetir este procedimiento para ensamblar la otra unidad de pata en el armazón motorizado.
Frame Support Bar
Barra de soporte
del armazón
Peg
Clavija
BACK VIEW
VISTA DE ATRÁS
• Pull apart the legs.
• Lift the free end of the frame support bar.
• Fit the hole in the frame support bar over the peg on the opposite leg. Push to "snap" the
frame support bar in place.
• Separar las patas.
• Levantar el extremo libre de la barra de soporte del armazón.
• Ajustar el orificio de la barra de soporte del armazón sobre la clavija de la pata opuesta.
Presionar para ajustar la barra de soporte del armazón en su lugar.
8

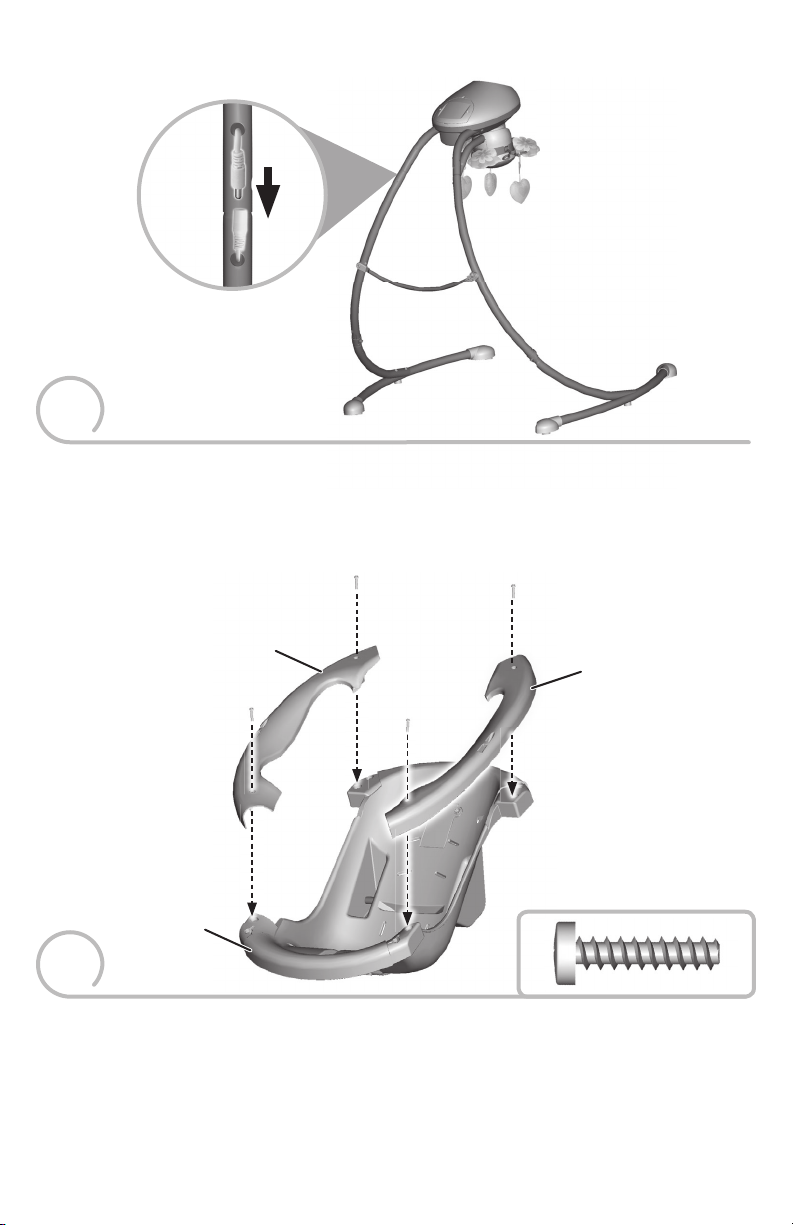

Assembly Montaje
7
8
• Plug the power cord from the motorized frame assembly into the power cord in the
frame assembly.
• Enchufar el cable eléctrico de la unidad del armazón motorizado en el cable eléctrico de la
unidad del armazón.
Seat
Asiento
Side Rail
Barandilla lateral
Side Rail
Barandilla lateral
• Fit the side rails to the side tabs on the seat.
• Insert four #8 x 1" (2,54 cm) screws into the side rails.
• Fully tighten the screws with a Philips screwdriver.
• Ajustar las barandillas laterales en las lengüetas laterales del asiento.
• Insertar cuatro tornillos №8 x 2,54 cm en las barandillas laterales.
• Apretar totalmente los tornillos con un desatornillador de cruz.
9
M5 x 40 mm Bolt
Perno M5 x 40 mm
10
• Insert an M5 x 40 mm bolt into the short tube. Fully tighten the bolt with the Allen wrench.
• Insertar un perno M5 x 40 mm en el tubo corto. Usar la llave para apretar el perno.
Assembly Montaje
9
Lower Seat Tube
Tubo de asiento inferior
Short Tube
Tubo corto
SIDE VIEW
VISTA DEL LADO
• Fit the lower seat tube into the short tube on the seat back.
• Ajustar el tubo de asiento inferior en el tubo corto del respaldo.
10
Assembly Montaje
11
12
Upper Seat Tube
Tubo de asiento superior
Lower Seat Tube
Tubo de asiento inferior
• Fit the lower seat tube onto the upper seat tube.
• Ajustar el tubo de asiento inferior en el tubo de asiento superior.
FRONT VIEW
VISTA DELANTERA
M5 x 40 mm Bolt
Perno M5 x 40 mm
• Insert an M5 x 40 mm bolt into the upper seat tube. Fully tighten the bolt with the
Allen wrench.
• Insertar un perno M5 x 40 mm en el tubo superior de la silla. Usar la llave para apretar
el perno.
