stilum Pull over trainer User manual

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved.
Mounting instructions for „Pull over trainer“
Item-No. 55 1313 401
State: 28.01.2021 p. 1
Diagram 1: Overall view of the tness equipment

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved.
Mounting instructions for „Pull over trainer“
Item-No. 55 1313 401
State: 28.01.2021 p. 2
1. Select the tness equipment location in consideration of the required movement
area (see diagram 3). Movement areas may overlap, exercise areas must not
be overlapped.
2. Select the postition of the instruction sheet.
Attention: Because of the risk of injury, the instruction sheet has to be arran-
ged outside of the movement area.
3. Carry out excavation work for the foundation as shown in diagram 2.
After excavation compress the foundation oor.
Note: Pay attention to items marked „ground level“ at the equipment!
4. Carry out excavation work for the instruction sheet foundation as shown in dia-
gram 4. After excavation compress the foundation oor.
5. Set up the concrete foundations according to diagram 2 and 4 with central,
horizontal reinforcement.
6. After a setting period of 10 – 14 days, depending on weather conditions and
foundation size, ll up and compress the holes between the foundation and the
foundation hole with excavation. Clean the foundation surface.
7. Align the equipment and screw the base plates to the foundation using the
included heavy-duty dowels.
8. Place the instruction sheet as well on the foundation and screw it onto the foun-
dation with the included heavy-duty dowels.
NOTE: We suggest to align the instruction sheet in such a way that the instruc-
tions can be read while using the tness equipment.
300 150 2551
1672 506
1100
1600
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
Überzugtrainer
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
1:20
A3
Name
Name
Fundamentplan
2003-00-00
Maßstab
Schramm 20.02.17
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Beton
concrete
gewachsenes Erdreich
natural ground
Legende
stoßdämpfender Boden
shock-absorbing floor
ES 18.01.21 beliebiger Boden A
DatumÄnderungRev
beliebiger Boden
optional floor

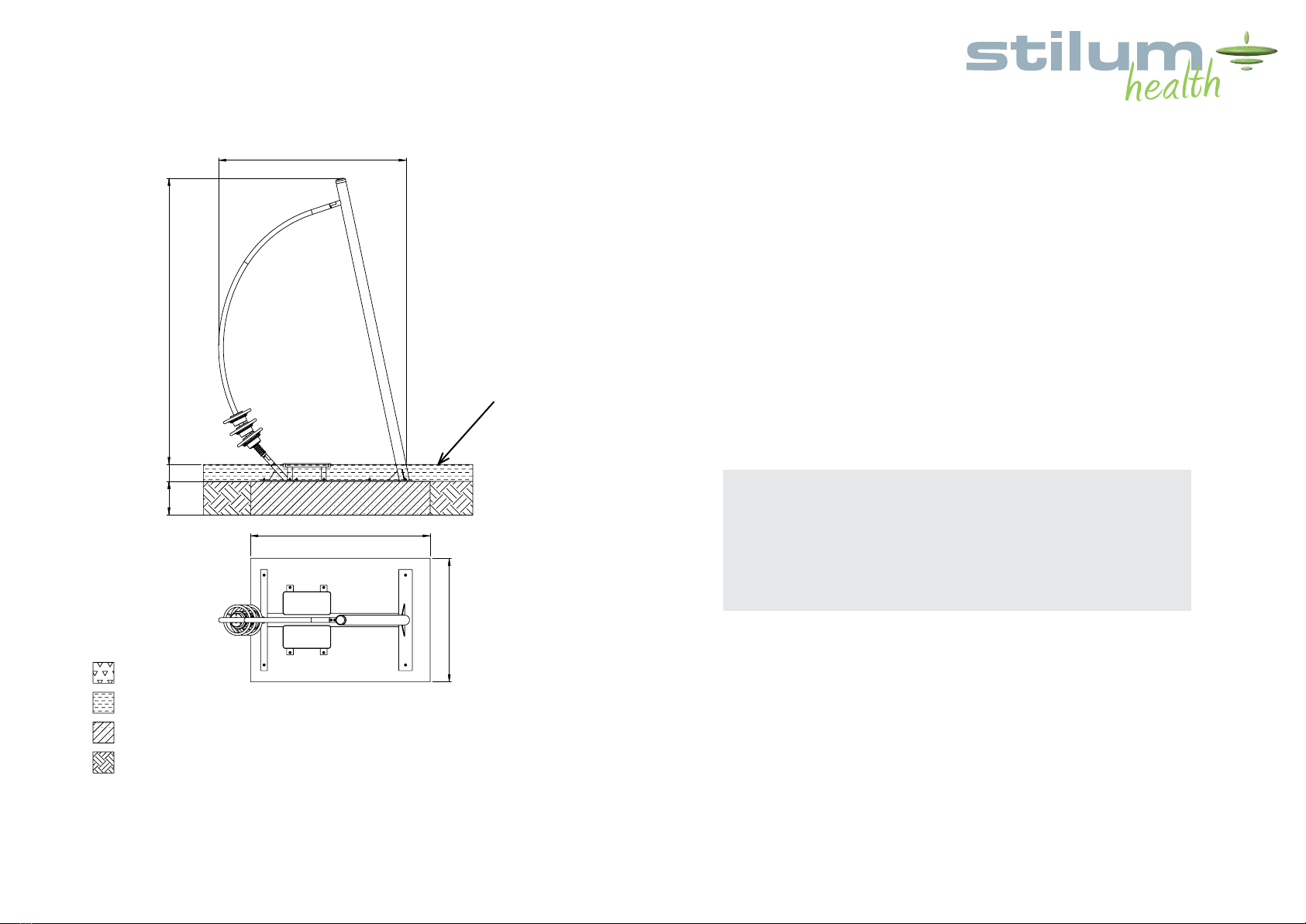

Diagram 2: Foundation plan
Reinforcement plan: Concrete foundation with reinforcement
Foundation: BSt 500S
Stirrups Ø 8 mm lengthwise and cross
Concrete cover h´= 3 cm
Concrete quality class C20-25
ground level

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved.
Mounting instructions for „Pull over trainer“
Item-No. 55 1313 401
State: 28.01.2021 p. 3
1500
2500
1500
4500
3500
500
1535
650
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
Überzugtrainer
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
Rev Änderung Datum
1:25
A3
Name
Name
Draufsicht
2003-00-00
Maßstab
Schramm 20.02.17
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
9. Create top soil with an even ground level.
Recommended surface material: optional, except sand
Attention: The gap between the standing area and the foundation should be
lled completely to prevent a dropping of the top soil.
10. Do not allow to use the equipment before the installation has been nished.
Attention: If the tness equipment has been incompletely installed or partly dis-
mantled when carrying out maintenance and repair work, this may lead to particular
risks of injury for the user. For this reason, make clearly visible that the equipment
shall not be used in such cases.
NOTE: Fitness equipment, which contain components made of stainless steel should
not come with „normal“ steel parts in contact. Those steel parts may rub o󰀨 and leave
small steel particles in combination with moisture brown rust stains.If such corrosion
occur on stainless steel parts, they are ne with an abrasive (240 grit) to remove.
Please take care when transporting and setting up the fact that the components are
made of stainless steel with no „normal“ steel parts in contact.
In order to preserve a good visual appearance of your stilum tness equipment over
a long period one should take care of maintenance of the stainless surface even
despite of their corrosion resistance.
Especially areas, which can not be reached by rainfall should be frequently cleaned
from dirt and deposits due to air pollution and dirt caused by the atmosphere.
Light soiling can easily be romoved by using a high pressure cleaner.
For persistent deposits use a clean cloth moistened with a special liquid cleaner (e.g.
on phosphoric acid) and rinse o󰀨 with clear water after a short application time. Du-
ring cleaning with mild abrasive components, only wipe over stainless steel surface in
polishing direction.
For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on cars)
or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl alcohol,
isopropyl alcohol or acetone).
Diagram 3: Top view
movement area
exercise area

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved.
Mounting instructions for „Pull over trainer“
Item-No. 55 1313 401
State: 28.01.2021 p. 4
220
300
300
150 1210
AA
SCHNITT A-A
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
Instruktionstafel klein
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
1:10
A3
Name
Name
Fundamentplan
2203-00-00
Maßstab
Simonis 09.08.18
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Beton
concrete
gewachsenes Erdreich
natural ground
Legende
stoßdämpfender Boden
shock-absorbing floor
ES 09.12.20 beliebiger Boden A
DatumÄnderungRev
beliebiger Boden
optional floor
However, it should be noted that the dissolved soiling is not spread over the
surface again.
Do not use any chlorid or hydrochloric containing cleaning products nor scouring
powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type
and degree of soiling as well as on demands made on optical characteristics.
Therefore cleaning is advisable at intervals of six to twelve months – whereby
in the case of strong soiling it is appropriate to clean the tness equipment at
intervals of three to six months.
General Information DIN 16630:2015-06_4.1:
DIN EN1176 species that tness equipment should not be installed in the
immediate vicinity of children’s playground equipment. In cases where they are
erected in playgrounds or similar establishments near children’s playground
equipment, they must be separated by adequate distance, fencing or other
structural means from the general play zone.
Movement area DIN 16630:2015-06_4.3.14.4
The free space allowed as movement area must be a minimum of 2.2m. The
movement area must be clear of fences, and observers should not wait in this
space. The space should be free of all objects that the user could fall on and be
injured. E.g. injuries could be caused by posts that are not ush with adjacent
parts or by protruding footings. In cases where the equipment has a forced
movement, the free area must be extended about 0.5m. Where tness units are
installed on or adjacent to a wall which is at least as high as the exercise space,
the movement area may be reduced. Movement areas of adjacent equipment
may overlap except for equipment with forced movement.
Diagram4: Foundation plan of the instruction sheet
