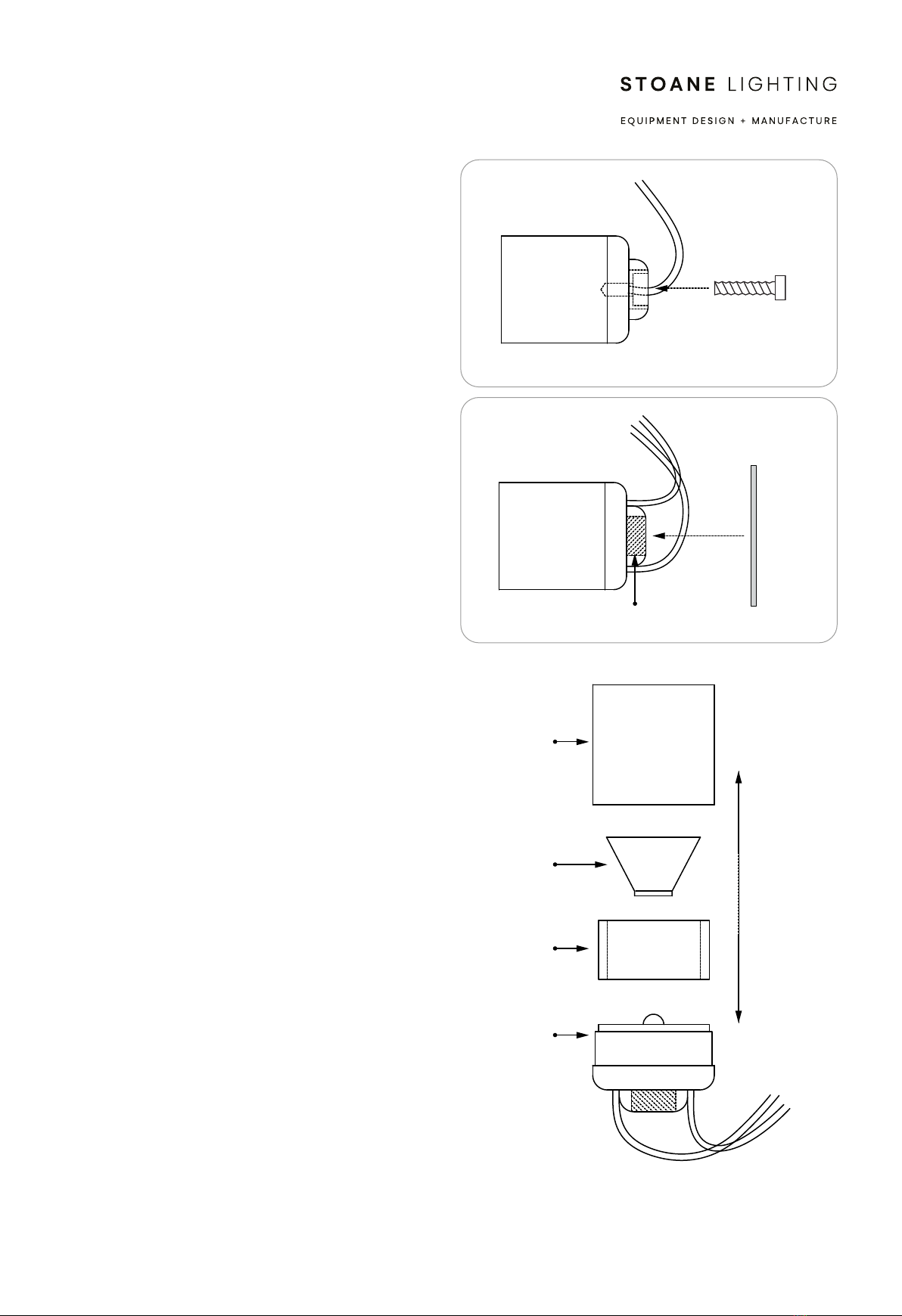

Magnetic surface
Magnet
Suitable fixing
Bezel
Optic
Foam retaining
tube
Body
Method 1
Method 2
SUPPLY
Installation must be carried out by a qualified electrician in
accordance with BS 7671:2008 Wiring Regulations.
230/240V AC 50/60Hz mains supply to a SELV LED driver.
Site conditions: LED equipment is more susceptible to
static damage and overvoltage than previous technology.
Before handling or connecting to the mains supply ensure
that all MSL products are protected from static discharge
and that the mains supply is to regulation. (230V +10 -6%)
Mains cables must be double insulated, strain relieved and
separated from E.L.V output cables.
This unit requires a constant current driver. 700mA Max.
Observe polarity:
Positive (+) is marked as RED.
Incorrect supply or reverse polarity can cause irreparable
damage.
All connections must be made before switching on mains.
If the supply is energised prior to making the connections
to the fitting then the resulting surge will damage the LED.
All lighting equipment is delicate and easily damaged
through misuse or inappropiate installation (mechanical or
electrical). Repairs and replacements may cause delays
and will be chargeable. Contact MSL for support if
required.
Ensure supply driver and connectors are housed indoors
OR in a suitably IP rated enclosure.
FIXING
Check that the mounting surface is suitable for the type of
installation.
Method 1 Secure using M3 fixing.
Method 2 Secure using magnet to suitable magnetic
surface.
Optic CHANGE
To change the optic unscrew the front bezel to gain access
to it and remove foam retaining tube allowing the optic to
drop out.
Repeat the process in reverse to fit the new optic.
Fully tighten the bezel once finished.
After opening the sealed portion of the luminaire for any
reason, MSL recommends running the fitting for 15
minutes with the lid open to expel moisture before closing it
up. This will prevent condensation on the lens and protect
the fitting from corrosion.
WARNING: Do not look at exposed LED lamps in
operation. Eye injury can result.
