Strautmann Sherpa 120 User manual

Operating
instructions

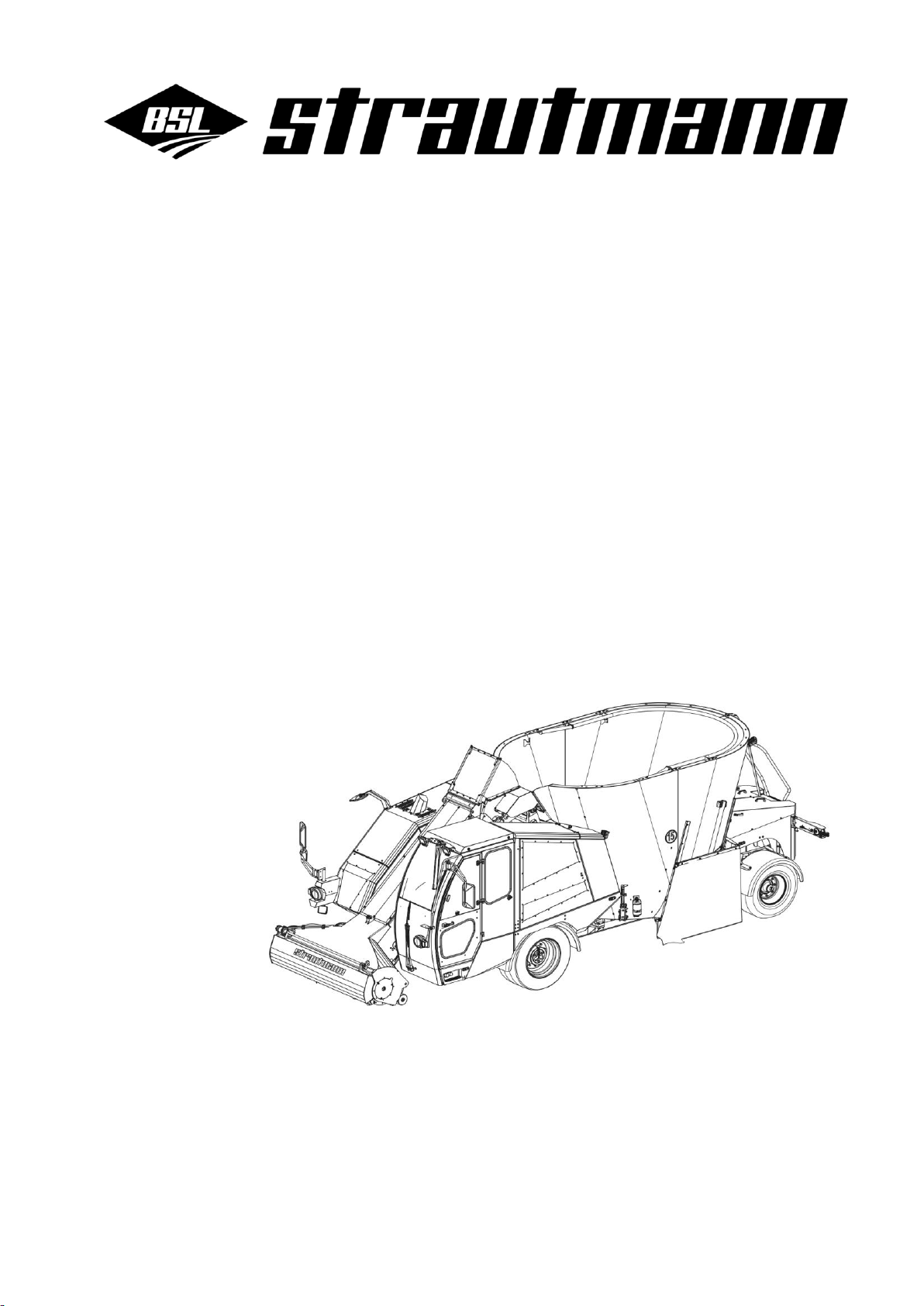

Self-propelled fodder mixing
wagon
Sherpa 120
Sherpa 140
W09674000_0S38001 - W09674999_0S38999
Original instructions
674009003
0.000 | 06.19

EU Declaration of Conformity
Manufacturer:
B. Strautmann & Söhne GmbH u. Co. KG
Bielefelder Str. 53 | D-49196 Bad Laer
Legal person established within the Union and authorised to compile the technical documentation:
B. Strautmann & Söhne GmbH u. Co. KG
Bielefelder Str. 53 | D-49196 Bad Laer
Description and identification of machine:
Designation:
Self-propelled fodder mixing wagon
Function:
Removal, charging, chopping, mixing, transport and discharge of all
types of silage and normal fodders used in keeping livestock
Model:
Sherpa
Type:
120
140
Vehicle/Machine ID number:
W09674000_0S38001 - W09674999_0S38999
Trade name:
Self-propelled fodder mixing wagon Sherpa
We hereby explicitly declare that the machine complies with all relevant provisions of the following
directives:
2006/42/EC:2006-05-17
EC machinery directive 2006/42/EC
2014/30/EU:2014-02-26
Electromagnetic compatibility directive 2014/30/EU
Sources of the applied harmonised standards according to article 7 paragraph 2:
EN ISO 12100:2011
Safety of machinery - Basic concepts, general principles for design -
Risk assessment and risk reduction
EN ISO 13857:2008
Safety of machinery - Safety distances to prevent hazard areas from
being reached by upper and lower limbs
EN ISO 4254-1:2016-09
Agricultural machinery - Safety - Part 1: General requirements
EN 349:1993+A1:2008
Safety of machinery - Minimum distances to prevent limbs from being
crushed
EN ISO 4413:2011-04
Fluid power - General rules and safety requirements for hydraulic
systems and their components
EN 703:2004+A1:2009
Agricultural machinery - Machines for loading, mixing and/or chopping
and distributing silage
Bad Laer, 09.09.2019
Dipl.-Kfm. W. Strautmann
Managing Director

4 Sherpa 120, 140 | 06.19
Manufacturer
Address
B. Strautmann & Söhne GmbH u. Co. KG
Bielefelder Straße 53
D-49196 Bad Laer
Phone
+ 49 (0) 5424 802-0
Fax
+ 49 (0) 5424 802-64
E-mail
[email protected]
Internet
http://www.strautmann.de
Customer service
Phone
+ 49 (0) 5424 802-30
Fax
+ 49 (0) 5424 802-64
E-mail
[email protected]
Identification data
They are registered on the type plate. Please enter the data of your machine
here:
ID no.
Model
Year of manufacture
Copyright
All copyrights and property rights to this machine and all related technical
documentation remain with B. Strautmann & Söhne GmbH u. Co. KG.
The contents of these instructions are protected by copyright. The use is
admissible within the exploitation of the machine. The instructions must not be
reproduced, distributed or modified without the written consent of the manufacturer.
All rights reserved.
© Copyright | B. Strautmann & Söhne GmbH u. Co. KG

Sherpa 120, 140 | 06.19 5
Table of contents
1About these instructions..................................................................................9
1.1 Target group.............................................................................................10
1.2 Other relevant documents........................................................................10
1.3 Representational conventions..................................................................11
1.3.1 Activities and lists................................................................................11
1.3.2 References and further information ....................................................12
1.3.3 Location details...................................................................................12
1.3.4 Warning signs .....................................................................................13
1.4 Applied terms ...........................................................................................15
1.5 Abbreviations ...........................................................................................15
2Safety ............................................................................................................16
2.1 General information on safety..................................................................16
2.2 Correct use...............................................................................................16
2.3 Reasonably foreseeable misuse..............................................................17
2.4 Safety-conscious working ........................................................................18
2.5 Technical alterations................................................................................18
2.6 User’s obligation.......................................................................................19
2.7 Operator’s obligation ................................................................................19
2.7.1 Staff requirements...............................................................................20
2.7.2 Personal protective equipment (PSA).................................................22
2.8 Risk potential and residual risks ..............................................................22
2.8.1 Hazardous area and dangerous spots................................................23
2.8.2 Risks due to moving parts...................................................................24
2.8.3 Risks due to hydraulic and pneumatic energy....................................25
2.8.4 Risks due to electrical energy.............................................................26
2.8.5 Risks due to hot spots.........................................................................27
2.8.6 Risks when handling chemical substances ........................................27
2.9 Brake system ...........................................................................................28
2.10 Axles.........................................................................................................29
2.11 Environmental protection .........................................................................29
2.12 Warranty and liability................................................................................30
2.13 Safety and protective devices..................................................................31
2.14 Signs at the machine................................................................................33
2.14.1 Warning signs .....................................................................................33
2.14.2 Instruction signs..................................................................................40
2.14.3 Placing of warning and instruction signs.............................................43
3Technical data...............................................................................................45
3.1 General data ............................................................................................45
3.2 Dimensions of wagon...............................................................................46
4Description of machine..................................................................................47
4.1 General overview .....................................................................................48
4.2 Hydraulic system......................................................................................50
4.2.1 Hydraulic control block........................................................................51
4.2.2 Additional control block.......................................................................51
4.2.3 Hydraulic pumps .................................................................................52
4.2.4 Hydraulic oil tank.................................................................................52

6 Sherpa 120, 140 | 06.19
4.3 Brake system ...........................................................................................53
4.4 Picking-up system....................................................................................53
4.4.1 Pick-up milling cutter...........................................................................53
4.4.2 Fast-Cut picking-up system ................................................................54
4.5 Mixing container and mixing augers ........................................................55
4.5.1 Scraper................................................................................................56
4.5.2 Protective cover ..................................................................................56
4.6 Discharge options ....................................................................................57
4.7 Traffic-related equipment.........................................................................58
4.8 Type plate.................................................................................................59
5Commissioning..............................................................................................60
5.1 Safety.......................................................................................................60
5.1.1 Road traffic regulations.......................................................................60
5.2 Check machine for proper functioning .....................................................61
5.3 Set deflector plate ....................................................................................62
5.3.1 Mechanical deflector plate ..................................................................62
5.4 Connect preheating devices.....................................................................63
6Control system ..............................................................................................65
6.1 Cabin door................................................................................................65
6.2 Get in and out...........................................................................................65
6.3 Steering column .......................................................................................66
6.3.1 Steering column adjustment ...............................................................66
6.4 Multi-function switch.................................................................................67
6.4.1 Indicator ..............................................................................................67
6.4.2 Full headlights.....................................................................................67
6.4.3 Windscreen wiper................................................................................68
6.5 Parking light and full headlights ...............................................................68
6.6 Work lights................................................................................................68
6.7 Pedals ......................................................................................................69
6.8 Outside mirror ..........................................................................................69
6.9 Driver seat................................................................................................70
6.10 Emergency equipment.............................................................................71
6.11 Cabin ceiling.............................................................................................71
6.11.1 Ventilate and heat cabin .....................................................................71
6.12 Door window ............................................................................................72
6.13 Sunblind ...................................................................................................72
6.14 Control set................................................................................................73
6.15 Control console ........................................................................................74
6.15.1 Joystick ...............................................................................................76
6.15.2 Manual throttle lever............................................................................77
6.16 Terminal ...................................................................................................78
6.16.1 Main page ...........................................................................................78
6.16.2 Menu –Parameters/Diagnosis............................................................80
6.16.3 Menu –Diagnosis ...............................................................................81
6.16.4 Menu –Parameters (User settings)....................................................90
6.16.5 Messages............................................................................................93
7Operation.......................................................................................................96

Sherpa 120, 140 | 06.19 7
7.1 Safety.......................................................................................................96
7.2 Start diesel engine ...................................................................................97
7.3 Travelling and braking..............................................................................98
7.4 Travelling with differential lock.................................................................99
7.5 Turn off diesel engine...............................................................................99
7.6 Fill machine............................................................................................100
7.6.1 Filling order .......................................................................................102
7.6.2 Pick up silage from the bunker silo...................................................102
7.6.3 Pick up bales.....................................................................................108
7.6.4 Pick up bulk materials.......................................................................109
7.6.5 Fill in fodder additives through feed hopper......................................110
7.7 Mix fodder components..........................................................................111
7.7.1 Apply counter-cutters........................................................................112
7.8 Discharge fodder....................................................................................113
7.8.1 Discharge procedure.........................................................................114
7.8.2 Eliminate blockages..........................................................................116
7.9 Transport journeys .................................................................................118
7.10 Safely park machine...............................................................................119
8Malfunctions ................................................................................................120
8.1 Safety.....................................................................................................120
8.1.1 List of malfunctions, machine............................................................121
8.1.2 List of malfunctions, electrical system...............................................122
8.1.3 List of malfunctions, weighing device................................................124
8.2 Jumper ...................................................................................................125
8.3 Tow machine..........................................................................................127
8.3.1 Open hydraulic oil circuit of traction drive.........................................127
8.4 Emergency manual operation................................................................129
8.5 Manually release parking brake.............................................................130
9Service and maintenance............................................................................132
9.1 Safety.....................................................................................................132
9.2 Maintenance instructions .......................................................................134
9.3 Lubricants and operating media.............................................................134
9.4 Tightening torques .................................................................................135
9.4.1 Metric standard threads ....................................................................136
9.4.2 Wheel nuts........................................................................................137
9.5 Maintenance and lubrication plan ..........................................................138
9.5.1 Maintenance plan –Machine............................................................139
9.5.2 Lubrication plan.................................................................................144
9.6 Enter the mixing container .....................................................................146
9.7 Clean machine .......................................................................................148
9.8 Lubricate machine..................................................................................149
9.9 Check and top up central lubrication......................................................150
9.10 Support pick-up arm...............................................................................151
9.11 Refuel.....................................................................................................153
9.12 Top up AdBlue®......................................................................................154
9.13 Diesel engine .........................................................................................157
9.13.1 Check and top up oil level.................................................................157

8 Sherpa 120, 140 | 06.19
9.13.2 Check and top up coolant level.........................................................159
9.14 Check cooling fan...................................................................................161
9.15 Hydraulic system....................................................................................162
9.15.1 Safety................................................................................................162
9.15.2 Maintenance intervals.......................................................................163
9.15.3 Depressurise hydraulic system.........................................................164
9.15.4 Hydraulic hose pipes.........................................................................165
9.15.5 Check hydraulic oil level and top up hydraulic oil .............................167
9.15.6 Clean ventilation filter........................................................................169
9.16 Top up windscreen washing water.........................................................170
9.17 Replace wiper blades.............................................................................171
9.18 Clean air circulation filter........................................................................172
9.19 Clean fresh air filter................................................................................173
9.20 Clean air filter element...........................................................................174
9.21 Gear lubricant oil....................................................................................177
9.21.1 Milling drum gearbox.........................................................................178
9.21.2 Milling drum gearbox.........................................................................179
9.21.3 Mixer gearbox ...................................................................................180
9.21.4 Mixer gearbox –Input stage .............................................................181
9.22 Dosage gate –Check gap size..............................................................182
9.23 Mixing auger –Cutting knives................................................................183
9.23.1 Check cutting knives.........................................................................183
9.23.2 Replace cutting knives......................................................................184
9.23.3 Grind cutting knives...........................................................................188
9.24 Tighten and adjust side discharge conveyor..........................................189
9.25 Picking-up system..................................................................................190
9.25.1 Adjust supporting rollers ...................................................................190
9.25.2 Adjust scraper bar.............................................................................191
9.25.3 Check tension of elevator conveyor..................................................192
9.25.4 Turn over or replace milling blades...................................................193
9.25.5 Check cutting unit..............................................................................195
9.25.6 Readjust Fast-Cut cutting knives ......................................................197
9.25.7 Replace Fast-Cut cutting knives and slide plates.............................198
9.26 Tyres ......................................................................................................199
9.26.1 Safety................................................................................................199
9.26.2 Check tyres .......................................................................................200
9.26.3 Wheel change...................................................................................201
10 Spare parts..................................................................................................202
11 Other relevant documents...........................................................................203
11.1 List of fuses............................................................................................203
11.2 List of relays...........................................................................................205
13 Index............................................................................................................206

About these instructions
Sherpa 120, 140 | 06.19 9
1 About these instructions
Dear customer,
You have decided in favour of a quality product from the large
B. Strautmann & Söhne GmbH u. Co. KG product range. We
thank you for the confidence you have shown in us.
Upon receipt of the machine, please check for transport
damage or missing parts. Inspect the delivered machine for
completeness, including the ordered optional extras, by
means of the delivery note.
Only immediate complaints will give reason to compensation!
Read and observe these operating instructions and any other
enclosed operating instructions for individual machine
components before the first start-up; in case of doubt, the
details and information in such sub-supplier documentation
shall prevail!
These instructions contain descriptions and important
information for the safe and efficient use of the machine. They
are part of the machine. Therefore, always keep these
operating instructions in the machine. Hand these operating
instructions over to the buyer when the machine is sold.
The staff shall have carefully read and understood these
instructions before starting work.
The machines are available with various optional extras. Due
to the individual equipment of your machine, not all
descriptions included in these operating instructions apply to
your machine. Optional extras are marked in these operating
instructions and are available at extra cost.
In case of any inquiries or problems, please refer to these
operating instructions or call us.
Regular service and maintenance and timely replacement of
worn-out or damaged parts will result in a longer service life of
your machine.

About these instructions
10 Sherpa 120, 140 | 06.19
1.1 Target group
These operating instructions are primarily intended for the
operator of the machine.
Operator
The operator has been instructed in working with the machine
and informed about possible risks in case of improper
behaviour. The operator has reached the minimum age of 18
years.
Qualified staff
The members of staff have completed the respective
professional training qualifying them to carry out maintenance
and troubleshooting work.
A workshop manual is delivered separately.
Minimum qualifications and staff requirements, ►see
section 2.7.1, page 20.
1.2 Other relevant documents
In addition to these instructions, further documents shall
apply, such as e.g. documentation of sub-suppliers and circuit
diagrams. Observe and always adhere to the specifications
and instructions contained therein.

About these instructions
Sherpa 120, 140 | 06.19 11
1.3 Representational conventions
To facilitate easy and fast comprehension, different
information in these instructions is represented or highlighted
as follows:
1.3.1 Activities and lists
Activities which have to be carried out in a predetermined
order are specified as numbered instructions. In some cases,
the response of the machine to the respective instruction is
marked by an arrow.
Instructions
1. Frist step
2. Second step
3. …
→ Response of machine
Adhere to the order of the steps.
Lists without predetermined order
Introductory phrase
•Information
•Information
•…
Subordinate lists
–Subitem
–Subitem
–…
Position numbers in figures, legends, continuous text
1 Machine part
2 Machine part
3 …
Position numbers in a continuous text are indicated in
parentheses (1).
Lines of position in figures
Starting from the position numbers, the lines of position refer
to the respective components.
A line without an arrow means that the
machine part can be seen in the figure.
A line with an arrow means that the machine
part is hidden in the figure and is therefore not
visible.

About these instructions
12 Sherpa 120, 140 | 06.19
1.3.2 References and further information
References
A preceding arrow head ► indicates a reference to further
information elsewhere in the operating instructions.
Example:
► Please refer to paragraph 9.10, page 21.
Notes and additional information
NOTE
Notes are highlighted as shown here.
•Notes contain additional information, recommendations
and tips.
•Notes do not contain any warnings of risks.
Environmental protection
This symbol marks information about
environmental protection.
1.3.3 Location details
Any directional data in these operating instructions refer to the
direction of motion.

About these instructions
Sherpa 120, 140 | 06.19 13
1.3.4 Warning signs
Signal words
Warning information is highlighted by a signal word. The
signal word explains the extent of a risk. The signal words
DANGER, WARNING and CAUTION mark risks to people.
Risks to people are additionally marked by the general hazard
symbol . It is imperative to observe these warning signs to
avoid injuries or death.
The signal word ATTENTION marks risks of material damage.
The information regarding material damage is not preceded
by a symbol.
Risk levels
DANGER
Marks a dangerous situation which will cause serious injuries
or even death if it is not prevented.
WARNING
Marks a dangerous situation which may cause serious injuries
or even death if it is not prevented.
CAUTION
Marks a dangerous situation which may cause injuries if it is
not prevented.
ATTENTION
Marks measures to avoid material damage.

About these instructions
14 Sherpa 120, 140 | 06.19
Paragraph-related warning information
Paragraph-related warning information refers to entire
chapters, a paragraph or several paragraphs in these
instructions.
Paragraph-related warning information is structured according
to the following layout:
SIGNAL
WORD
Kind and source of risk
Possible consequences in case of non-observance of risk
•Measures to avoid a dangerous situation.
Embedded warning information
Embedded warning information is situation-related and refers
to a certain activity or to a part within a paragraph.
Embedded warning information is structured according to the
following layout:
SIGNAL WORD –Kind of risk. Measures to avoid a
dangerous situation.

About these instructions
Sherpa 120, 140 | 06.19 15
1.4 Applied terms
Term
Description
Third
person/party
All other persons apart from the operator.
Risk
The source of a possible injury or damage
to health.
Manufacturer
B. Strautmann & Söhne GmbH u. Co. KG
Machine
Self-propelled fodder mixing wagon
Sherpa
Operating
element
Part of an operating device, which is
directly actuated by the operator, e.g. by
pressing. An operating element may be an
adjusting lever, a key button, rotary switch,
key etc.
Tab. 1: Terms
1.5 Abbreviations
Abbreviation
Description
StVZO
Road Traffic Licensing Code
TMR
Total Mixed Ration
AdBlue®
Registered trademark of the Verband der
Automobilindustrie e.V. (VDA) (note of transl.:
German Association of the Automotive Industry). In
these instructions, AdBlue®stands for the
urea solution according to ISO 22241,
which is used for exhaust gas treatment of
diesel engines. Other designations are
US 32 and DEF.
AUS 32
Aqueous Urea Solution
Designation for urea solution according to
ISO 22241.
DEF
Diesel Exhaust Fluid. DEF is equivalent to
DEF AdBlue®
Tab. 2: Abbreviations

Safety
16 Sherpa 120, 140 | 06.19
2 Safety
2.1 General information on safety
The chapter Safety contains basic safety instructions and
provides an overview of all important safety aspects. Further
task-related safety instructions are included in the paragraphs
about the individual phases during the life cycle. Adherence
protects your own safety.
2.2 Correct use
The self-propelled fodder mixing wagons of the Sherpa series
are designed for removal, charging, chopping, homogeneous
mixing, transport and discharge of all types of silage and
normal fodders used in keeping livestock.
Prerequisites:
•In conventional TMR mixtures*, the dry substance
content of the total mixture must be more than 30 % at
any time of the mixing process.
•Use a protective cover if the dry substance content is
less than 30 % at any time, e.g. in compact TMRs.
The fodder mixing wagons are only allowed to be filled by
means of the following vehicles and equipment:
•Pick-up arm
•Hydraulic feed hopper at the mixing container (optional
extra)
•Tractor with front loader
•Yard or wheeled loader
The machine is only allowed to be operated by one person.
The following is also part of the correct use:
•The observance of all instructions contained herein,
•the observance of the specified service and maintenance
work on the machine,
•the exclusive use of original spare parts.
Any use beyond the above is prohibited and will be regarded
as incorrect.
The user will be solely responsible for any damage resulting
from incorrect use; the manufacturer will not assume any
liability.
* TMR = Total Mixed Ration

Safety
Sherpa 120, 140 | 06.19 17
2.3 Reasonably foreseeable misuse
The following points describe a reasonably foreseeable
misuse of the machine:
•Participation in road traffic with overloaded machine
•Dropping of large fodder quantities into the mixing
container from an excessive height
•Removal of stuck fodder from the charging tools at the
container (container top edge or overflow ring)
•Long interruption of the mixing process with the mixing
container heavily filled
Long interruptions cause large "breakaway torques" and
thus a strong load exerted on the power train.
•Dosage of the fodder quantity to be discharged by means
of the conveyor speed with the discharge gate completely
open
•Entry into the mixing container via the ladder and over
the top edge of the container
•Use of machine covers as platform
•Use of pick-up arm as lifting device

Safety
18 Sherpa 120, 140 | 06.19
2.4 Safety-conscious working
Observe as the basic prerequisite for safe working:
•All specified safety and warning information as well as
the instructions in these operating instructions
•Instructions regarding correct use
•Warning signs on the machine
•General national occupational safety, accident prevention
and environmental protection rules
•National road traffic regulations for transport journeys
•Operation of the machine only in a sound safety-related
condition
•Wearing of personal protective equipment
•Make sure that third parties and animals leave the
hazardous area before operating the machine.
Particularly be aware of children.
•Never carry passengers, animals or objects on the
machine.
2.5 Technical alterations
You are only allowed to carry out technical alterations,
extensions or modifications on the machine with the prior
written consent of the manufacturer.
The manufacturer will not assume any liability for damage
resulting from:
•Unauthorised alterations of the machine
•Use of non-approved parts
•Welding and drilling work on load-bearing parts of the
machine
In case of non-observance, the declaration of conformity and
the CE symbol of the machine will become invalid.
Furthermore, the operating license according to national and
international regulations will become invalid.

Safety
Sherpa 120, 140 | 06.19 19
2.6 User’s obligation
The user himself is responsible for observance of the binding
laws, rules, applicable local provisions and national
regulations.
The user is obliged
•to exclusively have staff working with and on the machine
who have been instructed how to operate the machine
and possess the minimum qualification.
•to provide the necessary personal protective equipment.
•to keep all warning signs attached to the machine in
legible condition. Immediately replace missing or
damaged warning signs.
2.7 Operator’s obligation
Any people charged to work with and on the machine are
obliged
•to acquaint themselves with the machine before starting
work.
•to observe the general national occupational safety,
accident prevention and environmental protection rules.
•to adhere to the instructions in these operating
instructions.

Safety
20 Sherpa 120, 140 | 06.19
2.7.1 Staff requirements
The different tasks described in these operating instructions
place different requirements on the qualification of the people
entrusted with such tasks.
Inexperienced and insufficiently qualified members of staff are
not able to evaluate the risks associated with the handling of
the machine, thus endangering themselves and other people.
•Only trained and instructed members of staff, who have
been informed about the risks, are allowed to carry out
the work.
•Members of staff to be trained must be supervised by
experienced qualified staff members when working on
the machine.
•Only people expected to reliably carry out the work, are
allowed to carry out such work.
•Only authorised workshops are allowed to carry out work
requiring special expert knowledge.
Unless otherwise provided by law, the admissible members of
staff, their minimum qualification and their deployment after
the machine's life cycle are specified. See the following table:
