Stryker Sidne Operating instructions

OPERATING AND MAINTENANCE MANUAL

English
Sidne™ Operating and Maintenance Manual
Contents

OPERATING AND MAINTENANCE MANUAL
5900 Optical Court
San Jose, CA 95138
USA
Tel. [phone]
Fax [phone]

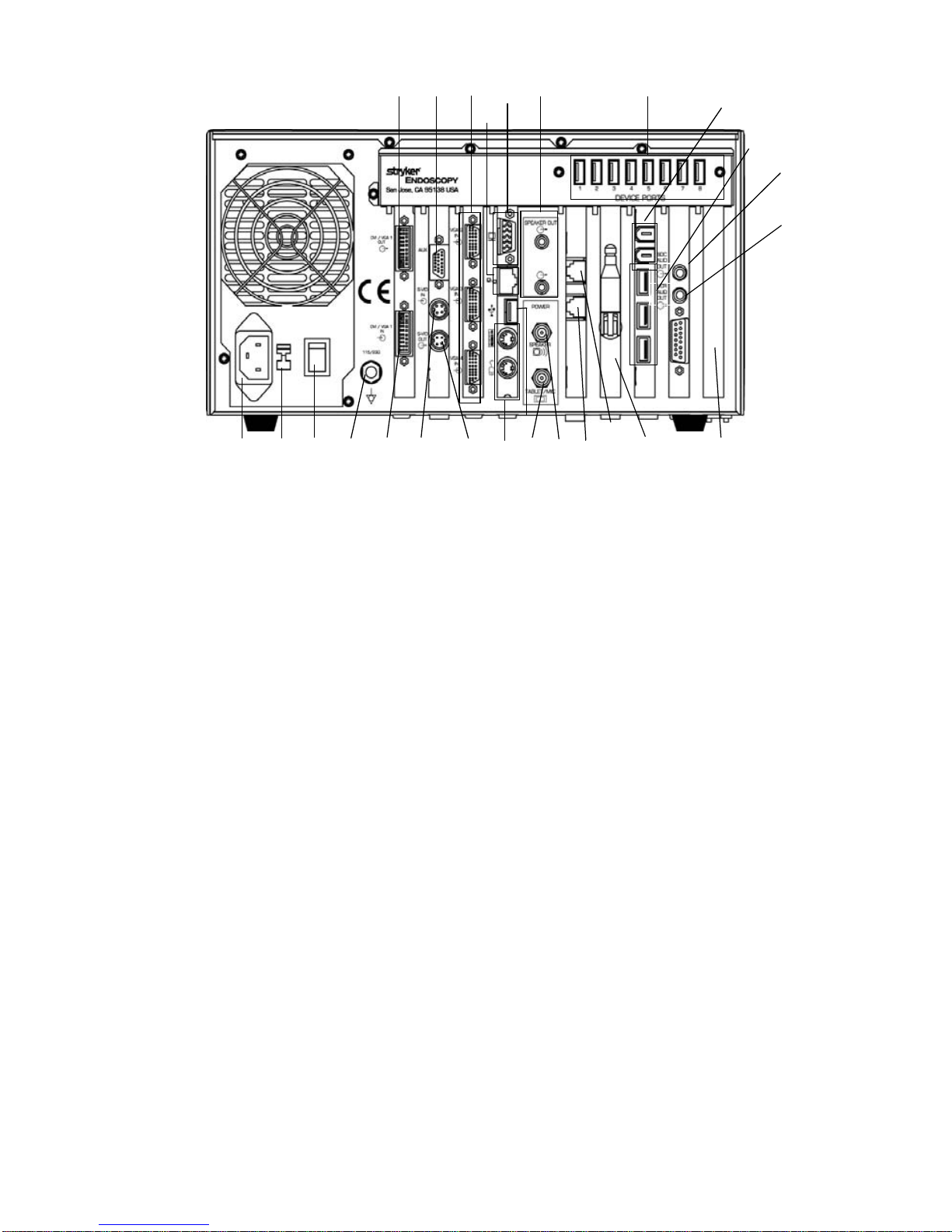

Before operating SIDNE for the first time, attach the antenna
to the back of the SIDNE unit as shown.
Important

Table of Contents
1 EN
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 1 EN
Warnings and Cautions. . . . . . . . . . . . . . . . . . . . . 4 EN
*Avertissements et précautions. . . . . . . . . . . . . 6 EN
Product Description / Intended Use . . . . . . . . . 8 EN

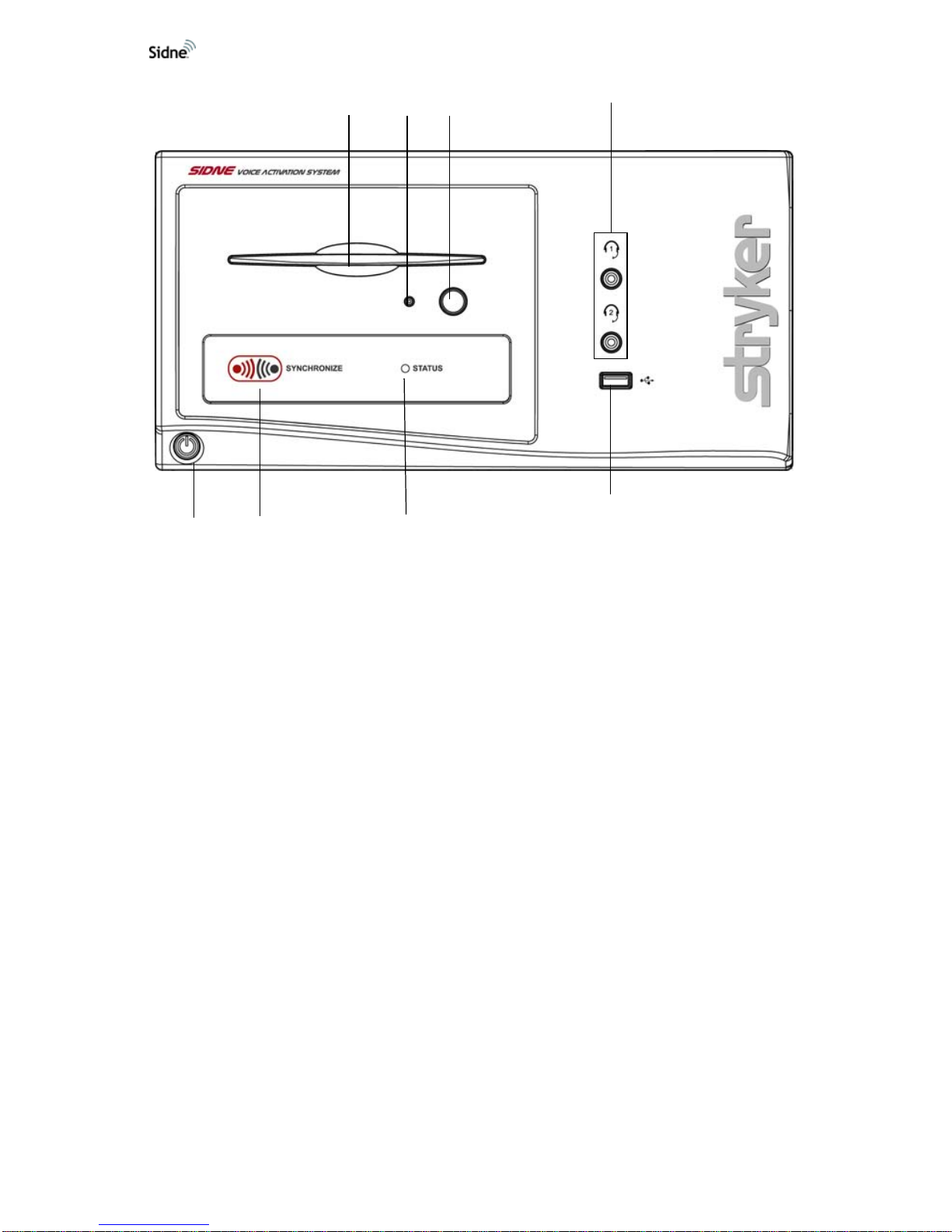

The Sidne™ Console. . . . . . . . . . . . . . . . . . . . . . . . . 9 EN

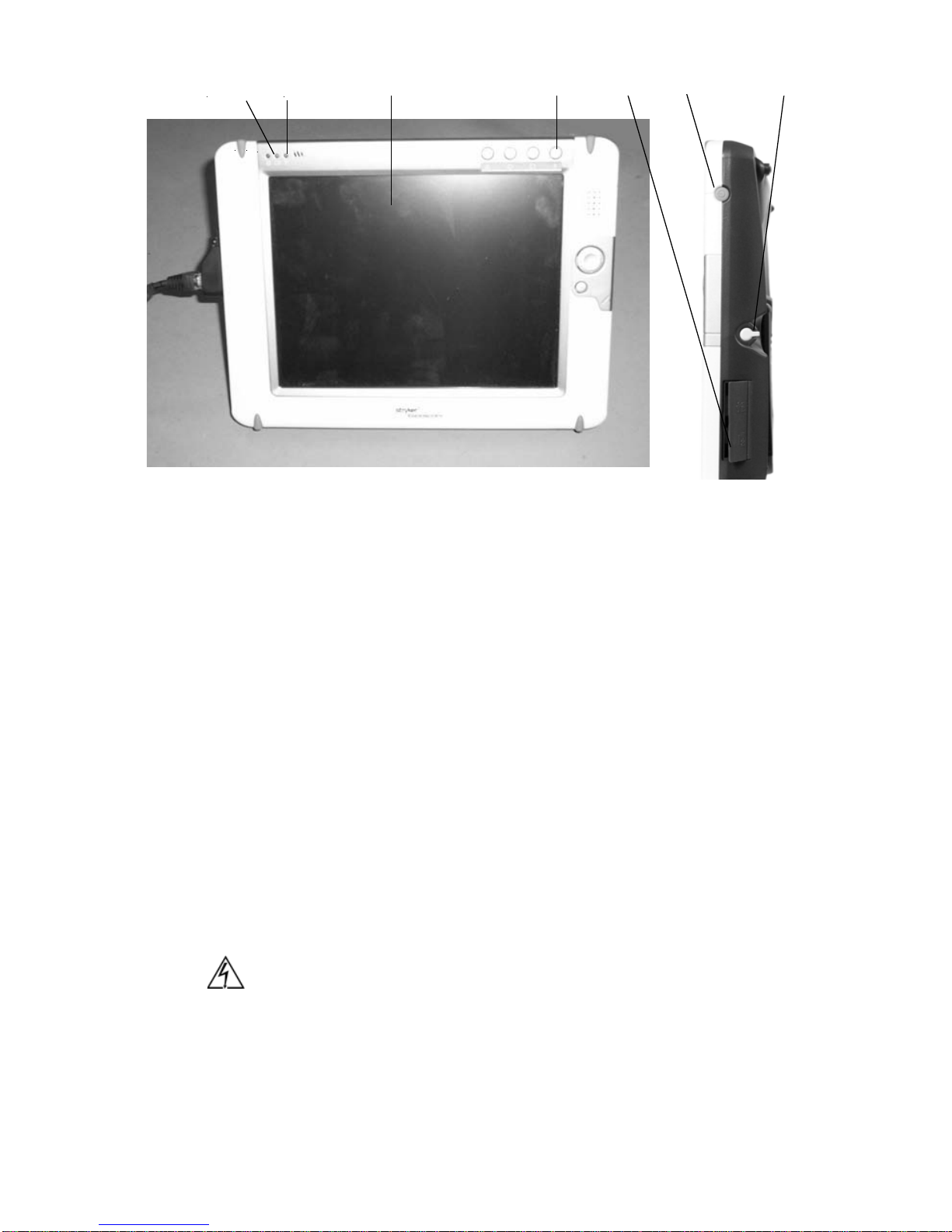

The Tablet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 EN
The Microphone Headset . . . . . . . . . . . . . . . . . . . . 14 EN
Setting Up the Sidne™ System . . . . . . . . . . . . 18 EN
Setting Up the Console . . . . . . . . . . . . . . . . . . . . . . 18 EN
Setting Up the Tablet. . . . . . . . . . . . . . . . . . . . . . . . 23 EN
Setting Up the Headset . . . . . . . . . . . . . . . . . . . . . . 24 EN
Setting Up the Receiver . . . . . . . . . . . . . . . . . . . . 24 EN
Setting Up the Transmitter . . . . . . . . . . . . . . . . . . 25 EN
Setting Up the Headpiece. . . . . . . . . . . . . . . . . . . 25 EN
Selecting the Video Source. . . . . . . . . . . . . . . . . . . 26 EN
Operating the Sidne™ System . . . . . . . . . . . . . 27 EN
Issuing Commands with the Tablet . . . . . . . . . . . . 27 EN
Issuing Commands with the Microphone
Headset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 EN
Global Commands. . . . . . . . . . . . . . . . . . . . . . . . . . 31 EN
Device-Specific Commands . . . . . . . . . . . . . . . . . . 32 EN
Stryker 2.0 Liter Arthroscopy Pump . . . . . . . . . . . 33 EN
Stryker 888 / 988 Medical video Camera . . . . . . 35 EN
Stryker 30L and 40L High-Flow Insufflators . . . . . 38 EN
Stryker X6000 / Q5000 Light Source . . . . . . . . . . 41 EN
Stryker TPS Shaver . . . . . . . . . . . . . . . . . . . . . . . 43 EN
Table of Contents
*French translations are provided in accordance with CAN/CSA-C22.2 No. 601.1-M90 Clause 6
requirements.

2 EN
Stryker Digital Capture System (SDC Pro /
SDC Pro 2 /SDC HD) . . . . . . . . . . . . . . . . . . . . . . 46 EN
Sony UP-5600MD video Printer . . . . . . . . . . . . . . 48 EN
Sony SVO-9500 video Cassette Recorder
(VCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 EN
Sidne™ Options . . . . . . . . . . . . . . . . . . . . . . . . . . 52 EN
Stryker FloControl Arthroscopy Pump . . . . . . . . . 56 EN
1088 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 EN
SIDNE™ Cleaning and Maintenance. . . . . . . . 63 EN
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 EN
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 EN
Replacing Fuses. . . . . . . . . . . . . . . . . . . . . . . . . . 63 EN
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . 64 EN
Technical Specifications. . . . . . . . . . . . . . . . . . . 67 EN
Electromagnetic Compatibility Tables. . . . . . 71 EN
Testing Compatibility . . . . . . . . . . . . . . . . . . . . . . . 72 EN
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 EN
Service and Claims. . . . . . . . . . . . . . . . . . . . . . . . 80 EN
International Service . . . . . . . . . . . . . . . . . . . . . . 81 EN
Addenda to the Sidne Manual. . . . . . . . . . . . . . 83 EN
Installing the Telephone Upgrade . . . . . . . . . . 84 EN
Connecting a Phone Set to the Sidne™
Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 EN
Sidne™ Feedback Messages. . . . . . . . . . . . . . . . 85 EN
Sidne™ Operating and Maintenance
Manual Addendum . . . . . . . . . . . . . . . . . . . . . . . . 90 EN
Kit Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 EN

Table of Contents
3 EN
Quick Start-Up Guide. . . . . . . . . . . . . . . . . . . . . . 92 EN
Connecting the Electrosurgical
Unit (ESU). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 EN
Warnings and Cautions. . . . . . . . . . . . . . . . . . . . . . 93 EN
Installing the Cover Plate . . . . . . . . . . . . . . . . . . . . 95 EN
Required Equipment. . . . . . . . . . . . . . . . . . . . . . . 95 EN
Cover Plate Installation. . . . . . . . . . . . . . . . . . . . . 95 EN
Connecting Sidne™ to the Valleylab Force FX™
Electrosurgical Unit (ESU) . . . . . . . . . . . . . . . . . . . 97 EN
Mounting the EDAM. . . . . . . . . . . . . . . . . . . . . . . . . 98 EN
Installing the ESU Driver Upgrade. . . . . . . . . 100 EN
Operating the ESU. . . . . . . . . . . . . . . . . . . . . . . . 102 EN
Sidne™ ESU Tablet Commands. . . . . . . . . . . . . . 102 EN
Voice Commands Menu . . . . . . . . . . . . . . . . . . . . 105 EN
Sidne™ Feedback Messages . . . . . . . . . . . . . . . . 106 EN
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . 107 EN
Electromagnetic Compatibility Tables. . . . . 109 EN
Installing the Tablet Battery Pack . . . . . . . . . 113 EN
Sidne™ Tablet-Recharging Cradle. . . . . . . . . . . . 114 EN
Operating and Maintenance Manual . . . . . . . . . 114 EN
Product Description / Intended Use . . . . . . . 114 EN
Cradle Operation . . . . . . . . . . . . . . . . . . . . . . . . . 115 EN
Setting Up the Cradle . . . . . . . . . . . . . . . . . . . . . . 115 EN
Charging the Tablet and Tablet Battery. . . . . . . . 115 EN
Electrical Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . 116 EN

4 EN
Cradle Cleaning and Maintenance. . . . . . . . . 117 EN
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 EN
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 EN
Warranty and Repairs . . . . . . . . . . . . . . . . . . . . 117 EN

4 EN
To avoid potential serious injury to the user and the patient and/or
damage to this device, the user must:
1. Read this operating manual thoroughly and be familiar with its
contents prior to using this equipment.
2. Carefully unpack the unit and check if any damage occurred
during shipment. If damage is detected, please refer to the
Service and Claims section in this manual.
3. Be a qualified physician, having complete knowledge of the use
of this equipment.
4. Test this equipment prior to a surgical procedure. This unit was
fully tested at the factory before shipment.
5. Attempt no internal repairs or adjustments not specifically
detailed in this operating manual.
6. Pay close attention to the care and cleaning instructions in this
manual. A deviation may cause damage.
7. Read the entire instruction manual before assembling or
connecting the unit.
The warranty is void if any of these warnings are disregarded.
Stryker Endoscopy accepts full responsibility for the effects on safety,
reliability, and performance of the equipment only if:
• Readjustments, modifications, and/or repairs are carried out
exclusively by Stryker Endoscopy.
• The electrical installation of the relevant operating room
complies with the applicable IEC, CEC, and NEC requirements.
Warning Federal law (United States of America) restricts this
device to use by, or on order of, a physician.
Stryker Endoscopy reserves the right to make improvements on the
product(s) described herein. Product(s), therefore, may not agree in detail
to the published design or specifications. All specifications are subject to
change without notice. Please contact the local Stryker Endoscopy
Distributor listed in the International Service section, or phone your local
Stryker Endoscopy sales representative or agent for information on
changes and new products.
Warnings and Cautions

Warnings and Cautions
5 EN
Please read this manual and follow its instructions carefully. The words
warning, caution, and note carry special meanings and should be
carefully reviewed:
Warning The personal safety of the patient or physician may be
involved. Disregarding this information could result in
injury to the patient or physician.
Caution Special service procedures or precautions must be
followed to avoid damaging the instrument.
Note Special information to make maintenance easier or
important information more clear.
An exclamation mark within a triangle is intended to alert
the user to the presence of important operating and
maintenance instructions in the literature accompanying
the product.
A lightning bolt within a triangle is intended to warn of the
presence of hazardous voltage. Refer all service to
authorized personnel.
Other Symbols:
FCC: Federal Communications Commission (United States)
IC: Industry Canada.
Note The term “IC” before the certification/registration number
signifies that the Industry Canada technical specifications
were met.
This device complies with Part 15 of the FCC rules. Operation is subject
to the following 2 conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Ambient temperature range
Relative humidity range
Atmospheric pressure range
Denotes compliance to CSA C22.2 No. 601.1-M90,
and UL 2601-1.
This device includes RF transmitters and emits
nonionizing radiation.

6 EN
Pour evictor de graves pleasures potentiates à l’utilisateur et au patient
et/ou des dégâts à ce dispositif, l’utilisateur doit répondre à certaines
conditions et/ou suivre certaines cédures :
1. Lire intégralement ce manuel d’utilisation et se familiariser avec son
contenu avant d’utiliser cet équipement.
2. Déballer l’unité avec précaution et vérifier les dommages éventuels
survenus pendant l’expédition. Si l’unité n’est pas intacte, se reporter
à la section Assistance et réclamations de ce manuel.
3. Être un médecin qualifié parfaitement au courant des modalités
l’utilisation de cet équipement.
4. Tester cet équipement avant toute intervention chirurgicale. L’unité a
subi des tests poussés en usine avant son expédition.
5. Ne tenter aucun réglage ou réparation qui ne soit pas spécifiquement
décrit dans ce manuel d’utilisation.
6. Suivre scrupuleusement les instructions d'entretien et de nettoyage
exposées dans ce manuel. Tout manquement peut être source de
dégâts.
7. Lire intégralement le mode d’emploi avant d'assembler ou de
connecter l’unité.
Le non-respect de ces mises en garde entraîne la nullité de la garantie.
Stryker Endoscopy n’accepte la pleine responsabilité quant aux effets
nuisibles sur la sécurité, la fiabilité et les performances de l’équipement
que dans les conditions suivantes :
• Les réglages, modifications et/ou réparations sont exécutées
exclusivement par Stryker Endoscopy.
• L’installation électrique de la salle d'opération où cet
équipement est utilisé est conforme aux normes CEI, CEC et
NEC en vigueur.
Avertissement Selon la loi fédérale américaine, ce dispositif ne
peut être utilisé que par un médecin ou sur son
ordre.
Stryker Endoscopy se réserve le droit d’apporter des améliorations au(x)
duit(s) décrit(s) dans le présent document. Il se peut par conséquent que
l’équipement utilisé diffère légèrement dans sa conception et ses
spécifications de l’équipement décrit. Toutes les spécifications sont
sujettes à modification sans préavis. Prendre contact avec le distributeur
Stryker Endoscopy le plus che dont les coordonnées sont indiquées dans
la section Autres services d’assistance ou appeler le représentant ou
*Avertissements et précautions

*Avertissements et précautions
7 EN
l’agent Stryker Endoscopy local pour obtenir des informations sur les
modifications et les nouveaux duits.
Lire ce manuel et suivre scrupuleusement les instructions qu’il contient.
Les termes Warning (avertissement), Caution (attention) et Note
(remarque) ont une importance particulière décrite ci-dessous :
Avertissement La sécurité personnelle du patient ou du
médecin peut être menacée. Le non-respect des
consignes données peut entraîner des
dommages corporels pour le patient ou le
médecin.
Attention Cédures ou précautions particulières devant être
respectées pour éviter d’endommager l’instrument.
Remarque Informations spéciales destinées à faciliter la
maintenance ou à rendre plus claires certaines
informations importantes.
Un point d’exclamation dans un triangle a pour objet
d’attirer l’attention de l’utilisateur sur la présence
d’instructions d’utilisation et de maintenance importantes
dans la documentation du duit.
Un éclair dans un triangle avertit de la présence de tension
dangereuse. Faire effectuer toute intervention sur
l’équipement par du personnel agréé.
Autres symboles :
Plage de température ambiante
Plage d’humidité relative
Plage de pression atmosphérique
Indique la conformité avec les normes CEI 601-1,
amendements 1 & 2, CSA C22.2 N° 601.1-M90 et UL
N° 2601-1.
*French translations are provided in accordance with CAN/CSA-C22.2 No. 601.1-M90 Clause 6
requirements.

8 EN
The Stryker Intelligent Device Network (Sidne™) operating-room control
system is an electronic medical device intended for use in surgical
procedures. The Sidne™ system facilitates operating-room management
by centralizing control of the various electronic devices used in the
operating room. Medical cameras, image capture systems, insufflators,
and other operating-room devices connected to the Sidne™ system can
be controlled through commands issued to the Sidne™ console.
The Sidne™ console is controlled by a touch-screen, interactive tablet or
through commands spoken into a microphone headset.
Figure 1: The Sidne™ system.
Product Description / Intended Use

Product Description / Intended Use
9 EN
The Sidne™ system is packaged with the following components:
1 Sidne™ console
1 tablet
1 Audio-Technica wireless headset kit
8 6-foot Serial USB device-connector cables
1 Hospital-grade AC power cord
1 Speaker power cable
1 Tablet power cable
1 12-foot S-video cable
1 video-out cable
1 Audio-out cable (SDC compatible)
1 Audio-out cable (VCR compatible)
1 Audio-Technica Line cable
The three main components of the Sidne™ system are
1. The Sidne™ console
2. The remote-control tablet
3. The microphone headset.
Each of these three main components is described in detail in the
following pages.
The Sidne™ Console
The Sidne™ console is the primary component of the Sidne™ system.
The console provides connection ports for the various operating- room
devices, which it controls by processing voice and tablet commands
issued by the surgeon and operating-room staff. The front console panel
provides several features whose functions are listed in Figure 2 below.
Figure 3 lists the features of the rear console panel.

10 EN
Figure 2: The Sidne™ console, front panel
1. CD-ROM Drive: Will play compact discs with a future Sidne
driver. Insert the CD with the bottom side facing the CD eject
button.
2. CD-ROM Indicator Light: Indicates the presence of a disk in the
CD-ROM drive.
3. CD Eject Button: Ejects CDs from the CD-ROM Drive.
4. Microphone Headset Jacks: Connect microphone headsets to
the console for voice-controlled operation.
5. Device-Driver Dongle Port: Connects to a USB dongle for
uploading device drivers to the Sidne™ system.
6. System Status LED: Blinks green while the console boots up;
shines green when the console is ready for use.
7. Tablet Synchronization Button: Synchronizes wireless
communication between the console and the tablet.
8. Power On/Off Button: Powers on the console when pressed
once; powers off the console when pressed again.
87 6 5
4
321

Product Description / Intended Use
11 EN
Figure 3: The Sidne™ console, rear panel
1. DVI-I / XGA Output: Connects to a flat-panel monitor.
2. Analog video In/Out: Connects with the video in/out breakout
cable, which provides S-video connections 2 through 4, one
Composite in, and one Composite out.
3. XGA Inputs 2, 3, and 4: Connect to a surgical camera.
4. For service use only: Do not use.
5. Audio Out: Connects to external speakers.
6. Device Ports: Connect operating-room devices to the Sidne™
console.
7. Voice Output for SDC: Connects to audio input on an SDC for
dictation onto a CD/DVD.
8. Voice Output for VCR: Connects to audio input on a VCR for
dictation onto a VHS tape.
9. Wireless Receiver Antenna: Receives wireless communication
signals from the tablet.
10. Disabled: Do not use.
11. Phone Line In: Brings dial tone from a wall jack to the Sidne™
console.
12. Phone: Gives dial tone from the Sidne™ console to a regular
telephone.
13. Speaker Power Jack: Supplies power to external speakers.
14. Tablet/Mic Power Jack: Connects to the tablet power cable,
which powers the tablet and two wireless-headset receivers.
15. S-Video Out: Connects to devices such as a monitor, video
printer, VCR, or SDC .
16. S-Video 1 In: Connects to a surgical camera.
12345 6
7
8
10
11 9
13
1415161718192021
2322
12
4
24
25

12 EN
17. DVI-I / XGA-1 Input: Connects to a surgical camera.
18. Equipotential Ground Terminal
19. Power On / Off Switch: Enables the system to power on when in
the “I” position; powers off the system when in the “O” position
20. Voltage Selector: Selects either 120 or 240 Volts.
21. AC-Power Supply Input
22. USB 2.0 Ports: Reserved for future use.
23. Firewire Ports: Reserved for future use.
24. USB 1.1 Port: Reserved for future use.
25. Ethernet Port: Reserved for future use.
The Tablet
The remote-control tablet provides manual controls for the Sidne™
system and any devices connected to the console. The tablet has an
interactive touch screen that displays the devices connected to the
Sidne™ system and provides a control menu for each device. When a
command is selected by touching the tablet screen, the tablet relays the
command to the Sidne™ console where it is routed to the appropriate
device.
The tablet can be powered by rechargeable batteries for up to two
continuous hours, allowing for wireless use, or by a power cord that
connects to the rear panel of the Sidne™ console.
Note The tablet batteries will recharge automatically when the
tablet power cord is connected to the Sidne™ console
(when on), but it is recommended that they be charged
using the cradle (see Cradle Addendum). Full charging
time is two hours.
The tablet features several controls, which are described in Figure 4.

Product Description / Intended Use
13 EN
Figure 4: The remote-control tablet, front and right-side view
1. Tablet Indicator Light: Shines orangewhile the tablet bootsup;
shines green when the tablet is ready for use.
2. Battery Indicator Light: Indicates the charge left in the tablet
battery: Green = over 80%; Orange = between 80% and 20%;
Red = less than 20%.
3.Touch/View screen: Displays control menus for operating the
Sidne™ system and any devices connected to it.
4.On-Screen Keyboard Button: Displays /hidestheon-screen
keyboard when pressed.
5.DC Power Input: Connectsthetablet to the Sidne™ console for
DC power and battery recharging.
6.Power On/Off Switch: Powersthe tableton oroffwhen held for
3 continuous seconds. Suspends the tablet if pressed and
released quickly. To activate, press button again.
7.Stylus: Acts as apointer to select options on the tablet touch
screen. Pull gently on the stylus to release it from its housing.
Caution The extra ports and buttons on the tablet not described in
this manual are not intended for use and may cause
unexpected results if used.
7654321

14 EN
Caution Do not open the battery compartment or try to replace the
batteries as battery function may be compromised. Contact
your local Stryker representative for assistance.
The Microphone Headset
The microphone headset provides voice-activated control of the Sidne™
system and any devices connected to the console. When a command is
spoken into the microphone headset, the headset transmits the command
via radio frequency to the Sidne™ console, where it is then routed to the
appropriate device.
The headset comprises three main components, which are described in
Figures 5 through 8 below:
1. The headset (Figure 5)
2. The transmitter (Figure 6)
3. The receiver (front panel Figure 7; rear panel Figure 8).
Figure 5: The headset
1. Headpiece: Fits over the top of the head or above the ear and
behind the head, positioning the microphone in front of the
mouth.
2. Microphone Mouthpiece: Fits three fingers’ breadth away from
the corner of the mouth to receive spoken commands.
3. Headpiece Connector: Connects to the transmitter.
3
2
1

Product Description / Intended Use
15 EN

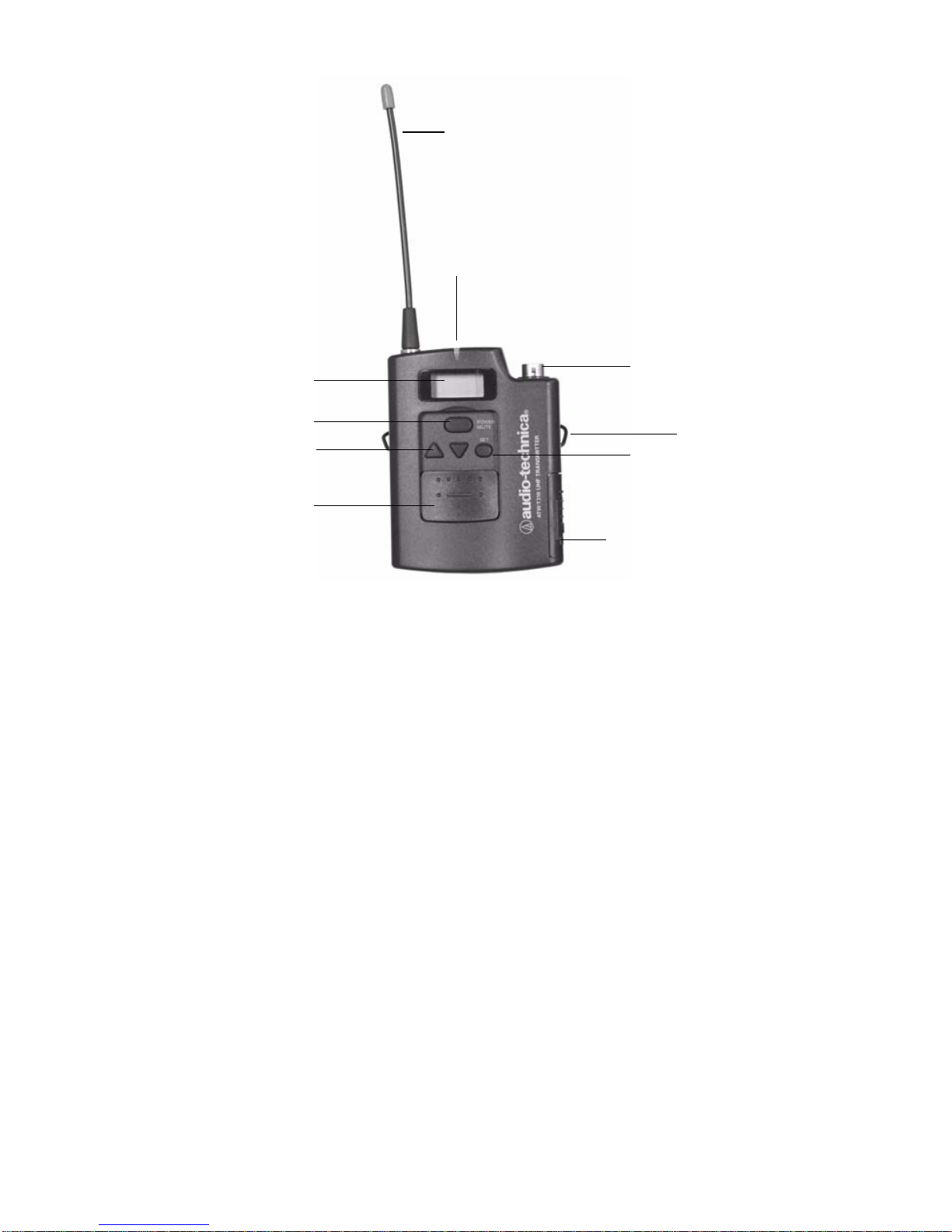

Figure 6: The transmitter
1. Antenna
2. Power-on LED: Shines red when the transmitter is powered on.
3. Audio Input Jack: Connects the transmitter to the headpiece
connector.
4. Mounting Clip: Clips to clothing for easy support.
5. Mode/Set Button: Accesses transmitter modes when pressed
once (repeated pressing advances through the different modes);
locks the mode setting when held for several seconds.
6. Battery Door: provides access to the transmitter batteries (2 AA
batteries).
7. Sliding Control Cover: protects the transmitter buttons from
inadvertent selections.
8. Up/Down Arrows: Scroll through various transmitter settings.
9. Power/Mute Button: Powers on the transmitter when held for 3
seconds; powers off the transmitter when held for another 3
seconds; when the transmitter is on, mutes RF signals when
pressed.
10. LCD Window: Displays transmitter options/status.
1
2
3
4
5
7
8
9
6
10
