DESCRIPTION: Im
p
reza inte
g
ration kit for iPod
PART NUMBER: H621SSC200
KIT CONTENTS:
A
Mounting bracket 1x iPod interface 1x iPod dock cable 1x
B C
D E G
Console bin grommet 1x
K
F
User guide 1x Quick reference
guide 1x
Cable tie 5x Bus cable 1x Plastic clip 2x
J
I
H
Screw 2x
Install manual 1x
TOOLS REQUIRED:
Nylon trim
removal tool
10 mm
Drill with drill stop
14 mm drill bit (9/16”)
ICON LEGENDS:
PART NUMBER
SPN0000267 A ISSUE
v1.1
DATE
01/14/08 SUBARU OF AMERICA PAGE
1/5
: Remove/Disconnect : Location of clip or screw

1 2
3 4
For STI models, remove liner
from bottom of console bin.
65
Carefully remove parking brake
boot. Remove console screw.
Remove 4 radio screws. Carefully disconnect wire harnesses and remove radio.
Note: Ignition should be off
when disconnecting negative
battery terminal.
Starting from bottom, pry
carefully along edges to
remove trim panel.
SUBARU OF AMERICA PAGE
2/5
DATE
01/14/08
PART NUMBER
SPN0000267 A
ISSUE
v1.1

Remove 2 screws from console bin.
Note: It is recommended to drill from the
underside of the console to prevent damage
to the console bin from the drill.
8
9
Using a 14 mm (9/16 inch) drill bit,
drill a hole in console bin, about 19
mm (¾ inch) from back edge.
¾”
Feed dock cable (C) through hole, leaving 8-9” in
the console bin. Secure cable to console bin with
grommet (H). Place console back in position as
shown in slide 7.
Tilt console back. Disconnect wire harness and
remove console from vehicle. Note: For STI
models, wire routing and connections will differ
slightly.
C H
8”
Pry gently around edges to remove trim panel. For
STI models, disconnect electrical connection. Note:
Gear selector must be in “N” with parking brake
set, ignition off and vehicle on level ground. For
manual transmission vehicles, shift knob must be
removed by unscrewing in a counter clockwise
direction.
10
7
Route dock cable towards front of vehicle as shown. Dock cable should be routed behind HVAC
controls and up to the radio opening.
11
PART NUMBER
SPN0000267 A ISSUE
v1.1 DATE
01/14/08
SUBARU OF AMERICA PAGE
3/5

PART NUMBER
SPN0000267 A ISSUE
v1.1 DATE
01/14/08 SUBARU OF AMERICA PAGE
4/5
15
16
12
14
Use screws (G) to attach
bracket/module assembly to
vehicle as shown.
G
Connect bus cable (E) to radio. Use the “Y” harness
to reconnect any factory harness occupying the bus
connector, when applicable. Reseat all other
connections removed in step 4, secure the unused
portion of the harness with a cable tie (D) and
reinstall radio.
E
D
Secure dock cable with cable ties (D). Extra cable length should be bundled in this area.
D
E
F
A
B
Attach module (B) to bracket (A) as shown. Insert
plastic clips to (F) placing from the bottom up.
13
Connect dock cable (C) to module. Secure dock cable
to bracket leg with cable tie (D). Connect bus cable
(E) to module and route behind bracket as shown.
E
DC

–
1 in cut
To provide wire harness access through the
liner on STI models:
1) Fold pad in half to find pad center
2) At rear edge of pad (edge with two
rounded corners) cut 1 inch long slit
into pad
3) Reinstall pad to console bin
18
Perform iPod kit post installation check,
reassemble vehicle by following steps 1-7, 10 in
reverse.
For STI models, cut console bin liner as shown at
right.
For operation, consult User manual.
Rounded
corner
PART NUMBER
SPN0000267 A ISSUE
v1.1 DATE
01/14/08 SUBARU OF AMERICA PAGE
5/5

DESCRIPTION: Foreste
r
inte
g
ration kit for iPod
PART NUMBER: H621SSC200
KIT CONTENTS:
A
Mounting bracket 1x iPod interface 1x iPod dock cable 1x
B C
D E G
Console bin grommet 1x User guide 1x
K
F
Cable tie 5x Bus cable 1x Plastic clip 2x
J
I
H
Screw 2x
Quick reference
guide 1x Install manual 1x
TOOLS REQUIRED:
Nylon trim
removal tool
10 mm
Drill with drill stop
14 mm drill bit (9/16”)
ICON LEGENDS:
PART NUMBER
SPN0000582
ISSUE
v1.0
DATE
01/14/08 SUBARU OF AMERICA PAGE
1/5
: Remove/Disconnect : Location of clip or screw

1 2
3 4
Remove 2 screws from console
bin.
65
Carefully remove parking brake
boot. Remove console screw.
Carefully disconnect wire harnesses and remove radio.
Remove 4 radio screws.
Note: Ignition should be off
when disconnecting negative
battery terminal.
Starting from bottom, pry
carefully along edges to
remove trim panel.
SUBARU OF AMERICA PAGE
2/5
DATE
01/14/08
ISSUE
v1.0
PART NUMBER
SPN0000582

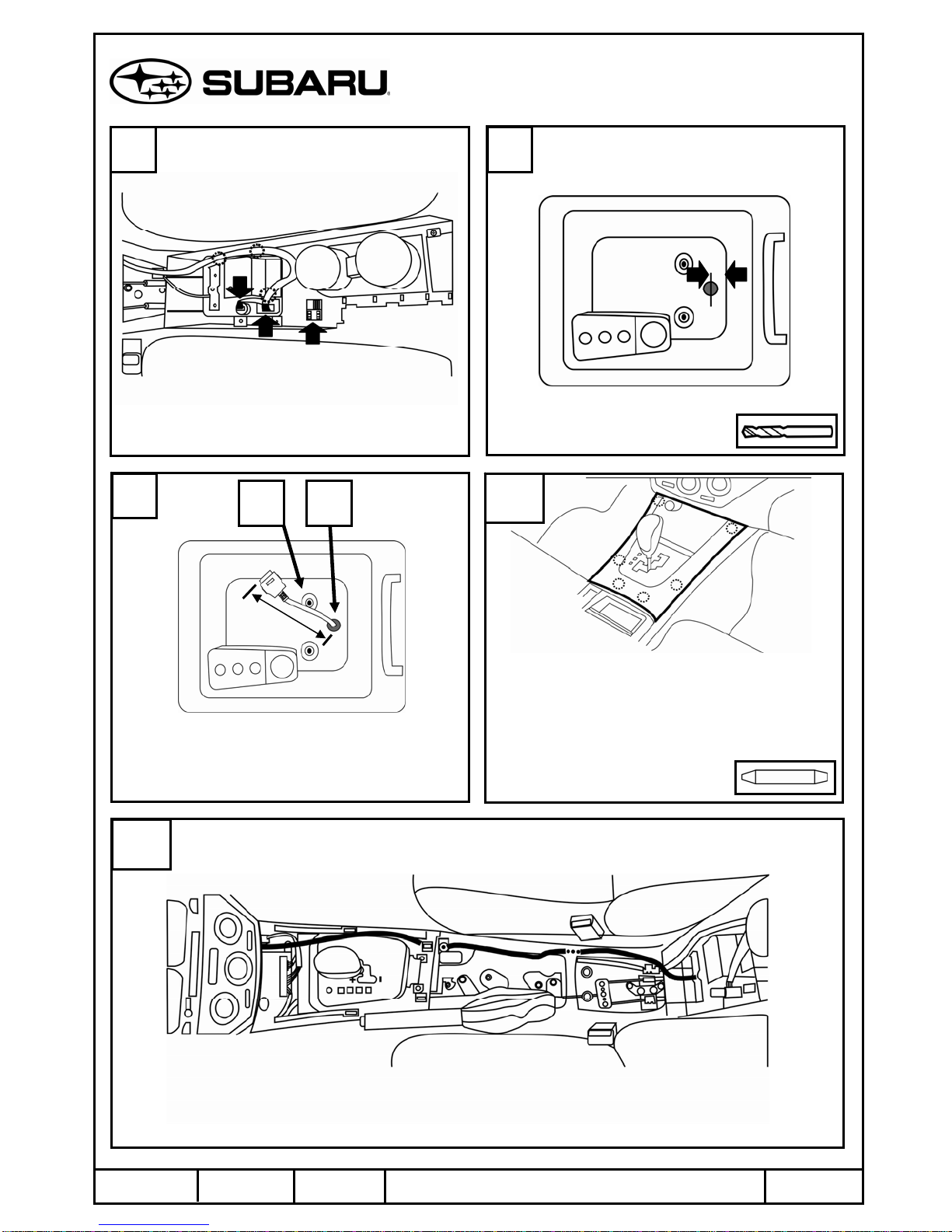

Remove 2 screws from console bin.
PART NUMBER
SPN0000582
ISSUE
v1.0
DATE
01/14/08
SUBARU OF AMERICA PAGE
87
Feed dock cable (C) through hole
and tilt console upright as shown
in slide 9.
C
1”
(25mm)
C
Using 14 mm (9/16”) drill bit and
drill stop set to ½” drill a hole in
console bin as shown. Caution:
failure to use drill stop may result
in damage to vehicle.
9
Route dock cable towards front of vehicle as shown. Dock cable should be routed behind HVAC
controls and up to the radio opening.
11
Pry gently around edges to remove
trim panel. Note: Gear selector must
be in “N” with parking brake set,
ignition off and vehicle on level
ground. For manual transmission
vehicles, shift knob must be removed
by unscrewing in a counter
clockwise direction.
10
Route dock cable from bottom of console bin
along existing wire harnesses as shown (C).
3/5

PART NUMBER
SPN0000582
ISSUE
v1.0
DATE
01/14/08 SUBARU OF AMERICA PAGE
4/5
15
16
12
E
Secure dock cable with cable ties (D).
D
D
E
Connect bus cable (E) to radio. Use the “Y” harness
to reconnect any factory harness occupying the bus
connector, when applicable. Reseat all other
connections removed in step 4, secure the unused
portion of the harness with a cable tie (D) and
reinstall radio.
Use screws (G) to attach
bracket/module assembly to
vehicle as shown.
G
14
Attach module (B) to bracket (A) as shown. Insert
plastic clips to (F) placing from the bottom up.
B
A
F
E
DC
Connect dock cable (C) to module. Secure dock cable
to bracket leg with cable tie (D). Connect bus cable
(E) to module and route behind bracket as shown.
13

Lower the console back into position.
Gently remove excess slack from dock
cable (C). Secure into console bin with
grommet (H), as shown.
18
13-15”
C H
Perform iPod kit post installation check,
reassemble vehicle by following steps 1-
6, 8-10 in reverse.
For operation, consult User manual.
19
PART NUMBER
SPN0000582
ISSUE
v1.0
DATE
01/14/08 SUBARU OF AMERICA PAGE
5/5
