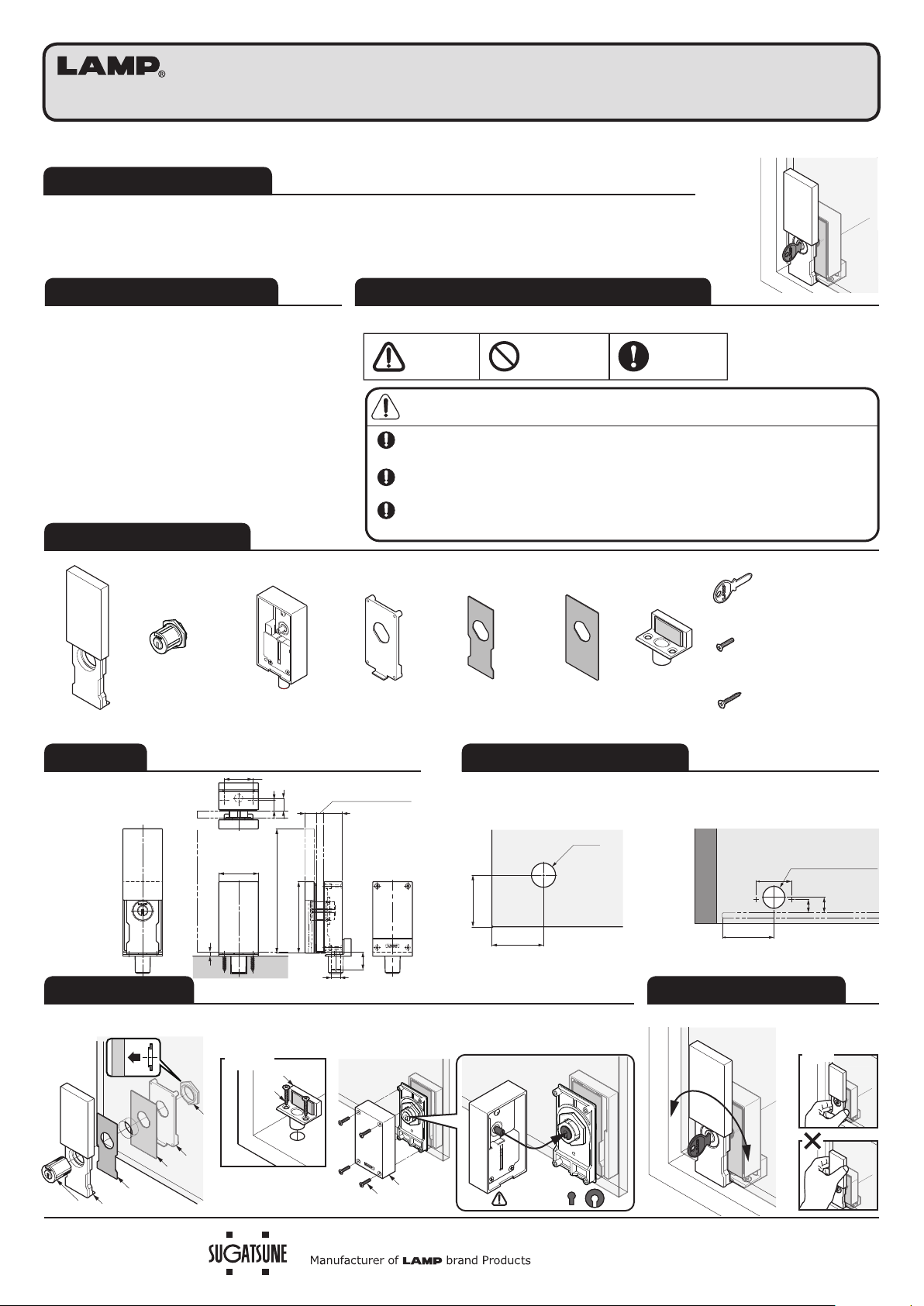

GS-GL50 GLASS DOOR CAM LOCK (Easy Key Change)
INSTALLATION MANUAL
②①
⑥
⑦⑤
③
Thank you for using our product. Before installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
●A cylinder lock for glass showcases.
●Key number can be changed without replacing the cylinder up to 3 times.
●Thick stainless steel deadbolt for added security.
FOR YOUR SAFETY AND CORRECT INSTALLATION
ABOUT THE MASTER KEY
Prohibited
Warning
Caution Required
Meaning of symbols
Caution If not followed, injury or damage may result.
Make sure to follow the designated dimensions, specifications, and horizontal/vertical
angles. Make sure that the frame and door are not warped, since it may cause failure.
This product is a part for furniture. After installation, make sure to test the finished
product thoroughly to ensure that it is functioning and safe.
Make sure to check the screws for slack at regular intervals (one month from first
usage, half a year, and then one time every year is recommended).
COMPONENT PARTS
DIMENSIONS
INSTALLATION OPERATION CHECK
PROCESS DIMENSIONS
④Case lock
①Cover
②Cylinder
③Nut
width across
flat 27 mm
⑤Rear plate ⑥Front gasket ⑦Rear gasket ⑧Strike
⑨Key …3 pcs
⑩Countersunk head
screw M3×18…4 pcs
⑪Countersunk head tapping
screw4×20…4 pcs
Glass thickness：8 -13.5 mm
StrikeDoor
Cylinder, Strike Case lock
(rear view of )
There are three types of master key for
1st, 2nd and 3rd key number. (sold separately).
The cylinder which has been operated by 2nd
or 3rd key requires 2nd or 3rd master key.
The cylinder which has been operated by 2nd
or 3rd master key will also have a new key
number.
Previous master key cannot be used again after
changing key number.
Hold the narrow
part to open/close
the door.
SUGATSUNE KOGYO CO.,LTD
Tokyo, JAPAN
2020.061357-1
Strike
Cylinder
⑧
⑪
④
⑩
47
47
I22
+1
0
77777
5 -12
45
12.9
Glass thickness:
8 -13.5
21.5
20
I10
81.2
141.4
14
12
32
Door
Side board
Bottom board
32
12
14
47
I
18 depth 20 or more
Direction of &
Glass
OK
