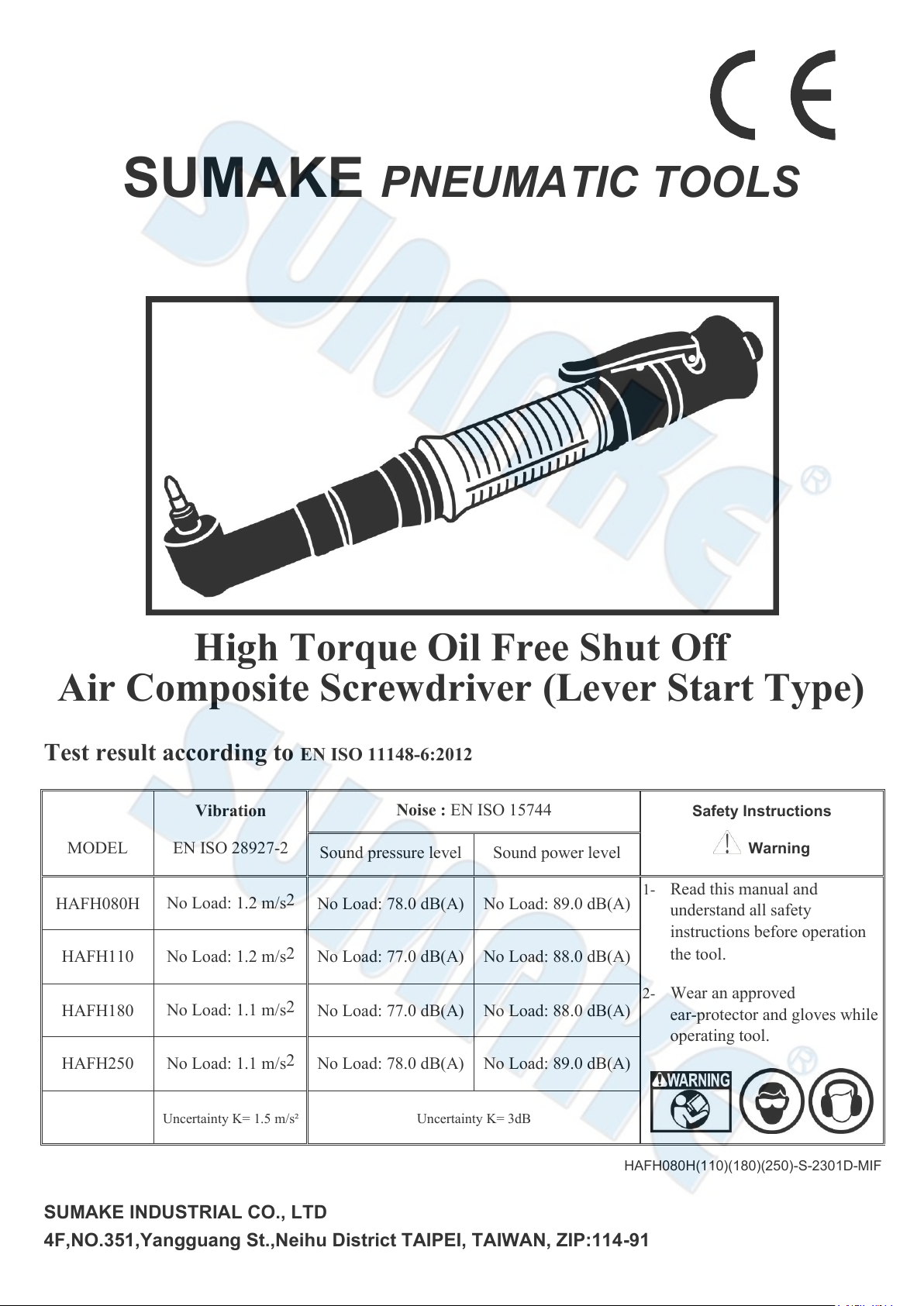

Sumake HAFH080H User manual

SUMAKE PNEUMATIC TOOLS
High Torque Oil Free Shut Off
Air Composite Screwdriver (Lever Start Type)
Test result according to EN ISO 11148-6:2012
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
MODEL
Vibration
EN ISO 28927-2
Noise : EN ISO 15744
Safety Instructions
Warning
Sound pressure level
Sound power level
HAFH080H
No Load: 1.2 m/s2
No Load: 78.0 dB(A)
No Load: 89.0 dB(A)
1- Read this manual and
understand all safety
instructions before operation
the tool.
2- Wear an approved
ear-protector and gloves while
operating tool.
HAFH110
No Load: 1.2 m/s2
No Load: 77.0 dB(A)
No Load: 88.0 dB(A)
HAFH180
No Load: 1.1 m/s2
No Load: 77.0 dB(A)
No Load: 88.0 dB(A)
HAFH250
No Load: 1.1 m/s2
No Load: 78.0 dB(A)
No Load: 89.0 dB(A)
Uncertainty K= 1.5 m/s²
Uncertainty K= 3dB
HAFH080H(110)(180)(250)-S-2301D-MIF

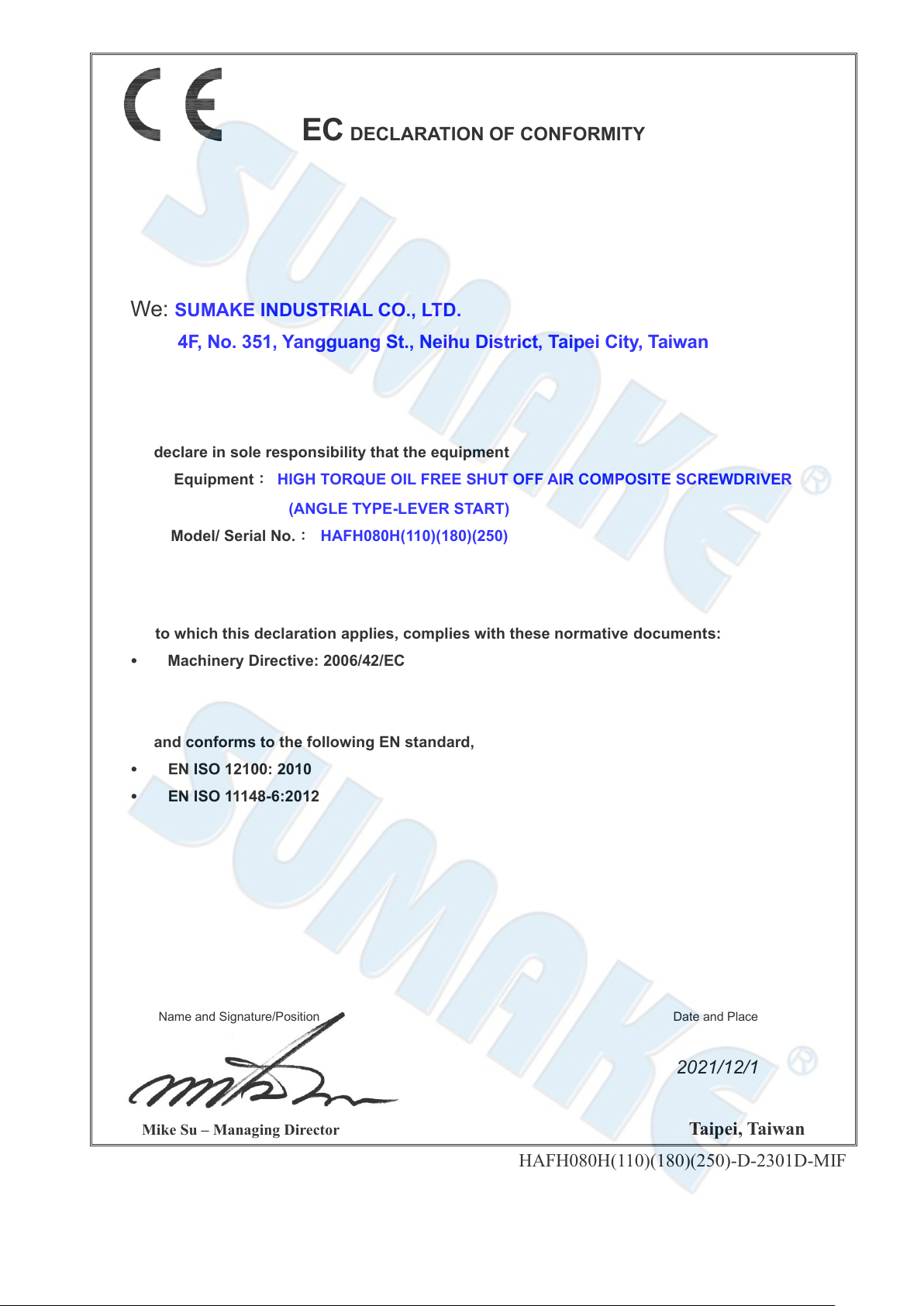

EC DECLARATION OF CONFORMITY
We: SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
declare in sole responsibility that the equipment
Equipment：HIGH TORQUE OIL FREE SHUT OFF AIR COMPOSITE SCREWDRIVER
(ANGLE TYPE-LEVER START)
Model/ Serial No.：HAFH080H(110)(180)(250)
to which this declaration applies, complies with these normative documents:
Machinery Directive: 2006/42/EC
and conforms to the following EN standard,
EN ISO 12100: 2010
EN ISO 11148-6:2012
Name and Signature/Position Date and Place
2021/12/1
Mike Su –Managing Director Taipei, Taiwan
HAFH080H(110)(180)(250)-D-2301D-MIF

HA(W)FH-SERIES AIR SCREWDRIVER OPERATION MANUAL
1
For safety use, Please Follow the instructions. The operation without your local regulations may cause serious injury. Read thoroughly
and understand this instruction manual and keep this within reach for future reference.
CLASSIFIED CAPACITY SPECIFICATIONS
Model
Speed
Weight
Length
Diameter
Noise
Air
Pressure
Min
Air
hose
Bore
Air
Consumption
Torque
Range
Standard
Deviation
Fastening Capacity
Machine
Screw
Tapping
Screw
r.p.m.
g
mm
mm
±2dBA
Kg/cm²
mm
m3/min
Kgf-cm
%
HA(W)FH030
2200
730
302
34
74
6.0
5.0
0.28
5-30
±3
M2.8-M5.0
M2.2-M4.0
HA(W)FH045
1600
730
302
34
74
6.0
5.0
0.28
5-40
±3
M2.8-M5.7
M2.2-M4.4
HA(W)FH060
1000
730
302
34
74
6.0
5.0
0.28
8-60
±3
M3.3-M6.3
M2.7-M5.0
HA(W)FH070
800
730
302
34
74
6.0
5.0
0.28
10-45
±3
M3.6-M6.0
M2.8-M4.7
HA(W)FH080
550
730
302
34
74
6.0
5.0
0.30
10-60
±3
M3.6-M6.3
M2.8-M5.0
HA(W)FH080H
2200
1385
352
42
78
6.0
8.0
0.55
20-80
±3
M4.4-M6.9
M3.6-M5.8
HA(W)FH110
1200
1385
352
42
78
6.0
8.0
0.55
20-110
±3
M4.4-M7.8
M3.6-M6.1
HA(W)FH180
650
1385
352
42
78
6.0
8.0
0.55
70-180
±3
M6.8-M9.3
M5.3-M7.2
HA(W)FH180H
1200
1385
352
42
78
6.0
8.0
0.55
50-180
±3
M6.0-M9.3
M4.7-M7.2
HA(W)FH250
430
1385
352
42
78
6.0
8.0
0.55
15-280
±3
M6.0-M10.0
M4.7-M8.0
HAWFH400
250
1450
360
42
78
6.0
8.0
0.55
100-400
±3
M7.5-M11.8
M6.3-M9.7
HAWFH600
180
1700
430
42
78
6.0
8.0
0.55
350-600
±3
M11.7-M13.0
M9.5-M10.5
HAFH030 ~ HAFH045 -with 1/4”Hex. Small Angle Head, HAFH050 ~ HAFH280 -with 1/4”Hex. Large Angle Head
HAWFH030 ~ HAWFH080 for 1/4”Square Small Angle Head, HAWFH080H ~ 350 3/8”Square LargeAngle Head
HAWFH350, HAWFH400 3/8”Square Anvil, HAWFH600 1/2”Square Anvil
FUNCTION INSTRUCTION
1. Torque cover
To prevent improper torque adjustment by operator, this up-to-the-date design fixes torque at same
standard. Further, for this special structure design, the torque cover is necessary for tool during operation.
Due to the safety consideration and to prevent the tool be broken by any impacting, please operate tool as
per this instruction manual and note it is prohibitive to operate tool without torque cover.
2. Valve reverse switch
With this friendly Valve reverse switch design, operator can change the motor rotation direction rapidly by
adjusting only the Valve reverse switch.
TOOL OPERATION
1 Check carefully first if the bit fixed in proper position with Pull-type Bit slide sleeve.
2 Confirm if the air hose or air pipe is clean and dry.
3 Make sure the air hose or air pipe is well connected with air screwdriver.
4 Due to the safety consideration, please make sure the bit is well fixed on tool before operating.
5 Torque Adjustment
Refer to the below drawing instruction: Release first the Torque cover for torque adjustment, then tighten
necessarily the torque cover before operating. For better Torque management, there are also color rings for
torque management.
1 2 3 4
1 Release Torque Cover 2 Drop Torque cover out 3 Tighten to the right: 4 Loosen to the left:
increase torque. decrease torque
Air Inlet Bushing
Torque Cover
Hard composite
rubber grip
Valve Reverse
Exhaust Deflector
Lever
HA(W)FH-I-1911I-MI

HA(W)FH-SERIES AIR SCREWDRIVER OPERATION MANUAL
2
6 Press the tool for start rotating, release it to stop operating, due to the safety consideration, please hold
carefully the tool during the whole operating duration.
7 Push Valve reverse switch for instantly changing of air motor rotation direction. Please stop first the
operation then reverse patented both way valve switch to change the rotation direction.
8 Air motor will automatically stop when the load reaches at the pre-set torque.
Caution : Improper operation may damage the tool.
AIR SUPPLY
1 Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it
is desirable to provide a filter in the pipeline to remove such undesirable elements. Also take the drain out
from air tank every day.
2 When using brand-new air hose or air pipe, blow and clean the air hose or pipe inside before installation.
3 Keep air hose or air pipe inside clean to prevent airdrop problem caused by lots of drain and dust
accumulated, either to avoid possibly inside diameter smaller problem after long term usage.
4 When disconnect air hose from air tool during operation, do not drop air hose end to the floor as dust or
other element may get into air hose.
5 Use air regulator to keep stable air pressure at 6.0kgf-cm²( 80~90 psi) at the toll. It is important to get
proper air pressure at the toll.
6 With high quality Oil-free motor, any moisture or lubrication injection may damage the air screwdriver,
please keep tool dry and avoid oil based substances exposing to the products. For avoiding moisture
affection, using Air Dryer is necessary in wet area or under moist weather.
TOOL ADVANTAGE
1 High quality Oil-free Motor
High quality Oil-free Motor is our new design used on high technologic tool. At the beginning operation, the
power of Oil-free motor keeps stable at it’s top capability without any oil injection, but the power of Current
motor decreases till it’s lowest capability after 32 hours operating unless oil adding. The high technologic
Oil-free motor increases 60% torque and keeps noise as standard 74/78dB which prevents operator and
environment from noise damaging and accords with industrial classified tool standard.
(Please refer to the below table about Oil-free and current motor.)

HA(W)FH-SERIES AIR SCREWDRIVER OPERATION MANUAL
3

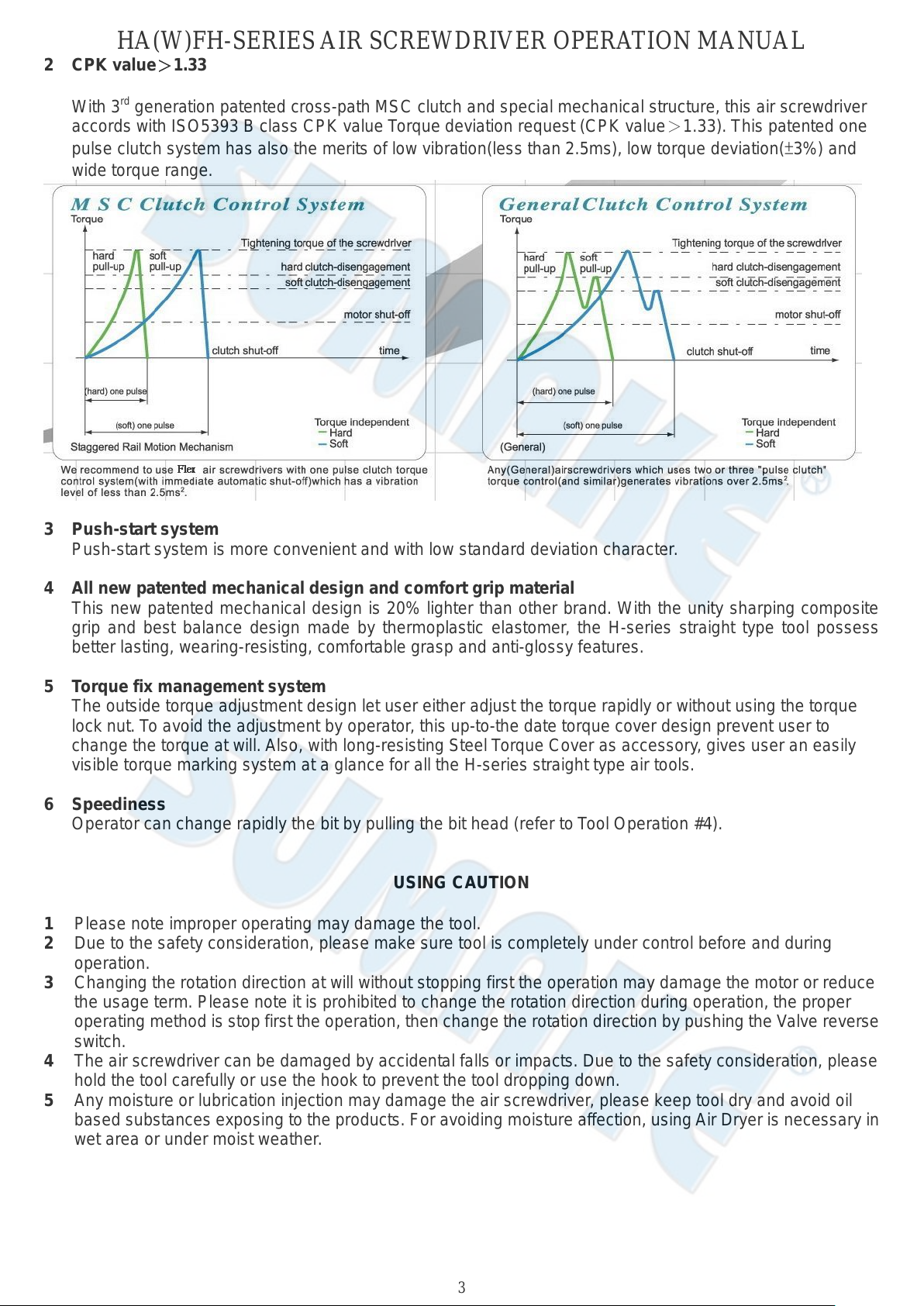

2 CPK value＞1.33
With 3rd generation patented cross-path MSC clutch and special mechanical structure, this air screwdriver
accords with ISO5393 B class CPK value Torque deviation request (CPK value＞1.33). This patented one
pulse clutch system has also the merits of low vibration(less than 2.5ms), low torque deviation(±3%) and
wide torque range.
3 Push-start system
Push-start system is more convenient and with low standard deviation character.
4 All new patented mechanical design and comfort grip material
This new patented mechanical design is 20% lighter than other brand. With the unity sharping composite
grip and best balance design made by thermoplastic elastomer, the H-series straight type tool possess
better lasting, wearing-resisting, comfortable grasp and anti-glossy features.
5 Torque fix management system
The outside torque adjustment design let user either adjust the torque rapidly or without using the torque
lock nut. To avoid the adjustment by operator, this up-to-the date torque cover design prevent user to
change the torque at will. Also, with long-resisting Steel Torque Cover as accessory, gives user an easily
visible torque marking system at a glance for all the H-series straight type air tools.
6 Speediness
Operator can change rapidly the bit by pulling the bit head (refer to Tool Operation #4).
USING CAUTION
1 Please note improper operating may damage the tool.
2 Due to the safety consideration, please make sure tool is completely under control before and during
operation.
3 Changing the rotation direction at will without stopping first the operation may damage the motor or reduce
the usage term. Please note it is prohibited to change the rotation direction during operation, the proper
operating method is stop first the operation, then change the rotation direction by pushing the Valve reverse
switch.
4 The air screwdriver can be damaged by accidental falls or impacts. Due to the safety consideration, please
hold the tool carefully or use the hook to prevent the tool dropping down.
5 Any moisture or lubrication injection may damage the air screwdriver, please keep tool dry and avoid oil
based substances exposing to the products. For avoiding moisture affection, usingAir Dryer is necessary in
wet area or under moist weather.

HAFH110
HIGHT TORQUE OIL FREE SHUT OFF AIR COMPOSITE SCREWDRIVER
(ANGLE TYPE-LEVER START)
HAFH110-P-1406A-MI

HAFH110
HIGHT TORQUE OIL FREE SHUT OFF AIR COMPOSITE SCREWDRIVER
(ANGLE TYPE-LEVER START)

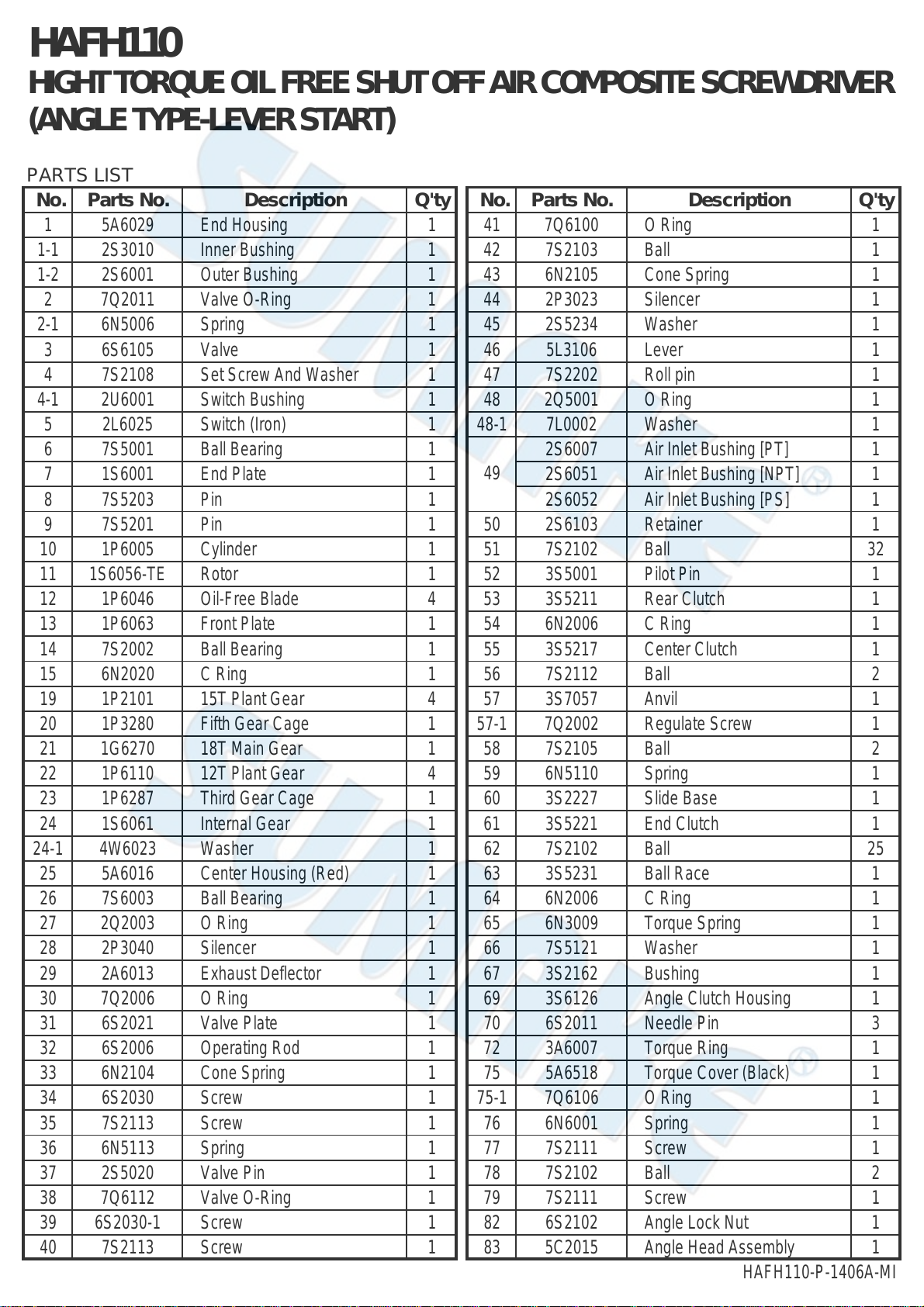

PARTS LIST
No. Parts No. Description Q'ty No. Parts No. Description Q'ty
1 5A6029 End Housing 1 41 7Q6100 O Ring 1
1-1 2S3010 Inner Bushing 1 42 7S2103 Ball 1
1-2 2S6001 Outer Bushing 1 43 6N2105 Cone Spring 1
2 7Q2011 Valve O-Ring 1 44 2P3023 Silencer 1
2-1 6N5006 Spring 1 45 2S5234 Washer 1
3 6S6105 Valve 1 46 5L3106 Lever 1
4 7S2108 Set Screw And Washer 1 47 7S2202 Roll pin 1
4-1 2U6001 Switch Bushing 1 48 2Q5001 O Ring 1
5 2L6025 Switch (Iron) 1 48-1 7L0002 Washer 1
6 7S5001 Ball Bearing 1 2S6007 Air Inlet Bushing [PT] 1
7 1S6001 End Plate 1 2S6051 Air Inlet Bushing [NPT] 1
8 7S5203 Pin 1 2S6052 Air Inlet Bushing [PS] 1
9 7S5201 Pin 1 50 2S6103 Retainer 1
10 1P6005 Cylinder 1 51 7S2102 Ball 32
11 1S6056-TE Rotor 1 52 3S5001 Pilot Pin 1
12 1P6046 Oil-Free Blade 4 53 3S5211 Rear Clutch 1
13 1P6063 Front Plate 1 54 6N2006 C Ring 1
14 7S2002 Ball Bearing 1 55 3S5217 Center Clutch 1
15 6N2020 C Ring 1 56 7S2112 Ball 2
19 1P2101 15T Plant Gear 4 57 3S7057 Anvil 1
20 1P3280 Fifth Gear Cage 1 57-1 7Q2002 Regulate Screw 1
21 1G6270 18T Main Gear 1 58 7S2105 Ball 2
22 1P6110 12T Plant Gear 4 59 6N5110 Spring 1
23 1P6287 Third Gear Cage 1 60 3S2227 Slide Base 1
24 1S6061 Internal Gear 1 61 3S5221 End Clutch 1
24-1 4W6023 Washer 1 62 7S2102 Ball 25
25 5A6016 Center Housing (Red) 1 63 3S5231 Ball Race 1
26 7S6003 Ball Bearing 1 64 6N2006 C Ring 1
27 2Q2003 O Ring 1 65 6N3009 Torque Spring 1
28 2P3040 Silencer 1 66 7S5121 Washer 1
29 2A6013 Exhaust Deflector 1 67 3S2162 Bushing 1
30 7Q2006 O Ring 1 69 3S6126 Angle Clutch Housing 1
31 6S2021 Valve Plate 1 70 6S2011 Needle Pin 3
32 6S2006 Operating Rod 1 72 3A6007 Torque Ring 1
33 6N2104 Cone Spring 1 75 5A6518 Torque Cover (Black) 1
34 6S2030 Screw 1 75-1 7Q6106 O Ring 1
35 7S2113 Screw 1 76 6N6001 Spring 1
36 6N5113 Spring 1 77 7S2111 Screw 1
37 2S5020 Valve Pin 1 78 7S2102 Ball 2
38 7Q6112 Valve O-Ring 1 79 7S2111 Screw 1
39 6S2030-1 Screw 1 82 6S2102 Angle Lock Nut 1
40 7S2113 Screw 1 83 5C2015 Angle Head Assembly 1
HAFH110-P-1406A-MI
