Sundance Spas Marin 880 User manual

Aspen® Maxxus™Optima®Cameo®Altamar®
Cambria™ Marin® Capri®
Owner’s Manual
P.N.:6530-608G Rev. B
880™ Series

Attention New Hot Tub Owner!
Congratulations on the purchase of your new Sundance®hot tub! The
following is a list of automated functions performed by your hot tub. These
functions are listed below in an attempt to suppress any operational
concerns you may have during the rst 24 hours of ownership! Also listed
below are important maintenance recommendations you should observe
on a regular basis to protect your new investment.
Maintain Healthy Spa Water
Always maintain your hot tub’s water chemistry within the following
parameters:
With CLEARRAY® Without CLEARRAY®
pH 7.4-7.6 7.4-7.6
Free chlorine no less than 1.0 ppm 3.0-4.0 ppm
Free Bromine no less than 2.0 ppm 2.0-4.0 ppm
Total Alkalinity 100-150 ppm 100-150 ppm
Calcium Hardness 150-250 ppm 150-250 ppm
IMPORTANT: CLEARRAY® Water Purication System is factory
installed. If the CLEARRAY® system is altered or is not operating
efciently follow the “without CLEARRAY®” water chemistry param-
eters. Such parameters are dened by the Association of Pool and Spa
Professionals. CLEARRAY® requires an annual lamp replacement to
properly sanitize your water.
!TO DECREASE RISK OF INFECTION OR DISEASE!
Always
maintain your spa lter as outlined below to ensure healthy spa water.
Refer to pages 69-70 for additional information.
Required Filter Maintenance
Your new hot tub is equipped with an advanced MicroClean® Ultra water
ltration system that provides unsurpassed water quality! To ensure
maximum water quality at all times, you should replace the lter cartridge
every six months, or earlier as necessary. The lter cartridge is designed
to be thrown away! Attempts to reuse the lter cartridge may result in
the re-release of unwanted particles back into the hot tub. See pages
69-70 for detailed lter cartridge replacement instructions.
Required Water Replacement
!TO DECREASE RISK OF INFECTION OR DISEASE!
You
should replace the hot tub’s water every 3 to 6 months. The frequency
depends on a number of variables including frequency of use, number of
users, and attention paid to water quality maintenance. You will know it is
time for a change when you cannot control sudsing and/or you can no
longer get the normal feel or sparkle to the water, even though the key
water balance measurements are all within the proper parameters. See
pages 76-77 for additional information.

Table of Contents
1.0 Important Hot Tub Owner Information............................1
2.0 FCC Notice ........................................................................1
3.0 Important Safety Instructions for all Spa Owners .........2
3.1 Entrapment Risk .......................................................................... 7
3.2 Hyperthermia ............................................................................... 8
3.3 Important Additional Safety Instructions....................................... 9
4.0 Locating Your Sundance Hot Tub ...................................9
4.1 Outdoor Location ....................................................................... 10
4.2 Indoor Location .......................................................................... 11
5.0 General Electrical Safety Instructions..........................12
6.0 Electrical Installation Instructions (240V Service).......13
7.0 Power Requirements......................................................16
8.0 Hot Tub Fill Up Procedure..............................................17
9.0 Hot Tub Features ............................................................22
9.1 Maxxus™ Hot Tub Features ...................................................... 22
9.2 Maxxus Massage/Waterfall Selector Diagram ........................... 23
9.3 Maxxus Air Controls Diagram .................................................... 24
9.4 Aspen® Hot Tub Features ......................................................... 25
9.5 Aspen Massage/Waterfall Selector Diagram ............................. 26
9.6 Aspen Air Controls Diagram....................................................... 27
9.7 Optima® Hot Tub Features........................................................ 28
9.8 Optima Massage/Waterfall Selector Diagram............................ 29
9.9 Optima Air Controls Diagram ..................................................... 30
9.10 Cameo® Hot Tub Features........................................................ 31
9.11 Cameo Massage/Waterfall Selector Diagram............................ 32
9.12 Cameo Air Controls Diagram ..................................................... 33
9.13 Altamar® Hot Tub Features ....................................................... 34
9.14 Altamar Massage/Waterfall Selector Diagram ........................... 35
9.15 Altamar Air Controls Diagram .................................................... 36
9.16 Marin® Hot Tub Features .......................................................... 37
9.17 Marin Massage/Waterfall Selector Diagram .............................. 38
9.18 Marin Air Controls Diagram........................................................ 39
9.19 Cambria™ Hot Tub Features..................................................... 40
9.20 Cambria Massage/Waterfall Selector Diagram.......................... 41
9.21 Cambria Air Controls Diagram ................................................... 42
9.22 Capri® Hot Tub Features........................................................... 43
9.23 Capri Massage/Waterfall Selector Diagram............................... 44
9.24 Capri Air Controls Diagram ........................................................ 45
10.0 Registration and Start-up...............................................46
10.1 Start-up Sequence..................................................................... 46
10.2 Register Your New Spa.............................................................. 46
10.3 iTouch™ Control Panel Main Menu ........................................... 47
© Sundance Spas, Inc. All Rights Reserved

11.0 Operating Instructions ...................................................48
11.1 Activating the Jets Pumps and Blower....................................... 48
11.2 Lights Menu ............................................................................... 49
11.3 Music Menu................................................................................ 50
11.4 Connecting the BLUEWAVE® System with
your Bluetooth® device.............................................................. 52
11.5 Audio Settings Menu.................................................................. 53
11.6 CLEARRAY on Demand ............................................................ 53
11.7 Selecting The Desired Massage Action ..................................... 54
11.8 Adjusting Fluidix Reex™, Nex™, ST™,
Intelli-Jet™ And Focus-Relief®.................................................. 54
11.9 Air Controls ................................................................................ 54
11.10 Waterfall Control ........................................................................ 55
11.11 Fragrance Dispenser ................................................................. 55
11.12 Indicator Light ............................................................................ 55
11.13 MicroClean® Plus Versatile Filter Lid ........................................ 55
11.14 Optional SmartTub™ System .................................................... 56
12.0 Programming and Operation Instructions ...................57
12.1 Programming the Heating Mode................................................ 58
12.2 Programming the Primary Filter................................................. 59
12.3 Programming the Secondary Filter ............................................ 60
12.4 Cleanup Cycle............................................................................ 61
12.5 Blow-Out Cycle .......................................................................... 61
12.6 Water Care Programming .......................................................... 61
12.7 Optional Wi-Fi Setup (not applicable if the
optional SmartTub™ system is installed)................................... 64
12.8 Locking the Spa ......................................................................... 65
12.9 Programming the Time and Date............................................... 66
12.10 Programming the Language ...................................................... 67
12.11 Units Display.............................................................................. 67
12.12 System Information.................................................................... 68
13.0 Hot Tub Maintenance......................................................69
13.1 Cleaning/Replacing the Filter Cartridge..................................... 69
13.2 Removing the Cabinet Panels ................................................... 71
13.3 Draining And Relling................................................................. 72
13.4 Cleaning The Hot Tub Interior.................................................... 73
13.5 Pillow Care................................................................................. 73
13.6 Maintaining the Hot Tub Cabinet................................................ 74
13.7 Cover Care And Maintenance.................................................... 74
13.8 Winterizing ................................................................................. 74
13.9 Restarting Your Hot Tub in Cold Weather .................................. 76

14.0 Water Quality Maintenance............................................76
14.1 pH Control.................................................................................. 76
14.2 Sanitizing ................................................................................... 77
14.3 CLEARRAY® Water Purication System................................... 77
14.4 CLEARRAY® Bulb Replacement and
Quartz Tube Maintenance.......................................................... 78
14.5 Other Additives........................................................................... 80
14.6 Handrail Maintenance................................................................ 81
15.0 Troubleshooting - Display Messages ...........................81
16.0 Troubleshooting - Procedures.......................................85
17.0 Typical Hot Tub Wiring Diagrams A-B
(North American 60 Hz Models Only)............................87
18.0 North American 60 Hz Electrical Wiring Diagram........88
18.1 North American 60 Hz 3-Pump Models
Electrical Wiring Diagram........................................................... 88
18.2 North American 60 Hz 1- and 2-Pump Models
Electrical Wiring Diagram........................................................... 89
18.3 Dip Switch Settings.................................................................... 90

.

1
880 Series
1.0 Important Hot Tub Owner Information
Your Sundance®hot tub is constructed to the highest standards and
is capable of providing many years of trouble-free use. However,
because heat retentive materials are utilized to insulate the hot tub for
efcient operation, an uncovered hot tub surface and wall ttings directly
exposed to sunlight and high temperatures for an extended period are
subject to permanent damage or discoloration. Damage caused by
exposing the hot tub to this abuse is not covered under warranty. We
recommend that you always keep the hot tub full of water when it is
exposed to direct sunlight and that you keep the Sundance insulating
cover in place at all times when the hot tub is not in use. Read and
carefully follow the requirements for your hot tub’s support base found in
the Section 4.0 titled, “Locating Your Sundance Hot Tub” (page 9) or
as prescribed by your authorized Sundance Spas dealer.
Sundance hot tubs constantly strives to offer the nest hot tubs
available, therefore, modications and enhancements may be made
which affect the specications, illustrations and/or instructions contained
herein.
2.0 FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
1. Rearrange or relocate the receiving antenna;
2. Increase the separation between the equipment and receiver;
3. Connect the equipment into an outlet on a circuit different from the
circuit connected;
4. Consult the dealer or an experienced radio/TV technician for help.
(Changes or modications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to
operate this equipment).

2
880 Series
3.0 Important Safety Instructions for all Spa Owners
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY!
This spa was manufactured to meet the standards and specications
outlined in the “Virginia Graeme Baker Pool and Spa Safety Act” (VGB
Safety Act). Visit www.nspf.org for more information. When installing
and using this spa, basic safety precautions should always be followed,
including:
1. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
• Extreme caution must be exercised to prevent unauthorized access
by children.
• To avoid accidents, ensure that children do not use this spa unless
supervised at all times. Adult supervision is a critical safety factor in
preventing children from drowning.
• Use the straps and clip tie downs to secure the spa cover when not
in use. This will help discourage unsupervised children from entering
the spa. Keep the spa cover secure in high-wind conditions.
• There is no representation that the cover, clip tie-downs, or actual
locks will prevent access to the spa.

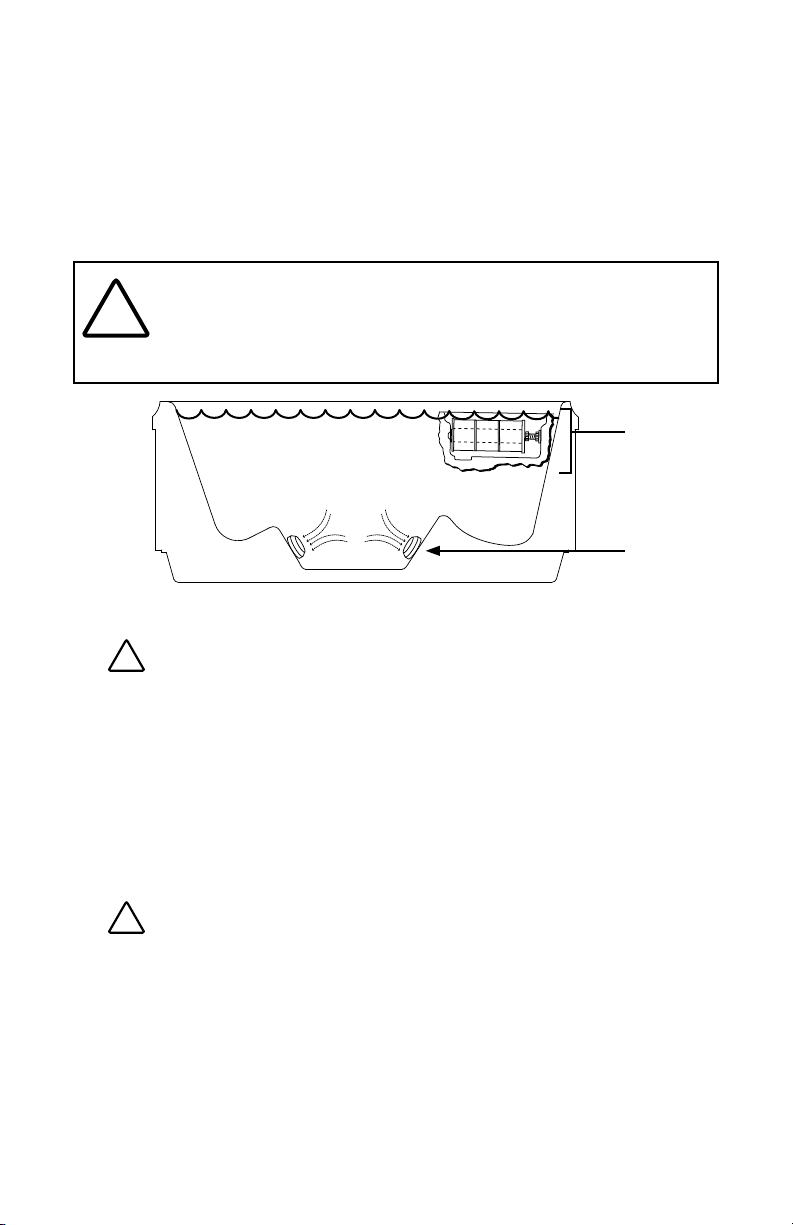

2. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
• Keep hair, loose articles of clothing or hanging jewelry away from
suction ttings, rotating jets or other moving components to avoid
entrapment that could lead to drowning or severe injury.
• Never use the spa unless all suction guards, lter, lter lid, or skimmer
assembly are installed to prevent body and/or hair entrapment.
• Never operate or use the spa if the lter, lter lid, or skimmer
assembly are broken or any part of the skimmer assembly is missing.
Please contact your dealer or nearest service center for service.
• The suction ttings and suction covers in this spa are sized to match the
specic water ow created by the pump(s). If it is necessary to replace
the suction ttings, suction covers or pump(s), be sure that the ow
rates are compatible and are in compliance with the VGB Safety Act.
• Never replace a suction tting or suction cover with one rated less
than the ow rate marked on the original suction tting. Using
improper suction ttings or suction covers can create a body or hair
suction entrapment hazard that may lead to drowning or severe injury.
3. !DANGER: RISK OF SEVERE INJURY FROM ELECTRIC
SHOCK OR DEATH FROM ELECTROCUTION!
• Install the spa at least 5 feet (1.5m), from all metal surfaces. As an
alternative, a spa may be installed within 5 feet of metal surfaces
if each metal surface is permanently connected (bonded) by a
minimum No. 8 AWG (8.4 mm²) solid copper conductor attached
to the wire connector on the grounding lug, inside the equipment
compartment on the equipment box.

3
880 Series
• A grounding wire connector is provided on this unit to connect a
minimum No. 8 AWG (8.4 mm²) solid copper conductor between
this unit and any metal equipment, metal enclosures of electrical
equipment, metal water pipe, or conduit within 5 feet (1.5m) of the
unit.
• Never permit any electrical appliance, such as a light, telephone,
radio, television, etc. within 5 feet (1.5m) of a spa unless such
appliances are built-in by the manufacturer.
• Never bring any electrical appliances into or near the spa.
• Never operate any electrical appliances from inside the spa or when
you are wet.
• The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with section 422-20 of the National Electrical Code/
USA, ANSI/NFPA 70. The disconnecting means must be readily
accessible and visible to the spa occupant but installed at least 5
feet (1.5m), from the spa.
• The electrical circuit supplied for the hot tub must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42.
4. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Extreme caution must be exercised to prevent diving or jumping
into the spa or slipping and falling, which could result in
unconsciousness, drowning, or serious injury. Remember that wet
surfaces can be very slippery.
• Never stand, walk or sit on the top railing of the spa.
5. !WARNING: RISK OF HYPERTHERMIA (OVER-HEATING)
CAUSING SEVERE INJURY, BURNS, WELTS OR DEATH!
• Water temperature in excess of 104°F (40°C) may be injurious to
your health.
• Refer to Section 3.2 Hyperthermia for specic causes and symptoms
of this condition.
• The water in the spa should never exceed 104°F (40°C). Water
temperatures between 100°F (38°C) and 104°F (40°C) are
considered safe for a healthy adult.
• Lower water temperatures are recommended for young children
(children are especially sensitive to hot water) and when spa use
may exceed 10 minutes.
• The Consumer Products Safety Commission/USA has stated that
the water temperature in a spa should not exceed 104°F (40°C).
• Always test the spa water temperature before entering the spa.
The user should measure the water temperature with an accurate
thermometer since the tolerance of water temperature-regulating
devices may vary as much as +/- 5°F (2°C).

4
880 Series
6. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Since excessive water temperatures have a high potential for
causing fetal damage during the early months of pregnancy, if
pregnant or possibly pregnant, consult your physician before using a
spa.
• Pregnant or possibly pregnant women should limit spa water
temperatures to 100°F (38°C).
• Persons suffering from obesity or a medical history of heart disease,
low or high blood pressure, circulatory system problems, diabetes,
infectious diseases or immune deciency syndromes should consult
a physician before using a spa.
• If you experience breathing difculties in association with using or
operating your spa, discontinue use and consult your physician.
• Persons using medication should consult a physician before using
a spa since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
• Persons suffering from any condition requiring medical treatment, the
elderly, or infants should consult with a physician before using a spa.
• The use of alcohol, drugs, or medication before or during spa use
may lead to unconsciousness with the possibility of drowning.
7. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Prolonged immersion in a spa may be injurious to your health.
• Observe a reasonable time limit when using the spa. Exposures
at higher temperatures can cause high body temperature (over-
heating). Symptoms may include dizziness, nausea, fainting,
drowsiness, and reduced awareness. These effects could possibly
result in drowning or serious injury.
• Never use a spa immediately following strenuous exercise. Enter
and exit the spa slowly. Wet surfaces can be slippery.
8. !WARNING: TO DECREASE RISK OF INFECTION OR
DISEASE!
• To reduce the risk of contracting a waterborne illness (e.g. an infec-
tion, bacteria or virus) and/or respiratory ailments , maintain water
chemistry within the parameters listed on the inside cover of this
manual and consult with a licensed engineer regarding proper venti-
lation if installed indoors or in an enclosed area.
• People with infectious diseases should not use a spa to avoid water
contamination, which could result in spreading infections to others.
• Always shower before and after using your spa. Maintain water
chemistry in accordance with manufacturer’s instructions. Failure to
do so may result in contracting a waterborne illness (e.g. an infec-
tion, bacteria or virus).

5
880 Series
9. !WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the risk of
contracting a waterborne illness (e.g. an infection, bacteria or virus)
and/or respiratory ailments that could be present in the air or water.
Consult a licensed architect or building contractor to determine your
specic needs if installing your hot tub indoors.
10. CAUTION: TO DECREASE RISK OF PRODUCT DAMAGE.
• Maintain water chemistry in accordance with manufacturer’s
instructions.
• Proper chemical maintenance of spa water is necessary to maintain
safe water and prevent possible damage to spa components.
11. !WARNING: RISK OF SEVERE INJURY OR DEATH!
The appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience or knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
12. NOTE: This spa is not intended nor designed to be used in a
commercial or public application. The spa buyer shall determine
whether there are any code restrictions on the use or installation
of this spa since local code requirements vary from one locality to
another.
Hot Tub Safety Literature
To ensure you have a safe and enjoyable hot tub experience,
learn all you can about hot tub safety and emergency procedures.
Especially useful are the brochures listed below:
• Children Aren’t Waterproof
• Pool and Spa Emergency Procedures For Infants and Children
• Layers of Protection
• The Sensible Way to Enjoy Your Spa or Hot Tub
The Association of Pool and Spa Professionals publishes these
brochures. To acquire a brochure:
• Ask your hot tub dealer (they may have copies)
• Go to http://www.apsp.org
• Conduct your own search on the internet
• Write to the following address:
The Association of Pool and Spa Professionals
2111 Eisenhower Avenue
Alexandria VA 22314
703.838.0083

6
880 Series
6530-460 Rev A (12/18)
FOR CALIFORNIA RESIDENTS ONLY
NUR FÜR EINWOHNER KALIFORNIENS
POUR LES RÉSIDENTS DE LA CALIFORNIE SEULEMENT
PARA RESIDENTES DE CALIFORNIA ÚNICAMENTE
WARNING: Drilling, sawing, sanding or machining wood products
can expose you to wood dust, a substance known to the State of
California to cause cancer. Avoid inhaling wood dust or use a dust
mask or other safeguards for personal protection. For more infor-
mation go to www.p65Warnings.ca.gov/wood
ACHTUNG: Das Bohren, Sägen, Schleifen oder Zerspanen von
Holzprodukten kann Stäube freisetzen. Diese Substanz gilt im
US-Bundesstaat Kalifornien als krebserregend. Möglichst keinen
Holzstaub einatmen bzw. eine Staubmaske oder anderweitige
persönliche Schutzmaßnahmen einsetzen. Weitere Informationen
finden Sie auf www.P65Warnings.ca.gov/wood
ADVERTENCIA: Perforar, cortar, lijar o usar máquinas con pro-
ductos de madera le puede exponer a polvo de madera, una sub-
stancia reconocida por el Estado de California como causante de
cáncer. Evite inhalar polvo de madera o utilice una máscara antipol-
vo u otros resguardos para protección personal. Para más infor-
mación, visite www.P65Warnings.ca.gov/wood
AVERTISSEMENT: Le forage, le sciage, le ponçage ou l'usinage
des produits du bois peuvent vous exposer à la poussière de bois,
une substance connue dans l'État de Californie pour causer le
cancer. Éviter d'inhaler la poussière de bois ou utiliser un masque
antipoussières ou d'autres mesures de protection personnelle. Pour
de plus amples renseignements, consulter le site www.P65Warn-
ings.ca.gov/wood
FOR CALIFORNIA RESIDENTS ONLY
NUR FÜR EINWOHNER KALIFORNIENS
POUR LES RÉSIDENTS DE LA CALIFORNIE SEULEMENT
PARA RESIDENTES DE CALIFORNIA ÚNICAMENTE
WARNING: Cancer and Reproductive Harm
www.p65Warnings.ca.gov
ACHTUNG: Krebserregend und mit fortpflanzungsschä-
digender Wirkung-www.p65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo
www.p65Warnings.ca.gov
AVERTISSEMENT: Cancer et danger pour la reproduction
www.p65Warnings.ca.gov
6530-464 Rev A (12/18)

7
880 Series
3.1 Entrapment Risk
The Consumer Products Safety Commission/USA has reported that
users of pools and spas have become entrapped (stuck) to drain and/or
suction ttings causing death, drowning, or serious injury (see diagram
below). This spa was manufactured to meet the standards and specica-
tions outlined in the “Virginia Graeme Baker Pool and Spa Safety Act”
(VGB Safety Act). Entrapment risk can be minimized if proper precau-
tions are taken.
DANGER: RISK OF PERSONAL INJURY OR DEATH!
Never operate the spa if a suction tting, suction cover, lter,
lter lid or skimmer assembly are broken, damaged or miss-
ing.
!
NOTE: SUCTION COVERS MUST BE REPLACED EVERY 7 YEARS.
1. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Hair entrapment: May occur if hair is entangled, knotted or snagged
in a drain suction or skimmer assembly. This has been reported in
persons who when submerge themselves underwater, allowing hair
to come close and/or within the reach of the suction ttings, suction
covers or skimmer assembly.
• Keep hair away from suction ttings, suction covers, lter, lter lid or
skimmer assembly.
• Children are at risk for hair entrapment if swimming under water.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
2. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Limb entrapment: May occur when a limb becomes entrapped,
inserted or sucked into a suction or outlet opening.
• Always keep suction ttings, suction covers, lter, lter lid or skimmer
assembly in place when operating to avoid limb entrapment.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
Suction Fittings,
Suction Covers
(locations vary
by models)
Filter, Filter
Lid, Skimmer
Assembly
(location and
style vary by
models)

8
880 Series
3. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Body entrapment: May occur when part of the torso becomes
entrapped, inserted or sucked into a suction or outlet opening.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
4. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Evisceration (disembowelment) entrapment: May occur when the
buttocks becomes entrapped, inserted or sucked into a suction or
outlet opening.
• Never sit on suction ttings, suction covers, lter, lter lid or skimmer
assembly.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
5. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Mechanical entrapment: May occur when jewelry, swimsuit, or
hair accessories become entangled, knotted or snagged in a drain
suction or skimmer assembly.
• Never allow your jewelry, swimsuit, or hair accessories to come
close to the suction ttings, suction covers or skimmer assembly.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
3.2 Hyperthermia
Prolonged immersion in hot water may induce hyperthermia (over-
heating). The use of alcohol or drugs can greatly increase the risk of
fatal hyperthermia in spas. A description of the causes, symptoms, and
effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy
(fatigue), and an increase in the internal temperature of the body (feeling
of being too hot). The effects of hyperthermia include:
• Unawareness of impending hazard;
• Failure to perceive heat;
• Failure to recognize the need to exit spa;
• Physical inability to exit spa;
• Fetal damage in pregnant women; and
• Unconsciousness and danger of drowning.
A Warning Sign is provided in your warranty packet. Please install at
a location near your spa, where it is visible to users of the spa. For
additional or replacement Warning Signs please contact your local
Sundance spas dealer and reference item number #6530-082.

9
880 Series
3.3 Important Additional Safety Instructions
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the symbol* is located inside the supply terminal box
or compartment. To reduce the risk of electric shock, this terminal
must be connected to the grounding means provided in the electric
supply service panel with a continuous copper wire equivalent in size
to the circuit conductors that supply this equipment (*IEC Publication
417, Symbol 5019).
3. At least two lugs marked “Bonding Lugs” are provided on the exter-
nal surface or on the inside of the supply terminal box/compartment.
To reduce the risk of electric shock, connect the local common bond-
ing grid in the area of the spa to these terminals with an insulated or
bare copper conductor not smaller than No. 6 AWG (10 mm²).
4. All eld installed metal components such as rails, ladders, drains or
other similar hardware within 10 feet (3m) of the spa shall be bonded
to the equipment grounding buss with copper conductors not smaller
than No. 6 AWG (10 mm²).
5. SAVE THESE INSTRUCTIONS.
4.0 Locating Your Sundance Hot Tub
WARNING: For spas that are to rest on balconies,
roofs or other platforms not specically tied into main
structural support, consult a professional Structural En-
gineer with experience in this type of application.
!
IMPORTANT: Because of the combined weight of the spa, water
and users, it is extremely important that the base upon which the
spa rests be smooth, at, level and capable of uniformly support-
ing this weight, without shifting or settling, for the entire time the
spa is in place. Visit www.SundanceSpas.com for weight informa-
tion. If the spa is placed on a surface which does not meet these
requirements, damage to the skirt and/or the spa shell may result.
Damage caused by improper support is not covered under war-
ranty. It is the responsibility of the spa owner to assure the integrity
of the support over time. We recommend a poured, reinforced
concrete slab with a minimum thickness of 4 inches (10 cm). Wood
decking is also acceptable provided it is constructed so that it
meets the requirements outlined above.

10
880 Series
WARNING: Proper drainage is required. The installation
must not allow the spa equipment bay to become ooded or
wetted (by external water). It is your responsibility, and the re-
sponsibility of any installation contractor you hire, to make sure
that all applicable codes and/or local construction requirements
are met. If in doubt, refer to the building authority responsible
for approving the proposed installation site.
!
The spa must be installed in such a manner as to provide drainage away
from it. Placing the spa in a depression without provisions for proper
drainage could allow rain, overow, leaks from spa plumbing, and other
casual water to ood the equipment and create a wet condition in which
it would sit in. For spas which will be installed below grade or recessed
into a oor or deck, install so as to permit access to the equipment,
either from above or below, for servicing. Make certain that there are no
obstructions which would prevent removal of all side cabinet panels and
access to components, especially on the side with the equipment bay
doors.
CAUTION: If the spa is indoors or located in an enclosed area,
proper ventilation should be discussed with an Engineer or authority
competent enough to understand the necessary provisions needed
to vent moist or heated air and air associated with chemical odors
outdoors. When the spa is in use considerable amounts of
moisture will escape potentially causing mold and mildew. This
can cause health risk. Over time, this can damage certain surfaces,
surroundings, and equipment.
4.1 Outdoor Location
In selecting the ideal outdoor location for your hot tub, we suggest that
you take into consideration the following:
• The proximity to changing area and shelter (especially in regions
subject to cold weather).
• The pathway to and from your hot tub (this should be free of debris
so that dirt and leaves are not easily tracked into the hot tub).
• The closeness to trees and shrubbery (remember that leaves and
birds could create extra work in keeping the hot tub clean).
• A sheltered environment (less wind and weather exposure can result
in lowered operation and maintenance costs).
• The overall enhancement of your environment. It is preferable not
to place the hot tub under an unguttered roof overhang since run-off
water will shorten the life expectancy of the hot tub cover.
• For spas that are to rest on balconies, roofs or other platforms not
specically tied into main structural support, consult a professional
Structural Engineer with experience in this type of application.
• In the unlikely event that you should ever need to access or
gain entry to any portion of the spa for servicing, it is highly
recommended that you plan your outdoor installation to provide full
!

11
880 Series
access to the entire spa. Please take this into consideration when
placing the spa in a deck or enclosed by a surrounding.
• Consider locating your spa away from any reective surface or glass
to prevent any damage to the synthetic skirt.
• Do not shim the spa. To ensure proper support the spa must sit at
on the intended foundation.
4.2 Indoor Location
For indoor installations many factors need to be considered before
installing a spa indoors:
WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the
risk of contracting a waterborne illness (e.g. an infection, bac-
teria or virus) and/or respiratory ailments that could be pres-
ent in the air or water. Consult a licensed architect or building
contractor to determine your specic needs if installing your
hot tub indoors.
!
• PROPER FOUNDATION: Consult a Structural Engineer when
considering a foundation that will adequately support the spa
the entire time it is in place. Proper support is critical especially
if the spa is to rest on a second story or higher. For spas that are
to rest on balconies, roofs or other platforms not specically tied
into the main structural support, you should consult a professional
Structural Engineer with experience in this type of application.
• PROPER DRAINAGE: It is extremely important to have in place
measures to sufciently handle excessive water spillage. Be
sure the ooring in which the spa rests on has adequate drainage
and can handle draining of the entire contents of the spa. Be sure
to make provisions for ceilings or any other structures that may be
below the spas installation. Areas around your spa can become wet
or moist so all ooring and subsequent furniture, walls and adjacent
structures should be able to withstand or resist water and moisture.
• PROPER VENTILATION: Proper ventilation should be discussed
with an Engineer or authority competent enough to understand
the necessary provisions needed to vent moist or heated air
and air associated with chemical odors outdoors. When the spa
is in use considerable amounts of moisture will escape potentially
causing mold and mildew, over time this can damage certain
surfaces and or surroundings.
• SUFFICIENT ACCESS: In the unlikely event that you should ever
need to access or gain entry to any portion of the spa for servicing,
it is highly recommended that you plan your indoor installation to
provide full access to the entire spa.

12
880 Series
• WARRANTY: Damage caused by not following these guidelines
or any improper installation not in accordance with local codes or
authorities is not covered under the spas warranty. Please consult
your local state or city building ordinances.
• DO NOT SHIM THE SPA. To ensure proper support the spa must sit
at on the intended foundation.
5.0 General Electrical Safety Instructions
Your new Sundance® hot tub is equipped with the “state-of-
the-art” equipment system. It contains the most advanced
safety and self-protective equipment in the industry.
Nonetheless, this hot tub must be installed properly to
ensure dependable usage. Please contact your local
Sundance Spas dealer or local building department should you have any
questions regarding your installation.
Proper grounding is extremely important. Sundance hot tubs are
equipped with a current collector system. A pressure wire connector is
provided on the surface of the control box, located inside the equipment
door (Figure C, page 15) to permit connection of a bonding wire
between this point and any ground metal equipment, metal water pipe or
conduit within 5 feet (1.5m) of the hot tub, or copper clad grounding rod
buried within 5 feet (1.5m) of the hot tub. Bonding wire must be at least
No. 8 AWG (8.4 mm²) solid copper wire. This is a most important safety
assurance feature.
Before installing your hot tub, check with your local government/electri-
cal authority to ensure installation conforms to local country/area state
codes.

13
880 Series
6.0 Electrical Installation Instructions (240V Service)
IMPORTANT NOTICE: The electrical wiring of this hot
tub must meet the requirements of the National Electrical
Code (NEC) and/or any applicable state, local or country
codes. The electrical circuit must be installed by a qualied
electrician and approved by a local building/electrical
inspection authority in your state or country.
1. !DANGER: TO DECREASE THE RISK OF SHOCK,
PRODUCT DAMAGE OR ELECTRICAL FIRE.
This hot tub must be permanently connected (hard-wired) to the
power supply. No plug-in connections or extension cords are
to be used in conjunction with the operation of this hot tub.
Supplying power to the hot tub which is not in accordance with these
instructions will void both the independent testing agency listing and
the manufacturer’s warranty.
2. The power supplied to this hot tub must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
3. To determine the current, voltage and wire size required, refer to
Section 7.0 (page 16) for your specic hot tub model.
• Wire size must be appropriate per NEC and/or local/country codes.
• The spa controller’s terminal block will accept a maximum wire size
of 6 AWG.
4. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with Section 422-20 of the National Electrical Code, ANSI/
NFPA 70. The disconnecting means must be readily accessible and
visible to the hot tub’s occupant but installed at least 5 feet (1.5m)
from the hot tub.
5. The electrical circuit supplied for the hot tub must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42.
6. To gain access to the spa’s power terminal block:
• Remove both corner panels. Grab one of the corner panels, from
the bottom, and gently pull the cabinet forward to unsnap it from the
holding clip. Then slide it down to remove. Now remove the center
cabinet by grabbing the bottom of the panel and lifting it up to release
from the top mounting bracket. Then slightly tilt and pull down on
the panel to remove. Place the panel is a safe location to prevent
from damaging it. Then remove the door screws on the control box.
Reference page 71, for instructions. Then remove the control box
door screws and door (Figure C, page 15).
7. Select the power supply entrance you want to use (Figures A-B,
pages 14-15) and remove the short cabinet panel from the front
of the hot tub, then feed cable through the large opening provided on
the bottom of the control box.

14
880 Series
8. Connect wires, color to color, on terminal blocks TB1 (Figure D).
TIGHTEN SECURELY! All wires must be hooked up securely or
damage could result.
9. Install control box door and reinstall the cabinet panel(s).
Note: Exposure of the cabinet to heat could cause the cabinet to warp.
Should the cabinet warp, once it is installed, the warping is not visible.
However, it does make the removal and replacement a little more
challenging.
IMPORTANT NOTICE : Remove the shipping bolts and
spacers from the circulation pump prior to operation. Failure
to do so may result in loud pump noise. Store the bolts and
spacers in a safe location. Reinstall them if you move, tilt or
ship the hot tub.
!
Figure A (Maxxus/Aspen Equipment Area)
102
°
8
9
10
6
2 2
13
12
7
4
35
1
16
14 15
11
Note: Equipment location (such as pumps, CLEARRAY® system, drain,
heater etc.) varies by model.
1. Control Box
2. Power Supply Entrance(s)
3. Jets Pump
4. Jets Pump
5. Jets Pump
6. Blower
7. Heater
8. Hot Tub Drain (Removable
External Drain Cap)
9. Pump Drain Plug(s)
10. Filter/Circulation Pump
11. CLEARRAY® (Ultraviolet) Water
Purication System
12. Control Panel
13. Quick Drain™
14. SmartTub™ System (Optional)
15. Bridge (for optional SmartTub
System)
16. BLUEWAVE® 2.0 Wireless
Audio System (Optional)
