Sungrow SBR064 User manual

SBR064/096/
128/160/192/224/256High Voltage
LFP BatteryUser ManualSBR064-
256-UEN-Ver19-202302
User Manual
High Voltage LFP Battery
SBR064/096/128/160/192/224/256
SBR064-256-UEN-Ver19-202302

I
All Rights Reserved
All Rights Reserved
No part of this document can be reproduced in any form or by any means without the prior
written permission of Sungrow Power Supply Co., Ltd (hereinafter "SUNGROW").
Trademarks
and other Sungrow trademarks used in this manual are owned by
SUNGROW.
All other trademarks or registered trademarks mentioned in this manual are owned by their
respective owners.
Software Licenses
• It is prohibited to use data contained in firmware or software developed by SUNGROW,
in part or in full, for commercial purposes by any means.
• It is prohibited to perform reverse engineering, cracking, or any other operations that
compromise the original program design of the software developed by SUNGROW.

II
About This Manual
The manual mainly describes the product information, guidelines for installation, operation
and maintenance. The manual cannot include complete information the system (i.e. the hy-
brid inverter), just the battery. The reader can get additional information about other devices
at www.sungrowpower.com or on the webpage of the respective component manufacturer.
Validity
This manual is valid for the following battery models:
• SBR064
• SBR096
• SBR128
• SBR160
• SBR192
• SBR224
• SBR256
They will be referred to as "battery" hereinafter unless otherwise specified.
Target Group
This manual is intended for battery owners who will have the ability to interact with the bat-
tery and qualified personnel who are responsible for the installation and commissioning of
the battery. Qualified personnel should have the following skills:
• Training for installation and commissioning of electrical system, as well as dealing with
hazards
• Knowledge of the manual and other related documents
• Knowledge of the local regulations and directives
How to Use This Manual
Read the manual and other related documents before performing any work on the battery.
Documents must be stored carefully and be available at all times.
Images in this manual are for reference only. The actual product received may differ.
Contents may be periodically updated or revised due to the product development. It is prob-
ably that there are changes of manual in the subsequent battery edition. The latest manual
can be acquired via visiting the website at support.sungrowpower.com.
Symbols
Important instructions contained in this manual should be followed during installation, opera-
tion and maintenance of the hybrid inverter. They will be highlighted by the following
symbols.

III
Indicates a hazard with a high level of risk that, if not avoided, will result in death
or serious injury.
Indicates a hazard with a medium level of risk that, if not avoided, could result in
death or serious injury.
Indicates a hazard with a low level of risk that, if not avoided, could result in minor
or moderate injury.
Indicates a situation that, if not avoided, could result in equipment or property
damage.
Indicates additional information, emphasized contents or tips that may be helpful,
e.g. to help you solve problems or save time.
Abbreviation
BMS: Battery Management System
BMU: Battery Management Unit
CAN: Controller Area Network
CMU: Battery Cluster Management Unit
LFP: Lithium iron phosphate
SOC: State of Charge
MCB: Miniature DC circuit breaker
PACK:battery module

V
Contents
All Rights Reserved .....................................................................................................I
About This Manual......................................................................................................II
1 Safety Instructions ............................................................................................1
1.1 Notices for Safe Use.......................................................................................2
1.2 Battery Handling Information ...........................................................................2
1.3 Emergency Situations.....................................................................................3
1.3.1 Leaking Batteries ..................................................................................3
1.3.2 Fire ......................................................................................................4
1.3.3 Wet Batteries........................................................................................5
1.3.4 Damaged Batteries ...............................................................................5
2 Product Description ..........................................................................................6
2.1 Product Introduction........................................................................................6
2.2 Terminal Description .......................................................................................8
2.3 Symbols on the Product ..................................................................................9
2.4 LED Indicator ...............................................................................................10
3 Unpacking and Storage ................................................................................. 11
3.1 Unpacking and Inspection ............................................................................. 11
3.2 Scope of Delivery .........................................................................................12
3.3 Storage........................................................................................................13
4 Mounting ..........................................................................................................14
4.1 Safety during Mounting .................................................................................14
4.2 Location Requirements .................................................................................14
4.3 Installation Environment Requirements ..........................................................14
4.4 Installation Clearance Requirements..............................................................15
4.5 Installation Tools...........................................................................................15
4.6 PE Cable Preparation ...................................................................................16
4.7 Assemble DC Connectors .............................................................................17
4.8 Assembling the Communication Connector ....................................................19
4.9 Installing the Battery .....................................................................................21
5 Commissioning ...............................................................................................28
5.1 Inspection before Commissioning ..................................................................28

VI
5.2 Commissioning Procedure ............................................................................28
6 Decommissioning the Battery .......................................................................31
7 Battery Augmentation ....................................................................................32
8 Troubleshooting and Maintenance ..............................................................33
8.1 Troubleshooting ...........................................................................................33
8.2 Maintenance ................................................................................................39
9 Appendix ..........................................................................................................41
9.1 Technical Data .............................................................................................41
9.2 FAQs...........................................................................................................43
9.2.1 Battery Not Charging...........................................................................43
9.2.2 Battery Not Discharging.......................................................................44
9.2.3 SOC Jump..........................................................................................44
9.2.4 Battery Upgrade..................................................................................44
9.3 Quality Assurance ........................................................................................44
9.4 Contact Information ......................................................................................45

1
1Safety Instructions
When installing, commissioning, operating, and maintaining the product, strictly observe the
labels on the product and the safety requirements in the manual. Incorrect operation or work
may cause:
• Injury or death to the operator or a third party.
• Damage to the product and other properties.
• Do not operate the product and cables (including but not limited to moving the
product, installing the product, operating the product and cables, powering up
the product, maintaining the product, and working at heights) in harsh weather
conditions such as flooding, lightning, rain, snow, and level 6 or stronger wind.
• In case of fire, evacuate from the building or product area and call the fire alarm.
Re-entry into the burning area is strictly prohibited under any circumstances.
• Tighten the screws with the specified torque using tools when fastening the
product and terminals. Otherwise, the product may be damaged. And the dam-
age caused is not covered by the warranty.
• Learn how to use tools correctly before using them to avoid hurting people or
damaging the device.
• Maintain the device with sufficient knowledge of this manual and use proper
tools.
• The safety instructions in this manual are only supplements and cannot cover
all the precautions that should be followed. Perform operations considering ac-
tual onsite conditions.
• SUNGROW shall not be held liable for any damage caused by violation of gen-
eral safety operation requirements, general safety standards, or any safety in-
struction in this manual.
• When installing, operating, and maintaining the product, comply with local laws
and regulations. The safety precautions in this manual are only supplements
to local laws and regulations.

2
1.1 Notices for Safe Use
Read all safety instructions carefully prior to any work and observe them at all times when
working on or with the battery. Failure to observe the precautions described in this section
can cause serious injury to persons or damage to property.
Risk of explosion
• Do not subject the battery to any strong force.
• Do not mechanically damage the battery (pierce, deform, strip down, etc.)
• Do not heat the battery or dispose of the battery in a fire.
• Do not install the battery in potentially explosive environments.
• Do not place the battery in water or other liquids.
Risk of fire
• Do not place the battery near a heat source, such as direct sunlight, a fireplace,
a thermally uninsulated wall exposed to sunlight, hot water, or a heater.
• Keep sources of ignition such as sparks, flames, and smoking materials away
from the battery.
Risk of electric shock
• Do not disassemble the battery.
• Do not handle a wet battery or use wet tools.
• Do not soak the battery in water or expose it to moisture or liquids.
• Keep the battery away from children and animals.
• Wear suitable clothing, guards and gloves to prevent you from direct contact
with the DC voltage.
• Use insulated tools during working with battery.
• Set aside metal jewelry before working on the DC circuit.
1.2 Battery Handling Information
Follow local standards to use the battery.
1 Safety Instructions User Manual

3
Any man-made damage will void the limited warranty for the battery. Handle the battery with
care to protect it from damage.
• Use the battery only as intended and designed.
• The battery must only be installed at a suitable location.
• Make sure the battery is well connected to ground before use.
• Do not use the battery if it is defective, appears cracked, broken or damaged, or fails to
operate.
• Do not use the battery together with other types of batteries.
• Do not pull, drag or step on the battery.
• Do not leave any foreign objects inside the battery.
• Do not repair or modify the battery. It is not user serviceable.
• Do not pull out any cables when the battery is powered on.
• Do not damage the sheath of cables, wire harness and connectors.
• While the battery is charged, used and stored, keep it away from materials that are prone
to electric discharge, including static discharge.
• Keep the battery away from babies and children to avoid any accidents.
• Cover terminals with insulating tape before proper disposal.
• Avoid direct contact with rain, snow, and water, and prevent the battery from falling and
mechanical impact during battery transportation.
1.3 Emergency Situations
1.3.1 Leaking Batteries
Abuse/misuse/damage of the battery may cause increasing of internal pressure in the bat-
tery cells. It may result in the electrolyte venting. In the event that battery electrolyte is
released:
• Do not enter the room under any circumstance.
• Avoid contact with the leaking liquid or gas.
• Call the Local Emergency number or Fire Brigade if necessary.
If one is exposed to the leaking substance, follow the suggestions below to minimize the
chance of injury:
• Inhalation: Evacuate the contaminated area, and seek medical aid.
• Eye contact: Rinse eyes with copious amounts of water for at least 15 minutes, and seek
medical aid immediately.
• Skin contact: Wash the affected area thoroughly with plenty of water for at least 15 mi-
nutes. If possible, remove or saturate contaminated clothing with water. Seek medical
aid if the patient is distressed.
User Manual 1 Safety Instructions

4
• Ingestion: Induce vomiting, and seek medical aid immediately.
Wipe out the contacted area with a sponge or cloth that is soaked in water until you obtain
medical aid. These materials can damage skin and eyes, causing blindness.
1.3.2 Fire
Fire may occur with the battery despite its careful design. Likewise, a fire or unusually high
temperatures near the battery can cause it to catch fire.
Protective equipment
A respirator is not required during normal operations.
In the event of a fire, hazardous fumes including carbon monoxide, carbon dioxide, and/or
various hydrocarbons may be emitted. To comply with the Personal Protective Equipment
Directive (89/686/EEC), use a full-face self-contained breathing apparatus (SCBA) with full
protective gear during fire fighting.
Fire fighting
In the event of a fire, only qualified firefighters with appropriate protective equip-
ment are permitted to enter the room where the battery is located.
It may take a long time to completely extinguish the fire. Consider allowing the sys-
tem to burn. Smoke indicates that the battery is still burning. Always note that
there is a risk of the battery re-igniting.
Proceed as follows for fire-fighting.
1 Shut off any connected power system or electronics such as the battery, battery isolator,
PV DC isolator(s), AC isolator, solar supply main switch and normal supply main switch.
2 Perform an adequate knock down on the fire before entering the incident’s hot zone.
3 If the battery catches fire, turn off the battery MCB immediately.
4 The use of fire extinguishing sand, carbon dioxide fire extinguishers can briefly extin-
guish open fires, water is the best way to control the spread of fire, but the use of water
fire extinguishing needs to wear electrical insulation protective equipment to avoid elec-
tric shock.
5 Since the battery may re-ignite at any time due to the high temperature of the internal
chemical reaction, please use a large amount of water to continuously cool the battery
for 30-60min after extinguishing the open flame, and wear electrical insulation protective
equipment to avoid electric shock during this process.
6 If the fire is not from the battery and has not spread to it yet, use an ABC fire extinguisher
to extinguish the fire. Remove batteries and other ignition sources from the scene of a
fire.
1 Safety Instructions User Manual

5
1.3.3 Wet Batteries
If the battery is submerged in water, do not let people access it, and then contact Sungrow
or an authorized service partner for technical support.
If a battery is submerged in water or flooded, first, switch off all circuit breakers in the system
to cut off the power supply to the battery. Wait until floodwaters subside and do not approach
near battery. If someone needs to go into the flooded water, wear insulated full length rubber
boots and gloves.
Do not use a flooded battery again.
1.3.4 Damaged Batteries
The battery consists of lithium-ion cells. These are considered dry cell batteries. If the bat-
tery is damaged, only a small amount of battery fluid can leak.
A damaged battery can cause rapid heating of the battery cells. If you notice smoke coming
from the battery area, assume that the battery is burning and take appropriate action as de-
scribed in "1.3.2 Fire".
Damaged batteries are dangerous and must be handled with extreme caution. They are not
fit for use and may pose a danger to people or property. If a battery seems to be damaged:
1 Pack it in its original container.
2 Store it in a separated room like the installation place.
3 Contact SUNGROW.
A damaged battery may release dangerous material and a flammable gas mixture.
Never try to repair the battery even if you are a qualified electrician.
User Manual 1 Safety Instructions

6
2Product Description
2.1 Product Introduction
Brief Introduction
The battery is designed for residential energy storage systems. The inbuilt battery manage-
ment system monitors its operation and prevents the battery from operating beyond the
specified limitations.
This product is a high-voltage battery system with an operating voltage range between 108
V ~ 584 V. A battery system consist of 2 to 8 individual battery modules connected in series.
Max.4 battery systems can be connected in parallel to compatible hybrid inverter. Please re-
fer to hybrid inverter manual for the compatibility details.
figure 2-1 Product overview
SBR064 is only applicable to SH3.0-6.0RS.
Images are for reference only. The actual products received may differ.

7
table 2-1 Design of the product
Position Designation
A
LED Indicator
LED indicator include the SOC indicator and the status indicator. The status
indicator is also used as the power button.
LED indicator indicates the SOC value and status of the battery system.
B
Nameplate
The nameplate clearly indentifies the product. The nameplate must remain
permanently attached to the product. You will find the following information
on the nameplate:
• SUNGROW logo and product model
• Technical data
• Product symbol
C DC circuit breaker

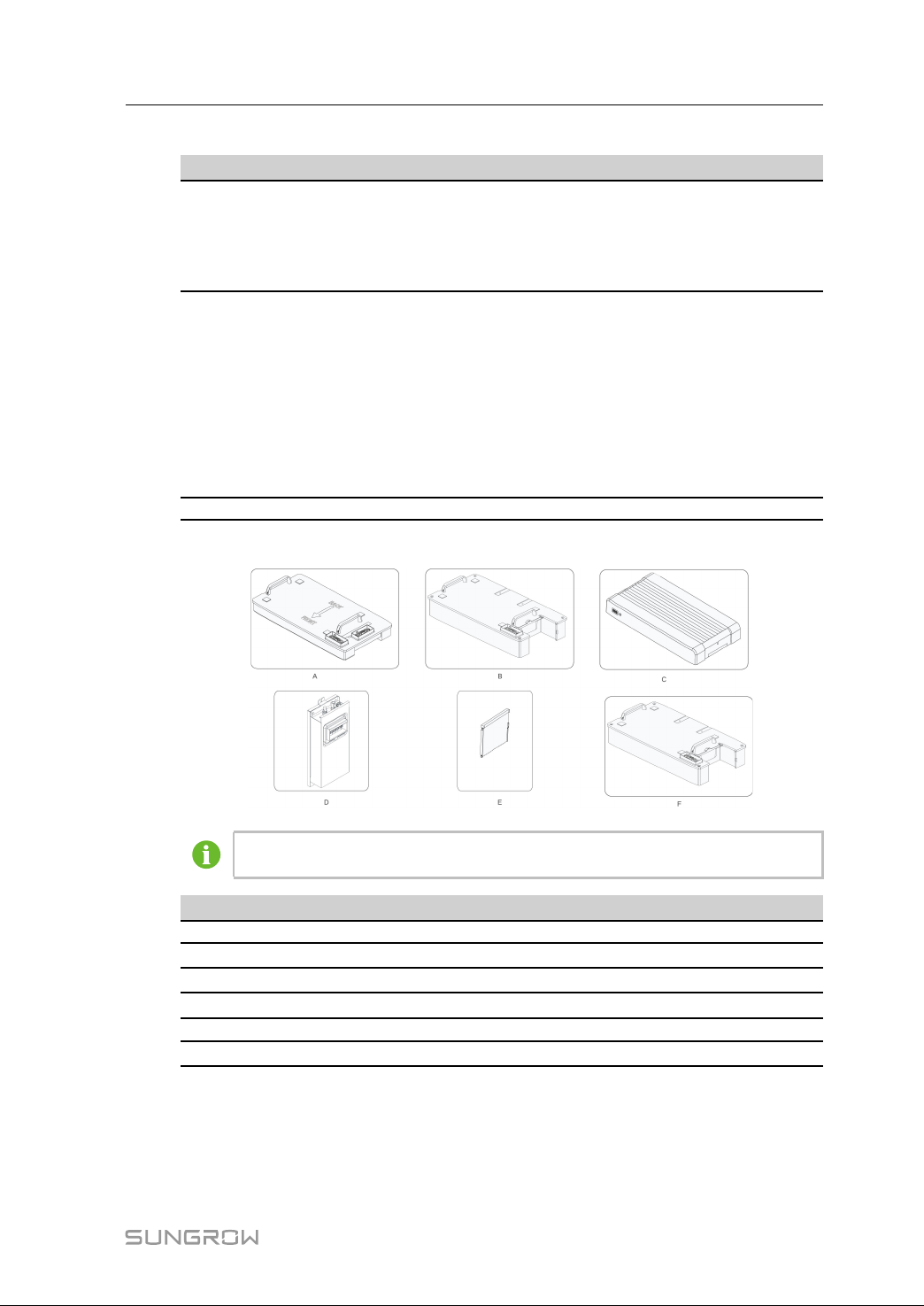

Major Components
Images are for reference only. The actual products received may differ.
Name Designation
A Base
BBattery module
CTop cover
DSwitch gear
E Side cover
FEmpty module*
User Manual 2 Product Description

8
Battery module: Single module is 3.2 kWh and used in SBR064-256 battery system.
*Empty module: 1. Decorative accessory, which makes the battery height higher,
and on the SBR064, which makes the switch gear fit perfectly into the modules.
2. It has the same appearance as Battery module, with a built-in conduction line
and does not contain battery cells.
3. Standard on SBR064, optional on SBR096-256.
table 2-2 Configuration Table
No. Model Base Battery
module Top cover Switch gear Side cover
1 SBR064 1 2 1 1 2
2 SBR096 1 3 1 1 3
3 SBR128 1 4 1 1 4
4 SBR160 1 5 1 1 5
5 SBR192 1 6 1 1 6
6 SBR224 1 7 1 1 7
7 SBR256 1 8 1 1 8
2.2 Terminal Description
All electrical terminals are located at the switch gear.
Images are for reference only. The actual products received may differ.
2 Product Description User Manual

9
No. Label Description
1 P- The system negative terminal, connected to the hybrid inver-
ter negative terminal
2 P+ The system positive terminal, connected to the hybrid inverter
positive terminal
3 COMM To enable the communication between the hybrid inverter and
the battery
4Grounding terminal, connected to the ground
5DC circuit
breaker
To connect/disconnect the DC circuit, for power-on, power-off,
and short-circuit protection
2.3 Symbols on the Product
Symbol Explanation
Pay attention to the danger. Do not operate this product in the live
status!
No open flames
Do not expose to flame, incinerate, puncture, or impact.
Electric shock hazard
Serviced by qualified personnel only. Out of reach from children.
TÜV mark of conformity
TÜV mark of conformity
CE mark of conformity
EU/EEA Importer
UKCA mark of conformity
Do not dispose in trash.
Compacting a lithium ion battery is dangerous as it can explode.
Please recycle this lithium ion battery. Do not discard.
Read the user manual before maintenance!
This is a protective grounding terminal, which should be grounded se-
curely to protect the safety of operators.
User Manual 2 Product Description

10
2.4 LED Indicator
LED indicators include the SOC indicator and the status indicator. The status indicator is al-
so used as the power button.
SOC Indicator
The SOC indicator indicates the current SOC value of the battery. One bar indicates the
SOC value of 10%.
Status Indicator
The Status indicator indicates the current state of the battery.
LED color LED
indicator LED state Definition
Blue
ON Normal operation (without fault)
Slow blink
Period: 2 s
The battery is at power-on or standby state
or firmware update state(without fault).
Fast blink
Period: 0.5 s Battery self-test in process.
Red
ON A system fault has occured.
Blink The battery is at power-on or standby state
(with primary fault).
Images are for reference only. The actual products received may differ.
The status indicator can be used to power on the battery.
Operation Definition
Press and hold for less than 2 seconds To power on the battery*
*The start mode is black start, please refer to ""5.2 Commissioning Procedure"" for
details.
2 Product Description User Manual

11
3Unpacking and Storage
3.1 Unpacking and Inspection
The product is thoroughly tested and strictly inspected before delivery. Nonetheless, dam-
age may still occur during shipping. For this reason, please conduct a thorough inspection
after receiving the product.
• Check the packing case for any visible damage.
• Check the scope of delivery for completeness according to the packing list.
• Check the inner contents for damage after unpacking.
Contact SUNGROW or the transport company in case of any damage or incompleteness,
and provide photos to facilitate services.
Do not dispose of the original packing case. It is recommended to store the device in the
original packing case when the product is decommissioned.
• After receiving the product, check whether the appearance and structural parts
of the device are damaged, and check whether the packing list is consistent
with the actual ordered product. If there are problems with the above inspection
items, do not install the device and contact your distributor first. If the problem
persists, contact SUNGROW in time.
• If any tool is used for unpacking, be careful not to damage the product.

12
3.2 Scope of Delivery
Item Name Quantity
A Base 1
BBattery module 2 - 8
CEmpty module* 1
DTop cover 1
ESwitch gear11
F Bracket 1
G Side cover 2 - 8
H Communication connector 1
IM5*125 hex socket screw（optional）1
J Foot 4
K M5*14 hex socket screw214 - 24
LExpansion plug set 2
M M5 screw sets26
N M6 fender washer25
OSUNCLIX connector or MC4
Connector 1
P OT terminal 1
QCommunication cable fastening tool 1
R Documents 1
3 Unpacking and Storage User Manual
