OWNER’S MANUAL
HeirloomBay5pcLPFireChatSet‐FirePit
Item# L-DN1202SST
DANGER CARBON MONOXIDE HAZARD
This appliance/fire pit can produce carbon monoxide which has no
odor.
Using it in an enclosed space can be deadly.
Never use this appliance/fire pit in an enclosed space such as a
cam
p
er
,
tent
,
car or home.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance/fire pit.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance/fire pit.
DANGER
If you smell gas:
1. Shut off gas to the appliance/fire pit.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance/fire pit and immediately call 911 or
fire department.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before using this equipment.
WARNING: For Outdoor Use Only.
This Fire Pit complies with “ANS Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
Propane tank not included
AA battery needed, not included

2 of 11
TABLE OF CONTENTS
General information …………….…….………………………..………….…… 2
Specification……….…………………………………………….……….……… 3
Important safety information and precaution……….….….….…….…… 3-4
Expanded view…………………………………………………….……..……… 5
Parts list……………………….………………………….…..……………….……6
Installation………………………….………………………..……….…….………7
Location………………………………………………………………….…….….. 7
Set up……………………………………………………………….………...…… 7
Gas connection ………………………………….……………….…………… 7-8
Operation……………………………………………………………….…..…….. 8
Leak check………………………………………………………….………..…… 8
Ignite lighting………………………………………………………….….……. 8-9
Storage and Maintenance………………………………………….…….......… 9
Trouble shooting…………………………………………………...….……..… 10
Limited warranty……………………………………………………….…… 10-11
Cleaning and maintenance………………………………………………………11
GENERAL INFORMATION
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully
for safe and easy operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts, call Sunjoy Group at
1-866-578-6569 from 8:00AM EST to 8:00PM PST, or email us at
[e-mail], or visit www.sunjoyonline.com for assistance.

3 of 11
SPECIFICATION
IMPROTANT SAFETY INFORMATION AND PRECAUTION
The installation must conform with local codes or, in the absences of local codes, with the National
Fuel Code, ANSI Z223.1/NFPA54, or International Fuel Gas Code.
The LP gas supply cylinder to be used must be:
1- Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable;
2- Provided with a listed overfilling prevention device;
3- Provided with a cylinder connection device compatible with the connection for the appliance.
Always place the Fire Pit on a firm and level surface.
Solid fuels shall not be burned in this gas Fire Pit. Burn ONLY Tempered Glass (INCLUDED).
The Fire Pit shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed area.
When in use, keep the Fire Pit area clear and at least 40 in / 101.6 cm side clearance from
combustible materials, gasoline and other flammable liquid and vapors. Do not use the Fire Pit under
overhead combustible surfaces. Certain items or materials, when stored under the Fire Pit or nearby
will be subjected to radiant heat and could be damaged.
Inspect the hose assembly and burner prior to each use. If there is evidence of excessive abrasion
or wear or if the hose or burner is damaged, it must be replaced by the specified one of manufacturer.
Inspect the gas connections of Fire Pit prior to each use. Do not to operate the unit if there is a gas
leak. Have inspected annually by a qualified service person.
The pressure regulator and hose assembly provided with the Fire Pit must be used. The
Product name HeirloomBay5pcLPFireChatSet‐FirePit
Model NO. L-DN1202SST
Rated Heat Input 32,500BTU/HR
Fuel Propane-LP
Gas Supply 20 lb. LP-Gas cylinder
Manifold Pressure 11 Inches W.C.
Orifice Size (diameter) 1.70mm
Gas Supply Pressure Max.250 PSI

4 of 11
replacement must be those specified by manufacturer.
Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
Children and pets should be carefully supervised when they are in the area of the Fire Pit.
Any guard or other protective device removed for servicing the Fire Pit must be replaced prior
to operation.
Clothing or other flammable materials should not be hung from the Fire Pit.
Do not use the Fire Pit if any part has been under water. Immediately call a qualified technician to
inspect the appliance and to replace any part of the control system and any gas control which has been
under water.
LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT).
The cylinder supplies system must be arranged for vapor withdrawal and the cylinder must include a
collar to protect the cylinder valve.
Use only 20 lb / 9 kg LP-Gas cylinders.
Do not burn wood or any other materials in this Fire Pit.
The appliance must be disconnected from the gas supply piping
system by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressure equal to or less
than 1/2psi (3.5kPa).
Properly place the hose out of pathways where people may trip over it or in areas where may be
subject to accidental damage.
The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement must be those specified by manufacturer.

5 of 11
EXPANDED VIEW
C
D
E
F
G
H
IJK L
M
N
O
H
P

6 of 11
NO. Description Qty
A Cover 1
B Table Base 1
C Fire Bowl 1
D Cullet 1
E Burner 1
F Armor Plate Screen 1
G Baffle 1
H Ignition Wire 2
I Nozzle Support Bar 1
J Thermocouple 1
K Nozzle Subassembly 1
L Pressure Regulator 1
M Control valve 1
N Control Knob 1
O Pulse Electronic Igniter 1
P Windshield 2
Parts List
If you want to replace the parts listed, please contact SUNJOY Customer Service Center.

7 of 11
INSTALLATION
Installation will be much easier with two or more people.
LOCATION
Your SUNJOY Gas Fire Pit must be installed on flat, stable surface, away from any combustible
materials or construction.
SET-UP
Your SUNJOY Gas Fire Pit comes assembled, ready for a Gas connection.
1- Remove Fire Pit from container box and place it on any level, outdoor, non-combustible surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting.
2- Open the gas door, put the cylinder inside.

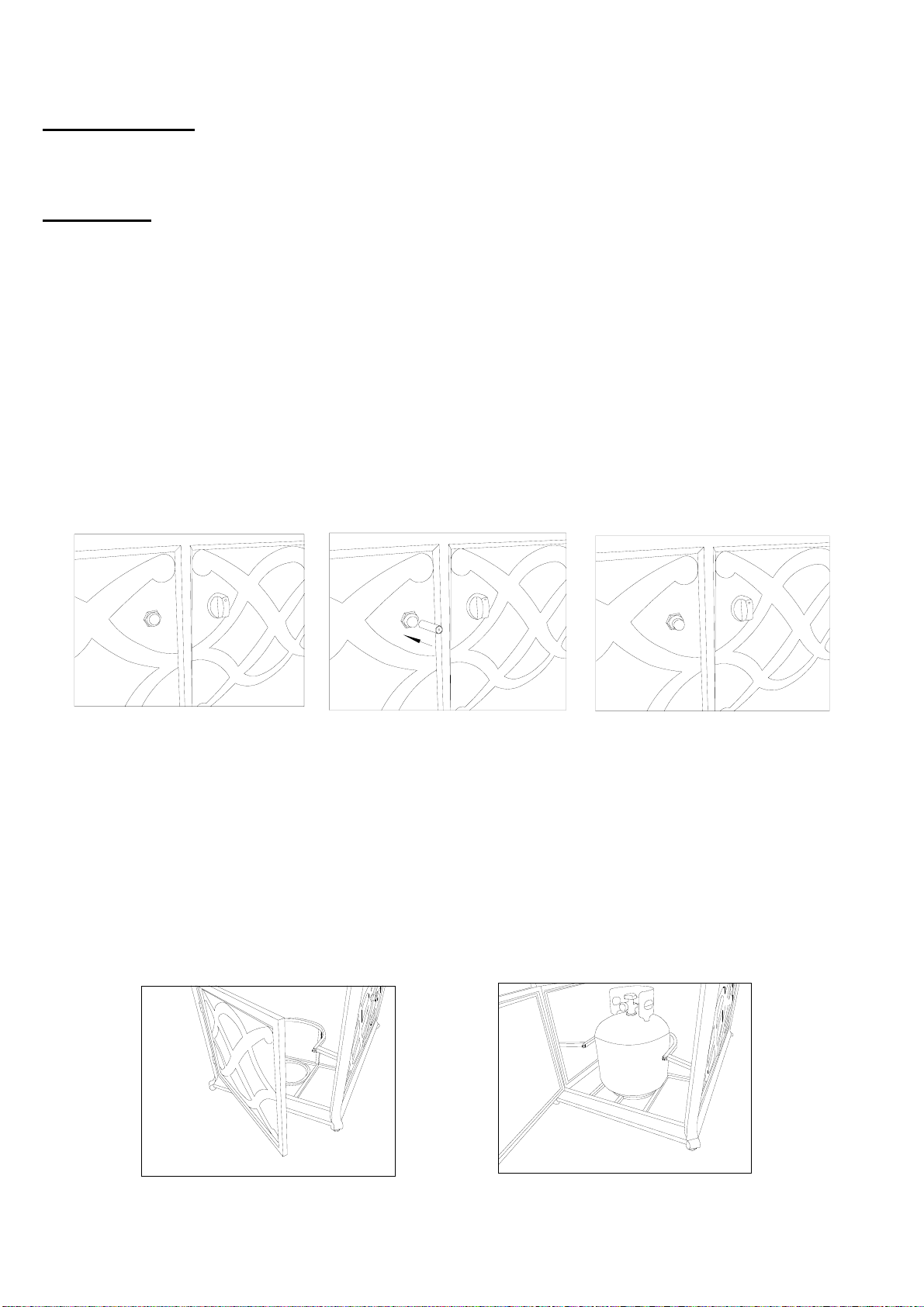

3- Unscrew the battery box as shown in Fig 1.Insert the negative electrode side of the battery into the
bottom of battery box as shown in Fig 2. Then screw the battery box as shown in Fig 3.
Fig1 Fig2 Fig3
Note: If the battery of the pulse electronic igniter runs out of power, please replace the new battery as
step 3 above.
Gas Connection
1- Open the door, put the chain and control valve outside. See Fig 4
2- Put the tank into the tank rack. See Fig 5
3- Connect the regulator and the tank as per Fig.6. Make sure there is no leakage.
4- Fix the tank by the chain. See Fig 7.
Fig 4 Fig 5

8 of 11
OPERATION
LEAK TEST
1- Make sure the control knob is on the “OFF” position.
2- Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without
over tightening it.
3- Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose and
connections between the control knob and gas cylinder.
4- If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply, undo the
leaking connection, re-connect and try again. If the leak persists, consult Sunjoy Industries Customer
Service Center for assistance.
5- If the connection is sound, continue next step.
IGNITE LIGHTING
1- Make sure control valve is OFF.
2- Turn on gas tank valve.
3- Press in and turn control valve knob counterclockwise
to High to light. (See the right figure)
4- If burner is lit, release pressing in control valve knob for
a minute to heat thermocouple.
6- When control valve knob is released, burner should be lit. If not, turn control valve knob clockwise
to OFF. Retry to light after waiting 5 minutes from step 3.
7- Press in and turn control valve knob to desired heat input, HIGH ~ LOW.
!!!WARNING!!!
Do not use an open flame to check for leaks.
Do not smoke during testing.
Do not test indoors.
A leak check must be
p
erformed whenever the
g
as c
y
linder is re
p
laced.
L O W
H I G H
O F F
O N
Fig 6 Fig 6

9 of 11

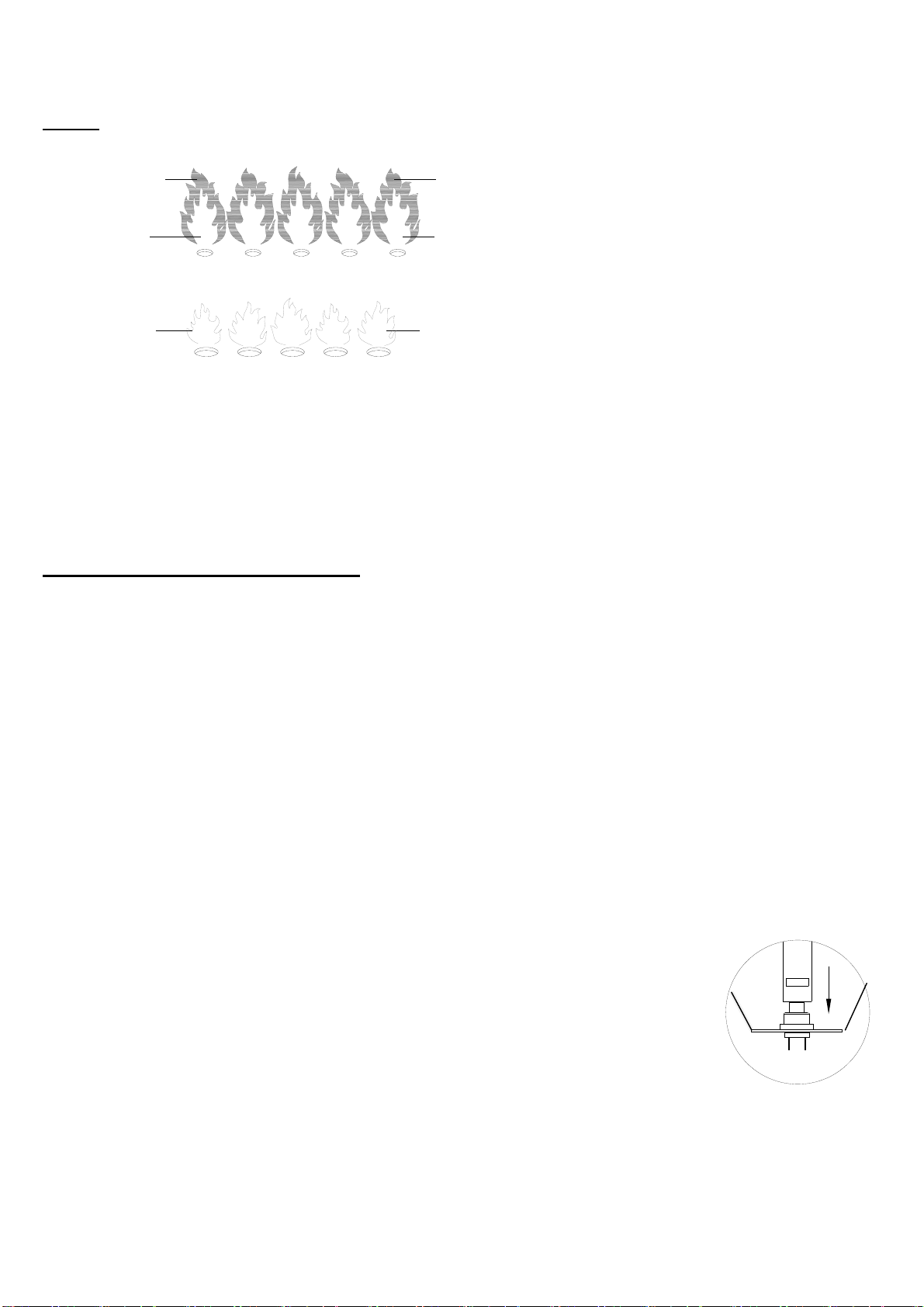

NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow.
The flame can be identified by the following figure.
Warning: Lighting the Fire Pit improperly could lead to an unsafe condition.
8- Press in and turn control valve knob clockwise to OFF to shut down appliance. Close the gas cylinder
valve when the appliance is not in use.
(CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.)
9- The instruction shall warn the user of the potential consequences of improper lighting procedures.
STORAGE AND MAINTENANCE
To obtain the best performance from your Fire Pit, you must perform the following storage and
maintenance activities on a regular basis:
Allow at least 35 minutes for the Fire Pit to cool down after use, then disconnect and remove the gas
cylinder.
Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather
and dust, out of the reach of children, and not in a building, garage or any other closed area.
The Fire Pit may be stored indoors, but only if the cylinder is disconnected and removed.
Keep the Fire Pit area clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
Installation and repair should be done by a qualified service person. The Fire Pit should be
inspected annually by a qualified service person. More frequent cleaning may be required as
necessary.
If disassemble the burner when cleaning the Fire Pit, please reassemble
it according to the picture on the left to make sure the burner induction tunnel
on and exactly cover the orifice base. It is recommended not to disassemble the burner.
Permanent installation and repair should be done by a qualified service person. The Fire Pit should
be inspected annually by a qualified service person. It is imperative that control compartment, burners,
and circulating air passageways of the fire pit be kept clean.
Incorrect Flame
YELLOW TIPS
BLUE
HIGH
LOW Correct Flame
BLUE LOW

10 of 11
TROUBLE SHOOTING
PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES
Gas odor Gas leak See “what to do if you smell gas”
Check all gas connections
Delayed ignition Low gas pressure
Clogged or dirty burner
ports
Blocked orifice
Spent battery
Check gas supply pressure
Clean burner ports-see manual
section
Check orifice opening
Change new battery
Incorrect burner flame Incorrect gas supply or
pressure
Blocked orifice
Clogged or dirty burner
ports
Check gas supply pressure
Check and clean orifice opening
Clean burner ports
If you want to replace the parts listed, please contact SUNJOY Customer Service Center.
LIMITIED WARRANTY
Subject to the conditions set out below, this product is warranted to the original purchaser to be free from
defects in workmanship and materials for twelve (12) months from the date of purchase.
Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for
any claim under the warranty to be enforceable.
This warranty covers all parts found defective in workmanship and/or materials during the warranty
period and can be repaired or replaced at the discretion of the manufacturer at no cost to the original
purchaser.
This warranty will be void if the product has not been assembled, installed or operated according to
the instructions, or subjected to abuse, improperly treated, neglected, rusted by exposure to the
elements, misused and/or if any repairs, maintenance, or service has been done by an unauthorized
person.
Returns must be properly packaged and freight prepaid to the dealer from whom the product was
acquired.
Each of the manufacturer, distributor and retailer will not be liable for any incidental or consequential
loss or damage arising from the installation or operation of the product and/or the failure of any part for
any reason.

11 of 11
There are no other express or implied warranties, except for those stipulated herein. This warranty
gives specific rights and the original purchaser may have additional rights and remedies in law.
This warranty does not cover commercial use.
CLEANING AND MAINTENANCE
To enjoy outstanding performance of your fire pit for years make sure to perform the following
maintenance activities on a regular basis.
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use flammable, corrosive or abrasive cleaners.
Clean the holes on burner by swab that moistened with soapy water. The hole must be unobstructed.
The burner must be dry before normal use. Cleaning period should be 1 year.
While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all
time. If the gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
After a long break from operation, the unit should be inspected for spiders, spider webs or other
insects.
Air flow must be unobstructed, Keep controls, Burner and circulating air passageways clean.
Signs of possible blockage include:
Gas odor with extreme yellow tipping of flame.
Fire pit does NOT reach the desired temperature.
Fire pit flow is excessively uneven.
Fire pit makes popping noises.
Spider and insects can nest in burner or orifices.
This dangerous condition can damage fire pit and render it unsafe for use. Clean burner holes by
using a heavy-duty pipe cleaner.
Compressed air may help clear away smaller particles.
