Sunjoy A102012700 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
A
SSEMBLY IN
S
TRUCTION
I
tem
/Article #
：
A10
2012700
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues? / Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2 / 41
Country of Origin: China
Pais d’origine: Chine
 This product is intended for domestic outdoor use only.
 The product should be placed on flat, horizontal ground.
 Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
 This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
 Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
 During installation, follow all safety warnings provided with your tools, and use safety glasses.
 In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
 Any assembly or maintenance of the product must be carried out by adults only.
 Arrange necessary manpower when assembling or moving the product.
 Some parts may contain sharp edges. Wear protective gloves if necessary.
 Keep children and pets away while setting up the gazebo.
 Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
 Repairing and replacing parts should be done by a qualified technician.
 This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
 Do not light any fires inside or near the product！
 Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
 firemen allow you to do so.
 Do not hang heavy weights on the roof frame.
 Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
 Retain the original packaging to store the gazebo.
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

3 / 41
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



•
•
•



• 
 
 
 
 

•

•

• 

•
•
•
•
•

•
•

•
•

•
•

•
Country of Origin: China
Pais d’origine: Chine

4 / 41
Country of Origin: China
Pais d’origine: Chine
• Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position them on the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Read each step carefully before beginning any assembly and make sure you understand each
step. If you are missing a part, please email [e-mail].

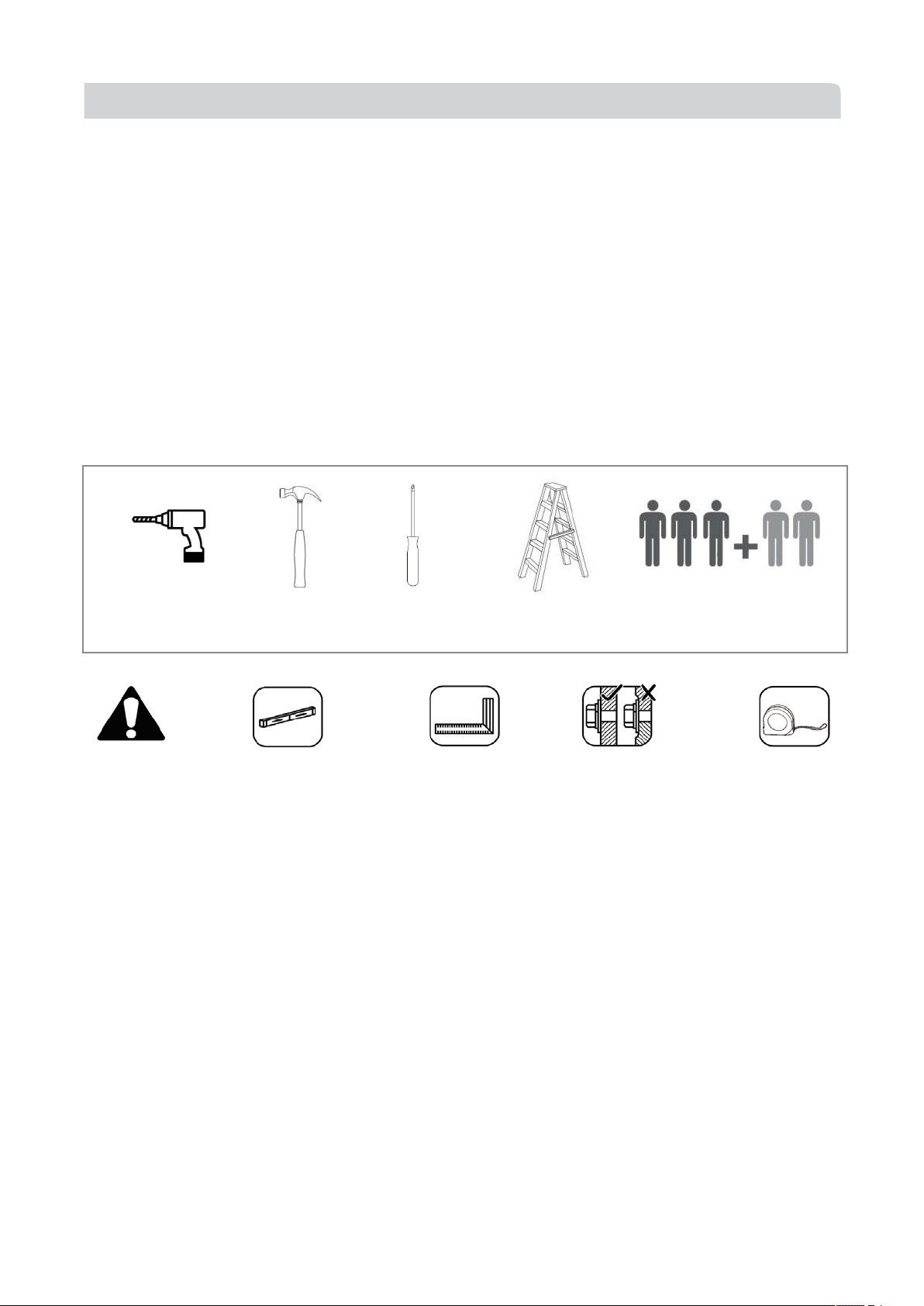

•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill Hammer Screwdriver Ladder 5 people

5/ 41
IMPORTANT:
•

•
•

•

•





Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   5 personnes
Country of Origin: China
Pais d’origine: Chine

6 / 41
Country of Origin: China
Pais d’origine: Chine

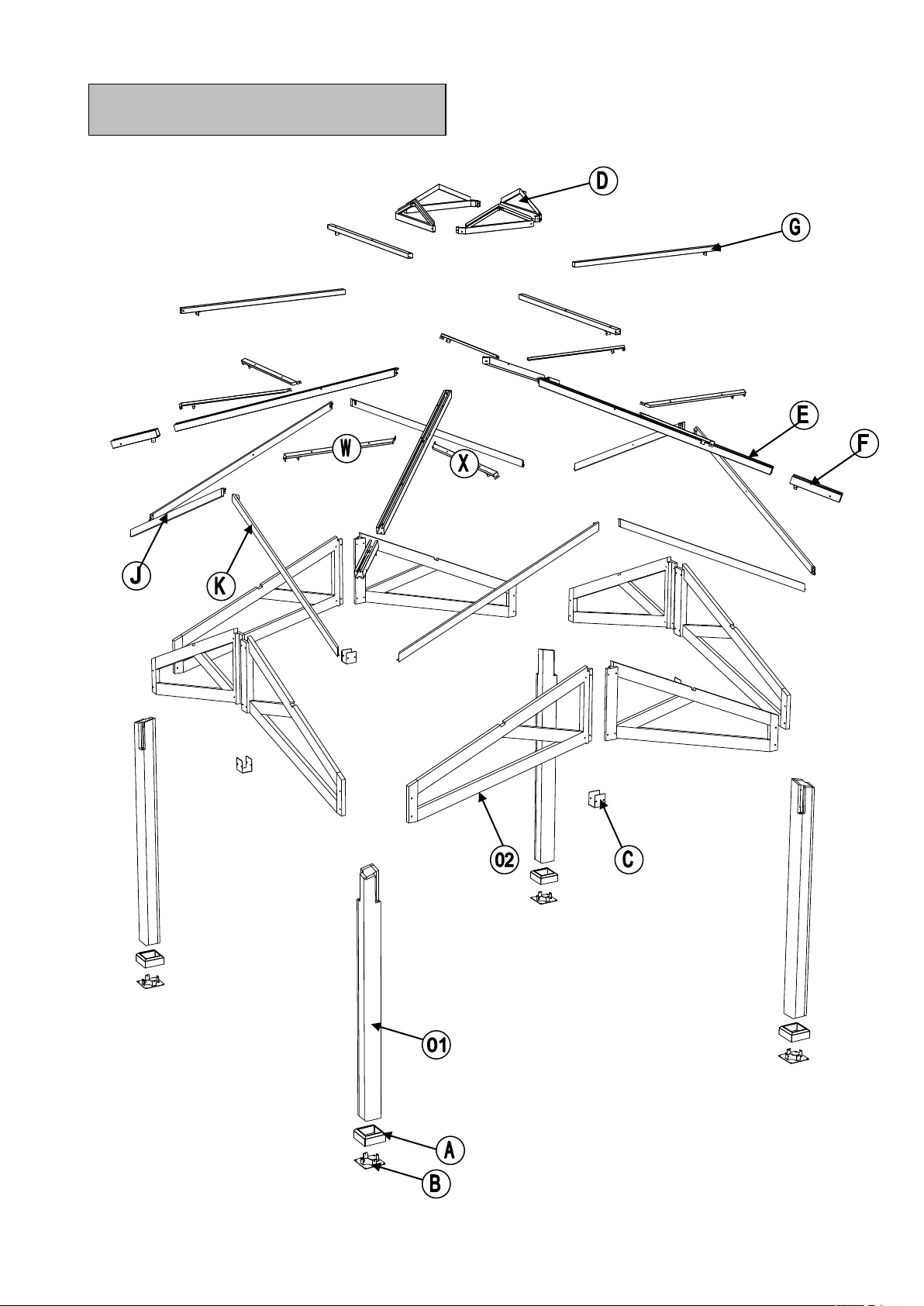

EXPLODED DRAWING/DESSIN ÉCLATÉ

7 / 41
Country of Origin: China
Pais d’origine: Chine
EXPLODED DRAWING/DESSIN ÉCLATÉ

8 / 41
Country of Origin: China
Pais d’origine: Chine

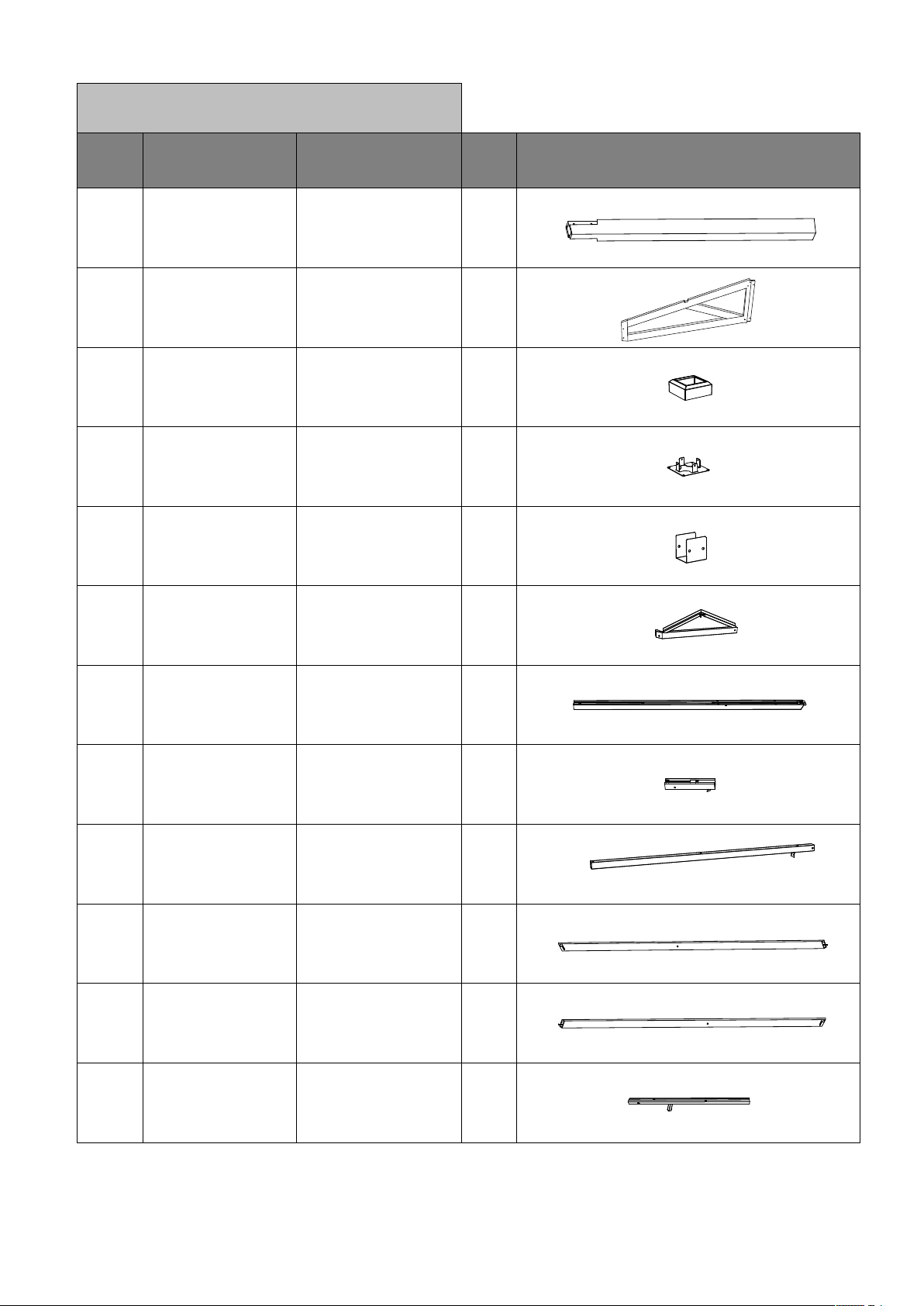

Parts List
Label Part Number Description Qty Part Image
01 P00020068501 Post 4
02 P00040130701 Cross Beam 8
A P00610023501 Post Base 4
B P00010046601 Base Cover 4
C P00220036101 Post Cap 4
D P00060219601 Big Roof Frame 4
E P00060219701 Upper Rafter 4
F P00060219801 Lower Rafter 4
G P00060219901 Middle Beam 4
J P00060220001 Outer Top Beam 1 4
K P00060220101 Outer Top Beam 2 4
L P00060219401 Small Roof Rafter 4

9 / 41
Country of Origin: China
Pais d’origine: Chine
Liste de Pièces
Étiquette
Numéro de la
Pièce Description Quantité Numéro de la Pièce Diagramme
01 P00020068501 Poteau 4
02 P00040130701 Traverse 8
A P00610023501 Capuchon de pied 4
B P00010046601 Base du Poteau 4
C P00220036101 Pommeau du
Poteau 4
D P00060219601 Structure du Grand
Toit 4
E P00060219701 Chevron Supérieure 4
F P00060219801 Chevron Inférieure 4
G P00060219901 Poutre Centrale 4
J P00060220001 Poutre supérieure
extérieure 1 4
K P00060220101 Poutre supérieure
extérieure 2 4
L P00060219401 Plafond du Petit Toit 4

10 / 41
Country of Origin: China
Pais d’origine: Chine

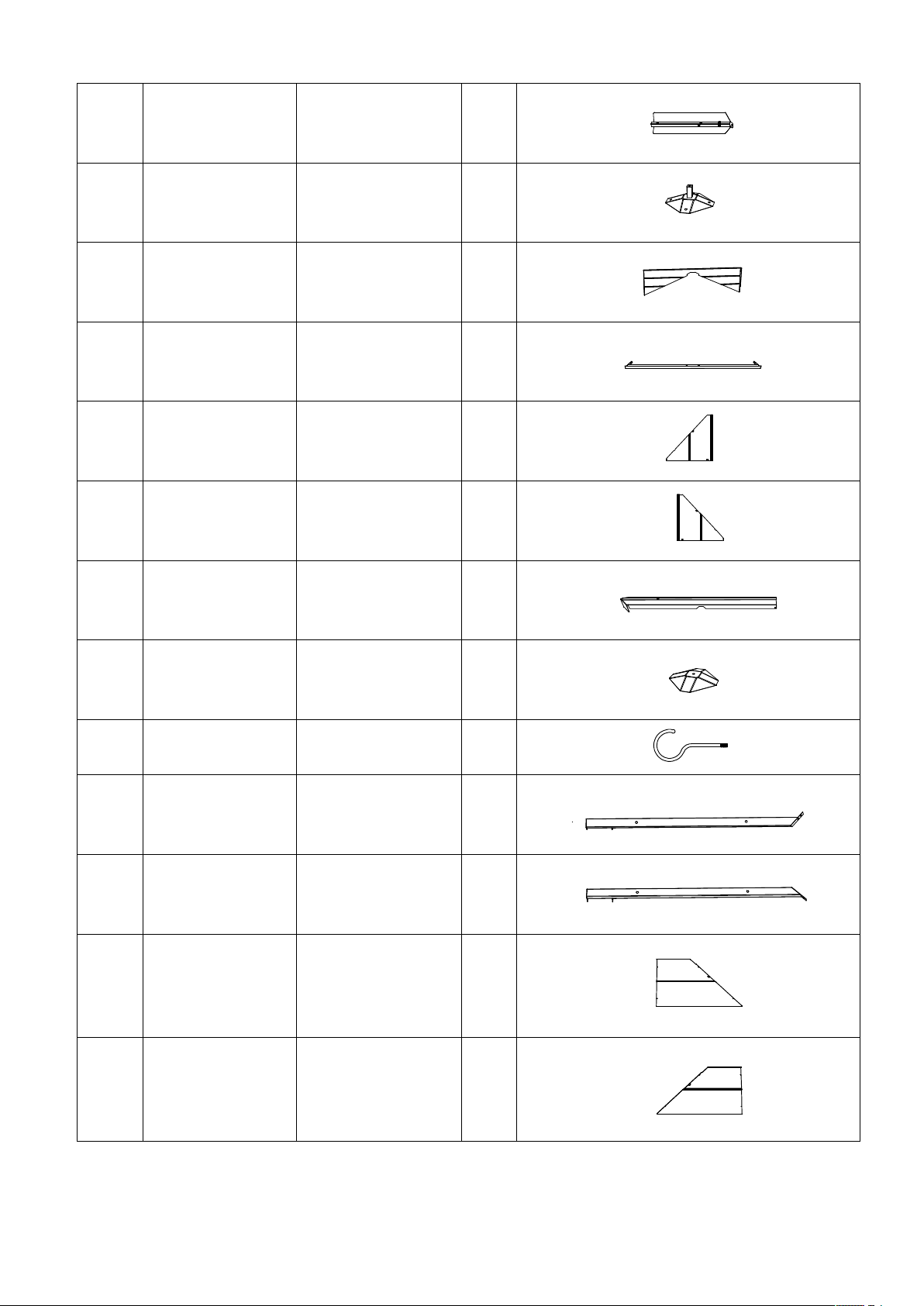

M P00500064601 Small Roof Brace 4
N P00050028701 Small Roof
Connector 1
P P00560047601 Small Roof
Decoration Panel 4
Q P00060219501 Small Roof Panel
Flashing 4
R P00070107601 Small Roof Panel 1
4
S P00070107701 Small Roof Panel 2
4
T P00080037201 Small Roof Rafter
Cap 4
U P00090017001 Small Roof Cap 1
V P005800001 Hook 1
W P00060220201 Top Beam 1 4
X P00060220301 Top Beam 2 4
Y P00070107001 Big Roof Small
Panel 1 4
AA P00070107101 Big Roof Small
Panel 2 4

11 / 41
Country of Origin: China
Pais d’origine: Chine
M P00500064601 Petit renfort de toit 4
N P00050028701 Petit connecteur de
toit 1
P P00560047601 Petit panneau de
décoration de toit 4
Q P00060219501 Solin du Panneau
du Petit Toit 4
R P00070107601 Panneau du Petit Toit
1
4
S P00070107701 Panneau du Petit
Toit 2
4
T P00080037201 Casquette de
chevron de petit
toit
4
U P00090017001 Petit capuchon
de toit
1
V P005800001 Crochet 1
W P00060220201 Poutre Supérieure
1
4
X P00060220301 Poutre Supérieure
2 4
Y P00070107001 Petit Panneau du
Grand Toit
1
4
AA P00070107101 Petit Panneau du
Grand Toit 2 4

12 / 41
Country of Origin: China
Pais d’origine: Chine

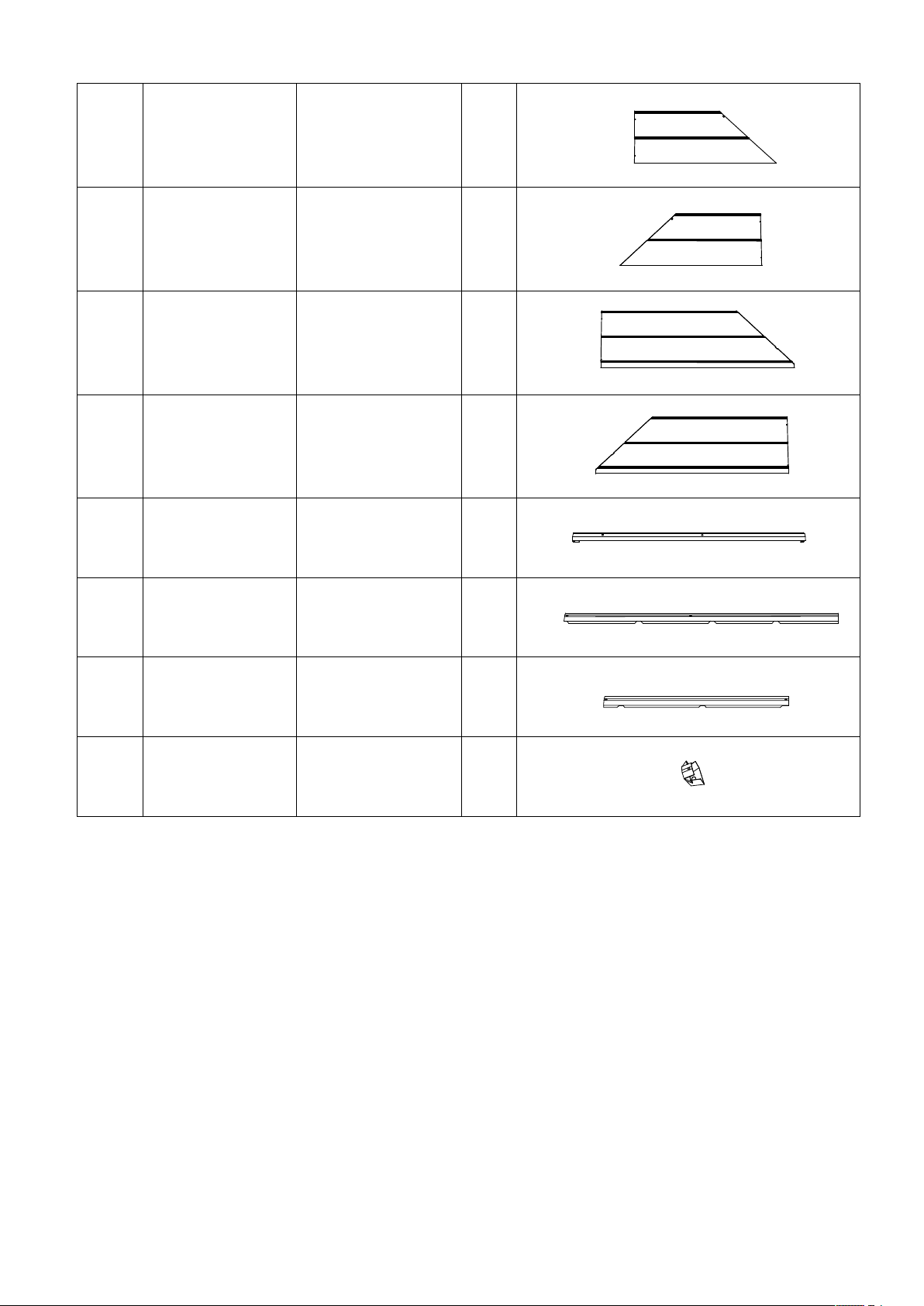

AB P00070107201 Big Roof Middle
Panel 1 4
AC P00070107301 Big Roof Middle
Panel 2 4
AD P00070107401 Big Roof Big Panel
1 4
AE P00070107501 Big Roof Big Panel
2 4
AF P00080037501 Middle Beam Cap 4
AG P00080037301 Upper Rafter Cap 4
AJ P00080037401 Lower Rafter Cap 4
AK P00060220401 Rafter Panel
Flashing 4

13 / 41
Country of Origin: China
Pais d’origine: Chine
AB P00070107201 Panneau Central
du Grand Toit
1
4
AC P00070107301 Panneau Central
du Grand Toit
2
4
AD P00070107401 Grand Panneau du
Grand Toit
1
4
AE P00070107501 Grand Panneau
du Grand Toit 2 4
AF P00080037501 Casquette de poutre
centrale 4
AG P00080037301 Casquette de
chevron supérieur 4
AJ P00080037401 Casquette de
chevron inférieur 4
AK P00060220401 Panneau de
chevron clignotant 4

14/ 41
Country of Origin: China
Pais d’origine: Chine

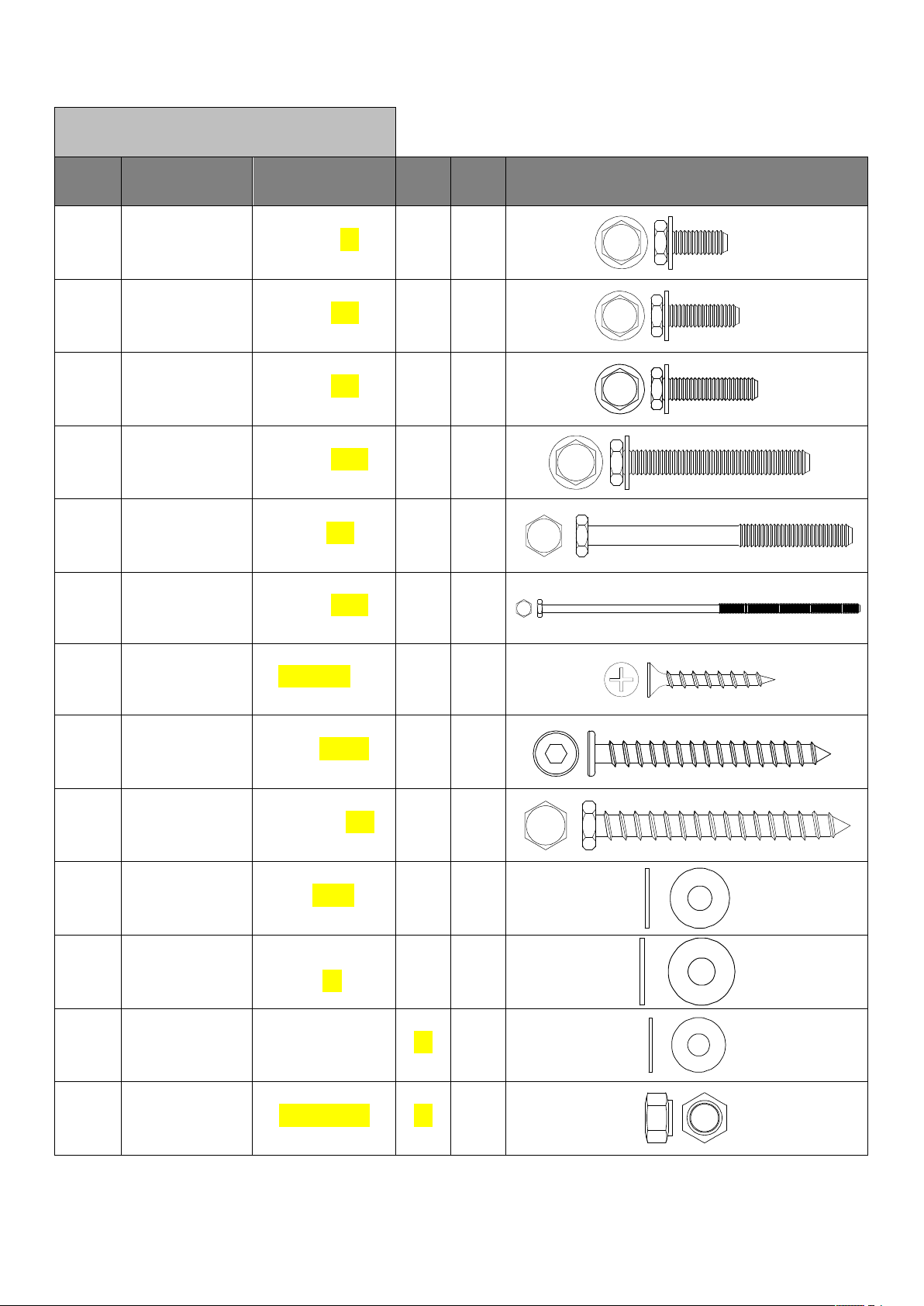

Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010068 Bolt M6*15 8 1
H2 H100010047 Bolt M6*20 89 5
H3 H100010086 Bolt M6*25 16 1
H4 H100010059 Bolt M6*45 24 2
H5 H010010455 Bolt M8*105 16 1
H6 H010010451 Bolt M10*160 8 1
H7 H030050052 Screw ST 5*25 48 3
H8 H030030018 Screw ST 8*75 8 1
H9 H030010031 Screw ST9.5*80 8 1
H10 H050080007 Flat Washer M8 40 2
H11 H050080008 Flat Washer
M10 24 2
H12 H050050018 Washer rubber
M6 24 2
H13 H040050041 Hex Nut M8 16 1

15 / 41
Country of Origin: China
Pais d’origine: Chine
Pack Quincaillerie
Étiquette Numéro de la
Pièce Description Quantité Add Numéro de la Pièce Diagramme
H1 H100010068 Boulon M6*15 8 1
H2 H100010047 BoulonM6*20 89 5
H3 H100010086 BoulonM6*25 16 1
H4 H100010059 Boulon M6*45 24 2
H5 H010010455 BoulonM8*105 16 1
H6 H100010059 Boulon M10*160 8 1
H7 H030050052 Vis ST 5*25 48 3
H8 H030030018 Vis ST 8*75 8 1
H9 H030010031 Vis ST9.5*80 8 1
H10 H050080007 Rondelle plate M8 40 2
H11 H050080008 Rondelle plate
M10 24 2
H12 H050050018 Rondelle plate
M6 24 2
H13 H040050041 Hex Nut M8 16 1

16 / 41
Country of Origin: China
Pais d’origine: Chine

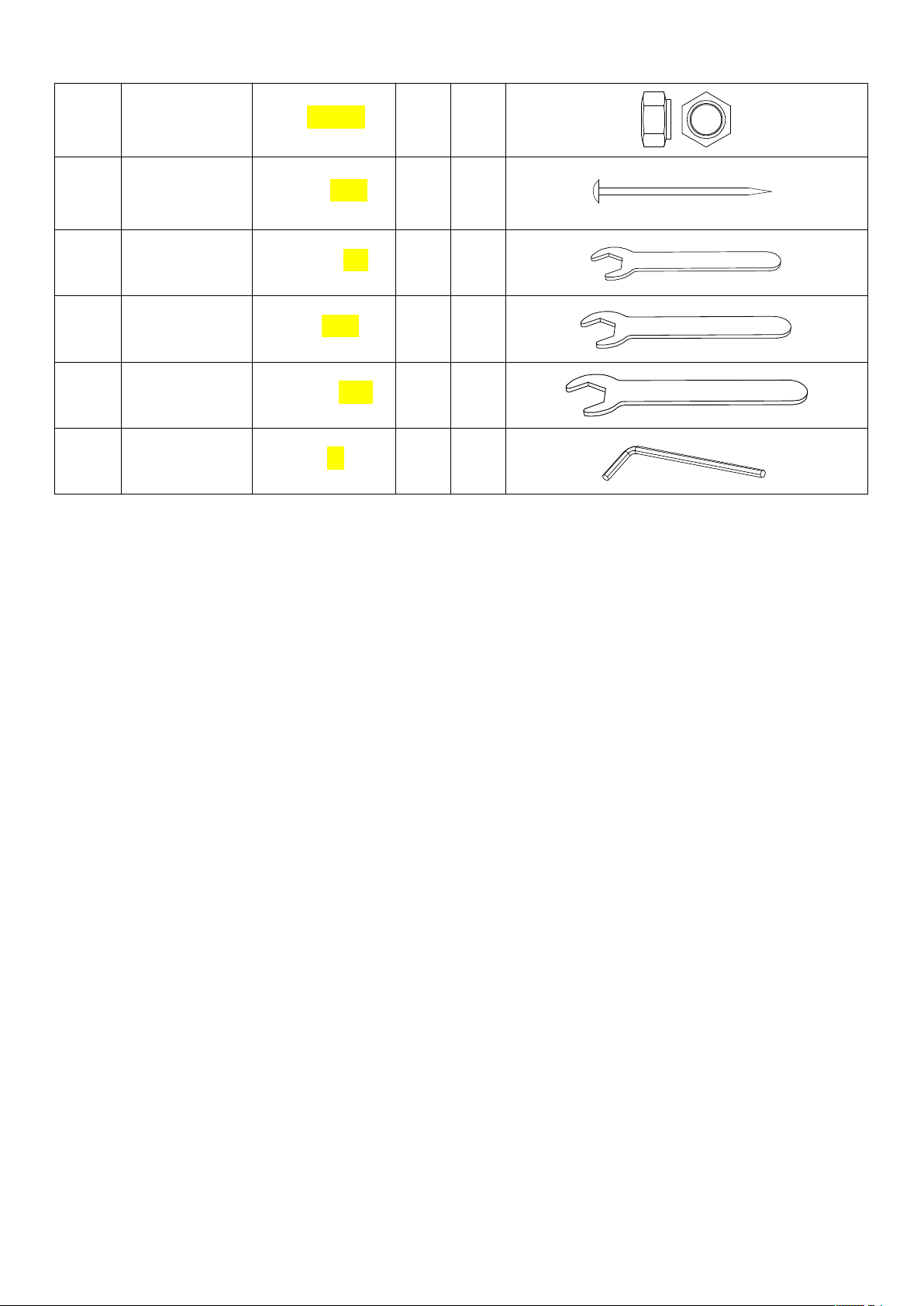

H14 H040050026 Hex Nut M10 8 1
HS H070010001 Stake Φ8*180 8 0
HW1 H090010017 Wrench M6 1 0
HW2 H090010012 Wrench M8 1 0
HW3 H090010015 Wrench M10 2 0
HW4 H090030005 Allen Key M8 1 0

17 / 41
Country of Origin: China
Pais d’origine: Chine
H14 H040050026 Hex Nut M10 8 1
HS H070010001 Piquet Φ8*180 8 0
HW1 H090010017 Clé M6 1 0
HW2 H090010012 Clé M8 1 0
HW3 H090010015 Clé M10 2 0
HW4 H090030005 Clé Allen M8 1 0

18 / 41
Country of Origin: China
Pais d’origine: Chine

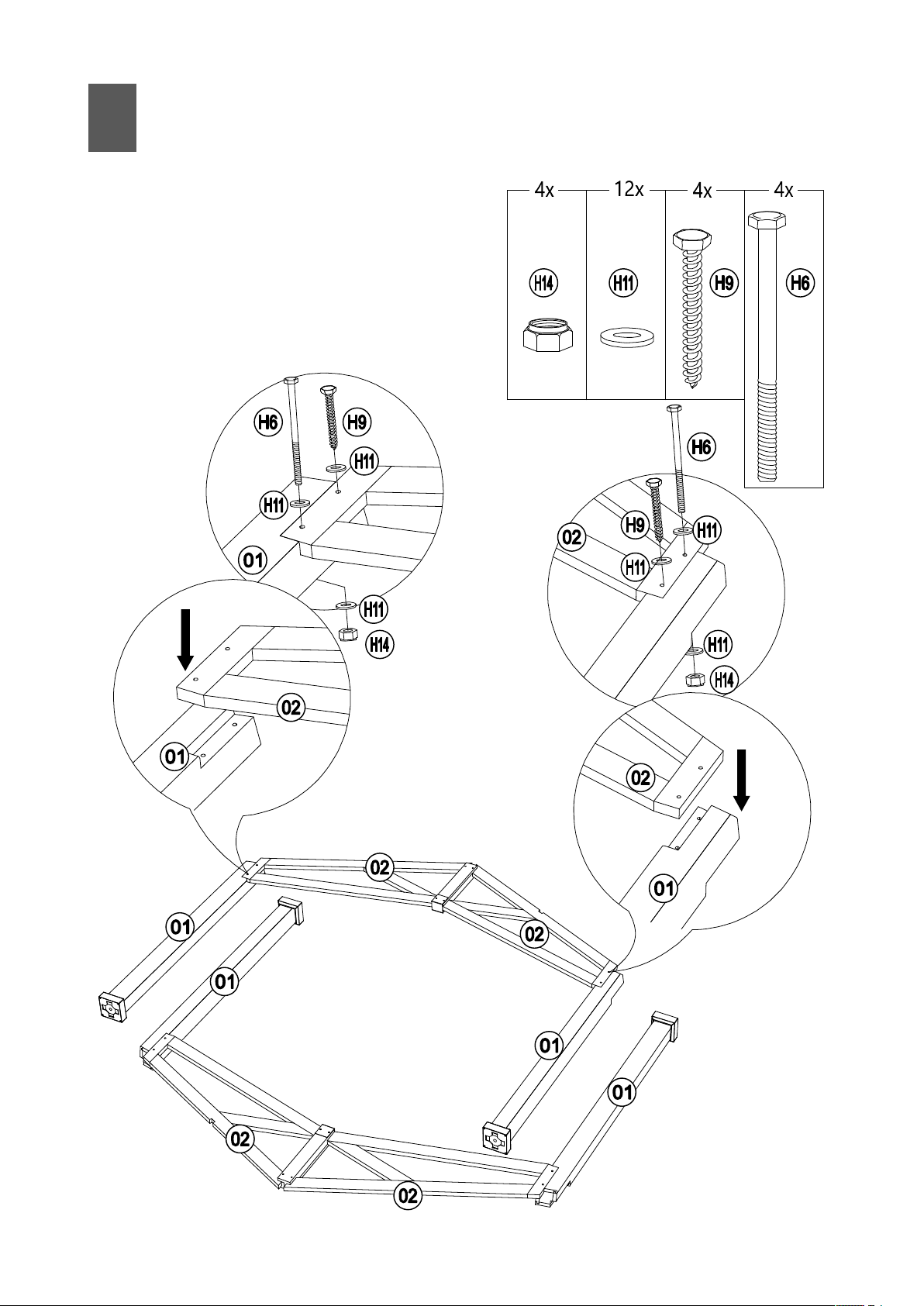

1

19 / 41
Country of Origin: China
Pais d’origine: Chine
2

20 / 41
Country of Origin: China
Pais d’origine: Chine
3
