Sunjoy AutoCove A110000900 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
A
SSEMBLY IN
S
TRUCTION
I
tem
/Article #
：
A110000900
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues? / Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2 / 39
Country of Origin: China
Pais d’origine: Chine
 This product is intended for domestic outdoor use only.
 The product should be placed on flat, horizontal ground.
 Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
 This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
 Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
 During installation, follow all safety warnings provided with your tools, and use safety glasses.
 In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
 Any assembly or maintenance of the product must be carried out by adults only.
 Arrange necessary manpower when assembling or moving the product.
 Some parts may contain sharp edges. Wear protective gloves if necessary.
 Keep children and pets away while setting up the gazebo.
 Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
 Repairing and replacing parts should be done by a qualified technician.
 This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
 Do not light any fires inside or near the product！
 Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
 firemen allow you to do so.
 Do not hang heavy weights on the roof frame.
 Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
 Retain the original packaging to store the gazebo.
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

3/ 39
Country of Origin: China
Pais d’origine: Chine
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



•
•
•



• 
 
 
 
 

•

•

• 

•
•
•
•
•

•
•

•
•

•
•

•

4 / 39
Country of Origin: China
Pais d’origine: Chine
• Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position them on the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Read each step carefully before beginning any assembly and make sure you understand each
step. If you are missing a part, please email [e-mail].

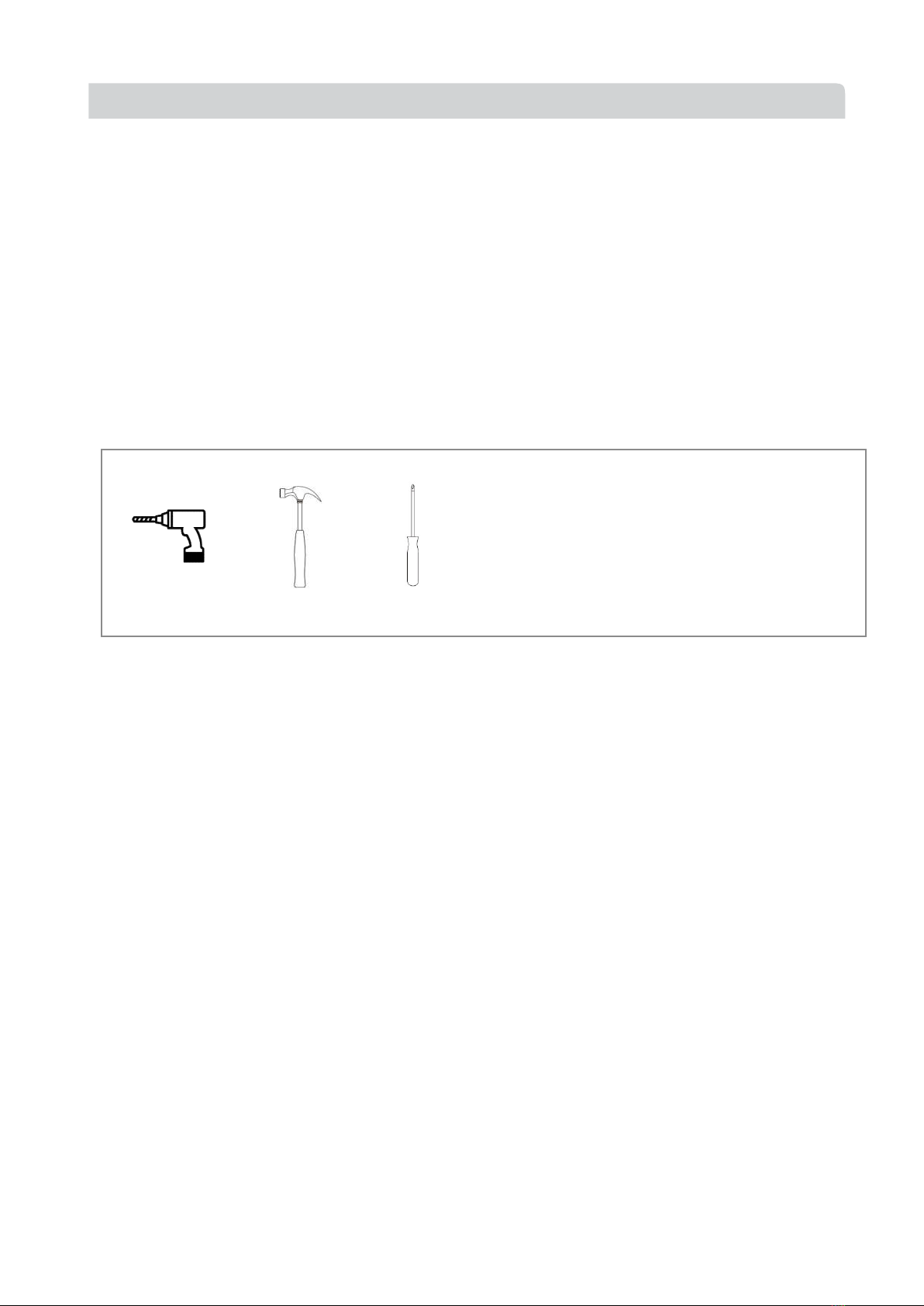

•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill Hammer Screwdriver Ladder 5 people

5/ 39
Country of Origin: China
Pais d’origine: Chine
IMPORTANT:
•

•
•

•

•





Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   5 personnes

6 / 39
Country of Origin: China
Pais d’origine: Chine

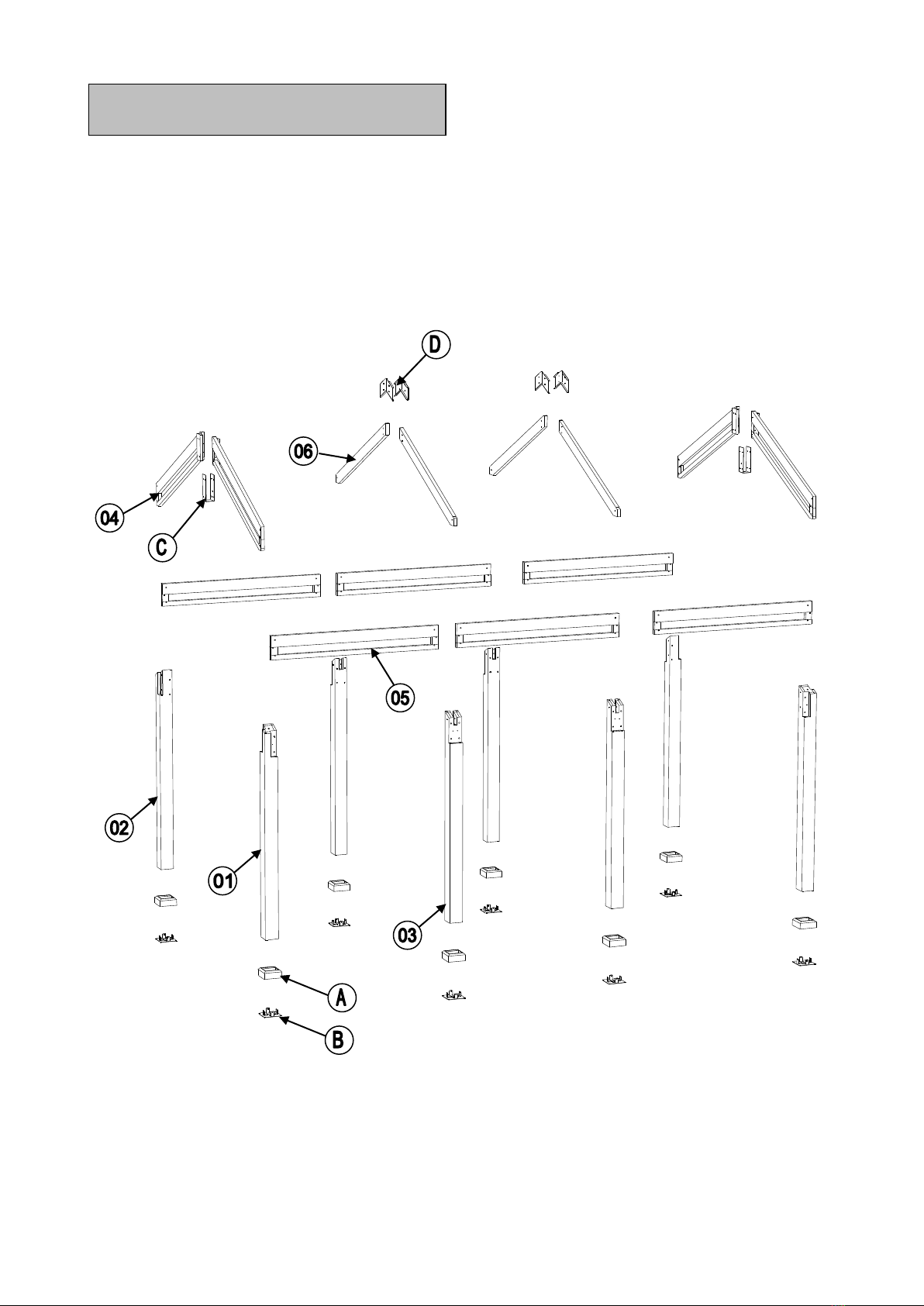

EXPLODED DRAWING/DESSIN ÉCLATÉ

7 / 39
Country of Origin: China
Pais d’origine: Chine

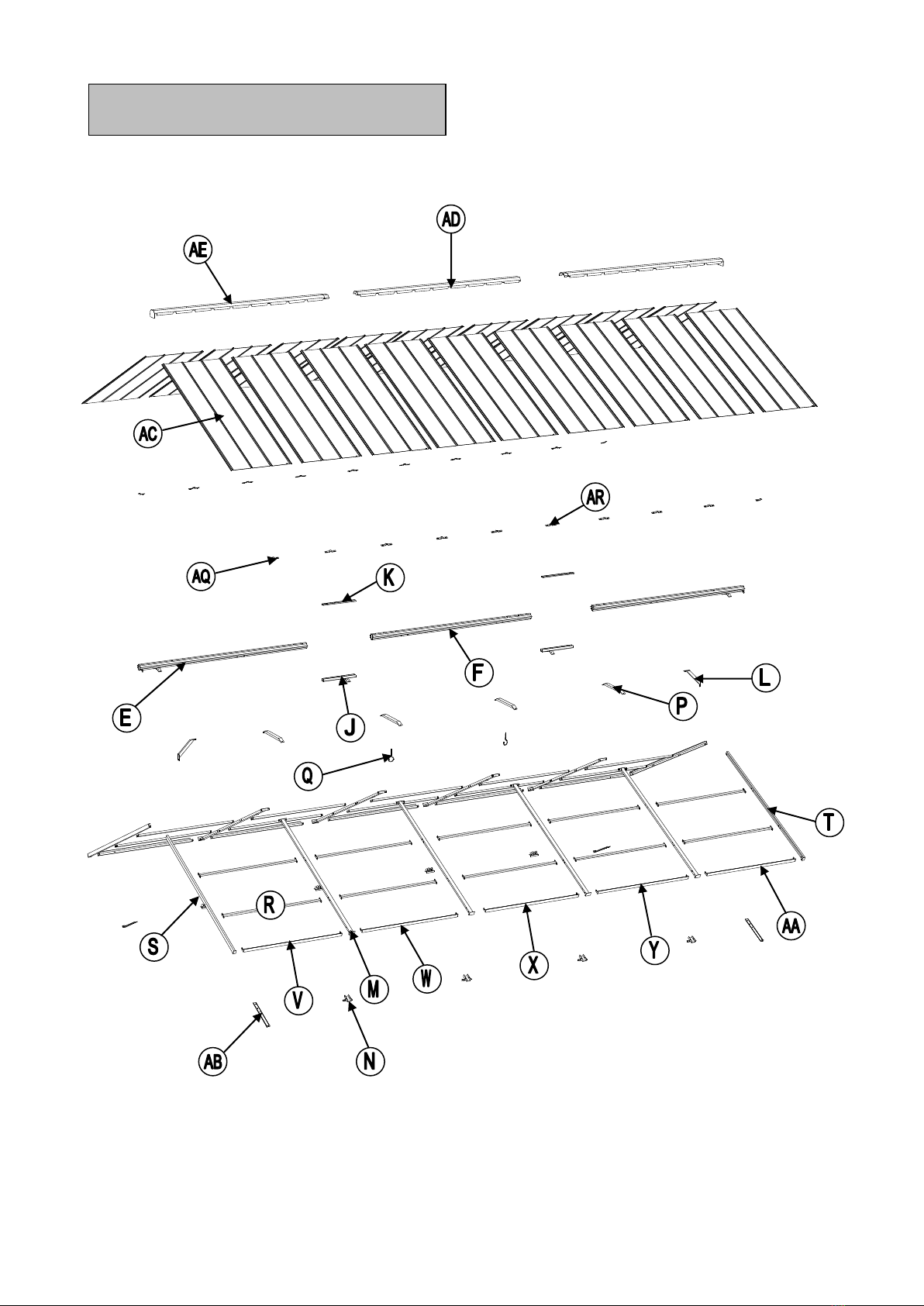

EXPLODED DRAWING/DESSIN ECLATE

8 / 39
Country of Origin: China
Pais d’origine: Chine
Parts List
Label Part Number Description Qty Part Image
01 P00020071301 Post 1 2
02 P00020071401 Post 2 2
03 P00020071501 Post 3 4
04 P00630013101 Screen 2 4
05 P00630013201 Screen 1 6
06 P00060225901 Joist Beam 4
A P00610023901 Base Cover 8
B P00010047401 Post Base 8
C P00220036801 Joist Beam Cap 2 2
D P00220036701 Joist Beam Cap 1 4
E P00060224801 Big Roof Top Beam
1 2
F P00060224901 Big Roof Top Beam
2 1
J P00050029801 Top Beam
Connector 2 2

9 / 39
Country of Origin: China
Pais d’origine: Chine
Liste de Pièces
Étiquette Numéro de la Pièce Description Quantité Numéro de la Pièce Diagramme
01 P00020071301 Poteau 1 2
02 P00020071401 Poteau 2 2
03 P00020071501 Poteau 3 4
04 P00630013101 Façade 2 4
05 P00630013201 Façade 1 6
06 P00060225901 Poutrelle 4
A P00610023901 Barde de la base 8
B P00010047401 Base du Poteau 8
C P00220036801 Poutrelle Bouchon 2 2
D P00220036701 Poutrelle Bouchon 1 4
E P00060224801 Poutre Grand du
Petit Toit 1 2
F P00060224901 Poutre Grand du
Petit Toit 2 1
J P00050029801 Connexion de la
Poutre du Toit 2 2

10 / 39
Country of Origin: China
Pais d’origine: Chine

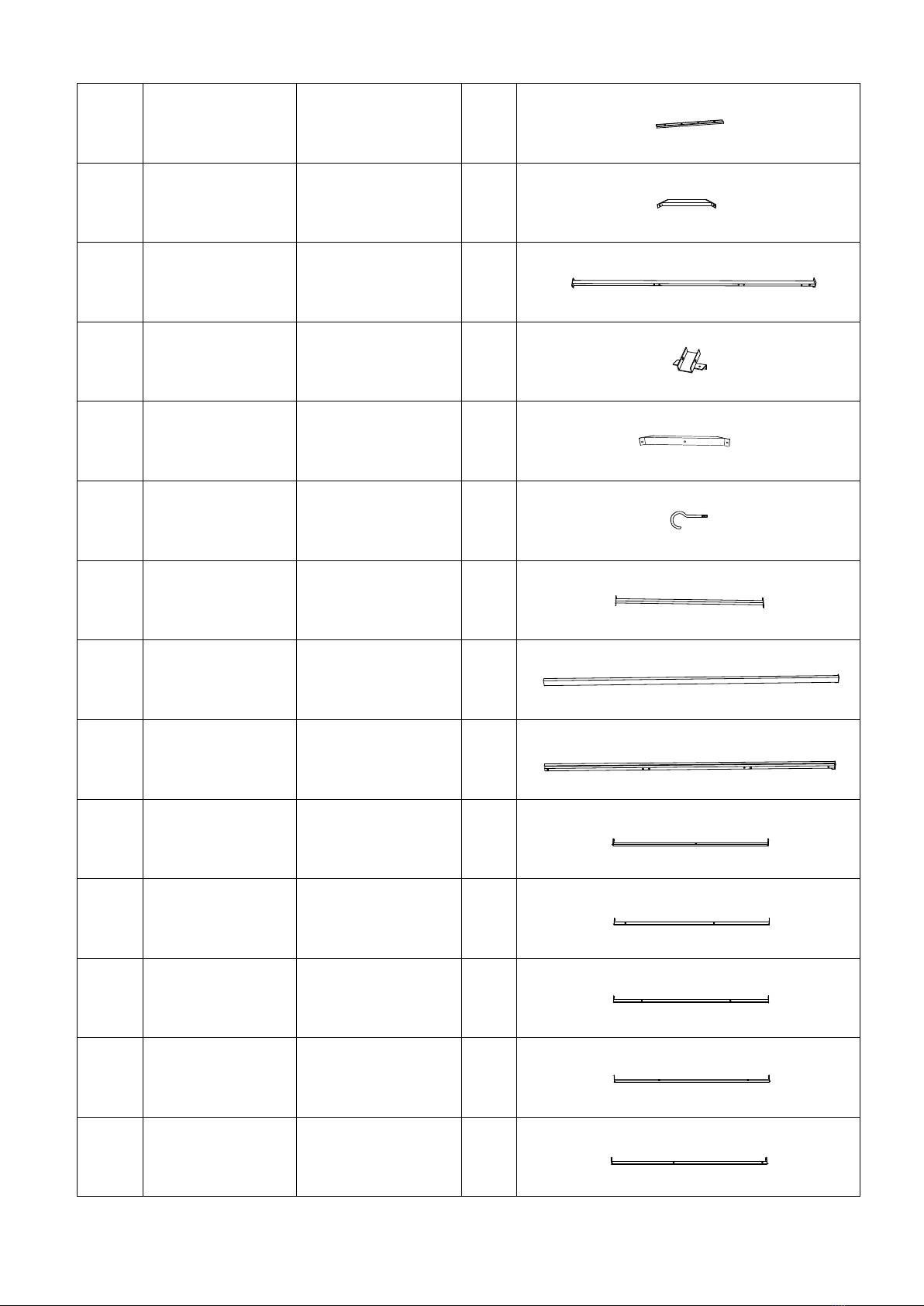

K P00050029901 Top Beam
Connector 3 2
L P00500066101 Brace 2 2
M P00060225001 Middle Beam 8
N P00050029601 Middle Beam
Connector 8
P P00500066001 Brace 1 4
Q P005800001 Hook 2
R P00060225101 Big Roof Small
Beam 20
S P00060225201 Big Roof Side Panel
Flashing 1 2
T P00060225301 Big Roof Side Panel
Flashing 2 2
V P00060225401 Big Roof Panel
Flashing 1 2
W P00060225501 Big Roof Panel
Flashing 2 2
X P00060225601 Big Roof Panel
Flashing 3 2
Y P00060225701 Big Roof Panel
Flashing 4 2
AA P00060225801 Big Roof Panel
Flashing 5 2

11 / 39
Country of Origin: China
Pais d’origine: Chine
K P00050029901
Connexion de la
Poutre du Toit 3 2
L P00500066101 Barre de Renfort 2 2
M P00060225001 Poutre Centrale 8
N P00050029601 Connexion de la
poutre centrale 8
P P00500066001 Barre de Renfort 1 4
Q P005800001 Crochet 2
R P00060225101 BPetite Poutre
du Grand Toit 20
S P00060225201 Solin du Panneau
Latéral du Grand Toit
1
2
T P00060225301 Solin du Panneau
Latéral du Grand
Toit 2
2
V P00060225401 Solin du Panneau du
Grand Toit 1 2
W P00060225501 Solin du Panneau
du Grand Toit 2 2
X P00060225601 Solin du Panneau
du Grand Toit 3 2
Y P00060225701 Solin du Panneau
du Grand Toit 4 2
AA P00060225801 Solin du Panneau
du Grand Toit 5 2

12 / 39
Country of Origin: China
Pais d’origine: Chine
AB P00050030001 Panel Flashing
Connector 4
AC P00070109001 Roof Panel 18
AD P00080038101 Big Roof Cap 2 1
AE P00080038001 Big Roof Cap 1 2
AQ P00220038102 Press Panel 2 4
AR P00220034402 Press Panel 1 16
Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010047 Bolt M6*20 186 10
H2 H100010074 Bolt M6*75 8 1
H3 H100010143 Bolt M8*55 8 1
H4 H100010145 Bolt M8*100 8 1
H5 H010010451 Bolt M10*160 36 2
H6 H030050058 Screw ST4.8*30 76 4
H7 H030030013 Screw ST8*35 2 1

13 / 39
Country of Origin: China
Pais d’origine: Chine
AB P00050030001 Connexion du Solin
du Panneau 4
AC P00070109001 Panneau du Toit 18
AD P00080038101 Couvert du Grand
Toit 2 1
AE P00080038001 Couvert du Grand
Toit 1 2
AQ P00220038102 Panneau de presse 2 4
AR P00220034402 Panneau de presse1 16
Pack Quincaillerie
Étiquette Numéro de la Pièce Description Quantité Add Numéro de la Pièce Diagramme
H1 H100010047 Boulon M6*20 186 10
H2 H100010074 Boulon M6*75 8 1
H3 H100010143 Boulon M8*55 8 1
H4 H100010145 Boulon M8*100 8 1
H5 H010010451 Boulon M10*160 36 2
H6 H030050058 Vis ST4.8*30 76 4
H7 H030030013 Vis ST8*35 2 1

14 / 39
Country of Origin: China
Pais d’origine: Chine

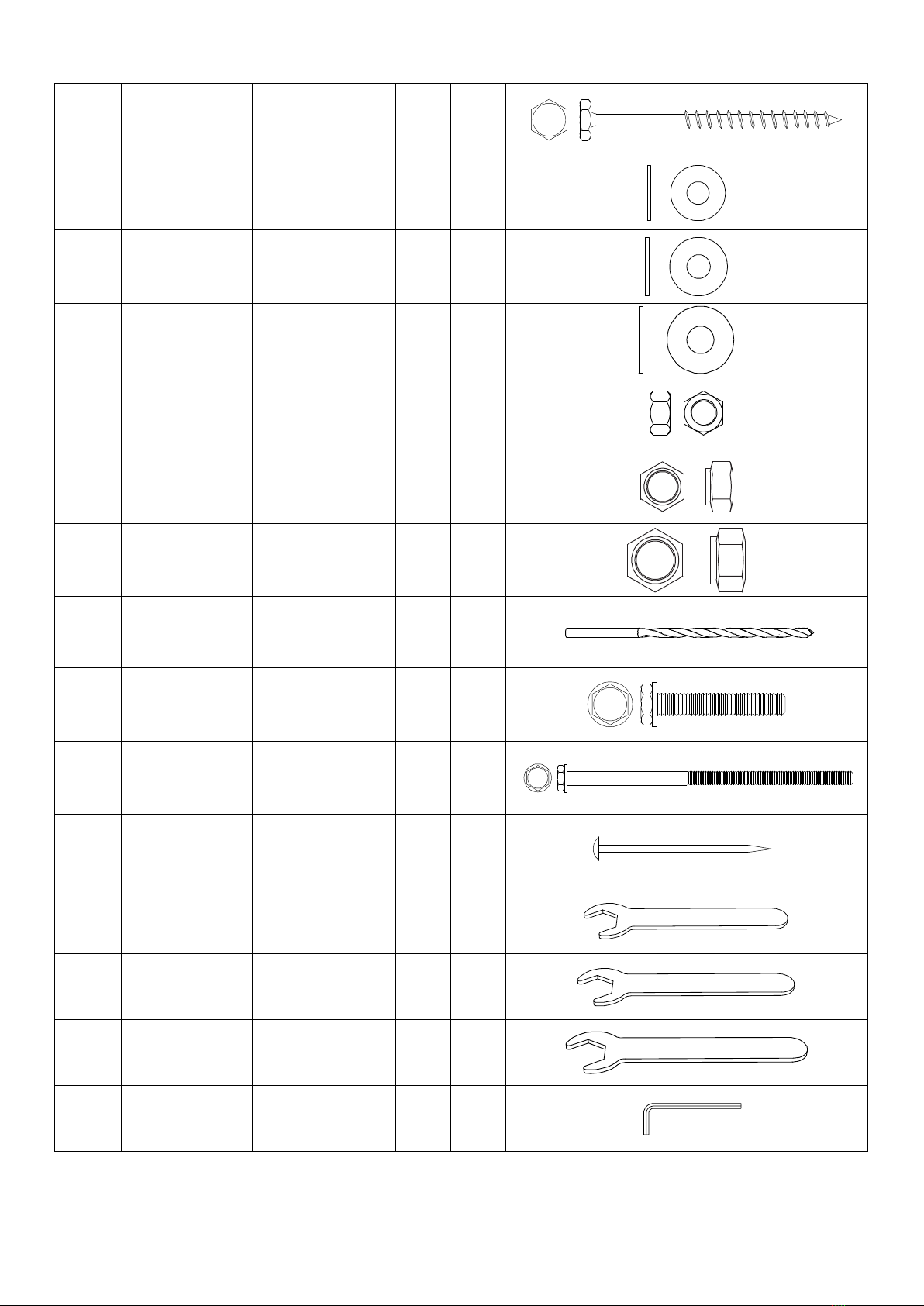

H8 H030010031 Screw ST9.5*80 16 1
H9 H050030001 Flat washer M6 8 1
H10 H050080007 Flat washer M8 20 1
H11 H050080008 Flat washer M10 88 5
H12 H040010004 Nut M6 8 1
H13 H040050041 Hex Nut M8 18 1
H14 H040050026 Hex Nut M10 36 2
H15 H090990002 M3 Drill 1 0
H16 H100010069 Bolt M6*35 4 1
HS H070010003 Stake Φ8*180 16 0
HW1 H090010017 Wrench M6 2 0
HW2 H090010012 Wrench M8 2 0
HW3 H090010015 Wrench M10 2 0
HW4 H090030005 Allen Key M8 1 0
H17H100010140 Bolt M8*125 2 1

15 / 39
Country of Origin: China
Pais d’origine: Chine
H8 H030010031 Vis ST9.5*80 16 1
H9 H050030001 Rondelle plate M6 8 1
H10 H050080007 Rondelle plate M8 20 1
H11 H050080008 Rondelle plate
M10 88 5
H12 H040010004 Écrou Hexagonal
M6 8 1
H13 H040050041 Écrou Hexagonal
M8
18 1
H14 H040050026 Écrou Hexagonal
M10
36 2
H15 H090990002 M3 Perceuse 1 0
H16 H100010069 Boulon M6*35 4 1
HS H070010003 PiquetΦ8*180 16 0
HW1 H090010017 Clé M6 2 0
HW2 H090010012 Clé M8 2 0
HW3 H090010015 Clé M10 2 0
HW4 H090030005 Clé Allen M8 1 0
H17H100010140 Boulon M8*125 21

16 / 39
Country of Origin: China
Pais d’origine: Chine

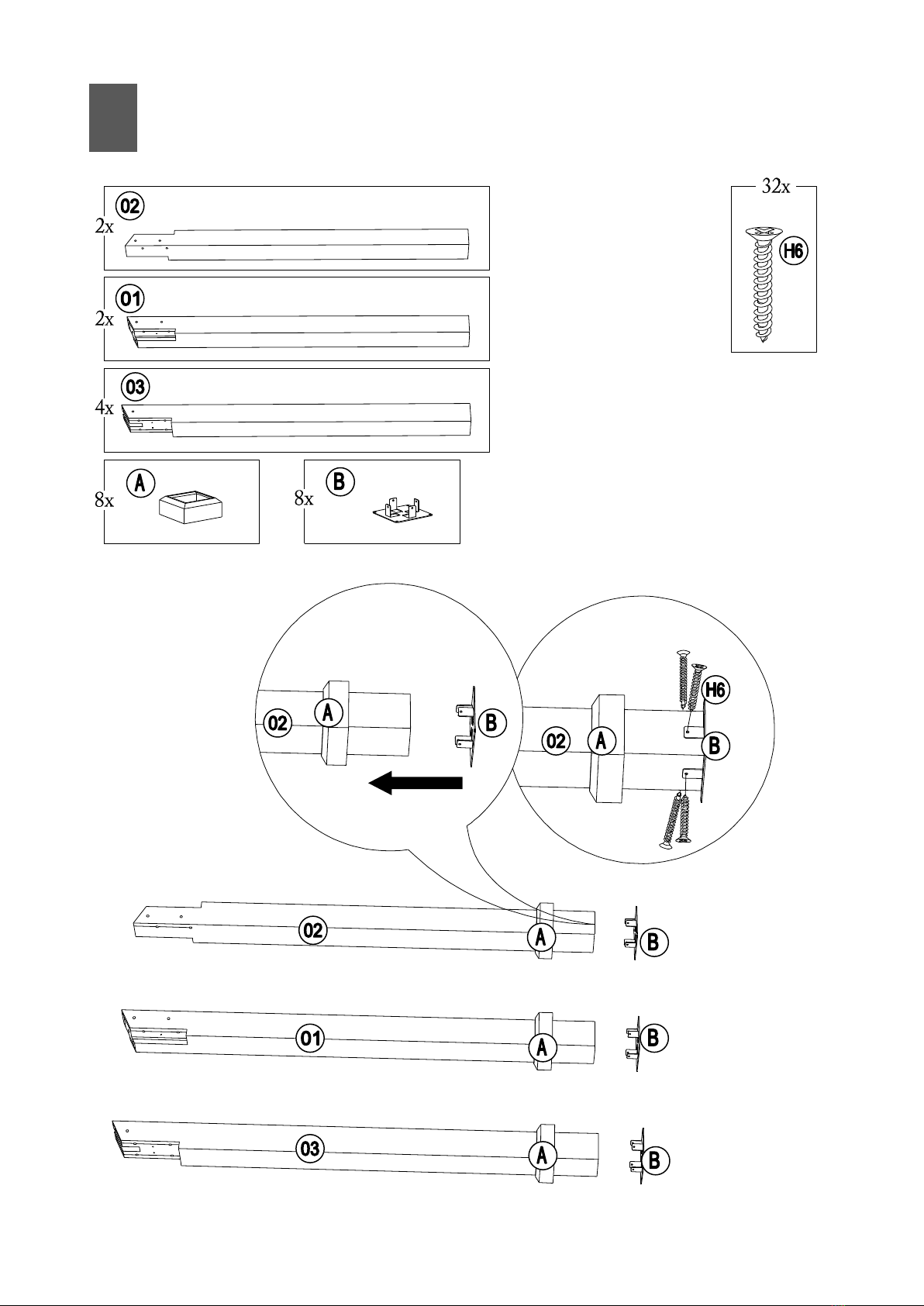

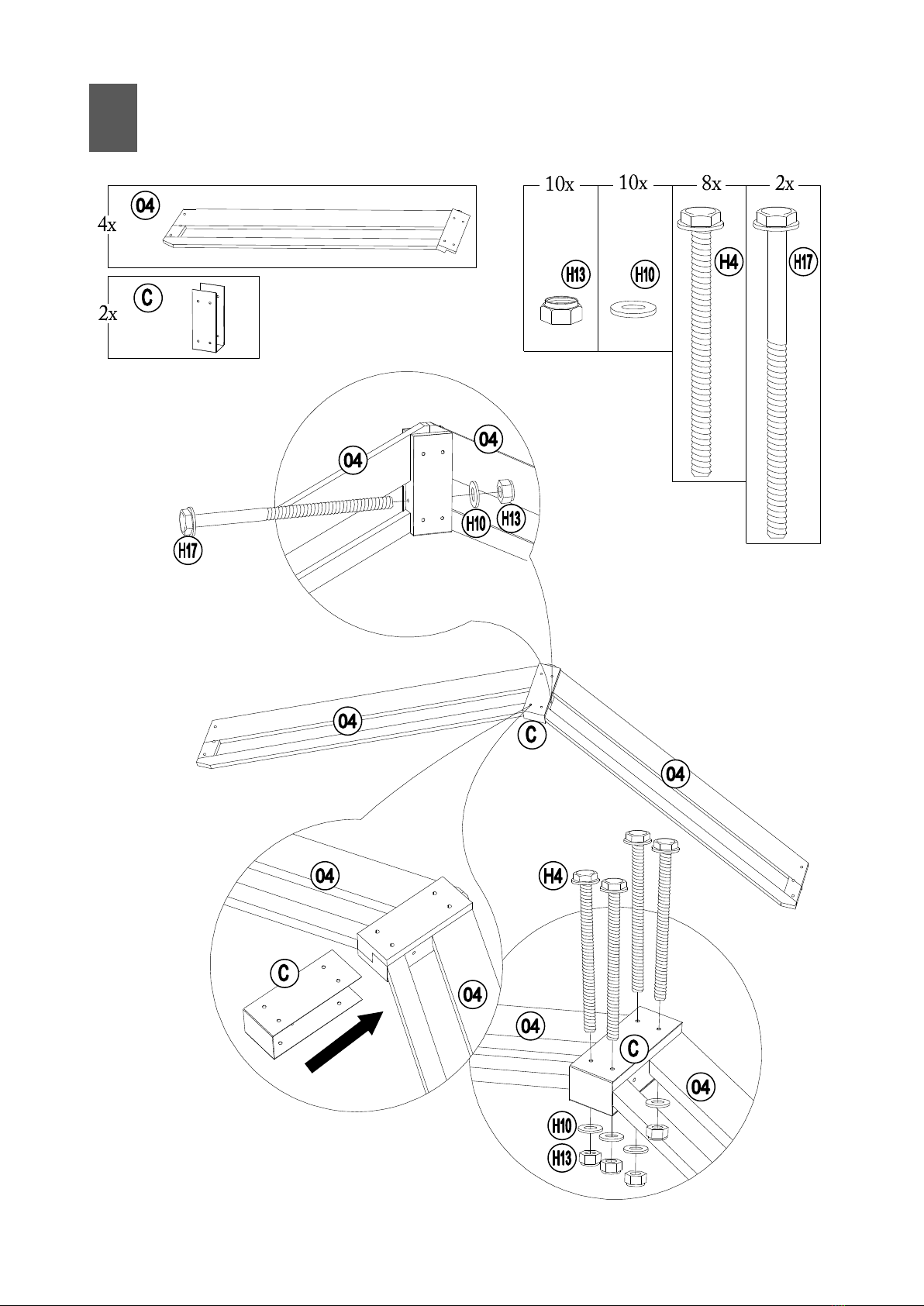

1

17 / 39
Country of Origin: China
Pais d’origine: Chine
2

18 / 39
Country of Origin: China
Pais d’origine: Chine

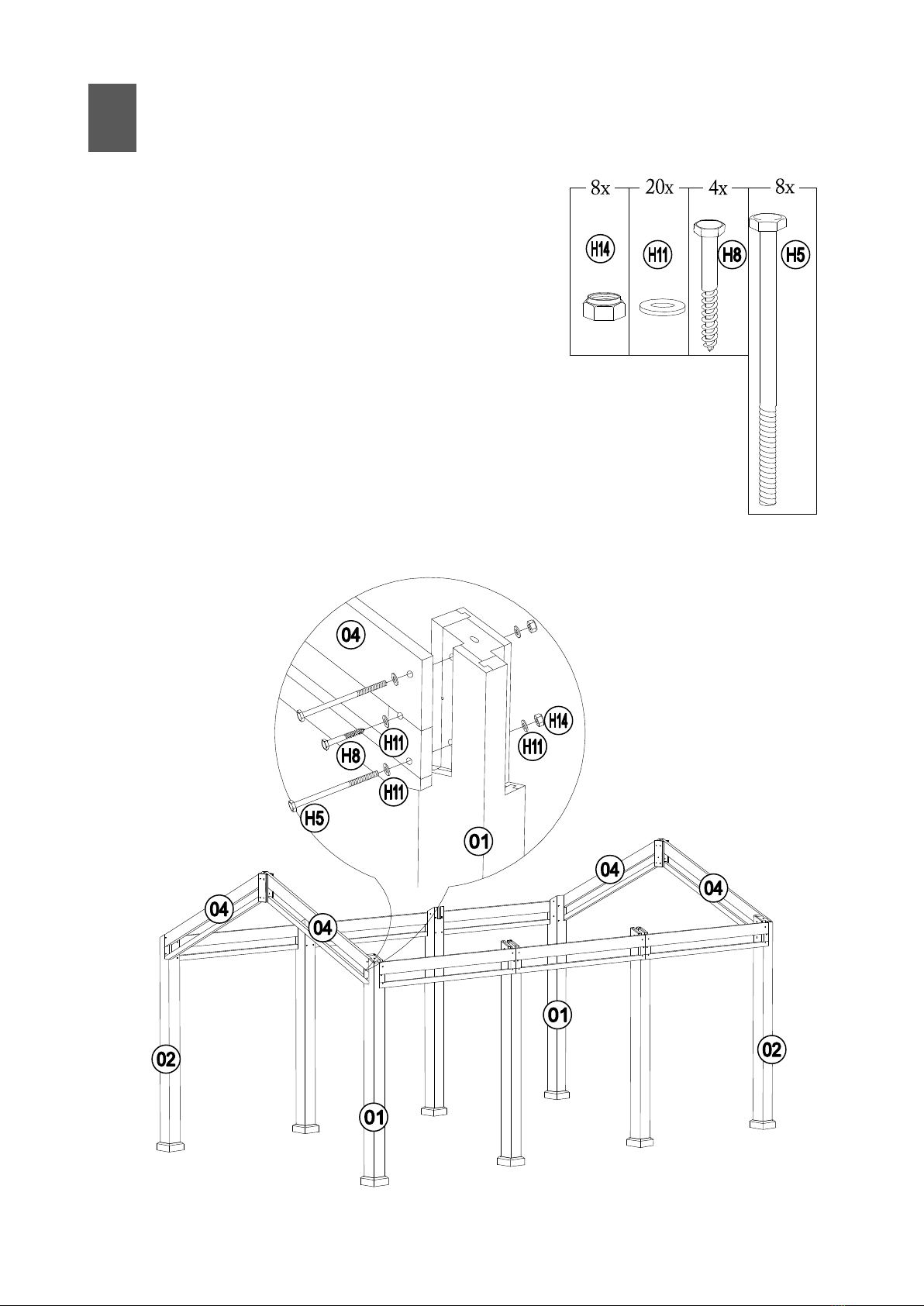

3

19 / 39
Country of Origin: China
Pais d’origine: Chine
4

20 / 39
Country of Origin: China
Pais d’origine: Chine
5
