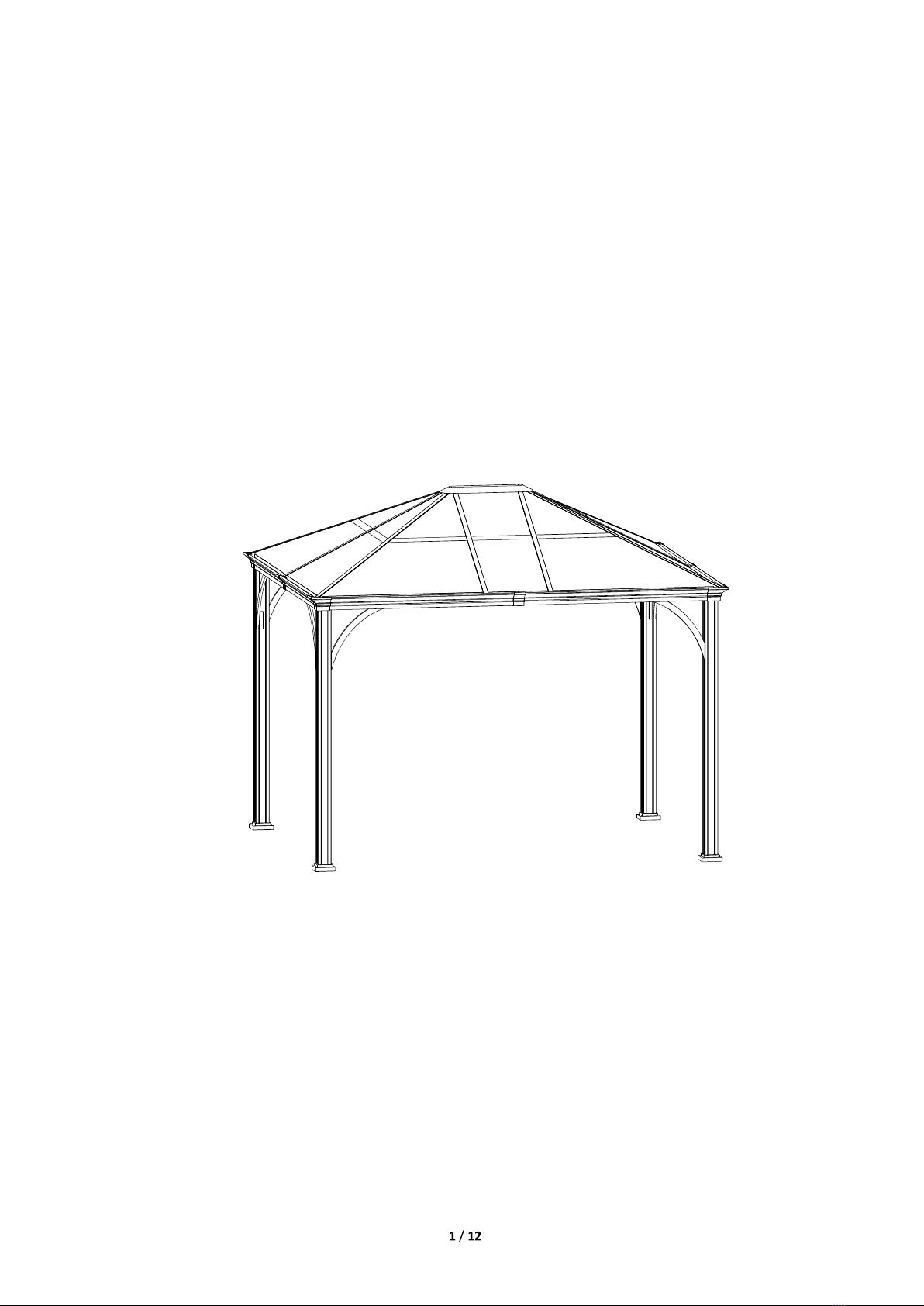

Sunjoy L-GZ1080PCO User manual

Assembly Manual
Item#: 110102080
Vendor code: L-GZ1080PCO
Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor
furniture purchase.
Our clear, easy to follow, step by step instructions will guide you through the project from start
to finish

Safety information
when they are in the area of the production construction.
overhanging branches, laundry line or electrical wires.
your product is essential. Do not place the product underneath electrical
lines.
ng and using this product, basic safety precautions should always be followed
to reduce the risk of personal injury and damage to equipment. Please read all instructions
before assembly and use.
re that all connectors and poles
are firmly and fully secured into position. It is important to do so before use so as to avoid a
possible collapse or damage to the item, which could also result in injury.
nstall on flat, level ground.
to a wood deck or concrete surface, you will need to purchase fasteners appropriate (such as
expansion bolt) for these surfaces. These are readily available at your local hardware store or
home center.
(storms, high winds, etc.). If the gazebo is not dismantled for the winter, snow must be cleaned
off regularly. Any damage caused by snow accumulation is not covered by the warranty.
lightening.
h wind, as possible damage will
occur to the structure. Remove fabric roof and secure screen & privacy panels.
dictions may
require permits for, or otherwise regulate, installation and use.

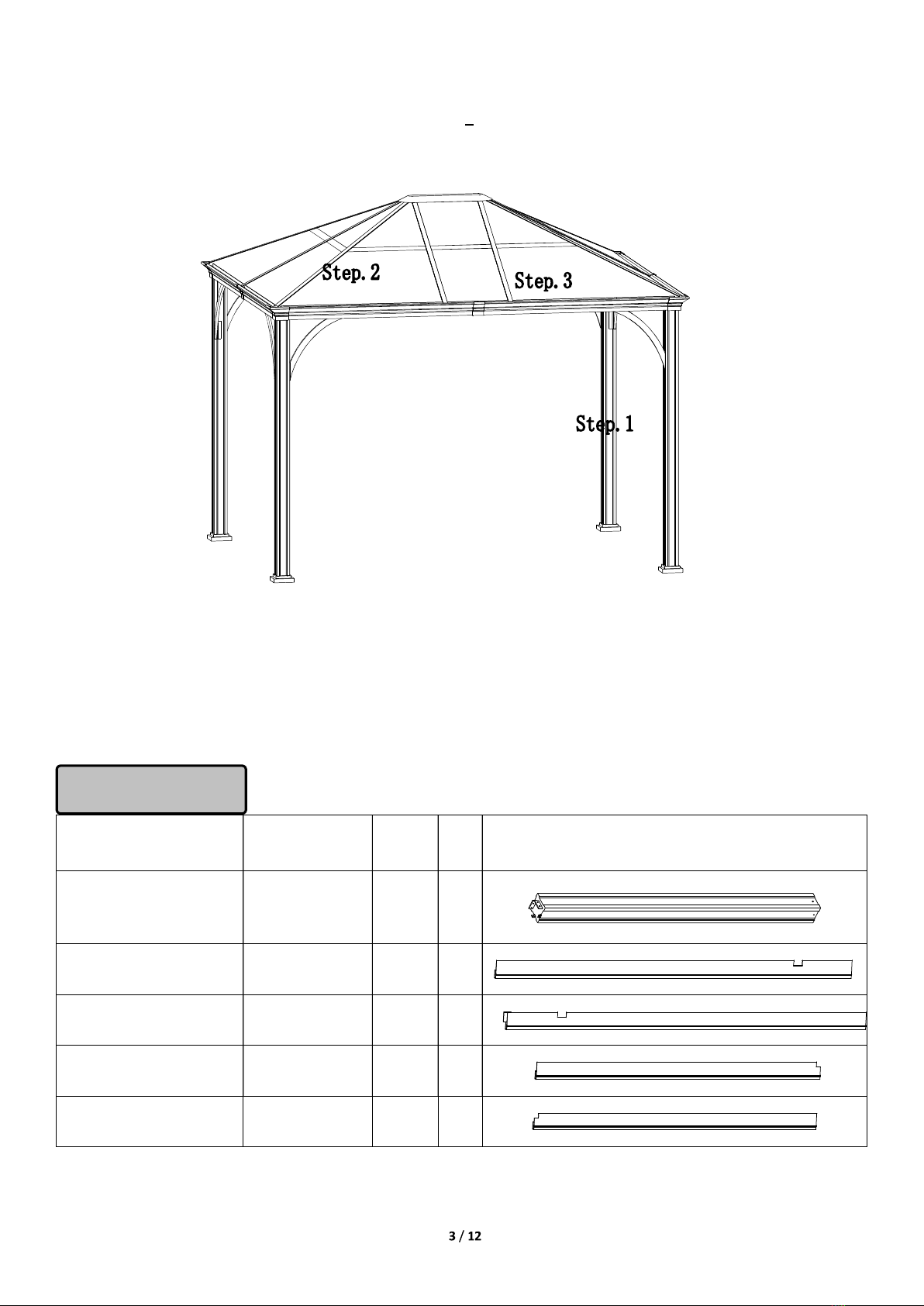

Assembly Preparation
product. Keep this manual for future reference.
iginal packaging to store the product.
assemble the product if any parts are missing.
T included): Screwdriver, a hammer, and 2 ladders that are
at least 2.4 m / 7.8 ft in height,
four or more people are
recommended for safe assembly.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-578-0101 (English, French & Spanish in US) from 8:00 AM

Eastern time to 8:00 PM Eastern time, Monday Friday or email to [e-mail].
Description Part# Label Qty Image

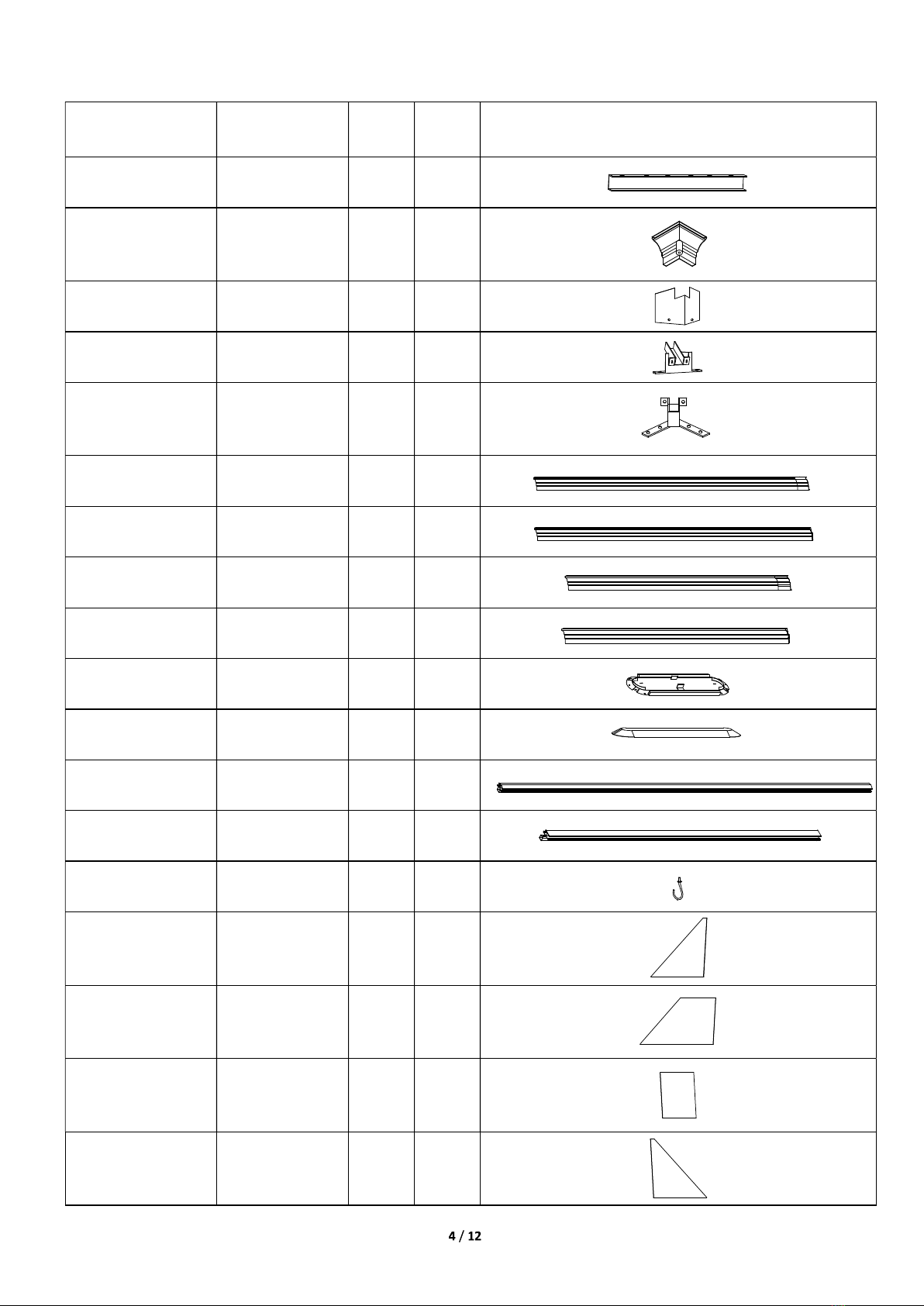

Post GZ1080XXX01 A 4
Left cross beam of long
side GZ1080XXX02 B1 2
Right cross beam of long
side GZ1080XXX03 B2 2
Left cross beam of shot
side GZ1080XXX04 B3 2
Right cross beam of shot
side GZ1080XXX05 B4 2
Parts List

Description Part# Label Qty Image
Beam connector GZ1080XXX06 C 4
Corner
cover(Outside) GZ1080XXX07 D 4
Corner
cover(Inside) GZ1080XXX08 E 4
Middle beam
connector GZ1080XXX09 F 6
Slanting bar
connector GZ1080XXX10 G 4
Left decorative bar
of long side GZ1080XXX11 H1 2
Right decorative
bar of long side GZ1080XXX12 H2 2
Left decorative bar
of short side GZ1080XXX13 H3 2
Right decorative
bar of short side GZ1080XXX14 H4 2
Top frame GZ1080XXX15 I 1
Top frame cover GZ1080XXX16 J 1
Slanting bar GZ1080XXX17 K1 4
Middle bar GZ1080XXX18 K2 6
Hook GZ1080XXX19 L 1
Left small PC panel GZ1080XXX20 M1 4
Left big PC panel GZ1080XXX21 M2 4
Middle PC panel GZ1080XXX22 M3 4
Right small PC
panel GZ1080XXX23 M4 4

Description Part# Label Qty Image
Right big PC panel GZ1080XXX24 M5 4
Long bar cover GZ1080XXX25 O1 8
Short bar cover GZ1080XXX26 O2 2
Left lock plate of
lower slanting bar GZ1080XXX27 P1 4
Right lock plate of
lower slanting bar GZ1080XXX28 P2 4
Left lock plate of
lower middle bar GZ1080XXX29 P3 6
Right lock plate of
lower middle bar GZ1080XXX30 P4 6
Decorative slot
connector GZ1080XXX31 Q 4
Left PC panel
connector GZ1080XXX32 R1 4
Right PC panel
connector GZ1080XXX33 R2 4
Middle PC panel
connector GZ1080XXX34 R3 2
Post base GZ1080XXX35 S 4
Base cover GZ1080XXX36 T 4
Left arch support bar GZ1080XXX37 U1 4
Right arch support
bar GZ1080XXX38 U2 4

Description Part# Label Qty Image

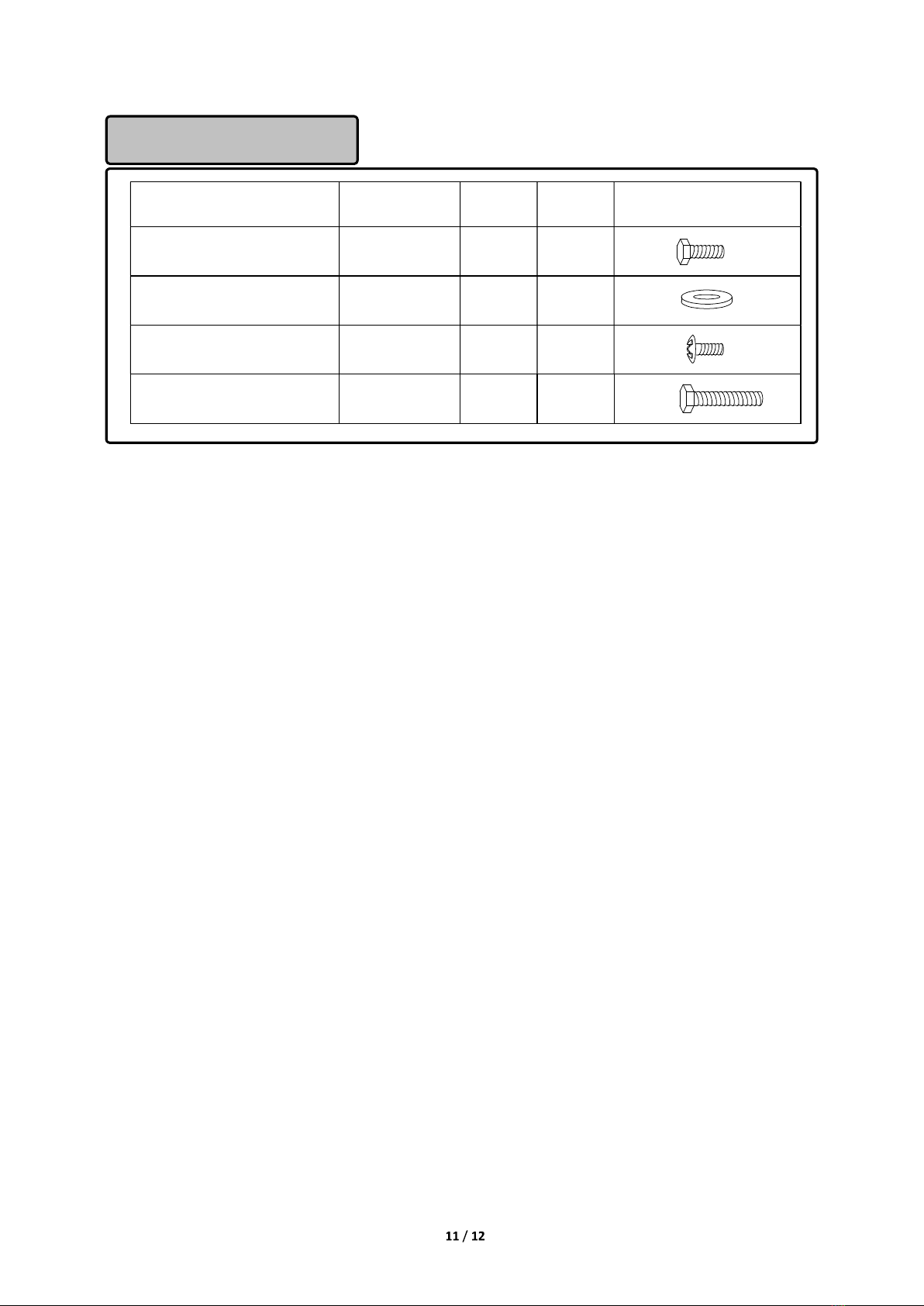

M6*15 Bolt BM06015C AA 92
M6 Washer UD06C BB 108
M6*15 Screw SM06015C CC 16
M6 Wrench W10D Z1 2
Hardware Pack 1

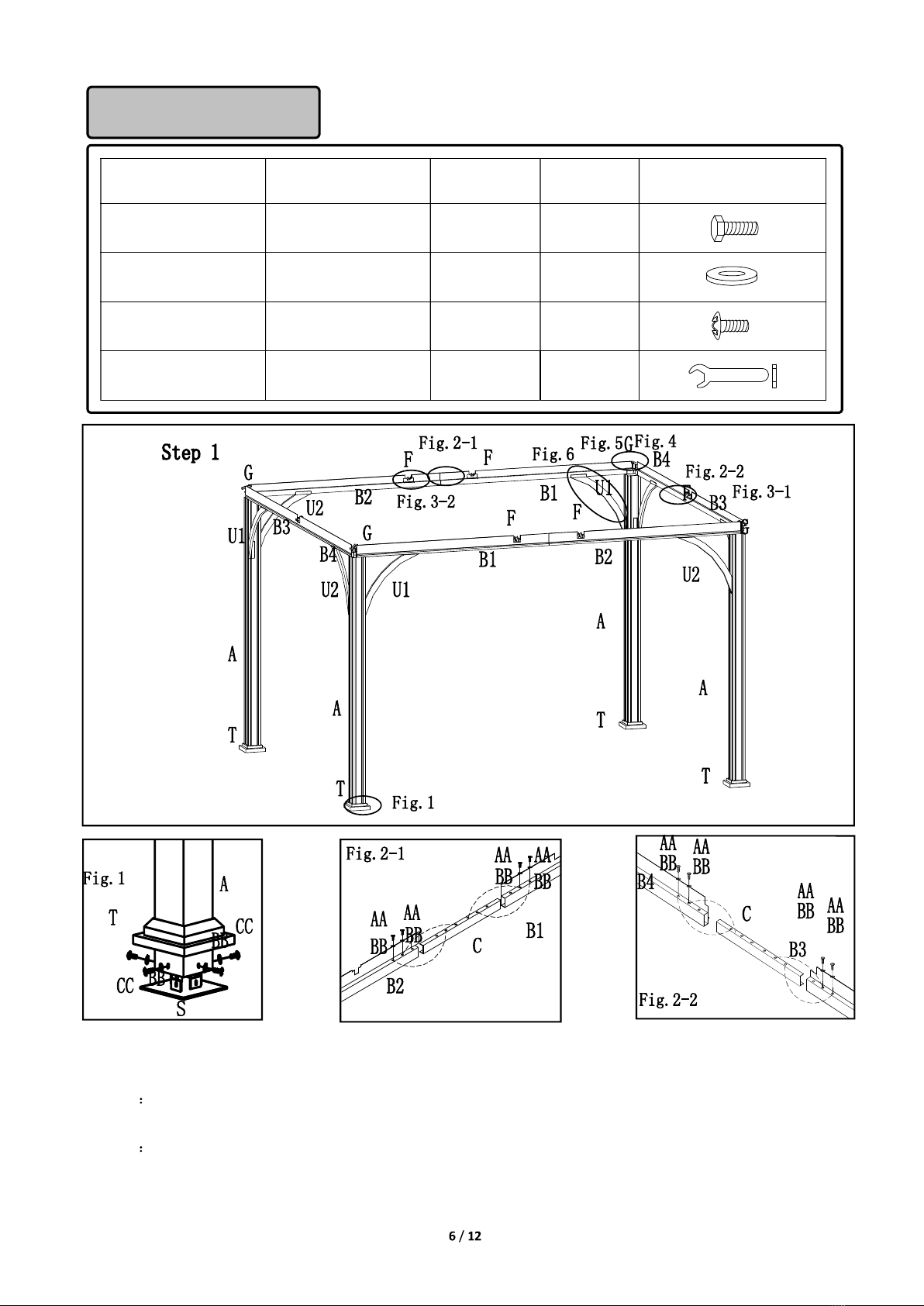

Fig.1: Raise up the Base cover(T)and then attach the Post base(S) to the Post(A) by using Screw(CC) and
Washer(BB).
Fig.2-1 Attach the Left cross beam of long side (B1) and Right cross beam of long side (B2) to Beam
connector(C) by Bolt (AA) and Washer (BB).
Fig.2-2 Attach the Left cross beam of short side (B3) and Right cross beam of short side (B4) to Beam
connector(C) by Bolt (AA) and Washer (BB).

Description Part# Label Qty Image
M6*15 Bolt BM06015C AA 32
M6 Washer UD06C BB 32
Hardware Pack 2
Fig.3-1 Attach the Middle beam connector (F) to the Left cross beam of short side (B3) and Right cross
beam of short side (B4) by Bolt (AA) and Washer (BB).
Fig.3-2 Attach the Middle beam connector (F) to the Left cross beam of long side (B1) and Right cross beam
of long side (B2) by Bolt (AA) and Washer (BB).
Fig.4 Attach the assembled cross beam (B1) and (B3) to the Post (A) by Bolt (AA) and Washer (BB), Use
the same way to assemble the cross beam (B3) and (B4).
Fig.5 Attach the Slanting bar connector (G) to the cross beam of long side (B1/B2) and cross beam of short
side (B4/B3) by Bolt (AA) and Washer (BB).
Fig.6 Attach the arch support bar(U1,U2) to the cross beam(B1 B2 B3 B4) and Post (A) by Bolt (AA)
and Washer (BB).

Hardware Pack 3
Description Part# Label Qty Image
M6*15 Bolt BM06015C AA 70
M6 Washer UD06C BB 74
M6*45 Bolt BM06045C FF 4
8*260 Stake DD08260C II 16
Fig.9 Attach the upper end of the Middle bar (K2) to the Top frame (I) by Bolt (AA) and Washer (BB).
Fig.10 Attach the lower end of the Middle bar (K2) to the Middle bar connector (F) by Bolt (AA) and
Washer (BB).
Fig.11 Attach the Top frame cover (J) to the Top frame (I) by Bolt (AA) and Washer (BB), then screw
the Hook (L) to the Top frame (I).
Fig.7 Four people and two ladders are needed to assemble during this step.
Note1: Two people to assemble the upper end of slanting bar, another two people to assemble the lower
end of the slanting bar.
Note2: Assemble the middle bar by the same way.
Fig.7-1 Attach the upper end of the Slanting bar (K1) to the Top frame (I) by Bolt (AA) and Washer (BB).
Fig.8 Attach the lower end of the Slanting bar (K1) to the Slanting bar connector (G) by Bolt (AA) and
Washer (BB).

Fig.12 Insert the left small PC panel (M1) to the slot of the Slanting bar (K1) and Middle bar (K2). Assemble
the Right small PC panel (M4) and the Middle PC panel (M3) by the same way.
Fig.13 Insert the Left PC panel connector (R1) into the slot of Slanting bar (K1) and Middle bar (K2).
Assemble the Right PC panel connector (R2) and Middle PC panel connector (R3) by the same way.
Fig.14 Insert the Left big PC panel (M2) to the slot of the Slanting bar (K1) and Middle bar (K2). Assemble the
Right big PC panel (M5) and the Middle PC panel (M3) by the same way.
Fig.15 Attach the Right lock plate of lower slanting bar (P2) to the Slanting bar connector (G) by the Bolt (AA)
and Washer (BB). Attach the Left lock plate of lower slanting bar (P1) to the Slanting bar connector (G) by the
same way.
Fig.16 Attach the Left lock plate of lower middle bar (P3) to the Middle beam connector (F) to keep the Left
big PC panel (M2) stable by Bolt (AA) and Washer (BB). Use the same way to assemble the Middle PC
panel (M3) by Left lock plate of lower middle bar (P3) and Right lock plate of lower middle bar (P4). Make
sure all the Bolts are screwed tightly.

Fig.18-1: Attach the Left decorative bar of long side (H1) and Right decorative bar of long side (H2) to the
Middle bar (K2) by Bolt (AA) and Washer (BB).
Fig.18-2: Attach the Right decorative bar of short side (H4) to the Middle bar (K2) by Bolt (AA) and Washer
(BB).
Fig.19: Attach the Decorative slot connector (Q) to the Left decorative bar of short side (H3) and Right
decorative bar of short side (H4) by Bolt (AA) and Washer (BB). Attach the connector (Q) to decorative bar
(H1) and (H2) by the same way.
Fig.17-1 Attach the Left decorative bar of long side (H1) to the Right decorative bar of long side (H2) as
the fig.17-1 shows. Assemble the decorative bar H3 & H4 by the same way.
Fig.17-2.Attach the decorative bar(H1, H2, H3, H4) to the cross beam (B1 B2 B3 B4) as the fig.17-2
shows. (Note: Two people are needed during this step.)
Fig.20-1: Attach the Short bar cover (O2) to the connecting part of Left decorative bar of long side (H1) and
Right decorative bar of long side (H2) by Bolt (AA) and Washer (BB).
Fig.20-2: Attach the Long bar cover (O1) to the decorative bar (H1/H3) and decorative bar (H2/ H4) as the
Fig.20-2 shows.
Fig.21: Put Corner cover (Outside) (D) through Post (A) to the corner of decorative bar (H1/H3) and
decorative bar (H4/H2), fix them by Bolt (FF) and Washer (BB).
Fig.22 Attach the Corner cover (Inside) (E) to the Post (A) by Bolt (AA) and Washer (BB).
Fig.23 Fix the assembled gazebo to the ground by using Stakes (II).

Description Part# Label Qty Image
M6*15 Bolt BM06015C AA 10
M6 Washer UD06C BB 11
M6*15 Screw SM06015C CC 2
M6*45 Bolt BM06045C FF 1
Spare Hardware Parts

Important
Please do not return this product to the store. For technical assistance or replacement parts, please call
our customer service department at 1-866-578-0101 (English, French & Spanish in US) from 8:00 AM
Eastern time to 8:00 PM Eastern time, Monday Friday or email to [e-mail].
Care & Maintenance
or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely.
accessories and patio items are coated with rust inhibiting paint
that protects it from rusting. However, due to the nature of iron, surface oxidation (rusting) will occur once
these protective coatings are scratched. This is a natural process and is not a defect! To minimize this
condition, we recommend care when assembling & handling the product to prevent scratching the paint.
Should any scratching or damage occur, we recommend immediate touch-up with rust inhibiting paint.
Surface rust can also be easily removed with a very light application of common cooking oil. If surface
oxidation (rusting) occurs and if no measure is taken to prevent this, the oxidation may start dripping on
to deck or patio and cause damaging stains, which may be difficult to remove. This can be prevented if
measure is taken to keep the product from oxidizing.
