Sunjoy A106009500 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
ASSEMBLY INSTRUCTION
INSTRUCTIONS DE MONTAGE
Item/Article #：A106009500
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues?/ Questions? Problèmes?
CONTACT US/ Contactez-nous
[e-mail]
www.sunjoyonline.com

2 / 35
Country of Origin: China
Pais d’origine: Chine
This product is intended for domestic outdoor use only.
The product should be placed on flat, horizontal ground.
Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
During installation, follow all safety warnings provided with your tools, and use safety glasses.
In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
Any assembly or maintenance of the product must be carried out by adults only.
Arrange necessary manpower when assembling or moving the product.
Some parts may contain sharp edges. Wear protective gloves if necessary.
Keep children and pets away while setting up the gazebo.
Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
Repairing and replacing parts should be done by a qualified technician.
This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
Do not light any fires inside or near the product！
Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
firemen allow you to do so.
Do not hang heavy weights on the roof frame.
Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
Retain the original packaging to store the gazebo.
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

•
•
•



•





•

•

•

•
•
•
•
•

•
•

•
•

•
•

•
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



Country of Origin: China
Pais d’origine: Chine
3 / 35

4 / 35
Country of Origin: China
Pais d’origine: Chine
•Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position them on the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Read each step carefully before beginning any assembly and make sure you understand each
step. If you are missing a part, please email [e-mail].
•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill
Hammer
Screwdriver
Ladder
5 people

5/ 35
IMPORTANT:
•Veuillez lire et bien comprendre ce guide avant de procéder à l’assemblage. Avant de procéder à
l'assemblage du produit, assurez-vous que toutes les pièces sont présentes.
•Lors de l’assemblage de pièces en bois, ne serrez pas trop les boulons afin d’éviter de fendre le bois.
•

•
terminé l'assemblage.
•Nécessaire pour l’assemblage sont pas inclus.
Perceuse pistolet

isez un niveau Véfifiez avec un
équerre Serrer les boulons Mesurer
la distance
Utilisez un niveau
Vérifiez que l'assemblage est d'aplomb
avant de procéder à la prochaine étape.
Véfifiez avec un équerre
Vérifiez que l'assemblage est carré avant
de serrer les boulons.
Serrer les boulons Mesurer la distance
Ne serrez pas trop les boulons de
serrage excessif peut provoquer des fissures
dans le bois, créant des éclats de bois et d'autres
dommages structurels
Marteau Tournevis Escabeau 5 personnes
Country of Origin: China
Pais d’origine: Chine

6/ 35
Country of Origin: China
Pais d’origine: Chine
EXPLODED DRAWING

7 / 35
Country of Origin: China
Pais d’origine: Chine

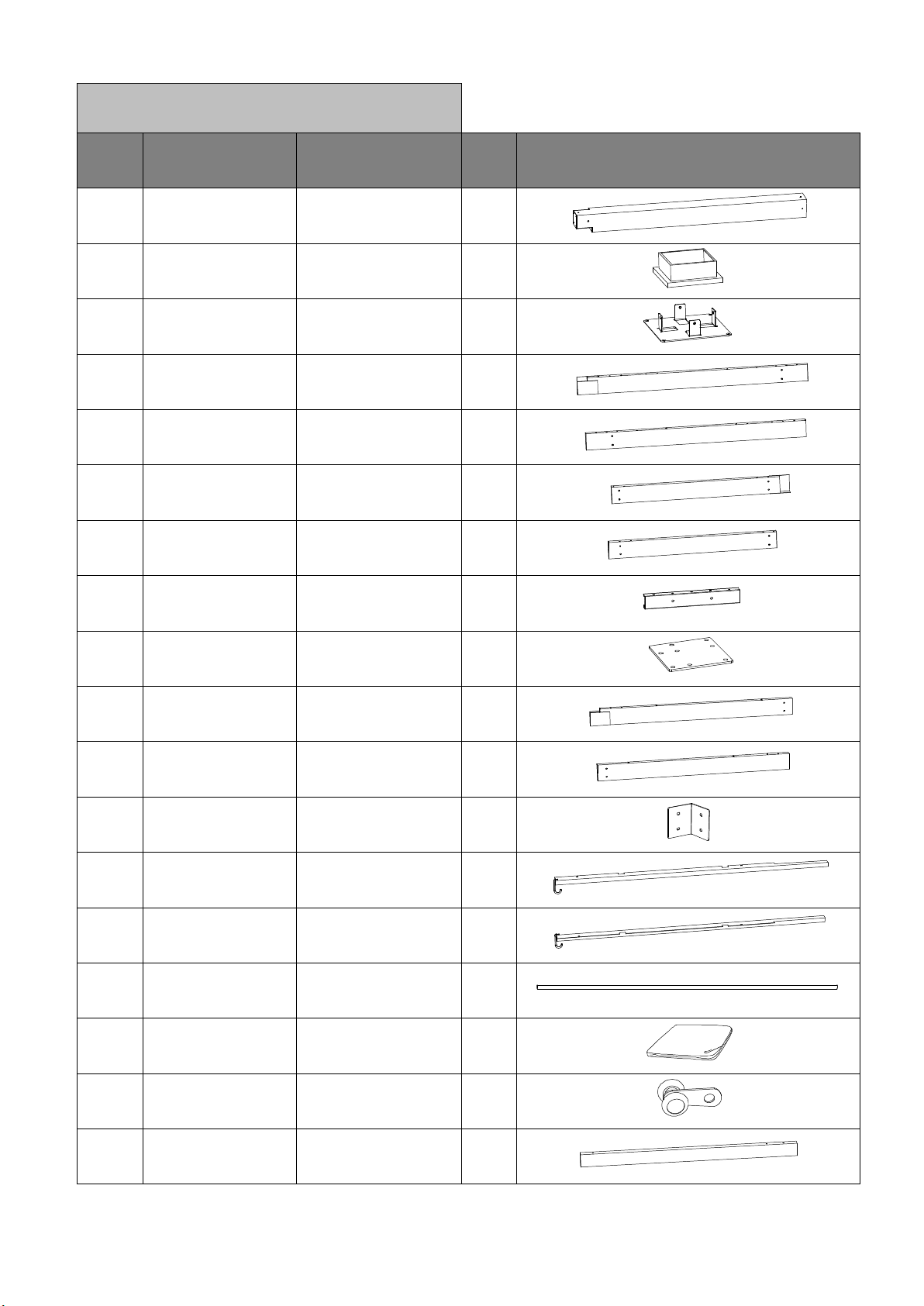

Parts List
Label
Part Number
Description
Qty
Part Image
A
P00020071601
Post 1
2
B
P00610022601
Base Cover
4
C
P00010043001
Post Base
4
D
P00040119701
Long Cross Beam
(Long Side) 1
1
E
P00040119801
Short Cross Beam
(Long Side) 1
1
F
P00040119901
Long Cross Beam
(Short Side)
2
G
P00040120001
Short Cross Beam
(Short Side)
2
J
P00050163901
Beam Connector
5
K
P00220033901
Post Cap
4
L
P00040120101
Middle Long Cross
Beam
1
M
P00040120201
Middle Short Cross
Beam
1
N
P00050171401
Beam Connecting
Piece
4
P
P00570083601
Rail Rod 1
4
Q
P00570083701
Rail Rod 2
4
R
P00570083801
Fabric Rod
16
S
P00110069401
Canopy
2
T
P00330006201
Pulley
32
U
P00060210901
Roof Middle Beam
1
4

8/ 35
Country of Origin: China
Pais d’origine: Chine
Liste de Pièces
Étiquette Numéro de la pièce
Description
Quantité DIAGRAMME DE LA PIÈCE
A
P00020071601
Poteau 1
2
B
P00610022601
Barde de la base
4
C
P00010043001
Base du Poteau
4
D
P00040119701
Traverse Longue
(Côté Long) 1
1
E
P00040119801
Traverse courte
(Côté Long) 1
1
F
P00040119901
Traverse Longue
(Côté Court)
2
G
P00040120001
Traverse courte
(Côté Court)
2
J
P00050163901
Connecteur de faisceau
5
K
P00220033901
Pommeau du Poteau
4
L
P00040120101
Traverse Centrale
longue
1
M
P00040120201
Traverse courte
Centrale
1
N
P00050171401
Pièce de connexion
de poutre
4
P
P00570083601
Tringle du Rail 1
4
Q
P00570083701
Tringle du Rail 2
4
R
P00570083801
Tringle pour Tissu
16
S
P00110069401
Toile
2
T
P00330006201
Pulley
32
U
P00060210901
Poutre Centrale du
Petit 1
4

9 / 35
Country of Origin: China
Pais d’origine: Chine
V
P00060211001
Roof Middle Beam
2
4
W
P00060211101
Roof Middle Beam
3
3
X
P00060211201
Roof Middle Beam
4
3
AA
P00050164001
Roof Middle Beam
Connector
7
AB
P00060211401
Big Roof Rop Beam
1
10
AC
P00060211501
Big Roof Rop Beam
2
10
AD
P00020070401
Post 2
1
AE
P00020070501
Post 3
1
AG
P00040133301
Cross Beam (Long
Side) 2
1
AJ
P00630013001
Screen
4
AK
P00050170601
Screen Connector
1
AP
P00040133201
Cross Beam (Long
Side) 1
1

10/ 35
Country of Origin: China
Pais d’origine: Chine
V
P00060211001
Poutre Centrale du
Petit 2
4
W
P00060211101
Poutre Centrale du
Petit 3
3
X
P00060211201
Poutre Centrale du
Petit 4
3
AA
P00050164001
Connecteur de poutre
centrale de toit
7
AB
P00060211401
Grande poutre de
toit 1
10
AC
P00060211501
Grande poutre de
toit 2
10
AD
P00020070401
Poteau 2
1
AE
P00020070501
Poteau 3
1
AG
P00040133301
Traverse (Côté
Long) 2
1
AJ
P00630013001
Façade
4
AK
P00050170601
Connecteur d'écran
1
AP
P00040133201
Traverse (Côté
Long) 1
1

11/ 35
Country of Origin: China
Pais d’origine: Chine
Hardware Pack
Label
Part Number
Description
Qty
Add
Part Image
H1
H100070001
Bolt M6*15
32
2
H2
H100010141
Bolt M6*15
130
7
H3
H100010152
Bolt M8*20
16
1
H4
H100010153
Bolt M8*70
8
1
H5
H100010149
Bolt M6*95
30
2
H6
H100010154
Bolt M6*120
14
1
H7
H100010155
Bolt M8*200
8
1
H8
H050080007
Flat washer M8
8
1
H9
H040070017
Nut M8
8
1
HS
H070010003
Stake Φ8*180
9
0
HW1
H090010017
Wrench M6
1
0
HW2
H090010012
Wrench M8
2
0

12/ 35
Country of Origin: China
Pais d’origine: Chine
SACHET DE QUINCAILLERIE
Étiquette Numéro de la pièce Description Quantité
Add
DIAGRAMME DE LA PIÈCE
H1
H100070001
Boulon M6*15
32
2
H2
H100010141
Boulon M6*15
130
7
H3
H100010152
Boulon M8*20
16
1
H4
H100010153
Boulon M8*70
8
1
H5
H100010149
Boulon M6*95
30
2
H6
H100010154
Boulon M6*120
14
1
H7
H100010155
Boulon M8*200
8
1
H8
H050080007
Rondelle plate M8
8
1
H9
H040070017
Écrou M8
8
1
HS
H070010003
Piquet Φ8*180 9
0
HW1
H090010017
Clé M6
1
0
HW2
H090010012
Clé M8
2
0

13 / 35
Country of Origin: China
Pais d’origine: Chine
1

14/35
Country of Origin: China
Pais d’origine: Chine

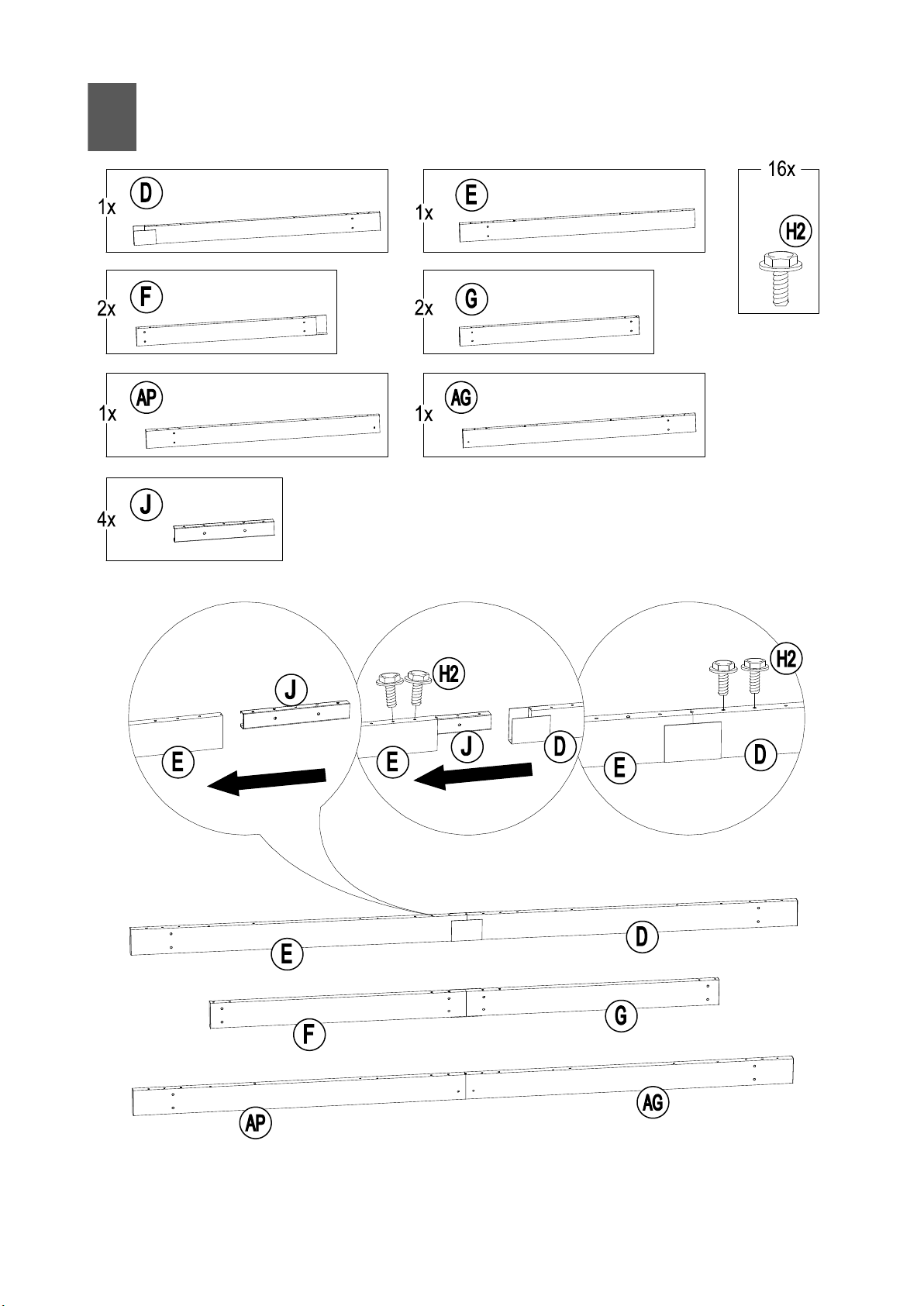

2

15 /35
Country of Origin: China
Pais d’origine: Chine
3

16 / 35
Country of Origin: China
Pais d’origine: Chine
4

17/ 35
Country of Origin: China
Pais d’origine: Chine

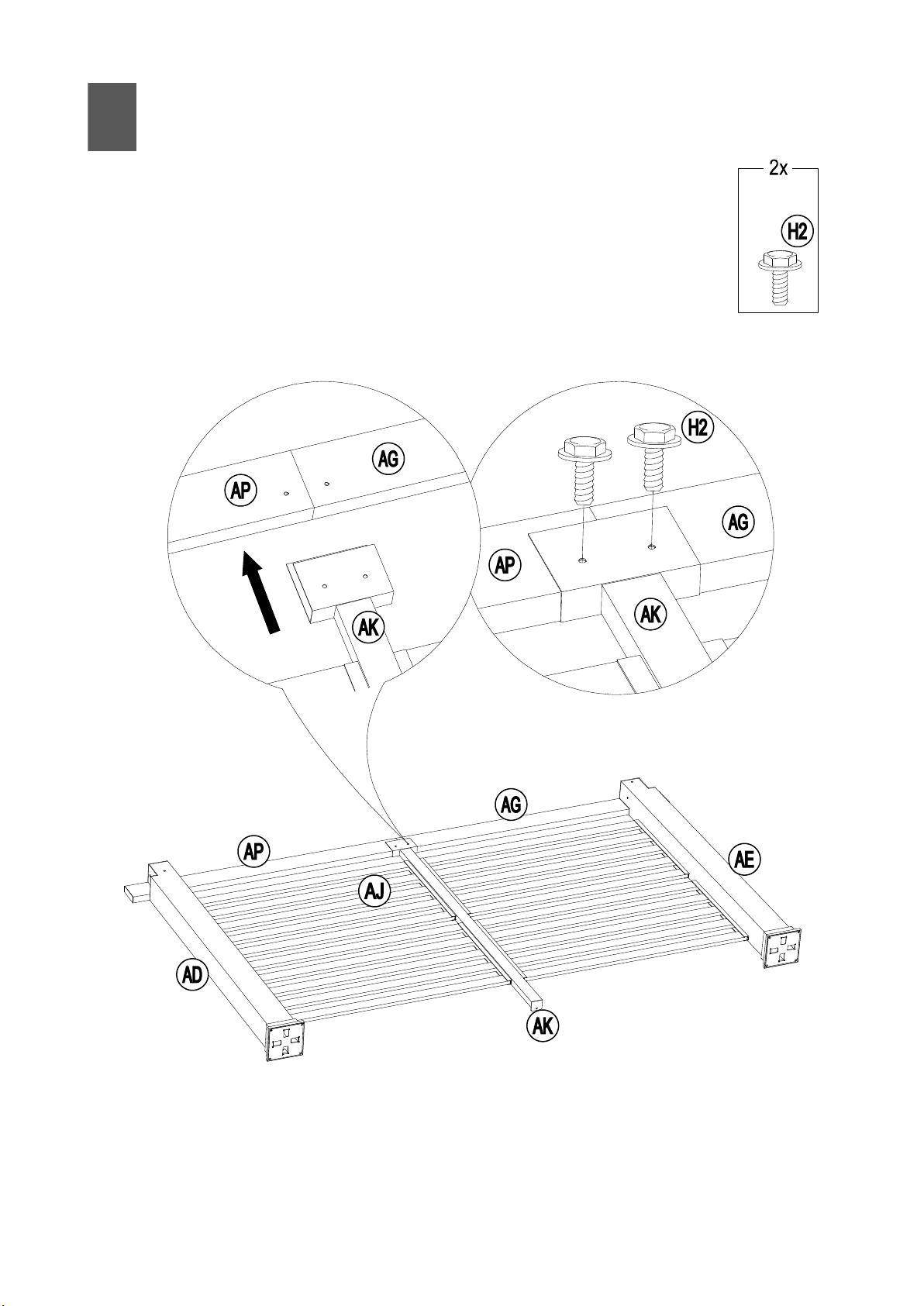

5

18 / 35
Country of Origin: China
Pais d’origine: Chine
6

19 / 35
Country of Origin: China
Pais d’origine: Chine

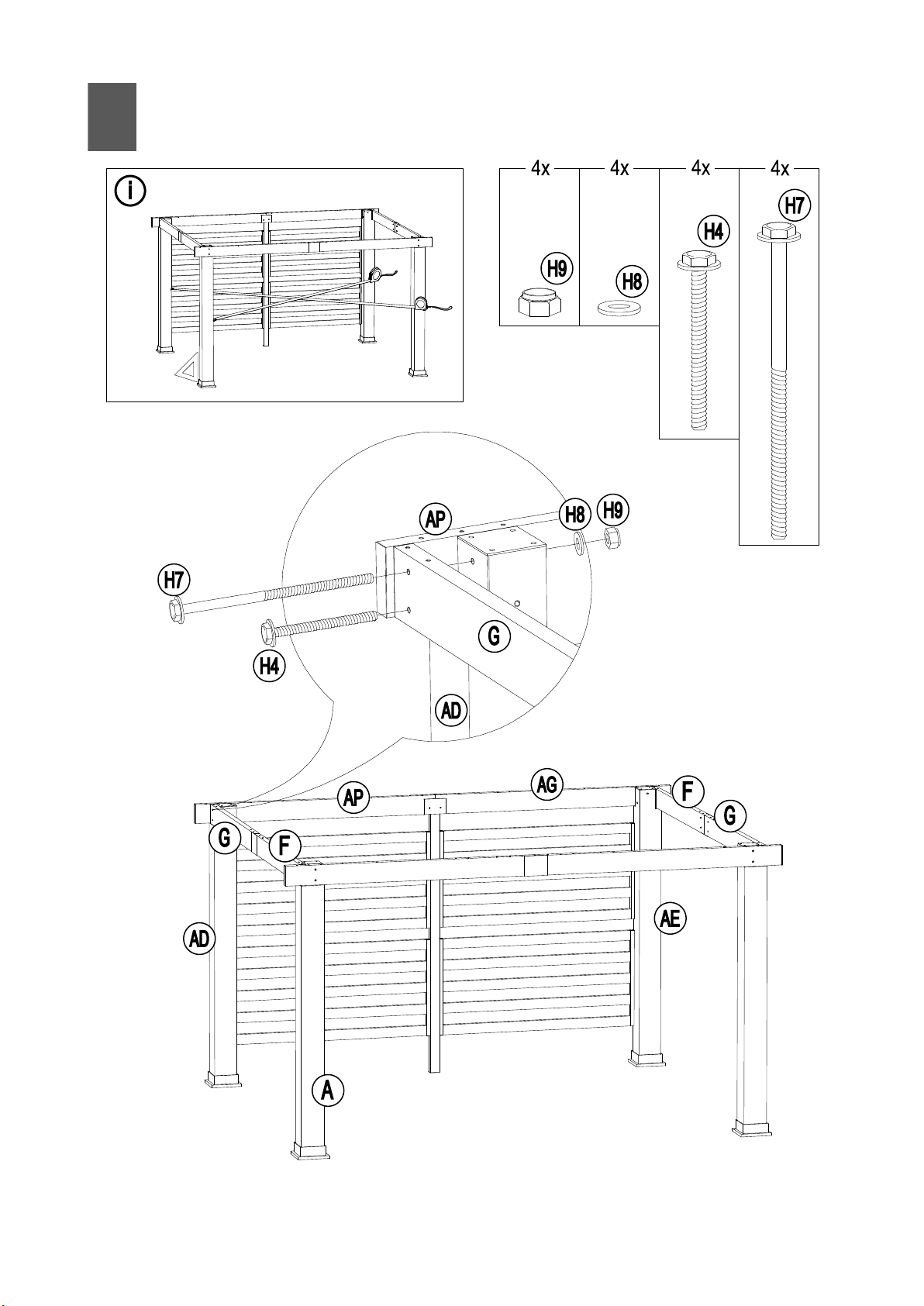

7
d1=d2
Rt∠90

20/ 35
Country of Origin: China
Pais d’origine: Chine

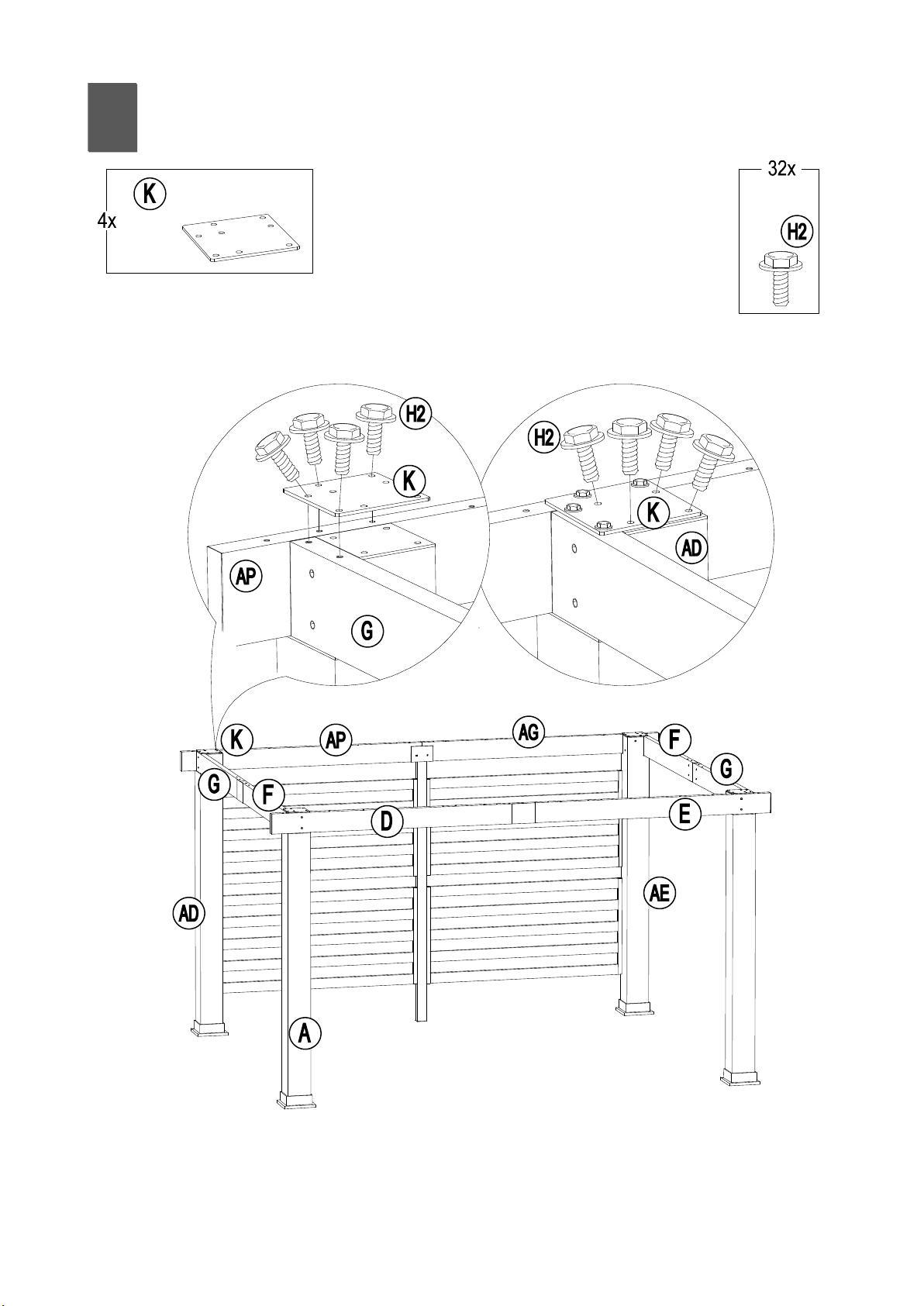

8
8
