Sunlighten mPulse Aspire User manual

1
USER MANUAL
VERSION O2.05.2O21
ANDROID 6.0
APP 2.2.36 mPulse

2
Congratulations!
You are now the owner of an mPulse® sauna. With Sunlighten
infrared heat, you are empowered to improve your quality of life.
Just follow our assembly instructions and sauna protocol to begin
your wellness journey with the very best in infrared therapy.
WARNING:
Do not use this sauna to treat any health problems without
consulting your physician. Sunlighten, Inc. does not provide
medical advice, education or treatment. Our information should
not be relied on in making decisions about your health. Always
consult your physician for medical advice
www.sunlighten.com/contraindications

3
USER MANUAL
VERSION O1.O1.2O21
TABLE OF CONTENTS
PRE-INSTALLATION
Specifications ............................................................. 4
Pre-Installation/Warnings .......................................... 5
ANDROID CONTROL PAD & SUNLIGHTEN APP
GENERAL OPERATING INSTRUCTIONS
Control Screen/Initial Setup ...................................... 6
Sauna Settings ........................................................... 11
Wellness Programs .................................................... 11
Scheduling Sauna Sessions ....................................... 13
Media Apps ................................................................ 16
Warm-Up Time/Usage ............................................... 17
Sauna Protocol ........................................................... 18
FAQ ................................................................................. 19
TROUBLESHOOTING ............................................................... 22
WARRANTY ................................................................................ 24
A separate packet with assembly instructions is included with your sauna.
mPulse
USER MANUAL
VERSION O3.11.2O21

4
mPulse SERIES SPECIFICATIONS
aSPIRE
Dimensions
(W x L x H)
43.6” x 41.6” x 78.5”
110.7 cm x 105.6 cm x 199.4 cm
Power 120v, 2160 watts, 20a
1440 watts continuous
DEDICATED 120V 20A CIRCUIT REQUIRED. SEE 5-20R IMAGE ON RIGHT.
bELIEVE
Dimensions
(W x L x H)
51.7” x 47.6” x 78.5”
131.3 cm x 120.9 cm x 199.4 cm
Power 120v, 2400 watts, 20a
1920 watts continuous
DEDICATED 120V 20A CIRCUIT REQUIRED. SEE 5-20R IMAGE ON RIGHT.
cONQUER
Dimensions
(W x L x H)
70.6” x 47.6” x 78.5”
179.3 cm x 120.9 cm x 199.4 cm
Power 240v, 3600 watts, 20a
3072 watts continuous
DEDICATED 240V 20A CIRCUIT REQUIRED. SEE 6-20R IMAGE ON RIGHT. *
dISCOVER
Dimensions
(W x L x H)
70.6” x 70.6” x 78.5”
179.3 cm x 179.3 cm x 199.4 cm
Power 240v, 4500 watts, 20a
3072 watts continuous
DEDICATED 240V 20A CIRCUIT REQUIRED. SEE 6-20R IMAGE ON RIGHT. *
eMPOWER
Dimensions
(W x L x H)
85.6” x 70.6” x 78.5”
217.4 cm x 179.3 cm x 199.4 cm
Power 240v, 4800 watts, 20a
3072 watts continuous
DEDICATED 240V 20A CIRCUIT REQUIRED. SEE 6-20R IMAGE ON RIGHT. *
5-20R
USA / CAN
5-20R
USA / CAN
6-20R
USA / CAN
6-20R
USA / CAN
6-20R
USA / CAN
It is important when installing the dedicated circuit for your unit not
to include a GFCI (Ground Fault Interuptor) or AFCI (Arc Fault Circuit
Interuptor). These are often installed in household electrical setups as a
means of surge and arc protection, but will mistake the power operation
of our units for these and trip the breaker, disrupting sauna use.
*FOR COMMERCIAL FACILITY: For those models where a dedicated
240V 20A circuit is required, these are not found in common electrical
setups. You may need a transformer to accomodate.

5
WARNING
READ BEFORE OPERATING
To reduce risk associated with hazardous voltage & re:
• Unplug the sauna from electrical outlet before storage or when not
in use for expanded periods of time.
• Do not operate the sauna if it’s not on a dedicated electrical circuit,
or has a damaged power cord/plug.
• If the sauna is not working properly or an odor persists, immediately
unplug the sauna.
• Do not leave the sauna unattended while heating for longer than
the sauna’s pre-set time periods.
• Never cover holes or oor grate with towels, mats, garments, etc.
PRE-INSTALLATION
1. Have a certied electrician install a dedicated outlet for sauna.
Failure to do so will void all warranty.
2. Remember your sauna should be assembled by two or more people.
3. Do not place plumbing or plumbing xtures in the sauna.
4. Keep all liquids away from the heating panels and electronics.
5. Install sauna on a level surface.
6. Install sauna in an area that is dry and protected from the weather.
7. Keep ammable objects and corrosive chemical substances away
from the sauna.
8. Installation of the sauna in an area below standard room temperature
can increase warm-up time.

6
ANDROID CONTROL PAD & SUNLIGHTEN APP
GENERAL OPERATIONS GUIDE

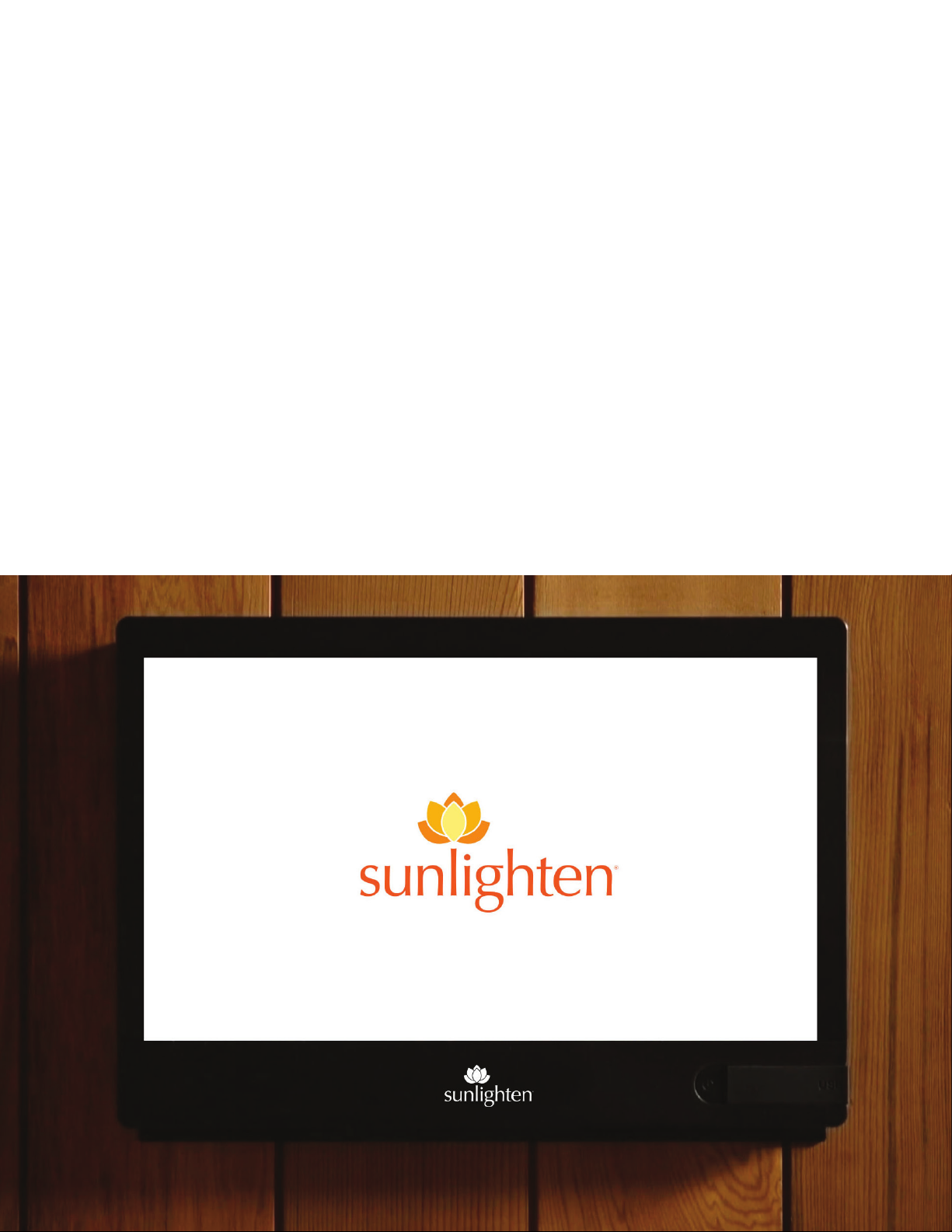

ANDROID CONTROL PAD
Power ON/OFF
To turn On: Press and hold the power button in the lower right corner for 5 seconds, until the
screen turns on. The screen will be blank for a few seconds before the Sunlighten logo appears.
To turn Off: Press and hold the power button for 1-2 seconds and select “shutdown”
on the screen to turn off.
The Sunlighten App Version 2.2.40
Welcome to the new Sunlighten App! This guide will take you through the registration
and setup of your account and the most common and useful functions of your Android
Control Pad in operating your mPulse sauna.
ANDROID CONTROL PAD

7
ACTIVATION
SCREEN 1
On activating your Control Pad, you’ll be greeted by a screen
with some basic controls at the bottom. Circled is your
App Tray balong the side.
From the left, those controls are a speaker icon to decrease
your volume level, a left-facing arrow for going back to your
previous screen, a circle for returning to the home screen,
a square to swap app windows, and another speaker icon
for increasing volume level.
SCREEN 2
Tap the App Tray button to extend the tray and show all apps
installed on the Pad, and tap the gear icon to navigate to your
Control Pad’s settings.
SCREEN 3-4
You can also swipe down from the top of the screen to quickly
nd the settings menu. To expand your settings, tap on the
gear icon in the settings drop down.
The rst subsection of your settings you’ll see listed is Wi-Fi.
Tap to navigate here and connect to your wireless internet
connection, then tap the left-facing arrow to return to the
landing page. Tap the left-facing arrow once more to return
to your App Tray, then tap the lotus icon to start the
Sunlighten App.
VOLUME
DOWN
BACK VOLUME
UP
HOME
SCREEN
RECENT
APP
1.
2.
3.
4.

8
ACCOUNT REGISTRATION
SCREEN 5
The app will start with a prole selection screen. Tap the plus
icon to create a new account. You’ll be able to do so using your
Facebook or Google accounts if you prefer and have them,
you can create an account from any e-mail address, or you
can log in to this tablet as a guest without a prole.
SCREEN 6
If creating a new account using an e-mail, you’ll be asked
to enter your First Name, Last Name, and e-mail address
before creating a password. Your password must be at least
8 characters.
SCREEN 7
Tap the phrase ‘Terms of Use’ to read them before tapping
the box to agree to them, and tap Create Account
to complete the process.
SCREEN 8
A verication code will be sent to the e-mail address you used
for registration. Enter your code and press the down-pointing
arrow to dismiss the keyboard, then tap ‘Verify’.
SCREEN 9
You’ll be returned to the login screen where you’ll enter
the information you’ve just used for registration.
6.
7.
8.
9.
5.

9
PROFILE SETUP
SCREEN 10
Select your intended use from this screen, either Residential
or Commercial.
SCREEN 11
You’ll be asked to provide some personalizing profile
information for future customization use. Once you’ve
completed this information entry, you’ll be asked if you’d
like to update the time zone settings.
SCREEN 12
This will take you to the Date & Time subsection of your pad
settings, from which you’ll deactivate Automatic Date & Time
and manually adjust both the Time Zone and Time.
When nished, tap the left-facing arrow and you’ll be taken
to the Sunlighten App Home Screen. As a nal step of your
setup process, tap the user icon in the upper right corner
of the screen, select My Saunas, and enter the serial number
and model of your Sunlighten sauna.
SCREEN 13
Tap update model and an image of your unit will appear.
Tap the left-facing arrow to return to the Home Screen.
?
11.
12.
13.
10.

10

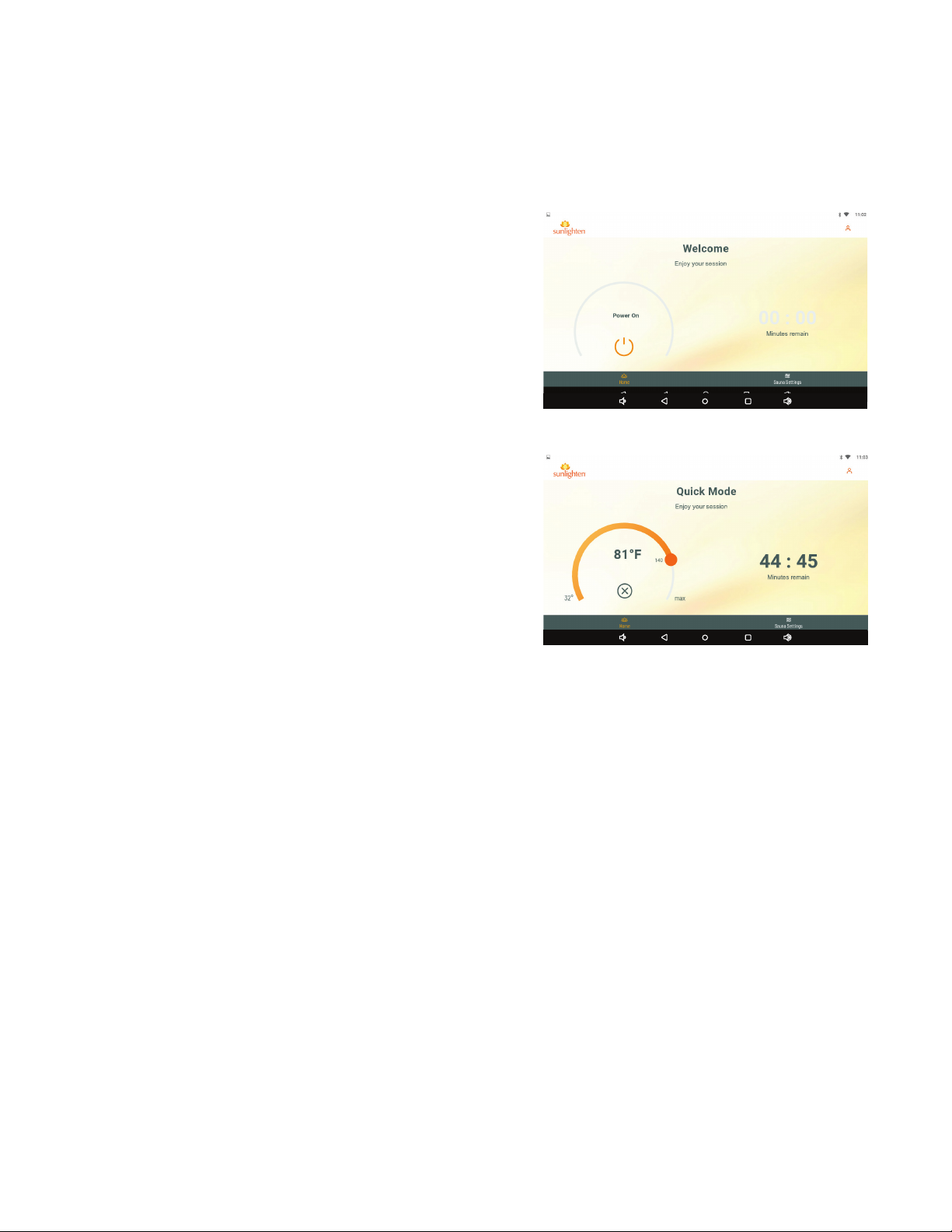

WELCOME SCREEN
SCREEN 14
The Welcome Screen is where to begin using the Sunlighten
App. Hit the power icon to engage Quick Mode, described
in the next section. At the bottom of the screen is a row
of primary functions to which you can always return anywhere
in the app: Home, Sauna Settings, and App Screen. In the
upper right corner, you’ll see the user icon to add to or edit
existing or new prole registrations.
SCREEN 15
Quick Mode
The most commonly used, easily accessible, and quick
starting mode of operation, Quick Mode is ideal for
a basic high-temperature experience that utilizes the full
spectrum wavelengths at maximum intensity to increase
the temperature of the cabin.
The maximum duration for Quick Mode use is one hour.
For longer sessions, in a commercial use case for example,
utilize the multi-segment custom programs detailed
on page 12.
15.
14.

11
SAUNA SETTINGS
SCREEN 16
The Sauna Settings page is selected by tapping Sauna
Settings on the bottom-screen bar and is home to all
of your sauna’s basic information and configuration.
SCREENS 17-18
Your mPulse comes with Wellness Programs pre-programmed
in your Android Control Pad, each one focused on different
benets of use in their conguration:
Detoxication - Starts at a high intensity to increase the body’s
core temperature, then reduces to a lower intensity level. Mid
and far infrared combination improves vascular access ow
to reach toxins at the cellular level.
Weight Loss - Starts at a high-intensity level to stimulate
the cardiovascular system, then reduces to a medium level.
As the body works to cool itself, there is an increase in heart
rate, cardiac output, and metabolic rate, similar to exercise.
Relaxation - Far, mid, and near-infrared combination induces
deep relaxation as it relieves muscle tension at a low,
comfortable intensity promoting overall stress reduction.
Pain Relief - A far and mid-infrared blend provides natural
pain relief by reducing inammation and swelling while
near-infrared penetrates the tissue promoting cellular
repair at a medium, constant intensity level.
Anti-Aging - A low, constant intensity level penetrates tissue
to help with various skin concerns. Near-infrared improves
overall skin tone, elasticity, and firmness, promoting
anti-aging benets.
Cardio - Starts at a high intensity to increase heart rate and
cardiac output, then lowers the intensity to sustain heart rate
level. Circulation increases promoting healthy blood pressure.
16.
17.
18.

12
19.
SAUNA SETTINGS

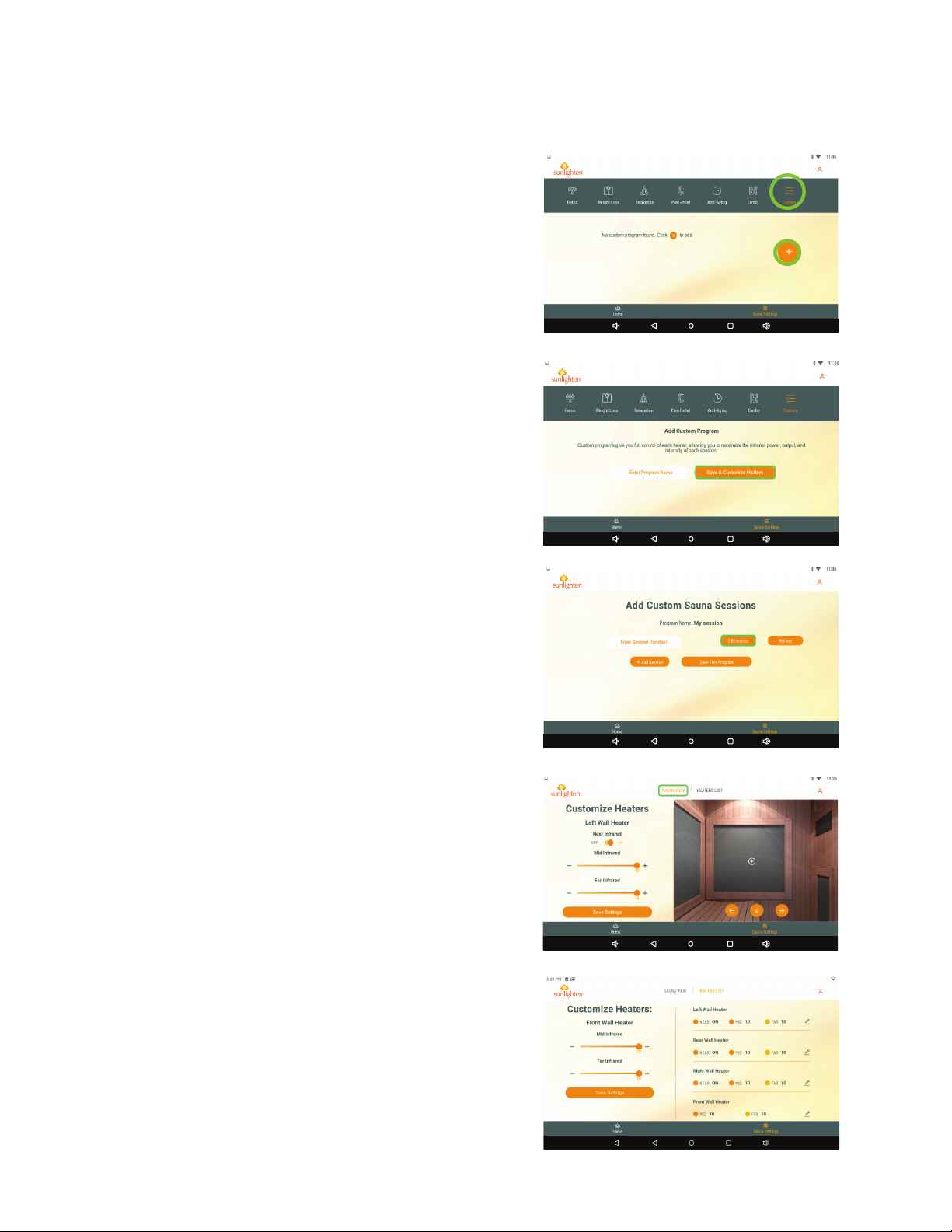

SCREEN 19
Creating a Custom Program
In addition to the pre-congured Wellness Programs already
in your Android Control Pad, you can also create your
own Programs. The ‘Custom’ icon will be at the top of the
Programs screen after the presets. This mode enables you
to craft your own session with dynamic features by doing
so in segments. This enables you not only to determine the
length of the session but apply different wavelengths of
infrared at different points in the same session. Tap the plus
icon to add a segment.
SCREEN 20-21
You’ll be able to give your Program a name and customize
the intensity of heaters and wavelengths used.
SCREEN 22
The Customize Heaters screen allows you to determine
the intensity of mid and far infrared on individually selected
heaters during the duration of a program segment, represented
by a slider bar that goes up to level 10. For ease of selection,
you can toggle between SAUNA VIEW and a list of the
heaters at the top of the screen.
In SAUNA VIEW,use the left, down, and right arrows
to navigate the sauna interior to select heaters individually.
SCREEN 23
In HEATER LIST view, make edits to each heater’s parameters
by tapping the pencil icon. When nished, go back a screen
and either add a segment by tapping ‘Add Session’ or complete
the program by selecting ‘Save Program’. This will return you
to the Programs screen, where you’ll see your newly created
Custom Program beneath the preset icons.
20.
21.
22.
23.

13
SAUNA SETTINGS
SCREEN 24-25
Schedule
To schedule a sauna session in advance, select the desired
date from the calendar on the left, then tap the plus icon
on the right.
SCREEN 26
You’ll be taken to a Schedule a Sauna Session page, from
which you’ll tap the indicated time to choose when you’d
like it to be ready, and the Program you’d like to schedule.
SCREEN 27
The time selected will be when the session has completed
pre-heating and is ready.
SCREEN 28
Lighting
This function turns your exterior lights on or off. Interior
Chromotherapy lights will be operated with the handheld
remote control.
25.
26.
27.
28.
24.

14

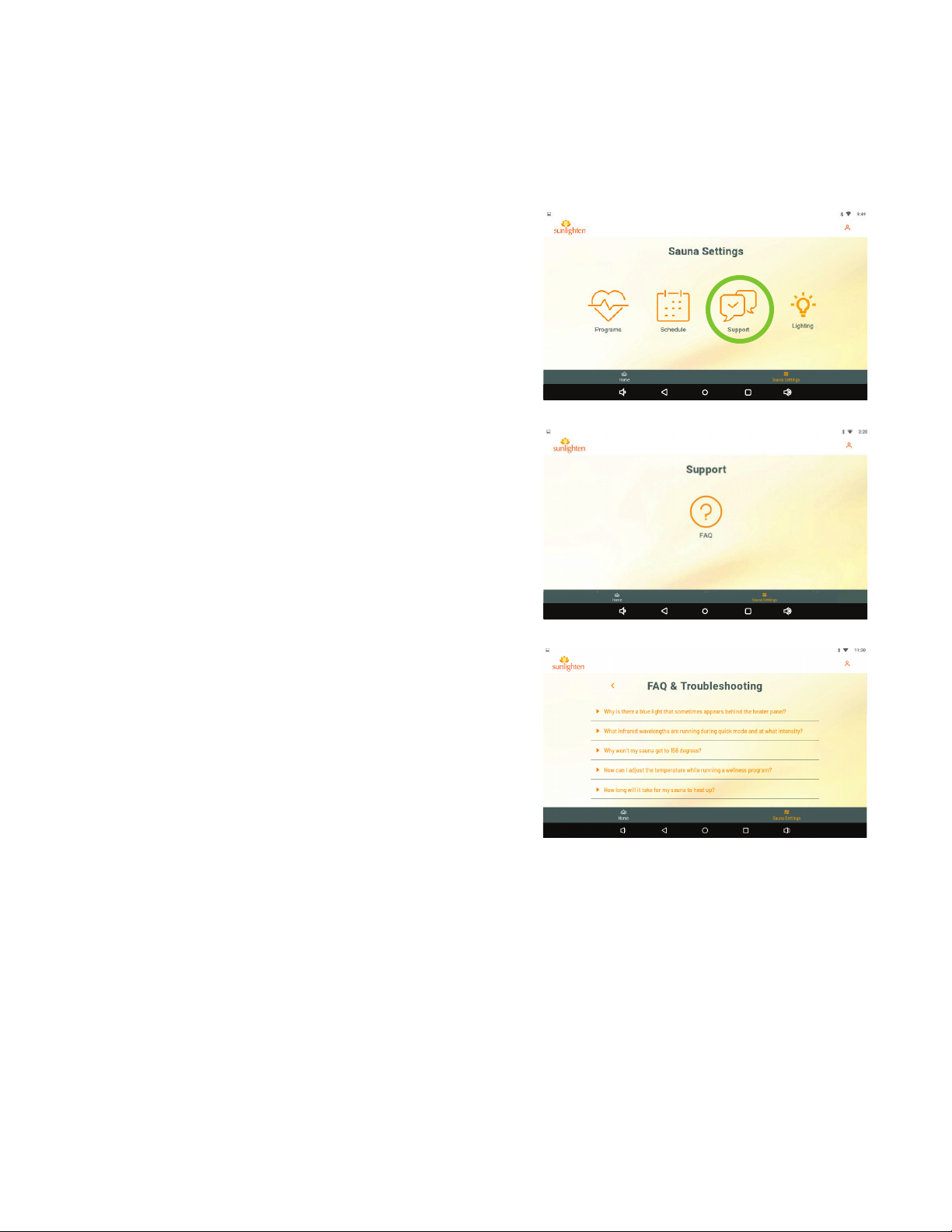

SAUNA SETTINGS
SCREEN 29-31
Support
Tapping the Support Icon from the Sauna Settings page will take
you to the Frequently Asked Questions.
If you have any additional questions or concerns not addressed
therein, please contact Customer Care, available Monday,
Tuesday, Thursday and Friday between 9 AM and 5 PM CST
and Wednesday from 9 AM to 4 PM at 877-292-0020 ext. 402.
You can also submit a support ticket
at www.sunlighten.com/support.
30.
31.
29.

15
SYSTEM UPDATE
SCREEN 32-35
If not running the latest version of the system software, you
may tap the user icon in the upper right corner of the screen,
select your user prole from the list of those on the tablet,
and scroll to the bottom to select ‘Get latest APK.’
Each update of the app will be listed in ascending order
by the version number. To receive future updates, you will
need to reboot your Android Control Pad daily by pressing
the power button down for 1 second and choosing “Power
Off” when you’re nished using the sauna for the day. This
will allow for your sauna to receive updates automatically.
33.
34.
35.
32.

16

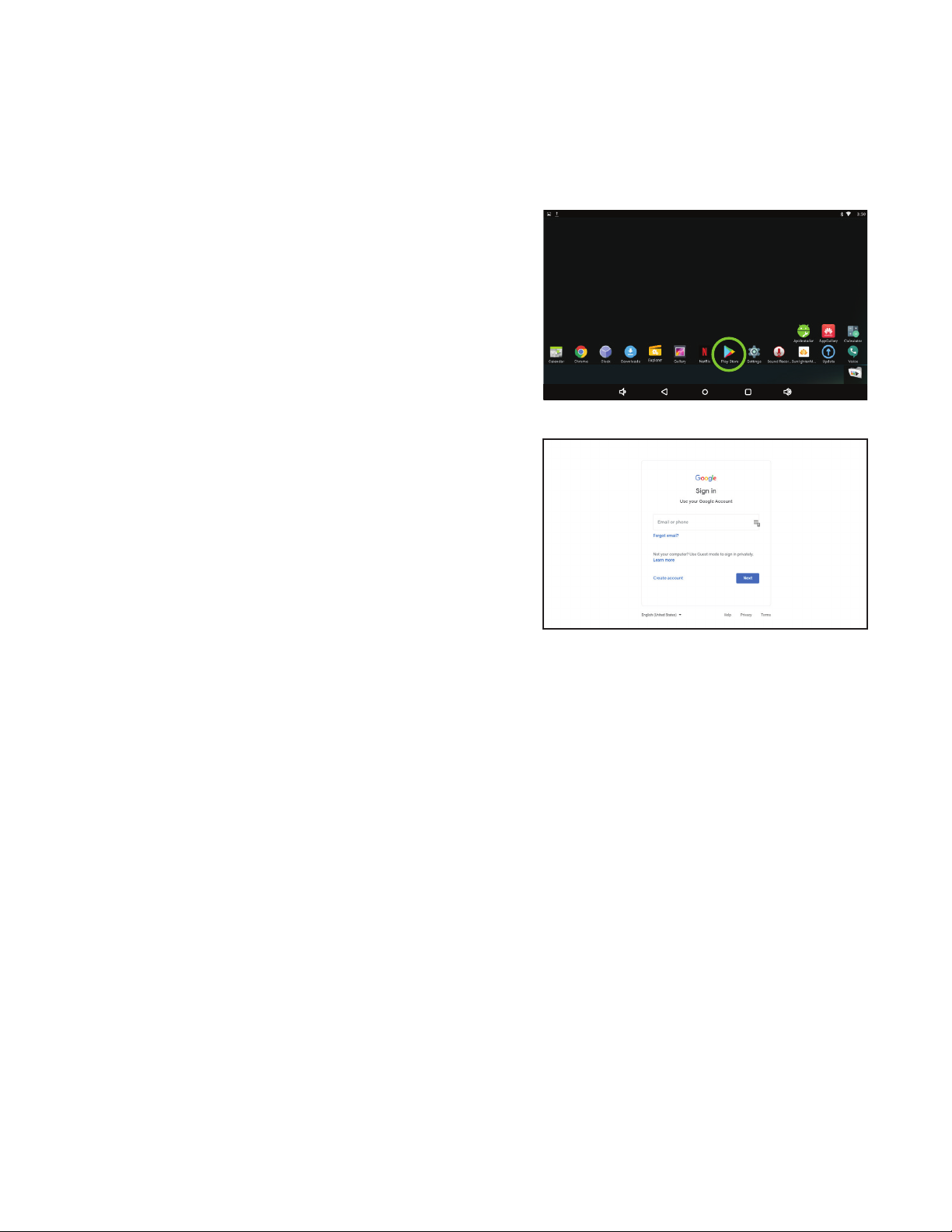

MEDIA AND APPLICATIONS
SCREEN 36-37
App Removal
To remove an application from your Android Control Pad,
from the App Tray, select the gear icon for Settings and scroll
down and tap Apps. Select the app to be removed from the
list and tap Uninstall.
App Addition
Adding new third party applications to the Android Control
Pad is done by accessing the Google Play Store, the Android
operating system’s app store. Access it by tapping the Play
Store icon in the App Tray. The Play Store will require you
to login using your Google account information. Sunlighten
is not responsible for third party Android app functionality.
Compatibility is not guaranteed with every application.
36.
37.

17
WARM-UP TIME &
USAGE GUIDELINES
Our saunas are based on the infrared wavelength and not cabin temperature.
Set to the desired temperature and allow the sauna to warm up for 45-60 minutes.
The sauna heats up at an average of 1 degree per minute. Follow these steps
for proper warm-up:
Step 1: Make sure your sauna is plugged into a dedicated circuit installed
by your electrician.
Step 2: Set to the desired temperature and set time to 60 minutes.
Step 3: When turning sauna on for the rst time, ensure each heater is active
after a couple of minutes. If they are not, make sure connections
are securely paired from their initial wire feed coming from the
power box under the bench.
Step 4: Never fully cover the oor grate and heater with any obstruction
that will not allow the heater to dissipate its heat.
NOTE: If your sauna is outside in an unheated garage, sun room, basement
or patio, you may require additional time to warm the sauna up depending
upon the temperature of the surrounding surface and room. REMEMBER,
you are required to have an authorized Sunlighten cover over your sauna
if it is outside or exposed to the weather in order to maintain your warranty.
TIPS FOR OPTIMAL USE
• Sauna requires a dedicated circuit and outlet for optimal performance.
This should be installed by a certied electrician before assembling.
• Use Sunlighten All Natural Cleaning Kit for periodic cleaning.
• If you have a floor heater, clean every 6 months for residential use,
and every month for commercial use. To clean, remove oor grate and
vacuum out heater area.

18
SAUNA PROTOCOL
Follow this quick guide for the optimal sauna experience.
PRE SAUNA SESSION
• Hydrate with at least 8 oz. of water to prepare your body for an increase
in core temperature.
• Pre-heat for approx. 45 minutes. Depending on room temperature,
your sauna will heat a degree per minute, before reaching 120 degrees.
Heat time increases at temperatures above 120 degrees Fahrenheit.
• Use Bamboo Carbon Towels to absorb sweat during sessions.
SAUNA SESSIONS
• Begin your session when your sauna reaches 100°F.
• The optimal sauna experience occurs between 100° and 130°F.
• To get your body accustomed to infrared therapy, start with 10-15 minute
sessions at 100°F every other day.
• If comfortable with current settings, gradually increase towards 40-minute
daily sessions in the optimal temperature range.*
• Don’t be surprised if you don’t sweat during the rst few sessions.
• Sweating will increase with regular use, removing toxins and leaving you
feeling refreshed and rejuvenated.
• For added intensity, use Pure Sweat amplifying cream to increase
sweating, circulation, and to boost results.
POST SAUNA SESSION
• Drink at least 24 oz. of water or electrolyte to rehydrate.
• Dry off with Bamboo Carbon Towel. Cool down naturally or with
a refreshing shower.
• Every six months, clean wood and glass with our Natural Sauna Cleaning Kit.
Available at www.sunlighten.com/shop/

19
FREQUENTLY ASKED QUESTIONS
ASSEMBLY
Can I assemble my sauna outdoors?
Yes, if you protect it with a Sunlighten canvas, sauna cover. If you place your sauna outdoors
without a Sunlighten cover, your warranty will be void. The sauna covers are custom made
and may not arrive until after you receive your sauna. Do not install your sauna outdoors
prior to receiving your cover. Doing so will void the warranty! Check the sauna cover
annually for normal wear and replace as needed. Sauna cover manufacturer warranty
is one year.
How much room is required around my sauna for setup
& maintenance?
We recommend 4-12 inches of clearance around the back, sides, and top of the sauna
to access plugs and for general maintenance. Leave at least 4 inches behind the unit to allow
the electronics to cool.
What surfaces can I set my sauna on?
You can set your sauna on tile, concrete, carpet, laminate or wood. Always have your sauna
feet installed. Remember to make sure that your sauna is level regardless of its location
for optimal use. If your sauna is placed outdoors, make sure there is adequate drainage
so that water cannot pool around the base of the sauna. If placed near or on cool surfaces
(like concrete and basement walls), warm-up can be impacted.
How do I install Chromotherapy and Acoustic
Resonance Therapy?
Sauna accessories have separate user manuals. Refer to the appropriate manual:
http://www.sunlighten.com/support/
How do I disassemble if I need to move the sauna?
Refer to assembly sheet and follow the steps in reverse.
USAGE
How long does it take for my sauna to warm up?
The controls are preset to 60 minutes at 158°F. However, the inside cabin temperature
is not intended to reach this. Our saunas are based on the infrared wavelength and not
cabin temperature. Allow the sauna to warm-up for 45-60 minutes. The sauna heats
up at an average of 1 degree per minute. If located outside or in unheated garage,
additional warm-up time may be required. If you prefer the sauna hotter, let it warm-up longer.

20
Can I use my sauna every day?
For most people, daily sauna use is okay after your body has become accustomed to infrared
therapy. Drink increased amounts of water to stay hydrated. Listen to your body and stop
your session if you feel any discomfort.
How long can I use it each day?
40 minutes is the recommended session length. See the sauna protocol on pg. 18.
What is the best temperature to use my sauna?
First, it is important to understand that health benefits are a result of efficient infrared
emissivity, not air temperature. Sunlighten saunas are 95-99% emissive to deliver
the highest concentration of infrared. With that, the optimal sauna experience occurs
between 100-130°F. During your first few sessions, start at a lower temperature
of 100°F and gradually increase in later sessions. Everyone has different preferences
and tolerances for heat. The most important thing is to listen to your body. Keep in mind,
if you’re sweating at 115°F you’re getting the same benets as if sweating at 150°F.
What is the micron range of the heaters?
The design of a SoloCarbon® heater allows for most of the far infrared wavelength to be near
9.4 microns, which is the level at which the human body absorbs infrared energy.
Can I touch the heaters?
No. The heaters will be hot, especially the mid-infrared section in the middle,
so it is not safe to touch heaters while on or an hour after use. Touching the frames
that cover the heaters is safe.
How much will the sauna cost to run a month?
The sauna runs on the same wattage as a blow dryer and will cost little to run monthly:
typically 15 to 35 cents per hour. This varies with the model and local utility cost. Your utility
company can help you understand a more exact per hour cost if needed.
Are the EMF levels safe?
Yes. Patented SoloCarbon panels are 100% quality controlled by Sunlighten to ensure the
safety and effectiveness of each individual heater.
What is the wattage, voltage, and amps of my sauna?
See electrical specifications on page 4.
