Sunlux XL-626A User manual

Barcode Scanner
User Manual
V6.6.2

CONTENTS
...............................................
................................
.......
......................
.....................................
.............................................
.........................................
.....................................
...........................................
.....................................
......................................
.........................................
.................................................
.........................................
...............................
.............................
....................
..............................
..........................................
......................................
.......................................
....................................
...............................
.................
....................
...........................
.........................................
................................................
...............................................
.........................................
1
1
2
2
3
4
13
14
15
17
17
19
19
20
22
23
23
28
29
33
42
60
65
85
87
88
98
107
124
120

Copyright
All right reserved by our company, reprint,copy or
sales of this manual are forbidden without our
company permission.
Responsibility Clause
We are not responsibility for errors,omissions and
variation without notice.
1

Chapter 1 System Setting
Enable/Disable Barcode Programming
Programming Barcode Data
*Enter Setup
Exit Setup
W010F00
W010F01
2
Scanning the Enter Setup/Exit Setup barcode can
enable barcode programming. After barcode
programming is enabled, you can scan a number
of programming barcodes to configure your
scanner. Barcode programming is on by default.
In real application, programming barcodes hardly
overlap witnh on- programming barcodes, so it
is unnecessary to d isable programming each
time you finish the configuration.

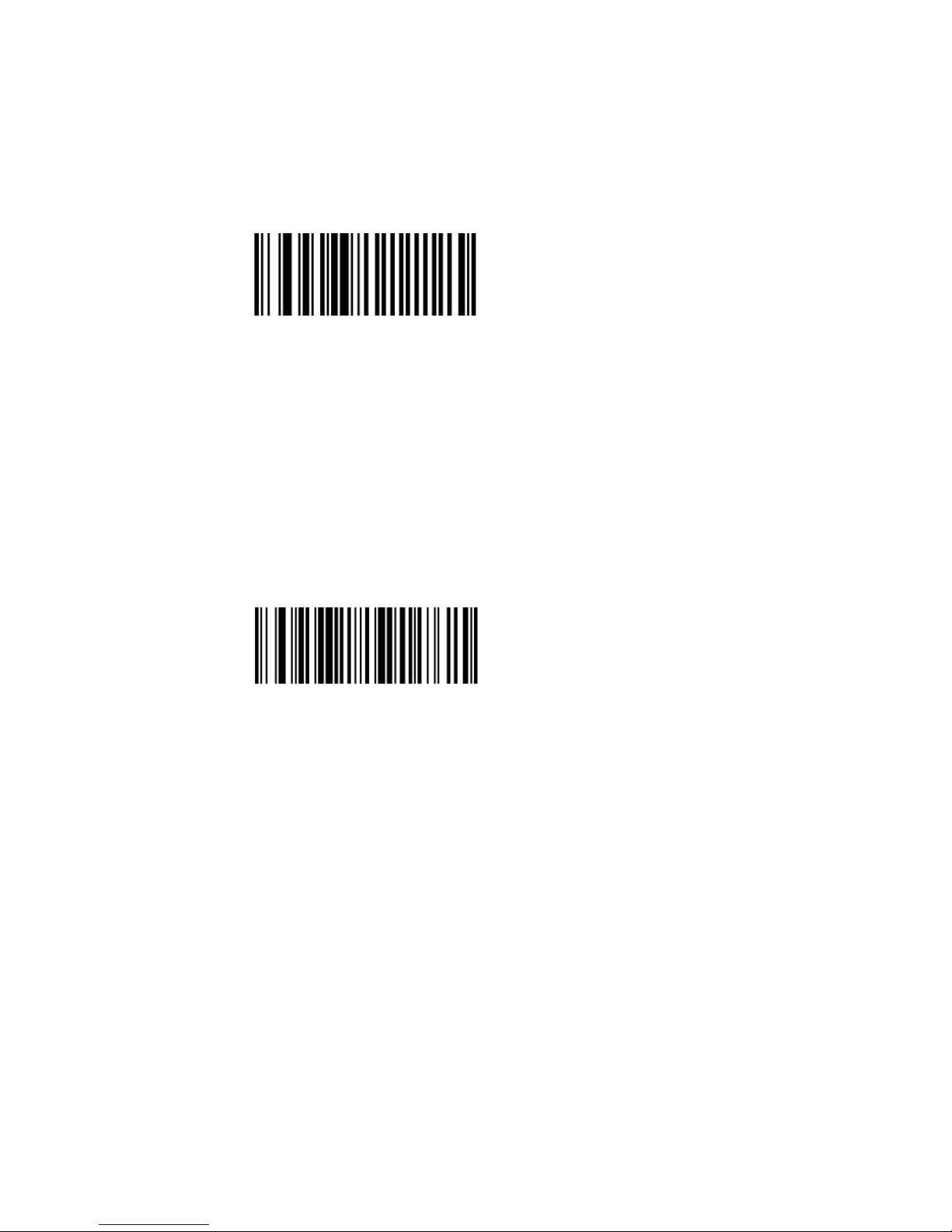

*Do Not Transmit
W060F06
W060F00
Programming Barcode Data
Transmit Programming
Barcode Data
Factory Defaults
WFFD980
Restore All Factory
Defaults
3
Scanning the following barcode can restore
the scanner to the factory defaults.
You may need to reset your scanner when:
1. scanner is not properly configured so that it
fails to decode barcodes;
2. you forget previous configuration and want
to avoid its impact;
3. functions that are rarely used have been
enabled for the time being.

Scan Mode
Example: Set the decode session timeout to 5s
1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcode “5”. (See the Digit
Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
*Manual Mode
W030000
Decode Session Timeout
M00031D
4
Decode Session Timeout: This parameter sets the
maximum time decode session continues during a
scan attempt. It is programmable in 1s increments
from 1s to 255s. The default timeout is 15s. If the
parameter is set to 0, the decode session timeout is
infinite.
Manual Mode:A trigger pull activates a decode
session. The decode session continues until the
barcode is decoded or the trigger is released or
the decode session timeout expires.

Continuous Mode
Continuous Mode
Continuous Mode: A trigger press activates the
scanner to scan and decode at user-specified
intervals, i.e. the timeout between decodes. Each
decode session lasts until barcode is decoded or
the decode session timeout expires. To
suspend/resume the operation, simply press
the trigger. By default, the scanner rereads
same barcode with no delay.
Decode Session Timeout: This parameter sets the
maximum time decode session continues during a
scan attempt. It is programmable in 1s increments
from 1s to 255s. The default timeout is 15s. If the
parameter is set to 0, the decode session timeout is
infinite.
Example: Set the decode session timeout to 5s
1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcode “5”. (See the Digit
Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
Decode Session Timeout
M00031D
W030002
5

Timeout between Decodes
Timeout between Decodes:This parameter sets
the timeout between decode sessions. When a
decode session ends, next session will not
happen until the timeout between decodes
expires. It is programmable in 0.1s increments
from 0.0s to 25.5s. The default timeout is 1.0s.
Example: Set the timeout between decodes to 5s
1. Scan the Enter Setup barcode.
2. Scan the Timeout between Decodes barcode.
3. Scan the numeric barcodes “5” and “0”.
(See the Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
M00031C
6

Reread Delay
*Reread Same Barcode
Reread Same Barcode
with a Delay
Reread Delay sets the time period before the
scanner can read the same barcode a second time.
It protects against accidental rereads of the
same barcode. This parameter is programmable
in 0.1s increments from 0.1s to 25.5s. The default
delay is 3.0s. If the parameter is set to 0, the delay
is infinite.
Note: This parameter only applies when the Reread
Same Barcode with a Delay is enabled.
Example: Set the reread delay to 5s
1. Scan the Enter Setup barcode.
2. Scan the Reread Delay barcode.
3. Scan the numeric barcodes “5” and “0”.
(See the Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
M00031E
W100A00
with No Delay
W100A10
7

Sense Mode
Decode Session Timeout
Sense Mode
Sense Mode: The scanner activates a decode
session every time when it detects a change in
ambient illumination and meets the requirement
of the image stabilization timeout. Decode
session continues until barcode is decoded or
the decode session timeout expires. A trigger
pull can also activate a decode session. By
default, the scanner rereads same barcode with
no delay.
Decode Session Timeout: This parameter sets the
maximum time decode session continues during a scan
attempt. It is programmable in 1s increments from 1s to
255s. The default timeout is 15s. If the parameter is set
to 0, the decode session timeout is infinite.
Example: Set the decode session timeout to 5s
1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcode “5”. (See the Digit
Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
W030003
M00031D
8

Image Stabilization
Image Stabilization Timeout: The scanner
waits for the image stabilization timeout
to expire before activating a decode session
every time it detects a change in ambient
illumination. This parameter is programmable
in 0.1s increments from 0.0s to 25.5s. The
default timeout is 0.4s.
Example: Set the Image Stabilization Timeout
to 5s
1. Scan the Enter Setup barcode.
2. Scan the Image Stabilization Timeout
barcode.
3. Scan the numeric barcodes “5” and “0”.
(See the Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the
Save/Cancel Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
Reread Delay sets the time period before the
scanner can read the same barcode a second time.
It protects against accidental rereads of the
same barcode. This parameter is programmable
in 0.1s increments from 0.1s to 25.5s. The default
delay is 3.0s. If the parameter is set to 0, the delay is
infinite.
Note: This parameter only applies when the
Reread Same Barcode with a Delay is enabled.
Reread Delay
M00031B
Timeout
M00031E
9

*Reread Same Barcode
with No Delay
Reread Same Barcode with No Delay: The scanner
is allowed to reread same barcode, ignoring the
Reread Same Barcode with a Delay: The scanner
is not allowed to reread same barcode before the
reread delay expires.
To disable rereads of same barcode, enable the
Reread Same Barcode with a Delay and set the delay
to 0.
Example: Set the reread delay to 5s
1. Scan the Enter Setup barcode.
2. Scan the Reread Delay barcode.
3. Scan the numeric barcodes “5” and “0”.
(See the Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
W100A00
Reread Same Barcode
with a Delay
W100A10
10

Sensitivity: This parameter specifies the degree
of acuteness of the scanner’s response to
changes in ambient illumination. The higher the
sensitivity, the lower requirement in illumination
change to trigger the scanner. You can select an
appropriate degree of sensitivity that fits the
ambient environment.
High Sensitivity
Medium Sensitivity
* Low Sensitivity
Custom Sensitivity
WFF0305
WFF0310
WFF0330
M00031A
11
Sensitivity levels range from 0 to 255. The smaller
the number, the higher the sensitivity.

Command Trigger Mode
Command Trigger Mode
Command Trigger Mode: Decode session is
activated by a host command. The decode
session continues until the barcode is decoded or
the decode session time out expires.
Decode Session Timeout: This parameter sets the
maximum time decode session continues during a
scan attempt. It is programmable in 1s increments
from 1s to 255s. The default timeout is 15s. If the
parameter is set to 0, the decode session timeout
is infinite.
Decode Session Timeout
W030001
M00031D
12

Security Level
Set Security Level to 0
Set Security Level to 1
Set Security Level to 2
Set Security Level to 3
This parameter specifies the number of times to
decode a barcode during a scan attempt. The
higher the security level, the lower the error rate
and decoding efficiency.
W030A00
W030A01
W030A02
W030A03
13

Good Read Beep
*Good Read Beep On
Good Read Beep Off
Good Read Beep Frequency
Low
*Medium
High
W041200
W041204
WFF10DA
WFF104B
WFF1025
14

Good Read Beep Duration
40ms
*80ms
120ms
WFF111F
WFF111E
WFF111D
Decode Result Notification
*Enable Decode Result
Disable Decode Result
W203120
Notification
W203100
Notification
15

Other Settings
You can change the following parameter
settings temporarily and the changes will be
lost when you power down or reboot the scanner.
Silent Mode On
*Silent Mode Off
W400000
W400040
Note: This feature is only applicable to decode
beep and will be automatically disabled when
the scanner is powered down or rebooted.
Illumination
Off
Always On
On When Scanning
W0C0000
W0C0004
W0C0008
16

Chapter 2 Communication Settings
Introduction
RS-232 Interface
The scanner provides an RS-232 interface, a USB
interface and a PS/2 interface (hardware version:
V2 or higher) to communicate with the host
device. The host device can receive scanned data
and send commands to control the scanner or to
access/alter the configuration information of the
scanner via the RS-232 or USB or PS/2 interface.
Serial communication interface is usually used to
connect the scanner to a host device (like PC,
POS). When the scanner is connected to a host
device through its RS-232 interface, you need
to set communication parameters to match the
host device.
Baud Rate
*9600
WFFD9D3
WFFD9D0
1200
2400
WFFD9D1
17

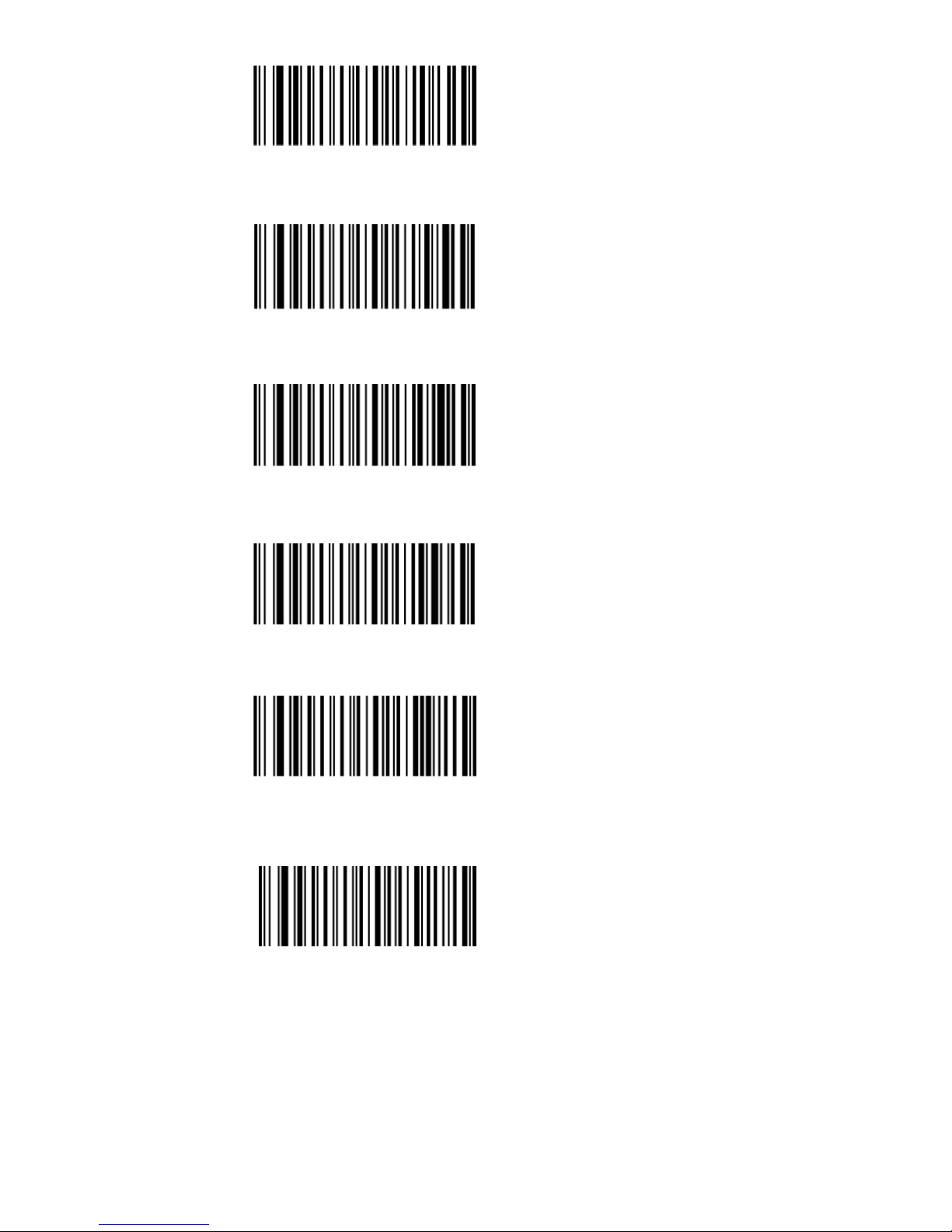

19200
38400
57600
14400
115200
4800
WFFD9D2
WFFD9D4
WFFD9D5
WFFD9D6
WFFD9D7
WFFD9D8
18
