Sunny Health & Fitness SF-T1407M User manual

MANUAL WALKING TREADMILL
SF-T1407M
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 6 for instructions on
how to properly apply lubricant.
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained,
and used properly. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 8 feet (240 CM) of free space behind it and
2 feet (60 CM) on each side. Do not place the treadmill on any surface that blocks air openings.
To protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial use.

2

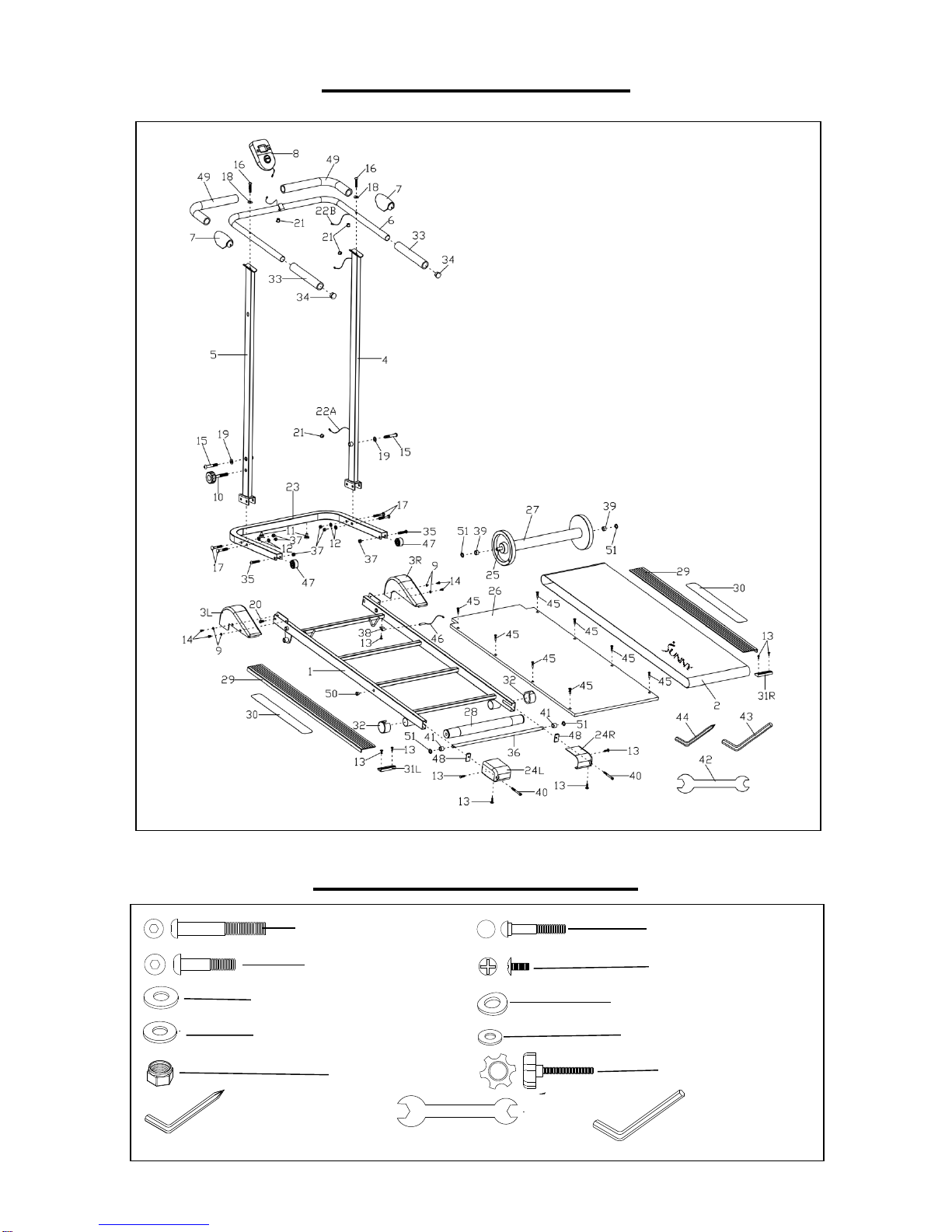

EXPLODED DIAGRAM
HARDWARE PACKAGE
#15 M10*70 2PCS
#17 M8*50 4PCS
#16 M8*35 2PCS
#14 M5*10 4PCS
#19 ID10.5*OD22 2PCS
#18 ID8.2*OD16 2PCS
#12 ID8.2*OD16 4PCS
#9 Φ5.2*Φ10*1 4PCS
#37 M8 4PCS
#10 M10*65 1PC
#44 S5 1PC
#43 S6 1PC
#42 S13-15 1PC

3
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
26
Running Board
1
2
Running Belt
1
27
Front Roller
1
3L
Left Flywheel Cover
1
28
Rear Roller
1
3R
Right Flywheel Cover
1
29
Side Rail
2
4
Right Upright Support
1
30
Anti-slip Cloth
2
5
Left Upright Support
1
31L
Left Side Rail Block
1
6
Handlebar
1
31R
Right Side Rail Block
1
7
Decorative Cover
2
32
Foot Cover
2
8
Computer
1
33
Handlebar Foam
2
9
Washer
Φ5.2*Φ10*1
4
34
End Cap
2
10
Lock Knob
M10*65
1
35
Bolt
M8×40
2
11
Foot Pad
2
36
Rear Axle
1
12
Flat Washer
ID8.2*OD16
4
37
Nylon Nut
M8
6
13
Phillips Head Screw
ST4.2×13
9
38
Inductor Fixing Seat
1
14
Phillips Head Screw
M5*10
4
39
Plastic Washer
D12.5*10
2
15
Bolt
M10*70
2
40
Adjustable Bolt
M6*75
2
16
Bolt
M8*35
2
41
Plastic Washer
D12.5*14
2
17
Carriage Bolt
M8*50
4
42
Spanner
S13-15
1
18
Arc Washer
ID8.2*OD16
2
43
Allen Wrench
S6
1
19
Flat Washer
ID10.5*OD22
2
44
Allen Wrench
S5
1
20
Bolt
M6*15
1
45
Cross Screw
ST5.5*25
8
21
Plug
4
46
Sensor Wire
1
22A
Lower Sensor Wire
1
47
Transportation Wheel
2
22B
Upper Sensor Wire
1
48
Plate for Rear Roller
2
23
Base Frame
1
49
Handlebar Foam
2
24L
Rear End Cover L
1
50
Nut
M10
1
24R
Rear End Cover R
1
51
Washer
D12.5
4
25
Front Axle
1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).

4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected]om or 1-877-90SUNNY
(877-907-8669).
STEP 1:
Note: To complete steps that involve
assembling heavy components, have a second
person help with the assembly process. For
your safety, do NOT attempt to complete these
steps on your own.
Secure the Right & Left Upright Supports
(No. 4 & No. 5) to the Base Frame (No. 23)
using 4 Carriage Bolts (No. 17), 4Flat
Washers (No. 12), and 4 Nylon Nuts (No. 37).
Tighten and secure with Spanner (No. 42).
STEP 2:
Secure the Left & Right Flywheel Covers (No.
3L & No. 3R) to the Main Frame (No. 1) using 4
Phillips Head Screws (No. 14) and 4 Washers
(No. 9). Tighten and secure with Allen
Wrench (No. 44).

5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
、
STEP 4:
Attach the Handlebar (No. 6) to the Right & Left
Upright Supports (No. 4 & No. 5) using 2 Arc
Washers (No. 18) and 2 Bolts (No. 16). Tighten
and secure with Allen Wrench (No. 44). Next,
connect the Lower Sensor Wire (No. 22A) to
the Upper Sensor Wire (No. 22B).
Open the battery cover of the Computer (No. 8),
insert 2 AA batteries, and close the cover.
Connect the Upper Sensor Wire (No. 22B) to
the link wire of Computer (No. 8) and slide
Computer (No. 8) onto the computer holder
located on the Handlebar (No. 6).
Place 2 Decorative Covers (No. 7) onto the
Handlebar (No. 6).
Screw the Lock Knob (No. 10) into the holes of
the Left Upright Support (No. 5) and Main
Frame (No. 1).
The assembly is complete!
STEP 3:
Attach the Main Frame (No. 1) to the Right &
Left Upright Supports (No. 4 & No. 5) using 2
Flat Washers (No. 19) and 2 Bolts (No. 15).
Tighten and secure with Allen Wrench (No.
43).
Connect the Lower Sensor Wire (No. 22A) to
Sensor Wire (No. 46).

6
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use!
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. 26) and Running Belt (No. 2) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Board (No. 26) and
Running Belt (No. 2) regularly. If you find any wear on the Running Board (No. 26), please
contact us at [email protected].
The following time table is recommended:
Light user (less than 3 hours/ week) once a year
Medium user (3-5 hours/ week) every six months
Heavy user (more than 5 hours/ week) every three months

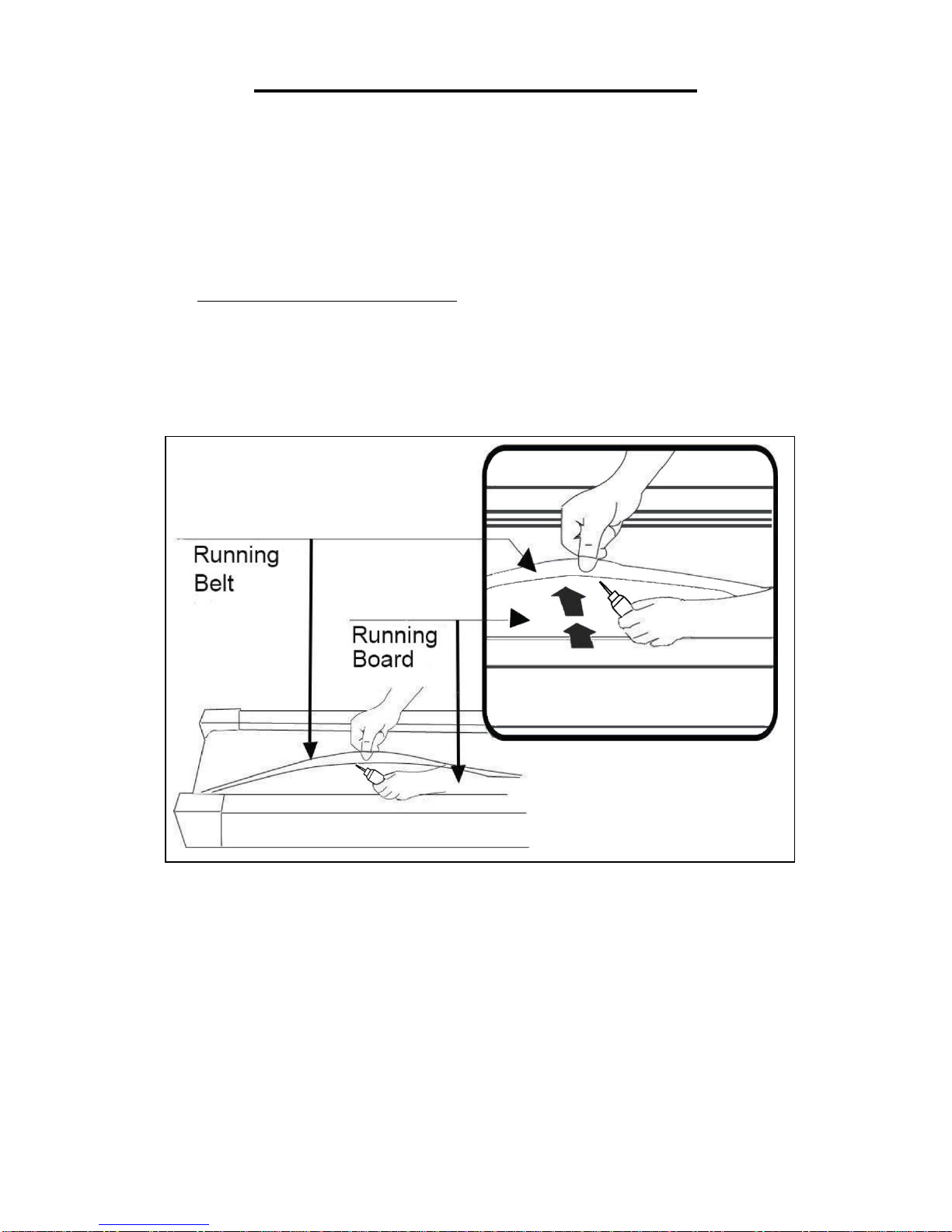

1. Raise the Running Belt (No. 2) up on one side, apply lubricant to the Running Board (No. 26).
Using a rag, thoroughly wipe the lubricant over the Running Board (No. 26) and repeat the
same process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of
the treadmill. Checking and tightening bolts in each part of the treadmill regularly is very
important.
3. To better maintain the treadmill and prolong its life, it is suggested that maintenance be done on
a regular and consistent basis.
4. A loose Running Belt (No. 2) will result in the runner sliding off when in use, while too tight of a
Running Belt (No. 2) will create more friction between the roller and Running Belt (No. 2). The
most suitable tightness for the Running Belt (No. 2) is pulled out 50-75mm from the Running
Board (No. 26).

7
MAINTENANCE INSTRUCTIONS
General cleaning will help to prolong the life and improve performance of your treadmill. Keep the
unit clean and maintained by dusting the components on a regular basis. Cleaning the two exposed
sides of the Running Belt (No. 2) will prevent dust from accumulating underneath. Keep your
running shoes clean so that dirt from the shoes does not wear the Running Board (No. 26) and
Running Belt (No. 2). Clean the surface of the Running Belt (No. 2) using a clean damp cloth.
ADJUSTING THE RUNNING BELT:
1. If the Running Belt (No. 2) moves to the right, turn the Adjustable Bolt (No. 40) on the right
side ¼turn clockwise, then turn the left Adjustable Bolt (No. 40) ¼ turn counter-clockwise. If
the Running Belt (No. 2) does not move, repeat this step until it centers.
2. If the Running Belt (No. 2) moves to the left, turn the Adjustable Bolt (No. 40) on the left side ¼
of a circle counter-clockwise, then turn the right Adjustable Bolt (No. 40) ¼ turn clockwise.If
the Running Belt (No. 2) does not move, repeat this step until it centers.
3. Over time the Running Belt (No. 2) will loosen. To tighten the Running Belt (No. 2), turn both
the left & right Adjustable Bolts (No. 40) one full turn clockwise. Check the tension of the
Running Belt (No. 2). Continue this process until Running Belt (No. 2) is at the correct tension.
Make sure to adjust both sides equally to ensure even alignment.
During exercise, if the Running Belt (No. 2) feels loose, you can tighten the Running Belt (No. 2)
a little by rotating both Adjustable Bolts (No. 40) at the same time ¼turn clockwise.If the
Running Belt (No. 2) feels too tight, you can loosen the Running Belt (No. 2) by rotating both
Adjustable Bolts (No. 40) at the same time ¼turn counter-clockwise.You can repeat this
adjustment to obtain your desired belt tightness.

8
FOLDING INSTRUCTIONS
Folding: To fold the treadmill, turn the Lock Knob (No. 10) counter-clockwise and remove it from
the lower hole of the Left Upright Support (No. 5). Raise the rear end of the Main Frame (No. 1)
all the way up to a vertical position, then insert the Lock Knob (No. 10)to the upper hole of Left
Upright Support (No. 5) and turn clockwise to tighten it. (See figure below).
Unfolding: To unfold the treadmill, turn the Lock Knob (No. 10) counter-clockwise and remove it
from the upper hole of the Left Upright Support (No. 5). Hold the rear end of the Main Frame (No.
1) and lower it all the way down to the ground, insert the Lock Knob (No.10) into the lower hole of
the Left Upright Support (No. 5) and turn clockwise to tighten.
WARNING!
1. When folding or unfolding the treadmill, always ensure that the Lock Knob (No. 10) is inserted
correctly and properly tightened.
2. For their safety, children should be kept away from the equipment, even when folded.
3. A folded treadmill should not be operated.
4. Do not fold the treadmill unit the running belt stops completely.
5. Before folding up or down, do not stand on the running board.

9
EMERGENCY DISMOUNT
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. If you
feel dizziness, nausea, chest pain, back pain, or other health symptoms, stop the workout
immediately and consult your physician before continuing.
Stand feet on the staging platforms (as shown in the figure below) and hold the handlebars tightly.
HOW TO MOVE THE TREADMILL
Before attempting to move the treadmill, please make sure that it has been properly folded.
Moving: Hold the Handlebar Foams (No. 33) with your hands, slowly tilt the treadmill back
towards your body. Once the Transportation Wheels (No. 47) touch the ground you can safely
move the treadmill to your desired location (see figure below).

10
EXERCISE COMPUTER
SPECIFICATIONS:
TIME---------------------------------------------------- 00:00-99:59 MIN: SEC
SPEED------------------------------------------------- 0.0-999.9 M (Miles) /H
DISTANCE-------------------------------------------- 0.0-999.9 M (Miles)
CALORIES-------------------------------------------- 0.0-999.9 KCAL
FUNCTION KEY:
MODE: Press to select a function. (Time, Speed, Distance, Calories).
Press and hold the MODE button for 3 seconds to reset time, distance, and calories.
OPERATION PROCEDURES:
AUTO ON/OFF:
If you begin exercising or press the MODE button, the computer will turn on. After about 4 minutes
of inactivity, the computer will automatically shut off.
RESET:
The computer can be reset by pressing and holding the MODE button for 3 seconds. Removing the
batteries will also reset the computer and return all function settings back to zero.
MODE:
To select the LOCK MODE setting, press the MODE button when the pointer is on the function you
wish to display begins to flash, then remove your finger from the button. Once locked, only the
selected function will be displayed.
FUNCTIONS:
TIME: Counts the total time of an exercise from start to finish.
SPEED: Displays the current speed being obtained.
DISTANCE: Counts the total distance of an exercise from start to finish.
CALORIES: Counts the number of total calories burned during an exercise from start to finish.
SCAN: Automatically displays functions in the following order: Time, Speed, Distance, Calories
(repeat).
BATTERY: This computer uses two AAbatteries. If there is a problem with the display, please install
new batteries. Change both batteries and do not mix battery types. Do not mix old and new
batteries. Dispose the batteries according to your state and regional guidelines.

11
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SUGGESTED ACTION
Base is unstable.
There is an object under the main
frame of the treadmill, or the
ground isn’t level.
Remove the object.
Move the treadmill to level ground.
The lock knob is loose.
Tighten the lock knob.
Noise from moving
parts.
Hardware: nuts, bolts, or screws
are loose.
Inspect hardware and tighten.
Running belt and running board
are not lubricated.
Lubricate running belt and running
board (see Pg. 6).
Running belt is not
centered.
Running belt tension is not
accurate on the left or right sides
of the running board.
Adjust the adjustable bolts, refer to
Maintenance Instructions (see Pg.
7).
The computer screen
does not display
clearly.
The batteries are low.
Replace with new batteries.
The computer does
not work at all.
One of the following sensor wires
is not connected correctly: the
Sensor Wire (No. 46), Lower
Sensor Wire (No. 22A), or Upper
Sensor Wire (No. 22B).
Check the connections of the
sensor wires, make sure they are
attached correctly.
The batteries are unreponsive.
Replace with new batteries.
Version 2.2

12
