Sunny Health & Fitness SF-T7632 User manual

SPACE SAVING FOLDING TREADMILL
SF-T7632
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using this treadmill.
DANGER–To reduce the risk of electrical shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING–To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use
and before putting on or taking off parts.
2. Use this treadmill only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
3. Never operate this treadmill if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return this treadmill to a service for examination
and repair.
4. Keep the cord away from heated surfaces.
5. Never operate the treadmill with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
9. To disconnect, turn the treadmill off, then remove plug from outlet.
10.Connect this treadmill to a properly grounded outlet only. See grounding instructions.
CAUTION:
To Avoid Injury, use extreme caution when stepping onto or off of a moving belt. Read Instruction
Manual Before Using.
SAVE THESE INSTRUCTIONS

2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained
and used properly. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk, or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you
do experience any of these conditions, you should consult your physician before continuing with
your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only, it is not intended for commercial use!

3
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys
on the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and
stray from walking in the center of the belt which may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on the side
rails while it starts up, then step onto the belt once it’s in motion.
6. Always hold the handrail when making changing settings.
7. A safety key is provided for emergency use. The treadmill will function only if the safety key is
inserted into the computer console. In case of emergency, remove the safety key to immediately
stop the belt and shut off the treadmill. The display screen will reset once the safety key is
reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This equipment is designed for adult use only! Children should not be allowed to use or play near
this equipment. When present, children should be supervised at all times by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 11 for instructions on
how to properly apply lubricant.

4
EXPLODED DIAGRAM

5
PARTS LIST
No.
Description
Specification
Qty
No.
Description
Specification
Qty
A01
Base Frame
1
C27
Safety Key
1
A02
Main Frame
1
C28
Handle Bar
Decoration Ring
2
A03
Console Bracket
1
D01
Console Display
1
A04
Motor Frame
1
D02
Control Board
1
A05
Adjustable Frame
1
D03
Keyboard
1
A06
Base Support Tube
2
D04
Top Signal Wire
1
A07
Running Board Strengthen Tube
1
D05
Middle Signal Wire
1150mm
1
B01
Front Roller
1
D06
Lower Signal Wire
1600mm
1
B02
Rear Roller
1
D07
Speed Sensor
200mm
1
B03
Spanner with Screw Driver
S=13、14、15
1
D08
DC Motor
1
B04
Allen Wrench
S5
1
D09
AC Single Line
Blue 350mm
1
B05
Locking Pin Iron
1
D10
AC Single Line
Blown 350mm
1
B06
Pressure Spring
1
D11
Power Switch
1
B07
Safety Key Plate
1
D12
Running Board
1
B08
Transport Wheel Bushing
4
D13
Magnetic Ring
1
B09
Lock Knob
1
D14
Magnetic Core
1
C01
Console Top Cover
1
D15
Power Wire
2150mm
1
C02
Console Bottom Cover
1
D16
Filter
1
C03
Left Upright Tube Cover
1
D17
AC single line
350mm
1
C04
Right Upright Tube Cover
1
D18
AC single line
350mm
1
C05
Left Upright Tube Inside Cover
1
E01
Nut
M6
6
C06
Right Upright Tube Inside Cover
1
E02
Nut
M8
6
C07
Motor Top Cover
1
E03
Bolt
M10*60
2
C08
Motor Bottom Cover
1
E04
Bolt
M8*50
2
C09
Left Rear Cover
1
E05
Bolt
M8*15
4
C10
Right Rear Cover
1
E06
Bolt
M10*90
1
C11
Motor Cover Buckle
1
E07
Bolt
M6*45
1
C12
Side Rail
2
E08
Bolt
M6*55
2
C13
Running Belt
1
E09
Flat washer C
10
2
C14
Rubber Cushion
6
E10
Bolt
M6*28
4
C15
Blue Cushion
2
E11
Bolt
M5*12
(including washer)
2
C16
Motor Belt
1
E12
Bolt
M5*8
(including washer)
16
C17
Transport Wheel
2
E13
Screw
ST4.2*12
27
C18
C Shape Foot Pad 1
2
E14
Screw
ST2.9*8
2
C19
C Shape Foot Pad 2
2
E15
Screw
ST2.9*6
9
C20
Ring Protecting Wire Plug
2
E16
Screw
ST4.2*12
6
C21
Power Wire Buckle
1
E17
Washer
6
3
C22
Cushion
1
E18
Washer
8
2
C23
Inner Cap
2
E19
Washer
M6*25
2
C24
Fixed Block
1
E20
Arc Washer
8
6
C25
Locking Pin
1
E21
Spring Washer
8
2
C26
Rubber Cushion
1
E22
Flat Washer C
8
2

6
No.
Description
Specification
Qty
No.
Description
Specification
Qty
E23
Bolt
M8*48
2
E26
Bolt
M8*60
1
E24
Bolt
M8*48
2
E27
Bolt
M6*46
2
E25
Nut
M10
1
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).

7
ASSEMBLY INSTRUCTIONS
STEP 1:
Note: We recommend having two people
do the assembly.
Open the carton box, and remove
contents. Place the Main Frame (No.
A02)on level ground. Ensure that you
have a work area that is clean and has
adequate space.

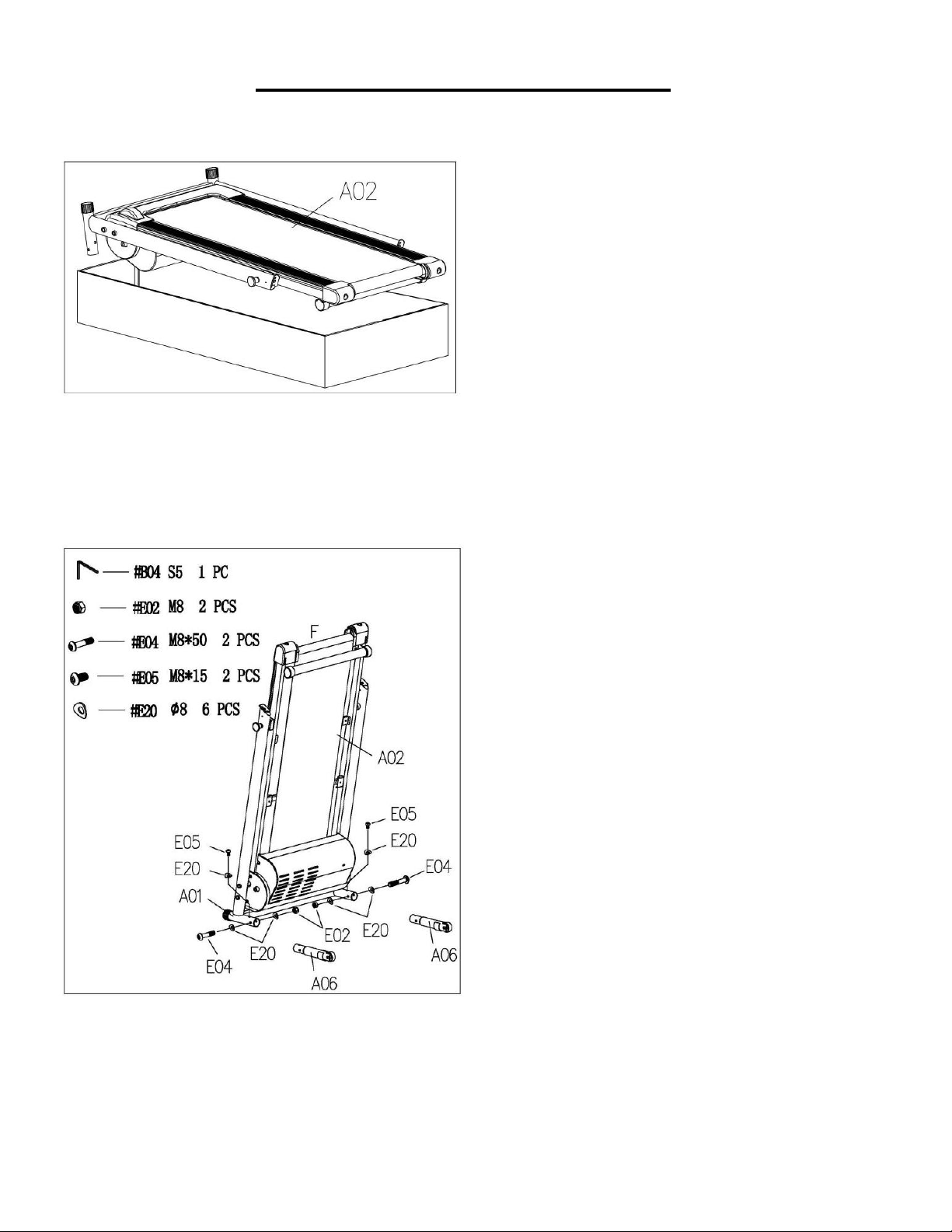

STEP 2:
Note: Support Main Frame (No. A02)
at position “F” with one hand to
prevent it from falling down during
assembly.
Attach the Left Base Support Tube
(No. A06) to Base Frame (No. A01).
Use Allen Wrench (No. B04) to screw
Bolt (No. E04) and 2 Arc Washers
(No. E20),and Nut (No. E02) into the
Base Frame (No. A01).
Then screw the Bolt (No. E05) and Arc
Washer (No. E20) into the Base
Frame (No. A01).
Repeat the step above to assemble the
Right Base Support Tube (No. A06)
to the Base Frame (No. A01).

8

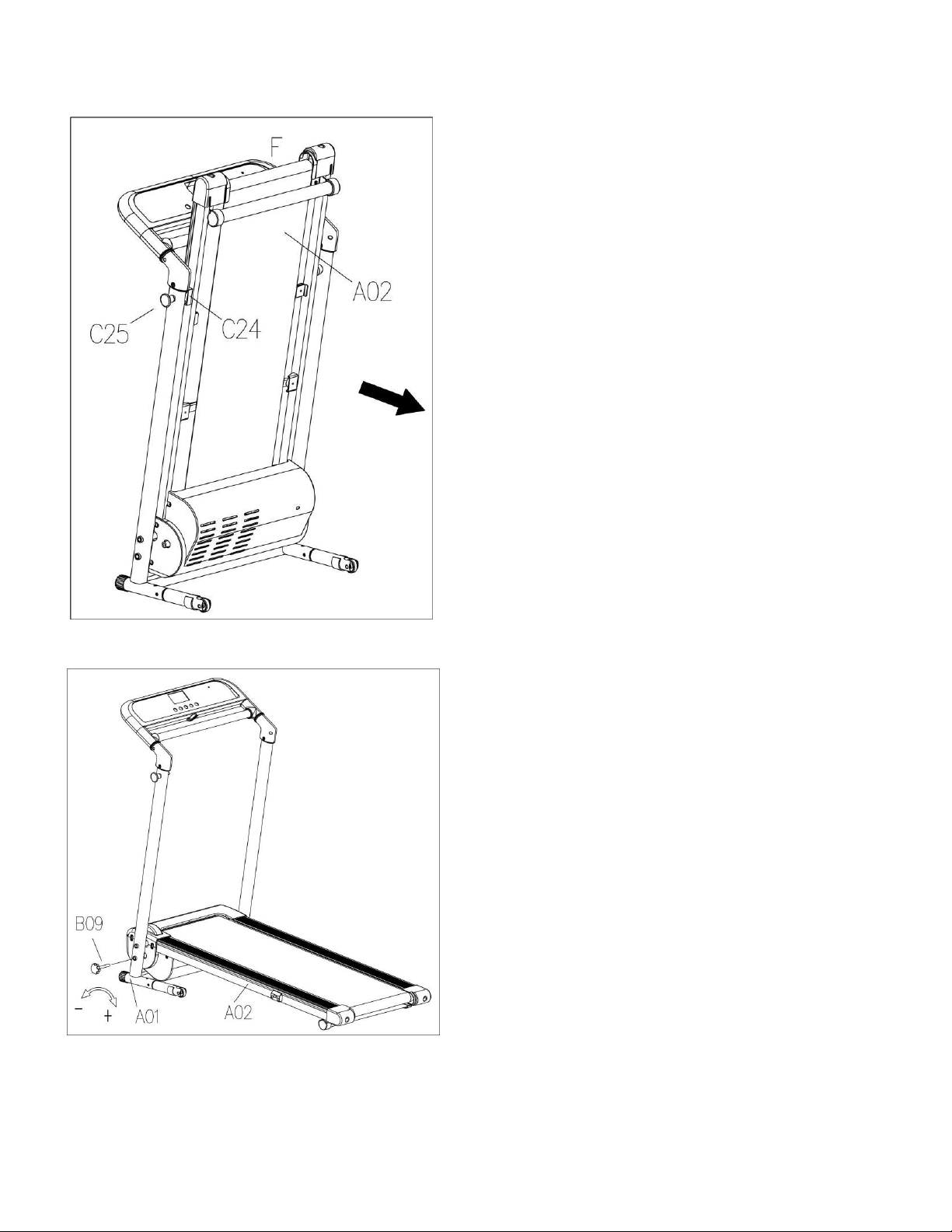

STEP 3:
Note: To avoid any possible injury, please
hold on the Main Frame (No. A02) at
position “F” before you pull the Locking Pin
(No. C25) and ensure that the space directly
underneath it is clear of any objects. Once
the Main Frame (No. A02) is released,
please continue to hold on until it reaches
the floor.
Pull the Locking Pin (No. C25) and lower
the Main Frame (No. A02) to the floor.
Note: The Locking Pin (No. C25) will snap
back into the treadmill. It does not detach
from the treadmill.
STEP 5:
Fix the Console Bracket (No. A03) to the
Base Frame (No. A01) with 2 Bolts (No.
E24). Tighten using Allen Wrench (No. B04).
STEP 4:
Connect the Top Signal Wire (No. D04) to
the Middle Signal Wire (No. D05).

9
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 11.
STEP 7:
Insert Lock Knob (No. B09).
Secure the Base Frame (No. A01) to
Main Frame (No. A02)by turning
Lock Knob (No. B09) clockwise until
tight.
The assembly is complete!

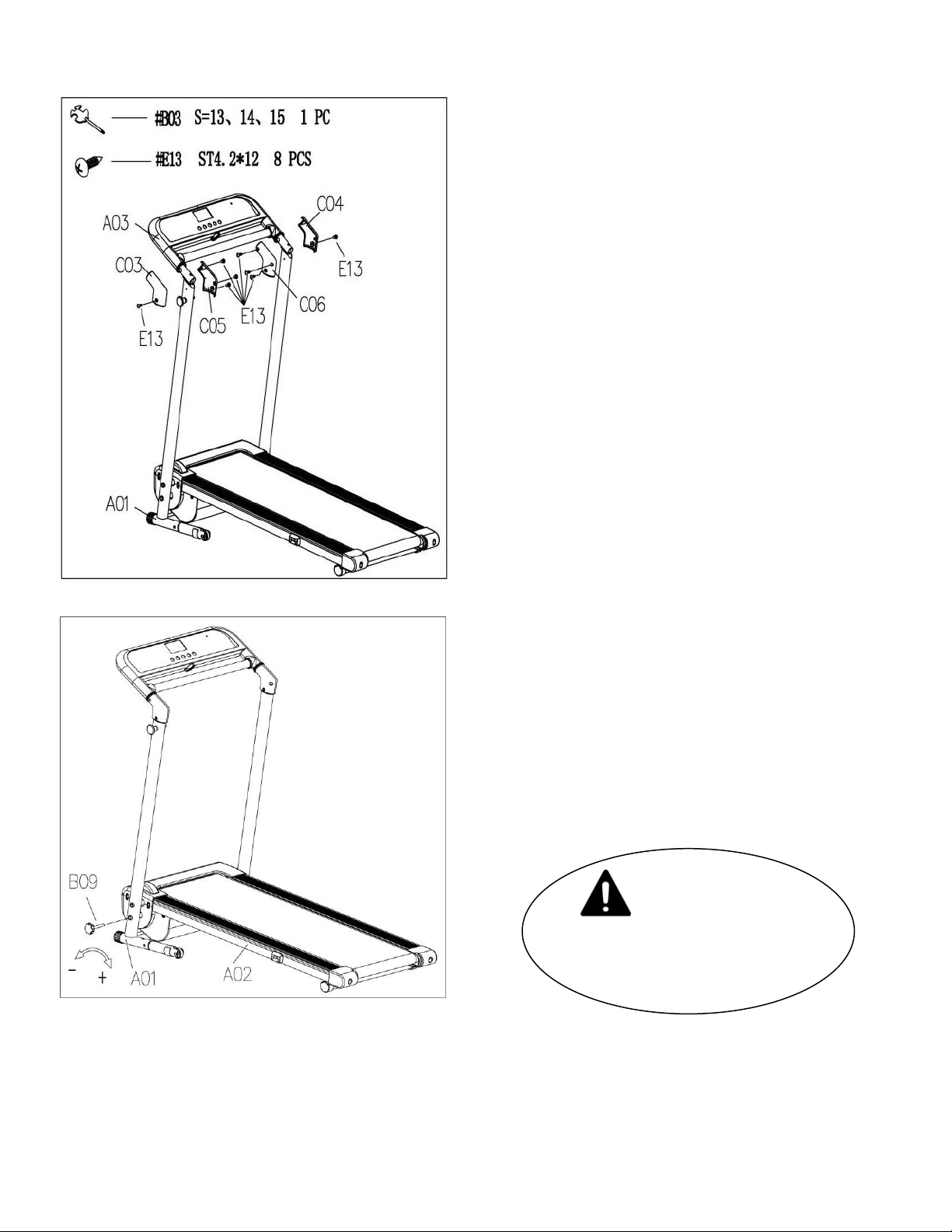

STEP 6:
Fix the Left & Right Upright Tube
Covers (No. C03 & No. C04) and Left &
Right Upright Tube Inside Covers (No.
C05 & No. C06) to the Base Frame (No.
A01) and Console Bracket (No. A03)
with 8 Screw (No. E13).Tighten using
Spanner with Screw Driver (No. B03).

10

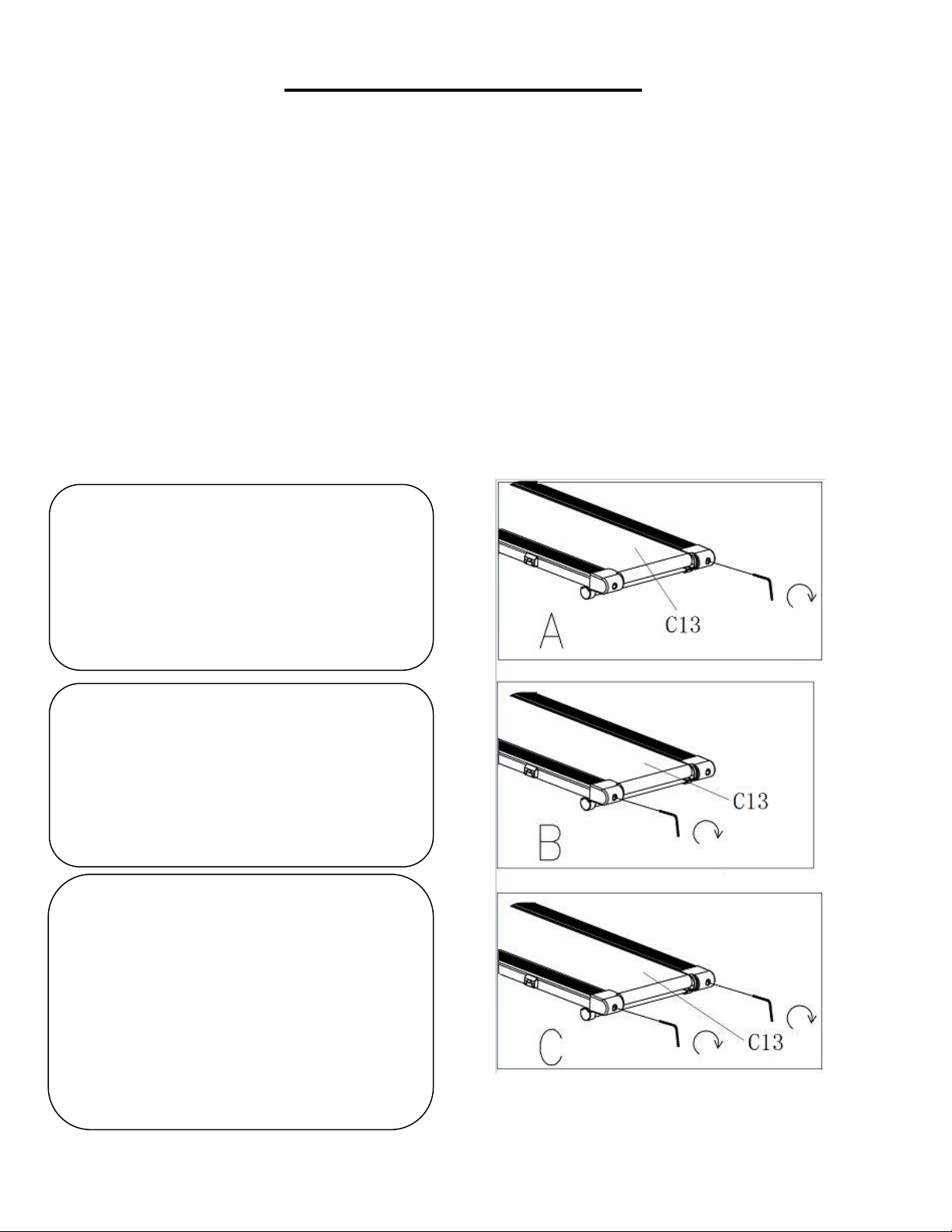

MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean
and maintained by dusting the components on a regular basis. Clean both sides of the Running
Belt (No. C13) to prevent dust from accumulating underneath. Keep your running shoes clean so
that dirt from your shoes does not wear out the Running Board (No. D12) and Running Belt (No.
C13). Clean the surface of the Running Belt (No. C13) with a clean damp cloth.
To better maintain the treadmill and prolong its life it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.
Aloose Running Belt (No. C13) will result in the runner sliding off when running, while too tight of
a Running Belt (No. C13) will negatively affect the motor’s performance and also create more
friction between the roller and Running Belt (No. C13). The most suitable tightness for the
Running Belt (No. C13) is pulled out 50-75mm from the Running Board (No. D12).
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5MPH to check if the Running Belt (No. C13)
drifts.
1. If the Running Belt (No. C13) moves
to the right, turn the adjusting bolt on the
right side ¼turn clockwise, then turn the
left adjustment bolt ¼ turn
counter-clockwise. If the Running Belt
(No. C13) does not move, repeat this
step until it centers. Refer to Figure A.
2. If the Running Belt (No. C13) moves
to the left, turn the adjusting bolts on the
left side ¼turn clockwise, then turn the
right adjustment bolt ¼ turn
counter-clockwise. If the Running Belt
(No. C13) does not move, repeat this step
until it centers. Refer to Figure B.
3. Over time,the Running Belt (No.
C13) will loosen. To tighten the Running
Belt (No. C13) turn the Left & Right side
adjustment bolts one full turn clockwise,
check the tension of the Running Belt
(No. C13). Continue this process until
Running Belt (No. C13) is at the correct
tension. Make sure to adjust both sides
equally to ensure correct belt alignment.
Refer to Figure C.

11
LUBRICATING THE TREADMILL
*IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Board (No. D12) and Running Belt (No. C13) is essential as the friction
between the two affects the life span and function of the treadmill, therefore it is suggested that the
Running Board (No. D12) and Running Belt (No. C13) be inspected regularly. Should you find
any wear on the Running Board (No. D12), please contact us at:
[email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating
or repairing the unit.
HOW TO LUBRICATE:
1. Raise the Running Belt (No. C13) up on one side and apply lubricant to the Running Board
(No. D12). Use a rag to thoroughly wipe the lubricant over the Running Board (No. D12). Repeat
this process for the other side.
2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the safety
of the equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be
done on a regular basis.
Recommended Time Table:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months

12
FOLDING INSTRUCTIONS
FOLDING:
Loosen the Lock Knob (No.
B09) counter-clockwise and pull
it out. Fold up the Main Frame
(No. A02).
Notice: Remember where you
keep the Lock knob (No. B09)
after you pull it out. You will need
it when you unfold the treadmill.
Pull out the Locking Pin (No.
C25) with one hand, then lift up
the Main frame at position “F”
with another hand till the Locking
Pin (No. C25) snaps into the hole
of Fixed Block (No. C24).

13
UNFOLDING:
Note: Before lowering the Main
Frame (No. A02), ensure that
the space directly underneath it
is clear of any objects.
To avoid any possible injury,
please hold on the Main frame
(No. A02) at position “F” before
you pull the Locking pin (No.
C25).Once the Main frame
(No. A02)is released, continue
to hold on at position “F” until it
reaches the floor.
Secure Base frame (No. A01)
into Main frame (No. A02)by
inserting Lock knob (No. B09)
and turning clockwise until tight.

14
HOW TO MOVE THE MACHINE
Before attempting to move the
treadmill, please make sure
that it has been properly folded.
Unplug the power cord.
To tilt, start by placing one hand
at position “P”to support the
top end of the treadmill. Next,
place one foot at position “K”to
hold the bottom end of the
treadmill steady. With your foot
at “K”, slowly tilt the top of the
treadmill downward towards
the ground. Once the Main
Frame “P”reaches a low
enough point, the wheels of the
treadmill touch the ground.
To transport, hold the treadmill
from position “P”and tilt until the
wheels “K”are able to move on
the ground.

15
HOW TO USE SAFETY KEY
Secure Base frame (No. A01) into Main frame (No. A02) by inserting Lock knob (No.
B09) and turning clockwise until tight.
Insert the Safety Key (No. C27) into the magnetic area of the Console Display (No.
D01) and clip to your clothes.
Note: In an emergency, pull out the Safety Key (No. C27), and the treadmill will stop.

16
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 8 amps (100-120 V) in order to
properly operate. For your safety, as well as the safety of others, verify that the power source is
correct before plugging the equipment. Any power source above or below this level could cause
significant damage to the equipment and or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical current and
will reduce the risk of electric shock. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances. Ensure that the
product is connected to an outlet which contains the same configuration as the plug. Do not use an
adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the
plug illustrated in sketch A. Make sure that the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric shock.
Check with a certified electrician if you are in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet
installed by an electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near pools or in any other high humidity environment.
GROUNDING METHOD

17
THE DISPLAY CONSOLE
DISPLAY
SPEED:Displays current speed (range 0.5-7.0MPH). When in setting mode, the window displays
H-1, H-2, H-3.
TIME: Display running time. Display the exercise time from 0:00-99:59 MINS. If the time reaches
99:59, the treadmill will stop smoothly and display “End”and will enter into standby mode after 5
seconds. When in countdown mode, it will count from the setting time to 0:00. When down to 0:00,
the treadmill will stop smoothly and show ‘End ’, and will enter into standby mode after 5 seconds.
DISTANCE: Displays the distance traveled (range 0.00-99.9 MILES). When the clock reaches 99.9,
it will reset to 0.00 and begin counting again from 0.0. When in countdown mode, it will count down
from the distance you set to 0.00. When it reaches 0.00, the machine will stop smoothly and display
“End”,then enter into the standby mode after 5 seconds.
CALORIES: Displays user’s calories burned (range 0-999 calories). When it reaches 999, it will
start again from 0. In countdown mode, it will count from the number of calories you set to 0. When
it reaches 0, the machine will stop smoothly and show ‘End ’, and then enter into standby mode
after 5 seconds.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME(MIN:SECOND)
0:00
15:00
5:00-99:00
0:00－99:59
SPEED(MPH)
0.5
0.5
0.5-7.0
0.5-7.0
DISTANCE(MILE)
0
1.0
0.5-99.9
0.0－99.9
CALORIE(KCAL)
0
50
10-999
0－999

18
FUNCTION KEYS
START: To start the treadmill, insert the magnet end of the safety key into the computer console
then press the START button. This treadmill requires the Safety Key in order to start. 0.5 MPH is the
default start speed.
STOP: This button can PAUSE and STOP.When in use, press this button once to PAUSE your
workout and the current workout data will still be shown. Press STOP again to end your workout
session and all data from this session will be deleted.
MODE: Press this button to select a MODE. Pressing once will enter H1, the TIME countdown
mode starting from 15:00 MINS. H2 is the DISTANCE countdown mode starting from 1.00 MILE
and H3 is the CALORIES countdown mode which starts from 50 KCAL. When setting each mode,
you can press +/- to increase or decrease the preset H1, H2, H3 settings then press START to start
the machine.
SPEED +/ SPEED –:Press the SPEED +/- buttons to increase or decrease the speed in
increments of 0.1 MPH. Pressing and holding either of these buttons for a duration of over 0.5
second will increase or decrease the speed continually.
LUBRICATION REMINDER
Your treadmill needs lubrication maintenance every 188 miles. When it is time for maintenance, the
treadmill beeps every 10 seconds and displays an “OIL” icon on your LCD display. Please read the
LUBRICATING THE TREADMILL on Page 11 to learn the proper steps to lubricating your treadmill.
Apply the lubricating oil to the middle of the running board on both sides. After application, press
and hold the STOP button for 3 seconds to clear the reminder.

19
TREADMILL FUNCTIONS
SAFETY LOCK FUNCTION:
Removeing the Safety Key (No. C27)from the computer console while the treadmill is running and
the treadmill will stop immediately. Once the treadmill reaches a full stop, the display will show “- - -”
and the buzzer will beep 3 times. To start the treadmill again, insert the magnet end of the Safety
Key (No. C27)into the computer console and press the START button.
POWER SAVE FUNCTION:
When the treadmill has been idle for 10 minutes, it will enter Power Saving Mode. While the
treadmill is in this mode, the display will be turned off. To turn it back on, press any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at anytime, including while the treadmill
is in use.
SAFETY NOTE:
1. We recommend that you maintain a slow speed at the beginning of a session and hold the
handrails until you become familiar with the treadmill.
2. Insert the magnet end of the Safety Key (No. C27) into the computer console and clip the safety
clip to your clothing before starting your workout. To end your workout, press the STOP button or
remove the Safety Key (No. C27)and the treadmill will stop immediately.
EXERCISE INSTRUCTIONS
GETTING STARTED:
Get to know your treadmill. Before attempting to use the treadmill, take some time to familiarize
yourself with the controls. Once you get on, stand with your feet on the side rails and stabilize
yourself by holding onto the handrails.
Next, attach the clip end of the Safety Key (No. C27)to your clothes and insert the magnetic end of
the key into the computer console. Press the START button to start the treadmill. The treadmill will
start at the system default setting speed of 0.5 MPH. Step onto the belt. When you feel comfortable,
slowly increase this speed. When you are finished with your workout, press the STOP button to
stop the treadmill or you can remove the magnetic end of the Safety Key (No. C27) to stop the
treadmill.
