Sunny Health & Fitness SF-TD7704 User manual

TREADMILL DESK
SF-TD7704
USER MANUAL
IMPORTANT:
Read all instructions carefully before using this product. Retain this manual for future
reference. For customer service, contact [email protected]

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk, or
prevent you from using the equipment properly. Your physician’s advice is essential if you
are taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60 CM) of free space
all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, stop using the equipment immediately and don’t use the
equipment until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.The equipment is not suitable for therapeutic use.
11.You must take care of yourself when lifting and moving the equipment. Always use proper
lifting technique and seek assistance if necessary.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only! It is not intended for commercial
use!
WARNING : This product can expose you to one or more chemicals known to the
State of California to cause cancer and birth defects or reproductive harm. For more
information go to www.P65Warnings.ca.gov.

2

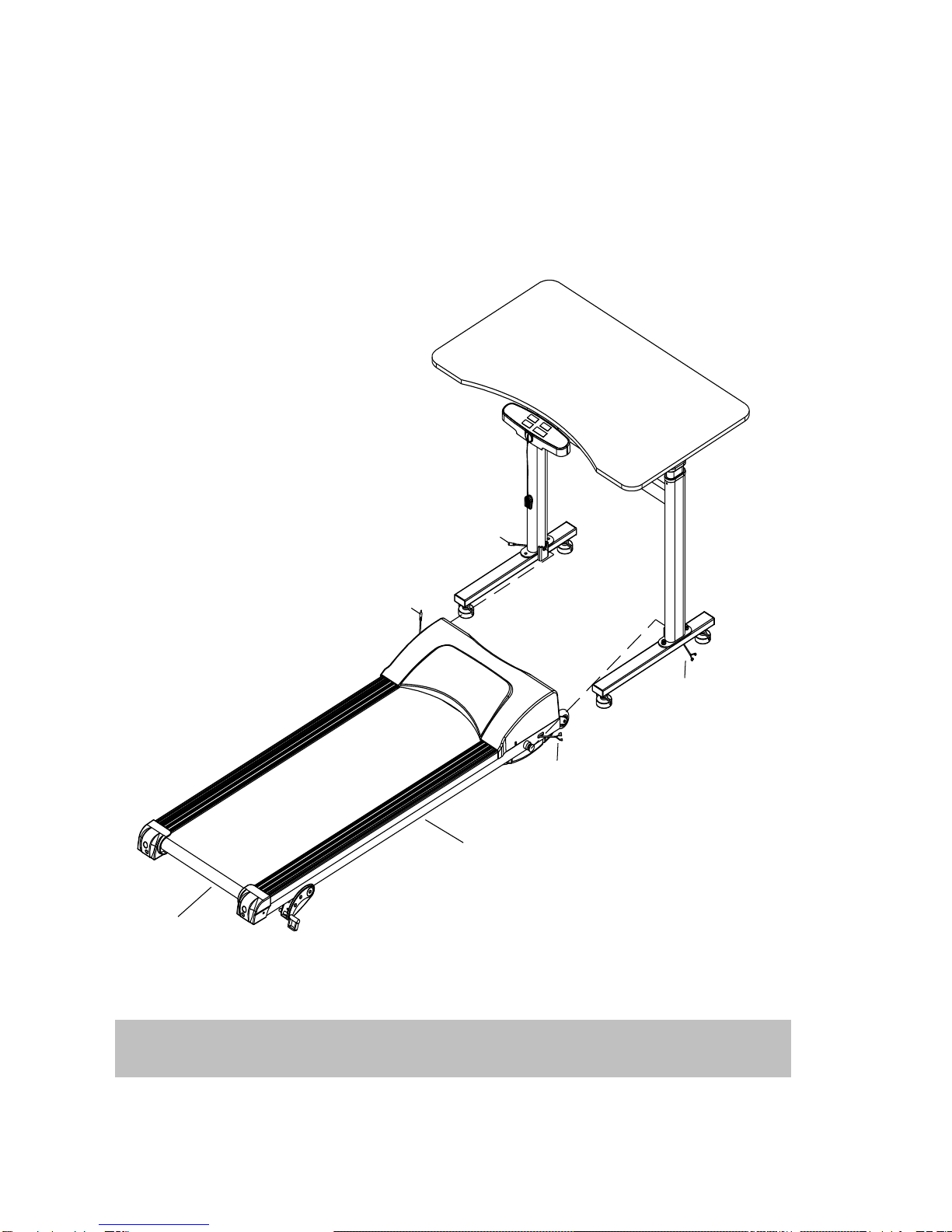

EXPLODED VIEW
1
3
5
6
9
9
10
10
11
11
12
12
12
12
13
14
15
16
18
18
23
23
23
22
24
24
25
25
25
25
26
26
26
26
26
26
26
27
27
28
28
29
29
29
29
29
31
31
31
32
32
34
34
34
34
35
35
37
36
38
39
34
34
34
34
31
41
41
42
42
42
42
42
43
43
43
43
44
45
45
46
46
49
50
52
52
49
50
52
52
53
53
54
54
55
55
56
56
57
58
59
60
61
62
63
64
65
66
66
69
71
71
72
73
74
75
76
76
77
77
78
78
78 78
78
78
80
81
82
84
86
87
88
88
88
88
89
89
90
90
91
91
91
91
93
92
95
96
98
99
81
100
101
102
103
104
106
105
97
107
108
19
20
7
7
51
4
40
40
40
40
90
90
8
70
8
70
8
70
8
70
2R
2L
17
17
34
34
31
31
47
47
110
109
111
111
31
31
31
112
113
108
43
43
43
83
83
114
82
60 58
57
62
92
92
59 61
93
34
34
34
34
34
44
63
21
68
67
30
32
32
72

3
PARTS LIST
ITEM NO.
DESCRIPTION
QTY
ITEM NO.
DESCRIPTION
QTY
1
Main Frame
1
29
Bolt M5*12
5
2 L/R
Left & Right Bottom Bar
2
30
Bolt ST3.0*8
2
3
Bottom Upright Bar
1
31
Nylon Nut M8
10
4
Computer Frame
1
32
Nylon Nut M6
4
5
Motor Base
1
34
Flat Washer D8
24
6
Reinforce Tube Of Running
Board
1
35
Spring Washer D8
4
7
Support Horizontal Tube
2
36
Front Roller
1
8
Foot Pad Regulator Base
M10
4
37
Rear Roller
1
9
Upright Bar
2
38
Allen Wrench S6
1
10
Inner Upright Tube
2
39
Cross Open End Wrench
13*14*15
1
11
Lifting Pipe
2
40
Bolt M8*40
4
12
Fixed Plate For Lifting
4
41
Bolt M6*20
2
13
Support Group For Table
1
42
Bolt M8*10
12
14
Long Outer Hexagonal Rods
1
43
Screw ST4.2*12
12
15
Bolt M8*100
2
44
Screw M6*30
2
16
Bolt M8*30
1
45
Flat Washer Φ6.5*Φ16*1
2
17
Bolt M8*48
2
46
Spring Washer D=6
2
18
Bolt M8*40
2
47
P Shape Fixed Bolt
2
19
Membrane Switch
1
49
Screw M4*28
8
20
Incline Motor
1
50
Nylon Nut M4
8
21
Bolt M4
2
51
Square Boat Switch
1
22
Bolt M8*35
2
52
Screw M5*48
8
23
Bolt M6*60
3
53
Limit Block
2
24
Bolt M6*35
2
54
Screw
2
25
Bolt ST4.8*25
4
55
Nylon Nut M5
4
26
Bolt ST4.2*12
4
56
Deep Groove Ball Bearing
6001RS
2
27
Bolt ST4.2*12
2
57
Spiral Bevel Gear 1
2
28
Bolt ST4.2*20
2
58
Spiral Bevel Gear 2
2

4
59
Central Spindle
2
87
Bottom Cover For Console
1
60
Copper Sheathing
2
88
Square Tube Plug 38*38
4
61
Deep Groove Ball Bearing
6802Z
2
89
Cap
2
62
Flat Washer Φ20*Φ23*1
2
90
Square Tube Plug 25*50
4
63
E Shape Snap Ring
2
91
Hollow Oval Tube Plug
4
64
Table
1
92
Plastic Box 1
2
65
Screw ST2.5*7
5
93
Plastic Box 2
2
66
Screw ST4.2*15
6
95
Running Belt (5400-S06)
1
67
Flat Washer Φ4.5*Φ10*1
4
96
Running Deck (5400-S07)
1
68
Spring Gasket D=4
2
97
Safety Key
1
69
Screw M4*15
4
98
Power Line
1
70
Adjustable Foot Pedal
M10*30
4
99
Over Current Protector
1
71
Plastic Screw Block
2
100
DC Motor
1
72
Plastic Wrap
2
101
Magnet Ring
2
73
Cross Section Shape
1
102
Power Cable
1
74
Top Motor Cover
1
103
Power Cable
1
75
Bottom Motor Cover
1
104
Power Cable
1
76
Edge Strip
2
105
Upper Controller
1
77
Left & Right Square Bar
2
106
Controller
1
78
Cushion Rubber
Φ29.5*Φ10*6
6
107
Bottom Signal Line
1
79
Thread Plug
1
108
Middle Signal Wire
1
80
Eva Pad
1
109
Middle Incline Power Cable
1
81
Rear Wheel
Φ70*Φ8.5*23mm
2
110
Bottom Incline Power Cable
1
82
Felt Bushing
2
111
Rubber
2
83
Plastic Adjustable Foot Pedal
2
112
Computer Signal Wire
1
84
Ribbed Belt
1
113
Signal Wire
1
86
Upper Cover For Console
1
114
Incline Signal Wire
1

5
HARDWARE PACKAGE
When you open the carton, you will find the below parts.
1
97
A
2L/R
B
38&39
C
31
34
40
42
ITEM NO.
NAME
SPECIFICATION
QTY
1
Main Frame
1pc
97
Safety Key
1pc
A
Oil
1pc
2L/R
Left & Right Bottom Bar
2 pc
B
Upright Assembly
1pc
38&39
Tool Box
1 set
C
Table
1 pc
31
Nylon Nut
M8
4 pcs
34
Flat Washer
D8
8 pcs
40
Bolt
M8*40
4 pcs
42
Screw
M8*10
4 pcs
NOTE
•Read this manual before assembly.
•Check that you have all the parts for assembly.
•Check the hardware.
•Ensure that you have the right tool.
•Prepare an area to assemble.
•Follow the instructions accordingly.
•Never force the joints.
•Keep this manual for future reference

6
ASSEMBLY INSTRUCTIONS
STEP 1:
We recommend having 2 people to do the assembly. Always use proper lifting technique to
prevent injuries.
Open the carton, take out the parts, and put the Main Frame (No. 1) on level ground.
1
STEP 2:
Keeping the wire straight, insert Middle Signal Wire (No. 108) into the hole of the Right
Bottom Bar (No. 2R).
Keeping the wire straight, insert Middle Incline Power Cable (No. 109) into the hole of the
Left Bottom Bar (No. 2L).
2L
2R

7
Secure the Upright Assembly (No. B) to Left & Right Bottom Bar (No. 2L/R) with 4 Bolts
(No. 40), 4 Flat Washers (No. 34) and 4 Nylon Nuts (No. 31).
34
31
34
31
40
40
40
40
34
31
34
31
2L
2R
B
STEP 3:
Place the Table (No. C) on the floor. Secure and lock the Upright Assembly (No. B) to the
Table (No. C) with 4 Screws (No. 42) and 4 Flat Washers (No. 34).
Connect the Incline Signal Wire (No. 114)with the Signal Wire (No. 113).
Connect the Middle Signal Wire (No.108) with the Computer Signal Wire (No. 112). Place
the Table (No. C) and Upright Assembly (No. B) right side up on the ground.
34
42
34
42
113
112
108
114
B
C

8
STEP 4
Hold the Rear Roller (No. 37) and lift the Main Frame (No. 1) until the wheels are able to
move on the ground.
Move the Main Frame (No. 1) under the Table (No. C),and make sure the knobs on the
sides of the Main Frame (No. 1) fit into the slots on the Left Bottom Bar (No. 2L).See figure
below.
Connect Middle Incline Power Cable (No. 109) and Bottom Incline Power Cable (No. 110).
Connect Middle Signal Wire (No. 108) with Signal Wire (No. 107).
109
110
108
107
2L
37
STEP 5
Tighten all screws and insert the Safety Key (No. 97).
97

9
HOW TO MOVE THE TREADMILL
Disconnect Middle Incline Power Cable (No. 109) and Bottom Incline Power Cable (No.
110).
Disconnect Middle Signal Wire (No. 108) with Bottom Signal Line (No. 107).
Hold the Rear Roller (No. 37) and lift the Main Frame (No. 1) until the wheels are able to
move on the ground.
107
108
110
109
37
1
Noted：Check all the parts are fastened or tightened before using.

10
GROUNDING METHODS
This product power must be grounded. Should the treadmill malfunction or breakdown,
grounding provides a path with the least resistance for electric current to reduce the risk of
electric shock. This product is equipped with a plug that has an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
DANGER –Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the product –
if it will not fit the outlet; have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-volt circuit and has a grounding plug that looks like
the plug illustrated in sketch A in following figure. Make that the product is connected to an
outlet having the same configuration as the plug. No adapter should be used with this product.

11
MAINTENANCE AND ADJUSTMENTS
Warning: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET
BEFORE CLEANING OR SERVICING THE UNIT.
Warning: Always unplug the treadmill from the electrical outlet before removing the
motor cover. At least once a year remove the motor cover and vacuum under the motor
cover.
RUNNING BELT AND DECK LUBRICATION
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck
friction may play a major role in the function and life of your treadmill, thus requiring periodic
lubrication. We recommend a periodic inspection of the deck. You need contact with our
service center if you find the damage of the deck.
We recommend lubrication of the deck according to the following timetable:
➢Light user (less than 3 hours/ week) annually
➢Medium user (3-5 hours/ week) every six months
➢Heavy user (more than 5 hours/ week) every three months
Attention:
General cleaning will help prolong the life and performance of your treadmill. Keep the unit
clean and maintained by dusting the components on a regular basis. Clean both sides of the
running belt to prevent dust from accumulating underneath the belt. Keep your running shoes
clean so that dirt from your shoes do not wear out the running board and belt. Clean the
surface of the running belt with a clean damp cloth.
➢To better maintain the treadmill and prolong its life it is suggested that the machine be
powered off for 10 minutes every 2 hours and fully powered off whenever not in use.
➢A loose Running Belt will result in the runner sliding off when running, while too tight of a
Running Belt will result in decrease to the motors performance and also create more friction
between the roller and running belts. The most suitable tightness for the belts is pulled out
50-75mm from the Running Board.

12
CENTERING THE RUNNING BELT
Place the treadmill on level ground and set it at 6-8 mph to check if the Running Belt drifts.

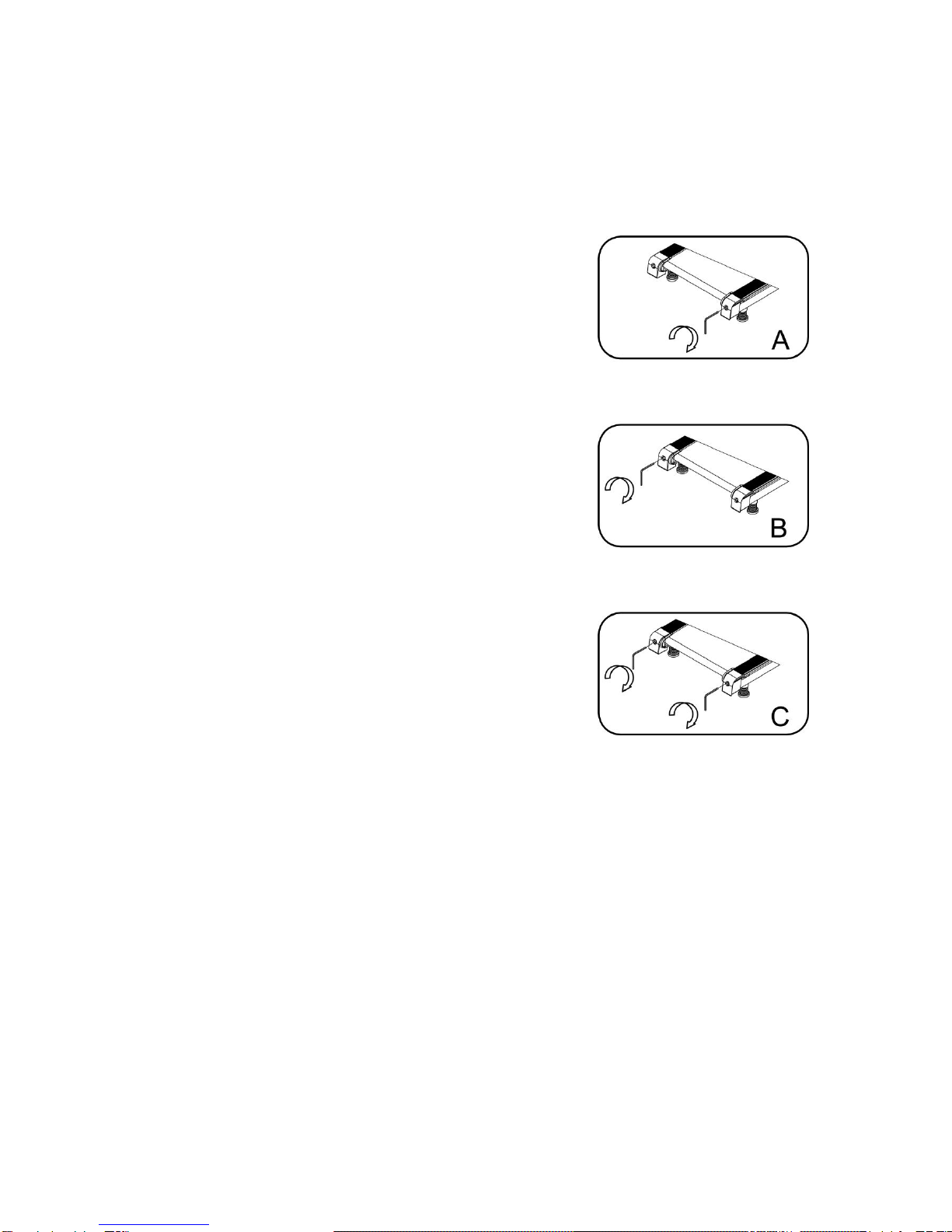

If the belt drifts to the right, turn off the switch first, turn
the right adjusting bolt 1/4 turn clockwise, then turn the
left adjusting bolt 1/4 turn counter-clockwise until the
belt is centered. Refer to PIC –A.
If the belt drifts to the left, turn off the switch first, turn the
left adjusting bolt 1/4 turn clockwise, then turn the right
adjusting bolt 1/4 turn counter-clockwise until the
belt is centered.. Refer to PIC –B.
Over time, the belt will loosen. To tighten the belt, turn
both the left & right side adjustment bolts one full turn
clockwise. Check the tension of the belt. Continue this
process until belts is at the correct tension. Make sure to
adjust both sides equally to ensure even belt alignment.
Refer to PIC –C.

13
COMPUTER OPERATION GUIDE
I. START
Display will countdown 3 seconds before starting.
II. SAFTY KEY FUNCTION
If you remove the safety key, the meter will show “---” and beep. The treadmill will stop. Insert
the safety key back, the data will be all cleared.
III. BUTTON FUNCTION
START/STOP
To start the machine, insert the magnet end of the safety key into the computer console then
press the START button. The safety key must be inserted for the treadmill to function. 0.6
MPH is the default start speed.
Press “STOP”button to stop, and all the data will be cleared.
SPEED +/ SPEED –
Press the SPEED +/- buttons to increase or decrease the speed in increments of 0.1 MPH.
Pressing and holding either of these buttons for a duration of over 2 seconds will increase or
decrease the speed continually.
HEIGHT +/ HEIGHT -
Press this button to increase or decrease the height of treadmill table with 1% rising or falling
each time.
SPEED SHORTCUT BUTTON
Press the button to adjust the corresponding speed automatically. “1”stands for 1 M/H.
IV. WINDOW DISPLAY
PROGRAMS
Setting Range
Initial Value
Indication Range
Min:Sec
Note
Time
N/A
N/A
00:00—99:59
Min:sec
N/A
Speed
N/A
0.6
0.6—6.0
M/H
0.6—6.0
Distance
N/A
N/A
0.0—99.90
M/H
N/A
Calorie
N/A
N/A
0.00--999
CAL
N/A

14
V. TROUBLESHOOTING
Error Code
Error Description
Solution
E01/E10
Message failure between
computer and control board
Check if the computer and control board wire are connected.
Check if the wires are damaged. If they are, change the wire.
Check if IC on bottom control board or computer is damaged. If
they are ok, change the control board or computer.
E02
The controller fails to detect
the motor voltage
Make sure the motor wire is connected to the control board
Check if the motor has any burned smell or not. If yes, change
it.
E05
Current overload protection
The incoming voltage is too low or too high. The control board
is damaged.
Restart the treadmill.
Check the incoming voltage to ensure it is correct.
Check the control board, replace if damaged.
Amoving part of the treadmill is stuck and therefore the motor is
unable to rotate properly.
Inspect moving parts of the treadmill to ensure that they are
operating correctly.
Check the motor, listen for strange noise and check for a
burning smell. Replace the motor if necessary.
E06
Explosion-Proof Protection
Some unusual condition of power or voltage that cause damage
to the motor drive circuit or motor fault.
The power voltage is less than normal by 50% or the controller
has some problems.
Make sure the motor wire is connected.
E09
Undervoltage protection
Check if the110V AC supply circuit or the supply voltage is
normal.
Change the controller.
‘---’
Safety key not in place
Insert the safety key properly.
Replace the safety key or the computer.
Version 2.2
