Sunny Health & Fitness SF-T7603 User manual

SF-T7603 TREADMILL
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product.
Retain owner’s manual for future reference. For customer service, please
contact: [e-mail]

1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including
the following:
Read all instructions before using (this appliance).
DANGER –To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING–To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when
not in use, and before putting on or taking off parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and cause fire,
electric shock, or injury to persons.
3. Close supervision is necessary when this appliance is used by, on, or near children,
invalids, or disabled persons.
4. Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly,
if it has been dropped or damaged, or dropped into water. Return the appliance to a service
center for examination and repair.
6. Do not carry this appliance by power cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air openings free of
lint, hair, and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being used or where oxygen is
being administered.
12. To disconnect, turn all controls to the off position, then remove plug from outlet.

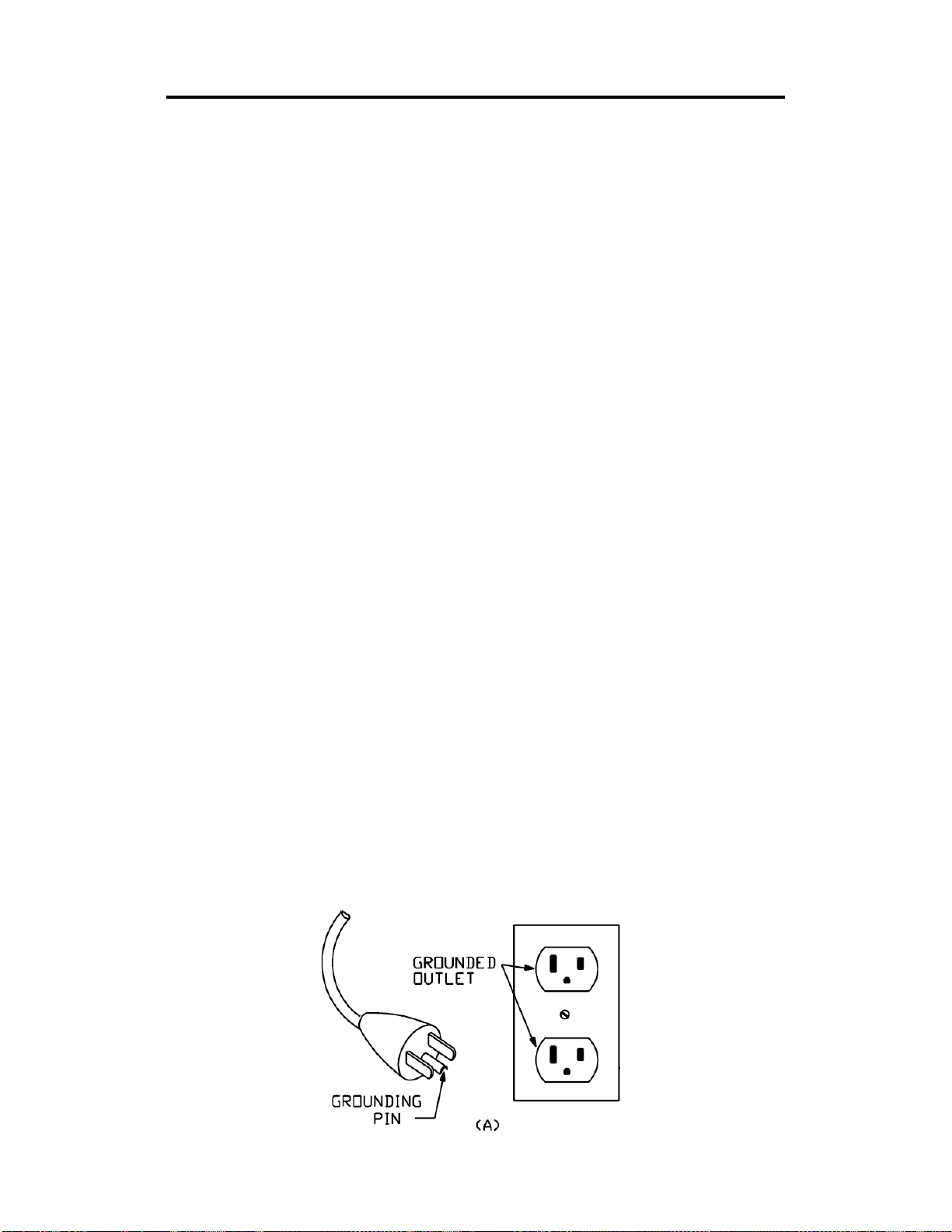

13. Connect this appliance to a properly grounded outlet only. See grounding instructions.
CAUTION:Risk of Injury to Persons:
1. To Avoid Injury, use extreme caution when stepping onto or off of a moving belt. Read
Instruction Manual Before Using.
SAVE THESE INSTRUCTIONS

2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be assured if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk
or prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking any medication that may affect your heart rate, blood pressure, or
cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet of free space all
around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. It is recommended that you lubricate all moving parts on a monthly basis.
7. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, stop using the equipment immediately and don’t use the
equipment until the problem has been rectified.
8. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
9. Do not place fingers or objects into the moving parts of the equipment.
10.The maximum weight capacity of this unit is 220 pounds.
11.This equipment is not suitable for therapeutic use.
12.Move with caution when lifting and moving the equipment. Always use proper lifting
technique and seek assistance if necessary.
13.Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot, or damp areas as this may lead to corrosion and other related
problems.
14.This equipment is designed for indoor household use only! It is not intended for
commercial use!

3
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the
adjustment keys on the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose
balance and stray from walking in the center of the belt which may result in serious
injury.
5. This unit starts at a very low speed. The proper way to begin use is to stand on the
side rails during its acceleration, then step onto the belt once it’s in constant motion.
6. Always hold the handrail when making control changes.
7. A safety key is provided for emergency use. Operation to the machine can only be
done if the safety key is inserted into the computer console. In case of emergency,
remove the safety key to immediately stop the belt and shut off the treadmill. The
display screen will reset once the safety key is reinserted.
8. The console control keys are precisely set and requires very little finger pressure to
use. To avoid damaging these keys, do not use excessive pressure when operating
these controls.
9. This equipment is designed of adult use only! Children should not be allowed to use
or play near this equipment. When present, children should be supervised at all
times by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to
begin any exercise program.
11.Always stay hydrated during and after an exercise.
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 11 for
instructions on how to properly apply lubricant.

4

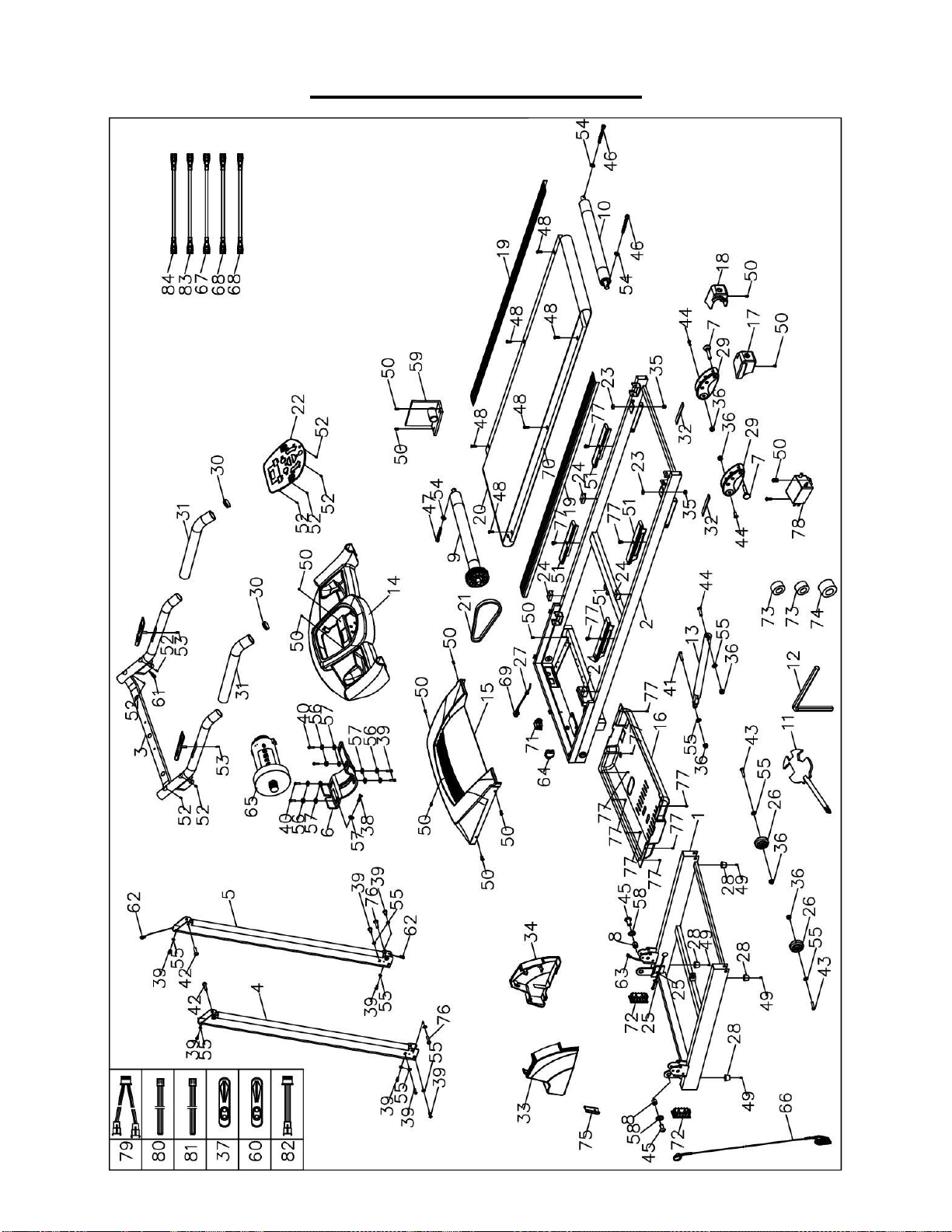

EXPLODED DRAWING

5
PARTS LIST
No.
Description
Specification
Qty
No.
Description
Specification
Qty
1
Base Frame
1
43
Allen Socket Bolt
M8*40
2
2
Main Frame
1
44
Allen Socket Bolt
M8*45
3
3
Computer Bracket
1
45
Allen Socket Screw
M10*35
2
4
Left Upright
1
46
Allen Socket Bolt
M6*55
2
5
Right Upright
1
47
Allen Socket Screw
M6*45
1
6
Motor Bracket
1
48
Allen Screw
M6*35
6
7
Fixing Pin
2
49
Self-Tapping Screw
ST4.2*20
4
8
Turning Bushing
2
50
Screw
M5*8
14
9
Front Roller
1
51
Rubber Cushion
4
10
Rear Roller
1
52
Self-Tapping Screw
ST4.2*12
8
11
Spanner w/ screw driver
S=13,14,15
1
53
Self-Tapping Screw
ST4.2*25
2
12
Allen Wrench
5mm
1
54
Anti-slip Washer
6
3
13
Air Pressure Cylinder
1
55
Anti-slip Washer
8
12
14
Console Top Cover
1
56
Spring Washer
8
6
15
Motor Top Cover
1
58
Flat Washer C
8
7
16
Motor Bottom Cover
1
58
Big Washer C
φ10*φ26*2.0
2
17
Left Rear Cover
1
59
Control Board
1
18
Right Rear Cover
1
60
Hand Pulse with Start/Stop
1
19
Side Rail
2
61
Upper Signal Wire
1
20
Running Belt
1
62
Middle Signal Wire
1
21
Motor Belt
1
63
Lower Signal Wire
1
22
Console Panel
1
64
Overload Protector
1
23
Blue Cushion
2
65
DC Motor
1
24
Square Cushion
4
66
Safety Key
1
25
Ring Protecting Wire Plug
2
67
AC Single Line
Blue
1
26
Moving Wheel
2
68
AC Single Line
Brown
2
27
Power Wire Buckle
1
69
Power Wire
1
28
Foot Pad
4
70
Running Deck
1
29
Adjustable Foot Pad
2
71
Square power Switch
1
30
End Cap
2
72
Bushing
2
31
Foam
2
73
Magnetic ring
2
32
Rubber Cushion
2
74
Magnetic core
1
33
Left Upright Tube Cover
1
75
Safety block
1
34
Right Upright Tube Cover
1
76
Allen Screw
M8*35
2
35
Nylon Nut
M6
2
77
Self-Tapping Screw
ST4.2*12
12
36
Nylon Nut
M8
6
78
Filter
HJ4-6A-T(027)
1
37
Hand Pulse with Speed
1
79
Hand pulse top wire
1
38
Hexagon Bolt
M8*35
1
80
Switch top wire
1
39
Allen Screw
M8*15
10
81
Speed top wire
1
40
Allen Screw
M8*20
4
82
PCB signal wire
1
41
Allen Screw
M8*30
1
83
AC Single Line
Blue
1
42
Allen Socket Bolt
M8*40
2
84
AC Single Line
Brown
1

6

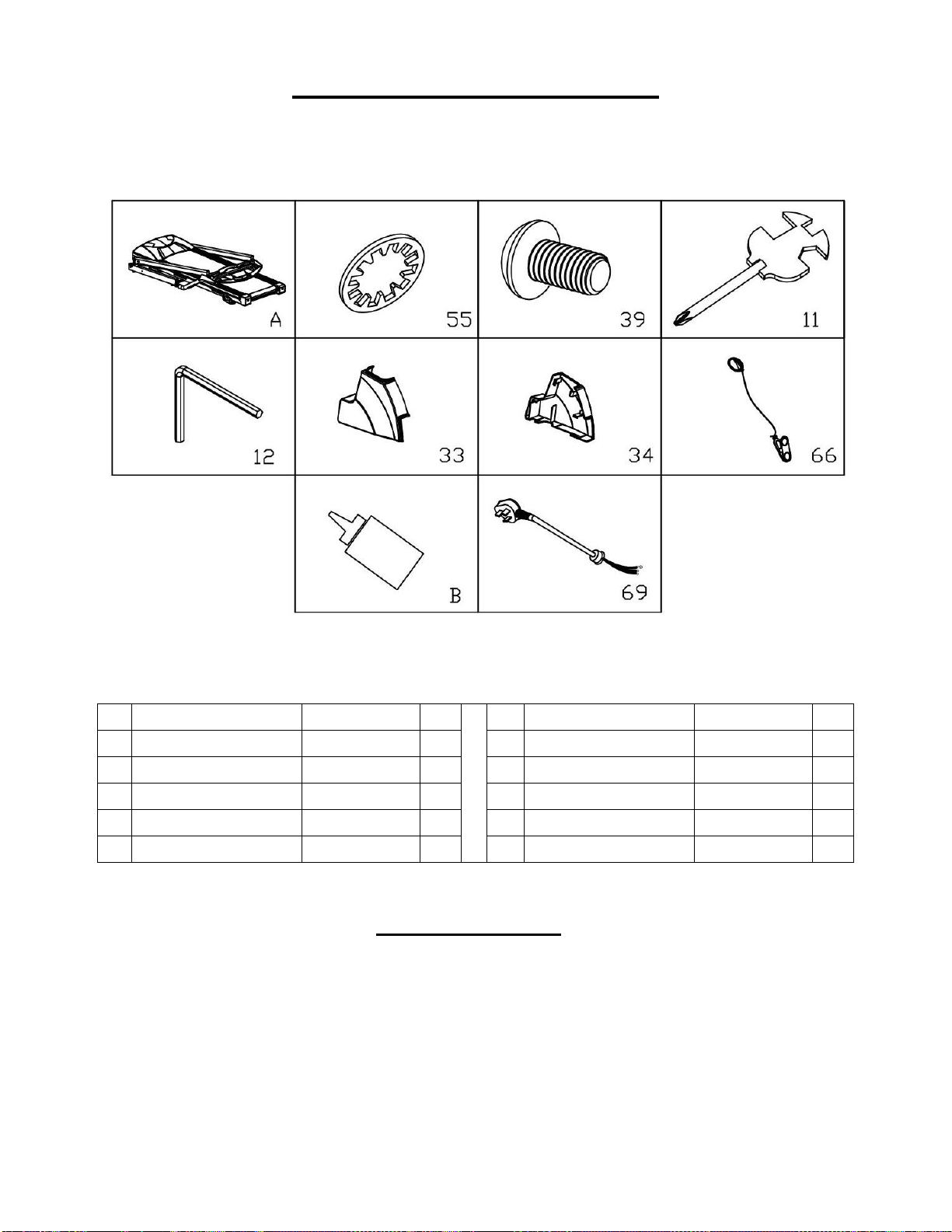

ASSEMBLY HARDWARE
CARTON CONTENTS:
ASSEMBLY TOOLS
Allen Wrench (5mm) –1PC
Spanner with Screw Driver (S=13, 14, 15) –1PC
No.
Description
Specification
Qty
No.
Description
Specification
Qty
A
Main Frame
1
33
Left Upright Tube Cover
1
55
Washer
8
8
34
Right Upright Tube Cover
1
39
Allen Screw
M8*15
8
66
Safety Key
1
11
Spanner w/ screw driver
S=13,14,15
1
B
Lubricant Oil
1
12
Allen wrench
5mm
1
69
Power Wire
1

7
ASSEMBLY INSTRUCTIONS
STEP 1:
STEP 2:
STEP 2:
STEP 3:

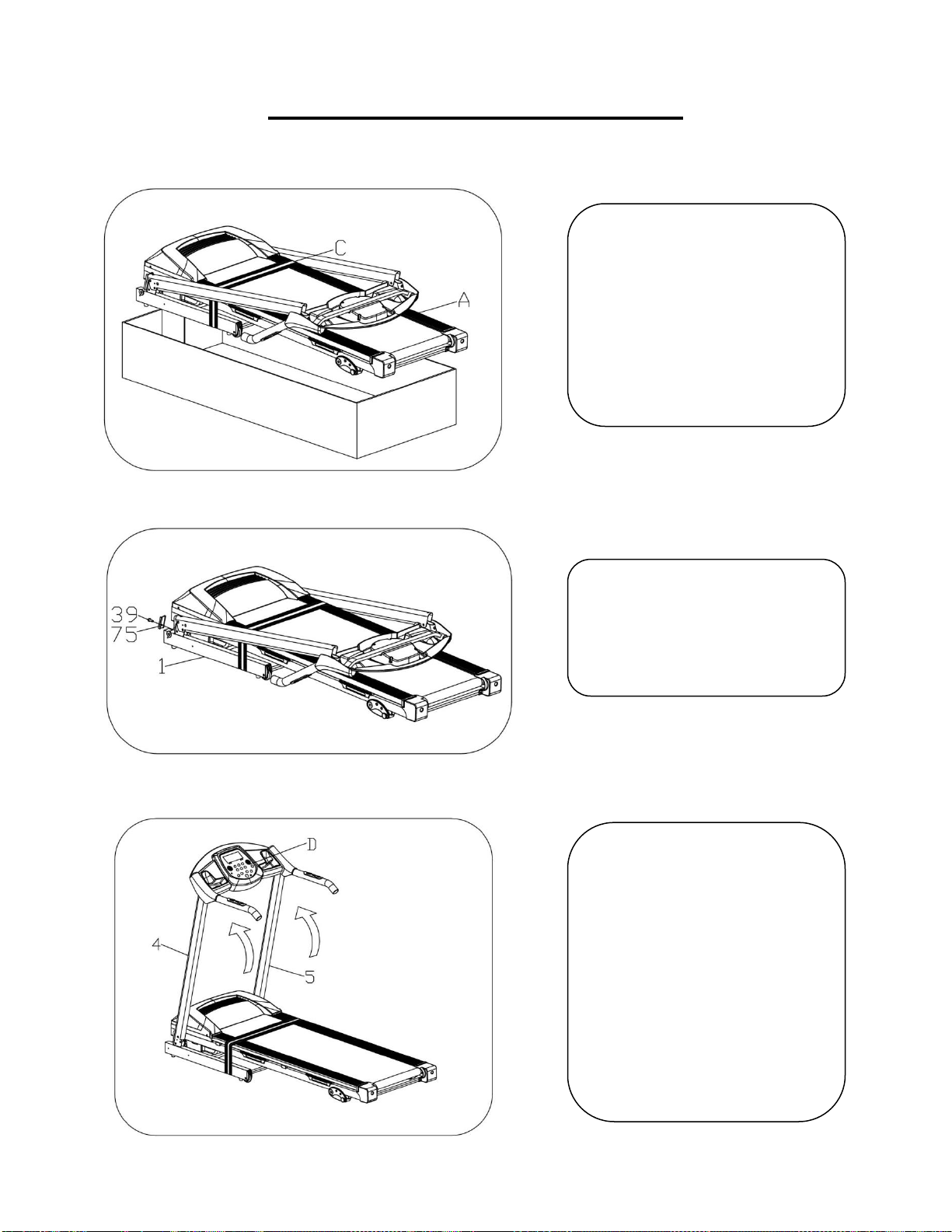

Open the carton and
remove contents. Place the
Main Frame (A) on the
ground and ensure you
have a work area that is
clean and has adequate
space. Do not cut the
Packing Belt (C) until the
assembly is complete!
Loosen the Bolt (39) on the
Base Frame (1) by using
Allen Wrench (12) and
remove the Safety Block
(75).
Lift the Console (D) along
with Upright Tubes (4 &5)
upward (in the direction
specified by the arrows on
the diagram to the left).
NOTE: When lifting up,
avoid puncturing the wires
inside the Left &Right
Upright Tubes (4 &5) as
this will cause damage.

8
ASSEMBLY INSTRUCTIONS
STEP 4:
STEP 5:
Fix the Console (D) to the
Upright Tubes (4 &5)
using 2Bolts (39) and 2
Washers (55), secure
using Allen Wrench (12).
Next, tighten the two
already preassembled
Bolts (42) located on the
inner sides of the left and
right handlebar.
During assembly, support
the Upright Tubes (4 &5)
with your hands to prevent
them from falling down.
Fix the Upright Tubes (4 &
5) to the Main Frame (2)
using 6 Bolts (39) and
Washers (55). Secure
using Allen Wrench (No.
12).Next, tighten the two
already preassembled
Allen Screws (76) located
on the outer bottom end of
the left and right tubes.

9
STEP 6:
STEP 7:
STEP 8:
Fix the Left and Right Tube
Covers (33 &34) to the
Base Frame (1).
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 11.
The assembly is now
complete! You may now cut
the Packing Belt (C).
Insert the Safety Key (66)
into the magnetic area of the
Console (D).

10
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the
unit clean and maintained by dusting the components on a regular basis. Clean both
sides of the running belt to prevent dust from accumulating underneath the belt. Keep
your running shoes clean so that dirt from your shoes do not wear out the running board
and belt. Clean the surface of the running belt with a clean damp cloth.
To better maintain the treadmill and prolong its life it is suggested that the machine be
powered off for 10 minutes every 2 hours and fully powered off whenever not in use.
A loose Running Belt will result in the runner sliding off when running, while too tight of
a Running Belt will result in decrease to the motors performance and also create more
friction between the roller and running belts. The most suitable tightness for the belts
is pulled out 50-75mm from the Running Board.
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5mph to check if the Running Belt
(20) drifts.

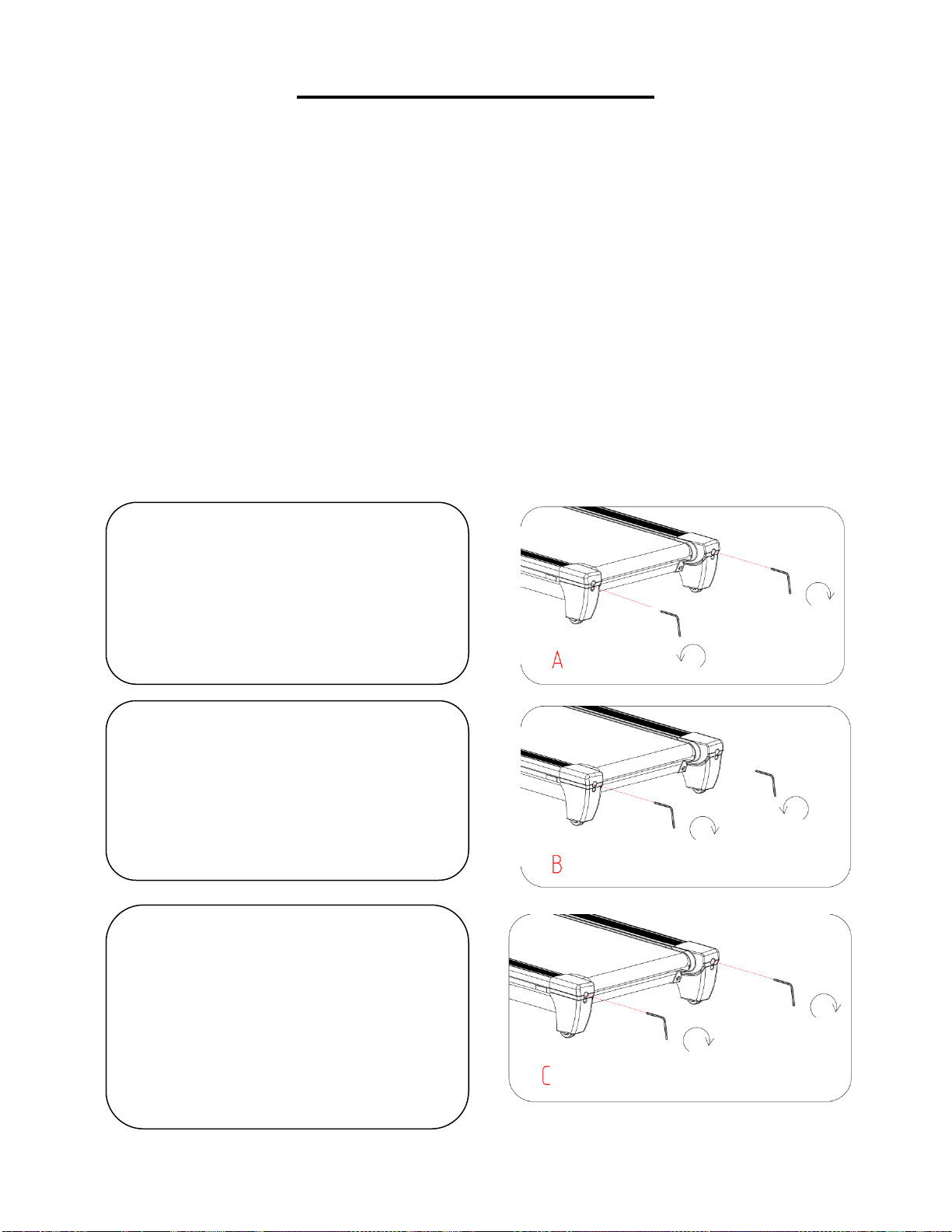

1. If the Running Belt (20) moves to
the right, turn the adjusting bolt on the
right side ¼turn clockwise, then turn
the left adjustment bolt ¼ turn counter-
clockwise. If the belt does not move,
repeat this step until it centers. Refer
to Figure A.
2. If the Running Belt (20) moves to
the left, turn the adjusting bolts on the
left side ¼of a turn clockwise, then
turn the right adjustment bolt ¼ turn
counter-clockwise. If the belt does not
move, repeat this step until it centers.
Refer to Figure B.
3. Over time the Running Belt (20)
will loosen. To tighten the belt turn the
Left & Right side adjustment bolts one
full turn clockwise, check the tension
of the belt. Continue this process until
belt is at the correct tension. Make
sure to adjust both sides equally to
ensure correct belt alignment. Refer to
diagram “C”.

11
LUBRICATING THE TREADMILL
*IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the running board and running belt is essential as the friction between the
two affects the life span and function of the treadmill, therefore it is suggested that the
running board and belt be inspected regularly. Should you find any wear on the Running
Board, please contact us at: [email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning,
lubricating or repairing the unit.
HOW TO LUBRICATE:
1. Raise the belt up on one side and apply lubricant to the running deck. Use a rag to
thoroughly wipe the lubricant over the running deck. Repeat this process for the other
side.
2. The moving parts should turn freely and quietly. Abnormality of moving parts will
affect the safety of the equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that
maintenance be done on a regular basis.
4. A loose running belt will result in the runner sliding off during use, while too tight of a
running belt will decrease the motor performance and also create more friction between
the roller and running belts. The most suitable tightness for the belt is pulled out 50-
75mm from the Running Board.
The following time table is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months

12
FOLDING INSTRUCTIONS
FOLDING:
UNFOLDING:
Place your hand at position
“G” and lift up on the Base
Frame (1) until the Air
Pressure Cylinder (13) “H”
locks into the tube.
When the Air Pressure
Cylinder (13) successfully
locks into the tube, you will
hear a clicking sound.
Before lowering the Main
Frame, ensure that the
space directly underneath it
is clear of any objects.
Grasp the Main Frame (2)
at position “G” with one
hand. Next, using your foot,
lightly kick the Air Pressure
Cylinder (13) “H” and press
down on the Main Frame.
Once the Main Frame has
been pushed down, it will
automatically continue to
steadily lower itself until it
reaches the ground.

13
HOW TO MOVE THE MACHINE
Before attempting to move the
treadmill, please make sure
that it has been properly
folded. Unplug power cord.
Start by placing one hand at
position “G”to support the top
end of the treadmill. Next,
place one foot at position “I”to
hold the bottom end of the
treadmill steady. With your
foot at “I”, slowly tilt the top of
the treadmill downward
towards the ground. Once the
Main Frame reaches a low
enough point, the wheels of
the treadmill will touch the
ground.
To transport, hold the treadmill
from position “G”and tilt until
the wheels “J”are able to
move on the ground.

14
ADJUSTING THE INCLINE
ATTENTION: For your safety and convenience, always fold the treadmill (as
shown below) before attempting to adjust the incline.
There are three holes located on the Adjustable Foot Pad (29). To adjust the level of
incline, remove the two Fixing Pins (7) from the left and right side. Align the holes of
the Adjustable Foot Pad (29)to the holes located on the Main Frame (2).Once you’ve
locate your desired incline level, reinsert the Fixing Pins (7) back through the holes.

15
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 10 amps (100-120V) in
order to properly operate. For your safety, as well as the safety of others, please verify
that the power source is correct before plugging the equipment. Any power source
above or below this level could cause significant damage to the equipment and or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical
current and will reduce the risk of electric shock. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. Ensure that the product is connected to an outlet which contains
the same configuration as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that
looks like the plug illustrated in sketch A. Make sure that the product is connected to an
outlet having the same configuration as the plug. No adapter should be used with this
product.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric
shock. Check with a certified electrician if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product. If it will not fit the
outlet, have a proper outlet installed by an electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route
the power cord away from any moving part of the treadmill including the elevation
mechanism and transport wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use
outdoors, near pools or in any other high humidity environment.
GROUNDING METHOD

16

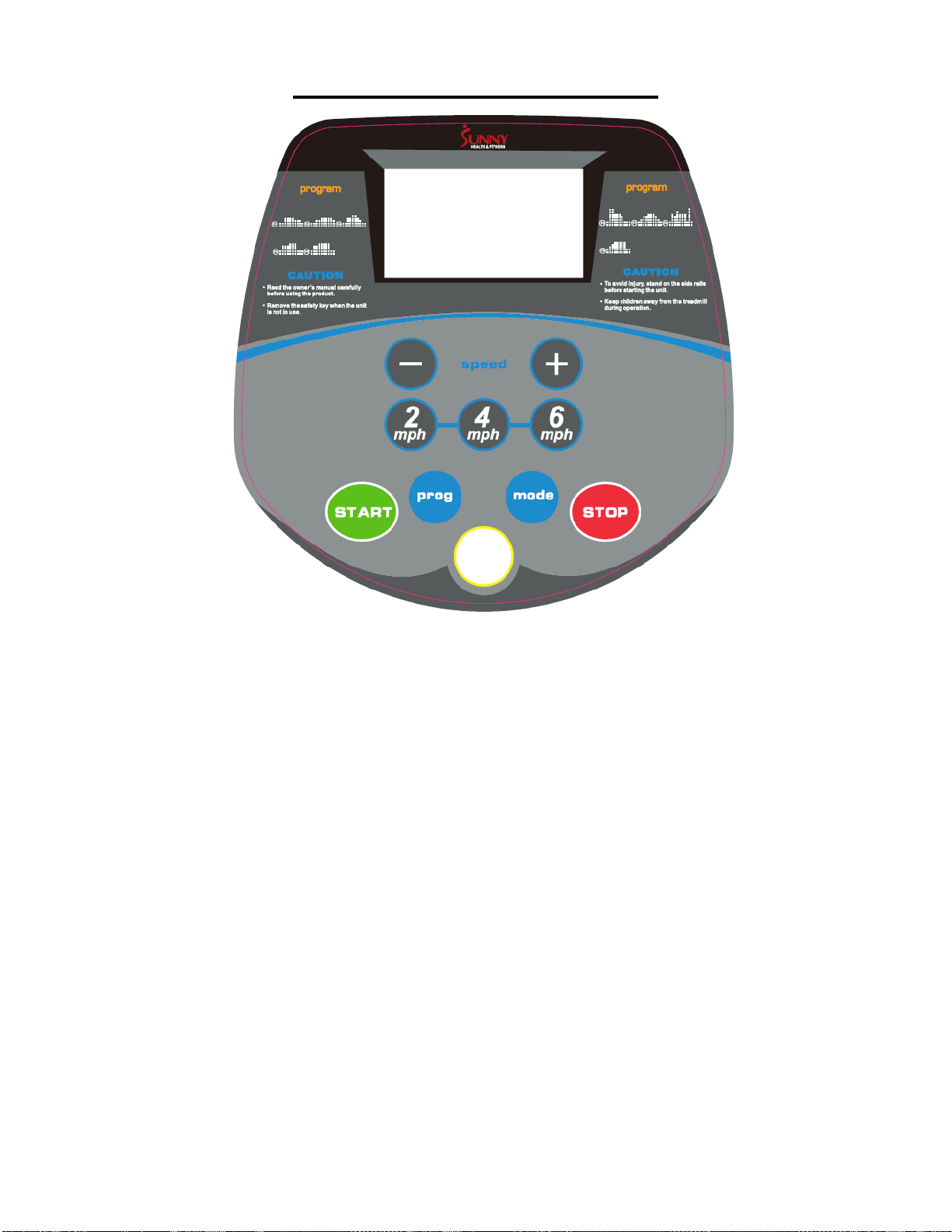

THE DISPLAY CONSOLE
QUICK START
1. Insert the magnet end of the safety key into the computer console.
2. Press the START button, and the system will automatically display a 3 second
countdown. Once the countdown reaches zero, the running belt will start at the initial
default speed of 0.5 MPH.
3. To adjust the speed, you can use the SPEED +/- BUTTONS or QUICK SPEED
BUTTONS 2, 4, & 6 MPH.
*NOTE: The maximum speed on this treadmill is 9 MPH.
CONTROL FUNCTIONS
1. Press the –Speed Button to reduce the running speed.
2. Press the +Speed Button to increase the running speed.
3. Pressing a Quick Speed Button will adjust the speed to the corresponding speed
indicated (2, 4, or 6 MPH).
4. Pressing the STOP Button will PAUSE the running belt and current workout data.
Pressing the STOP button again will terminate current workout session completely.
5. Holding the Pulse Sensors located on the handles with both hands for 5 seconds will
calculate and display the runner’s heartbeat per minute (BPM).

17
THE DISPLAY CONSOLE
WINDOW DISPLAY
1. SPEED: Displays the current speed. The speed range on this treadmill is 0.5 - 9 MPH.
When setting PROGRAMS, the speed is programmed in intervals; PROGRAMS are from
P1-P9. When setting MODE, the window displays H1-H3.
2. TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the
machine will stop smoothly and display “END”then automatically reset to 0:00 after 5
seconds. When in Countdown Mode, it will count from the setting time to 0:00. When the
clock reaches 0:00, the machine will stop smoothly and display “End” then automatically
reset itself after 5 seconds.
3. DISTANCE: Displays the distance traveled (0.0-99.9 MILES). When the clock reaches
99.9, it will reset to 0.00 and begin counting again from 0.0. When in Countdown Mode, it
will count down from the setting data to 0.00. When it reaches 0.00, the machine will stop
smoothly and display “End” and automatically reset to the initial setting after 5 seconds.
4. CALORIES: Displays the amount of calories burned (0 to 999). When the count reaches
999, it will reset and start back from 0 again. When in Countdown Mode, it will count down
from the setting data to 0. When it reaches 0, the machine will stop smoothly and display
“END” and automatically reset to the initial setting after 5 seconds.
5. PULSE: Displays the runner’s heartbeat per minute (50-200 BPM). The runner must
place both hands over the pulse sensors located on the handles for the system to calculate
the runner’s pulse.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME(MIN:SECOND)
0:00
10:00
5:00-99:00
0:00－99:59
SPEED(MPH)
0.5
0.5
0.5-9.0
0.5-9.0
DISTANCE(MILE)
0.00
1.00
0.50-99.9
0.00－99.9
PULSE(BPM)
P
N/A
N/A
50-200
CALORIE(KCAL)
0
50
10-999
0－999

18
THE DISPLAY CONSOLE
FUNCTION KEYS
1. PROGRAM: Press the PROGRAM button to set your desired interval setting.
Programs are displayed as P1-P9 and the various intervals are shown on the face of the
treadmill.
2. MODE: Press this button to select a MODE. Pressing once will enter H1, the TIME
countdown mode starting from 10:00 MINS. H2 is the DISTANCE Countdown Mode
starting from 1 MILE and H3 is the CALORIES countdown mode which starts from 50
KCAL. When setting each mode, you can press +/- to increase or decrease the preset
H1, H2, H3 settings then press START to start the machine.
3. START: To start the machine, insert the magnet end of the safety key into the
computer console and then press the START button. This machine requires the Safety
Key in order to start. 0.5 MPH is the default start speed.
4. STOP: This button has functions of PAUSE and STOP. When in use, press this
button once to PAUSE your workout and the current workout data will still be shown.
Press STOP again to terminate your workout session complete and all data will be
deleted and reset to the initial setting.
5. SPEED +/–BUTTONS: Press the +/- buttons to increase or decrease the speed in
increments of 0.1 MPH. Pressing and holding either of these buttons for a duration of
over ½ a second will increase or decrease the speed continually.
6. 2, 4, & 6 (QUICK SPEED BUTTONS): These buttons are preset to the speeds of 2, 4,
or 6 MPH for convenience.
LUBRICATION REMINDER
Your treadmill needs lubrication maintenance every 188 miles. The system will release
a beeping sound every 10 seconds and display an “OIL” icon on your LCD display to
remind you when it’s time. Please read the LUBRICATING THE TREADMILL on Page
12 to learn the proper steps to lubricating your machine. Apply the lubricating oil to the
middle of the running deck on both sides. After application, press and hold the STOP
button for 3 seconds to clear the reminder.
INTERVAL PROGRAMS (P1-P9)
Press the PROGRAM button to select an interval setting. Programs are displayed as
P1-P9. Select the desired program, and the console will display a countdown starting
from 10:00 MINS, press SPEED +/- BUTTONS if you wish to increase or decrease the
exercise time. Press the START button to start the interval program. The interval
program is divided into 10 sections. Each exercise time equals the setting time divided
by 10. When the speed enters the next interval, the treadmill will beep, and the speed
will be changed according to the set interval. Press SPEED +/- BUTTONS to change
the SPEED. After finishing one program, the system will beep and display END. The
machine will gradually come to a stop, then automatically reset to the initial setting after
5 seconds.

19
BODY QUALITY CALCULATION
Press the PROGRAM button until the window displays FAT to access Body Quality
Calculation. Press MODE to enter F-1, F-2, F-3, F-4, F-5
F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 is Body Quality Index
Press SPEED +/- BUTTONS to set F1-F4 (refer to the chart below). Once you have
finished setting F1-F4, press MODE. This will enter you into the set up for F-5 (Body
Quality Index). To set F-5, grasp the Pulse Sensors located on the handles with both
hands and hold them for 3 seconds. The window will display your body quality index.
The Body Quality Index is used to test the relation between your height and weight. It is
only for reference not suitable for the medical use. The Body Quality Index is suitable
for both male and female.
NOTE: General Body Quality Index score is 20-25%
Underweight Below 19.0
Normal 19.0 –25.0
Overweight 26.0 –29.0
Obesity 30.0 –and above
BODY QUALITY INDEX (BQI) CHART
F-1
Sex
01 Male
02 Female
F-2
Age
10------99
F-3
Height
40----80 INCHES
F-4
Weight
44-----330 LBS
F-5
BQI
≤19
Underweight
BQI
=(20---25)
Normal Weight
BQI
=(26---29)
Overweight
BQI
≥30
Obesity
TIME
PROG
TIME INTERVAL= setting time/10
1
2
3
4
5
6
7
8
9
10
P1
SPEED
1.8
1.8
3.7
3.1
3.1
3.1
2.5
2.5
2.5
1.8
P2
SPEED
1.8
1.8
2.5
2.5
3.1
3.1
3.1
3.7
3.7
2.5
P3
SPEED
1.8
1.8
3.1
3.7
4.3
5.0
3.7
2.5
1.8
1.8
P4
SPEED
1.8
3.7
3.7
3.7
5.0
5.0
5.0
1.8
1.8
1.8
P5
SPEED
1.2
3.1
3.7
4.3
5.0
5.0
4.3
4.3
1.8
1.8
P6
SPEED
1.2
6.2
6.2
5.0
5.0
4.3
3.7
1.8
1.2
1.2
P7
SPEED
1.8
2.5
3.1
3.7
4.3
5.0
4.3
3.7
2.5
1.8
P8
SPEED
1.8
5.0
3.7
5.6
5.0
5.0
5.0
1.8
6.2
1.8
P9
SPEED
1.2
2.5
3.7
5.0
5.0
5.0
4.3
4.3
1.8
1.8
