ELITE INTERACTIVE SERIES
EXERCISE RECUMBENT BIKE
SF-RB420046
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained,
and used properly. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot, or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
2

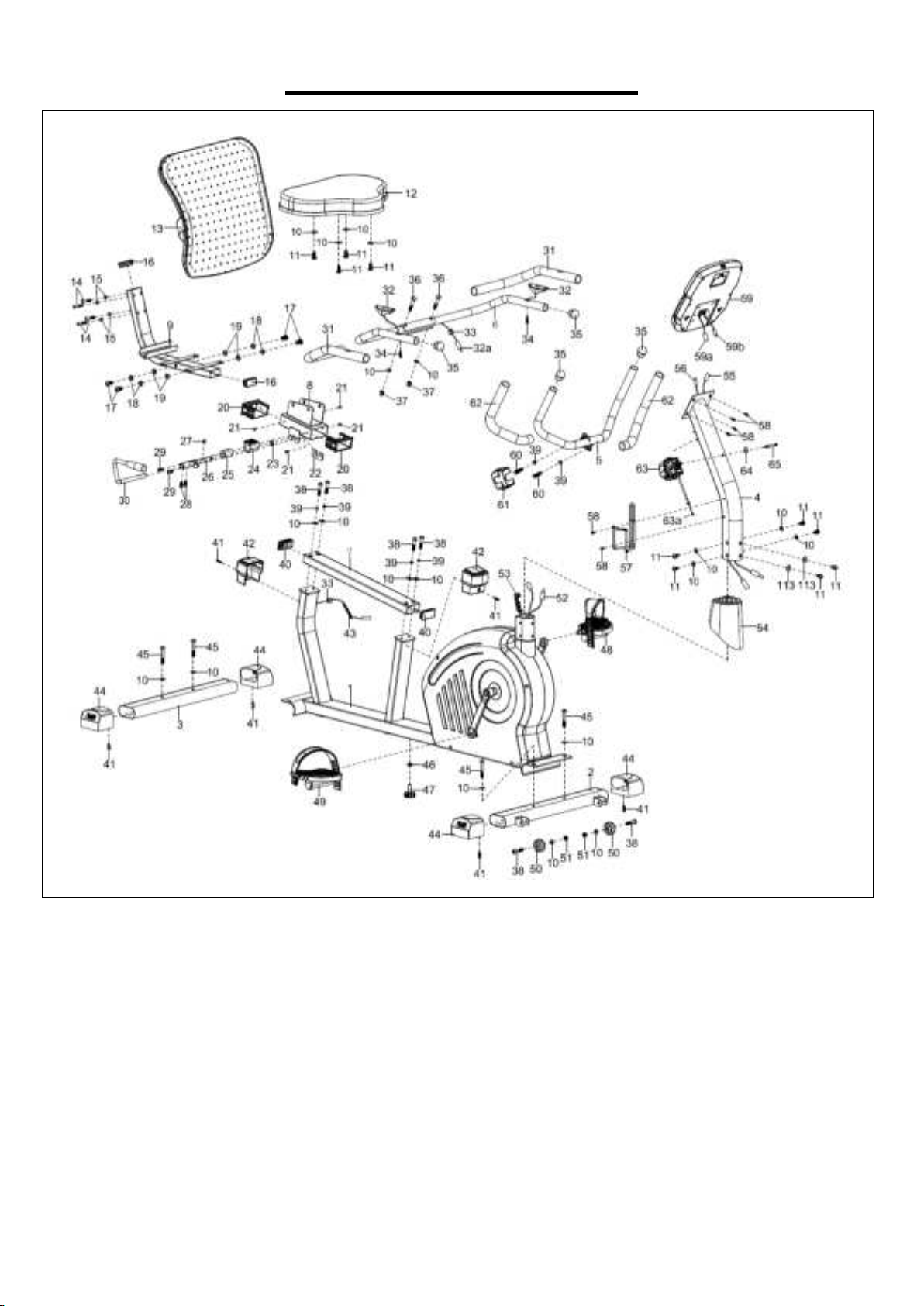

EXPLODED DIAGRAM 1
3
EXPLODED DIAGRAM 2
4
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
1
Main Frame
1
32a
Handle Pulse Wire
L=750mm
1
2
Front Stabilizer
1
33
Plug
Ф12.1
3
3
Rear Stabilizer
1
34
Screw
ST4.2*20
2
4
Front Post
1
35
End Cap
Φ25
4
5
Front Handlebar
1
36
Bolt
M8*45
2
6
Rear Handlebar
1
37
Cap Nut
M8
2
7
Sliding Rail
1
38
Bolt
M8*40
6
8
Seat Adjusting Tube
1
39
Spring Washer
Ф8
6
9
Seat Support Bracket
1
40
Square End Cap
60*30
2
10
Washer
Ф8*Ф16*1.5
21
41
Screw
ST4.2*20
10
11
Screw
M8*20
14
42
Sliding Rail Cover
2
12
Seat
1
43
Flexible Wire
L=2500mm
1
13
Backrest Cushion
1
44
Adjustable End Cap
4
14
Bolt
M6*40
4
45
Bolt
M8*55
4
15
Washer
Ф6*Ф12*1.0
11
46
Nut
M8
1
16
Square End Cap
50*25
2
47
Adjusting Foot Pad
M8*30
1
17
Screw
M10*20
4
48
Left Pedal
JD-22A
1
18
Spring Washer
Ф10
4
49
Right Pedal
JD-22A
1
19
Washer
Ф18*Ф10*1.5
4
50
Transportation Wheel
2
20
Bushing
2
51
Nut
M8
3
21
Screw
ST4.2*6
4
52
Sensor Wire
L=750mm
1
22
Brake Fixing Plate
1
53
Tension Wire
L=1000mm
1
23
Shaft Snap Ring
3
54
Decorative Cover
1
24
Limited Block
1
55
Extension Sensor
Wire II
L=800mm
1
25
Shaft
Ф25*38
1
56
Extension Sensor
Wire I
L=800mm
1
26
Connecting Axle
1
57
Bottle Holder
1
27
Screw
M8*12
1
58
Screw
M5*10
6
28
Screw
M6*15
2
59
Computer
1
29
Bolt
M6*15
2
59a
Computer Wire A
1
30
Brake Handle
1
59b
Computer Wire B
1
31
Foam Grip
Ф24*Ф30*520
2
60
Bolt
M8*30
2
32
Handle Pulse
2
61
Clamp Cover
1
5
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
62
Foam Grip
Ф24*Ф30*360
2
88
Magnetic Bracket
1
63
Tension Control
Knob
L=420mm
1
89
Magnet Seat
1
63a
Tension Control Wire
1
90
Magnet
40*25*10
4
64
Big Arc Washer
Ф5*Ф18*1.0
1
91
Screw
ST2.9*9
5
65
Bolt
M5*55
1
92
Spring
Ф15*50*Ф1.5
1
66
Screw
ST4.2*16
1
93
Bolt
M6*45
1
67
Shipping Tube
2
94
Nut
M6
2
68
Cover Limit Column
2
95
Bolt
M6*10
7
69
C-clip
Φ17*1
3
96
Bearing End Cover
2
70
Bearing
6203ZZ
2
97
Bearing Seat
2
71
Wave Washer
Φ17*Φ21*0.3
2
98
Screw
M6*12
2
72
Belt
PJ390
1
99
Bearing
6001
2
73
Nut
M6
4
100
Flywheel
Ф240
1
74
Spring Washer
Ф6
4
101
Flywheel Axle
1
75
Bolt
M6*15
4
102
Bearing
6003
2
76
Belt Pulley
Φ260
1
103
One Way Bearing
1
77
Left Belt Cover
1
104
Idler Wheel Shaft
1
78
Right Belt Cover
1
105
PC Pad
1
79
Crank Cover
2
106
Screw
M8
1
80
Left Crank
1
107
Idler Wheel
1
81
Right Crank
1
108
Spring
Ф17*62*Ф2.0
1
82
Nut
M10*1.25
2
109
Plastic Washer
Ф8*Ф20*2.0
4
83
Crank Cap
2
110
Allen Wrench
S5
1
84
Screw
ST4.2*25
8
111
Allen Wrench
S6
1
85
Bolt
M6*15
2
112
Spanner
S10,13,14,15
1
86
Washer
Ф6*Ф16*1.2
4
113
Big Arc Washer
Ф8*Ф20*2.0
2
87
Magnetic Plate Axle
1
114
End Cap
1
6

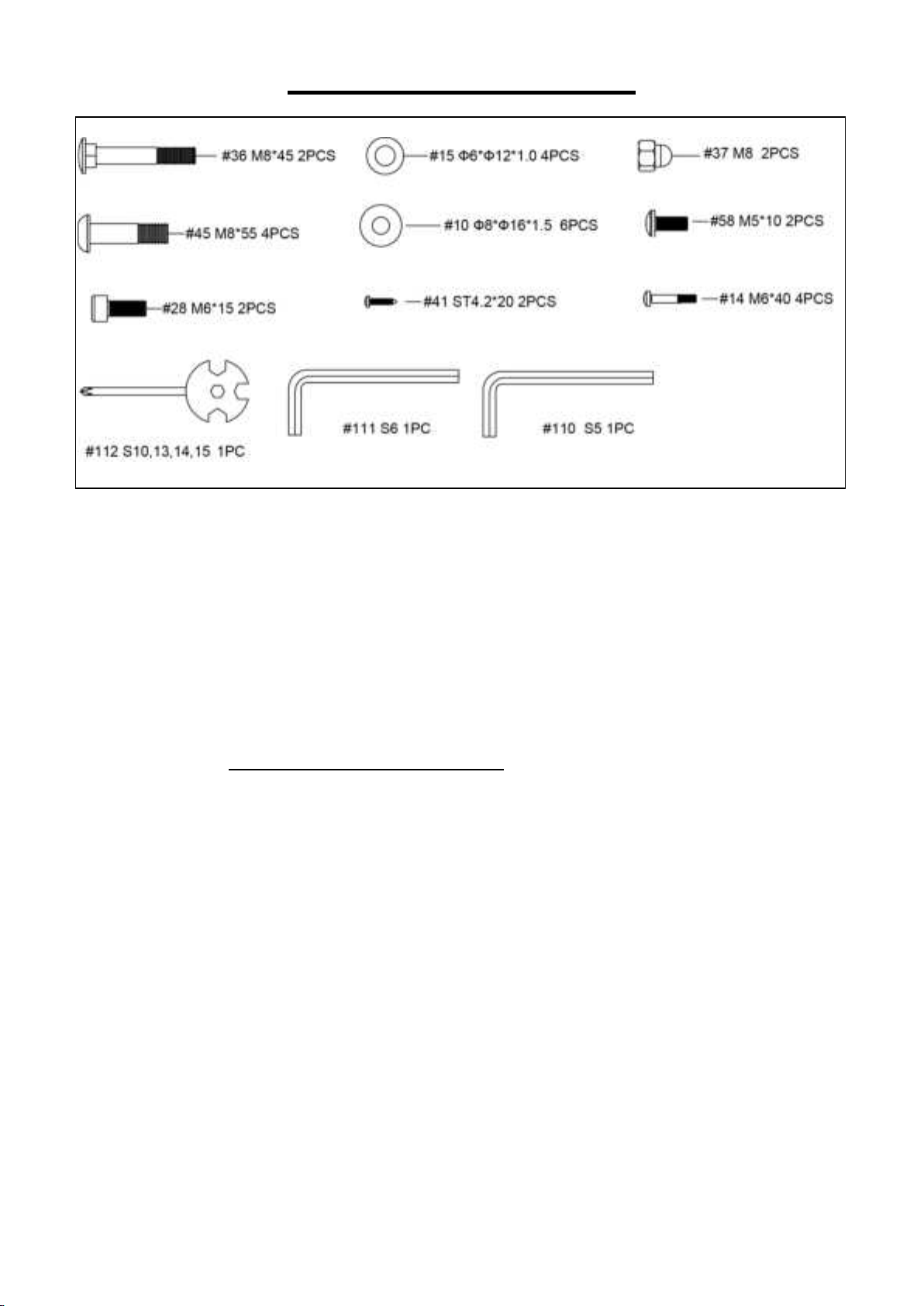

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
7
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at su[email protected] or 1-877-90SUNNY
(877-907-8669).

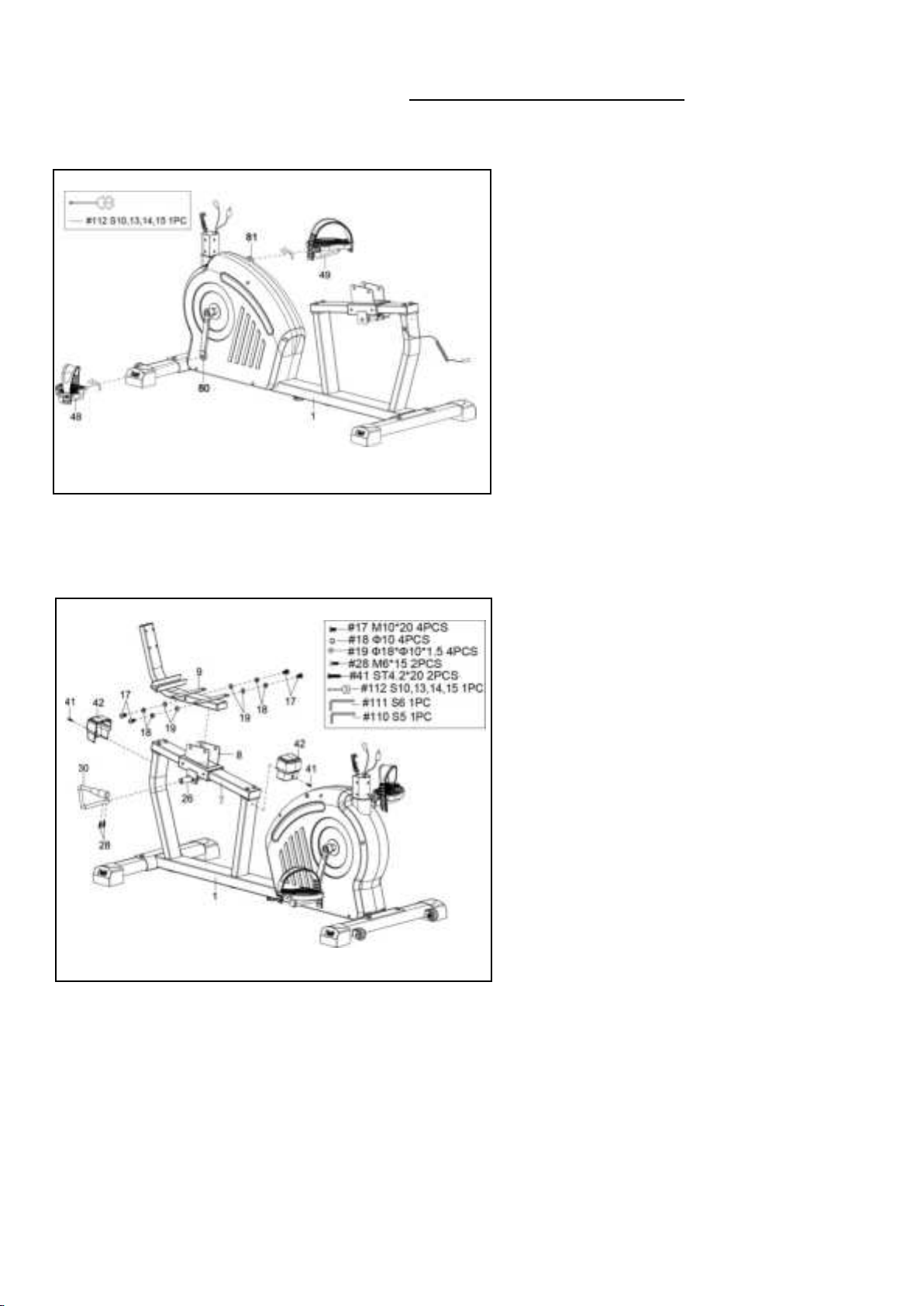

STEP 1:
Unscrew 4 Screws (No. 11) from Main
Frame (No. 1) with Allen Wrench (No.
111). Remove 4 Plastic Washers (No.
109) and 2 Shipping Tubes (No. 67) from
Main Frame (No. 1).
You may save these parts [Screws (No.
11),Plastic Washers (No. 109),Shipping
Tubes (No. 67)] in case you would like to
repackage and transport this equipment in
the future.
STEP 2:
Attach the Front Stabilizer (No. 2) and
Rear Stabilizer (No. 3) to the Main
Frame (No. 1) with 4 Bolts (No. 45)and
4 Washers (No. 10). Tighten and secure
with Allen Wrench (No. 111).
Attach the Adjusting Foot Pad (No. 47)
to the Main Frame (No. 1) by hand.
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 4:
Attach the Brake Handle (No. 30) to the
Connecting Axle (No. 26) with 2 Screws
(No. 28). Tighten and secure with Allen
Wrench (No. 110).
Remove 4 Washers (No. 19), 4 Spring
Washers (No. 18) and 4 Screws (No. 17)
from the Seat Support Bracket (No. 9)
with Allen Wrench (No. 111).
Attach the Seat Support Bracket (No. 9)
to the Seat Adjusting Tube (No. 8) with 4
Washers (No. 19), 4 Spring Washers
(No. 18) and 4 Screws (No. 17) that were
removed. Tighten and secure with Allen
Wrench (No. 111).
Attach the 2 Sliding Rail Covers (No. 42)
to the Main Frame (No. 1) with 2 Screws
(No. 41). Tighten and secure with Spanner
(No. 112).
STEP 3:
Align Left Pedal (No. 48) with Left Crank
(No. 80) at 90° and gently insert pedal into
the crank arm. Turn the Left Pedal (No. 48)
counter-clockwise as tightly as you can
with your hands, then use Spanner (No.
112)to tighten securely.
Align Right Pedal (No. 49) with Right
Crank (No. 81) at 90° and gently insert
pedal into the crank arm. Turn the Right
Pedal (No. 49) clockwise as tightly as you
can with your hands, then use Spanner
(No. 112)to tighten securely.
9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 5:
Remove 6 Bolts (No. 11), 4 Washers (No.
10)and 2 Big Arc Washers (No. 113) from
the Main Frame (No. 1) with Allen Wrench
(No. 111).
Attach the Decorative Cover (No. 54) into
the Front Post (No. 4)
CAUTION: Please make sure the Tension
Control Knob (No. 63)is at the lowest
resistance level (level 1, all the way to the
left) before you connect any wires together.
Attach the Tension Control Wire (No.
63a) into the metal bracket of Tension
Wire (No. 53) as shown in drawing A.
Then, pull Tension Control Wire (No.
63a) upward and insert it into the slot of
metal bracket of Tension Wire (No. 53) as
shown in drawing B.Make sure the metal
fitting on Tension Control Wire (No. 63a)
is secured in the metal bracket.
Connect the Extension Sensor Wire II
(No. 55)with Flexible Wire (No. 43); and
connect Sensor Wire (No. 52) with the
Extension Sensor Wire I (No. 56). Insert
the connecting wires into Front Post (No.
4).
Attach the Front Post (No. 4) to the Main
Frame (No. 1) with 6 Screws (No. 11), 4
Washers (No. 10) and 2 Big Arc Washers
(No. 113) that were removed. Tighten and
secure with Allen Wrench (No. 111).
Lower the Decorative Cover (No. 54)to fit
in the Left and Right Belt Covers (No. 77
& No. 78).
NOTE: Be careful not to pinch any wires
when attaching Front Post (No. 4) to Main
Frame (No. 1).
