Sunny SF-T7971 User manual

HYBIRD WALKING TREADMILL
WITH ARM EXERCISE
SF-T7971
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basicprecautions should always be followed, including the following:
Read all instructions before using this treadmill.
DANGER– To reduce the risk of electrical shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING– To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The treadmill should never be left unattended when plugged in. Unplug from the outlet when not in
use and before placing or removing parts.
2. Use this treadmill only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
3. Never operate this treadmill if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return this treadmill to a service center for
examination for repair.
4. Keep the cord away from heated surfaces.
5. Never operate the treadmill with the air openings blocked. Keep the air openings free of lint, hair,
and alike items.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
9. To disconnect, turn the treadmill off, then remove plug from outlet.
10.Connect this treadmill to a properly grounded outlet only. See grounding instructions.
CAUTION:
To avoid injury, use extreme caution when stepping onto or off of a moving belt. Read instruction manual
before using.
SAVE THESE INSTRUCTIONS

2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240CM) of free space behind it and 2
feet (60 CM) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment.Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoidbodilyinjuryand/ordamagetotheproductorproperty, properliftingandmoving is required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only, it is not intended for commercial use!

3
IMPORTANT OPERATING INSTRUCTIONS
1.Insert the power plug directly into the socket.
2.Read the manual before operating the equipment.
3.Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the remote control. The speed will increase gradually.
4.While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the belt. This may result in serious injury.
5.This unit starts at a very low speed. To begin use, stand on the side rails while it starts up, then step
onto the belt once it’s in motion.
6.Asafetykeyis providedforemergencyuse.The treadmill willfunctiononlyif the safety keyis inserted
into the computer console. In case of emergency, remove the safety key to immediately stop the belt
and shut off the treadmill. The display screen will reset once the safety key is reinserted.
7.This equipment is designed for adult use only! Children should not be allowed to use or play near
this equipment. When present, children should always be supervised by an adult.
8.Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
9. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 19 for instructions on how
to properly apply lubricant.

4
EXPLODED DIAGRAM

5

6
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
A01 Base Frame 1 C24
Safety Key Bottom
Cover
1
A02 Main Frame 1 C25 Safety Key 1
A03 Left Handrail Frame 1 C26 Handrail Left Cover 1
A04
Right Handrail Frame
1
C27
Handrail Right Cover
1
B01
Front Roller
1
C28
Handrail Inner Cover
2
B02
Rear Roller
1
C29
Handrail Outer Cover
2
B03 Cylinder 1 C30 Support Fastener 2
B04
Allen Wrench
5mm
1
C31
Plastic Gasket
4
B05 Front Base Secure
Shaft
1 C32 Safety Key Clip 1
B06
Safety Key Shrapnel
2
C33
Turning Bushing
2
B07 Elastic Pin 2 D01 Console 1
B08 Ball Pin 1 D02 Control Board 1
C01 Motor Top Cover 1 D03
Console
Communication Wire
1
C02
Left Side Rail Plug
1
D04
Remote Control
1
C03 Right Side Rail Plug 1 D05 DC Motor 1
C04 Motor Cover Shutter 1 D06 AC Single Line Blue 1
C05 Plastic Insulation
Block
2 D07 AC Single Line Brown 1
C06 Moving Wheel 2 D08 Square Switch 1
C07
Front Shutter
1
D09
Running Board
1
C08
Side Rail
2
D10
Magnetic Ring
1
C09
Running Belt
1
D11
Magnetic Core
1
C10
End foot Pad
2
D12
Power Socket
1
C11
Motor Belt
1
D13
Overload Protector
1
C12
Left End Cap
1
D14
Power Wire
1
C13 Right End Cap 1 D15 Lead to The Switch 2
C14
Black Cushion
6
D16
AC Single Line
Blue
1
C15
Foot Pad
6
D17
AC Single Line
Brown
1
C16 Black Cushion
Column
2 D18 Grounding Wire 1
C17
Table Core Cover
1 D19 Keyboard 2
C18 Optical Grating 1 D20
Keyboard Switch
Board
2
C19
Module Switch Button
1
D21
Left Handrail Top Wire
1
C20
Motor Cover Right
Shutter
1 D22
Left Handrail Middle
Wire
1
C21 Handrail Top Cover 2 D23
Left Handrail Bottom
Wire
1
C22
Handrail Bottom
Cover
2 D24
Right Handrail Top
Wire
1
C23 Safety Key Top Cover 1 D25
Right Handrail Middle
Wire
1

7
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
D26
Right Handrail
Bottom Wire
1 E20 Big Washer 6 2
E01 Nut M8 4 E21
Lock Washer
8 4
E02 Nut M6 4 E22
Spring Washer
8 2
E03 Bolt M8*15 2 E23
Flat Washer
8 2
E04 Bolt M8*30 1 E24
Screw
ST2.9*8 2
E05 Bolt M8*45 1 E25
Screw
ST2*6 8
E06
Bolt
M8*35 2 E26
Bolt
M5*25 4
E07 Bolt M6*55 3 E27
Screw
ST2.9*8 1
E08 Bolt M6*45 2 E28
Flat Washer
3 1
E09 Bolt M6*35 4 E29
Screw
ST2.5*6
4
E10 Bolt M6*25 2 E30
Washer
Ф10 4
E11 Bolt M6*15 2 E31 Nut M10 2
E12 Bolt M5*12 8 H01
Filter
1
E13 Bolt M5*10 9 H02 AC Single Line 1
E14 Screw ST4.2*20 7 H03
AC Single Line
1
E15
Screw
ST4.2*12
6
H04
Ground wire
1
E16
Screw
ST4.2*12
9
H05
Bolt
M5*12
2
E17
Screw
ST4.2*12 4 G01
Left Handrail Tube
1
E18
Screw
ST2.9*6.0 15 G02
Right Handrail Tube
1
E19
Lock Washer
6
3

8
ASSEMBLY HARDWARE
CARTON CONTENTS:
TOOLS
Allen Wrench (5mm)
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
Please contact us at [e-mail] or 1- 877 - 90SUNNY (877-907-8669)
No. Description Specification Qty.
A Main Frame 1
B Remote Control 1
C Lubricant Oil 20ml/bottle 1
D Power Wire 1
E Safety key 1

9
ASSEMBLY INSTRUCTIONS

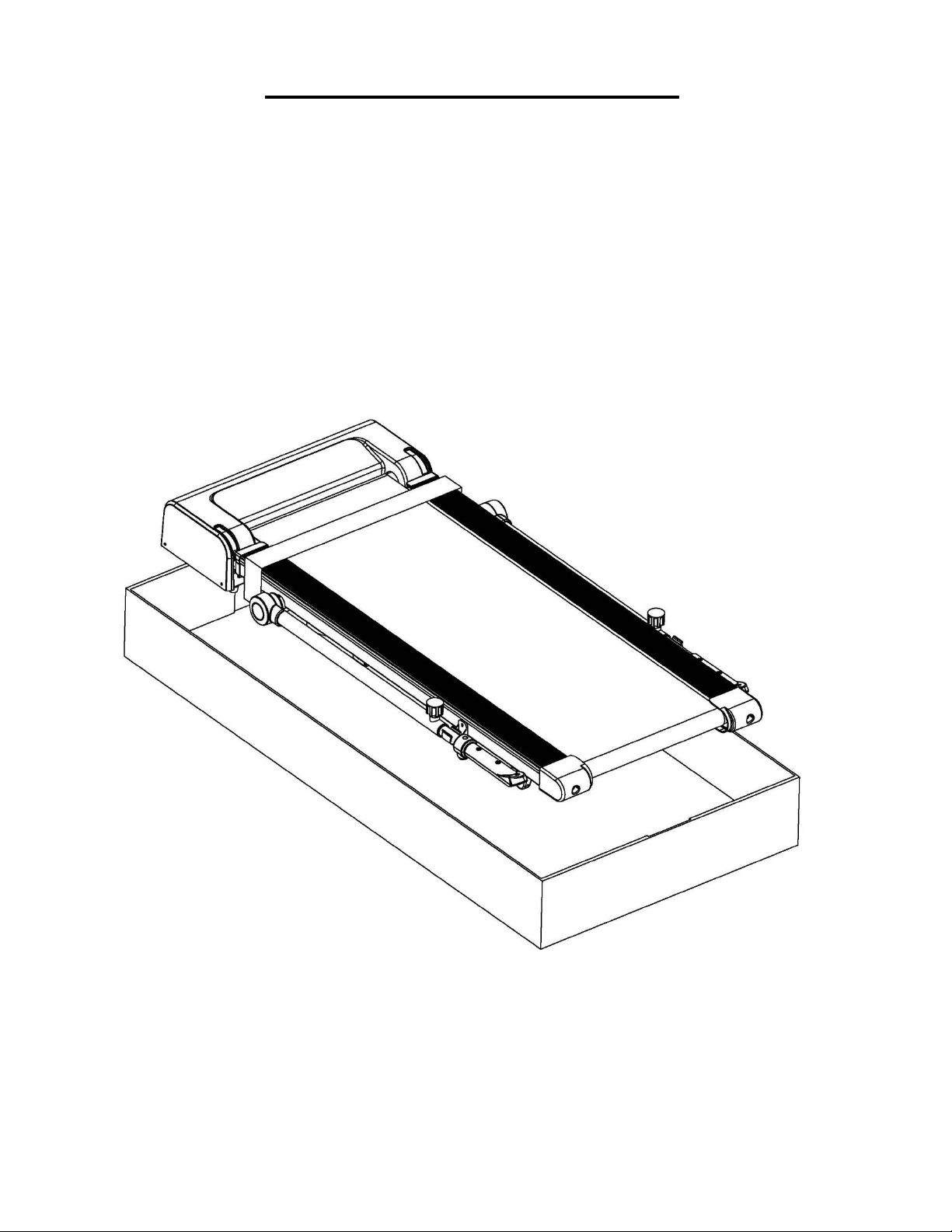

STEP 1:

10
STEP 2:
.

11
STEP 3:

12
STEP 4:

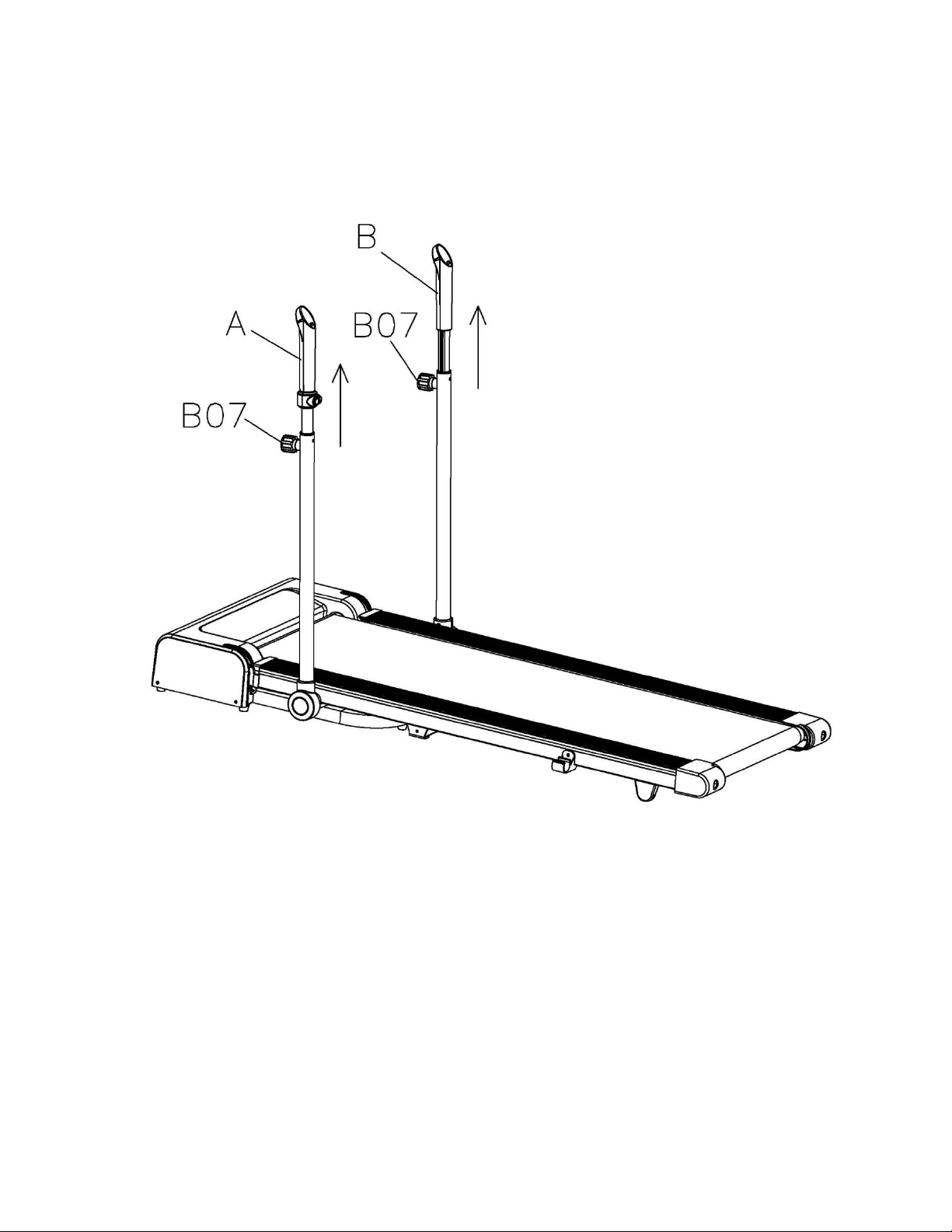

When it is necessary to adjust the length of the Left handrail, hold the Elastic
Pin (B07) with one hand and rotate until it becomes loosened. Pull the Elastic
Pin (B07) outward, and hold Handrail (A) with your other hand. Pull
upward until the Elastic Pin (B07) clicks on the handrail. Tighten the Elastic Pin (B07) up
once desired length is achieved.Adjust the Right handrail in the same way.

13
FOLDING INSTRUCTIONS

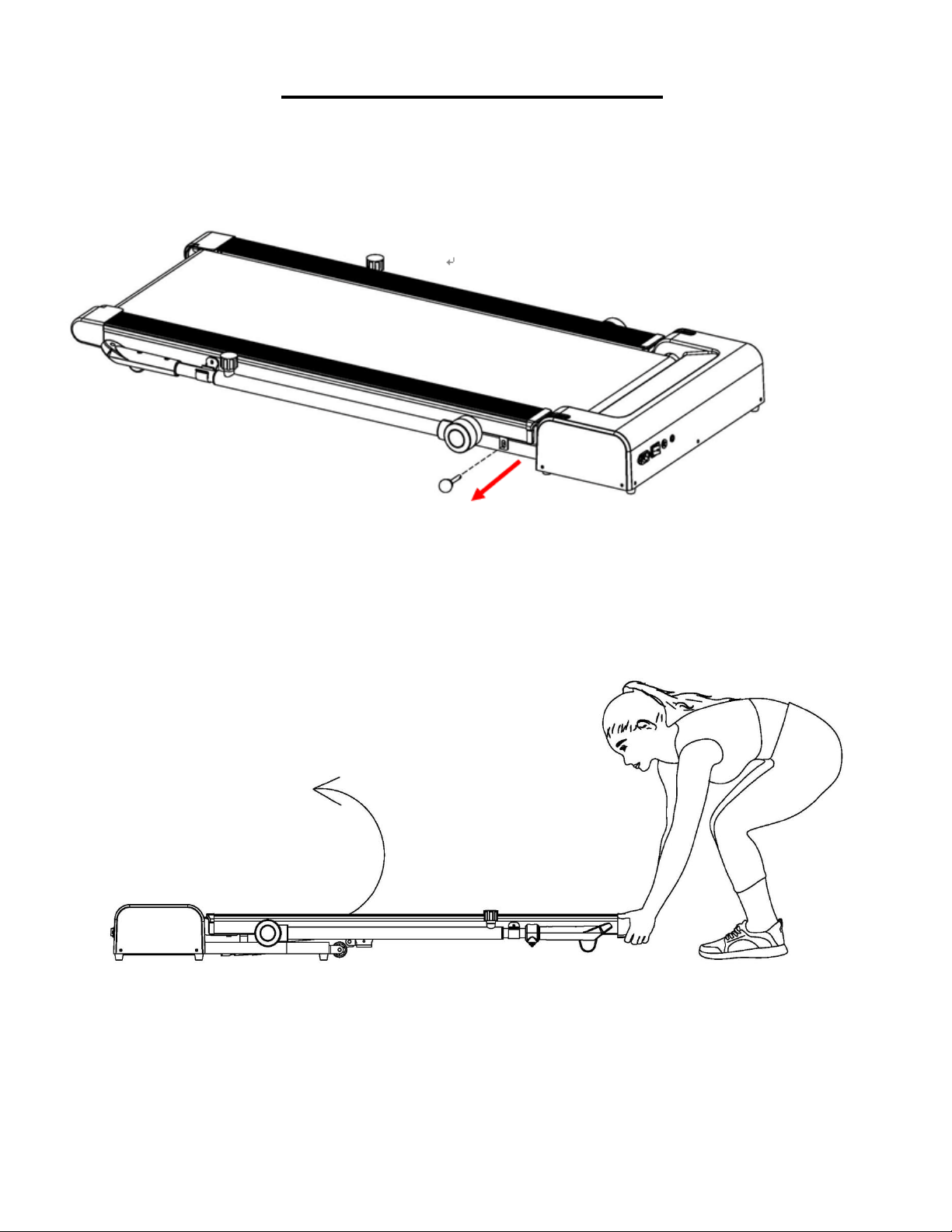

FOLDING:

14

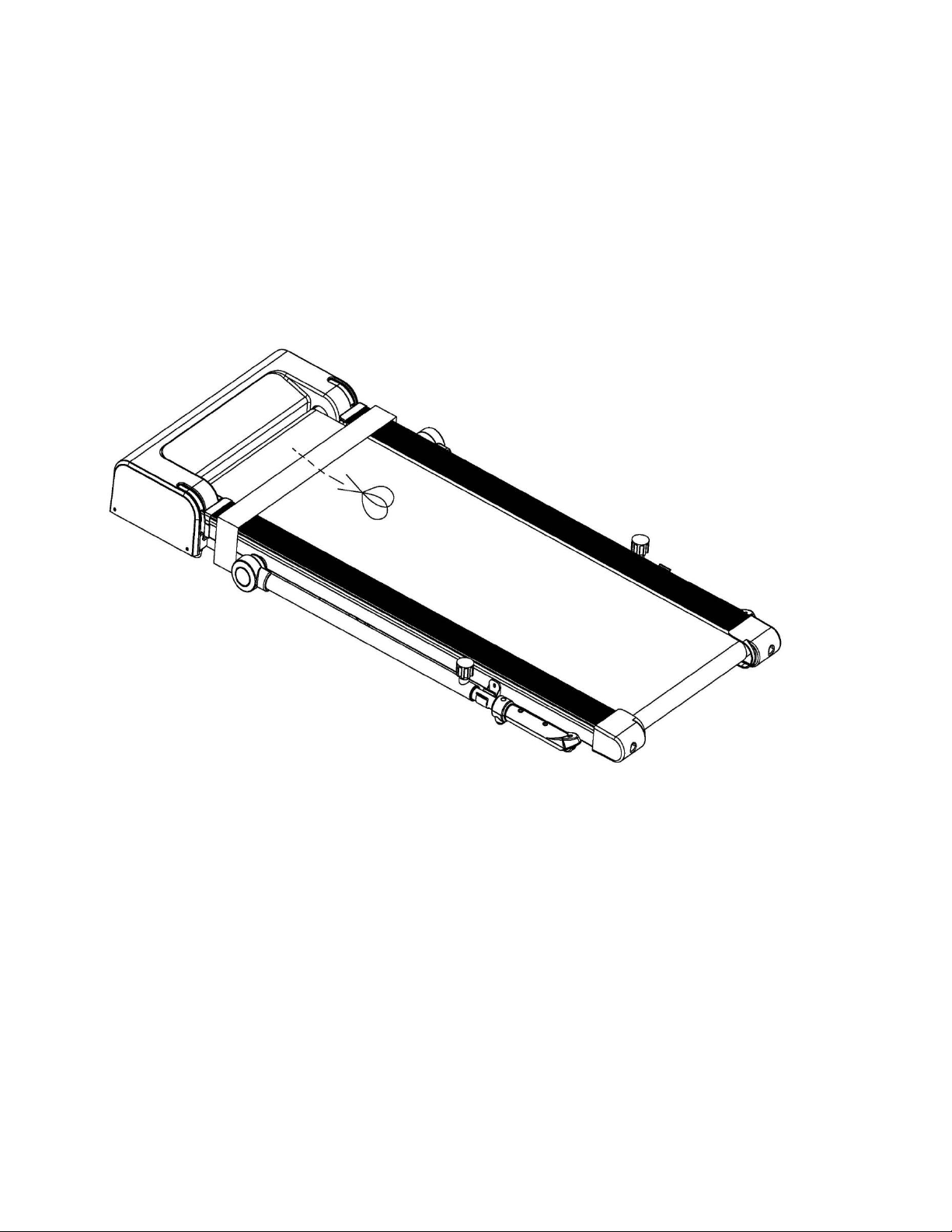

UNFOLDING:

15
HOW TO MOVE THE MACHINE

16

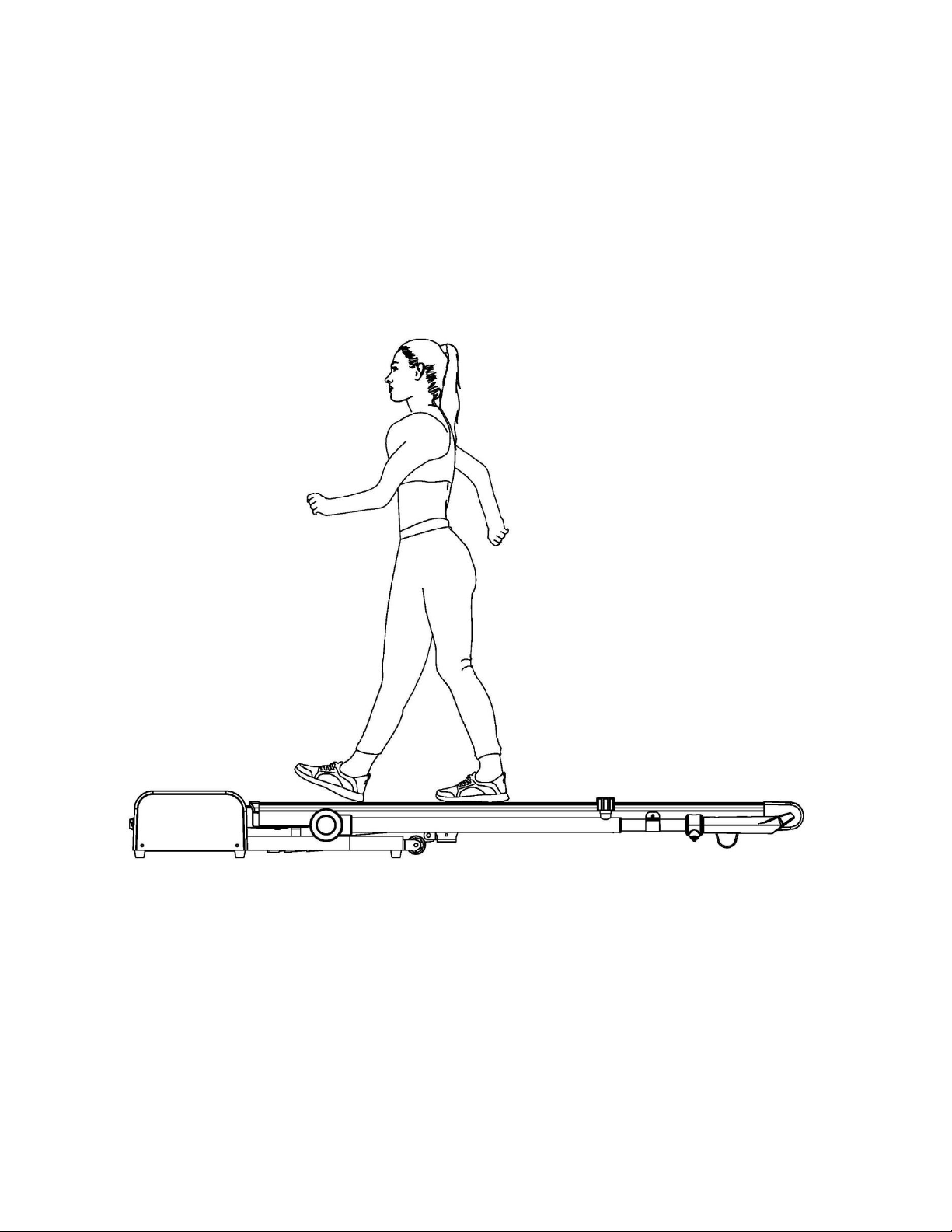

HOW TO USE THE TREADMILL
WITH HANDRAIL
：

17
WITHOUT HANDRAIL
：

18
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No.
C09)to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that
dirt from your shoes does not wear out the Running Board (No. D09) and Running Belt (No. C09).
Clean the surface of the Running Belt (No. C09)with a clean damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the machine be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.
A loose Running Belt (No. C09)will result in the runner sliding off when running. Too tight of a
Running Belt (No. C09)will result in a decrease to themotors performance and create more friction
between the roller and Running Belt (No. C09). The most suitable tightness for the Running Belt
(No. C09)is pulled out 50-75mm from the Running Board (No. D09).

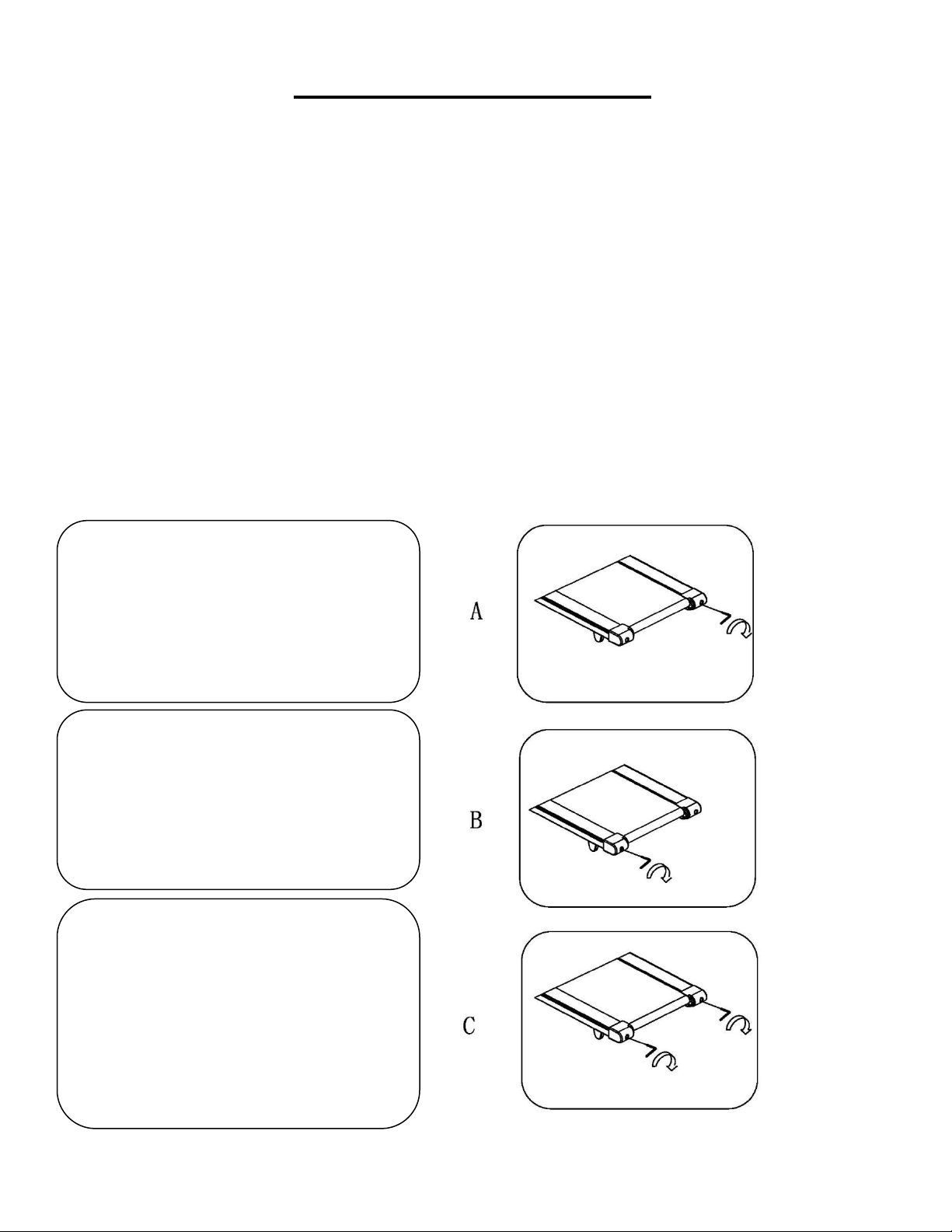

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 4mph to check if the Running Belt (No. C09) drifts.
Use Allen Wrench (No. B04) to adjust.
1. If the Running Belt (No. C09)
moves to the right, turn the adjusting
bolt on the right side ¼turn clockwise,
then turn the left adjustment bolt ¼ turn
counter-clockwise. If the belt does not
move,
repeat this step until it centers.
Refer to Figure A.
2. If the Running Belt (No. C09)
moves to the left, turn the adjusting
bolts on the left side ¼
of a turn
clockwise,
then turn the right
adjustment bolt ¼ turn counter-
clockwise. If the belt does not move,
repeat this step until it centers. Refer
3. Over time the Running Belt (No.
C09)
will loosen. To tighten the belt
turn the Left & Right side adjustment
bolts one full turn clockwise, check the
tension of the belt. Continue this
process until belt is at the correct
tension. Make sureto adjust both sides
equally to ensure correct belt
alignment. Refer to diagram “C”

19
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Board (No. D09) and Running Belt (No. C09)is essential as the friction
between the two affects the life span and function of the treadmill. Therefore, it is suggested that the
Running Board (No. D09) and Running Belt (No. C09)be inspected regularly. Should you find any
wear on the Running Board (No. D09), please contact us at: [e-mail].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating or
repairing the unit.
HOW TO LUBRICATE:
1. Raise the Running Belt (No. C09)up on one side and apply lubricant to the Running Board (No.
D09). Use a rag to thoroughly wipe the lubricant over the Running Board (No. D09). Repeat this
process for the other side.
2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the safety of
the equipment. Inspect and tighten all bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. Aloose Running Belt (No. C09)will result in the runner sliding off during use.Too tight of a Running
Belt (No. C09)will decrease the motor performance and also create morefriction between the roller
and Running Belt (No. C09). The most suitable tightness for the Running Belt (No. C09)is pulled
out 50-75mm from the Running Board (No. D09).
The following time table is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months
