Operation
Attention
1) The product shall be installed with qualified person
7) For updated information please consult your supplier.
6) Please ensure that the cable is secured tightly in the connector
5) Never connect any cables while power is on and always assure correct connections to avoid
short circuits before switching on.
4) Please check if the output voltage of any LED power supplies used comply with the working
voltage of the product.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
2) IP20.Please avoid the sun and rain. When installed outdoors, please
ensure it is mounted in a water proof enclosure.
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
1) We provide lifelong technical assistance with this product:
For faults beyond the 3-year warranty we reserve the right to charge for time and parts.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect
connection and replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and
humidity or near harmful chemicals.
2) Limited Warranty
Any defects caused by wrong operation.
Warranty Agreement
5-year warranty. We print produce date on every products, for example :1125 means
year 2011,week 25.The warranty is for free repair or replacement and covers
manufacturing faults only.

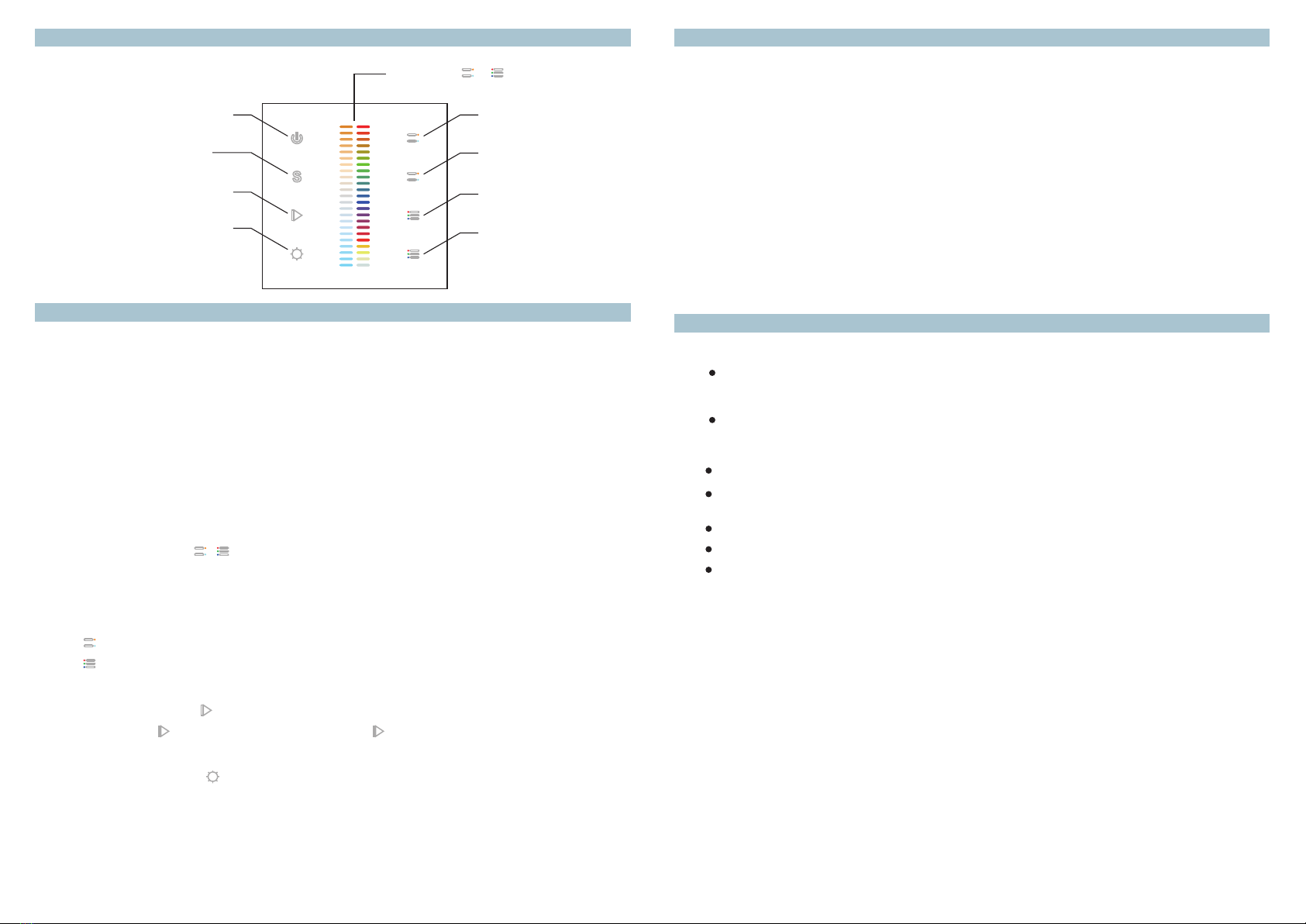

Description of buttons
ON/OFF button
Hold finger down over 3 seconds
connected lighting flashes.
It saves color or mode
RGB running mode. 10 built-in mode
Smooth brightness dimming:0.1-100%
Control 1 zone:cw+ww lighting
Control 2 zone:cw+ww lighting
Control 1 zone:RGB lighting
Control 2 zone:RGB lighting
When you touch or button,
then touch rainbow, it will dim cw+ww or RGB
Save and recall
Save: Touch any zone button
Touch color slider to get a color→
Hold S button for over 3 seconds, connected light flick means successfully saved.
Recall: Short touch button S →Recall the color saved.
Note : only can learn for LED CW+WW lighting.
only can learn for LED RGB lighting.
Running mode
There are 10 build-in modes in button, which running modes are only for RGB lighting.
Short press on button to run mode. Hold finger down on button can speed up /down.
Dimming
Hold your finger down on button ,brightness will dim smoothly from 0.1% to 100%.
Four zones can be switch
on/off by short press.
After connect well with DMX decoders, please set the DMX decoders
address as below:
DMX decoder’s address 001 is controlled by 1 zone :cw+ww lighting
DMX decoder’s address 005 is controlled by 2 zone :cw+ww lighting
DMX decoder’s address 009 is controlled by 1 zone :RGB lighting
DMX decoder’s address 013 is controlled by 2 zone :RGB lighting
Short press zone number is to choose a zone, long press zone number is turn on/off that zone individually
To synchronize several zones, short press 2 or more buttons one after another, then touch the color wheel
How to operate zone button
Note: CCT zones and RGB zones are not available to synchronize at the same time.
