Sunrise Medical TRU-TRAC TT-92B Series User manual

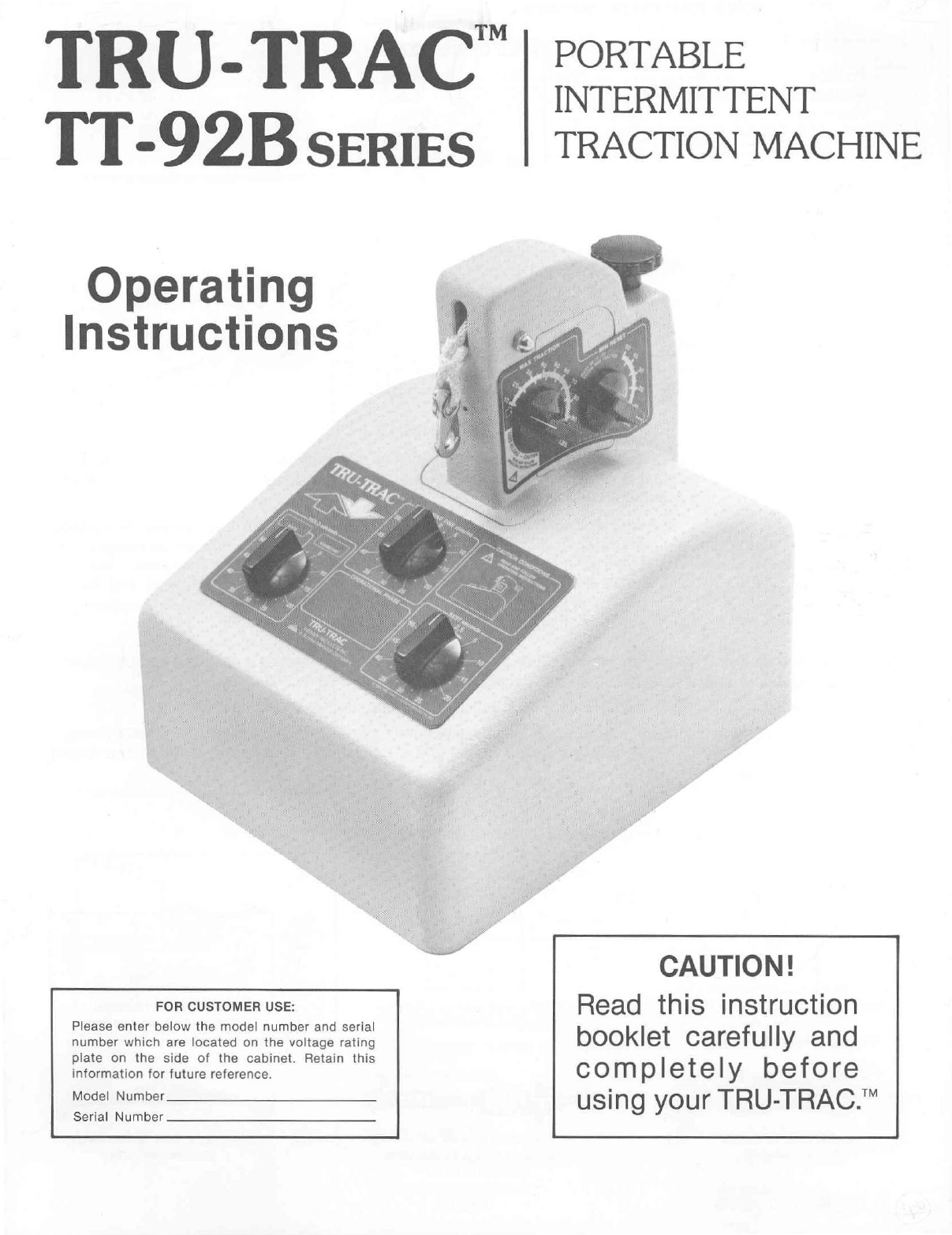

TRU-TR
AC”
PORTABLE
INTERMITTENT
TT-O2B
SERIES
|
TRACTION
MACHINE
Operating
Instructions
CAUTION!
FOR
CUSTOMER
USE:
Read
this
instruction
Please enter below the model number and seria
number ich = ct — the voltage fating booklet carefully and
а E completely before
a using your TRU-TRAC.™

PPEFACE
Congratulations on your investment in the TRU-TRAC™ model TT-92B series portable
intermittent traction machine. This booklet contains important safety information and
instructions and should be read carefully and completely before using your TRU-TRAC'M,
LIMITED WARRANTY INFORMATION
The LIMITED WARRANTY is contained on the WARRANTY REGISTRATION CARD included
with your TT-92B series TRU-TRACTM, To validate your warranty and be sure that you are on
the
mailing list for future notifications, it is essential that you read, fill out and mail the
enclosed registration card. Also, please enter both the model number and serial number
where indicated on the cover of this booklet.
FAILURE TO USE AND MAINTAIN THE MACHINE AND ACCESSORIES IN ACCORDANCE
WITH THESE INSTRUCTIONS WILL INVALIDATE YOUR WARRANTY. Please read the
enclosed WARRANTY REGISTRATION CARD and these instructions carefully.
WARNING!
DO NOT CONNECT THE MACHINE TO THE ELECTRICAL SUPPLY WITHOUT FIRST
VERIFYING THAT IT IS THE CORRECT VOLTAGE. Incorrect voltage may cause machine
damage,
malfunction, electrical shock, fire or personal injury. Your TT-92B series
TRU-TRAC™ was constructed to operate only on the electrical voltage specified on the
voltage rating and serial number plate. Please contact your supplier if the machine is
not properly rated.
DO NOT USE A DAMAGED POWER SUPPLY CORD. Using a damaged power supply cord
may cause machine damage, malfunction, electrical shock, fire or personal injury. If the
power supply cord becomes damaged, immediately discontinue using the machine and
contact the factory for replacement of the power supply cord.
DO NOT USE A WORN BRAIDED TRACTION CORD. Using a worn braided traction cord
may cause machine damage, malfunction, or personal injury. If signs of wear are
observed on the braided traction cord, immediately discontinue using the machine and
consult the factory for replacement of the braided traction cord.
DO NOT REMOVE THE COVER. Removing the cover may cause machine damage,
malfunction, electrical shock, fire or personal injury. There are no user-serviceable parts
inside the machine. If a malfunction occurs, immediately discontinue using the
machine, disconnect the AC power cord from the AC outlet and consult the factory for
repair service.
DO NOT PERMIT ANY FOREIGN MATERIALS OR LIQUIDS TO ENTER THE MACHINE.
Care should be taken to prevent any foreign materials, including but not limited to
inflammables, water and metallic objects, from entering the machine. Foreign materials
such as inflammables, water or metallic objects may cause machine damage,
malfunction, electrical shock, fire or personal injury.
DO NOT DISASSEMBLE, MODIFY OR REMODEL THE MACHINE OR ACCESSORIES.
Disassembly, modification or remodeling of the machine or accessories may cause
machine damage, malfunction, electrical shock, fire or personal injury.
USE THIS MACHINE ONLY WITH TABLES, STANDS AND ACCESSORIES
SPECIFICALLY DESIGNED AND MANUFACTURED BY TRU-TRAC THERAPY
PRODUCTS INC. FOR USE WITH A TRU-TRAC™. Using this machine with tables,
stands or accessories not specifically designed and manufactured by TRU-TRAC
THERAPY PRODUCTS INC. for use with a TRU-TRAC™ may cause machine damage,
malfunction, electrical shock, fire or personal injury.

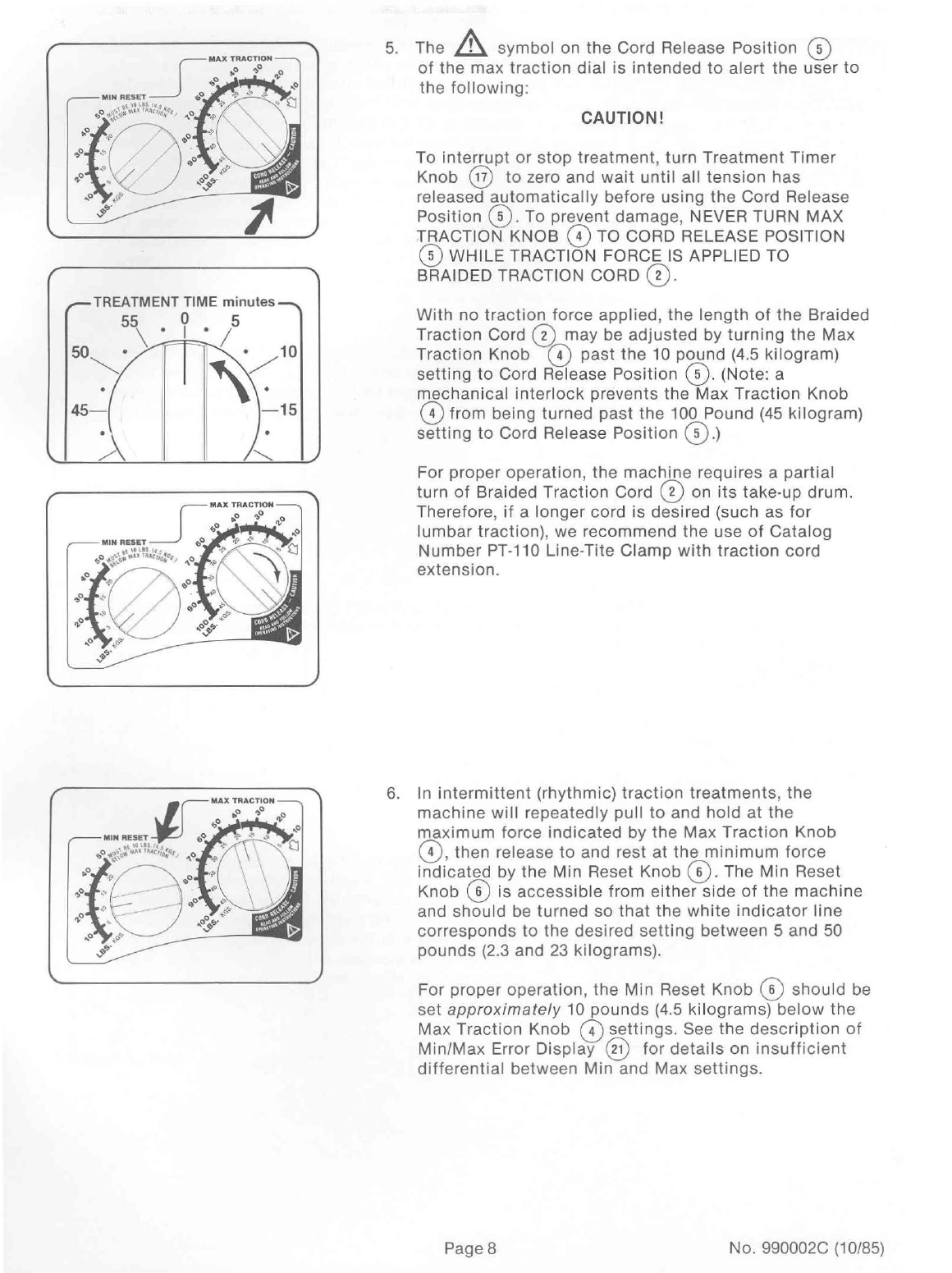

The exclamation point within a triangle is an international symbol which
means “Attention, consult accompanying documents.” As used on the Cord
Release position of the max traction dial and the Caution Conditions section of the
instrument panel, the symbol is intended to alert the user to important instructions
which are provided in this booklet. Refer to items 5 and 19 in the “Operating Controls
and Features” section of these instructions for details.
TRU-TRAC"
Save this manual for future reference.
Page 1
© 1985 TRU-TRAC THERAPY PRODUCTS INC. FOLD OUT —>- |

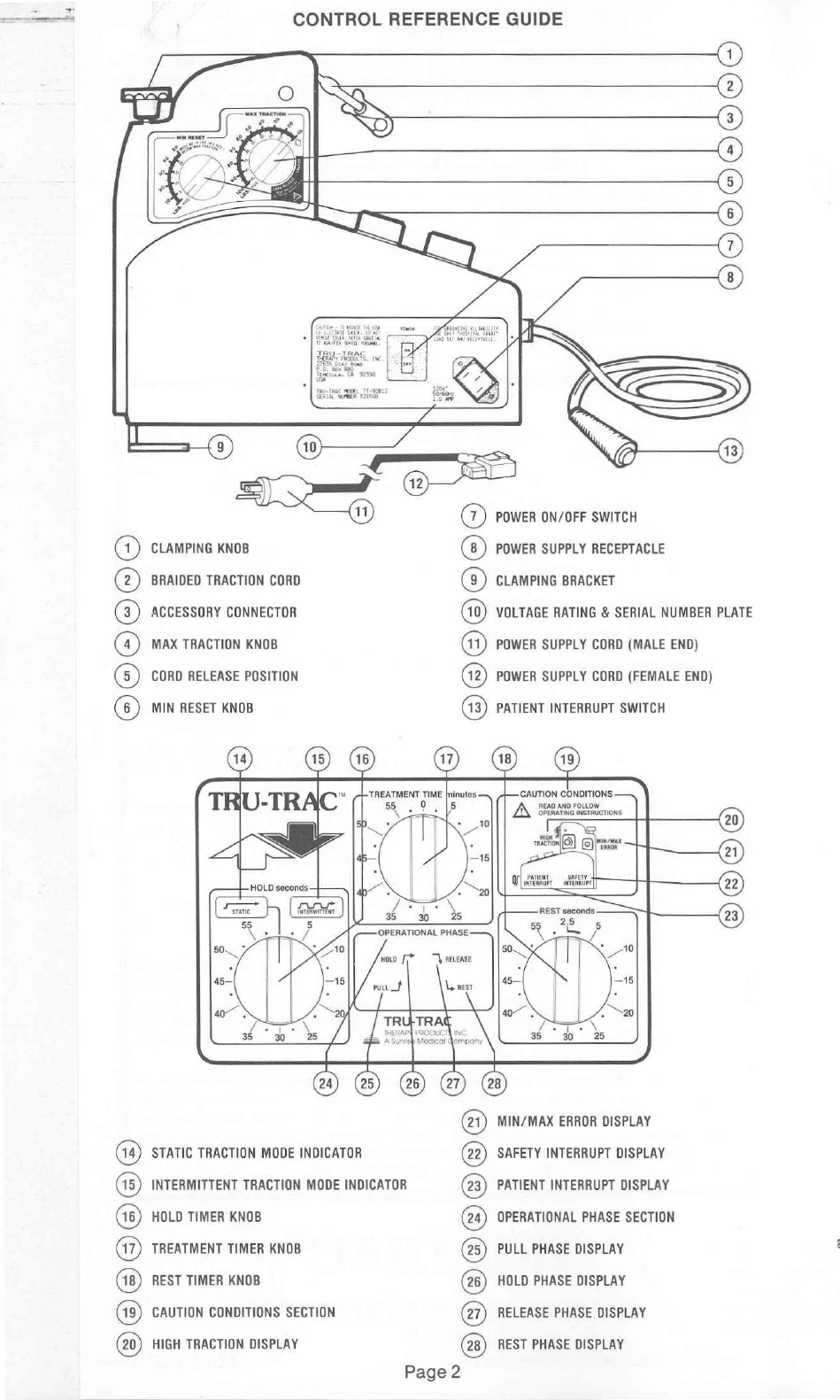

CONTROL REFERENCE GUIDE
res at ad
TRU TRAC
000000
SO
O) CLAMPING KNOB
(2) BRAIDED TRACTION CORD
(3) ACCESSORY CONNECTOR
(4) max TRACTION KNOB
(5) CORD RELEASE POSITION
(6) MIN RESET KNOB
» PO
CT) Power ON/OFF SWITCH
POWER SUPPLY RECEPTACLE
(© CLAMPING BRACKET
VOLTAGE RATING & SERIAL NUMBER PLATE
(11) POWER SUPPLY CORD (MALE END)
(12) POWER SUPPLY CORD (FEMALE END)
(43) PATIENT INTERRUPT SWITCH
TRU-TRAC"
dr
HOLD second:
Te") e)
5
ん
55
\ a
トーCAUTION CONDITIONS.
READ AND FOLLOW
OPERATING INSTRUCTIONS
A
KTO
@) MIN/MAX ERROR DISPLAY
STATIC TRACTION MODE INDICATOR (22) SAFETY INTERRUPT DISPLAY
INTERMITTENT TRACTION MODE INDICATOR PATIENT INTERRUPT DISPLAY
HOLD TIMER KNOB OPERATIONAL PHASE SECTION
TREATMENT TIMER KNOB PULL PHASE DISPLAY
REST TIMER KNOB HOLD PHASE DISPLAY
CAUTION CONDITIONS SECTION RELEASE PHASE DISPLAY
ΘΦΦΘΘΘΘΘ
60060008
HIGH TRACTION DISPLAY REST PHASE DISPLAY
Page 2

TABLE OF CONTENTS
Kl, ÖMER e 1
Limited Warranty (Mfonmation « cu à à à à à à à eue e Y O A 8 K 6 MAM 1
We 1
Control Reference Guide (fOld:OUt)za si ir sapo ca PE O RI ο Mane AAA e AAA 2
Maintenance...
2.
2
1
Miss
en
en
Ee
mem
GEBER
BERELER
Kad
pe
see
sons
RE
E
3
ep © v à à deux à à à à 6 à à à moment où à Oe anne a RE men eee LEE RAINED aT ES EOE SONS HES 3
Included Accessory LES « : à. 4 0 cima vie 6» 5 8 0 emeli и дж ο ο ο ο 3
UNPACKING sia 63 +4 8 8 s 8 K ananas a à ар ος ο A 에 ο 1 0 erim o m à 4
Before: Installation; a sar ge ea ae à à 0 E ο ο ο ο ο e ο ο 4
Installation... ее 5
Operating Controls and Features........,......sss.issssiesesoseseheie seems es 7
Recommendations ciume area neem aaa creme a ae a rena a a pa va pa Ee aja 14

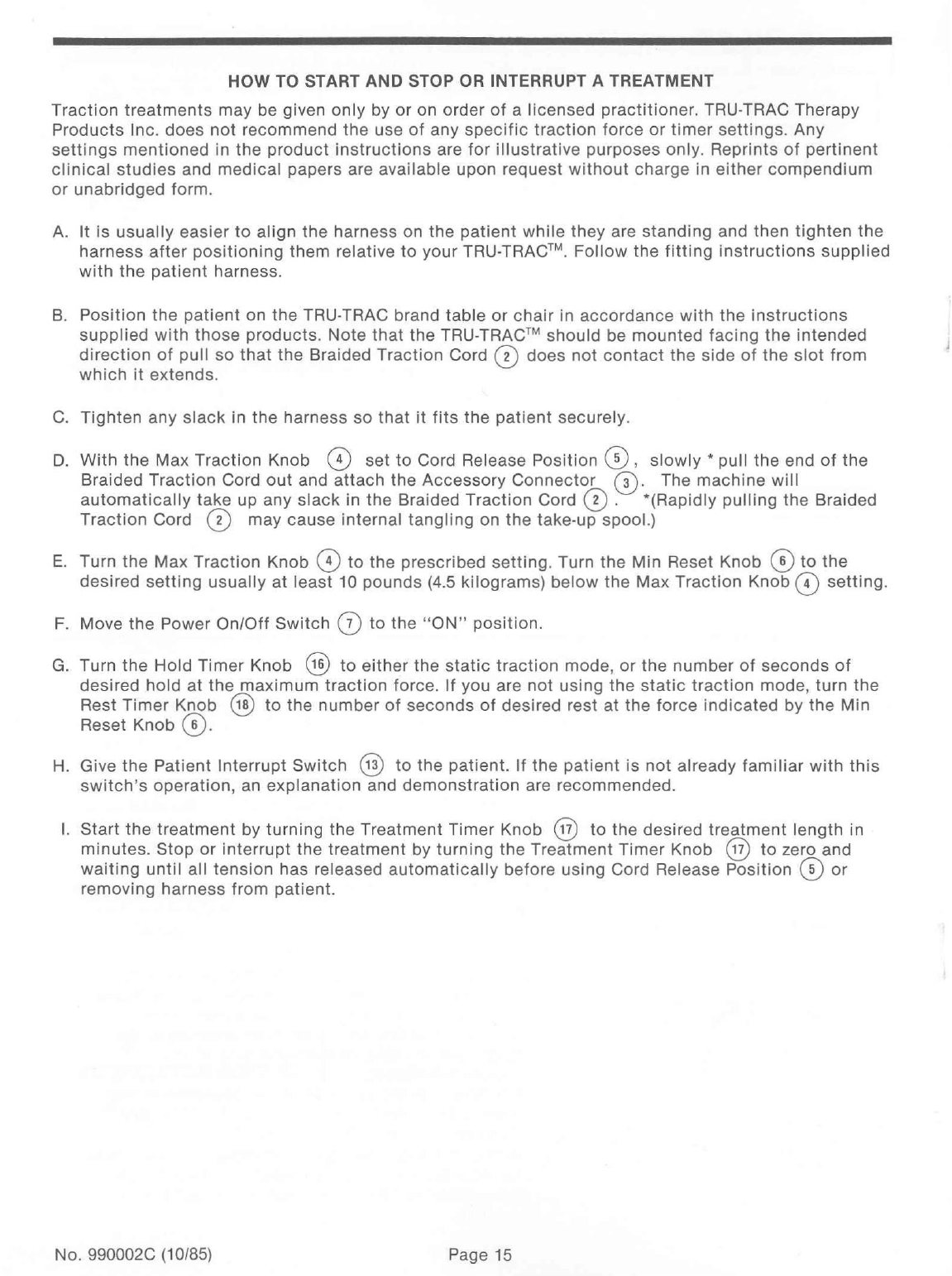

How to Startand Stop orlnterruptaTreatment νε «ων νε νε ν εν ενω ν εκ νε κών εν νεο εκ ον κ ων εκ εν 15
InCase.of Troubles me Pic à vante su о зы о ion boue à à à i ere вонь è E I zanne sie n cin sr 16
MAINTENANCE
A preventative maintenance inspection and calibration check is recommended every six months. Arrange
with your dealer or other local qualified service personnel for this servicing. In the interest of safety, do not
attempt to perform this maintenance yourself.
To clean the machine, wipe it with a cloth. Do not use thinners or solvents as these may damage the surface
or blur the instrument panels and dials. For more thorough cleaning, wipe with a cloth dampened (not
dripping wet) with a diluted neutral non-abrasive cleaning agent (e.g. “409” or “Fantastic” brands).
PREVENT LIQUID AND FOREIGN MATERIALS FROM ENTERING YOUR TRU-TRAC™; read and follow
warning on page 1.
REPAIR
Consult the factory for all repair service other than a preventative maintenance inspection and calibration
check. A loaner/rental unit is available for use while your machine is being repaired.
Users located outside the United States should consult their supplier for servicing and repair.
Repairs by unauthorized personnel or the use of replacement parts not supplied by TRU-TRAC Therapy
Products Inc. is DANGEROUS, may result in damage, and will invalidate your warranty. Read and follow
warning on page 1.
ACCESSORIES INCLUDED WITH TT-92B SERIES TRU-TRAC™
COMPLIMENTARY SAMPLE OPERATING INSTRUCTIONS WARRANTY REGISTRATION CARD
HEAD
HALTER (Document No. 990002C) (DOCUMENT NO. 997200B)
(Various Catalog Numbers)
POWER SUPPLY CORD LINE-TITE CLAMP WITH SPREADER BAR WITH STRUT
(Cat. No. 868340) TRACTION CORD EXTENSION (Cat. No. SC-31S)
(Cat. No. PT-110)
No. 990002C (10/85) Page 3

SUGGESTION:
Throughout these instructions, you will find numbers in
circles that correspond to the fold-out “Control Reference
Guide” on page 2. While reading, leave it unfolded for easy
identification of control and feature locations.
UNPACKING
With carton resting on floor, fold back top flaps, remove
accessory packet, and carefully turn complete package
upside down. Next, slide the carton up and away from the
contents. Protective plastic wrapping and foam inserts may
now be removed as the machine is returned to right-side up.
Save the carton and protective packaging for possible future
use. Inspect machine for any visable damage which may
have occurred during transit. If damage is noted, a claim
should be filed immediately with the transportation
company; not with TRU-TRAC Therapy Products Inc.
BEFORE INSTALLATION
Before installation, traction force which was preset for ship-
ment must be released properly to prevent damage. Complete
these steps before using the Cord Release (5) feature:
A. VERIFY that your electrical supply matches the voltage
rating specified on the Voltage Rating & Serial Number
Plate (10) . Contact your supplier if the machine is not
properly rated. Read and follow warning on page 1.
tun
TO REDUCE HE se
SHOCK, DO ků:
!
ο
ЕТУ
E
ER
SIDE
USE
OLY”
"HDS
7
oF 1
EME EWES, EF
TE HAL SERIE
TRU-TRAC
B. CONNECT Power Supply Cord (Female End) (12) to
machine’s Power Supply Receptacle making sure
that the locking tabs are engaged. CONNECT Power
Supply Cord (Male End) (1) to a properly grounded
electrical outlet. Read and follow warning on page 1.
Page 4 No. 990002C (10/85)

C. MOVE Power On/Off Switch (7) to the “ON” position.
FOR GEDUMDING RELIABILITY
이 ek
TRU-TRAC MODEL 11-92812
SERIAL NUMBER 321508
D. Manually PULL end of Braided Traction Cord (2) until
knot no longer touches unit. If motor does not start and
gradually release shipment tension, re-check steps A

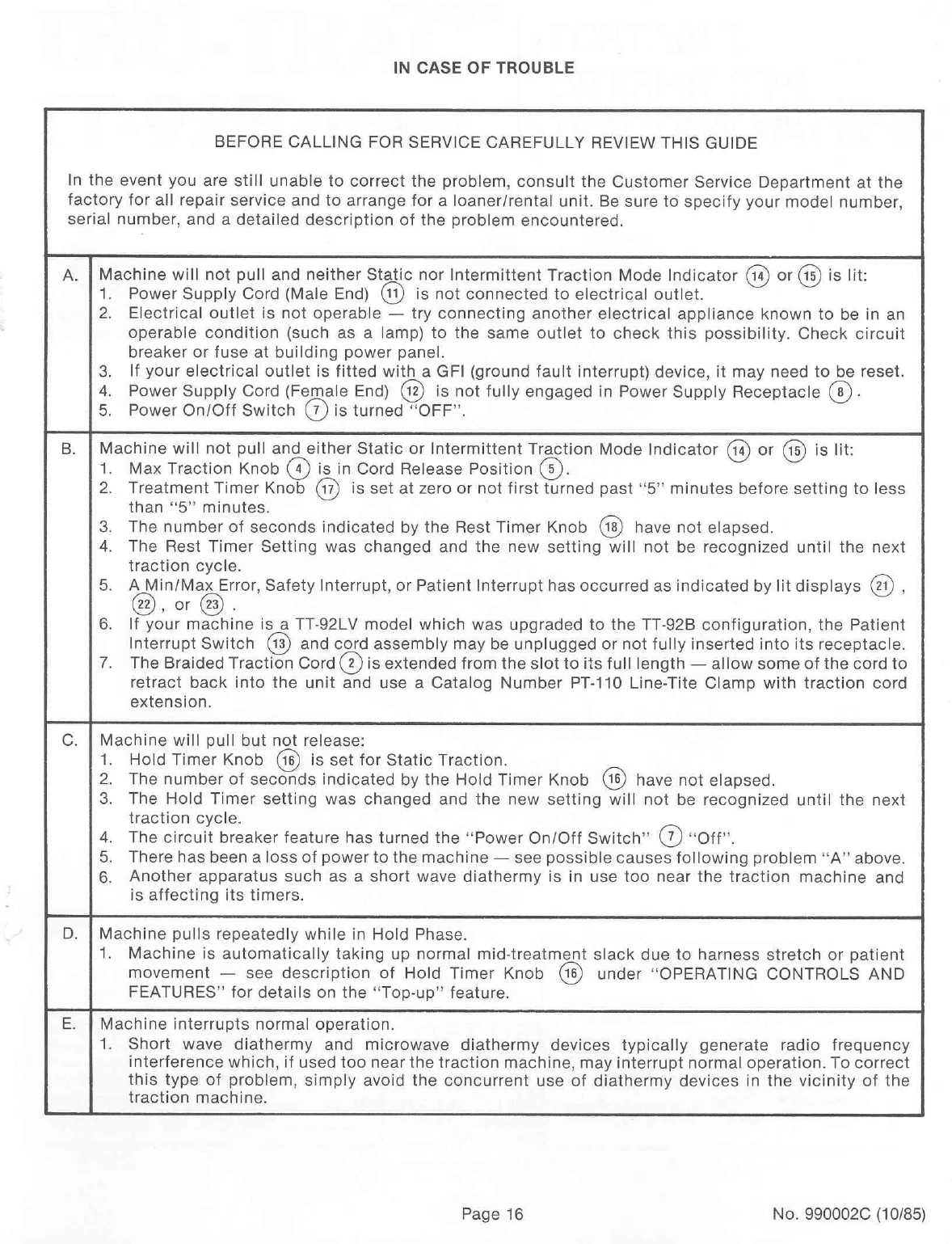

through C. If motor still does not start, refer to “In Case
of Trouble” section of these instructions.
E. MOVE Power On/Off Switch O to the “Off” position.
DISCONNECT Power Supply Cord (Male End) (1) from
electrical outlet.
INSTALLATION
WARNING:
To prevent accidental disengagement, this machine must be securely attached to its receiving mount
which in turn must be securely attached to adequate structural support. It is the responsibility of the
owner/user to verify the adequacy of the installation BEFORE USE IN PATIENT TREATMENT.
NOTE: Read and follow “Before Installation” instructions
before proceeding.
A. EXTEND the Clamping Bracket © as reguired by
turning Clamping Knob © counterclockwise.
No. 990002C (10/85) Page 5

A1. For TRU-TRAC brand “2000 Series” Traction Tables:
With Clamping Bracket (© extended, SLIDE the machine
fully on to the CENTER of the mounting platform. RETRACT
the Clamping Bracket (9) by turning Clamping Knob
clockwise until it is firmly tightened. VERIFY that the
Clamping Bracket @) has securely engaged both
the platform and the structural metal support
which is attached to the platform.
A2. For TRU-TRAC brand “TS-93 Series” Traction Stands:
With Clamping Bracket extended, SLIDE the machine
down over the “T” shaped top of the stand and CENTER in
place. RETRACT the Clamping Bracket (© by turning
Clamping Knob (1) clockwise until it is firmly tightened.
VERIFY that the Clamping Bracket @) has securely engaged
the top of the stand and that the stand is securely assembled
in accordance with its accompanying instructions.
NOTE: The TS-93 Series Traction Stand is for Cervical
Traction Only — NOT TO EXCEED 50 LBS. (22.7 kgs.)
A3.
For TRU-TRAC brand “MT-9100” Mobile Traction Stand:
Carefully mount TRU-TRAC™ traction machine to MT-9100 traction
stand plate in accordance with MT-9100 instructions. ALIGN
mounting plate studs with holes in upright staff and push
completely through upright staff. Slide steel washers over studs
and
fasten tightly with self locking nuts. VERIFY that the MT-9100
and TT-92B has been securely assembled in accordance with the
MT-9100 instructions.
A4. For TRU-TRAC brand “WM-0291” Optional Wall Mount:
With Clamping Bracket (9) extended about one-third inch
(1 cm), SLIDE the machine down so that the Clamping
Bracket @) fully enters the upper opening between the
Wall Mount and the wall. RETRACT the Clamping Bracket (©
by turning Clamping Knob (1) clockwise until itis firmly
tightened. VERIFY that the Clamping Bracket (9) has securely
engaged the Wall Mount and that the Wall Mount is securely
attached to the wall in accordance with its accompanying
instructions.
A5. For TRU-TRAC brand “RT-99” Traction Table
(discontinued in 1978): With the Clamping Bracket (9) extended
SLIDE the machine fully on to the CENTER of the adjustable
mounting board. RETRACT the Clamping Bracket (© by turning
Clamping Knob (4) clockwise until it is firmly tightened.
VERIFY that the Clamping Bracket (9) has securely engaged
the adjustable mounting board and that the table is properly
assembled in accordance with its accompanying instructions.
B. This machine is intended to be used only with tables, stands and accessories manufactured by
TRU-TRAC Therapy Products Inc. (or TRU-EZE Mfg. Co. Inc.) and specifically designed for use with a
TRU-TRAC™. Use in any other manner is dangerous and damage may result. Read and follow warning
on page 1.
Page 6 No. 990002C (10/85)

MAX TRACTION
>
5
©
MIN RESET & に
ea Se ts
A
No. 990002C (10/85)
As
OPERATING CONTROLS AND FEATURES
The Clamping Knob © is used to extend or retract
Clamping Bracket (9) when installing or removing the
machine. See “Installation” instructions for details.
2. The Braided Traction Cord @) is securely attached to
the Accessory Connector © with a special “bowline”
knot. This knot should never be untied or cut off. To
prevent wear and fraying, the machine should be
mounted facing toward the desired direction of pull so
that
the Braided Traction Cord (2) does not contact the
side of the slot from which it extends. Do not use the
machine if signs of wear or fraying are observed on
the Braided Traction Cord @) — consult the factory for
replacement. Read and follow warning on page 1.
The Accessory Connector © is opened by using the
thumb and index finger to “pinch” the two “tabs”
towards each other inside the loop at the end of the
knot. This action opens the Accessory Connector @) to
accept the metal bar or metal ring of the desired
accessory such as Catalog Number SC-31S Spreader
Bar or Catalog Number PT-110 Line-Tite Clamp with
traction cord extension. Close the Accessory Connector
so that both halves engage the desired accessory.
The Max Traction Knob © is conveniently accessible
from either side of the machine. The knob is used to
determine the maximum traction force to be applied
during the Hold phase and should be turned so that the
white indicator line corresponds to the prescribed
traction force between 10 and 100 pounds (4.5 and 45
kilograms) on the Max Traction dial.
The Max Traction dial settings in pounds are marked in
cream colored numerals next to the graduations on the
outside edge of the curved scale. Settings in kilograms
are marked in orange colored numerals next to the
graduations on the inside edge of the curved scale. The
high
traction range above 40 pounds (18 kilograms) on
the curved scale is colored yellow as a caution
reminder to the operator — see the description of High
Traction Display for details.
Page 7

5. The A symbol on the Cord Release Position
of the max traction dial is intended to alert the user to
the following:
MAX TRACTION
©
Li
©
MIN RESET A <
Ps
CAUTION!
To interrupt or stop treatment, turn Treatment Timer
Knob (7) to zero and wait until all tension has
released automatically before using the Cord Release
Position (5). To prevent damage, NEVER TURN MAX
TRACTION KNOB (a) TO CORD RELEASE POSITION
(5) WHILE TRACTION FORCE IS APPLIED TO
BRAIDED TRACTION CORD (2).
With no traction force applied, the length of the Braided
Traction Cord (2) may be adjusted by turning the Max
Traction Knob (4) past the 10 pound (4.5 kilogram)
setting to Cord Release Position (5). (Note: a
mechanical interlock prevents the Max Traction Knob
from being turned past the 100 Pound (45 kilogram)
setting to Cord Release Position ©)
For proper operation, the machine reguires a partial
turn of Braided Traction Cord (2) on its take-up drum.
Therefore, if a longer cord is desired (such as for
lumbar traction), we recommend the use of Catalog
Number PT-110 Line-Tite Clamp with traction cord
extension.
6. In intermittent (rhythmic) traction treatments, the
machine will repeatedly pull to and hold at the
MIN RESET < maximum force indicated by the Max Traction Knob
ER, o, ©, then release to and rest at the minimum force
indicated by the Min Reset Knob (6). The Min Reset
Knob (© is accessible from either side of the machine
and should be turned so that the white indicator line
corresponds to the desired setting between 5 and 50
pounds (2.3 and 23 kilograms).
For proper operation, the Min Reset Knob (6) should be
set approximately 10 pounds (4.5 kilograms) below the
Max Traction Knob settings. See the description of
Min/Max Error Display @) for details on insufficient
differential between Min and Max settings.
Page 8 No. 990002C (10/85)

CANTO > O REDUCE THE Rise Fe GROUNDING REL IMBILITY
OF ELECTRIC SHIEK, MT USE ONLY "HOSPITAL GRADE
πια E en HENDE E o ERD SET AAD RECEPTACLE.
TRU-IRAC >
THERAPY PRODUCTS. INC.
27635 Diaz Roan
2.0. Вох 880
Tewecura, CA 92390
ust
TRU-TRAC MODEL 11-92812
SERIAL NUMBER 521508
EE the На: FOR GROUNDING RELIABILITY
3 USE ONLY "HOSPITAL GRADE"
ORD SET AND RECEPTACLE.
CHUTION — 10 REDUCE THE RISK FOR GROUNDING, RELIABILITY
USE ONLY "HOSPITAL GRADE"
CDKD SET AND RECEPTACLE.
TO GUFO SEE Poesie
TRU-TRAC
THERAPY PRODUCTS. INC.
27635 Diaz ROAD
P.0. Box 880
TEMÉCULA. CA 92390
USA
TRU-TRAC MODEL TT-92812
SERIAL NUMBER 321508
No. 990002C (10/85)
7. The Power On/Off Switch (ὢ is also a circuit breaker
which takes the place of a conventional fuse in
providing electrical current overload protection. To
resume use after the circuit breaker automatically turns
the Power On/Off Switch O to the “OFF” position,
simply move the switch back to the “ON” position.
Failure to stay in the “ON” position indicates a
condition requiring repair; immediately disconnect the
Power Supply Cord (Male End) (1) from the electrical
outlet and consult the factory for repair service. Do
NOT use the Power On/Off Switch (の to stop or
interrupt treatment — see “How to Stop or Interrupt
Treatment” instructions.
8. The Power Supply Receptacle accepts the Power
Supply Cord (Female End) 02) and provides locking
tabs which must be fully engaged to ensure proper
connection — see “Before Installation” instructions.
9. The Clamping Bracket (9) secures the machine to its
receiving mount — see “Installation” instructions.
10. The Voltage Rating & Serial Number Plate
specifies the only electrical voltage on which the
machine was constructed to operate. Do not connect
the machine to the electrical supply without first
verifying that it is the correct voltage. Contact your
supplier if the machine is not properly rated — see
“Before Installation” instructions.
Page9

55
SO.
HOLD seconds
STATIC INTERMITTENT
5
HOLD seconds

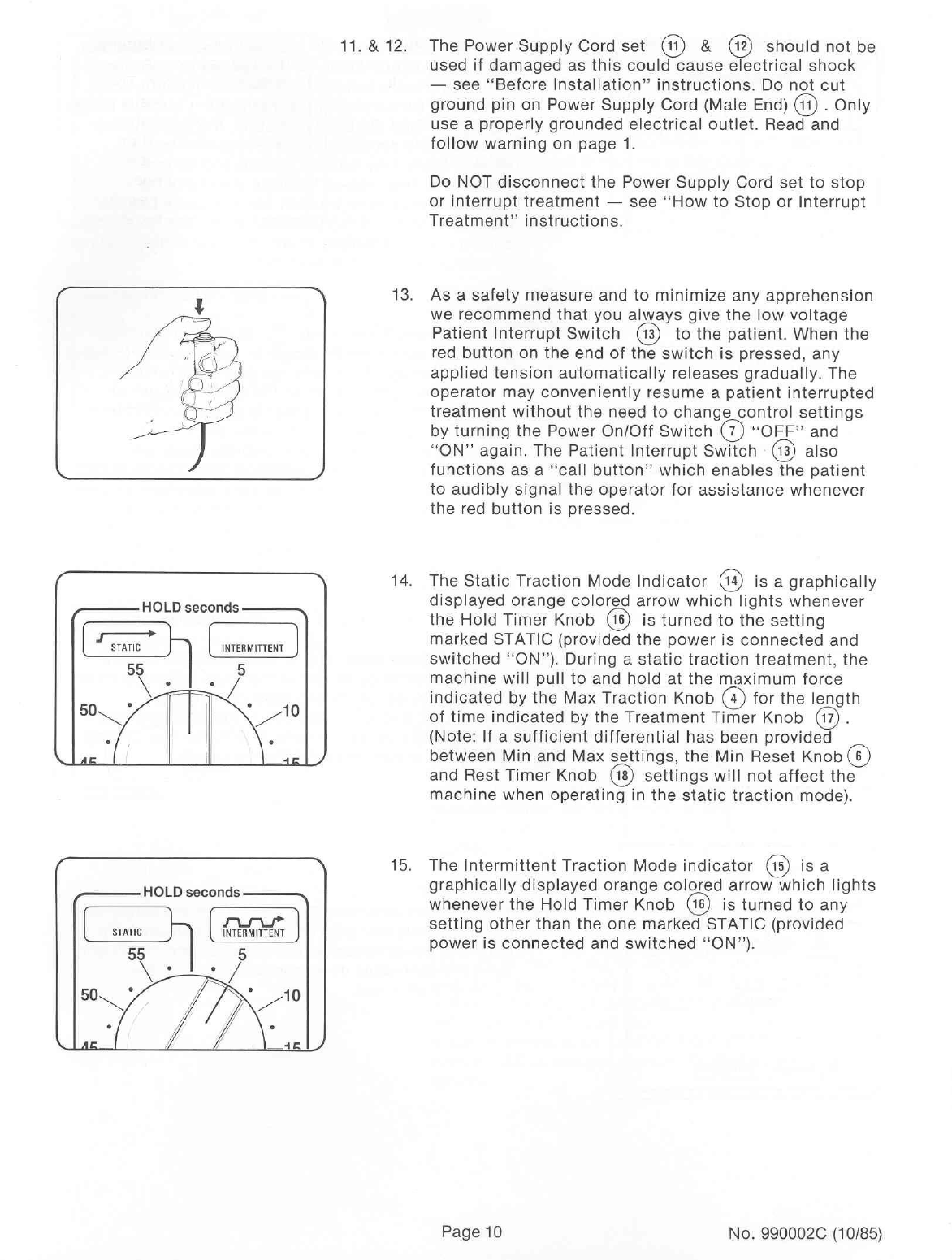

11. & 12.
13.
14.
15.
The Power Supply Cord set (m & 02) should not be
used if damaged as this could cause electrical shock
— see “Before Installation” instructions. Do not cut
ground pin on Power Supply Cord (Male End) © . Only
use a properly grounded electrical outlet. Read and
follow warning on page 1.
Do NOT disconnect the Power Supply Cord set to stop
or interrupt treatment — see “How to Stop or Interrupt
Treatment” instructions.
As a safety measure and to minimize any apprehension
we recommend that you always give the low voltage
Patient Interrupt Switch (13) to the patient. When the
red button on the end of the switch is pressed, any
applied tension automatically releases gradually. The
operator may conveniently resume a patient interrupted
treatment without the need to change control settings
by turning the Power On/Off Switch (7) “OFF” and
“ON” again. The Patient Interrupt Switch (3) also
functions as a “call button” which enables the patient
to audibly signal the operator for assistance whenever
the red button is pressed.
The Static Traction Mode Indicator is a graphically
displayed orange colored arrow which lights whenever
the Hold Timer Knob is turned to the setting
marked STATIC (provided the power is connected and
switched “ON”). During a static traction treatment, the
machine will pull to and hold at the maximum force
indicated by the Max Traction Knob © for the length
of time indicated by the Treatment Timer Knob (m
(Note: If a sufficient differential has been provided
between Min and Max settings, the Min Reset Knob
and Rest Timer Knob settings will not affect the
machine when operating in the static traction mode).
The Intermittent Traction Mode indicator (as) isa
graphically displayed orange colored arrow which lights
whenever the Hold Timer Knob (16) is turned to any
setting other than the one marked STATIC (provided
power is connected and switched “ON").
Page 10 No. 990002C (10/85)

HOLD seconds
nyu
INTERMITTENT
5
ай
STATIC
TREATMENT TIME minutes
55 , 9
\ 一
一 一 CAUTION CONDITIONS
READ AND FOLLOW
OPERATING INSTRUCTIONS
0
HIGH ©
TRACTION
PATIENT SAFETY
INTERRUPT — INTERRUPT
No. 990002C (10/85)
16.
17.
18.
19.
The Hold Timer Knob is used to determine either
the static traction mode, or the number of seconds to
hold at the force indicated by the Max Traction Knob
during each cycle of the intermittent traction mode.
During the hold phase of operation, the machine will
automatically compensate for the normal loss of
tension caused by harness stretch and patient
movement. This “top-up" feature maintains the
prescribed maximum traction force indicated by the
Max Traction Knob © (Note: Although the Hold Timer
setting may be changed at will, the new setting will not
be recognized until the next cycle).
The Treatment Timer Knob (7) is used to start the
treatment, determine its length in minutes, and to either
stop or interrupt. Turn the knob so that its white
indicator line corresponds to the desired length of
treatment. The treatment timer is a mechanical clock
that will “count down” to show the treatment time
remaining plus automatically stop the treatment and
ring a bell to signal the operator at zero, The treatment
timer is the control used to start the treatment and the
only one used by the operator to stop or interrupt
treatment. After treatment timer reaches zero, wait
until all tension has released automatically before
using Cord Release Position (5) or removing harness
from patient.
The Rest Timer Knob is used to determine the
number of seconds to rest at the force indicated by the
Min Reset Knob (6) during each cycle of the
intermittent traction mode. (Note: Although the rest
timer setting may be changed at will, the new setting
will not be recognized until the next cycle.)

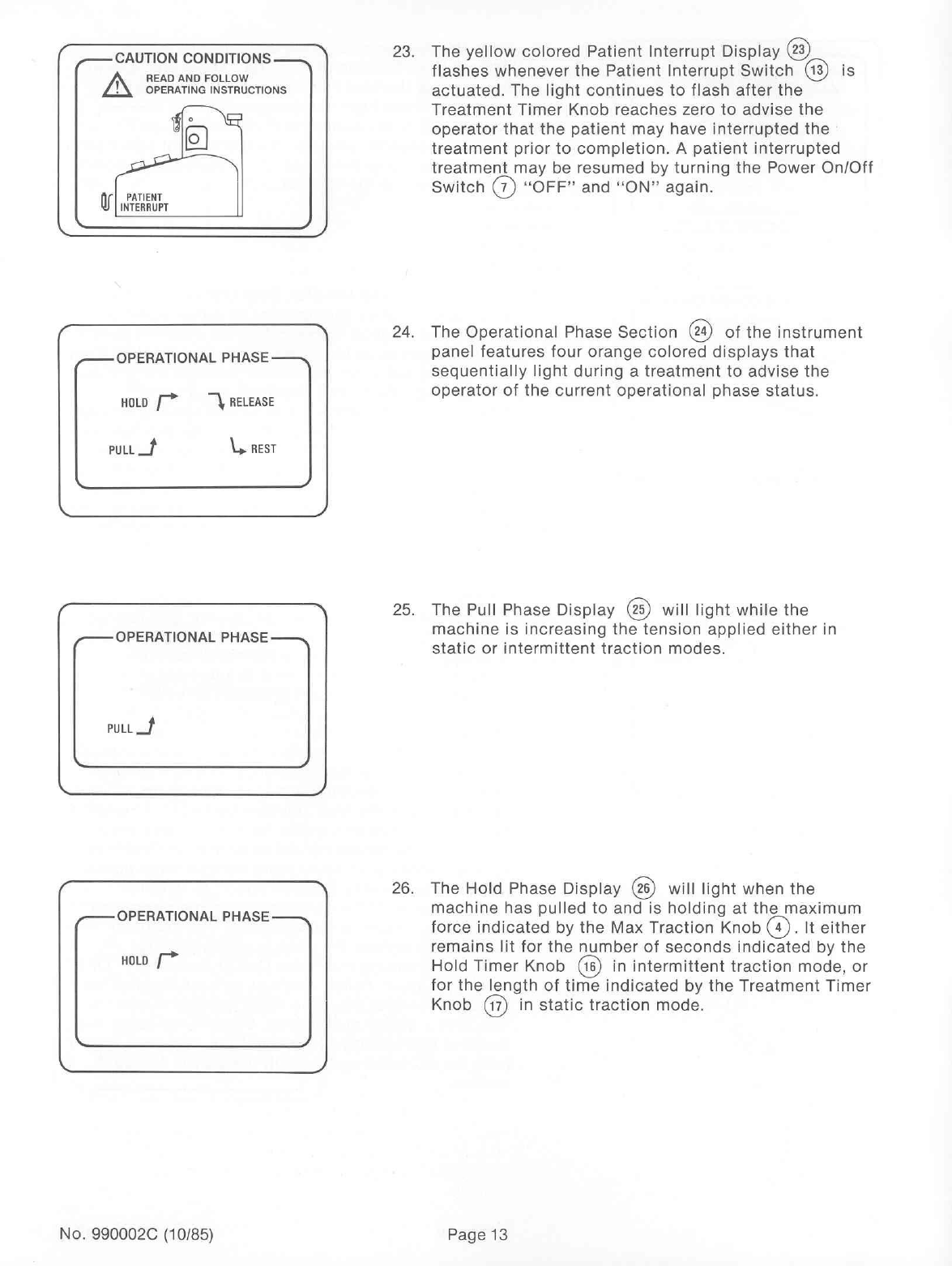

The Caution Conditions Section of the instrument
panel features four graphic displays which will light
(provided power is connected and switched “ON") only
upon the occurance of a condition requiring the
operator's attention.
Page 11

CAUTION CONDITIONS
READ AND FOLLOW
OPERATING INSTRUCTIONS
HIGH
TRACTIO!
READ AND FOLLOW
OPERATING INSTRUCTIONS
CAUTION CONDITIONS
READ AND FOLLOW
OPERATING INSTRUCTIONS
SAFETY
INTERRUPT
CAUTION CONDITIONS
20.
21.
22.
As a caution reminder to the operator, the yellow
colored High Traction Display (20) lights and remains
lit whenever the Max Traction Knob (4) setting is
increased to the high traction range above
approximately 40 pounds (18 kilograms). As an
additional caution reminder, the display will also flash
and audibly signal five times at the start or resumption
of a treatment in the high traction range.
The yellow colored Min/Max Error Display @) flashes
and audibly signals the operator (in either static or
intermittent traction modes) when the machine pulls to
the maximum force indicated by the Max Traction Knob
without sufficient differential between the Min and
Max settings. When this condition occurs, the
treatment is automatically interrupted and the tension
gradually releases. Although the machine will function
normally at less differential, we recommend adjusting
the Min Reset Knob (6) to at least 10 pounds (4.5
kilograms) below the Max Traction Knob © setting.
After correction, the treatment may be resumed without
the need to change other control settings by turning the
Power On/Off Switch O) “OFF” and “ON” again.
The red colored Safety Interrupt Display (22) flashes
and audibly signals the operator when the machine’s
secondary safety circuit is actuated. When this
condition occurs, the treatment is automatically
interrupted and the tension gradually released.
The secondary safety circuit is adjusted to actuate
during treatment if the traction force applied exceeds
the Max Traction setting tolerance. The two common
causes for this condition during treatment are either the
operator turned the Max Traction Knob to a setting
below the amount of traction force which was already
applied, or the patient moved away from the machine in
such a manner as to apply more traction force than was
indicated by the Max Traction Knob (a). A third
possible cause of the condition is an internal switch
malfunction requiring repair service. The treatment may
be resumed without the need to change control
settings by turning the Power On/Off Switch @ “OFF”
and “ON” again. Safety interrupt on each resumption
without “operator adjustment” or “patient movement”
indicates a switch malfunction. Discontinue using the
machine immediately. Disconnect the AC power cord
from the AC outlet and consult the factory for repair
service.
Page 12 No. 990002C (10/85)

CAUTION CONDITIONS 23.
READ AND FOLLOW
OPERATING INSTRUCTIONS
PATIENT
INTERRUPT
OPERATIONAL PHASE
HOLD / RELEASE
PuuL_7 V REST
OPERATIONAL PHASE
26.
OPERATIONAL PHASE
HOLD /
No. 990002C (10/85)
24.
25.
The yellow colored Patient Interrupt Display (23)
flashes whenever the Patient Interrupt Switch 9 is
actuated. The light continues to flash after the
Treatment Timer Knob reaches zero to advise the
operator that the patient may have interrupted the
treatment prior to completion. A patient interrupted
treatment may be resumed by turning the Power On/Off
Switch (7) “OFF” and “ON” again.
The Operational Phase Section of the instrument
panel features four orange colored displays that
sequentially light during a treatment to advise the
operator of the current operational phase status.
The Pull Phase Display (25) will light while the
machine is increasing the tension applied either in
static or intermittent traction modes.
The Hold Phase Display will light when the
machine has pulled to and is holding at the maximum
force indicated by the Max Traction Knob ©. It either
remains lit for the number of seconds indicated by the
Hold Timer Knob in intermittent traction mode, or
for the length of time indicated by the Treatment Timer
Knob (17) in static traction mode.
Page 13

27. The Release Phase Display @) will light while the
OPERATIONAL PHASE machine is decreasing the tension applied in
intermittent traction mode.
TN RELEASE
28. The Rest Phase Display will light when the
machine has released to and is resting at the minimum
OPERATIONAL
PHASE
CŘ
:
E
HA: force indicated by the Min Reset Knob (6). It remains
lit for the number of seconds indicated by the Rest
Timer Knob in intermittent traction mode.
RECOMMENDATIONS
A. As with the safe use of any motorized equipment, your TRU-TRAC™ should only be used with a
responsible adult in attendance. For that reason, do not attempt to put yourself in traction with this
machine.
B. In the event of a loss of power to the machine, traction force should only be released by gradually
lengthening the patient harness adjustment straps. To prevent damage, NEVER TURN MAX
TRACTION KNOB © TO CORD RELEASE POSITION © WHILE TRACTION FORCE IS APPLIED TO
BRAIDED TRACTION CORD (2).
C. If you are having difficulty operating your TRU-TRAC™ after carefully reviewing this guide, contact
your supplier for assistance. If they are unable to resolve the problem, consult a Customer Service
Representative at the factory.
D. DO NOT USE any accessory or other device with your
TRU-TRAC™ which requires the removal, modification,
or replacement of the acorn nuts shown in the
illustration to the left. Either overtightening of the
original acorn nuts, or overtightening of any
replacement/adaptor nuts can deform the housing and
interfere with the safe and proper operation of the
moving parts inside the housing of the TRU-TRAC™.
Read and follow warning on page 1.
NOTE: The TRU-TRAC Brand “TD-9000” 3-Dimensional
Cervical System may be an exception. If so, follow
accompanying TD-9000 installation instructions
carefully.
Page 14 No. 990002C (10/85)

HOW TO START AND STOP OR INTERRUPT A TREATMENT
Traction treatments may be given only by or on order of a licensed practitioner. TRU-TRAC Therapy
Products Inc. does not recommend the use of any specific traction force or timer settings. Any
settings mentioned in the product instructions are for illustrative purposes only. Reprints of pertinent
clinical studies and medical papers are available upon request without charge in either compendium
or unabridged form.
A. It is usually easier to align the harness on the patient while they are standing and then tighten the
harness after positioning them relative to your TRU-TRAC™. Follow the fitting instructions supplied
with the patient harness.
B. Position the patient on the TRU-TRAC brand table or chair in accordance with the instructions
supplied with those products. Note that the TRU-TRAC™ should be mounted facing the intended
direction of pull so that the Braided Traction Cord @ does not contact the side of the slot from
which it extends.
C. Tighten any slack in the harness so that it fits the patient securely.
D. With the Max Traction Knob © set to Cord Release Position ©, slowly * pull the end of the
Braided Traction Cord out and attach the Accessory Connector . The machine will
automatically take up any slack in the Braided Traction Cord © „7 *(Rapidly pulling the Braided
Traction Cord © may cause internal tangling on the take-up spool.)
E. Turn the Max Traction Knob © to the prescribed setting. Turn the Min Reset Knob (6) to the
desired setting usually at least 10 pounds (4.5 kilograms) below the Max Traction Knob © setting.
F. Move the Power On/Off Switch @ to the “ON” position.
G. Turn the Hold Timer Knob to either the static traction mode, or the number of seconds of
desired hold at the maximum traction force. If you are not using the static traction mode, turn the
Rest Timer Knob (18) to the number of seconds of desired rest at the force indicated by the Min
Reset Knob (©.
H. Give the Patient Interrupt Switch (3) to the patient. If the patient is not already familiar with this
switch's operation, an explanation and demonstration are recommended.
|. Start the treatment by turning the Treatment Timer Knob (7) to the desired treatment length in
minutes. Stop or interrupt the treatment by turning the Treatment Timer Knob (m to zero and
waiting until all tension has released automatically before using Cord Release Position © or
removing harness from patient.
No. 990002C (10/85) Page 15

STORAGE INFORMATION FOR THE TT-92B:
Unlimited shelf life stored in original packaging. Do not
store in direct sunlight. Do not expose to extreme
temperatures or to moisture. Not intended for outdoor
storage.
For long term storage, store unit in a sealed plastic bag
within the original packaging.
15a

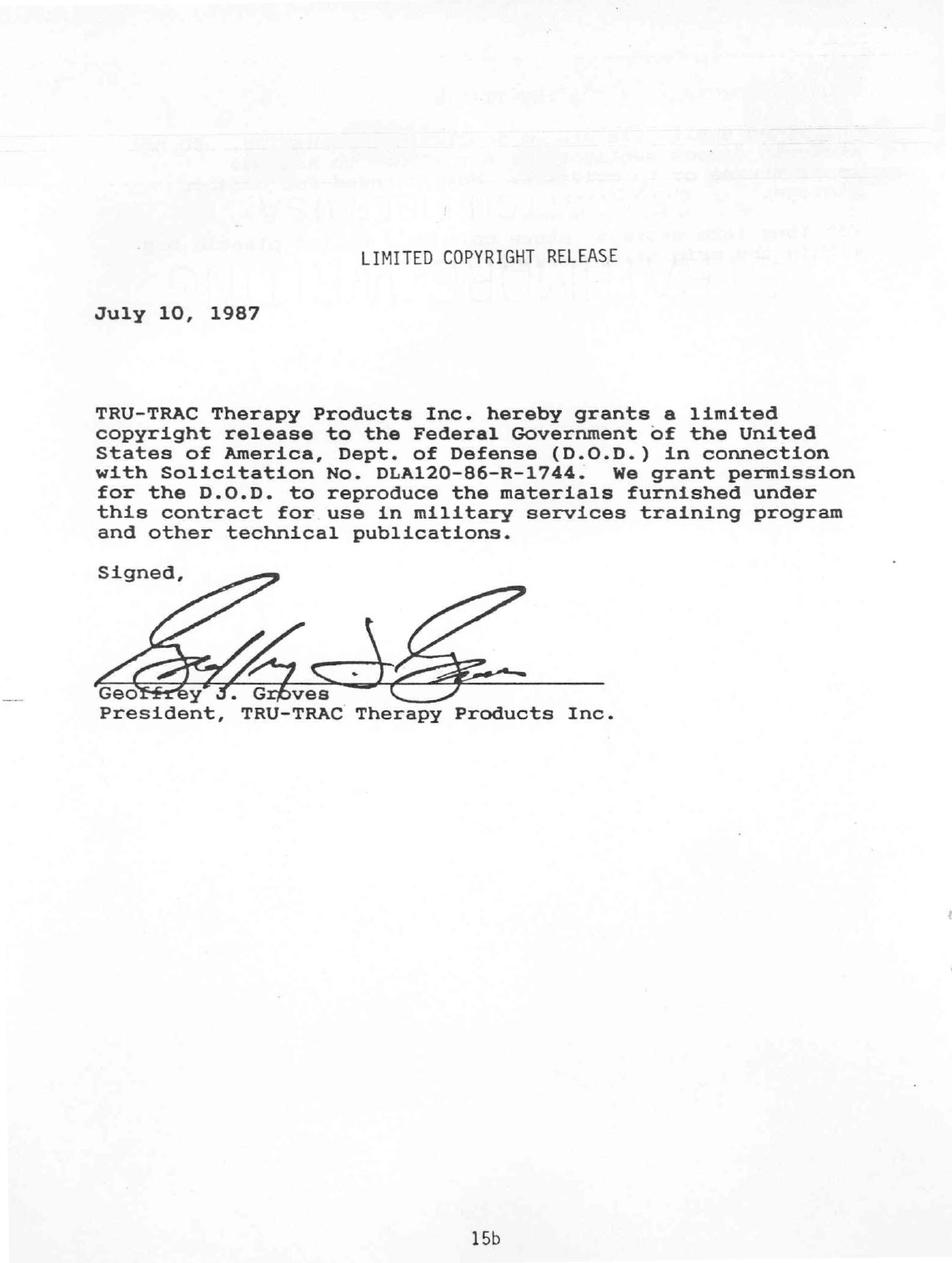

LIMITED COPYRIGHT RELEASE
July 10, 1987
TRU-TRAC Therapy Products Inc. hereby grants a limited
copyright release to the Federal Government of the United
States of America, Dept. of Defense (D.0.D.) in connection
with Solicitation No. DLA120-86-R-1744. We grant permission
for the D.0.D. to reproduce the materials furnished under
this contract for use in military services training program
and other technical publications.
У
President, TRU-TRAC Therapy Products Inc.
15b

IN CASE OF TROUBLE
BEFORE CALLING FOR SERVICE CAREFULLY REVIEW THIS GUIDE
In the event you are still unable to correct the problem, consult the Customer Service Department at the
factory for all repair service and to arrange for a loaner/rental unit. Be sure to specify your model number,
serial number, and a detailed description of the problem encountered.
A. | Machine will not pull and neither Static nor Intermittent Traction Mode Indicator or (15) is lit:
1. Power Supply Cord (Male End) (1) is not connected to electrical outlet.
2. Electrical outlet is not operable — try connecting another electrical appliance known to be in an
operable condition (such as a lamp) to the same outlet to check this possibility. Check circuit
breaker or fuse at building power panel.
3. If your electrical outlet is fitted with a GFI (ground fault interrupt) device, it may need to be reset.
4. Power Supply Cord (Female End) 02) is not fully engaged in Power Supply Receptacle ©.
5. Power On/Off Switch (7) is turned “OFF”.
B. | Machine will not pull and either Static or Intermittent Traction Mode Indicator or (15) is lit:
1.
Max Traction Knob © is in Cord Release Position ©.
2. Treatment Timer Knob (17) is set at zero or not first turned past “5” minutes before setting to less
than “5” minutes.
3. The number of seconds indicated by the Rest Timer Knob have not elapsed.
4. The Rest Timer Setting was changed and the new setting will not be recognized until the next
traction cycle.
5. A Min/Max Error, Safety Interrupt, or Patient Interrupt has occurred as indicated by lit displays (21) 5
, Or P
6. If your machine is a TT-92LV model which was upgraded to the TT-92B configuration, the Patient
Interrupt Switch (3) and cord assembly may be unplugged or not fully inserted into its receptacle.
7. The Braided Traction Cord @ is extended from the slot to its full length — allow some of the cord to
retract back into the unit and use a Catalog Number PT-110 Line-Tite Clamp with traction cord
extension.
C. | Machine will pull but not release:
1. Hold Timer Knob is set for Static Traction.
2. The number of seconds indicated by the Hold Timer Knob have not elapsed.
3. The Hold Timer setting was changed and the new setting will not be recognized until the next
traction cycle.
4. The circuit breaker feature has turned the “Power On/Off Switch” © “ОН”.
5. There has been a loss of power to the machine — see possible causes following problem “A” above.
6. Another apparatus such as a short wave diathermy is in use too near the traction machine and
is affecting its timers.
D. | Machine pulls repeatedly while in Hold Phase.
1. Machine is automatically taking up normal mid-treatment slack due to harness stretch or patient
movement — see description of Hold Timer Knob under “OPERATING CONTROLS AND
FEATURES" for details on the “Top-up" feature.
E. | Machine interrupts normal operation.
1. Short wave diathermy and microwave diathermy devices typically generate radio freguency
interference which, if used too near the traction machine, may interrupt normal operation. To correct
this type of problem, simply avoid the concurrent use of diathermy devices in the vicinity of the
traction machine.
Page 16 No. 990002C (10/85)

I
TRU-TRAC
SUNRISE MEDICAL
Tru-Trac Therapy Products Inc.
27635 Diaz Rd., P.O. Box 880
Temecula, CA 92390-2681
[phone]
