Sunstream SunLift SLX 5010 User manual

PART NO. 690963 REV: A-01
ASSEMBLY , INSTALLATION & USE MANUAL
READ CAREFULLY, KEEP THESE INSTRUCTIONS
COPYRIGHT SUNSTREAM CORPORATION 2020 - PATENTS PENDING - ALL RIGHTS RESERVED
SLX 10014 SHOWN
MODELS
SLX 5010
SLX 6512
SLX 8012
SLX 9012
SLX 10014
SLX 12016
SLX

PART NO. 690963 REV: A-01 2
Table of Contents
Overview of SunLifts
3-4
Part Lists
5-7
Sunlift Accessories
8-9
Assembly of Sunlift
10-23
Connecting to Power Pack
24
Completing Assembly
25
Installation
26-27
Use and Maintenance
28
Remote Control
29-30
Troubleshooting
31
Safety
32-34
Warranty
35-36

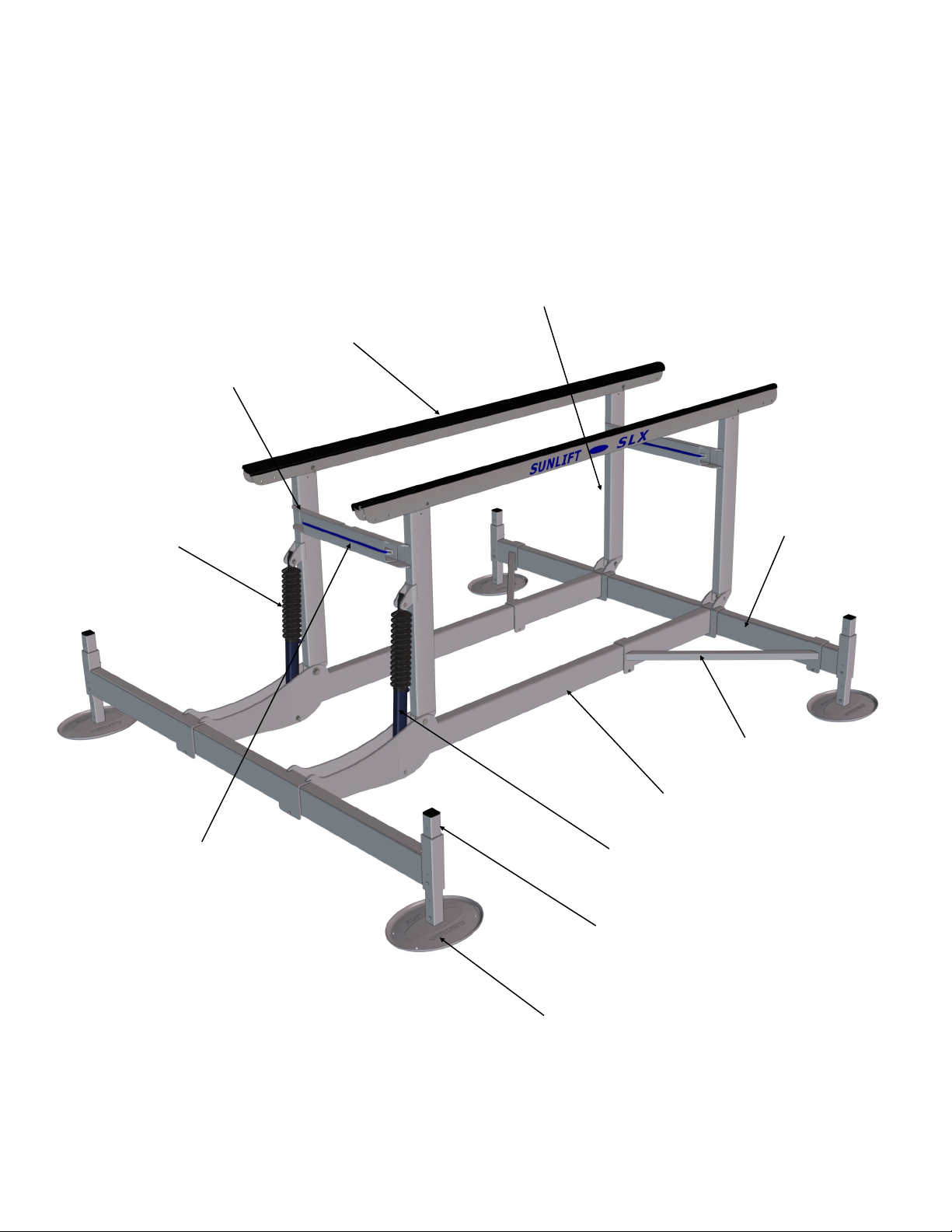

PART NO. 690963 REV: A-01 3
Overview Of Components
Common 2 cylinder SLX
SLX5010, SLX6512, SLX8012 & SLX9012
SLX9012 SHOWN
Foot Pad
Bridge Tube Hydraulic Cylinder
Cylinder Boot Cross Beam
Side Beam
Bunk
Rear H-Frame, Left
Leg
Forward H-Frame, Left
Diagonal (SLX9012 only)

PART NO. 690963 REV: A-01 4
Overview Of Components
Common 4 cylinder SLX
SLX10014 & SLX12016
SLX10014 SHOWN
Bunk
Leg
Rear H-Frame, Right
Cross Beam
Boot
Hydraulic Cylinder
Side Beam
Foot Pad
Forward H-Frame, Right
Bridge Tube

PART NO. 690963 REV: A-01 5
Parts List
SLX 5010
PART QTY PART NUMBER
SIDE BEAM 2952454
CROSS BEAM 2952452
BUNK 2942483
BRIDGE TUBE 2413058
FWD H-FRAME, RIGHT 1952428
FWD H-FRAME, LEFT 1952427
REAR H-FRAME, RIGHT 1952430
REAR H-FRAME, LEFT 1952429
FOOT PAD 4433111
LEG 4*SEE CHART ON PAGE 5
HARDWARE KIT 1912480
CYLINDER 192-000009-73
CYLINDER KIT (INCLUDES,
CYLINDER(S), HOSES &
FITTINGS)
1
922460
PUMP 1PS12-32
AVAILABLE LEGS
2 FT (24") SA-LR2
4 FT (48") SA-LR4
6 FT (72") SA-LR6
8 FT (96") SA-LR8
12 FT (144") SA-LR12
16 FT (192") SA-LR16
24 FT (288") SA-LR24

PART NO. 690963 REV: A-01 6
SLX 6512
PART QTY PART NUMBER
SIDE BEAM 2952453
CROSS BEAM 2952452
BUNK 2942484
BRIDGE TUBE 2413058
FWD H-FRAME, RIGHT 1952428
FWD H-FRAME, LEFT 1952427
REAR H-FRAME, RIGHT 1952430
REAR H-FRAME, LEFT 1952429
FOOT PAD 4433111
LEG 4*SEE CHART ON PAGE 5
HARDWARE KIT 1912480
CYLINDER 292-000009-73
CYLINDER KIT (INCLUDES,
CYLINDER(S), HOSES &
FITTINGS)
1
922460
PUMP 1PS12-32
Parts List
SLX 8012 & SLX 9012
PART QTY PART NUMBER
SIDE BEAM 2952421
CROSS BEAM 2952426
BUNK 2942484
BRIDGE TUBE 2413058
FWD H-FRAME, RIGHT 1952428
FWD H-FRAME, LEFT 1952427
REAR H-FRAME, RIGHT 1952430
REAR H-FRAME, LEFT 1952429
FOOT PAD 4433111
DIAGONAL (SLX 9012) 2952493
LEG 4*SEE CHART ON PAGE 5
HARDWARE KIT 1912481
CYLINDER 492-000009-73
CYLINDER KIT
(INCLUDES, CYLINDER(S),
HOSES & FITTINGS)
1
922460
PUMP
1
SLX8012: PS12-32
SLX9012: PS12-40

PART NO. 690963 REV: A-01 7
SLX 10014
PART QTY PART NUMBER
SIDE BEAM 2952422
CROSS BEAM 2952426
BUNK 2942485
BRIDGE TUBE 2413058
FWD H-FRAME, RIGHT 1952432
FWD H-FRAME, LEFT 1952431
REAR H-FRAME, RIGHT 1952478
REAR H-FRAME, LEFT 1952477
FOOT PAD 4433111
LEG 4*SEE CHART ON PAGE 5
HARDWARE KIT 1912482
CYLINDER 492-000009-73
CYLINDER KIT (INCLUDES,
CYLINDER(S), HOSES &
FITTINGS)
1
922461
PUMP 1PS12-32
SLX 12016
PART QTY PART NUMBER
SIDE BEAM 2952423
CROSS BEAM 2952426
BUNK 2942486
BRIDGE TUBE 2413058
FWD H-FRAME, RIGHT 1952432
FWD H-FRAME, LEFT 1952431
REAR H-FRAME, RIGHT 1952478
REAR H-FRAME, LEFT 1952477
FOOT PAD 4433111
LEG 4*SEE CHART ON PAGE 5
HARDWARE KIT 1912482
CYLINDER 492-000009-73
CYLINDER KIT (INCLUDES,
CYLINDER(S), HOSES &
FITTINGS)
1
922461
PUMP 1PS12-40
Parts List

PART NO. 690963 REV: A-01 8
ADJUSTABLE RANGE INSERTS
RAISES H-FRAME/BUNK HEIGHT FOR HIGHER
WATER LEVEL FLUCTUATION AREAS. (SET OF 4)
PART # SA-AR18 (18”)
SA-AR30 (30”)
GUIDE-ONS
ACTS AS A VISUAL GUIDE FOR EASIER
BOAT LOADING. (ONE PAIR)
PART # SA-GOA5
PART # SA-GOA6
BOW STOP
ACTS AS A BUMP STOP FOR YOUR BOATS
BOW SO IT ISN’T LOADED TO FAR FOR-
WARD
PART # SA-BS1
Popular Accessories
SUPER BIG FOOT:
MORE THAN DOUBLES YOUR FOOT-PRINT SIZE FOR
MUDDY APPLICATIONS. (SET OF 4)
PART # SA-bfx1

PART NO. 690963 REV: A-01 9
Other Accessories
Four Button transmitter: LA-RCT4B
Motor Stop, guide-ons required: LA-MS6
Motor Stop, guide-ons not required: LA-MS6NK
Universal LED lights: LA-LP1
Cat Walk brackets (Uprights and Hardware): SA-CW1
Dock Mounted Powerpack Shelf: SA-PSD1
Leg Mounted Powerpack (includes upright): SA-PSL1
Guide-on Stiffener Pair (12ft bunk only): SA-GS12
Zinc Kit: SA-ZNC2
5ft Hydraulic Hose extension (pair): SA-HX51
15ft Hydraulic Hose extension (pair): SA-HX151
30ft Hydraulic Hose extension (pair): SA-HX301
Guide-on Pads (36” black): SA-GP36B
Translating Load Guides: SA-LGT2
Contact your local dealer or Sunstream for more information regarding accessories.

PART NO. 690963 REV: A-01 10
Assembly
If you have any questions during the assembly process, please call your local dealer
or Sunstream
Before beginning assembly, find a nice flat area with room to work to set up your lift. Read
ahead to the
Installation Procedure to determine the best location to start. Assembly will require the follow-
ing tools:
1. Wrenches, adjustable wrenches and/or socket wrenches (9/16”) & (3/4”)
2. Marine Grease (for stainless pivot pins)
3. Needle nose Pliers (for cotter pins)
4. Mallet
5. Measuring tape (for locating side beams on cross beams).

PART NO. 690963 REV: A-01 11
LEGS
2 FT (24") SA-LR2
4 FT (48") SA-LR4
6 FT (72") SA-LR6
8 FT (96") SA-LR8
12 FT (144") SA-LR12
16 FT (192") SA-LR16
24 FT (288") SA-LR24
HEX HEAD BOLT, .375-16 X 3”
PART: 11-061200-16
LEG CAP
PART: 19-000000-77
Step 1
Legs and feet
NOTE: I NSTALL CAP AFTER
LEG IS TRIMMED TO FINAL
HEIGHT.
FOOT PAD
LEG
SMALLER GAP
DOWN
LARGER GAP UP
NUT, BRONZE .375-16
PART: 121199

PART NO. 690963 REV: A-01 12
HEX HEAD BOLT, .375-16 X 4”
PART: 11-061600-18

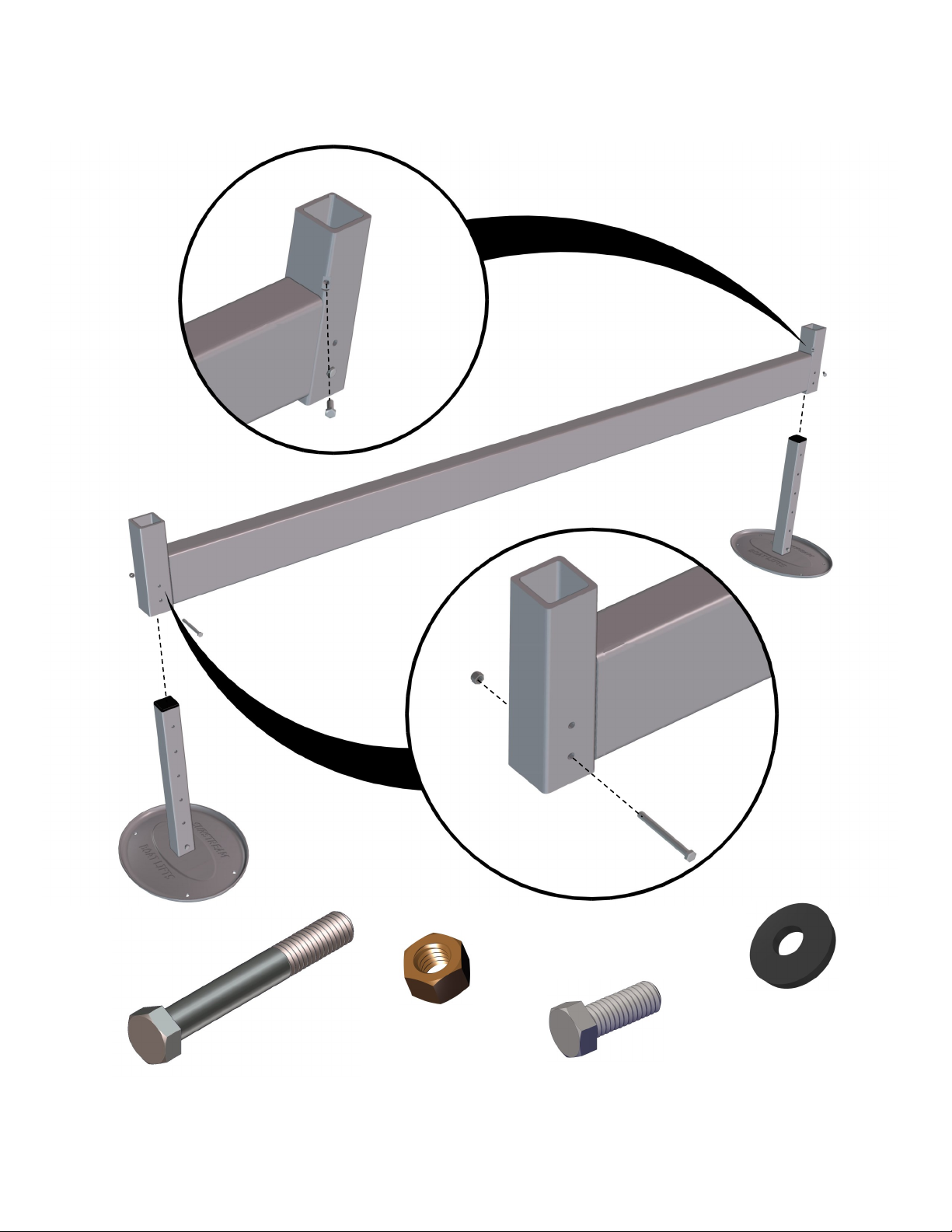

Step 2
Legs and crossbeam
HEX HEAD BOLT, .375-16 X .50”
PART: 11-060202-44
LEG BOLT
SET SCREW &
RUBBER
WASHER
(INSERT LAST,
4 PLACES)
NUT, BRONZE .375-16
PART: 121199
RUBBER WASHER
PART: 131196

PART NO. 690963 REV: A-01 13
Step 2 continued
Optional direct foot install for shallow water
NUT, BRONZE .375-16
PART: 121199
HEX HEAD BOLT, .375-16 X 4”
PART: 11-061600-18

PART NO. 690963 REV: A-01 14

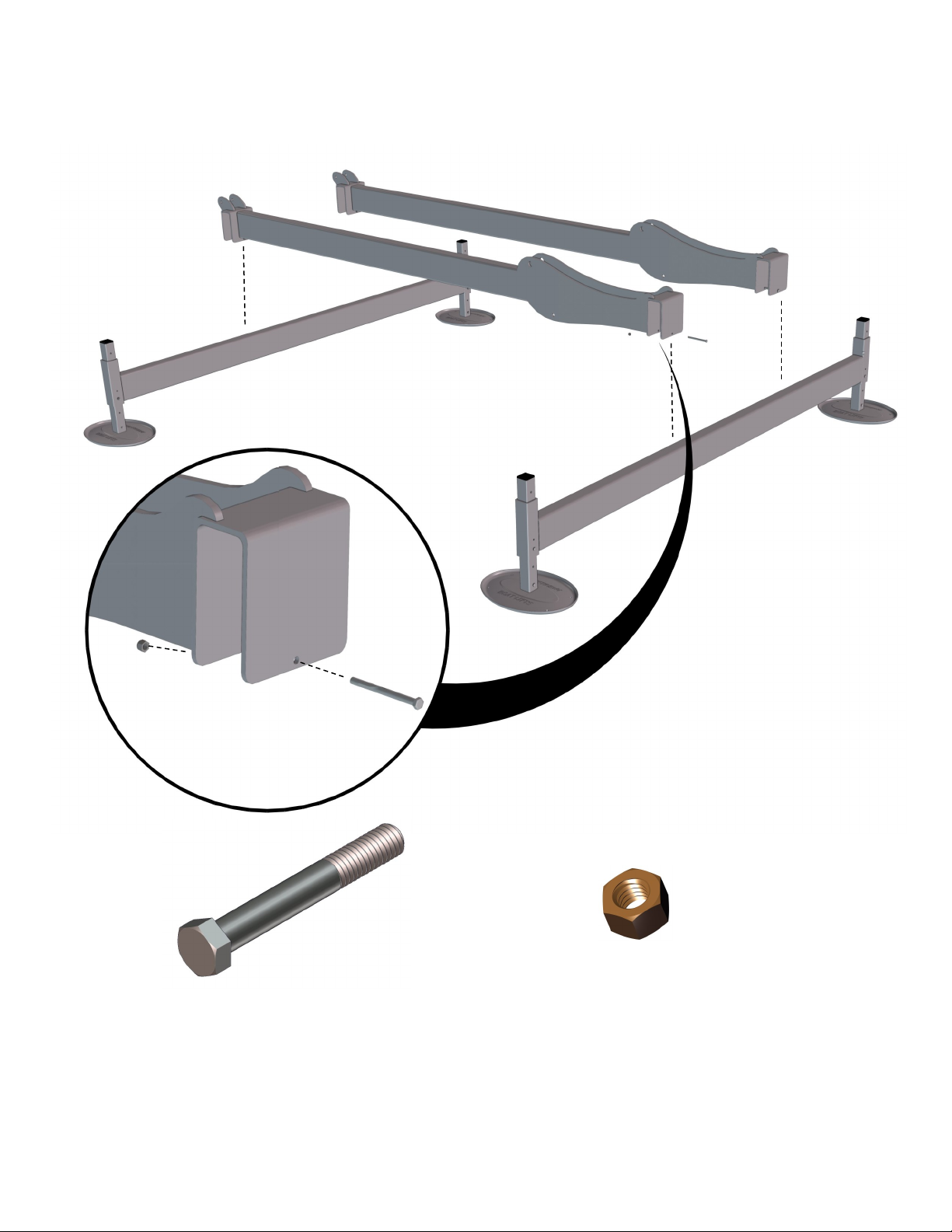

Step 3
Sidebeams and Crossbeams
NUT, BRONZE .375-16
PART: 121199
HEX HEAD BOLT, .375-16 X 4.5”
PART: 11-061800-19

PART NO. 690963 REV: A-01 15

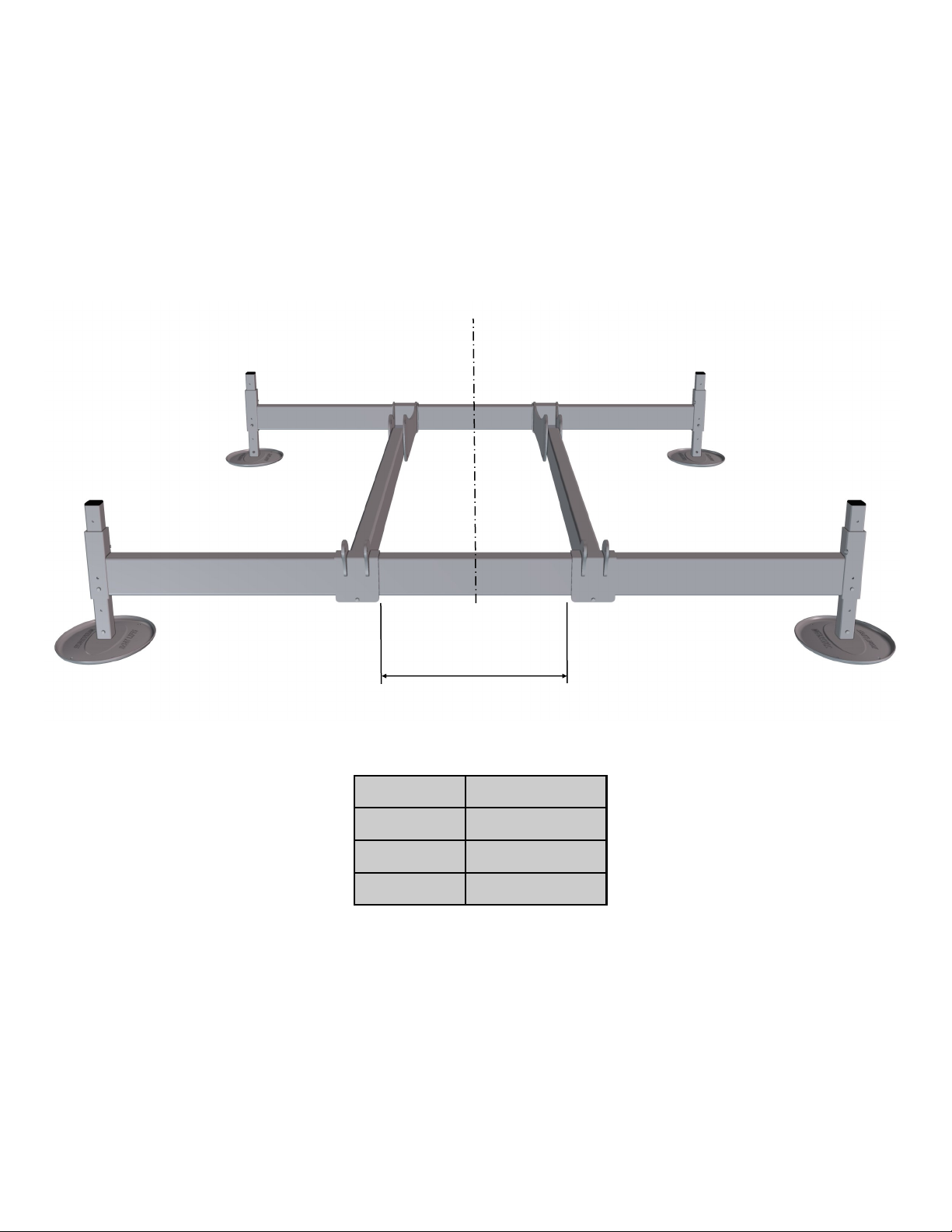

Step 3 continued
29.0” Narrow
33.0” Standard
37.0” Wide
41.0” Extra Wide
WIDTH
(inside to inside of saddles)
CENTER LINE
NOTE: For easier adjusting of side beams,
apply grease on top and inside of saddles.

PART NO. 690963 REV: A-01 16

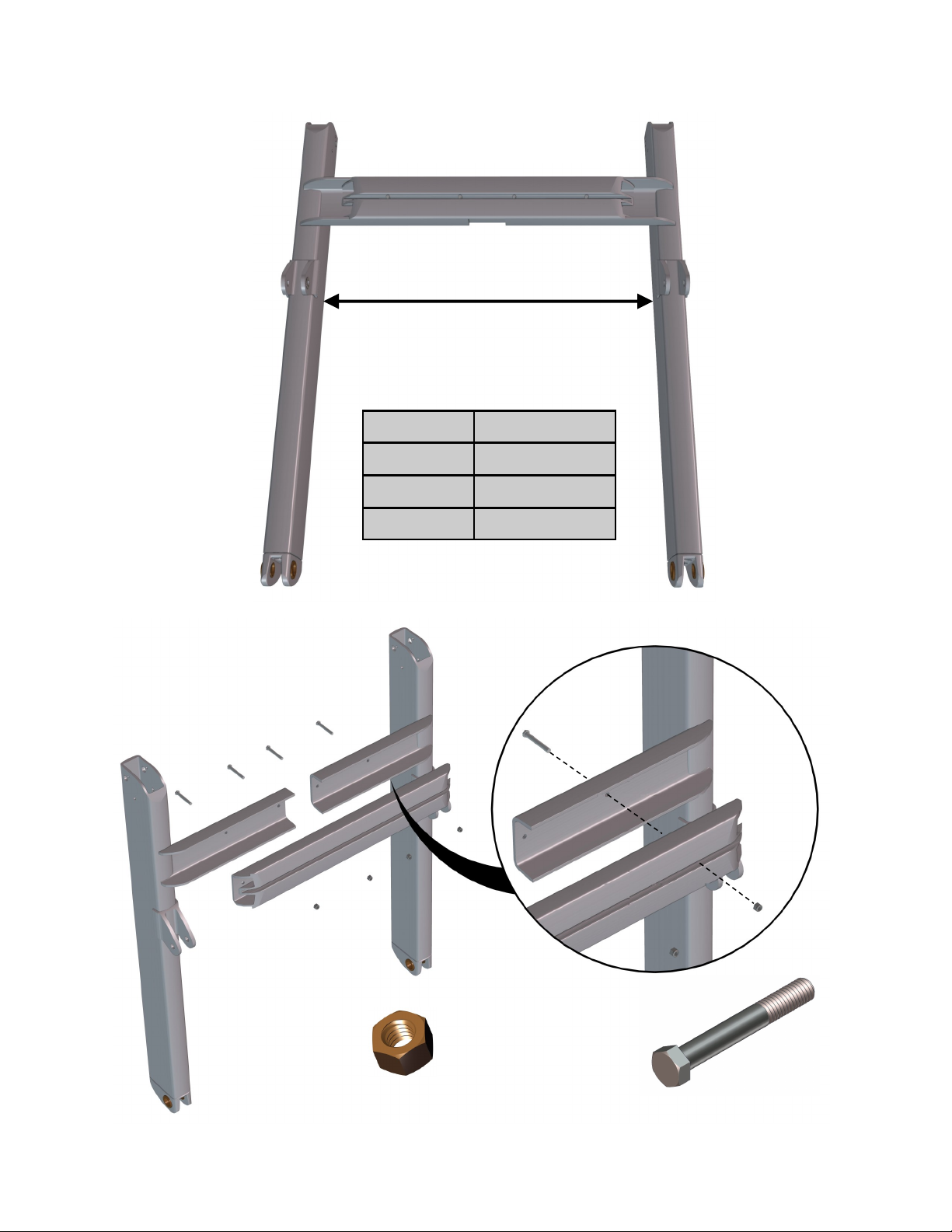

Step 4
H-Frame width
33.6” Narrow
37.6” Standard
41.6” Wide
45.6” Extra Wide
WIDTH
(between uprights)
NOTE: H-frames pre-set to Standard width.
HEX HEAD BOLT, .375-16 X 2.5”
PART: 11-061001-92
NUT, BRONZE .375-16
PART: 121198

PART NO. 690963 REV: A-01 17
1.25” STAINLESS WASHER
PART: 131195

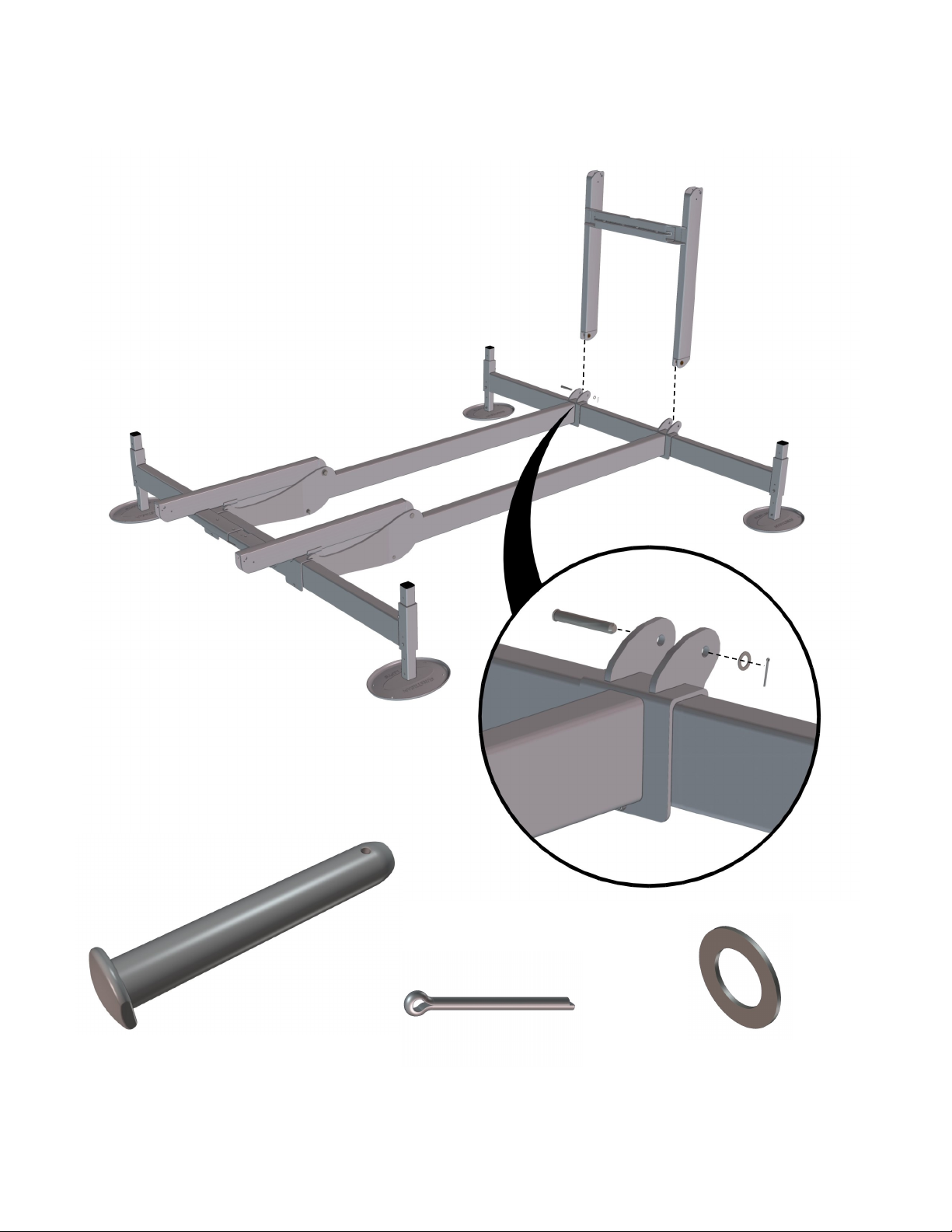

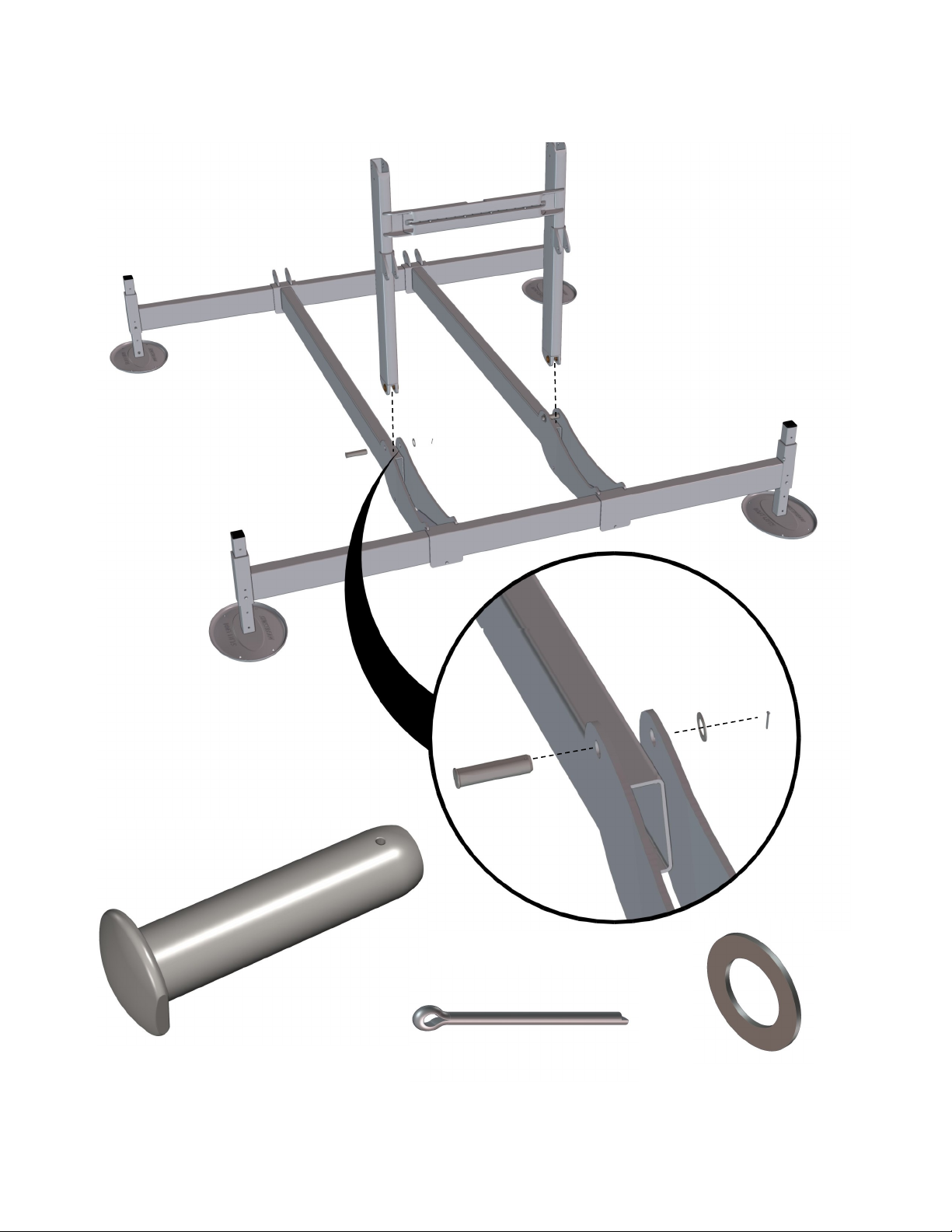

Step 5
Rear H-Frame
COTTER PIN 2”
PART: 141197
HEADED PIN 1.25” X 5”
PART: 141189
APPLY MARINE GREASE TO ALL PINS

PART NO. 690963 REV: A-01 18
.75” STAINLESS WASHER
PART: 13-120000-59
HEADED PIN .75” X 4.88”
PART: 141190

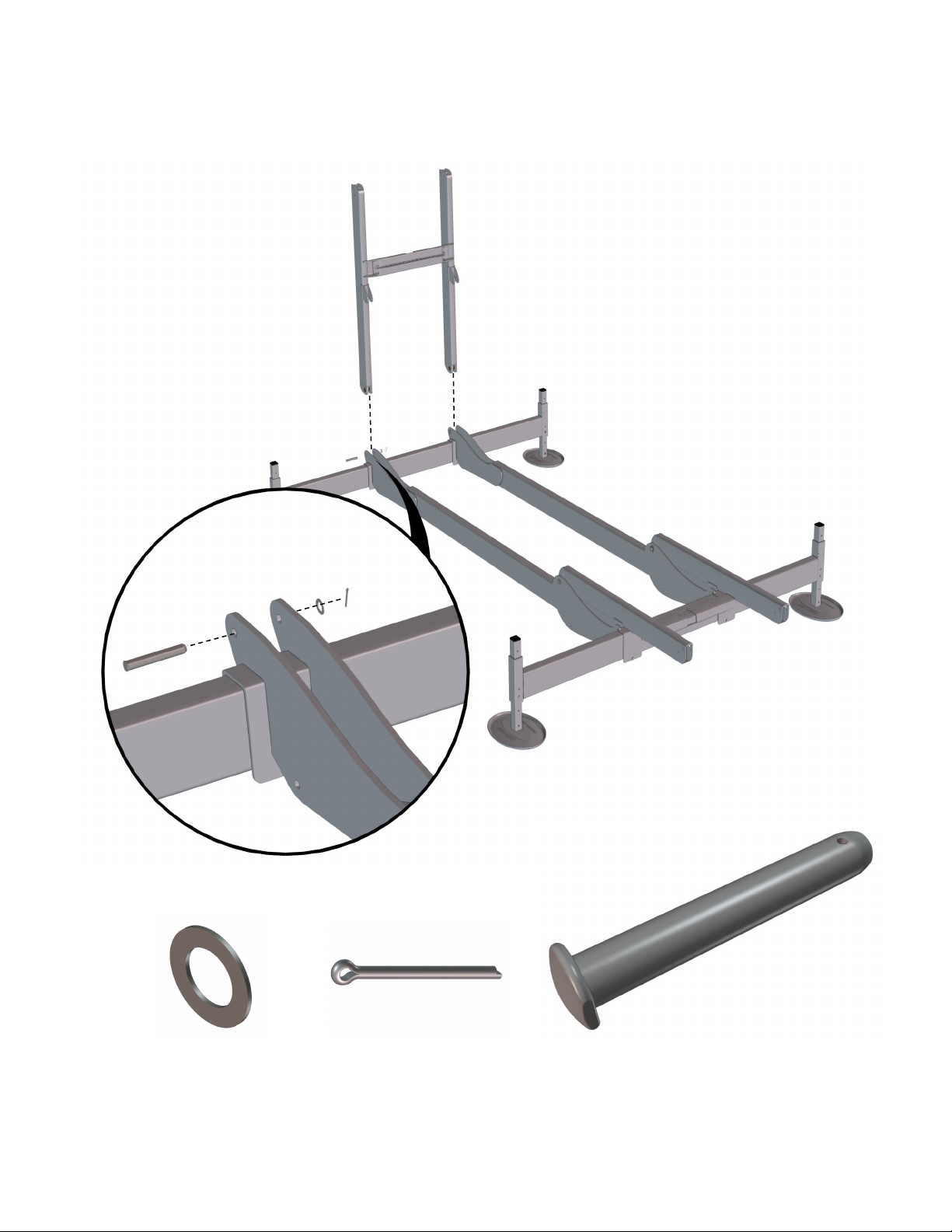

Step 6
Forward H-Frame (2 Cylinder Lift)
COTTER PIN 1.5”
PART: 14-000001-44
APPLY MARINE GREASE TO ALL PINS

PART NO. 690963 REV: A-01 19
COTTER PIN 1.5”
PART: 14-000001-44
HEADED PIN .75” X 4.88”
PART: 141190
Step 6 continued
(4 Cylinder Lift)
APPLY MARINE GREASE TO ALL PINS
.75” STAINLESS WASHER
PART: 13-120000-59

PART NO. 690963 REV: A-01 20
COTTER PIN 1.5”
PART: 14-000001-44
Step 7
HEADED PIN .75” X 4.88”
PART: 141190
HEADED PIN .75” X 3.19”
PART: 141191
APPLY MARINE GREASE TO ALL PINS
NOTE: CY LI NDER SH OW N
WITHOUT BOOT FOR CLARITY
(LONGER) 4.88” PIN ON
BARREL OF CYLINDER
(SHORTER) 3.19” PIN
ON ROD OF CYLINDER
.75” STAINLESS WASHER
PART: 13-120000-59
