1. Introduction
Thank you forchoosingoneofourhighlyqualified3GScoutingTrail Camera.This
16MPHD digitalcamerawastotallyR&Dbyourdiligentand smartengineersbased
on feedbacks and requirements fromcustomersglobally.
1.1Application
a.Instantsurveillancecamera forhome, office, construction site, and warehouse, etc
b. Motion-triggered infra-red nightvision surveillance;
c.Animalobservation and hunting;
1.2PowerSupply
a.AAalkalinebatteries
This camera caneither work with 8xAAAlkalinebatteries.
PleasenotethatthevoltageofrechargeableAAbatteries(1.2V) isinsufficientto
power this device.
b. SolarPanel
To bringusers better usingexperience, ourengineers designed this camera to beable
to work with moststandard9Vlithiumbatterybuild-in solar panels.
c. PowerAdapter
Thiscamera canalso bepoweredbyanexternal9VDCadapter.Recommend to
removethealkalinebatteries when power adapter is used, to avoid surcharging.
1.3Caution
a.PleaseinserttheSDcardwhenthepowerswitchisatOFF position before
Configingthecamera.
b. Pleasedo notinsertortakeouttheSDcardwhenthepowerswitchisatON
position.
c.Itis recommended to formattheSDcard bythecamerawhen used atthefirsttime.
d. Thecamerawill beinUSBmodewhenconnectedtoaUSBportofacomputer.In
this case, theSDcard functions as aremovabledisk.
e.Pleaseensure sufficientpower whenhavingfirmware upgrade,otherwisethe
upgradeprocess couldbeinterruptedincorrectly.Ifanyfault occursafterimproper
upgradingprocess, thecamera maystop function properly.

4
1.4KeyFeatures
1 Built-in 2.0"TFTcolorscreen toreviewphotos and videos on camera
2 40pcsIRLEDs fornightvision distance up to 20 meters
3 Programmable16/12/8 Megapixelhigh-qualityresolution
4 Colorpictures duringday;blackand whiteatnight
5 AdjustablePIRsensitivity;HIGH, MID,LOW
6 Impressivequick triggertime:0.5s
7 Multi-shotpictures;1,3,6,9
8 Adjustabledelaybetween motions;1/5/10/30 seconds/minutes
9 Adjustablevideo length:10/30/60/90 seconds
10 With 8xAAalkalinebatteries, thelongeststandbytimeis up to 6 months
11Availableoperation temperature:-20to 60
12 WithspecifiedTimer,camera canbeprogrammedtoworkonlyduringpreset
timeperiod everyday
13 Stamp ofdate, time, temperatureand moon phaseon everypicture
14 Audio Recording
15 Support3GSIM card togetreal-timephotos;
16 WithMMS/SMTPfunction, camera cantransmit photos to1-4presetmobile
phones or1-3 email per trigger
17 SMStoenablecameratoshootaphotoand send backinstantly,letcamera work
ornotwork, getnumber oftaken pictureand batterystatus

5
2. WholeViewand DetailsofCamera
2.1Front ViewofCamera
2.2BackViewofCamera

6
2.3BottomViewofCamera
2.4Remoter
Note:Press thepunctuation ” forlaserlight.

7
Note(UnderCONFIGmode):
1.Press directly;thecamera will takepictureorvideodirectly.
2.Press directly;thepictureorvideorecordedcanbeviewed.
3.Viewingpicture, press or .
4.Viewingvideo, press toplay, press againtostop, press
toreturn.
5.Press Left”directly togettheIMEI(intheCONFIGinterface).

8
2.5Screen InformationDisplay
Note:ToactiveitsMMS orSMTPfunctions,thecamera shouldfind
signalandSIM card.
2.6SettingsMenu
There are fivepartssetting ofthecamera
Photo System

9
3. Quick Operation
3.1LoadBatteries
3.2Insert MicroSDcard and SIMcard
Note:Toactiveits MMS orSMTPfunction,pleasesavesetting file
Parameter.datbyMMSCONFIGto SDcard.

10
3.3Poweron
SwitchfromOFF to Config
3.3.1CONFIG
Inthismode, thescreenlights up. User cando theoperations byremoter:
a. Setting Camera Menu,including photo,videoandsystem
b.Takepicture orvideo
c.Viewpicture orvideo
3.3.2ON
Inthismode, thescreenisclosed.Thecamera works automatically.
3.4Menu SettingOperation
User cantakephoto,videoandsystemmenusettingbyremoter;MMS
menu andSMTPmenusetting bysoftwareMMSCONFIGfromCD.
3.4.1PhotoMenu
Resoluation
Interval
Multi
ISO
12MP/8MP/5MP
1S/5S/30S/1Minute
1/3/6/9Pictures
100/200/400

11
Description:
Menu Content Description
Resolution 16MP, 12MP, 8MP Photo size
Interval 1/5/10/30 sec/min Waiting timefromthe last
taking
Multi 1/3/6/9 Numberofphotostaken every
time
ISO 100,200,400 The camera exposure level
Tochange12MPto5MPResolution, theremoter operationsare:
Note:
1.ThemodeisCamera orcamera &Video
2. Interval, MultiandISOsettingoperations aresame.

12
3.4.2VideoMenu
Video
Resoluation
VideoLength
Voice
1080P/720P/VGA
10/30/60/90S
ON/OFF
Menu Content Description
Resolution 1080P,720P,WVGA,QVGA Videosize
VideoLength 10S, 30S, 60S, 90S The time length ofvideo
Voice On, Off IfOn, Video sound isrecorded
Tochange1080Pto720PResolution, theremoter operationsare:

13
Note:
1.Themodeis1080Pvideomode
2.Videolengthandvoicesetting operationsare same.
3.4.3SystemMenu
Menu Content Description
Mode Camera, Video,
Camera &video
Taking picture, video, picture
and video
Language English, François,Deutsch
and so on
Camera Menu language
Date/Time 31-07-2014 15:49:40 Date-Month-Year
Hour: Minute:Second
Password ON/OFF ON,OFF Password ofentering camera
Password **** 4 digitalnumber
Timer On, Off
IfOn, the cameraonlyworks
in the period

14

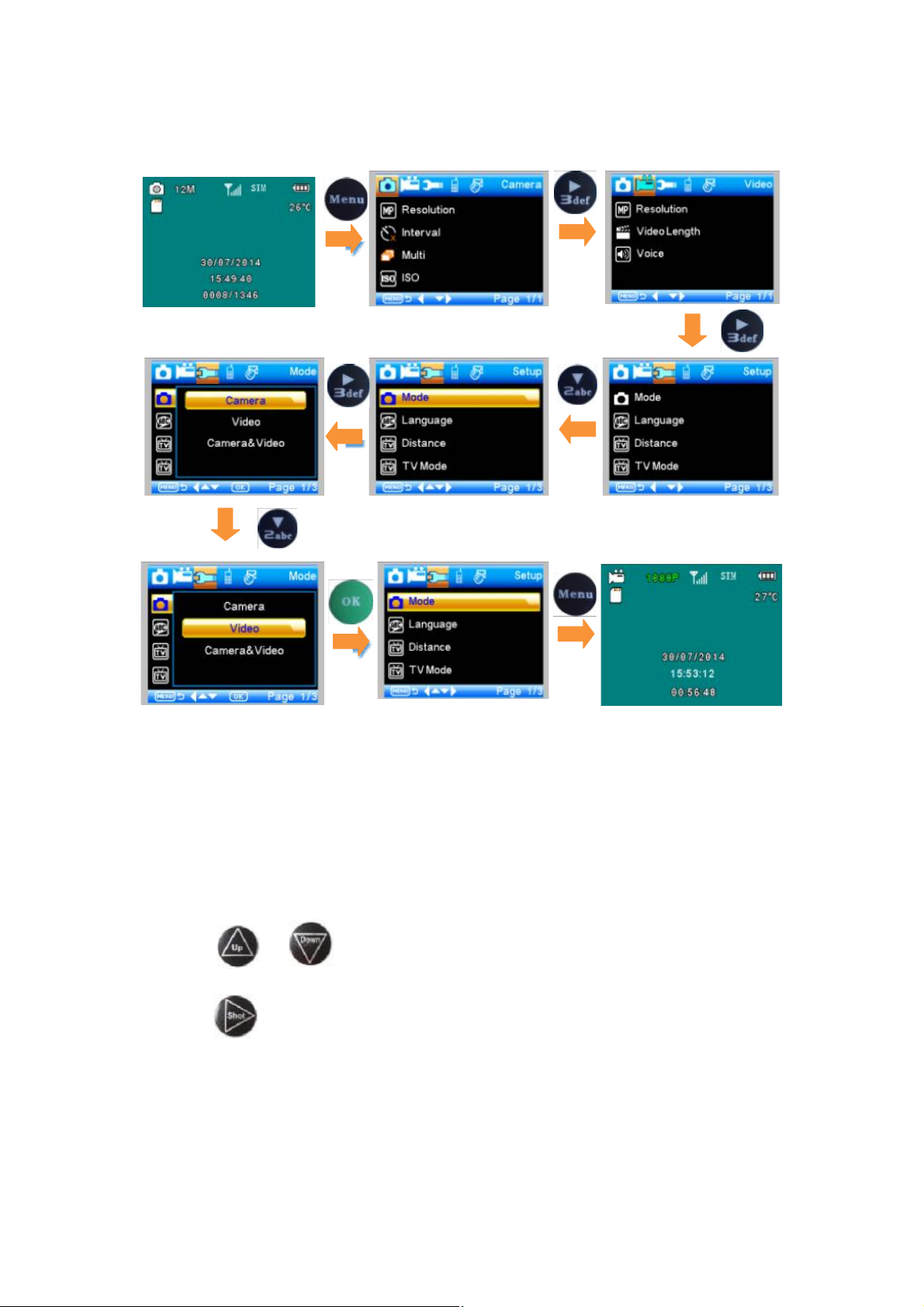

TochangeCamera to Videomode, theremoteroperations are:
Note:
1. Language,Distance,TVMode,FormatandDefault settingoperations
are same.
2. InDate/Time,Timer andPasswordsetting:
a. Press or to selectnumber
b. Press to enter into next menu
3.AfterselectDefault, thesetting is:

15
3.4.4MMSMenu
Setting Default Items
Mode Camera Camera, Video, Camera&Video,Timelapse
Resolution
(Camera) 12M 16M, 12M, 8M
Delay 1Seconds 1-30 Seconds, 1-30 Minute
Multi Single Single, 3, 6, 9Pictures
ISO 400 Auto100, 200, 400
Resolution
(Video) 1080P 1080P, 720P,WVGA, QVGA
VideoLength 10s 10s, 30s, 60s, 90s
Date/Time Sameas lasttime YY/MM/DD, MM/DD/YY, DD/MM/YYAdjust
PIRDistance High High, Normal, Low
Language English 12 Languages selectable
Timer 000to23 59 59 Adjustable
Format InternalMemory InternalMemory,TF Card
Password Off Off, On

16
4. MMSCONFIGSetting
1. LoadCD intothe computer
2. Run MMSCONFIG.exefilefromMMSCONFIGfolder
3. Photo,Videoand SystemMenu Setting
Note:After settingmenubyremoter, user canskip it.
4.MMSSetting
A. AutoMMS Mode:
InAutoMMS Mode, there isconfiguredinformationforselection
a. ChooseCountry
b. ChooseOperator
c. Add phonenumber forreceivingphotos
d. Add email addressforreceivingphotos

17
B. ManualMMS Mode:
If thereisnoconfiguredinformationforselection,pleasechooseManual
MMS Mode.
Firstly,User needto contactSIM cardoperatortogetAPN,Account,
Password, MMSC, IPand Portinformation.Then
a. Add phonenumber forreceivingphotos
b. Add email addressforreceivingphotos
5.SMTPSetting
ThiswayofsendingpicturesisalsocalledGPRS transmission byusers.
It’shighlywelcomenow,becausethepicture issentfromemailto email,
onlychargetheflowcost.
A.Auto SMTPMode:
InAutoSMTPMode,thereisconfiguredinformationforselection

18
a. ChooseCountry
b. ChooseOperator
c. ChooseTypeofemail
d.Addsendingemail addresson theleft
e.Add sending email addresspasswordon theleft
f.Add receivingemail addressontheright
B. ManualSMTPMode:
If thereisnoconfiguredinformationforselection,pleasechooseManual
SMTPMode.
Firstly,User needto contactSIM cardoperatortogetAPN,Account,
Passwordinformation; contactsendingemail provider togetserver,port
information.
a.Add sending email addresson theleft

19
b.Addsendingemail addresspasswordon theleft
c.Add receivingemail addresson theright
6. SaveParameter.dattoSDcard

20
5. SMS Control
There are 2 ways forusing:
1. Send SMScodes to camera directly
2. Install phoneapplication, selectfunction command
TheSMScodes are:
6. FirmwareUpgrade
Thiscamera equippedwith anautomaticupgradefunction,Upgradingis
neededonlywhenanimprovedfirmware isavailable.Theoperationsare
asfollowing:
1. Unzip theupdatefile
2. Copythe.bin filetoTFcard.
3. InserttheTFcardintothecamera.
4. Power on thecamera（ConfigMode）.
5.Thecamera will readitandupdateitselfautomatically.Whenupdating
thecamera, its screenis black.
Code Function Meaning
*530*Camera Start Start Working
*531* Camera Sleep StopWorking
*500* Capture Cameratakes apicture, thensendsit toconfiguredphone
oremail
*505* Captureandgetpic(MMSmode) Cameratakeapicture, thensendsit tocurrentphone
*520* Get Picinformation Camerawill send atextwithpicturenumber, SDcard
capacity, batterylever.
