SURF & TURF 6m Awning Extender User manual

6m Awning Extender
Instructions

Support BarsClamps
X3 X5
These are the parts included. Should any parts be missing or damaged
please contact us directly.
(Clip together to make 3m bar)
Carry Bag
X1
Awning Material
X1
PACKAGE CONTENTS
Adjustable Corner
& Middle Bars
X2 (Corner) X1 (Middle)

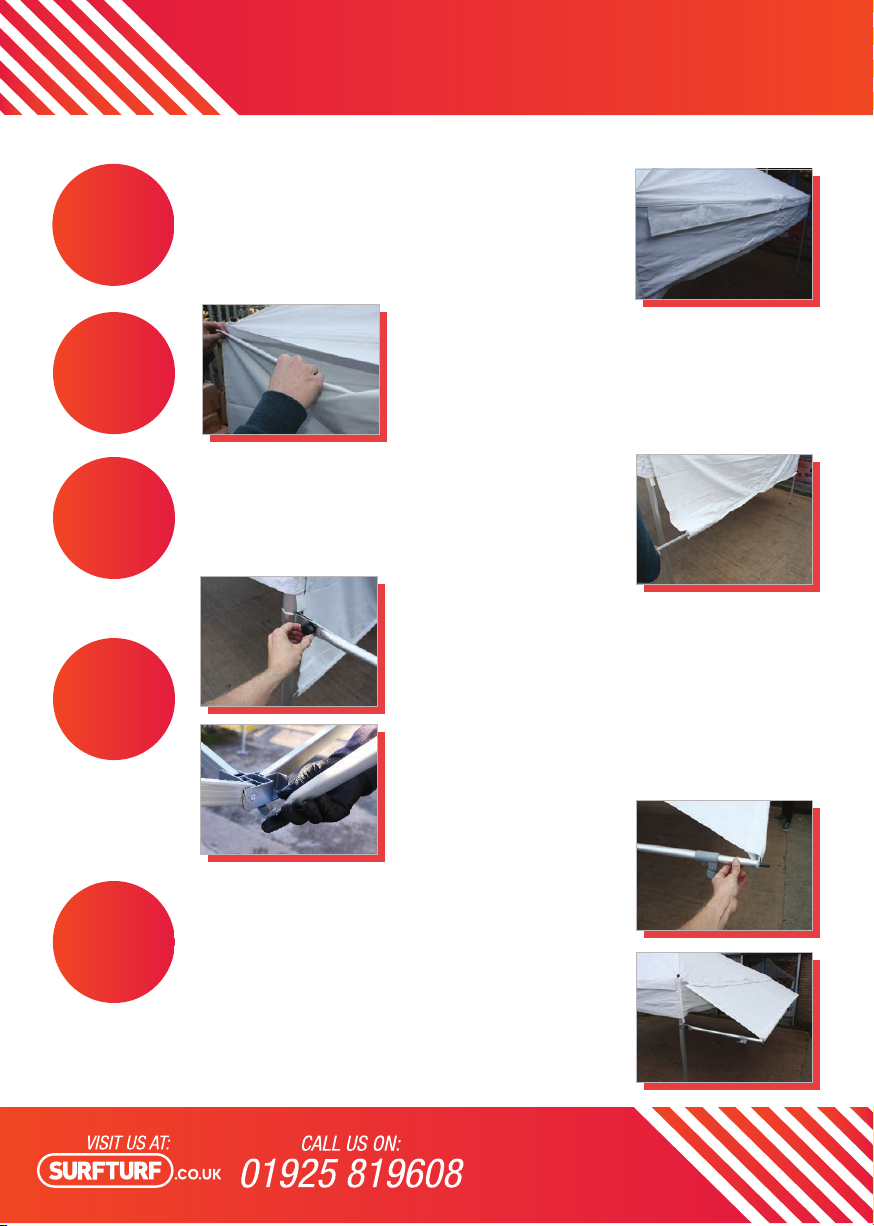

6M AWNING GUIDE
Firstly, erect your instant shelter as per your
instructions. You will notice on the main
canopy there is a small velcro flap.
1
2
3
Unfold the market awning extender
material and velcro this to the small flap.
4Attach clamps to the end of the adjustable
corner bars; they are specific shapes that fit
either side. Tighten to the leg. Then slot in the
middle bar into the middle cross joint of the
shelter with the hook on the end of the bar.
Connect the support bars together and slide
through the loop at the bottom of the
market awning extender material.
5
Remove the black cap on the end of the corner
bar and place through the hole on the main
support bar. Loosen the grey plastic clamp by
pulling it down, and then pull the corner bar
outwards until the material is tight. Tighten the
clamp back up. Repeat on both sides and
middle, adjust the height if necessary.
