Intenda Coprivasca Quick start guide

INSTALLATION, USE AND
MAINTENANCE
COPRIVASCA
INTENDA S.r.l.
Via V. Pareto, 3
37045 S. Pietro di Legnago (VR)
Tel [phone] – 600270
Fax [phone]
http://www.intenda.it - e-mail: [email protected]

2
TABLE OF CONTENTS
1. GENERAL INFORMATION..………………………………………………………...……......3
1.1 Introduction.…………………...………………………………………………………..….…..3
1.2 General precautions regarding the use of the product.………………………..................4
1.3 Structure of the manual……………………………………………..………………………...4
1.4. Product identification...………………………………………………………………………..5
1.5. Warranty………………………………………………………………………………………..6
2. BOX DESCRIPTION AND TECHNICAL SHEET….………………………………...........7
2.1 General description..……………………………………………………………………….....7
2.2. Components……………………………………………………………………………………7
2.3. Fabric’s characteristics…………………………………………………………………........8
3. INSTALLATION..………………………………………………………………………..........8
3.1 Handling and transport………………………………………………………………............9
3.2 Place and requirements for the installation …….………………………………………....9
3.3 Installation…..……………………………………………………………………………....…9
3.3.1 Package opening………………………………………………………...............................9
3.3.2 Box installation……….…………………………………………………………...….………10
4. GENERAL PRINCIPLES OF SECURITY…………………………………………………17
5. BOX UTILIZATION……………………...…………………………………………………..18
6. CHECKS AND MAINTENANCE……………………..…………………………………….20
6.1 Ordinary Maintenance……………………………………………………………………... 21
7. DISASSEMBLY………………………………………………………………………….…..22

3
1. GENERAL INFORMATION
1.1. Introduction
This manual is an integral part of the product; it is addressed to the installer and to the final
user of the box, and enables a correct installation and use. For this reason, it must be hold
with the box until proper disposal.
In this manual you will find the instructions to:
•correctly install the box
•understand the functions of the box and of the whole thereof
•correctly do the box scheduled maintenance processes
•take care of the basic safety rules
ATTENTION: the installer and the final user must read the whole manual in each part of it.
Keep this manual in a safe and accessible place.
Before using the box, please read carefully the technical information contained in this
manual and follow them strictly.
The manual must be kept with care, disseminated and made available to all interested
persons. In harmony with the overall design of the structure, the manual was created in full
compliance with the directives of the European Community.
This manual contains the main information indicated in the index, it is an integral part of the
Box and must be kept with care until the final dismantling of the structure itself in order to
allow reference for future updates. In the event of damage that makes the copy of the
manual in its possession unusable, the user can request a copy from Intenda S.r.l.,
specifying the type of structure, the serial number or order shown on the nameplate of the
structure itself.
No responsibility is assumed for translations into other languages which do not conform to
the original meaning.
This manual reflects the state of the product at the time of supply and cannot be considered
inadequate only because it is subsequently updated on the basis of new studies or
experiences. You will receive, in the future, revisions or updates to integrate and consider.
Intenda S.r.l. reserves the right to update production and manuals without the obligation to
update the production and previous manuals and without the obligation to inform users of
the equipment previously supplied. The notification of proposals for updating the manual
and / or the machines are in any case to be considered a courtesy. The customer
assistance service is however available to provide, upon request, information on the
updates that Intenda S.r.l. made to the products.
This manual has been created in order to provide the user with a general knowledge of the
product and the maintenance instructions deemed necessary for its proper functioning.
Before proceeding with functional operations, maintenance and repairs, carefully read the
Manual. It contains all the information necessary for the correct use of the product and to
avoid accidents. The control and maintenance frequencies prescribed by the manual are
always intended as the minimum necessary to ensure the efficiency, safety and durability of
the product in normal working conditions. The surveillance must in any case be constant
and prompt action must be taken in the event of anomalies.
WARNING: Any modification or tampering, not authorized by the manufacturer, to the
product and to the safety or structural systems, cancels any responsibility of the
manufacturer with regard to CE conformity.

4
1.2. General precautions regarding the use of the product
These indications are part of the normal behavior that workers must have towards the
product and therefore in the design and construction of the product, the manufacturer
considered them known to the tenant. It is the user's task to inform (by delivering this
manual) and train the employees (users and maintenance technicians) so that these
indications are brought to the attention of the staff who will work with the structure.
- Always use anti-cut gloves when closing or opening the structure, during adjustments or
maintenance (described in the following chapters). When finished, wash your hands with
soap and water.
- Immediately clean any accidental contacts of corrosive products that come into contact
with the structure to avoid rapid deterioration.
- Do not allow unauthorized personnel to work with the equipment.
- Before using the equipment, make sure that any dangerous to safety conditions have
been properly eliminated.
- Make sure that all the guards and other protections as well as the structural fixings are in
place and that all the safety devices are present and efficient.
- Make sure that there are no foreign objects in the sliding area of the structure.
- Individual protection devices must be used such as:
o Safety clothing
o Safety shoes
o Cut resistant gloves
The protection systems must be used in the following phases:
- Structure maintenance operations (cleaning, checking or adjustment)
- Operating operations (closing and opening)
1.3. Manual structure
This manual consists of eight parts which contain:
1. GENERAL RULES AND WARNINGS, useful premises for using and understanding the
manual;
2. GENERAL INFORMATION, useful premises for identifying the box;
3. TECHNICAL DATA, information on the characteristics of the box;
4. OPERATING INSTRUCTIONS, interface for the safe use of the box;
5. MAINTENANCE, advices and recommendations;
5. DEMOLITION AND DISMANTLING OF THE STRUCTURE, instructions and
recommendations;
7. SPARE PARTS, detailed list of the parts that make up the box.

5
The user manual makes use of the following typographical conventions:
Symbol Indicates
Note
WARNING 
ATTENTION

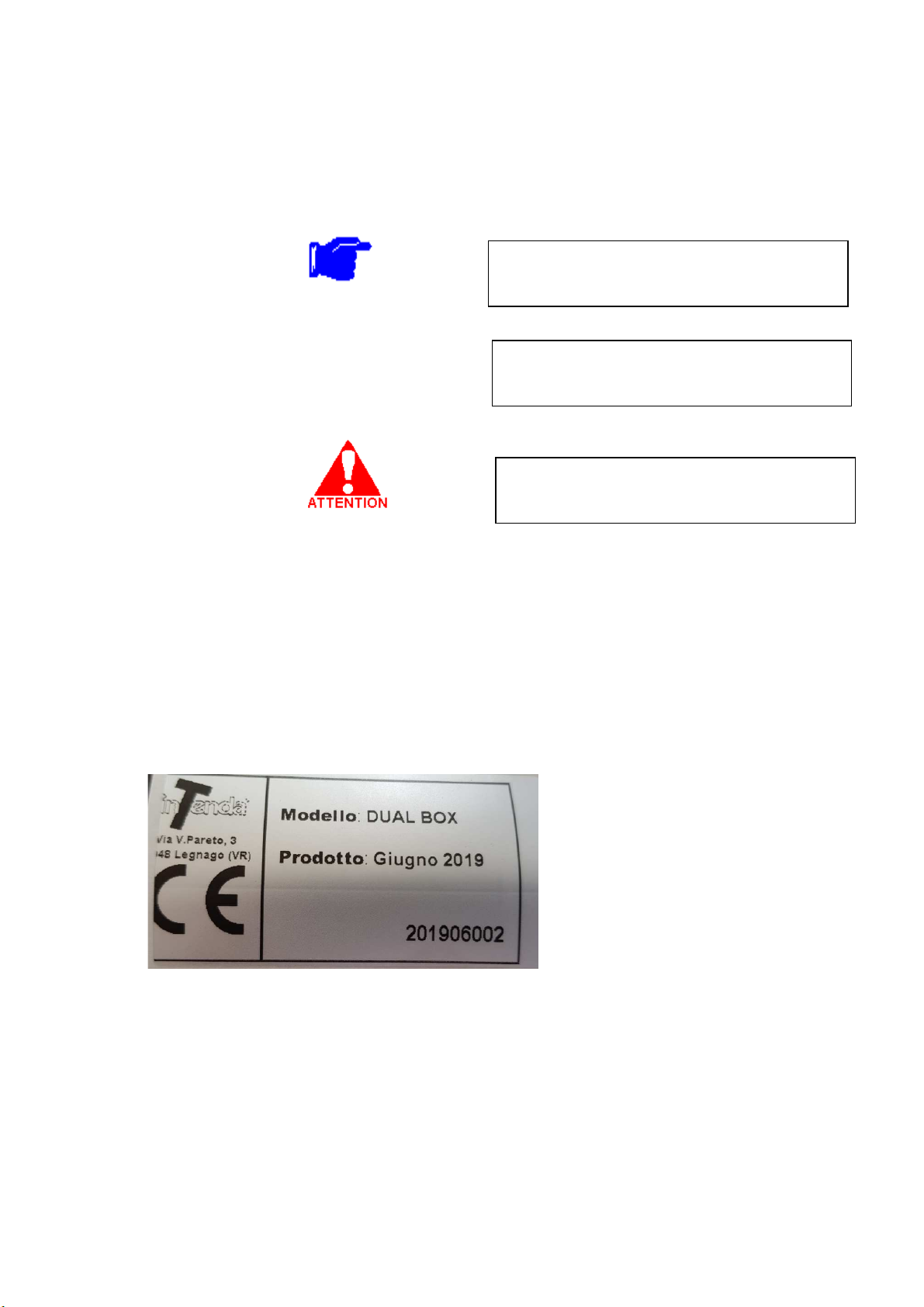

1.4. Product identification
The physical identification record is the silk-screened and stamped plate which contains the
details to be cited, in case of need, to the company Intenda S.r.l . This plate is the only one
recognized by the manufacturer as a means of product identification. For no reason the
data shown on the product can be altered. A reproduction of the plate is shown in the
following drawing.
Notes contain important information
highlighted outside the text. Pay close
attention.
Warning messages contain procedures,
indicated in the manual, that failure to observe
can result in equipment damage.
The ATTENTION messages indicate the
particular procedures whose failure to comply
can damage the operator.

6
1.5 Warranty
Intenda’s products are guaranteed as by law, with effect from the date stated on the invoice.
During this period INTENDA S.r.l. will remove in an appropriate time all vices and defects of
the materials and/or of the building process, only if the box:
•has been installed by qualified workers
•has been used correctly, following the conduct and maintenance indications contained in this
manual
•has not been subjected to natural disasters
To remove the defects found out during the warranty time:
•the costs of working time and transport are at the expense of the dealer
•the costs of spare parts are at the expense of INTENDA S.r.l.
Warranty is meant to be ex works Legnago (VR). All the tools and optional parts eventually
supplied by the dealer are not subject to the warranty.
In the box building process INTENDA S.r.l. uses materials and mechanisms of suitable type,
state and quality, at its own discretion; even after the receipt of the order, INTENDA S.r.l. can
make substantial changes or appropriate improvements at its own discretion.
Slight colour differences, folds or “partridge’s eyes” in the PVC clothes should not be
considered defects, but features of the article.

7
2. BOX DESCRIPTION AND TECHNICAL SHEETS
2.1. General description
The box must be used only as an ordinary protection cover, for purely temporary use. In
case of bad weather conditions (wind, snow), the box must be removed. Given that the box
can not be fixed to the ground - but only bound to it - its use in these conditions can cause
damages to people and things.
It is particularly important for safety not to hang or apply any type of load at the structure or
at the top cover of the box.
In particular, children must not handle the structure. The failure to respect the conditions of
use and warnings immediately voids the warranty.

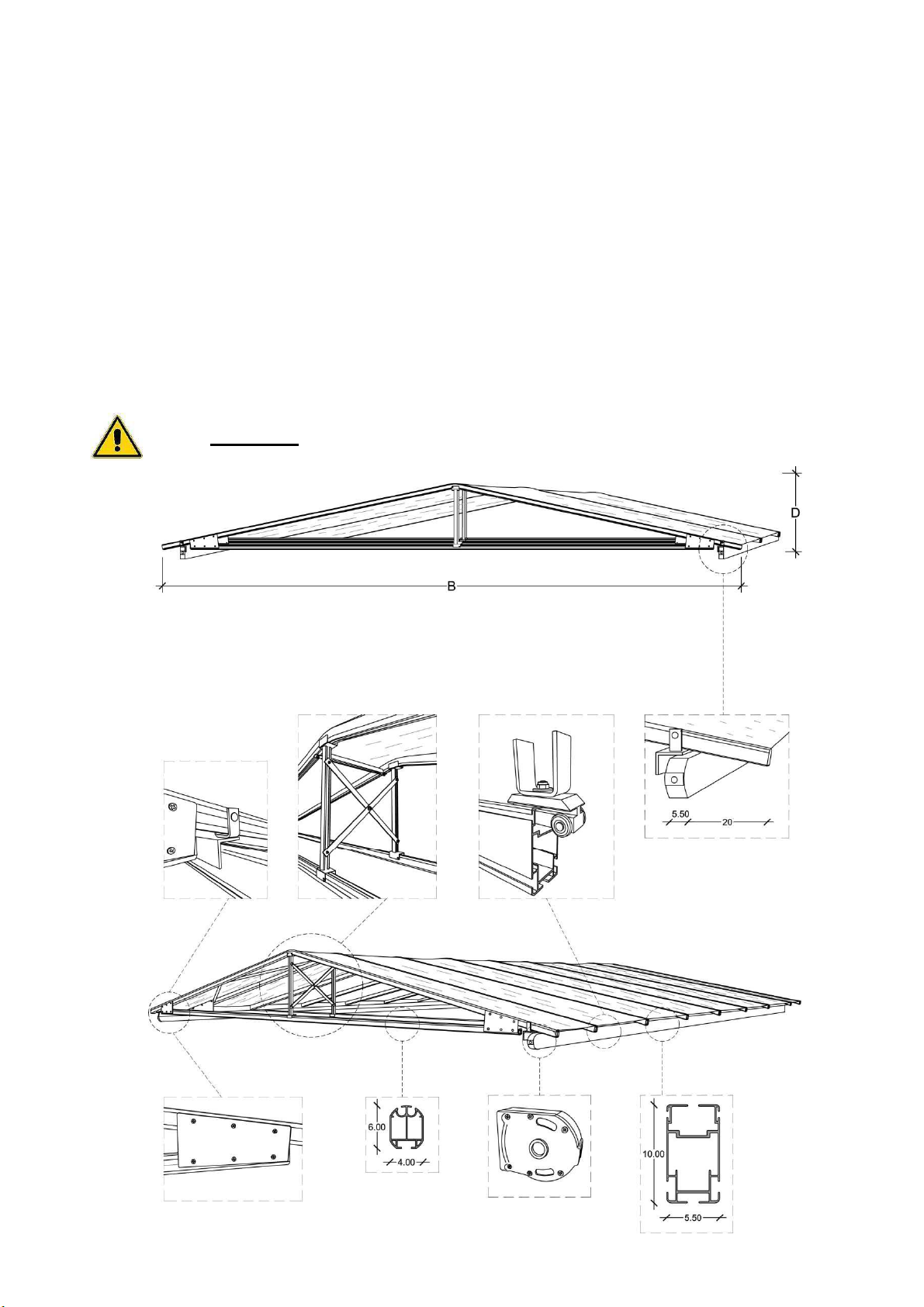

2.2. Components
ATTENTION: The Coprivasca must be installated at a minimum height of 240
cm from the ground.

8
2.3. Fabric’s characteristics
PRECONTRAINT 705
Fabric Warp: 100% PES/1100 Dtex HT
Weft: 100% PES/1100 Dtex HT
Fabrics Weight Ca 670 gr/m
2
Finishing lacquered gleaming on both sides
Breaking strength Warp: ca. 250 DaN/5 cm
(EN ISO 1421) Weft: ca. 250 DaN/5 cm
Tear Strength Warp: ca. 25 DaN
(DIN 53363) Weft: ca. 25 DaN
Grip (ISO 2411) 10 DaN/5 cm
Temperature Resistance +70° C /-30° C
3. INSTALLATION
ATTENTION: Intenda S.r.l. recommends a preventive investigation by a competent
technician, for a detailed analysis of the urban planning regulations in force in the
installation area of the box. The manufacturer assumes no responsibility for
installations in areas (floors) not suitable for supporting the static and dynamic loads of
the structure or in areas where the stresses deriving from atmospheric phenomena can
cause permanent damage to the structure. The manufacturer assumes no
responsibility for installations in areas regulated by specific urban planning regulations.

9
3.1 Handling and transport
The box installation should only be done by qualified staff.
The products must be unloaded through appropriate lifting equipment, which must be used only by
authorized staff. If the unloading operation is made by hand, it is important to consider that the weight
limit that each male person can handle is 25 Kg; moreover, the operators should be equipped with
gloves and safety shoes.
3.2. Place and requirements for the installation
Before the arrival of the installers the user must arrange:
•any permits required by local regulations;
•appropriate ground.
3.3. Installation
Before starting the installation, if electrical equipment utilization is needed:
•make sure you do not work in wet areas;
•use only intact extension cords, according to the place of use;
•use shoes with rubber soles;
ATTENTION: It is necessary for the operators to use appropriate personal protective
equipment such as safety shoes and gloves, in order to avoid injuries caused by the fall of
the packaging or of components that it contains, perforation and cutting due to cutting or
hanging parts
3.3.1. Package opening
Packaging must be opened only with scissors with rounded tips, using the best care not to
cut the cloth of the article (Photo 1).
Photo 1
NOTE: The packaging material disposal is at user’s charge, who will perform it in
accordance with existing environmental norms.

10
3.3.2. Installation of the box
The box should be installed according to this instruction:

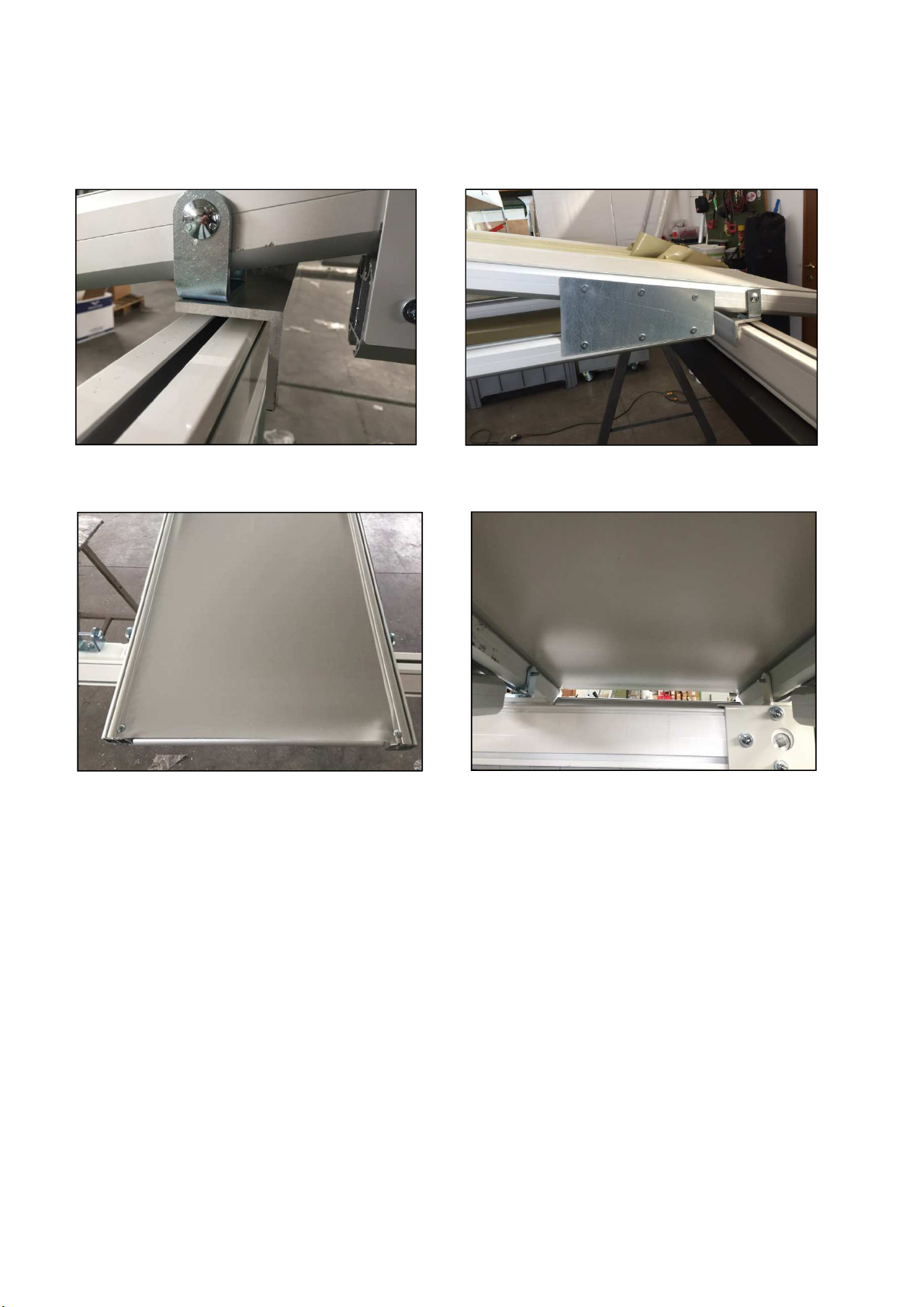

- Join the rails with their drilled joints (photo 2, 3, 4);
Photo 2 Photo 3
444
Photo 4
NOTE: Before being fixed, the rails should be positioned parellel and on a flat surface

11

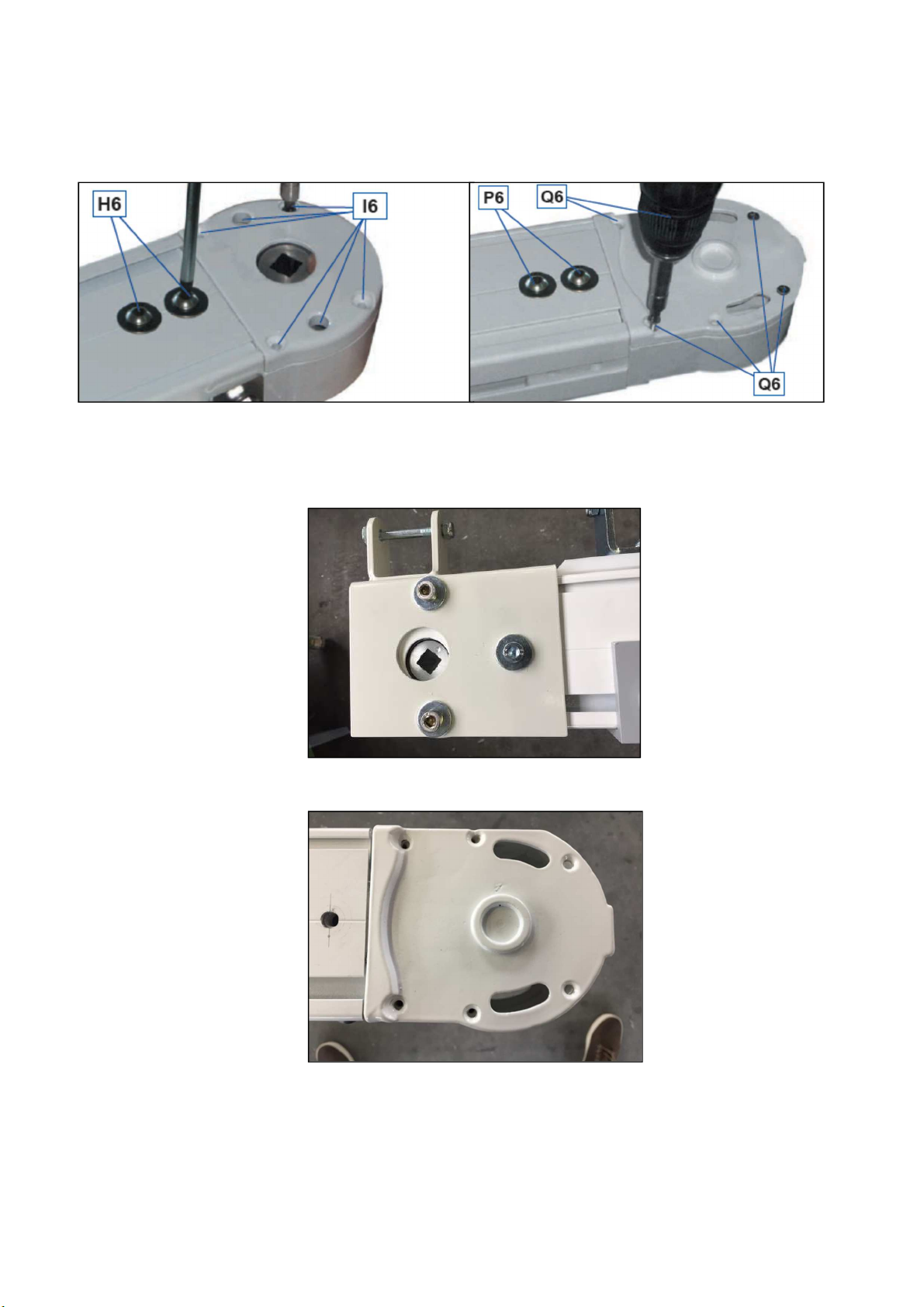

- Open the heads A and B (photos 5, 6, 7 and 8)
Photo 5 Photo 6
TESTATAA
TESTATA A
Photo 7 Photo 8
TESTATAB
TESTATA B

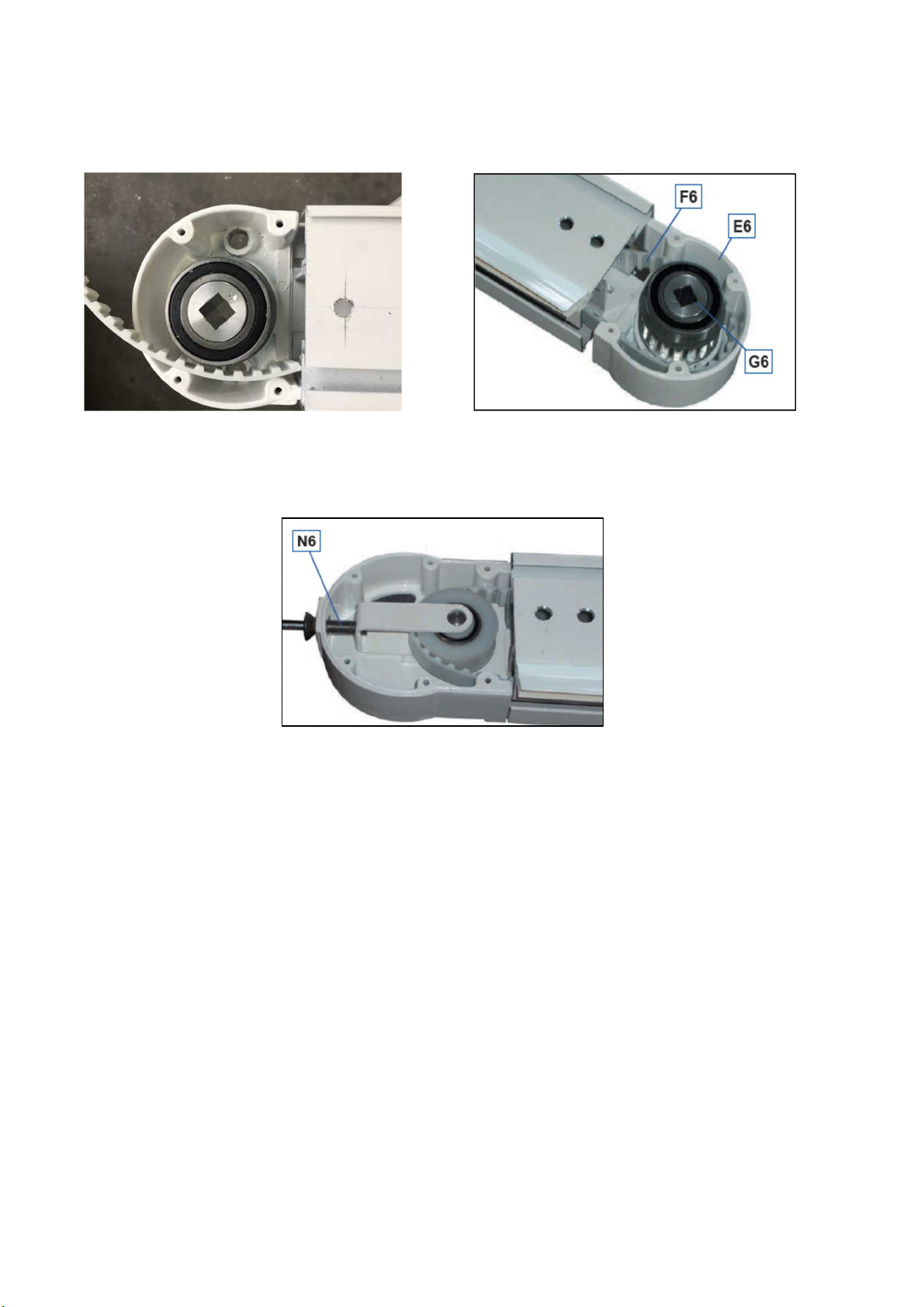

- insert the belt in the rails; the two heads of the belt should exit on the same side (photo 9 and 10);
Photo 9 Photo 10

12
- insert the belt in the ferrule (photo 11 and 12);
Photo 11 Photo 12
- insert the belt in the wheels (photo 13);
Photo 13

13
- join the belt under the carriage with a plate and then insert the carriage in the rail
(photo 14,15, 16 and 17);
Photo 14 Photo 15
Photo 16 Photo 17
- move the belt on the wheel (photo 18,19);
Photo 18 Photo 19

14
- close both heads A and B (photo 20,21 and 22);
Photo 20 Photo 21
- stretch the belt using an allen key (6mm), operating on the hole on the head B (photo 22, 23);
Photo 22
Photo 23

15
- proceed with the installation as you will see in the following photos (from 24 to 31);
Photo 24 Photo 25
Photo 26 Photo 27

16
Photo 28 Photo 29
Photo 30 Photo 31

17
Finally, the structure can be fixed to the basement through appropriate anchorage systems.
ATTENTION: other installation ways which are not contained in this manual are not allowed, if not
previously authorized by INTENDA S.r.l.
ATTENZIONE: the box must be fixed to the ground or to a wall. The installer must verify the ground type
and conditions and choose the appropriate anchoring system, also considering the typical
meteorological conditions of that particular place (strong wind,…).
ATTENZIONE: The Coprivasca must be installed at a minimum height of 240 cm from the ground.
4. General safety principles
It is recommended to follow the safety requirements indicated on the structure and into the installation manual. Do
not remove or modify the safety devices. The utilization of the product should be in accordance with the producer
indications.
Thesafetyindicationsdoesnotrefersonlytonewproducts,butalsotoalreadyusedproducts.
It is strictly recommended to follow the safety principles descripted in this installation
manual,inordertopreventfaults inthefuctioningoftheproduct.
It is strictly recommended to follow the maintenance and inspection
programs as decribed in this manual.
WARNING 
NOTE

18
It is useful to explain the correct meaning of some terms used in this manual:
“Dangerous areas”: any part of the box which can damage a person during handling of the structure.
“Exposed person”: any person who stands entirely or partially near a dangerous area of the box.
“Operator”: the person in charge of the handle and maintenance of the box.
The box should be only used by trained staff. These people should know the features of the product, and
should be informed about the indications contained in this manual.
INSTALLATION AREA
The structure can be opened and closed by manual handling, by pushing it to the back. The handling
operations should be always done on the ground. Any folding operation from a raised position it is strictly
forbidden. The closure of the box should be always done by one person.
5. BOX UTILIZATION
Before using the Box you need to check that installation and ground fixation operations have been carried
out properly.
ATTENTION: check that the structure is not damaged or deformed, and that no one of the component
is broken.
5.1Box mobile
•Opening of the structure:
-Pull the frame until the structure will be fully stretched
-Move the tension bar placed between the crosses in horizontal position
-Link the internal streching devices to the pegs with eyelet placed on the ground; then, put in
tension the structure through the stretching device.
The structure should be tensioned at the same degree on both sides

19
To avoid damages or structural instability, it will be necessary to close the structure on itself in case of
important atmospherical events (rain, wind and snow).
•Closure of the structure:
-Unfasten the steel tension bar placed between the stell crosses;
-Push the frame until its complete closure.
a. Not allowed uses
The product should be used for the purposes declared by the constructor.
In particular, the box must not be used:
- without PVC awnings
- with missing/broken safety and fixing devices
- in explosive atmosphere, or in place with potential fire hazard
- to contain materials with non-conforming measures, or materials which protude from the structure
- in adverse weather conditions; in these situations (strong wind, rain, snow), it is necessary to fold up
the box
- in dangerous conditions, if the structure appears damaged or not functioning
- for unproper uses and/or by unskilled people
- for purposes which are contrary to the norms

20
- in case of severe maintenance deficiencies
- in case of unauthorized modifications of the product
- with total or partial non-compliance with the instructions
It is not possible to use the box in conditions of strong wind and/or snow.
In order to use the product during these adverse conditions, a written declarations by Intenda is
needed.
Every modification of the product which changes the functionalities of the box and subsequently modify the
risks, have not been authorized by the constructor.
These kind of changes, if not authorized by the constuctor, will cause the decay the warranty and will invalid
the declaration of conformity of the product.
b. Residual Risks
According to its own knowledge of the product, the constructor declares that the following dangers may
occur:
- Unusual vibrations of the structure
- Cutting, shearing, hitting of the operator by the mobile components during the handling of the box
- Slipping or trippling of the operator during the installation process
- Breaking of the restraining elements during unfavourable wind; in this case, there is the risk for every
exposed person to get hit by the stucture
- Structural loss of stability, if the prescription previosly indicated will not be respected
6. Checks and maintenance
It is necessary to periodically check the general state of the structure, of the connections between the
various components, of the and the PVC awnings.
The PVC awning can be washed with mild soap and then rinsed with water only.
After the cleaning, the PVC shall be well dried before fold, in order to avoid the creation of moulds,
The checks and maintenance frequency indicated below is to be considered as the minimun interval to
grant efficiency, security and durability of the product of the product in normal use situations.
A constant supervision is reccomend, in order to act promptly in case of anomalies.
Ordinary maintenance, checks and lubrification operations must be done after the frame has been
uninstalled.
ATTENTION: Every modification or manomission which has not been previosly authorized by the
constructor, will cause the dacay of every responsibility of the constructor on the product conformity.
The constructor suggest to constantly control the box, making the scheduled checks, and prompt act in
case of anomalies, unusual damages or breaks.
